Photographed homes may reflect modifications from original design. Reference floor plans and renderings for accuracy.

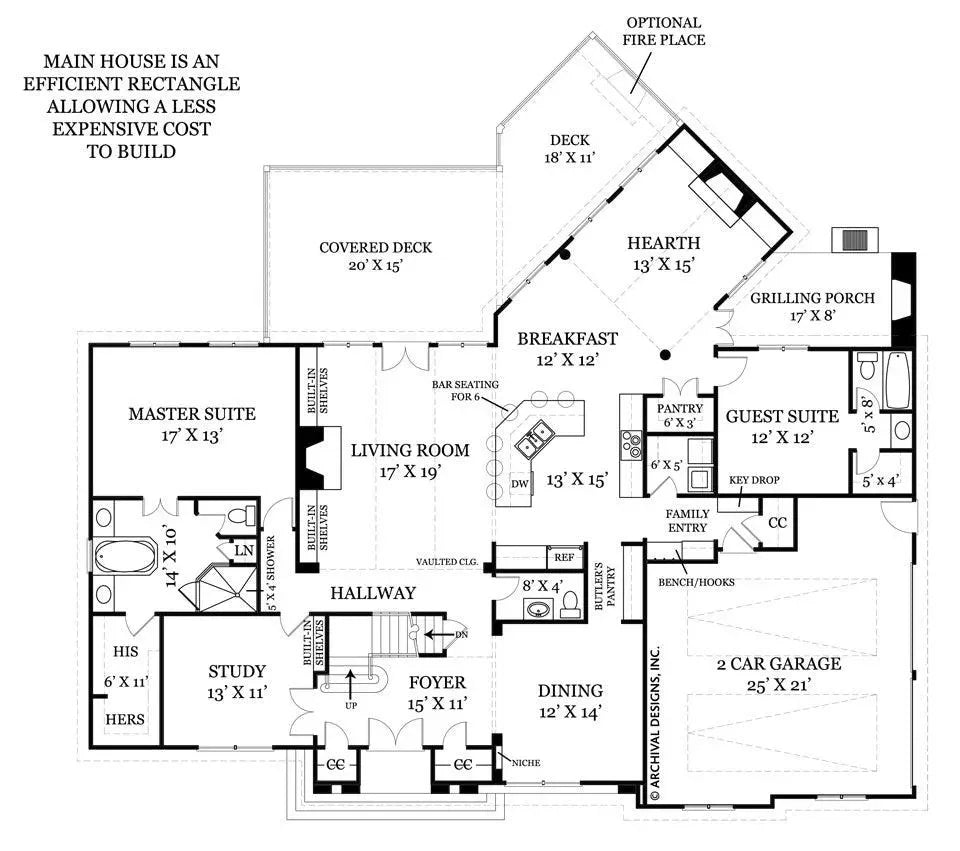

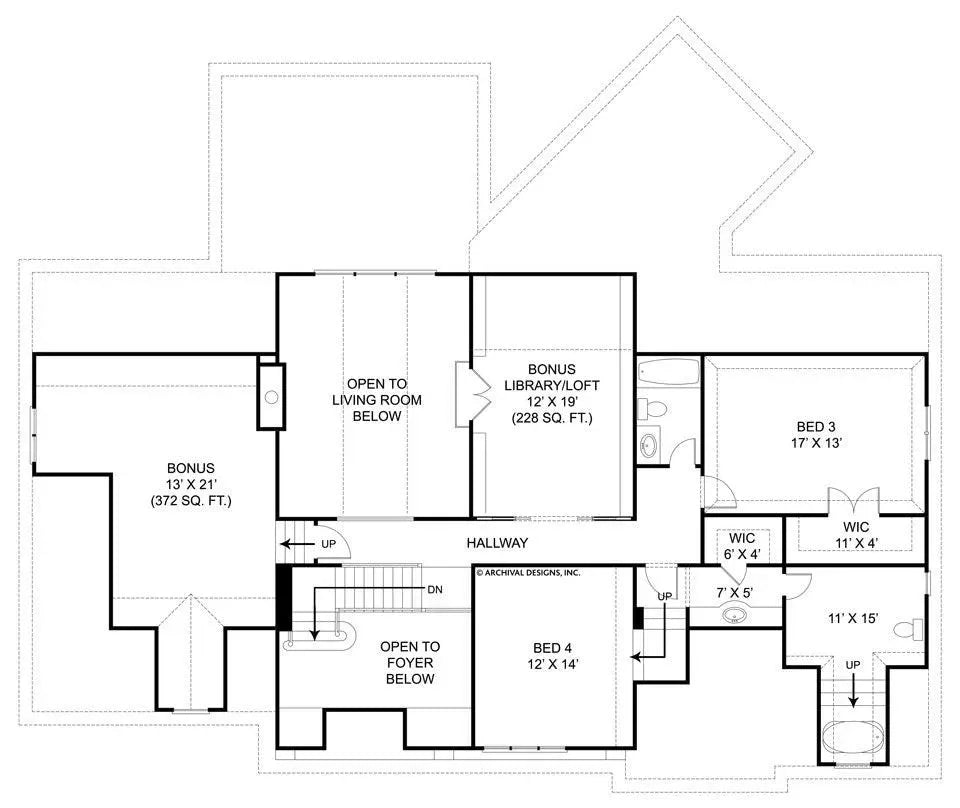

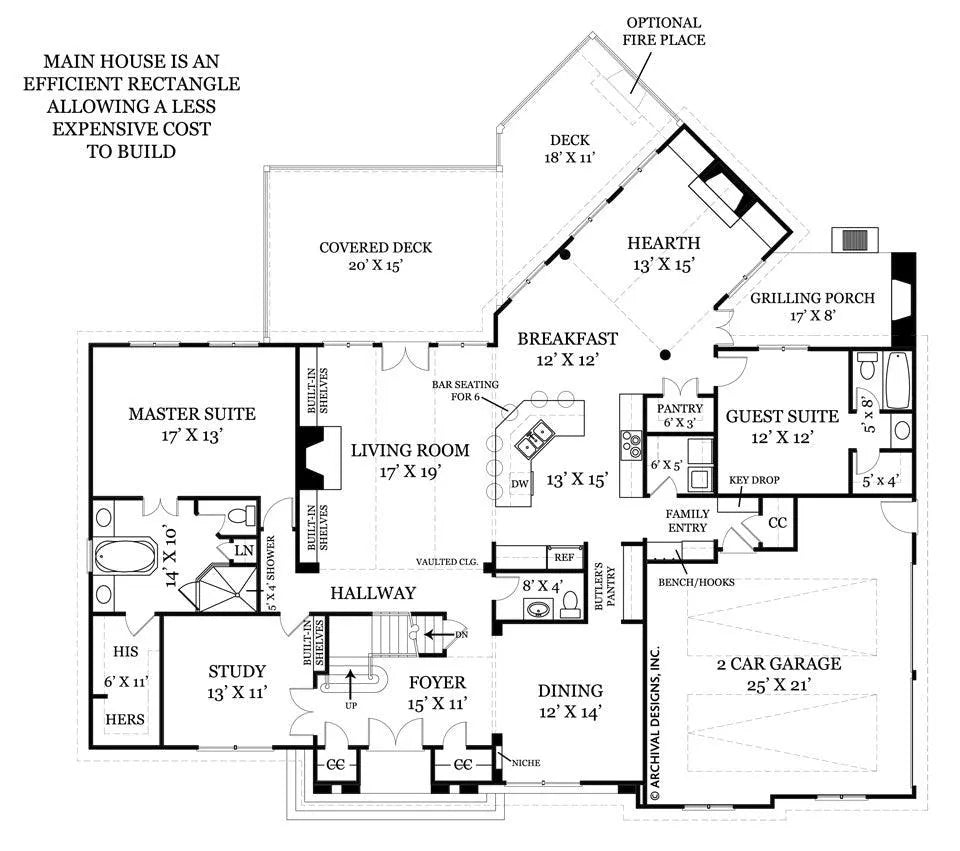

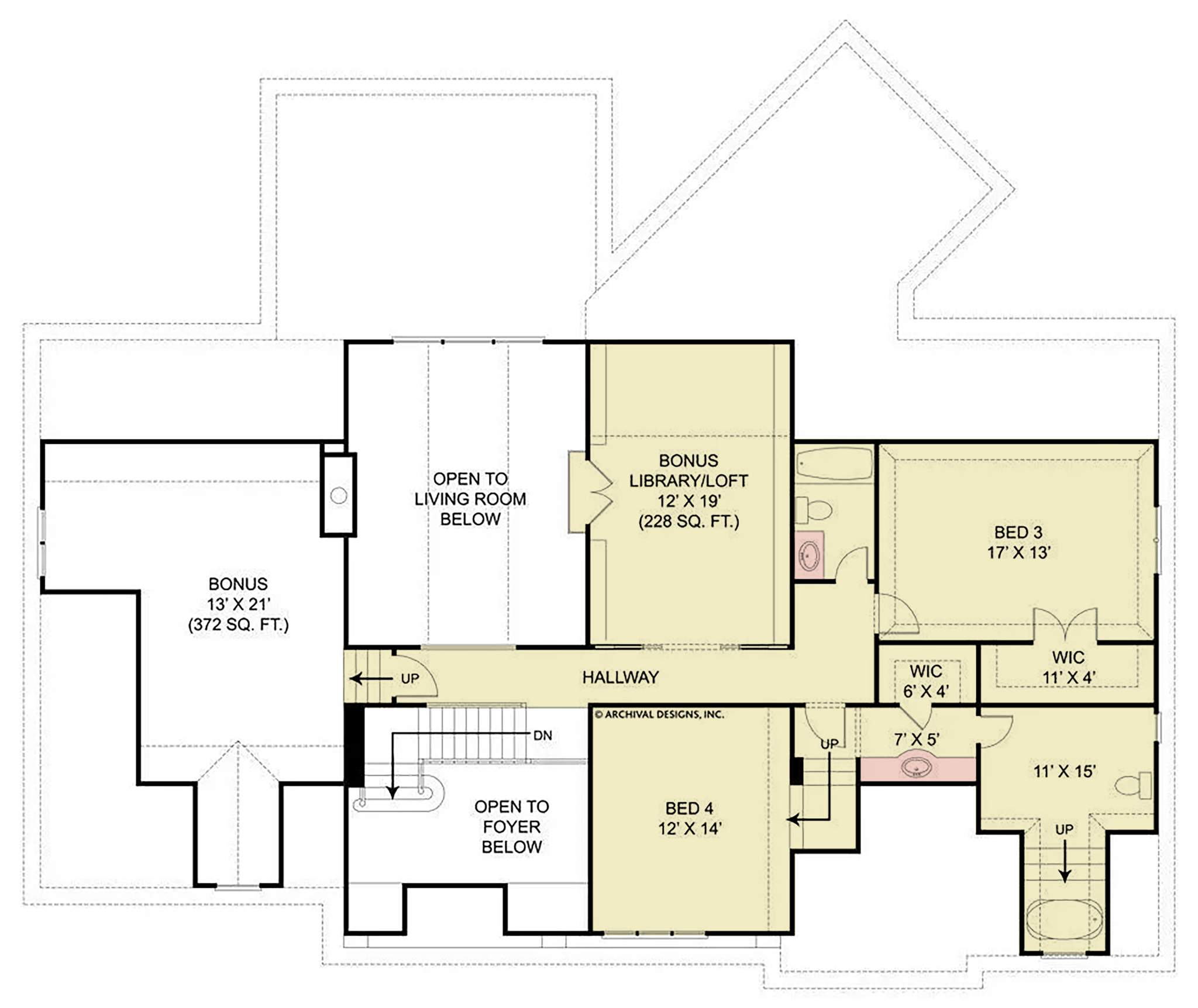

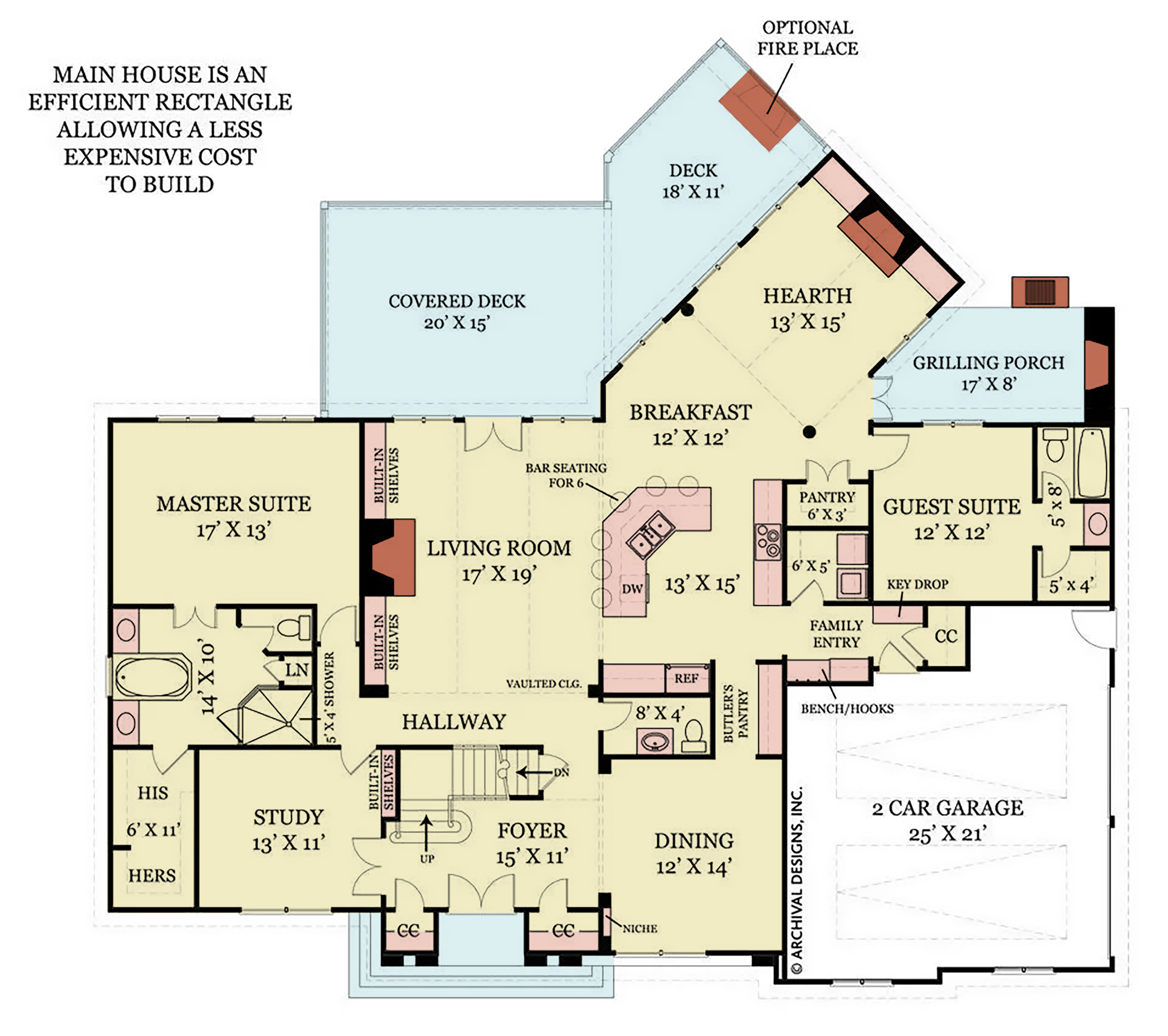

Main Level – (click floor plan to reverse) Second Floor – (click floor plan to reverse)

Chesterfield House Plan

4 Bedrooms • 4 Full Baths • Walkout Basement Foundation
$1,695.00
Maximum quantity available reached.

HOUSE PLAN SPECS

  • Total Living:  3432 sq. ft.
  • 1st Floor:  2310 sq. ft.
  • 2nd Floor:  1122 sq. ft.
  • Bonus Room:  374 sq. ft.
  • Bedrooms:  4
  • Bathrooms:  4
  • Half Bathrooms:  1
  • Width of House:  70'
  • Depth of House:  58'
  • Foundation:  Walkout Basement
  • Basement:  2044 sq. ft.
  • Number of Stories:  2

  • Building Height:  33'
  • Garage Bays:  2
  • Garage Load:  Side
  • Ceiling Heights:

  • First Floor:  9'
  • Second Floor:  8'
  • Basement:  9'
  • Trey Height:  10'
  • Vault Height:  12'
  • Key Features:

  • Bonus Room
  • Butler's Pantry
  • Deck
  • First Floor Master Suite
  • Great Room
  • Home Office/Study
  • Kitchen Island
  • Mud Room

House Plan Description

Reminiscent of a cottage home on Mackinaw Island or some other exclusive enclave, the columned portico is tall enough to showcase the large transom lights and make the interior bright and sunny. The layout of this multigenerational house plan is efficient: a welcoming foyer leads to the large two-story living room, with a fireplace and deck access. The master suite and bath are located on the first floor along with the study and an in-law or guest room. Two bedrooms share a full bath upstairs. There's also room for a library or loft, plus additional bonus space, making this a home for comfortable everyday enjoyment and casual entertaining.
