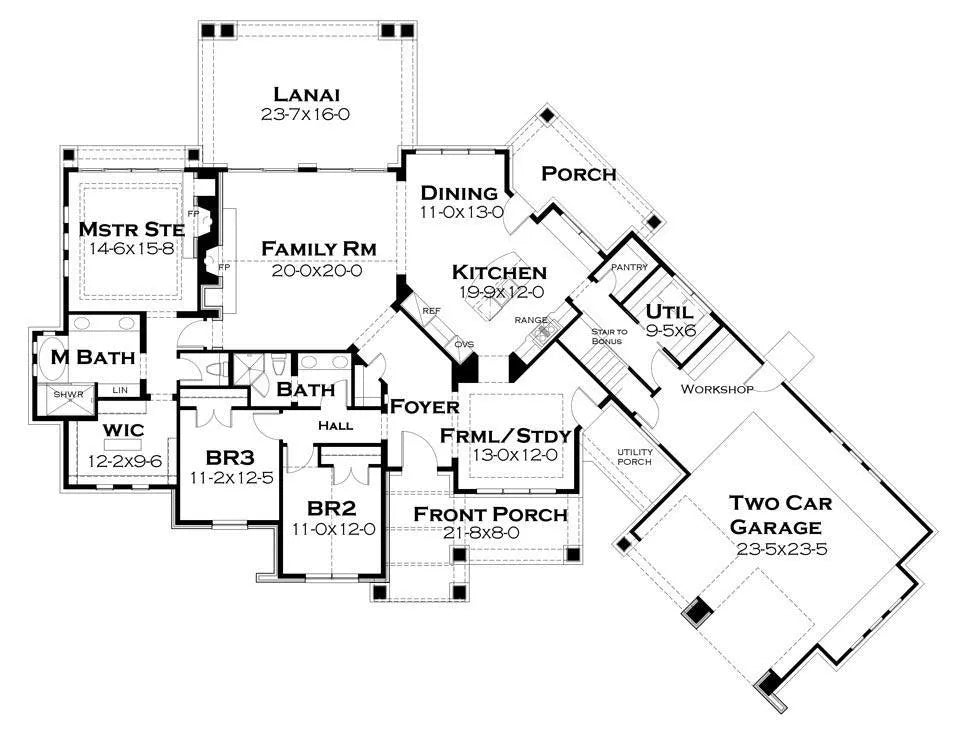

Enjoy summer evenings on your spacious Lanai easily accessed by large sliding doors from the family area. This open floor plan house design allows easy entertaining with a large kitchen with eating/serving island that seamlessly flows into the dining and family room.
The master suite enjoys dual vanities, an oversized shower and tub, a large walk-in-closet with built-ins and private toilet.
Secondary bedrooms as well as the master suite are all provided with 36" wide doors allowing HC accessibility.
A formal dining area open to the foyer can easily be converted to a private home office or another guest room.

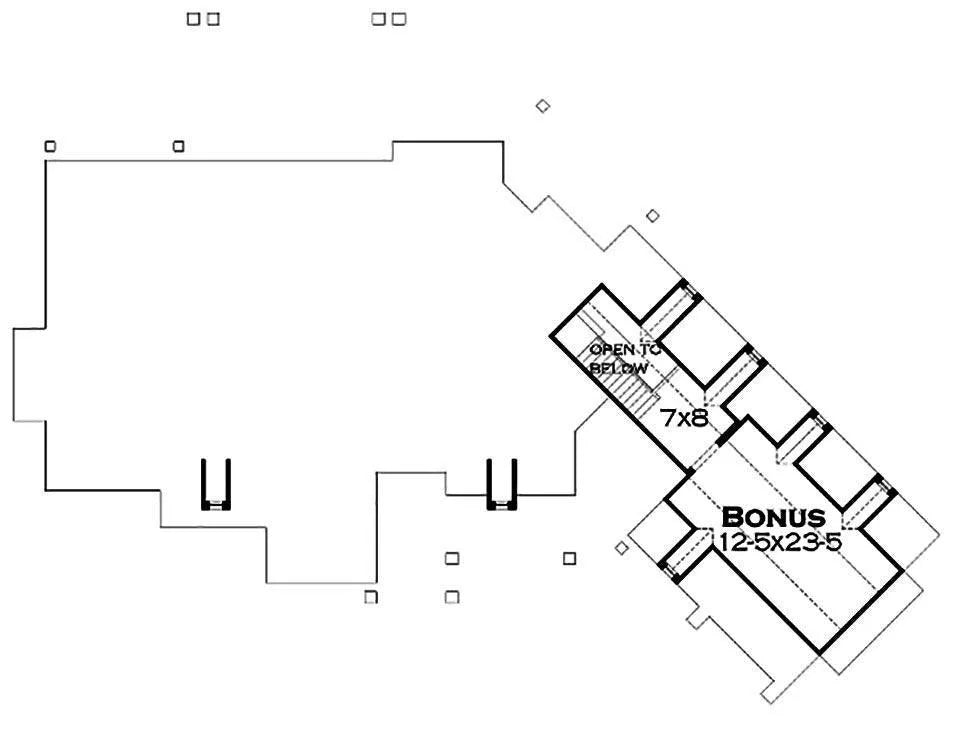

A corridor between the kitchen and garage leads to a large bonus room and to a roomy laundry room and pantry.
Rough sawn trusses, tapered columns and bracket details are just a few of the exquisite details of this wonderful ranch house plan.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
