Crystal Falls House Plans
4.8
Plan Number:
B168-A

Crystal Falls House Plans

Rated 4.8
Plan Number:
B168-A
Or order by phone: (888) 890-2353
Safe and Secure
LOW PRICE GUARANTEE
Floor Plan

Imagine traditional architecture wrapped around modern-day needs for efficiency and function.

A cozy front porch provides entry into a spacious foyer which is flanked by a circular stair and formal dining area. A butler's pantry assists a large gourmet kitchen which includes a walk-in pantry, commercial range, built-in refrigerator, and large cooking island.

The family room provides views to the rear and right through a wraparound porch. The lanai makes a great place to sit and enjoy the pool or BBQ.

A convenient yet private master suite also shares views to the rear and the master bath boasts a very large walk-in closet, as well as an oversized shower with seat. The large linen closet is one of a number of great storage areas throughout this home.

The Crystal Falls craftsman house plan boasts a utility room located for maximum efficiency of the main occupants while allowing access to from other parts of the home and providing exterior access for muddy days.

The bonus room is isolated for noise reduction and will make a great room for entertaining or even an additional bedroom suite.



Crystal Falls House Plan (B168-A)

Key Benefits:

  • Southwestern Style: A unique design offering stylish living space.
  • Open-Concept Layout: Great room, kitchen, and dining areas flow together seamlessly.
  • Master Suite: Includes a walk-in closet and an en-suite bathroom.
  • Outdoor Living: Features a covered porch and patio for outdoor activities.

Square footage: 2984

House Plan Specifications

  • Total Living (heated area):  2984 sq ft
    1st Floor:  2459 sq ft
    2nd Floor:  525 sq ft
    Bonus Room:  605 sq ft
    Lanai:  929
  • Garage:  1153 sq ft
    Garage Bays:   3
    Garage Load:   Side
  • Bedrooms:   3
    Bathrooms:   2
    Half Bathrooms:   1
  • Foundation:   Slab
    Wall Framing:   2x6
    Roof Framing:   Stick
    Roof Pitch:  12:12
  • Width of House:  105'6''
    Depth of House:  75'6''
    Building Height:  34'
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  9'

Key Features

  • Bonus Room
  • Breakfast Area
  • Butler's Pantry
  • Covered Front Porch
  • Fireplace
  • First Floor Master Suite
  • Formal Dining Room
  • Home Office/Study
  • Keeping/Family Room
  • Kitchen Island
  • Laundry 1st Floor
  • Laundry Access from Master
  • Master Bath-Double Vanity Sink
  • Mud Room
  • Open Floor Plan
  • Split Bedroom
  • Two-Story Grand Room
  • Vaulted/Volume Ceilings
  • Walk-in Closet
  • Walk-in Pantry
  • Workshop
  • Wraparound Porch
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: B168-A
Crystal Falls House Plans
3 Bedrooms
2 Full Baths
1 Half Baths
2984 SQ FT
2 Stories

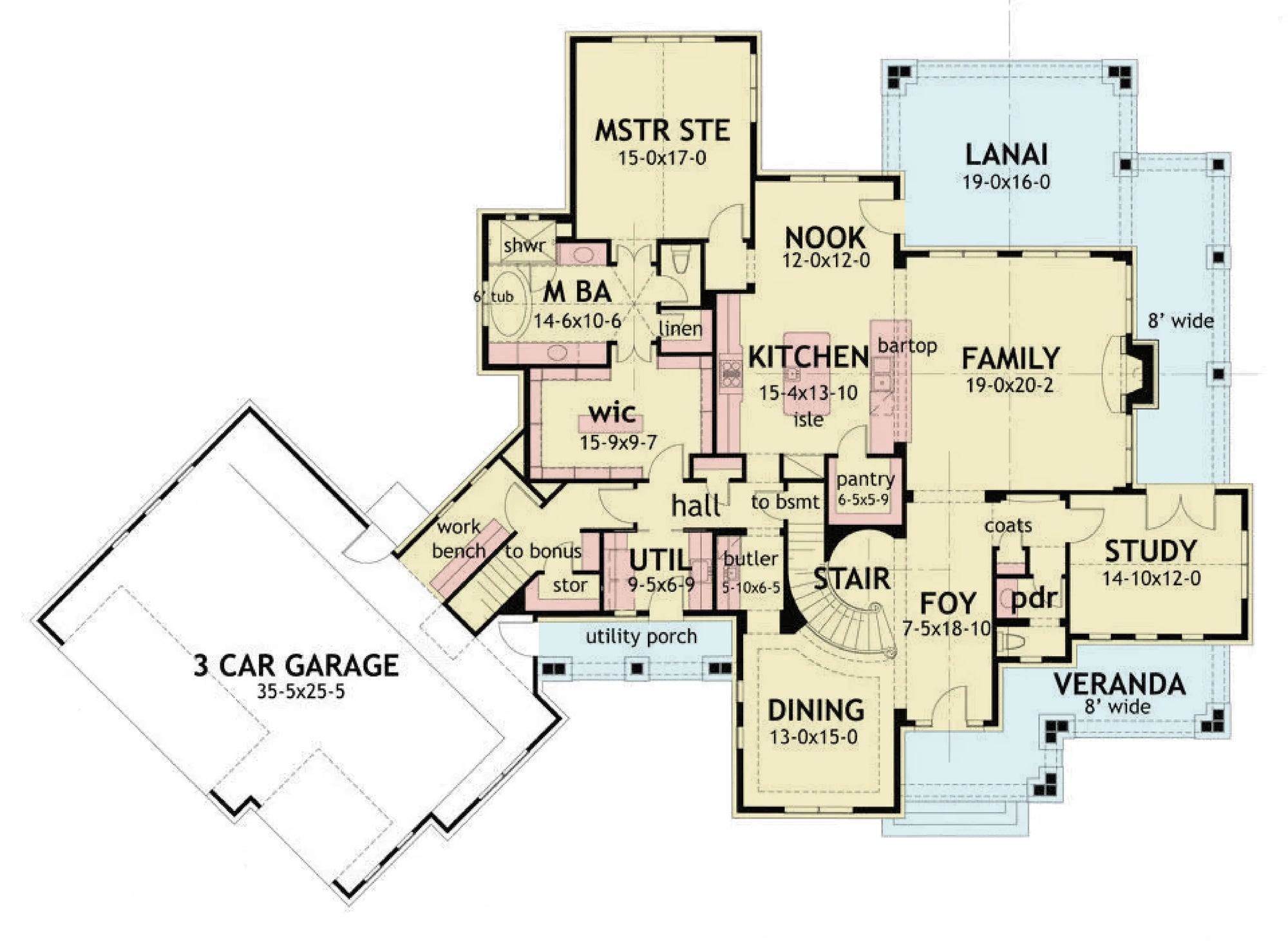

Main Level

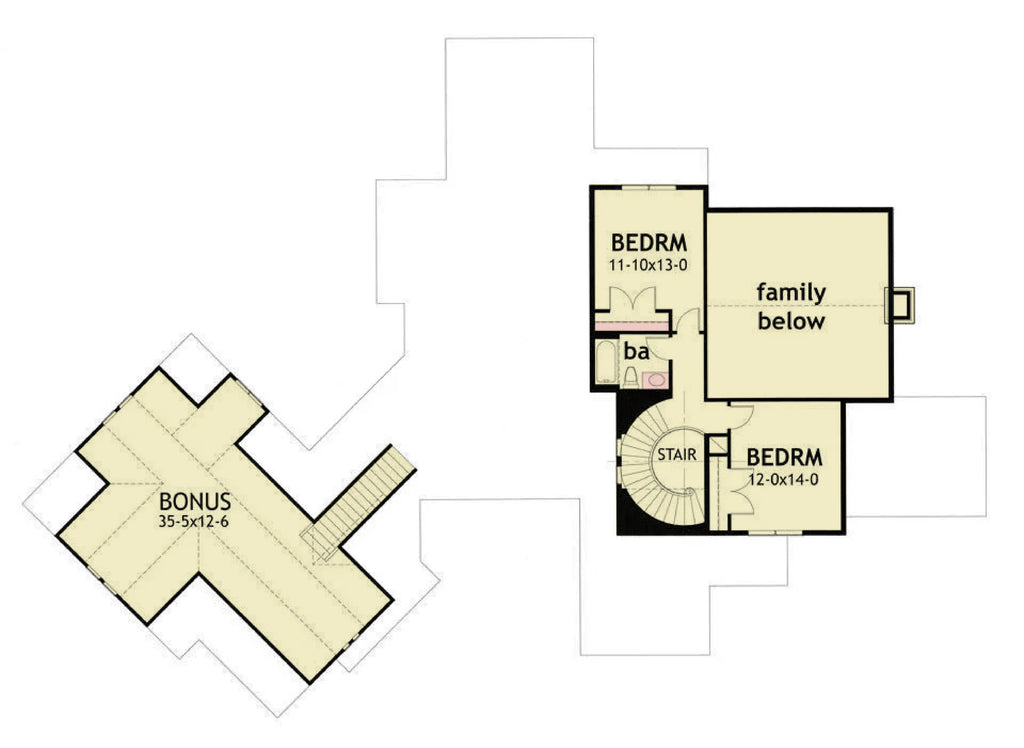

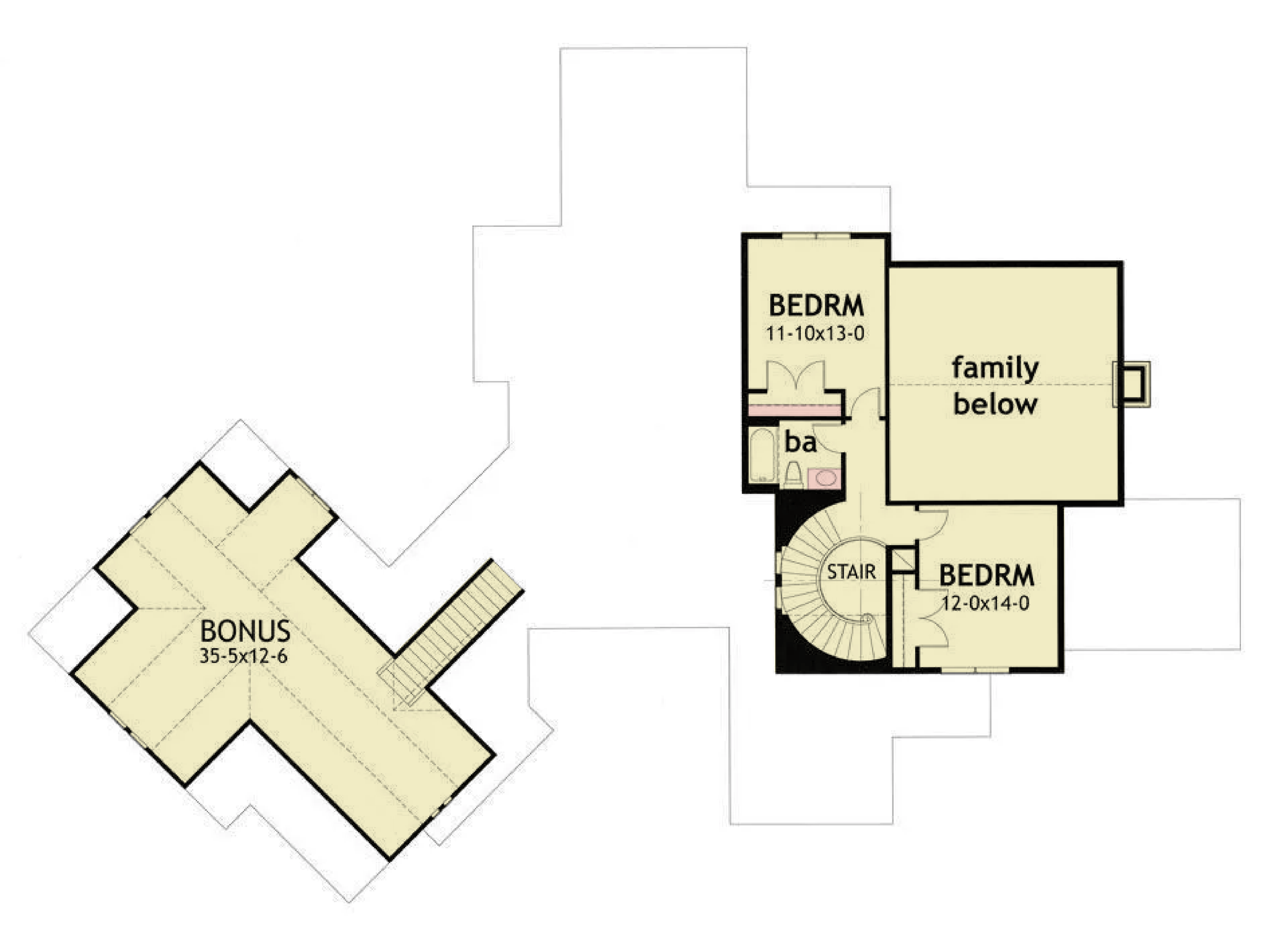

Second Floor
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
