Crystal Lake House Plan

Plan Number:

F576-A

Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home

Crystal Lake House Plan

Plan Number:

F576-A

3
Bedrooms
2
Full Baths
1
Half Baths
2338
SQ FT
1
Stories
LOW PRICE GUARANTEE

House Plan Specifications

  • Total Living:  2338
    1st Floor:  2338
    Front Porch:  23 sq. ft.
    Rear Porch:  329 sq. ft.
  • Garage:  789
    Garage Bays:   3
    Garage Load:   Side & Front
  • Bedrooms:   3
    Bathrooms:   2
    Half Bathrooms:   1
  • Foundation:   Slab
    Wall Framing:   2x4
    Roof Framing:   Stick
    Roof Pitch:  12:12
  • Width of House:  50'
    Depth of House:  85'
    Building Height:  39'
  • First Floor Ceiling Height:  14'

Key Features:

  • Breakfast Area
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home
Plan Number: F576-A
Crystal Lake House Plan
3 Bedrooms
2 Full Baths
1 Half Baths
2338 SQ FT
1 Stories

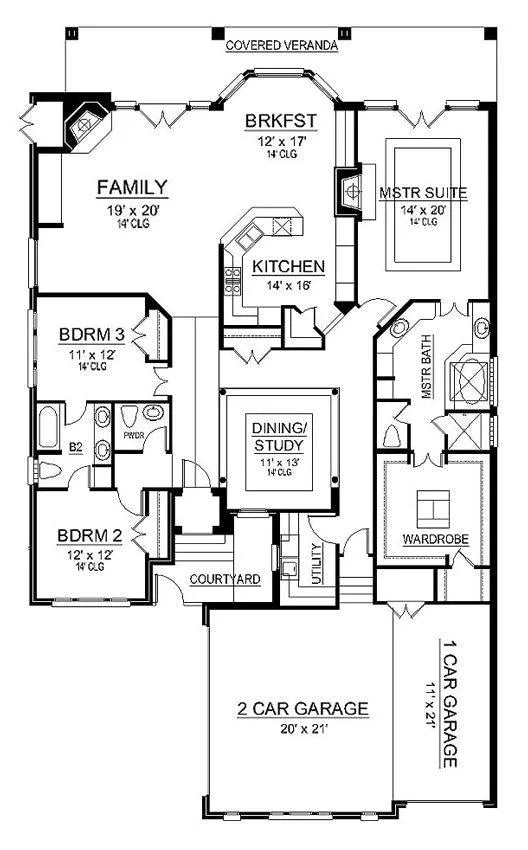

Main Level
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

FAQ

Why choose Archival Designs?

Archival Designs brings you over 35 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.

We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.

All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.

Do your plans meet building codes in my area?
Do your plans meet building codes in my area?
What is included in the construction drawings?
What is included in the construction drawings?
Will the plans be stamped or signed by an architect or engineer?
Will the plans be stamped or signed by an architect or engineer?
Will the foundation included in the construction drawings work for my site?
Will the foundation included in the construction drawings work for my site?
Do your plans include electrical, plumbing and mechanical drawings?
Do your plans include electrical, plumbing and mechanical drawings?

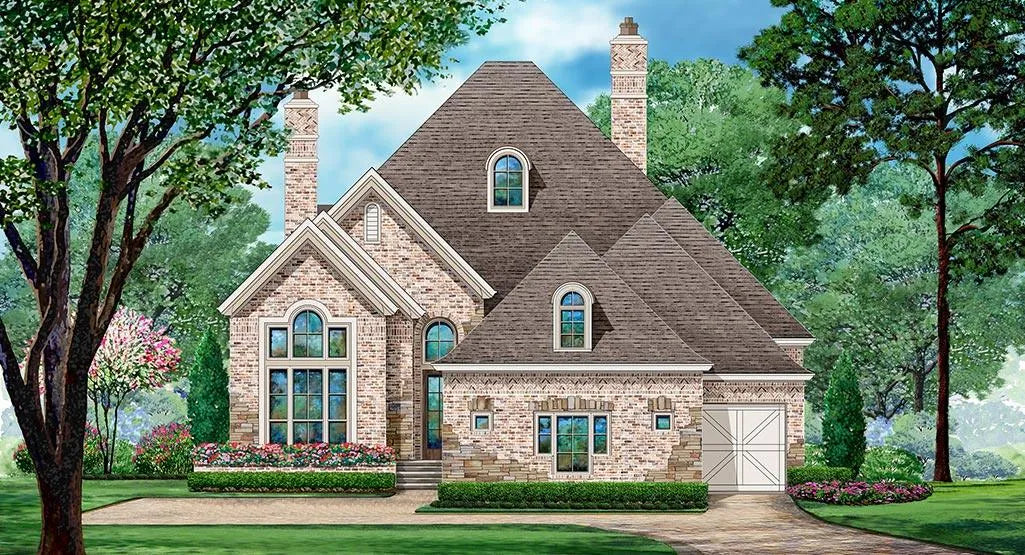

This classical traditional home plan offers luxury on one level, perfect for a narrow lot line or zero lot line. It has traditional arched windows and dormers, and a covered two-story entry with transom. Walking the courtyard into the front entry, you will find yourselves in this split bedroom plan. Two family bedrooms are directly to the left, each with a walk-in closet. They share a Jack-n-Jill bathroom. Beyond is the large open family room with built-ins, a dramatic fireplace, and French doors onto the covered veranda. The breakfast room and gourmet kitchen are open to the family room, seamlessly separated by the kitchen’s curved breakfast bar. Other kitchen features are modern, state-of-the-art appliances, built-ins, pendant, and recessed lighting, and a pantry.

Adjacent to the kitchen is the elegant dining room with 14’ trey ceiling and large, decorative columns that define the perimeter of the room. The master suite is on the right side of the house plan and boasts French doors that lead out to the covered veranda, a trey ceiling, and a fireplace. French doors lead to the luxurious master bath, complete with his and hers vanities, separate glass shower, tile a step-up garden tub, and large wardrobe with built-ins. Inside the wardrobe, there is a small storage room. A utility room and two garages, a two-car, courtyard-entry and one-car, front entry garage complete this classic traditional home plan.
