The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.

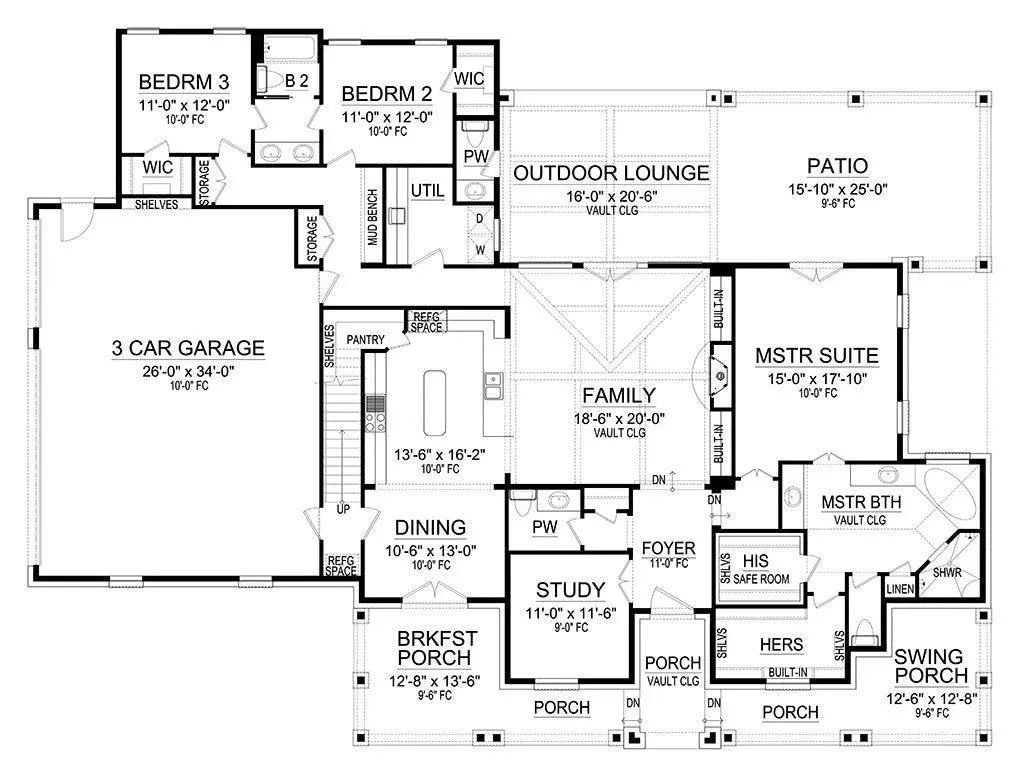

This elegant farmhouse plan has peaked dormers that show off the gable roof, while the stone and brick offer a warm and welcome exterior. To the left of this one-story house plan, a front breakfast porch is a perfect perch from which to have your morning coffee, while to the right is a rocking-chair porch with porch swing. The two-story peak covered entrance leads into the foyer where the quiet study sits off to the left, and a powder room in which to freshen up. The cozy foyer sets the stage for drama that unfolds as one nears the expansive great room complete with a vaulted ceiling, dramatic fireplace, built-ins, and a wall of windows that looks out onto the outdoor vaulted lounge. The gourmet kitchen offers plenty of built-ins, a pantry, granite countertops, pendant lighting, and stairs that go up to the second floor of this luxury house plan.
The elegant dining room is adjacent to the kitchen and offers access to the breakfast porch via the double French doors. Two family bedrooms, each with a walk-in closet, share a Jack-and-Jill bath. A side-entry three-car garage with access to the back yard and a utility with mudroom complete the left portion of this elegant house plan. The master suite boasts private access to the patio via double French doors, and a luxurious vaulted master bath with his and hers vanities, separate corner garden tub and glass shower, a safe room, and a built-in wardrobe and linen closet. Upstairs, a bonus room shares space with storage and mechanical area. This luxury mountain home offers over 5400 square feet of covered space.
