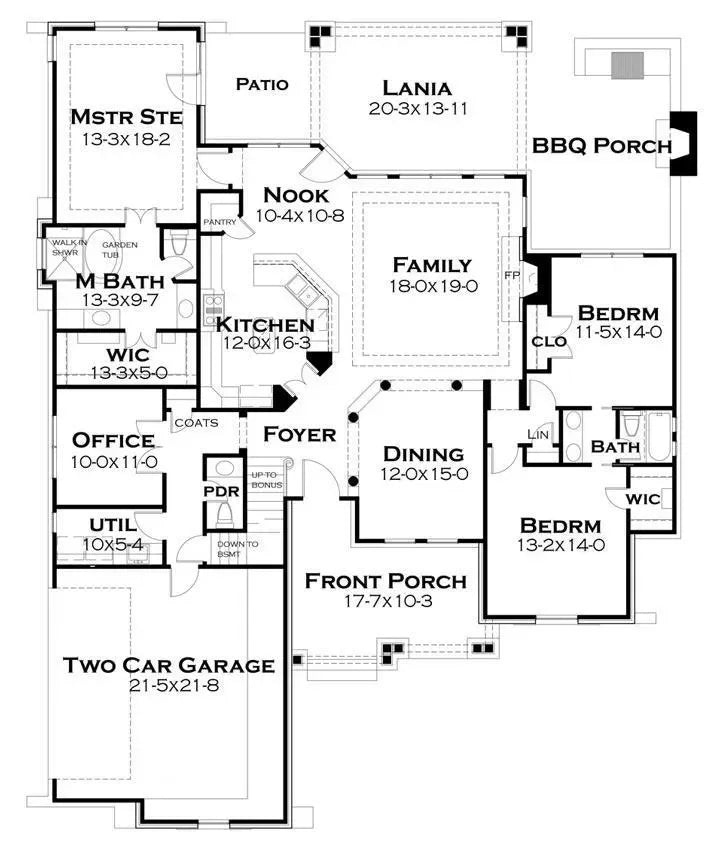

Main Level – (click floor plan to reverse)

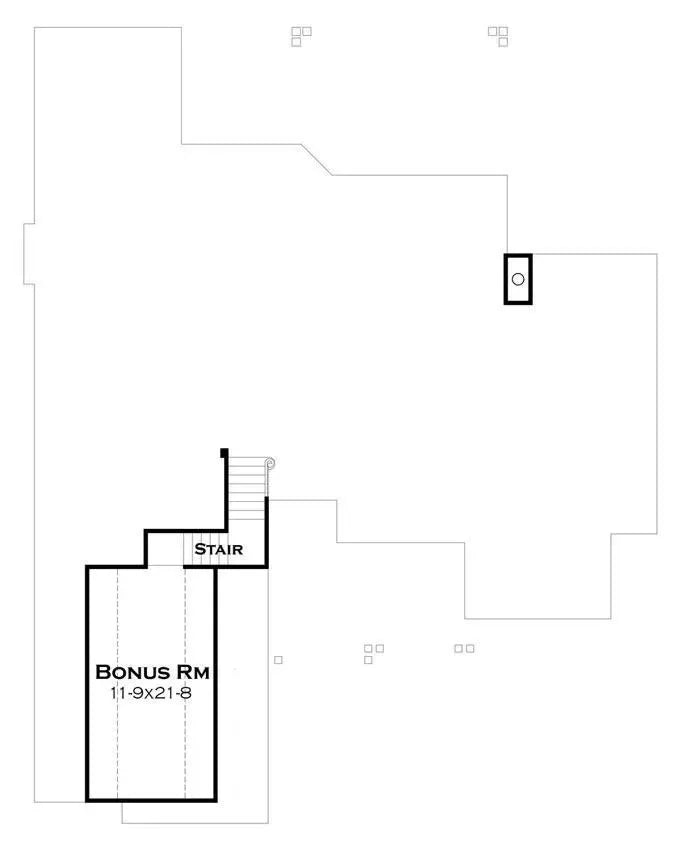

Bonus Room – (click floor plan to reverse)

Lado del Rio House Plan

3 Bedrooms • 2 Full Baths • Slab Foundation

Select to Purchase

$795.00

Maximum quantity available reached.

HOUSE PLAN SPECS

Ceiling Heights:

First Floor: 10'
Second Floor: 9'

Key Features:

Master Suite on the 1st Floor

House Plan Description

Build this charming rustic house plan on your mountain or lakefront lot. The open floor plan layout of this design provides an uninterrupted sight line from the front door diagonally onto the lanai. This split bedroom ranch house plan boasts an oversized master bedroom, and two secondary bedrooms with a jack and jill bath.

Conveniently tucked away adjacent to the garage is a spacious office with double doors perfect for those who work from home. The powder room close by serves guests.

An unfinished bonus area above the garage is perfect for storage, an art studio, or a media area.
