1,802 Sq Ft Craftsman Home with Open Living, Two Bedrooms, and Spacious Basement
4.8
Plan Number:

I7386-A

Rated 4.8
Plan Number:

I7386-A

Or order by phone: (888) 890-2353
Safe and Secure
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan

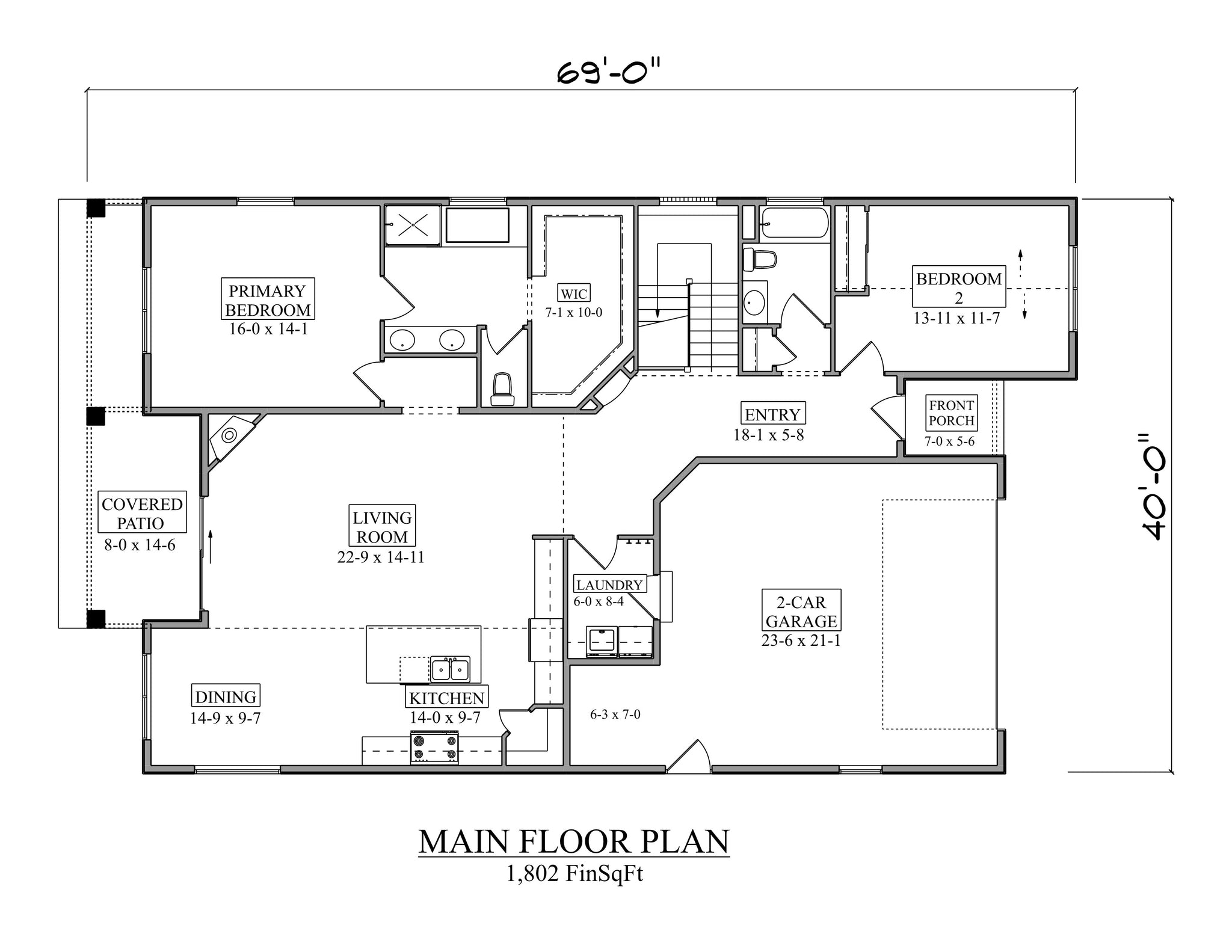

i7386-a the crabapple ii house first floor plan 2 beds 2 baths

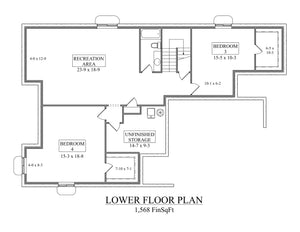

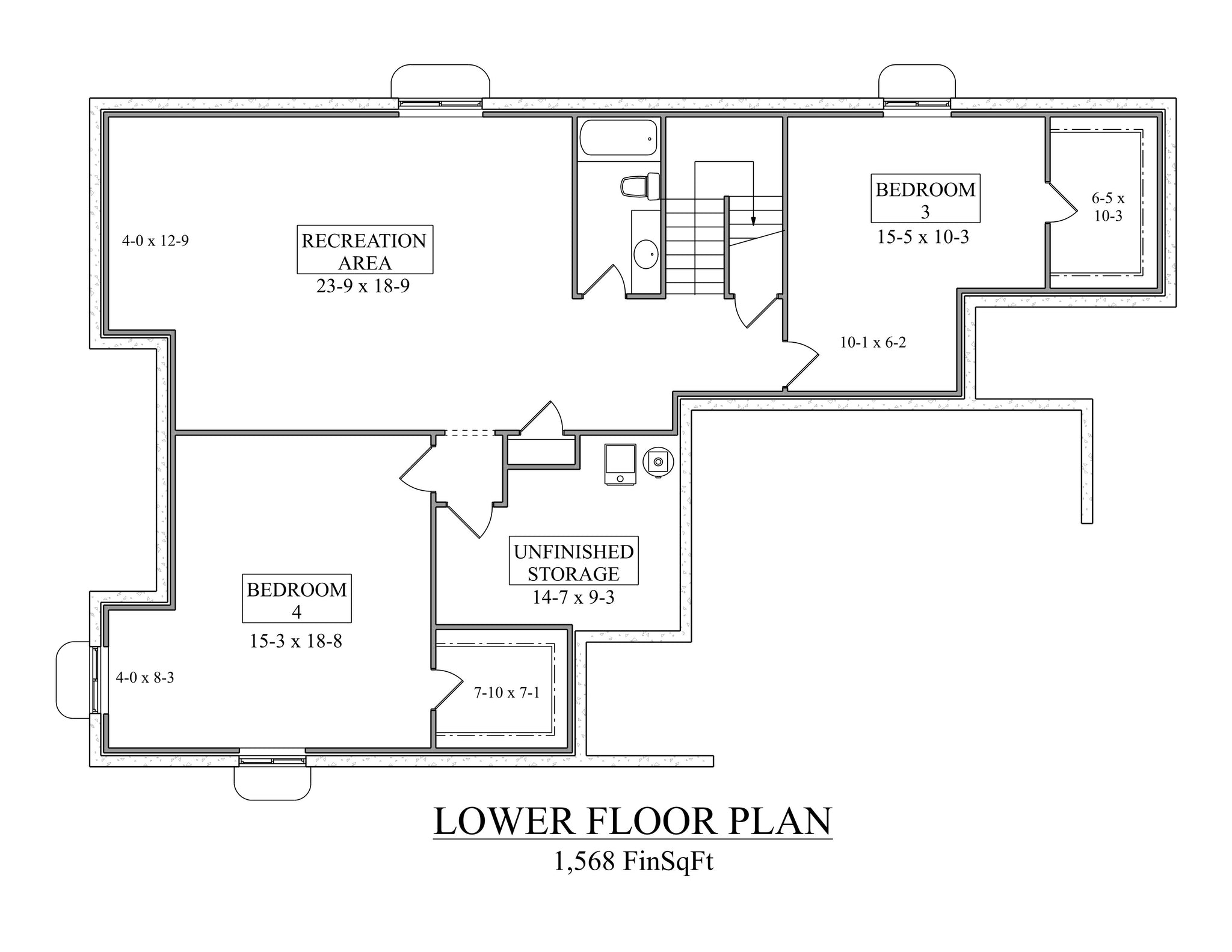

i7386-a the crabapple ii house lower floor plan 2 beds 2 baths

1,802 Sq Ft Craftsman Home with Open Living, Two Bedrooms, and Spacious Basement

Drawing from the warm, meticulous lineage of American Craftsman architecture, this home reinterprets familiar traditions for today’s lifestyle. Handcrafted authenticity meets purposeful simplicity, where every line, proportion, and transition feels rooted in comfort and understated elegance. The style’s heritage—broad eaves, honest materials, and human-scaled forms—comes through in the home’s gentle geometry and thoughtful relationships between spaces. Yet the artistry does not overwhelm; instead, it quietly supports modern needs such as an open-concept layout, main-level living, and a floor plan designed for seamless flow. This home captures the feeling of “crafted to belong”—a space shaped by history but tailored for contemporary ease.

From the moment you arrive, the home’s balanced rooflines—including a classic 6:12 pitch—pair with a welcoming covered front porch to create an inviting façade. The 40-foot width maintains an intimate scale, while the 69-foot depth offers generous interior volume. Tall windows and thoughtful exterior materials help frame a home that feels grounded, warm, and architecturally cohesive. These elements work together to express the timeless Craftsman spirit: purposeful, handcrafted, and naturally beautiful.

Stepping through the front door, you enter an airy main level elevated by 10-foot ceilings and a seamless open floor plan. Sightlines flow from the family/keeping room to the kitchen and breakfast area, creating an uninterrupted sense of space and light. A formal dining room offers distinction without sacrificing openness, while a fireplace anchors the main living zone with comfort and character. The layout encourages easy movement, natural gathering, and everyday convenience.

Main Floor (1,802 sq. ft.):
The main level is designed for single-floor living at its best. The spacious master suite features a private sitting area, double-vanity bath, and large walk-in closet. Positioned for quiet and privacy, it remains accessible to the home’s central living areas. A second bedroom and full bath accommodate guests or serve as flexible space. The kitchen—with its island, eating bar, walk-in pantry, and direct access to the laundry room—caters to both functionality and hospitality. A front-load two-car garage (567 sq. ft.) connects smoothly to interior spaces, simplifying daily routines. Outdoor enjoyment is encouraged through both the covered front porch and rear patio.

Basement (1,568 sq. ft. unfinished):
With a generous 9-foot ceiling height, the basement offers limitless potential—future bedrooms, recreation space, storage, or hobby areas. The open footprint allows customization while maintaining the structural elegance of the home. Whether left unfinished for storage or transformed into a vibrant lower level, it expands the home’s long-term versatility.

Whether designed for empty nesters, small families, or homeowners seeking single-level luxury with room to grow, this home supports a lifestyle of ease and intention. The first-floor master suite, abundant storage, thoughtful kitchen design, and optional expansion space allow the homeowner to live comfortably today while planning confidently for the future. Its inviting architecture and practical interior make it a perfect retreat—warm, functional, and ready to fit the rhythms of modern life.


What's Included in the House Plan:
  • Cover Page: Project details, drawing index, and abbreviations.
  • 4 Elevations: Exterior views of the building, showing all sides.
  • Floor Plans: Layout of rooms, doors, windows, and dimensions.
  • Foundation Plan (without structural specifications): Layout of the foundation, showing walls and footings.
  • Roof Plan (without structural specifications): Layout of the roof, including slopes and features.
  • Typical Wall Sections: Cross-section drawings showing wall construction details.
  • Electrical Plan: Locations of outlets, switches, light fixtures, and panels.
What's Not Included:
  • Architectural or Engineering Stamp: Handled locally if required.
  • Site Plan: Created locally when needed.
  • Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations: Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  1802 sq ft
    All Unheated Under-Roof Areas  781 sq ft
    Total Structure With Basement  4151 sq ft
    Total Structure without Basement  2583 sq ft
    1st Floor:  1802 sq ft
    Basement:  1568 sq ft
    Total Porch:  214 sq ft
  • Garage:  567 sq ft
    Garage Bays:   2
    Garage Load:   Front
  • Bedrooms:   2
    Bathrooms:   2
  • Foundation:   Basement
    Wall Framing:
    Roof Pitch:  6:12
  • Width of House:  40'
    Depth of House:  69'
    Building Height:  19'7''
  • First Floor Ceiling Height:  10'
    Basement Ceiling Height:  9'

Key Features

  • Breakfast Area
  • Covered Front Porch
  • Eating Bar
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Formal Dining Room
  • Keeping/Family Room
  • Kitchen Island
  • Laundry 1st Floor
  • Laundry Access from Garage
  • Master Bath-Double Vanity Sink
  • Master Sitting Area
  • Open Floor Plan
  • Patio
  • Private Master Bath
  • Storage Space
  • Unfinished Space
  • Walk-in Closet
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: I7386-A
1,802 Sq Ft Craftsman Home with Open Living, Two Bedrooms, and Spacious Basement
2 Bedrooms
2 Full Baths
1802 SQ FT
1 Stories
Main Level
Basement
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
