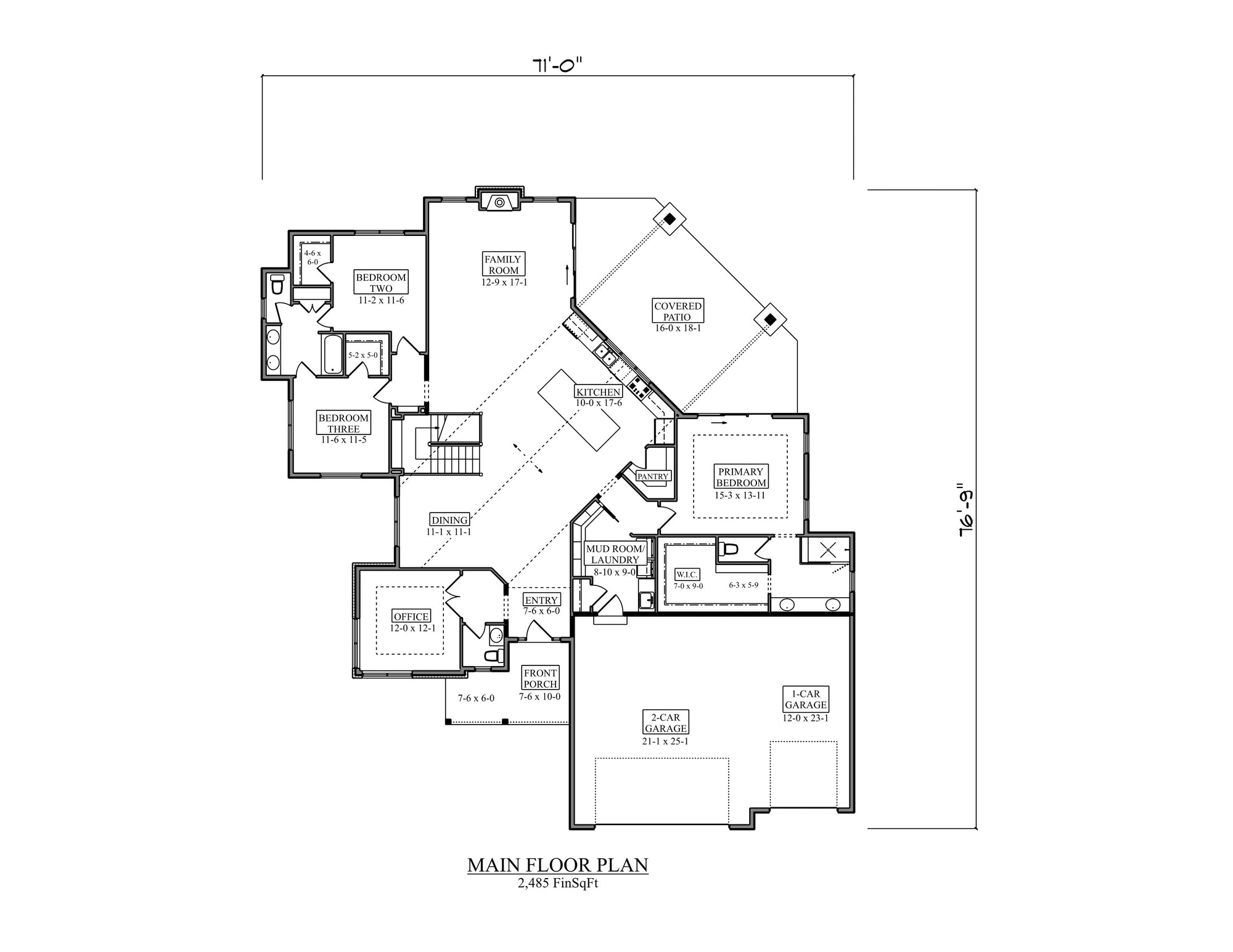

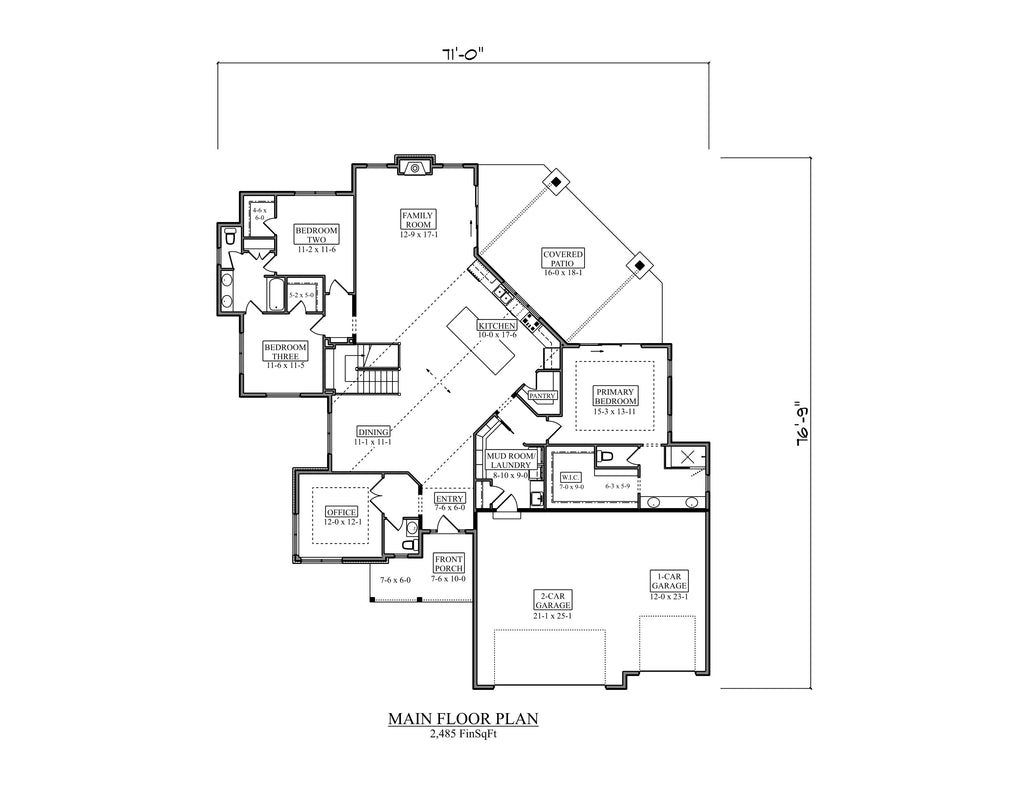

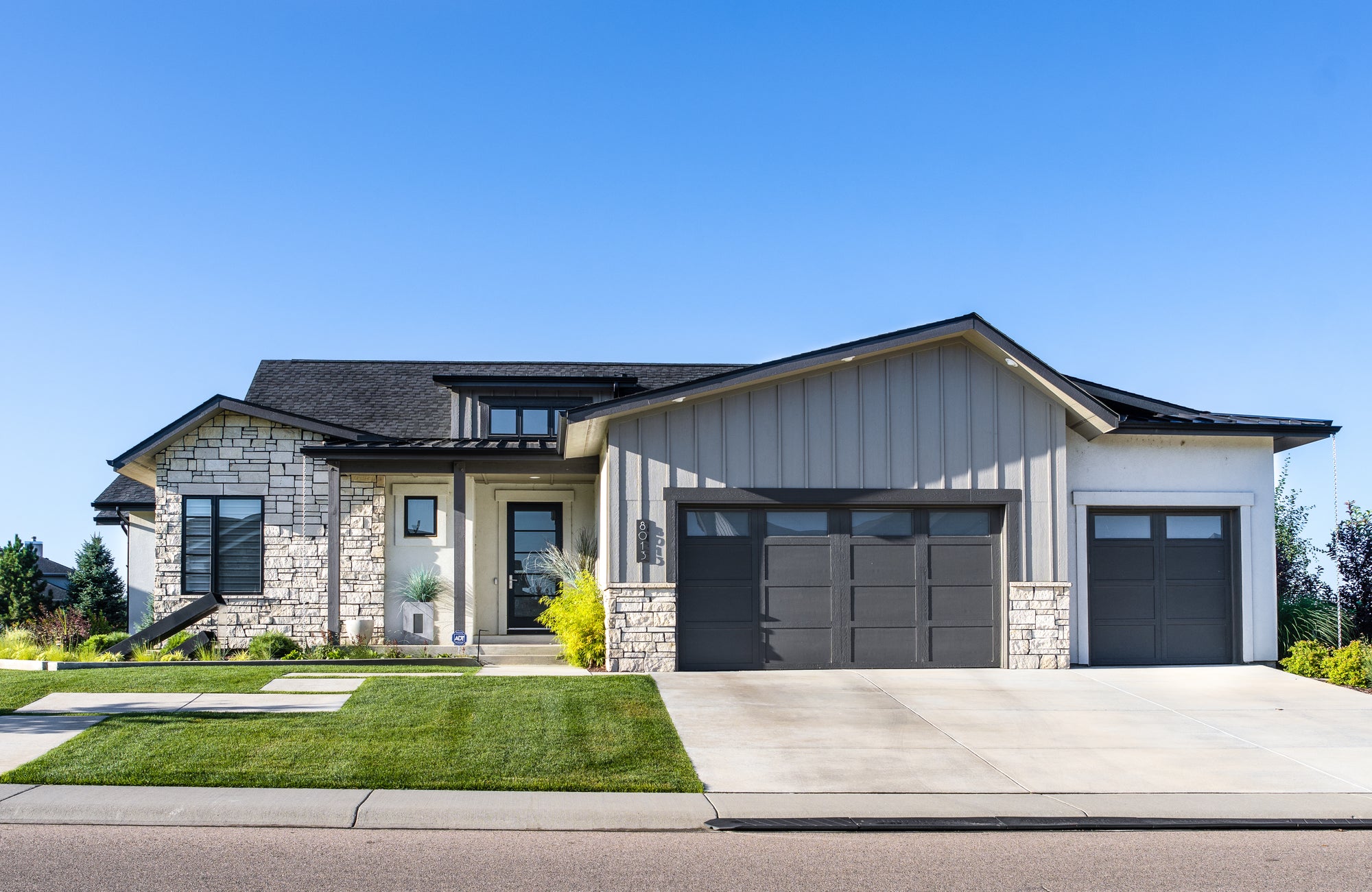

This 2,485 sq. ft. luxury ranch house plan with split bedrooms and a high-ceiling basement is designed for homeowners who crave refined single-level living paired with the architectural drama of steep 8:12 rooflines, sweeping faΓ§ade width, and richly detailed indoorβoutdoor spaces. The homeβs 71-foot width and deep covered front porch establish a welcoming presence, balancing contemporary proportions with the grounded warmth of traditional ranch architecture. Stepping inside, 9-foot ceilings, long sightlines, and light-filled living spaces create an atmosphere that feels spacious yet intimately connected. The open floor plan places the great room, keeping/family room, and formal dining room in a harmonious sequence, allowing gatherings to flow naturally from one space to the next. A central fireplace lends warmth and presence, anchoring the main living area with a soft glow. The gourmet kitchenβcomplete with a large island, eating bar, and walk-in pantryβis positioned for both casual dining and elevated entertaining. Its adjacency to the breakfast area and easy access to the covered patio make it perfect for morning rituals, weekend brunches, and breezy evening meals outdoors. The home office/study provides a quiet retreat for focused work, while the mud room and first-floor laundry with garage access enhance everyday functionality. These elements naturally integrate SEO-rich long-tail keywords such as luxury ranch home with walk-in pantry, open-concept single-story house plan with home office, and ranch floor plan with large kitchen island and great room.
The split-bedroom layout ensures privacy and comfort for both homeowners and guests. The master suite, tucked into its own wing, functions as a peaceful sanctuary complete with a sitting area, generous walk-in closet, and a private bath with double vanities, walk-in shower, and elegant finishes. The suiteβs thoughtful placement near the laundry room elevates daily convenience while maintaining restful seclusion. On the opposite side of the home, two secondary bedrooms are connected by a Jack and Jill bathroom, forming a self-contained zone ideal for families, multi-generational living, or hosting extended stays. A stylish powder room serves guests without disrupting the flow of these private quarters. The rear patio extends the living space outward, framed by soft rooflines and designed for year-round enjoymentβperfect for grilling, lounging, or unwinding under the evening sky. With 580 sq. ft. of porch space, the home offers abundant opportunities to enjoy fresh air and natural surroundings.

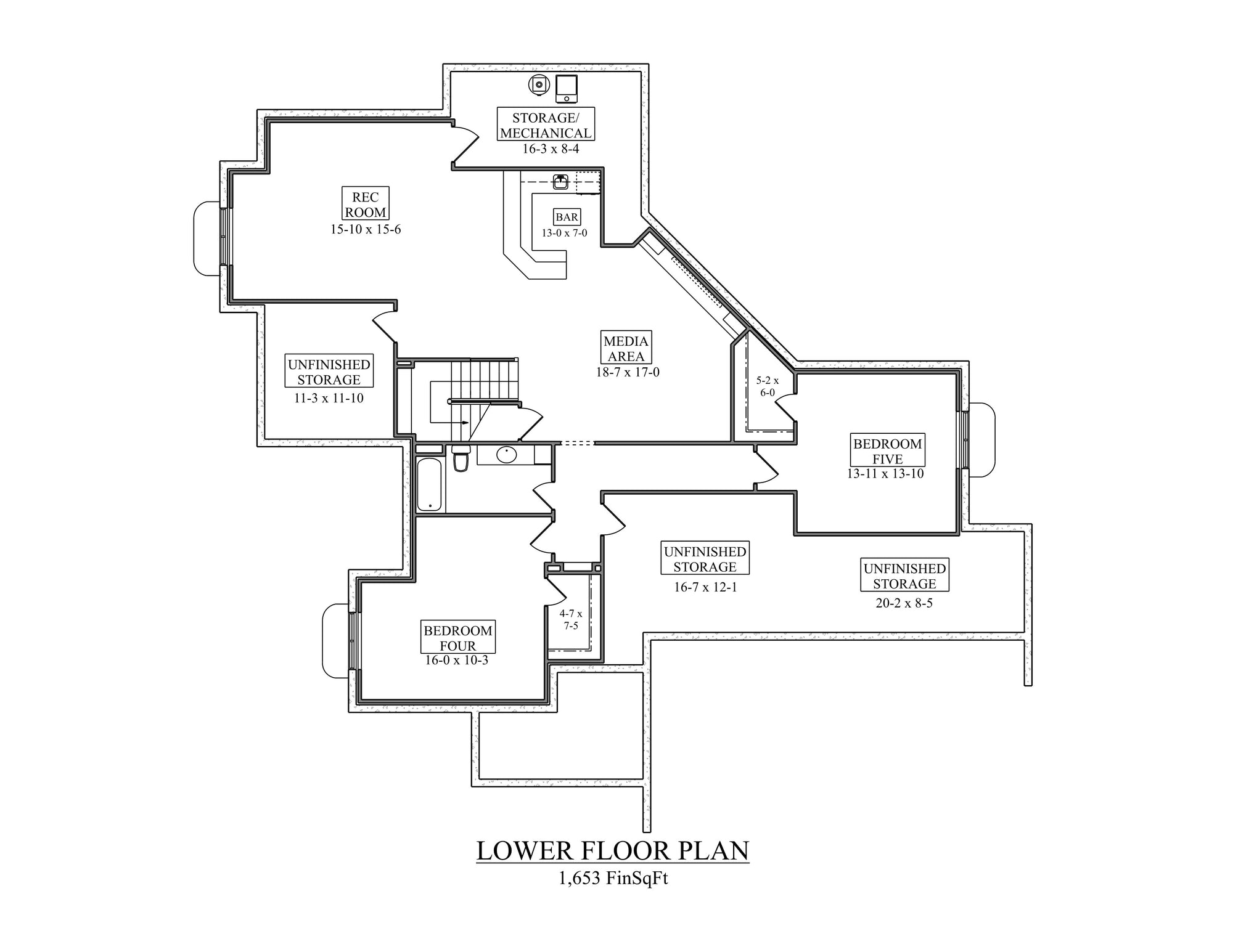

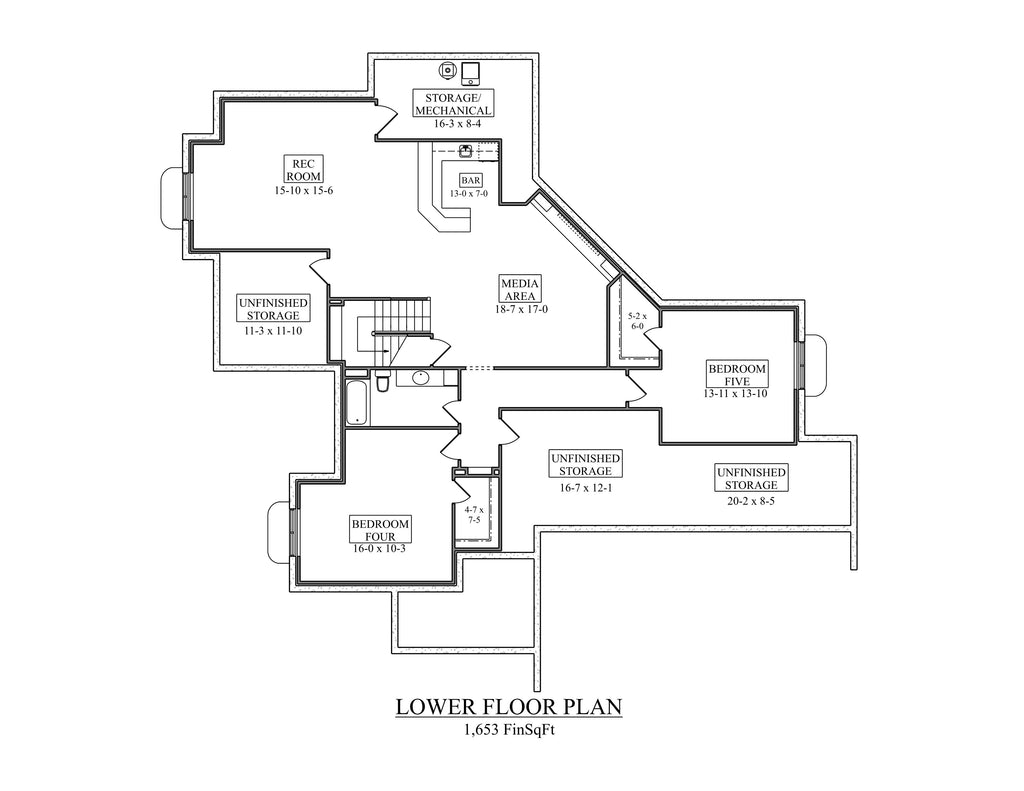

Below, the 1,653 sq. ft. unfinished basement with 9-foot ceilings offers remarkable potential for future expansion. With structural proportions ideal for flexible configurations, the lower level can easily become a home theater, fitness center, guest suite, game room, or a custom retreat enhanced by the built-in wet bar plumbing setup. This adaptability makes the home especially appealing to buyers searching for ranch homes with expandable basements, high-ceiling lower level house plans, and single-story homes with future entertainment space. The 843 sq. ft. three-car garage provides additional storage for tools, outdoor equipment, and recreation gear, making it ideal for active families and hobbyists. Altogether, this design blends the timeless ease of ranch living with the sophistication of modern luxuryβan ideal match for homeowners who value open spaces, practical circulation, and the long-term flexibility of a high-quality basement foundation. Warm, inviting, and intelligently designed, this home delivers comfort and craftsmanship in every carefully considered detail.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
Β
View Sample PlanArchival Designs brings you over 40 years of experience in the house plan design business.Β We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life!Β Archival Designs guarantees the lowest prices anywhere online.Β Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
Β
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area.Β It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.Β Β
Important Note:
Β
House plans do not come stamped or signed by an architect or engineer.Β Additionally, house plans typically will not includeΒ structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements.Β The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Β
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Β Β
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included.Β Your electrical subcontractor will typically provide these drawings.Β
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Β Local HVAC codes, climatic requirements and commonly used systems vary throughout the country.Β The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.Β
