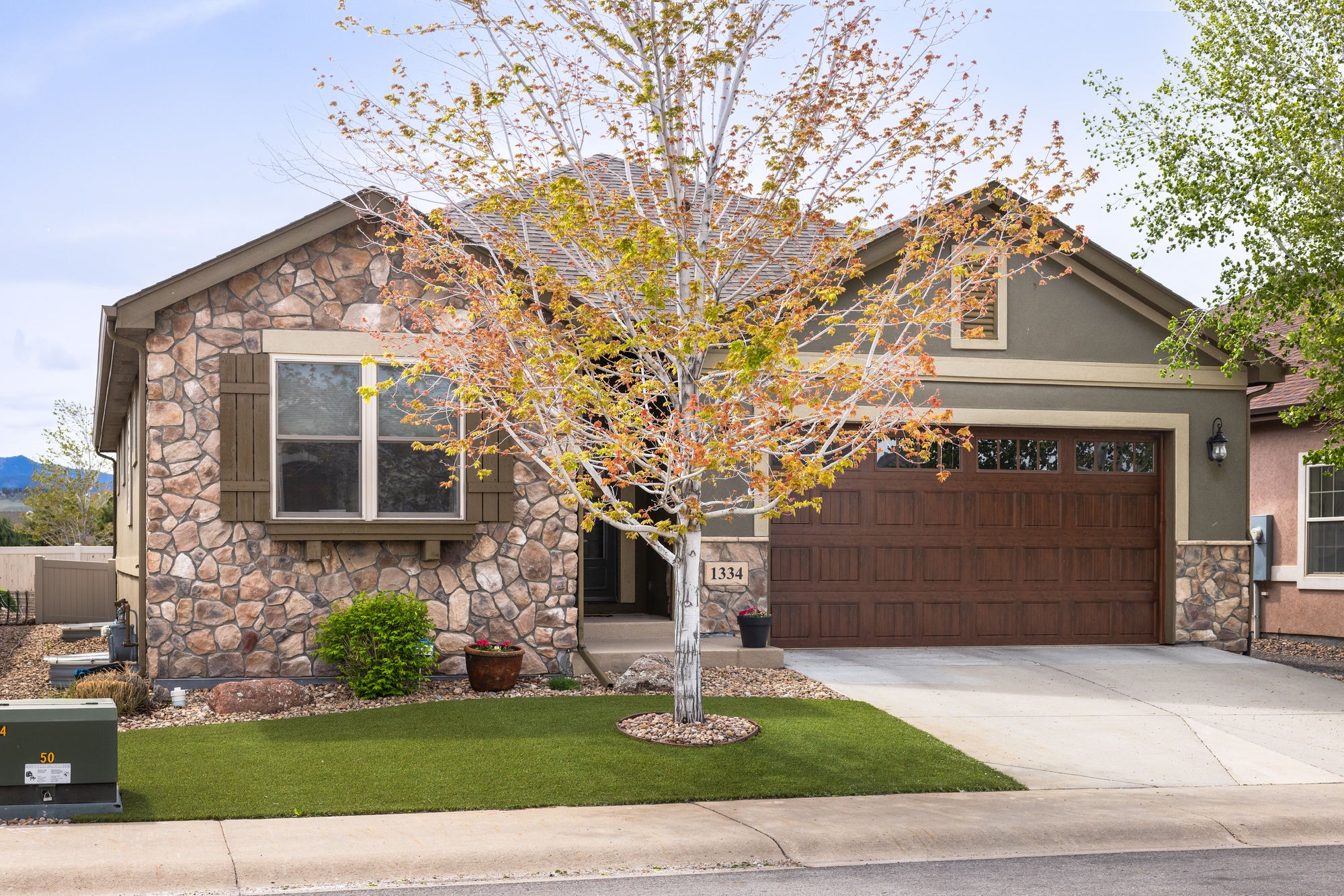

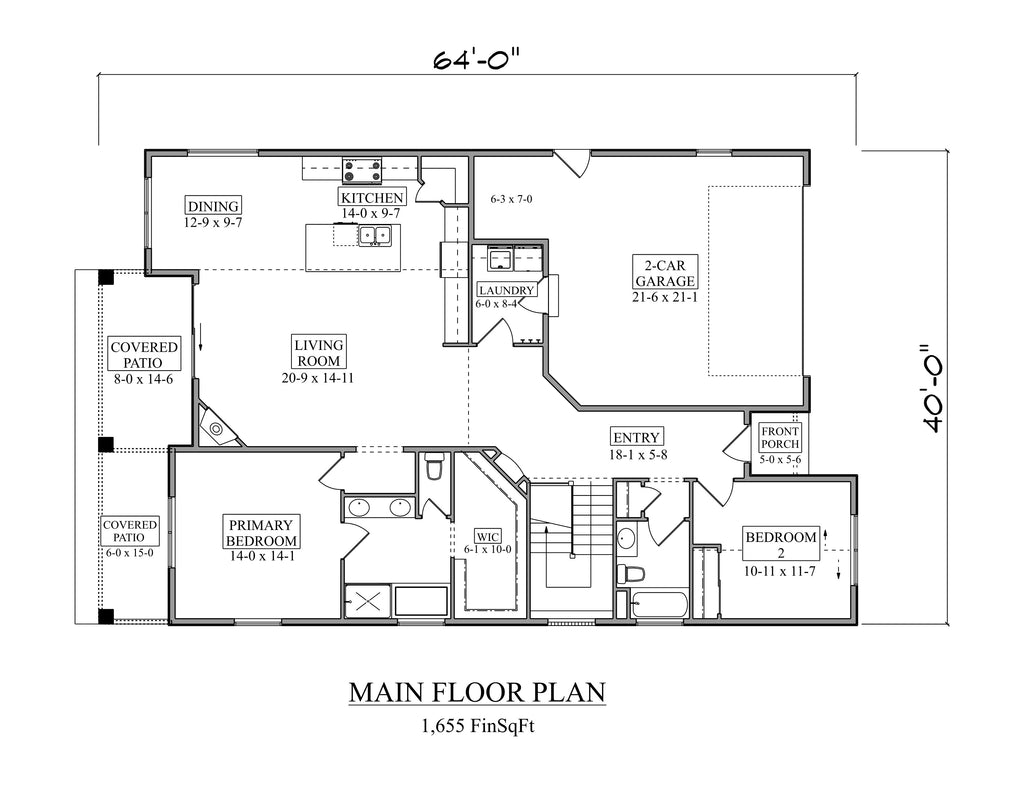

This 1,655 sq. ft. ranch home with a front-load two-car garage and a clean, functional layout is designed for homeowners who want comfort, simplicity, and smart use of space. The exterior’s modest 40-foot width and 6:12 roof pitch make the home approachable and easy to place on a variety of lot sizes. A welcoming covered front porch sets the tone, offering a casual place to sit or decorate seasonally. Inside, the home opens into a bright great room centered around a cozy fireplace, creating an inviting space for everyday relaxation. Ten-foot ceilings give the main level a spacious feel, while wide transitions between the great room, breakfast area, and kitchen keep movement natural and open. The kitchen’s island, eating bar, and walk-in pantry provide plenty of workspace and storage—ideal for weeknight cooking, weekend baking, or simple gatherings with friends. This straightforward layout fits naturally with real-life routines, keeping everything within easy reach without feeling crowded.
The split-bedroom design enhances privacy while maintaining a compact, efficient footprint. The first-floor master suite is thoughtfully arranged with a peaceful sitting area, a double-vanity private bath, and a generous walk-in closet. Direct laundry access from the master, along with a second access point from the garage entry, makes chores more convenient and helps keep daily traffic flowing smoothly. The second bedroom sits on the opposite side of the home, creating a quiet retreat for guests, older children, or extended stays. A full second bathroom is positioned close by, serving both guests and everyday needs. The keeping/family room offers flexible space that can adapt for hobbies, reading, or simply enjoying the openness of the layout. Collectively, these features create a first floor that feels comfortable, intuitive, and easy to maintain.

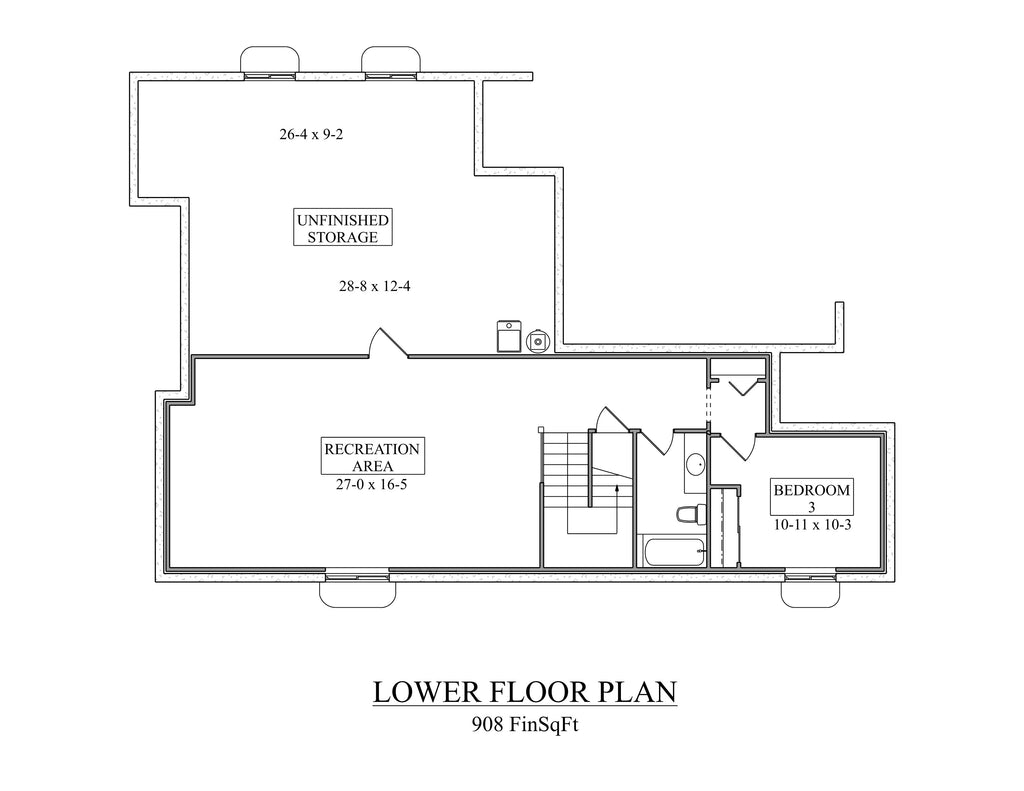

Below the main living area, the 747 sq. ft. basement with 9-foot ceilings adds significant value. Whether used immediately or finished in the future, it provides room for storage, a small workshop, a fitness corner, or additional living space depending on your needs. The open layout and tall ceiling height make it feel less like a typical basement and more like a natural extension of the home. Its flexibility is a key advantage for homeowners who want room to grow without increasing the home’s above-ground footprint.
With 290 sq. ft. of porch space, the home offers simple but welcoming outdoor areas that require little maintenance yet provide enjoyable spots for fresh air and seasonal living. The 510 sq. ft. garage comfortably fits two vehicles with room left for tools, bikes, and storage. Convenient laundry-to-garage access helps keep the household organized as you come and go.
Altogether, this home embodies the heart of ranch-style living: single-level ease, practical design choices, open living spaces, and the flexibility of a basement for future ideas. It’s a comfortable, right-sized home crafted for everyday living without unnecessary complexity.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.
