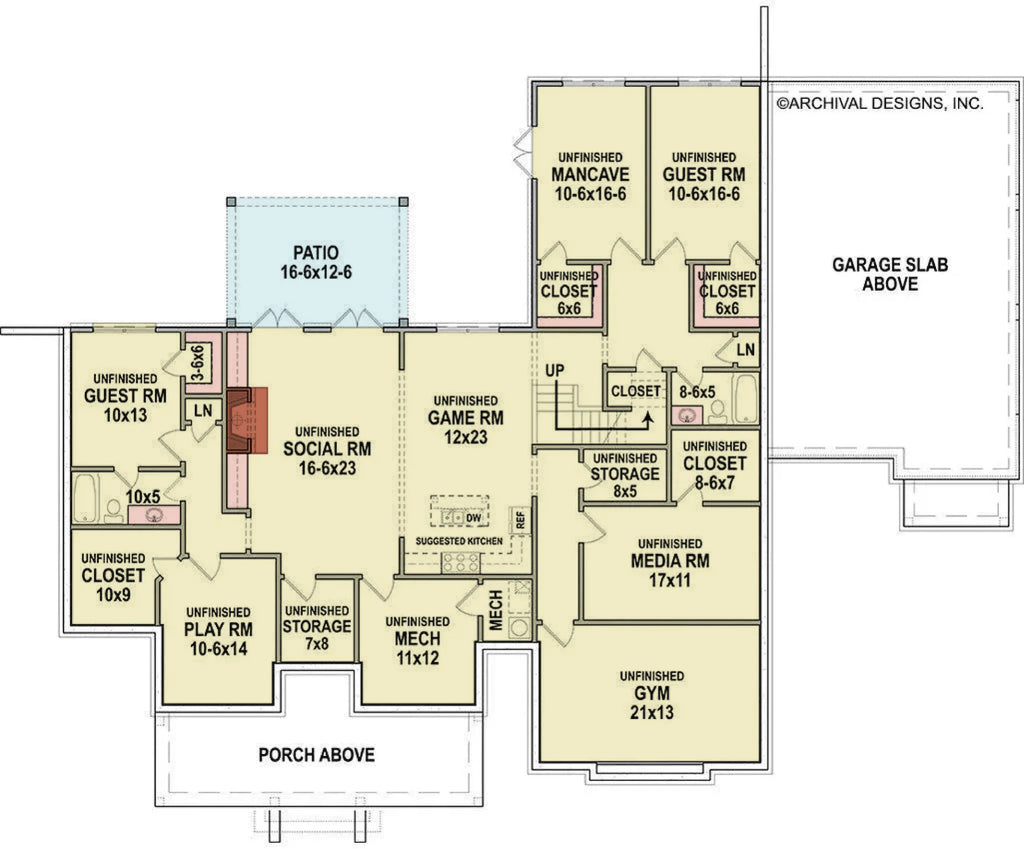

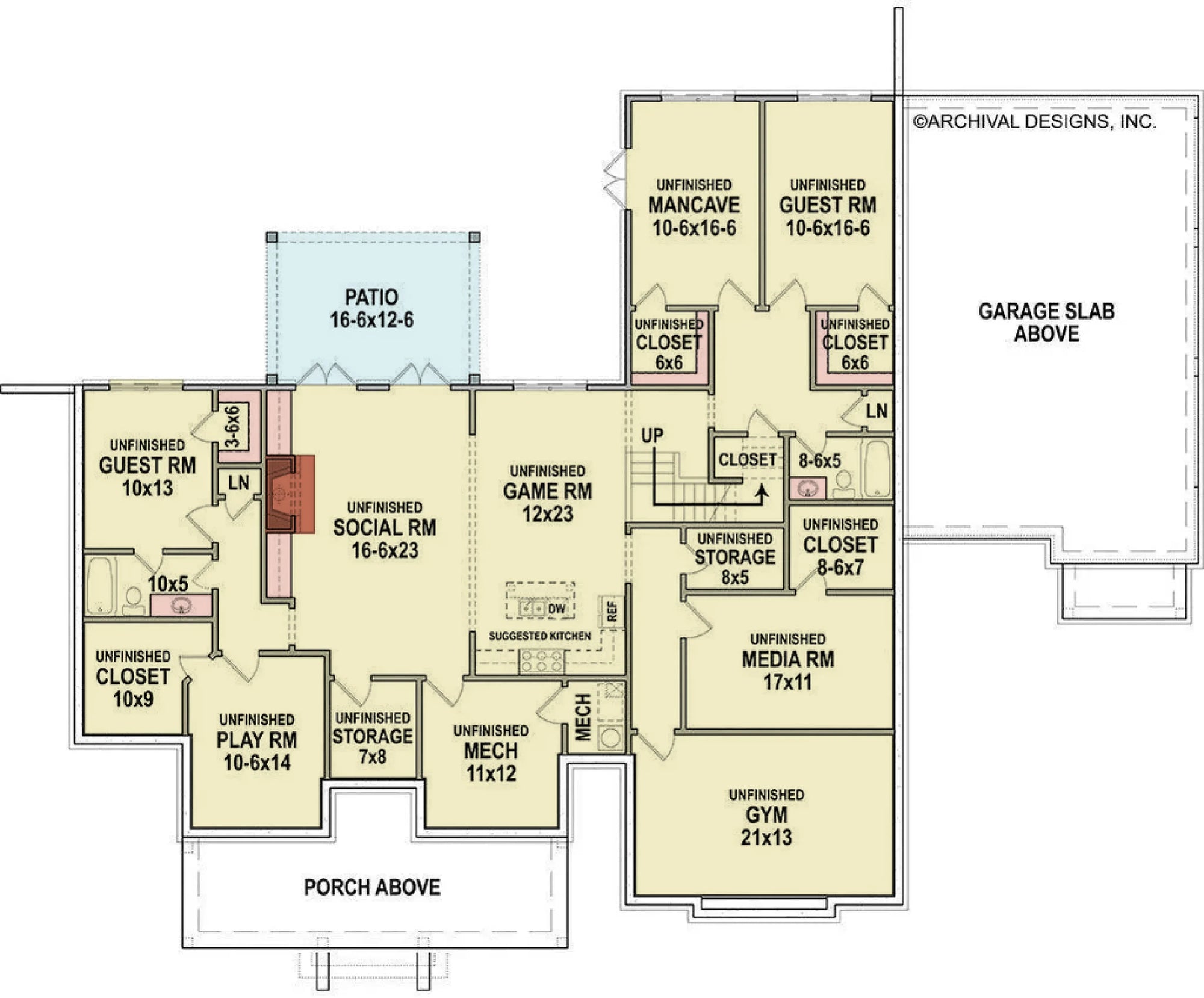

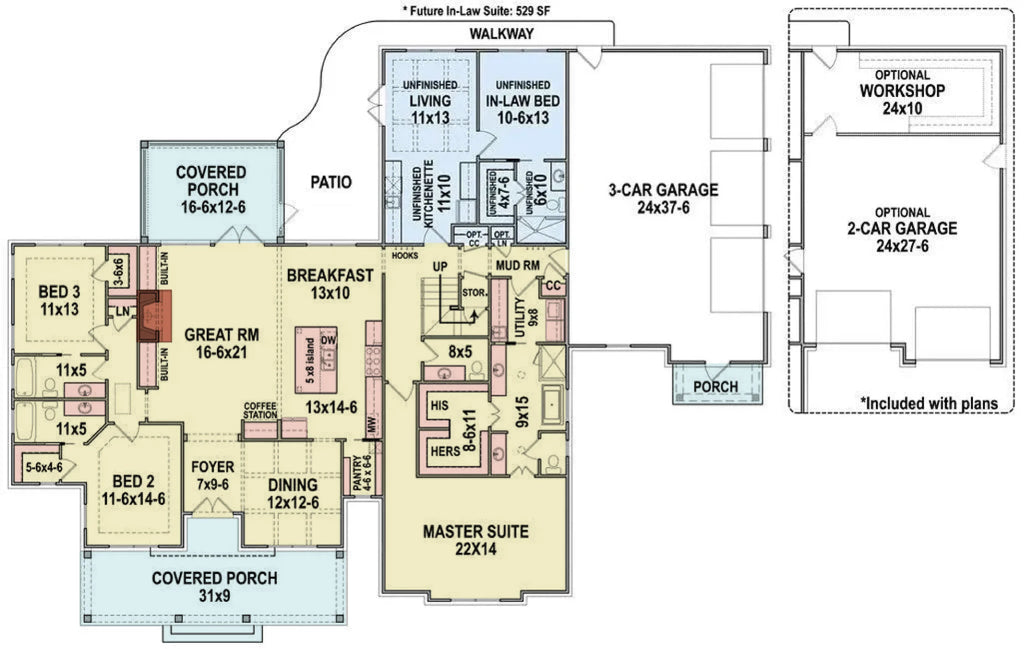

Main Level – (click floor plan to reverse) Second Floor – (click floor plan to reverse) Basement – (click floor plan to reverse)

Pinecone Trail House Plan

3 Bedrooms • 3 Full Baths • Slab Foundation
$1,995.00
Maximum quantity available reached.

HOUSE PLAN SPECS

  • Total Living:  2484 sq. ft.
  • 1st Floor:  2484 sq. ft.
  • 2nd Floor:  688 sq. ft.
  • Bonus Room:  529 sq. ft.
  • Bedrooms:  3
  • Bathrooms:  3
  • Half Bathrooms:  1
  • Width of House:  92'
  • Depth of House:  70'
  • Foundation:  Slab
  • Basement:  2883 sq. ft.
  • Roof Framing:  Stick
  • Wall Framing:  2x4
  • Number of Stories:  1
  • Front Porch:  310 sq. ft.
  • Rear Porch:  215 sq. ft.
  • Building Height:  25'
  • Roof Pitch:  8:12 & 12:12
  • Garage Bays:  3
  • Garage Load:  Side
  • Garage:  888 sq. ft.
  • Ceiling Heights:

  • First Floor:  10'
  • Key Features:

  • Breakfast Area
  • Oversized Master Bedroom
  • Covered Front Porch
  • In-law Suite
  • Opt. 2-Car Garage/Workshop
  • Master Sitting Area
  • Rear Porch
  • Storage Space
  • Walk-in Pantry
  • Wet Bar

House Plan Description

Living is easy in this impressive and generously spacious multi-generational house plan with stunning views and an open floor plan.  Every detail in the Pinecone Trail one-story house plan was carefully designed for your growing family!  Modern luxury meets the charming and cozy design of Farmhouse plans we all know and love.

Entertain in grand style in the oversized great room with views into the stunning gourmet kitchen.  The chef’s kitchen is clad with professional grade appliances, stunning marble counters, and soaring ceilings with decorative beams. Privately tucked away is the divine and expansive master suite. This oversized, luxurious retreat dazzles and is large enough for a king size bed and roomy sitting area couples can enjoy for reading or morning coffee. The opulent bathroom is graced by a modern free-standing tub, separate vanities, and a generous glass shower.  Access to the laundry room from the master suite is functional and convenient.

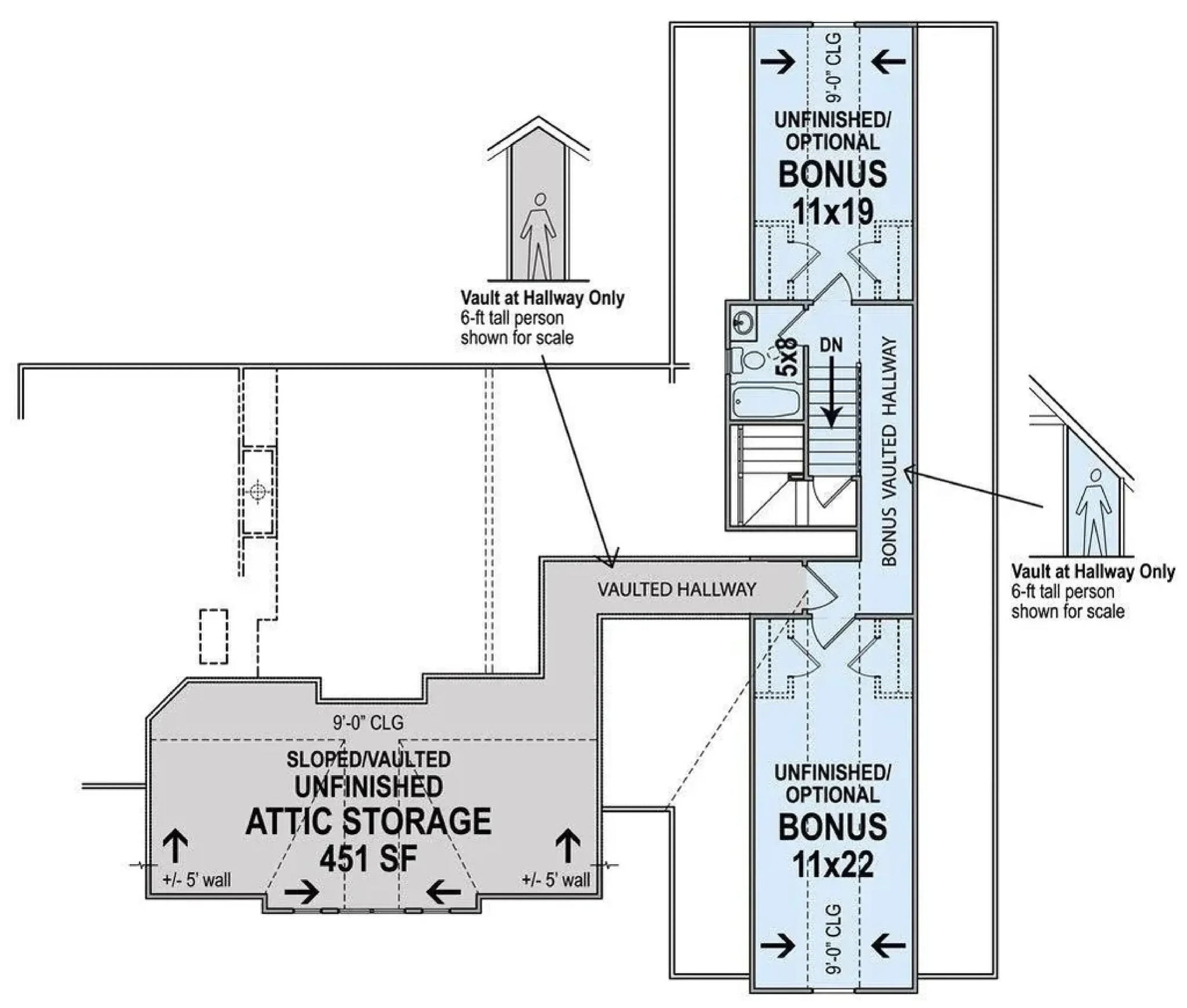

The optional second floor (shown in blue) houses an unfinished media room and multi-use office/craft room with access to a full bathroom.  This brightly lit bathroom and hallway are energy efficient and boast tubular skylights.

Additional amenities in this country house plan include a huge walk-in pantry with floor to ceiling storage, private bathrooms for the spacious secondary bedrooms, and optinal vaulted attic storage (shown in yellow)!  Get value when you build the Pinecone Trail farmhouse with all of the free storage under the roof.

One of the many “wow factors” of this ranch house plan is the multi-use unfinished in-law suite spanning over 500 sf. The impressive wheelchair-accessible apartment with views to the rear of the property boasts a private kitchenette, generous living space with French doors to the patio, and a spacious bedroom with en suite bath.  Double doors into the walk-in closet and a spacious roll-in shower provide ample space for loved ones who may require wheelchair accessibility.  All doors throughout the in-law suite are ADA compliant and meet the minimum of 36” wide. The flexibility of the future in-law suite is undeniable! Convert this space into a multi-use home business, recreation area, theater and more.

The optional 2-car garage with workshop layout is included with the construction plans. Contact our home plan specialists to learn more about modifying this design to replace the in-law suite with a garage or carport.
