Floor Plan

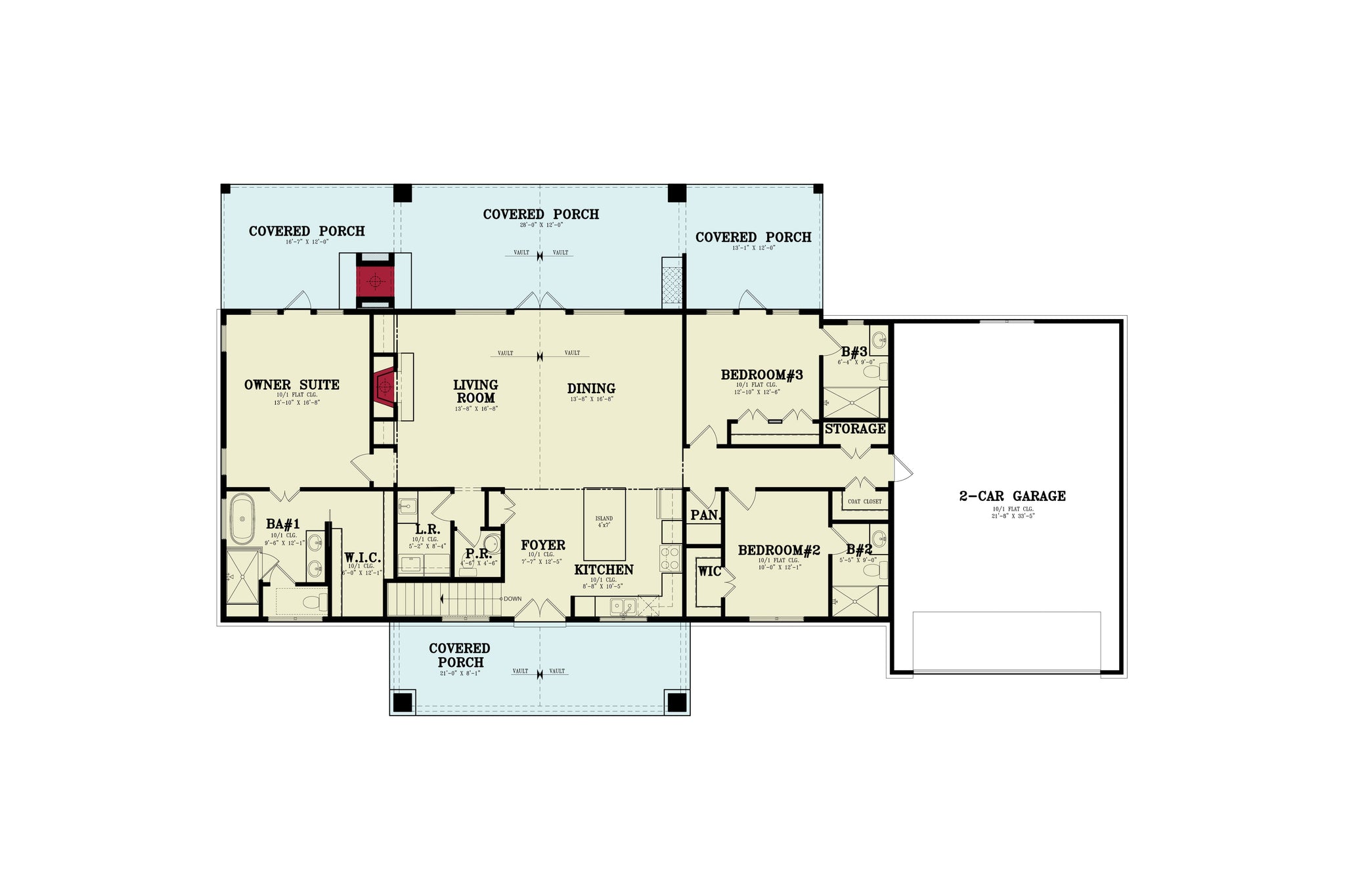

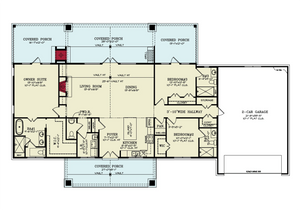

Main Level - (click floor plan to reverse)
Main Level w/ Walkout Basement Option – (click floor plan to reverse)
Optional Walkout Basement – (click floor plan to reverse)
Uncover This Charming 3-Bedroom Home with Inviting Features
A walkout basement option gives the Haystack II a flexible foundation beneath its 1,928 sq ft modern ranch footprint, pairing single-level daily living with room to expand below. The 3-bedroom, 3-bath layout keeps the main floor compact and purposeful while still allowing the design to feel open, grounded, and adaptable.
Inside, movement centers on the kitchen island, where the walk-in pantry, dining area, and living room connect in an easy sequence. The 10-foot ceilings help the shared spaces breathe, while the owner’s suite sits within reach of the laundry room and main living areas. With 3 bedrooms, 3 full baths, and an open-concept kitchen, the plan supports everyday routines without unnecessary circulation.
Practical features include a 2-car front-loading garage, covered front porch, rear porch, and available walkout basement configuration. The farmhouse-inspired exterior keeps the profile clean while giving both arrival and outdoor living spaces clear purpose. View floor plans, photos, and pricing to get started today.

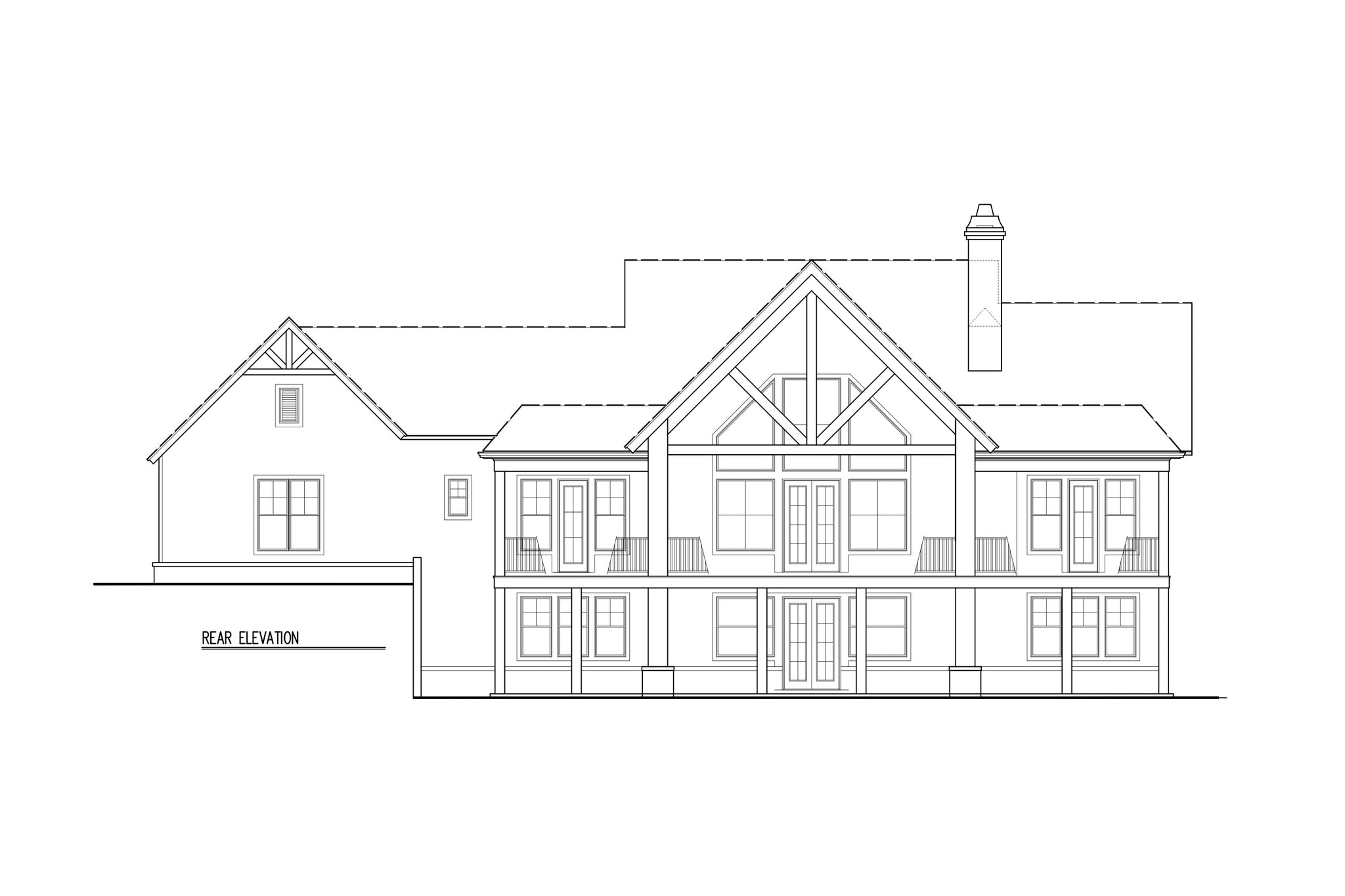

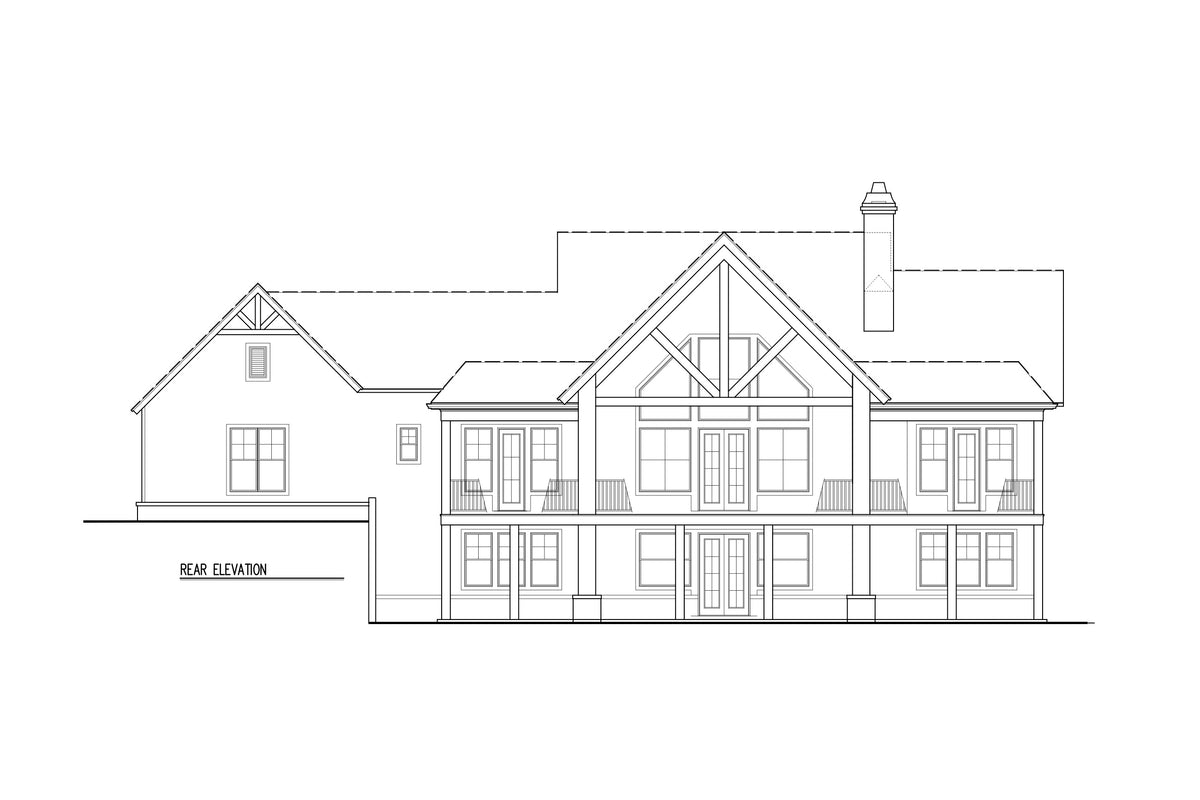

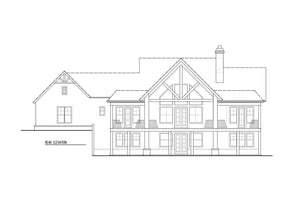

Exterior Elevations – Front, rear, and side views of the home.
Foundation Plan - shows the layout, including excavated and unexcavated areas (if applicable). Each plan features one default foundation type — walkout basement, basement, crawlspace, or slab — based on availability and the option selected by the client. Other foundation types are available as upgrades. Please refer to the plan’s detail sheet for available foundation options. no structural engineering is included.

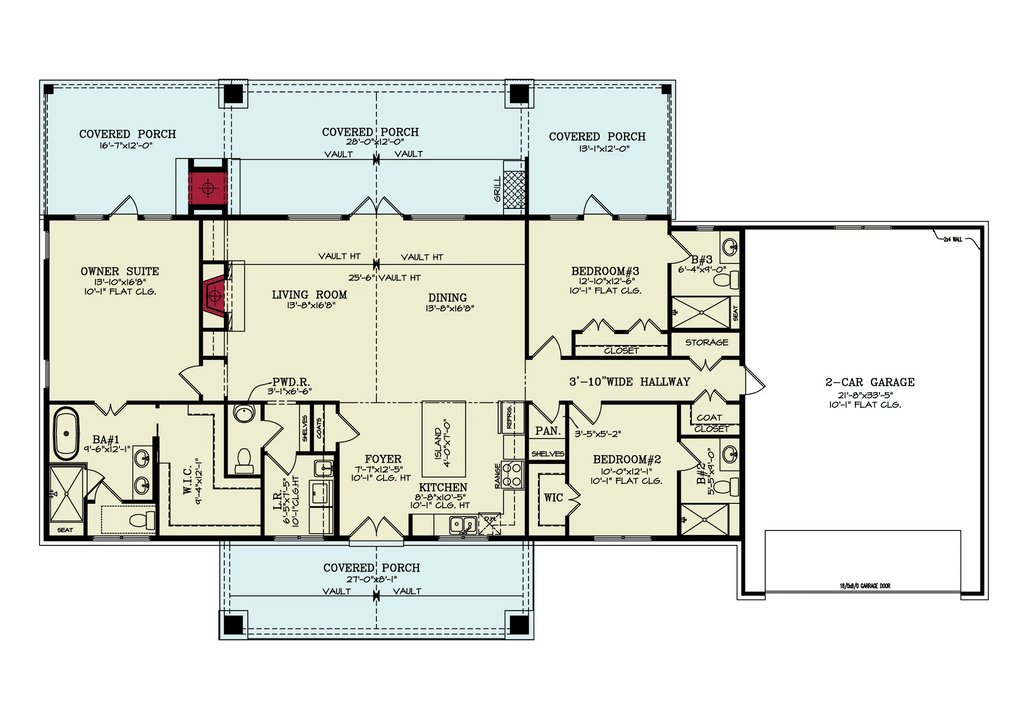

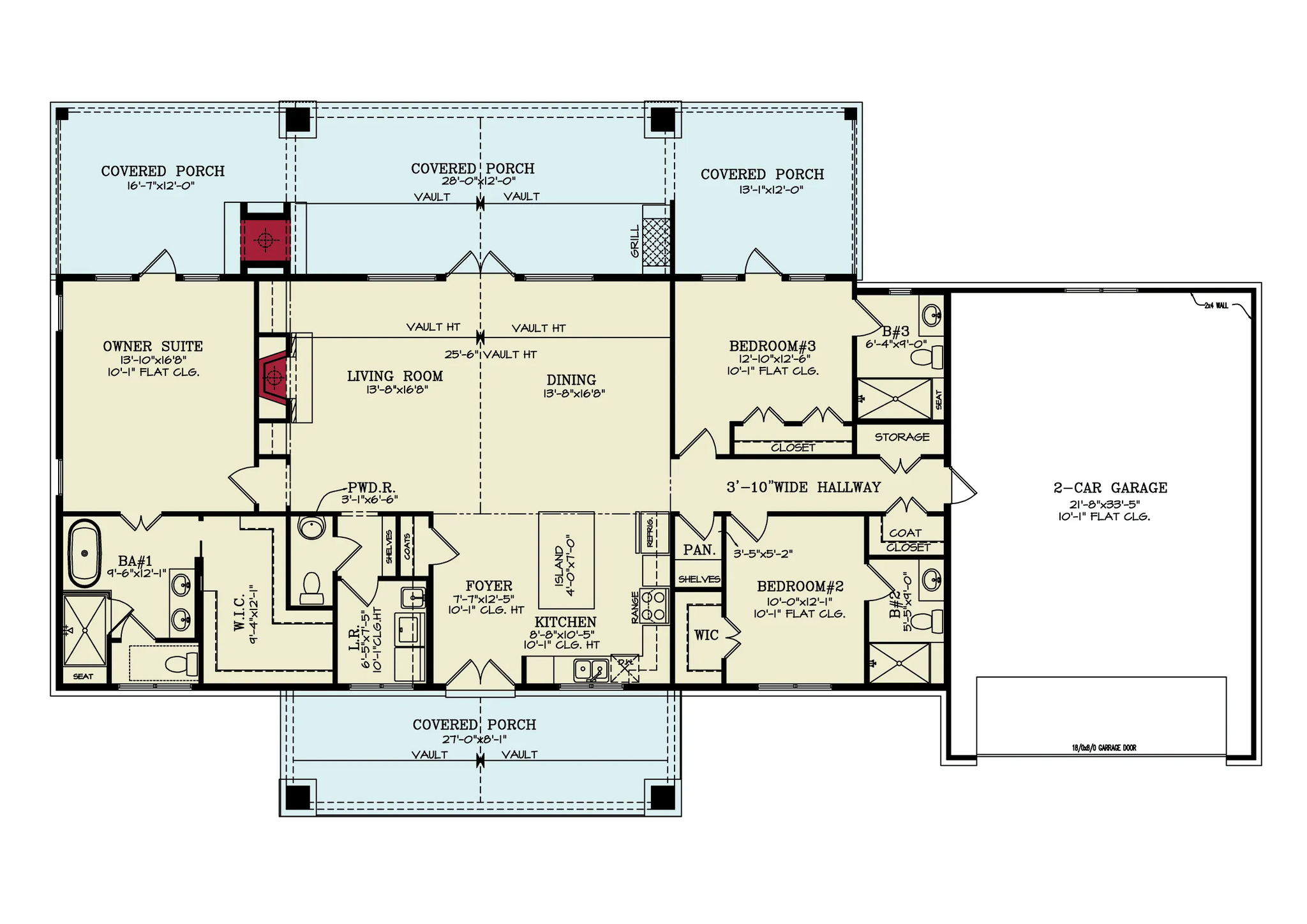

Detailed Floor Plans – Well-dimensioned plans showing the placement of walls, room dimensions, doors, windows, stairways, and other key features for each floor. These plans illustrate floor layouts, window/door sizes, and reference keys for cross-section details.
Engineered floor joists and ceiling joists are not included in some plans. Local engineers or manufacturers can provide services for local geographic conditions. Important changes in floor, ceiling, and roof heights, or the relationship of one level to another, are clearly indicated.
Roof Plan – Overview of roof layout and slopes.
Schematic Electrical Plans – Schematic electrical plan sections specific to the design.
What's Not Included:
Architectural and Engineering Stamps
Site Plan
Structural or Framing Plans – All engineering requirements, including structural, truss, and framing specifications, must be provided by a local engineer or truss manufacturer to comply with local building codes.
Plumbing Layout – Only fixture locations are shown. Detailed plumbing layouts must be provided by licensed subcontractors.
Mechanical or HVAC Drawings – To be provided and installed by qualified subcontractors.
Grading Plan
Material List
House Plan Specifications
Total Living (heated area): 1928 sq ft
All Unheated Under-Roof Areas 749 sq ft
Total Structure 2677 sq ft
1st Floor: 1928 sq ft
Basement: (unfinished) 1883 sq ft
Garage: 749 sq ft
Garage Bays: 2
Garage Load:
Front
Bedrooms: 3
Bathrooms: 3
Foundation: Slab
Wall Framing:
2x6
Roof Framing: Stick
Width of House: 86'-6''
Depth of House: 50'-7''
Building Height: 26'-8''
First Floor Ceiling Height: 10'-1''
Basement Ceiling Height: 9'
Key Features
Covered Front Porch
Kitchen Island
Rear Porch
Vaulted/Volume Ceilings
Walk In Closets
Walk-in Closet
Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Uncover This Charming 3-Bedroom Home with Inviting Features
