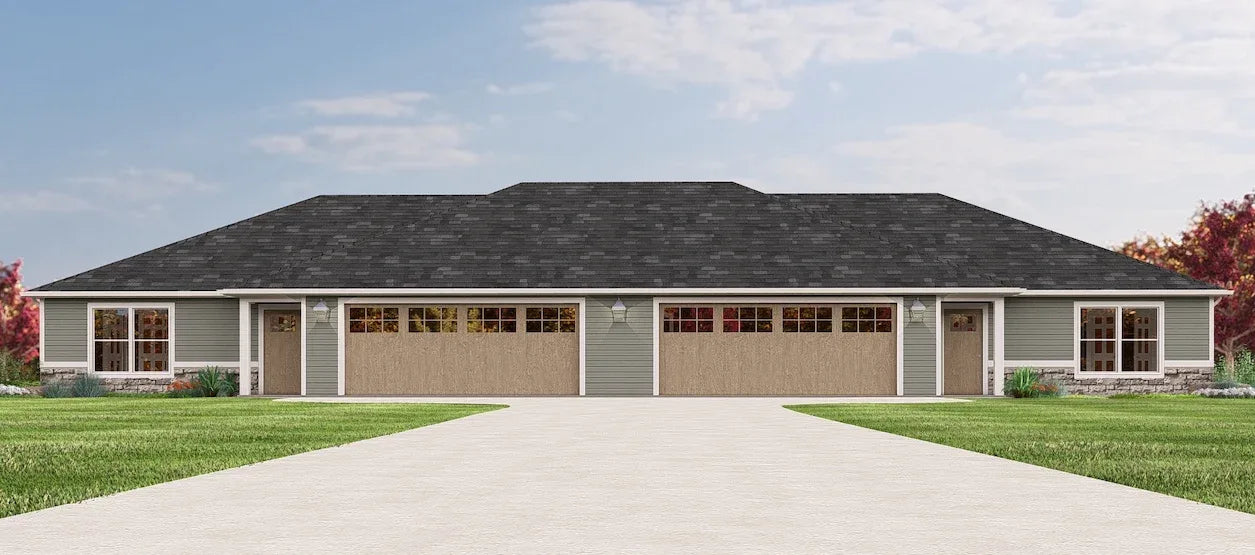

The Wallace house plan is a duplex ranch configuration spanning a total of 2,578 square feet of heated living space, optimized for a 91-foot wide lot. Each of the two units offers 1,289 square feet, providing a symmetrical layout that incorporates 2 bedrooms and 1.5 bathrooms per side. The structure maintains a low-profile aesthetic with a maximum building height of 18 feet 6 inches and a 6:12 roof pitch, ensuring consistent curb appeal across both residential segments.

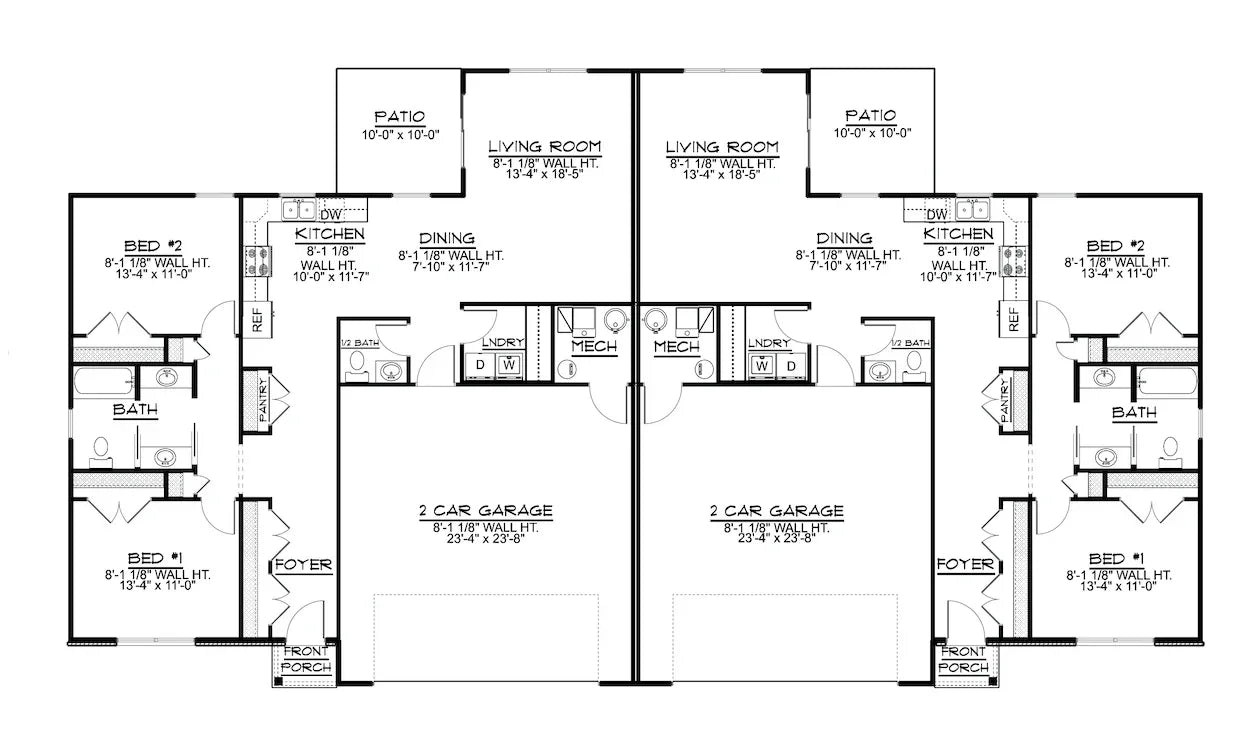

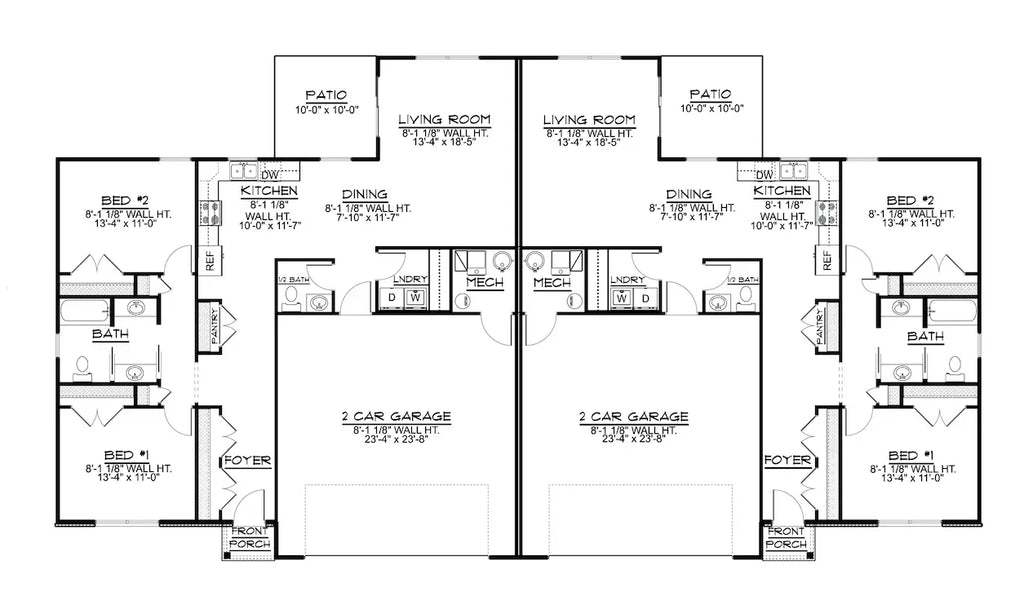

Internal circulation focuses on the cluster-bedroom layout, which groups sleeping quarters to maximize central living area efficiency. Each unit features a first-floor primary suite, ensuring ground-level accessibility and separation from secondary rooms. The open-concept core connects the kitchen and living zones, while a dedicated first-floor laundry room is integrated into each unit to support high-volume household operations. Eight-foot ceiling heights are maintained throughout the interior, providing a consistent vertical volume across the entire floor plate.
Structural integrity is achieved through a slab foundation combined with 2x6 exterior wall framing and truss roof framing. This construction methodology prioritizes thermal efficiency and structural longevity. The plan includes a 36-square-foot front porch and a 200-square-foot rear porch per unit, totaling 236 square feet of outdoor coverage, which facilitates exterior access and ventilation for both residences.
Parking and storage are managed by an expansive 1,144-square-foot garage capacity, providing 4-car total storage with 572 square feet allocated per unit. The 39-foot 6-inch depth requirement allows this design to fit standard residential lots while maintaining sufficient driveway utility. This duplex design represents a practical solution for multi-family living, rental income potential, or multi-generational housing needs.
Key Features: 4 bedrooms, 2 full bathrooms, 2 half bathrooms, duplex configuration, first-floor primary suite, cluster-bedroom layout, 4-car garage, slab foundation, 6:12 roof pitch, 2x6 wall framing, 2,578 total sq ft, 91-foot width.
