23283 Single is a two-story residence engineered for narrow lot footprints, measuring 23 feet 7 inches in width and 53 feet in depth. This 1,565-square-foot home utilizes a compact vertical orientation to maximize site utility, featuring a 654-square-foot main level and a 911-square-foot second level. The exterior design incorporates an 8:12 roof pitch and 2x6 wall framing, providing a durable structural profile with a maximum building height of 27 feet.

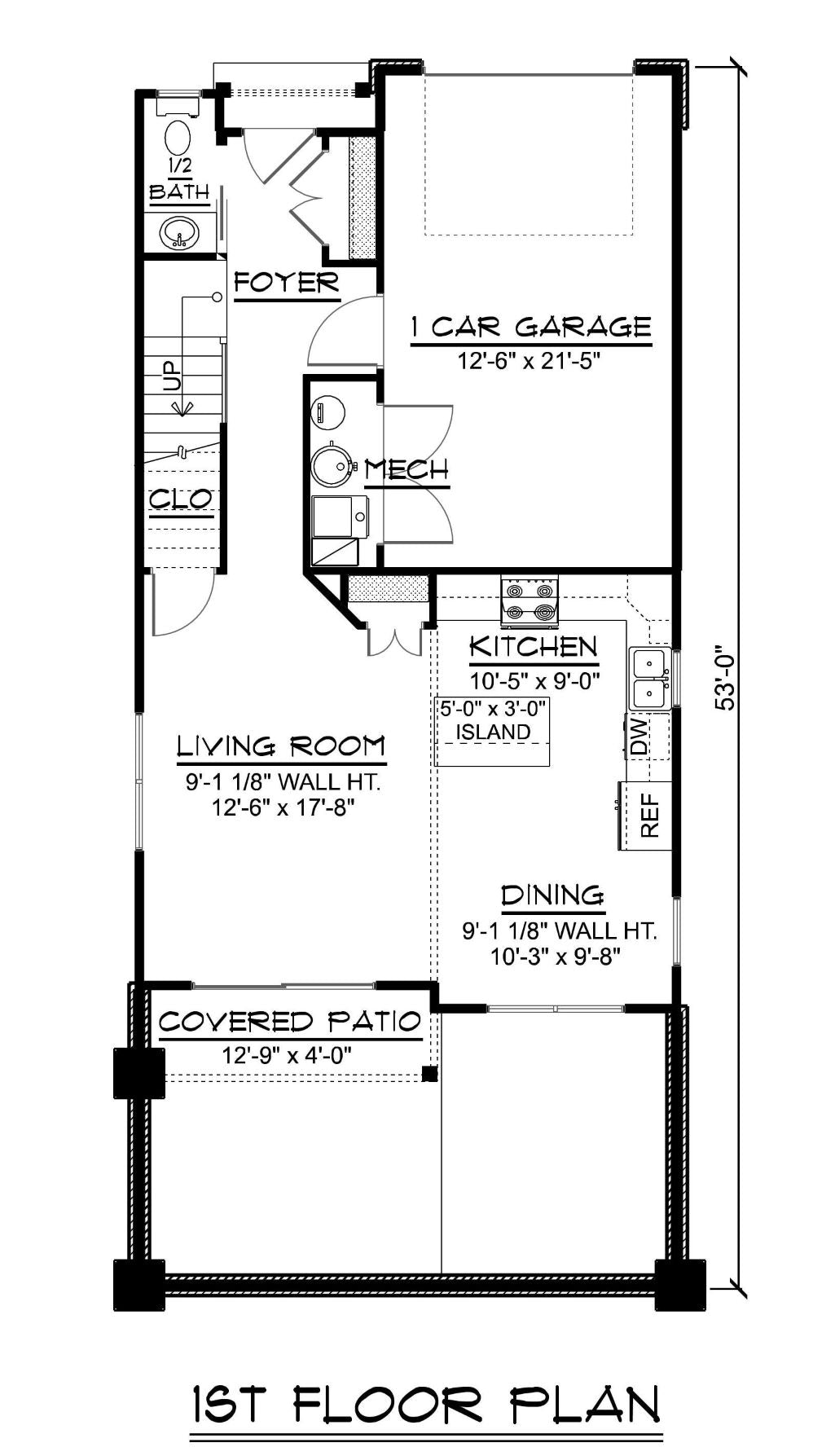

The first floor centers on an open-concept core, where the kitchen island maintains direct sightlines into the living zone. Nine-foot ceiling heights on this level enhance the sense of volume, while the 280-square-foot front-load single-car garage keeps the facade focused on entry. A 63-square-foot rear porch provides a transition to outdoor space, supporting circulation between the primary living area and the backyard.

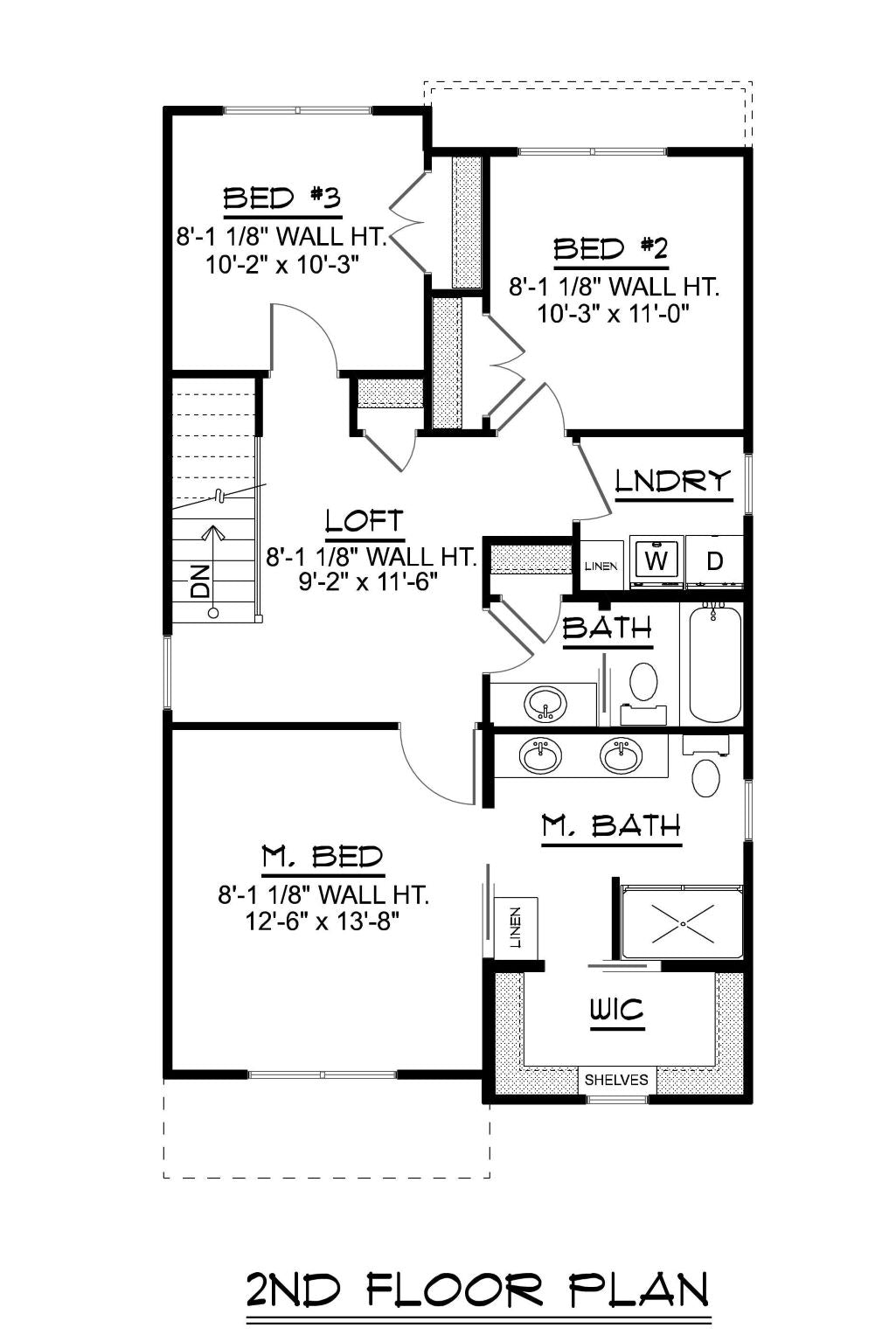

Occupying the upper level, the primary suite includes a walk-in closet and a double-vanity bathroom, separated from secondary sleeping quarters to ensure acoustic privacy. The second floor also hosts a flexible loft area, two additional bedrooms, and a laundry room, establishing a dedicated zone for household management. Eight-foot ceilings on this level maintain a comfortable scale for the private sleeping quarters.
Structural integrity is achieved through truss roof framing, while the split-bedroom layout on the second floor reduces hallway traffic. The design prioritizes vertical efficiency, ensuring the 1,565 square feet of heated living area is distributed to support both social interaction on the main floor and private relaxation on the upper level. This model remains a highly efficient choice for builders working within strict width constraints.
Key Features: 3 bedrooms, 2 bathrooms, 1,565 sq ft, narrow lot design, front-load garage, kitchen island, second-floor laundry, walk-in closet, split-bedroom layout, 9-foot main-level ceilings.
Explore floor plans, available formats, and modification options for this design.
