Vaughan House Plan
4.8
Plan Number:
G2851-A

Vaughan House Plan

Rated 4.8
Plan Number:
G2851-A
Or order by phone: (888) 890-2353
Safe and Secure
LOW PRICE GUARANTEE

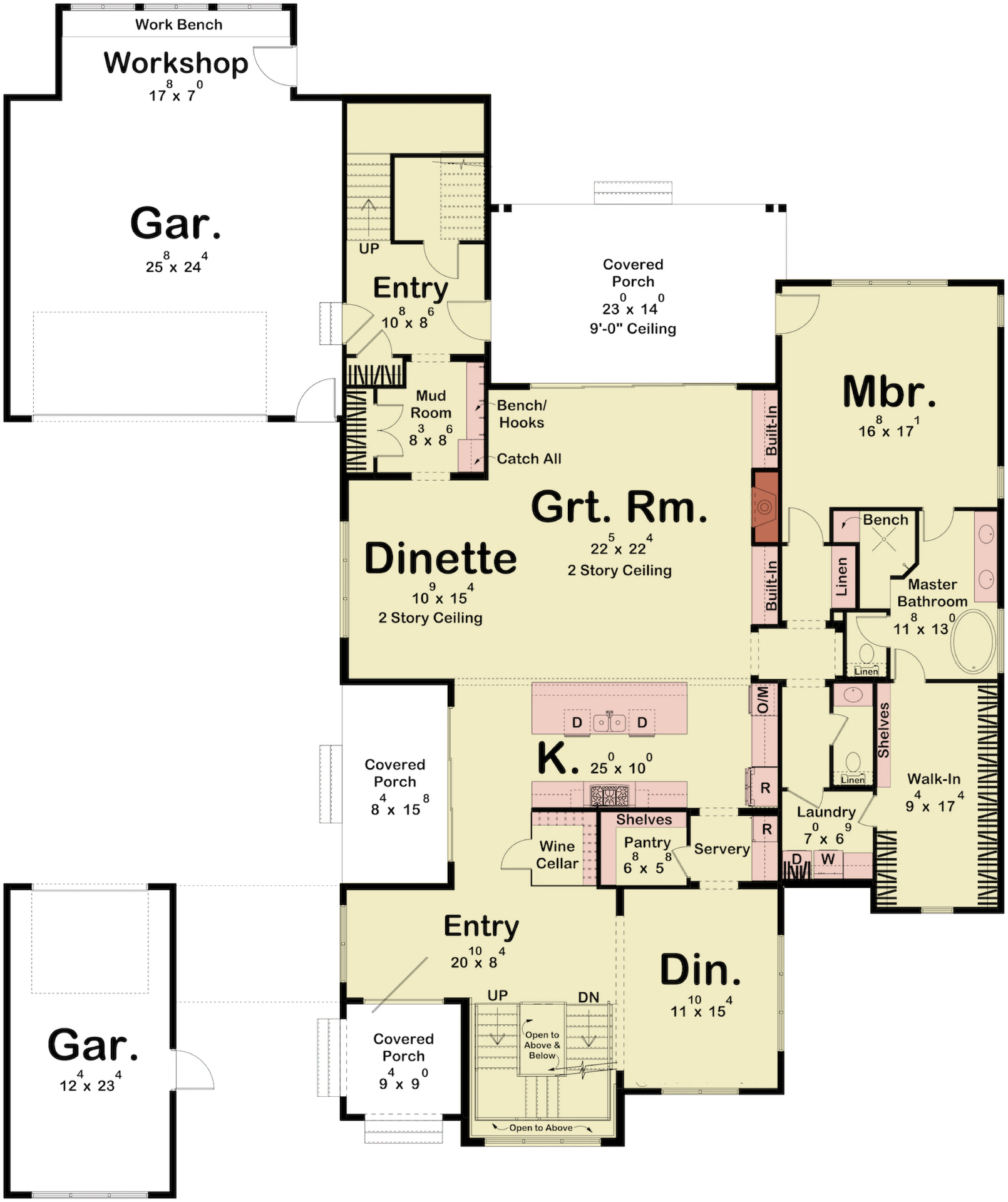

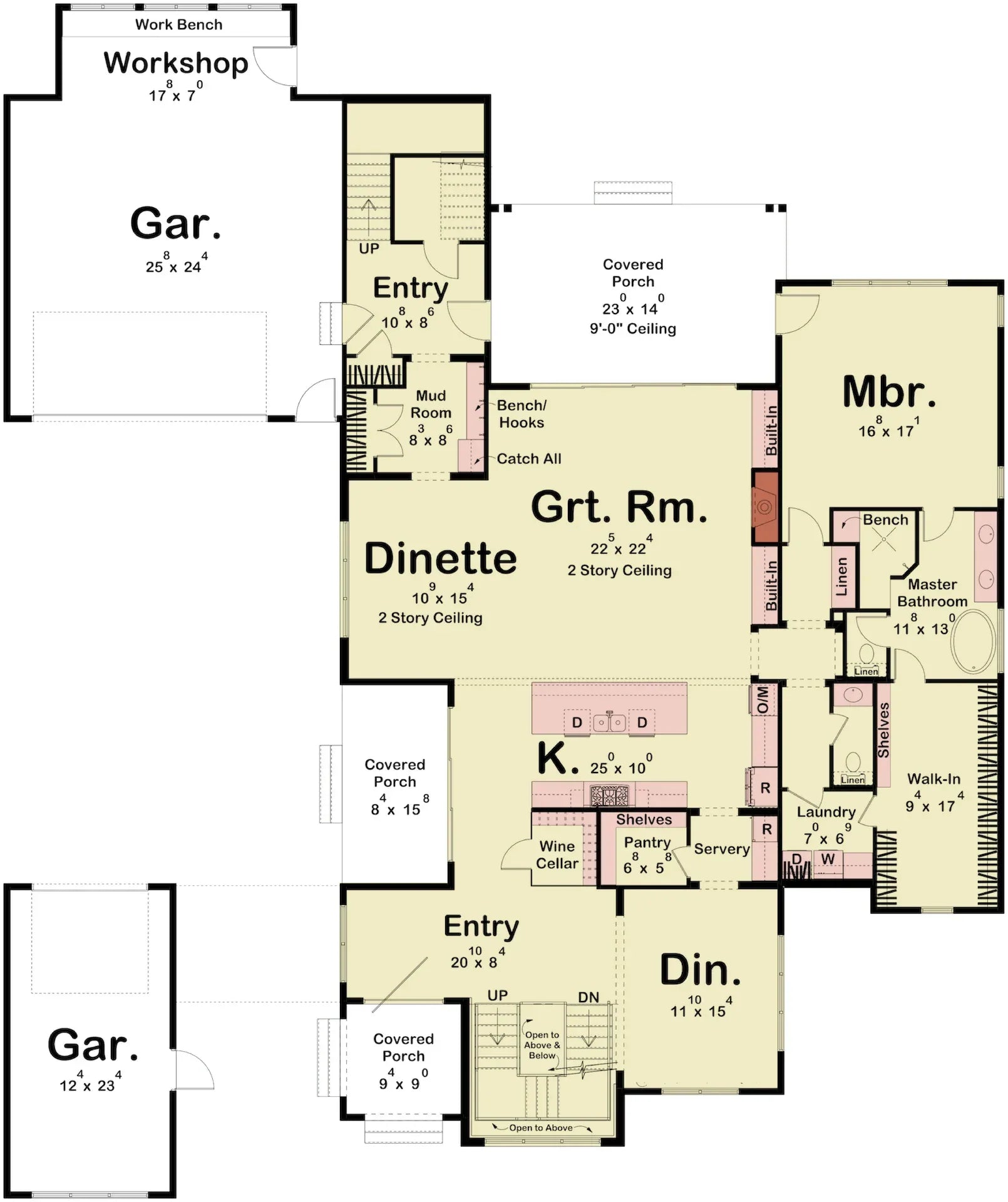

Floor Plan

Welcome to the epitome of refined French country living. This exquisite house plan seamlessly blends classic elegance with a contemporary open-concept design, creating a harmonious space that is both inviting and functional. Set amidst the picturesque countryside, this home exudes charm and sophistication at every turn.

As you step through the front door, you are greeted by a grand foyer, which immediately captures your attention with its soaring staircase and intricate architectural details. To your right, a stately formal dining room awaits, beckoning you to host elegant gatherings and create cherished memories with family and friends.

However, it is the heart of the home that truly captivates. The open concept dinette, great room, and kitchen effortlessly flow together, creating a spacious and welcoming area where the boundaries between cooking, dining, and relaxing blur. Natural light cascades through large windows, casting a warm glow on the tastefully appointed interior. The kitchen, a chef's dream, boasts state-of-the-art appliances, ample counter space, and custom cabinetry, offering both functionality and beauty.

For those seeking privacy and tranquility, the master suite on the main floor is a haven of luxury. This sanctuary features a generously sized bedroom with access to the rear covered porch, providing a serene retreat after a long day. The en-suite bathroom exudes opulence with its double vanity, soaking tub, and separate shower. A walk-in closet offers abundant storage space, ensuring that your belongings are neatly organized.

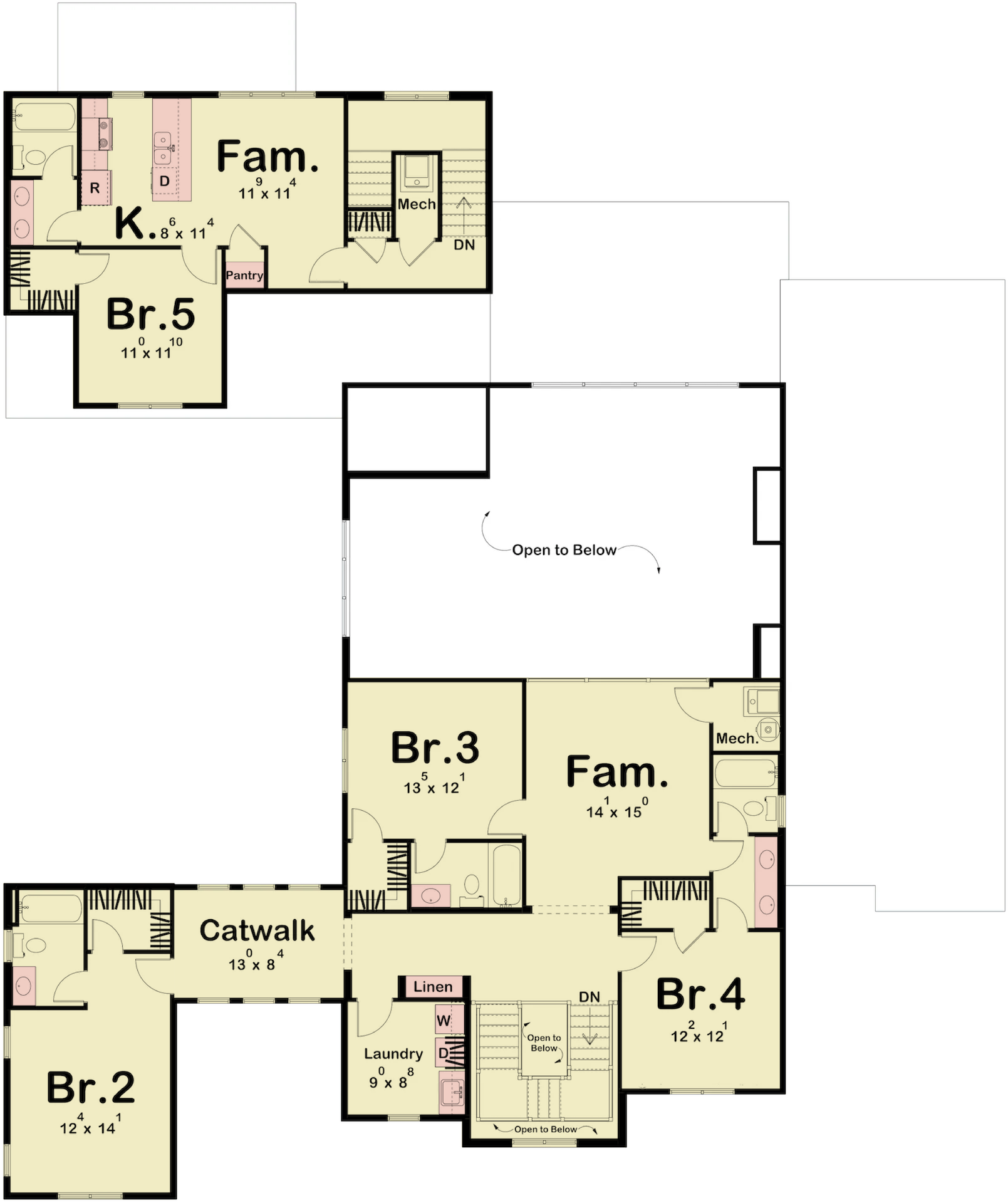

Upstairs, a world of comfort and individuality awaits. Three spacious bedrooms, each boasting its own walk-in closet and private bathroom, provide a sense of personal retreat for family members or guests. These thoughtfully designed rooms offer a harmonious balance between elegance and practicality, catering to the needs and desires of every resident.

This exceptional country house plan also offers additional living space above the two-car garage. A separate apartment, complete with a fully equipped kitchen, a bath, a bedroom, and a family room, offers endless possibilities. Whether it serves as an in-law suite, a home office, or a private retreat for guests, this space provides versatility while maintaining the overall cohesiveness of the home.

Completing the ensemble, a single-car garage adds convenience and functionality, accommodating vehicles and additional storage needs.

Embracing the essence of French country charm, this house plan harmonizes classic elegance with modern sensibilities. Its open concept design, luxurious master suite, well-appointed bedrooms, and versatile living spaces make it a truly remarkable home that effortlessly blends style and functionality. Welcome to your French country retreat, where timeless beauty and contemporary living converge in perfect harmony.

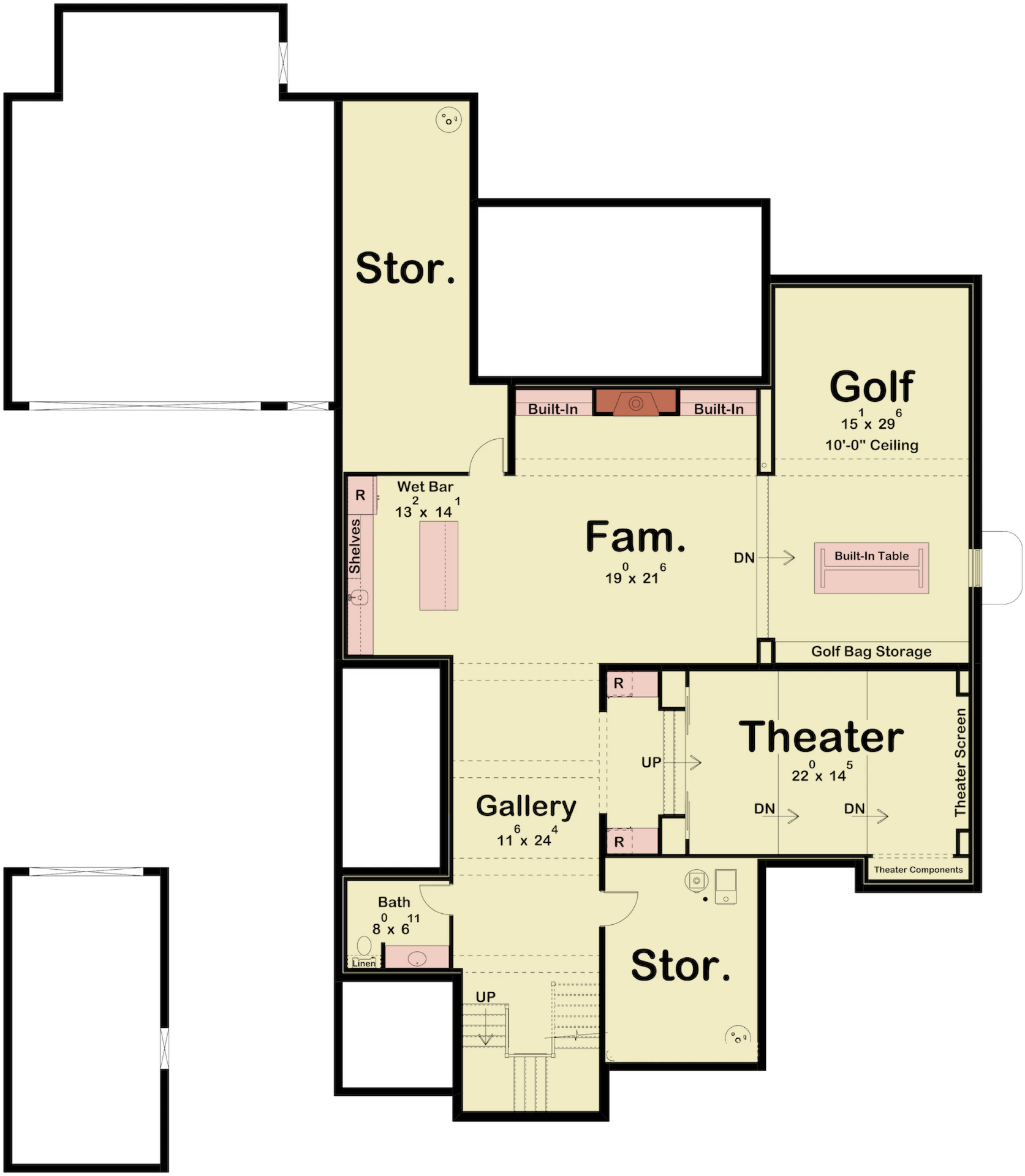

The optional finished basement adds 1988 sq. ft. of finished space and 506 sq. ft. of unfinished storage space.

House Plan Specifications

  • Total Living (heated area):  4817 sq ft
    1st Floor:  2781 sq ft
    2nd Floor:  2036 sq ft
    Total Porch:  532 sq ft
  • Garage:  1090 sq ft
    Garage Bays:   3
    Garage Load:   Rear
  • Bedrooms:   5
    Bathrooms:   6
  • Foundation:   Basement
    Wall Framing:   2x4
    Roof Pitch:  6:12, 14:12, 12:12, 10:12, 4:12 and 3:12
  • Width of House:  77'
    Depth of House:  92'
    Building Height:  33'4''
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  8'
    Basement Ceiling Height:  9'

Key Features

  • Butler's Pantry
  • First Floor Laundry
  • First Floor Master Suite
  • Formal Dining Room
  • In-law Suite
  • Laundry 1st Floor
  • Laundry 2nd Floor
  • Laundry Access from Master
  • Mud Room
  • Two-Story Grand Room
  • Wet Bar
  • Wine Cellar
