The Hartley Garage Plan is a one-story structure providing 1,014 square feet of unheated garage space, engineered for a 39-foot width and 26-foot depth footprint. The design centers on a wide-span front-load architecture that reaches a maximum building height of 15 ft, establishing a low-profile horizontal silhouette for residential or auxiliary property installations.

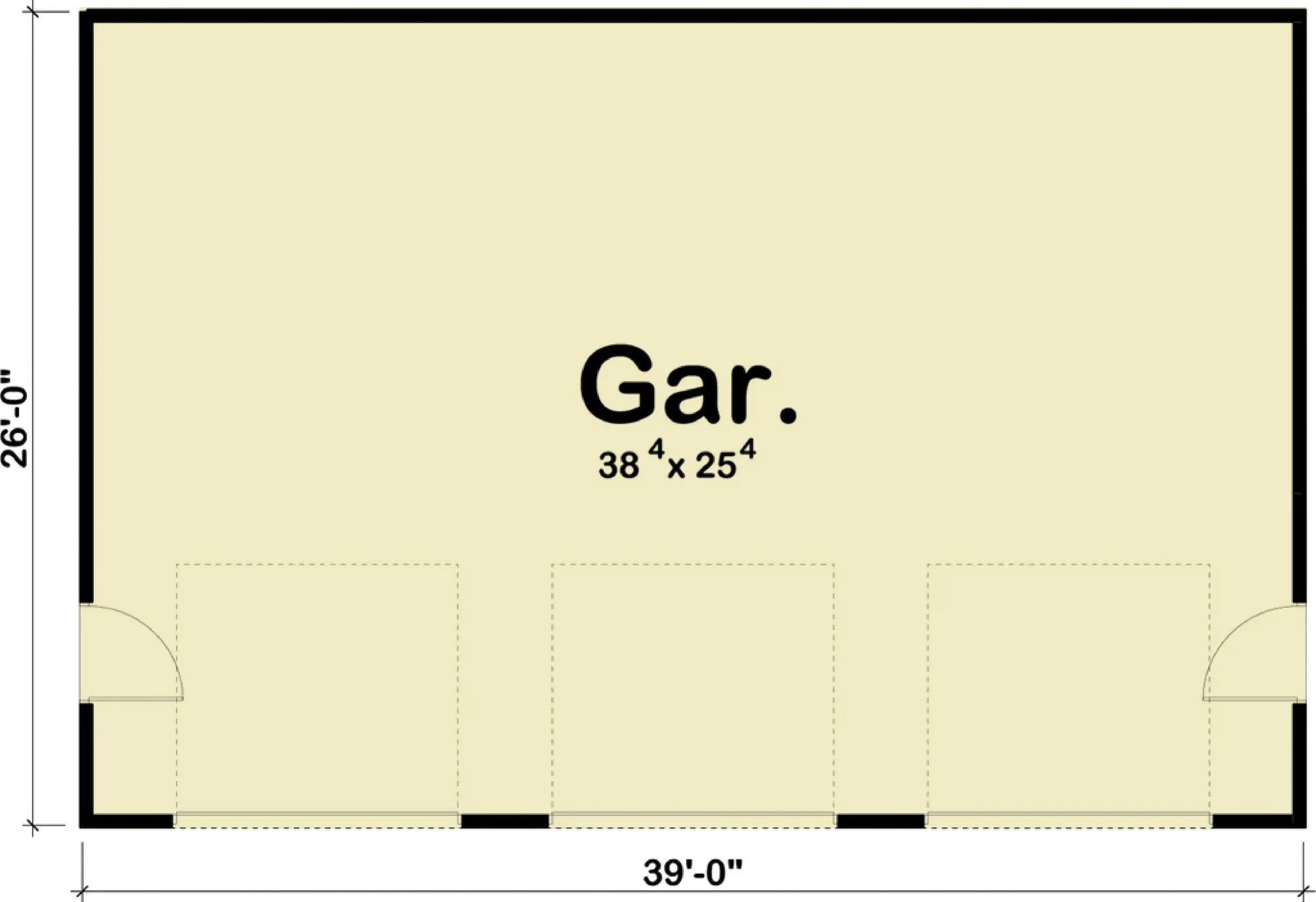

The interior layout prioritizes an unobstructed automotive floor plate, where the entire footprint is dedicated to vehicular storage and workshop utility. This open zone accommodates three front-loading garage bays, ensuring effortless drive-in access for daily drivers, classic car restorations, or recreational equipment. The clear-span interior maximizes floor area usage, maintaining a complete focus on high-capacity utility with zero finished living space walls.
Vehicular access is optimized through three independent front-facing garage doors integrated into the main elevation, prioritizing structural ease of entry and clean exterior lines. The roof structure utilizes a low-slope 2:12 roof pitch driven by a pre-engineered truss framing system, contributing to the overall streamlined aesthetic and efficient water shedding capability of the building while minimizing total vertical bulk.
With 9-foot garage ceiling heights, the interior volume easily accommodates standard vehicle clearance, automated garage door mechanisms, and overhead utility shelving units. The construction is structurally enhanced for a single-level configuration utilizing robust 2x6 wall framing for increased structural rigidity and a durable concrete slab foundation, ensuring long-term load-bearing capacity for heavy automotive equipment and tools. The structure provides a layout suitable for use as a multi-car parking pavilion, a dedicated mechanical workshop, or a standalone auxiliary storage facility.
Key Features: 1,014 sq ft garage area, 3 garage bays, front-load configuration, 9-foot ceiling height, 15-foot building height, heavy-duty 2x6 wall framing, slab foundation, 2:12 roof pitch truss system.
