Transitional House Plan with Bonus Room & Daylight Basement | 2,125 Sq Ft Home
4.8
Plan Number:

AO7991-A

Rated 4.8
Plan Number:

AO7991-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan

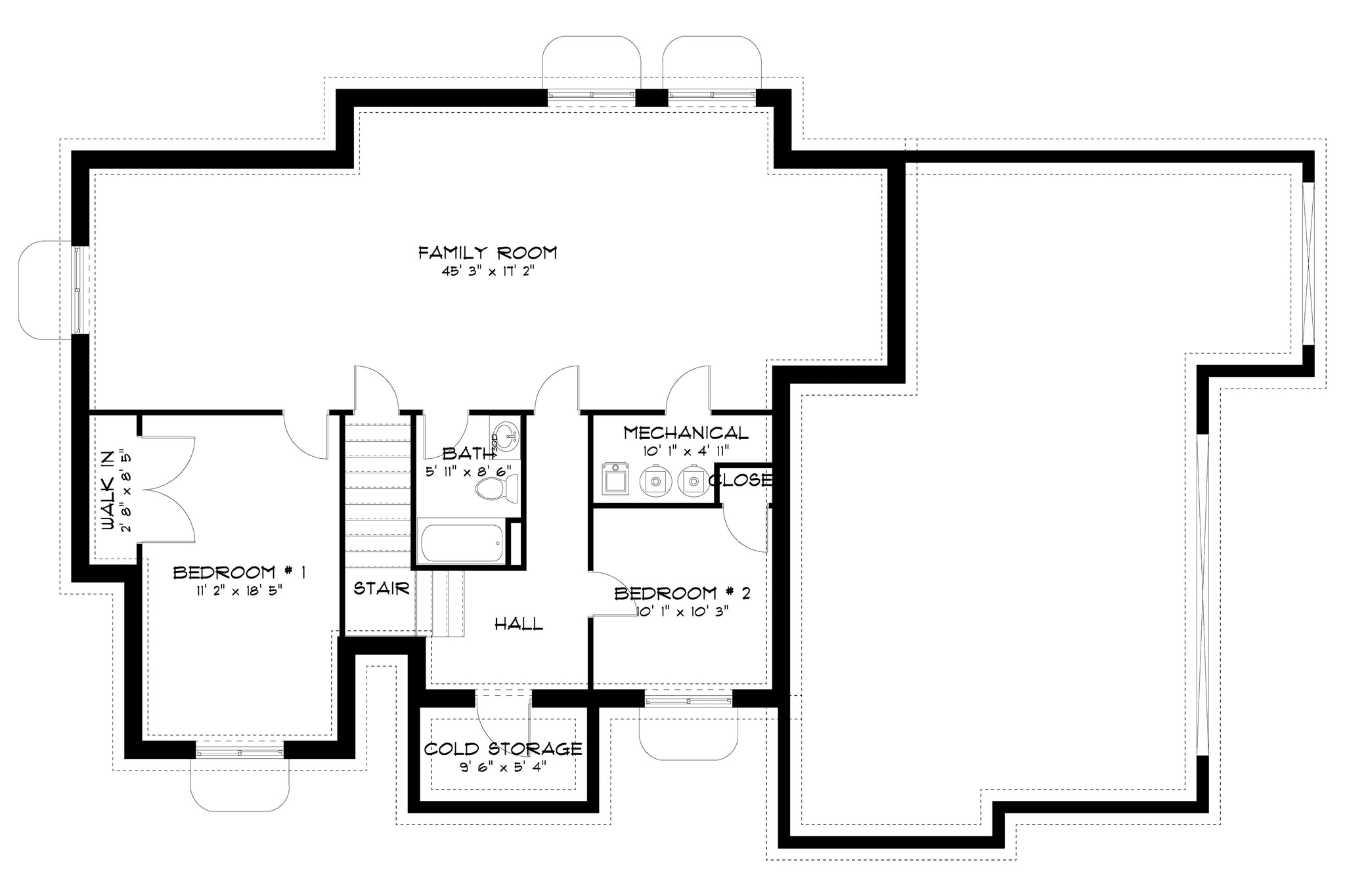

ao7991-a transitional house basement floor plan, 3 to 5 bedrooms, 2.5 to 3.5 bathrooms | tilo

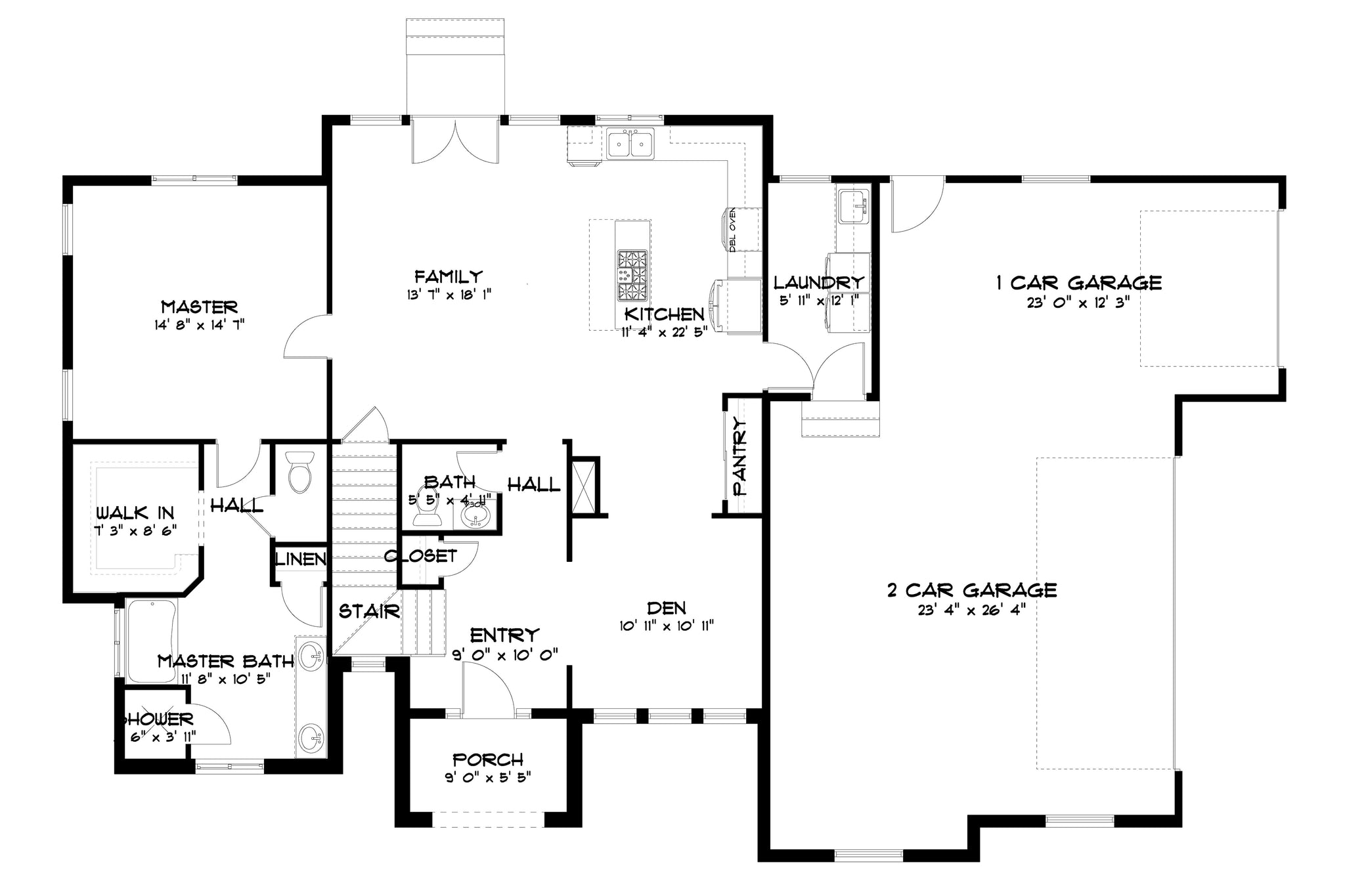

ao7991-a transitional house first floor plan, 3 to 5 bedrooms, 2.5 to 3.5 bathrooms | tilo

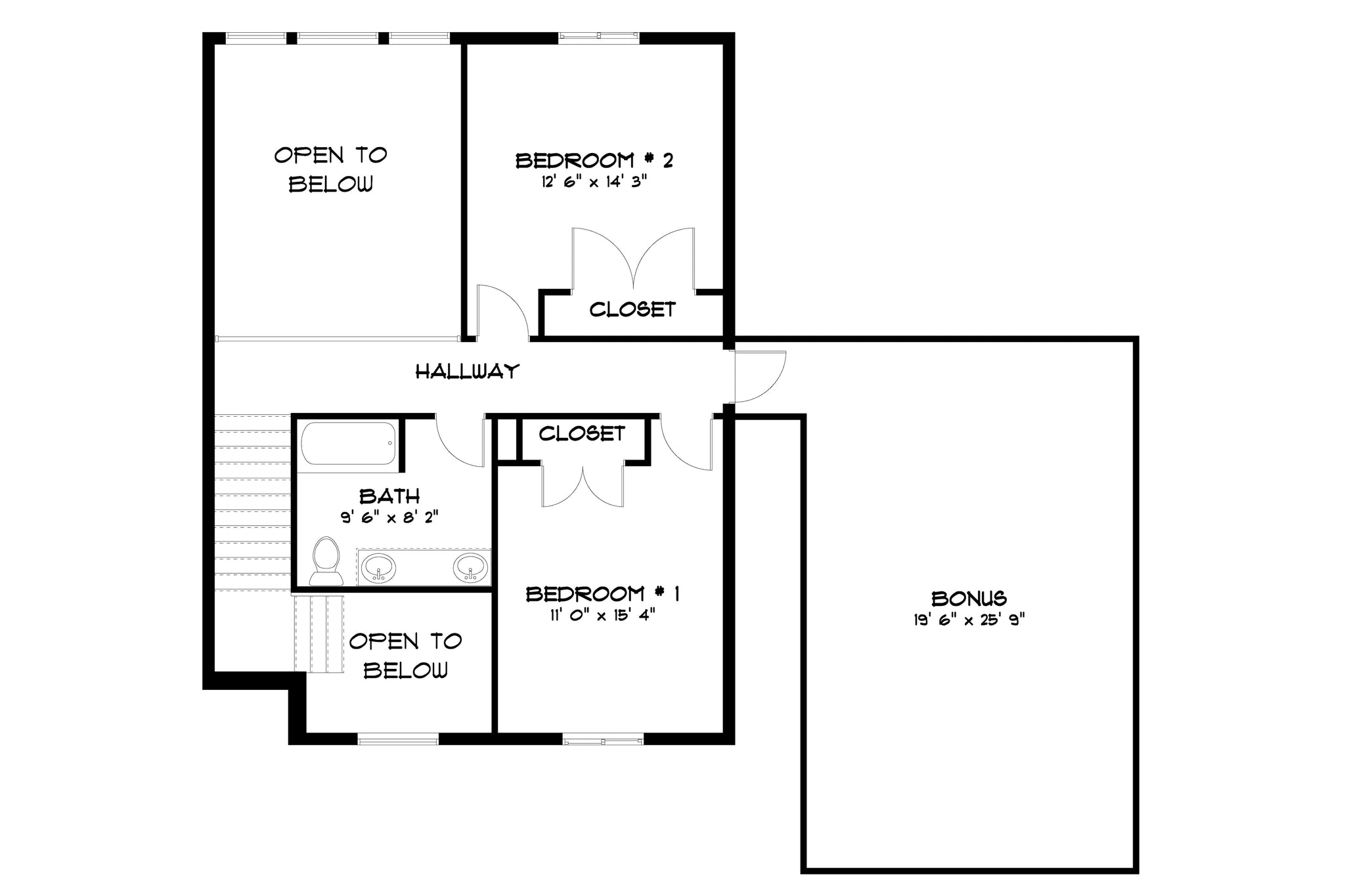

ao7991-a transitional house second floor plan, 3 to 5 bedrooms, 2.5 to 3.5 bathrooms | tilo

Transitional House Plan with Bonus Room & Daylight Basement | 2,125 Sq Ft Home

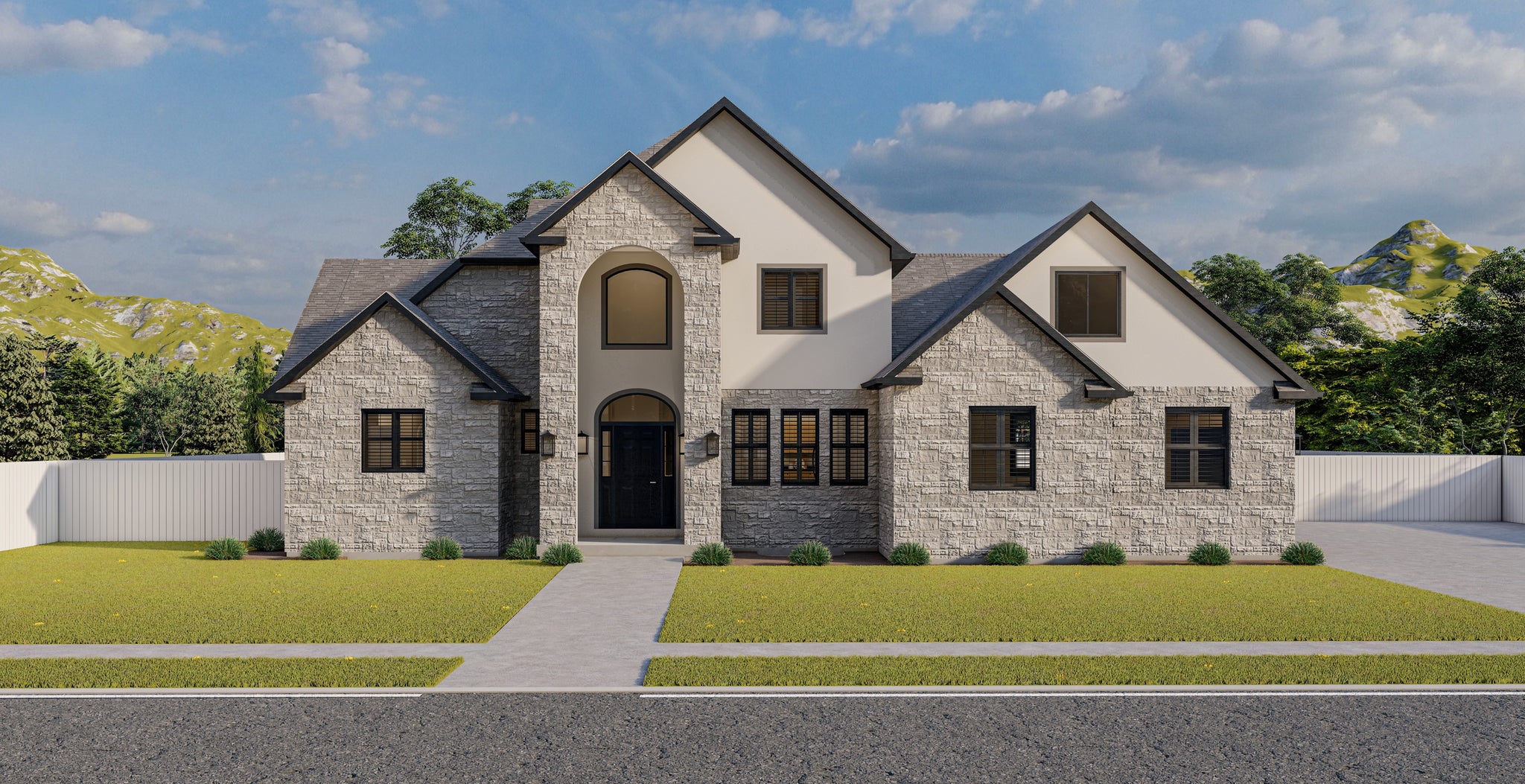

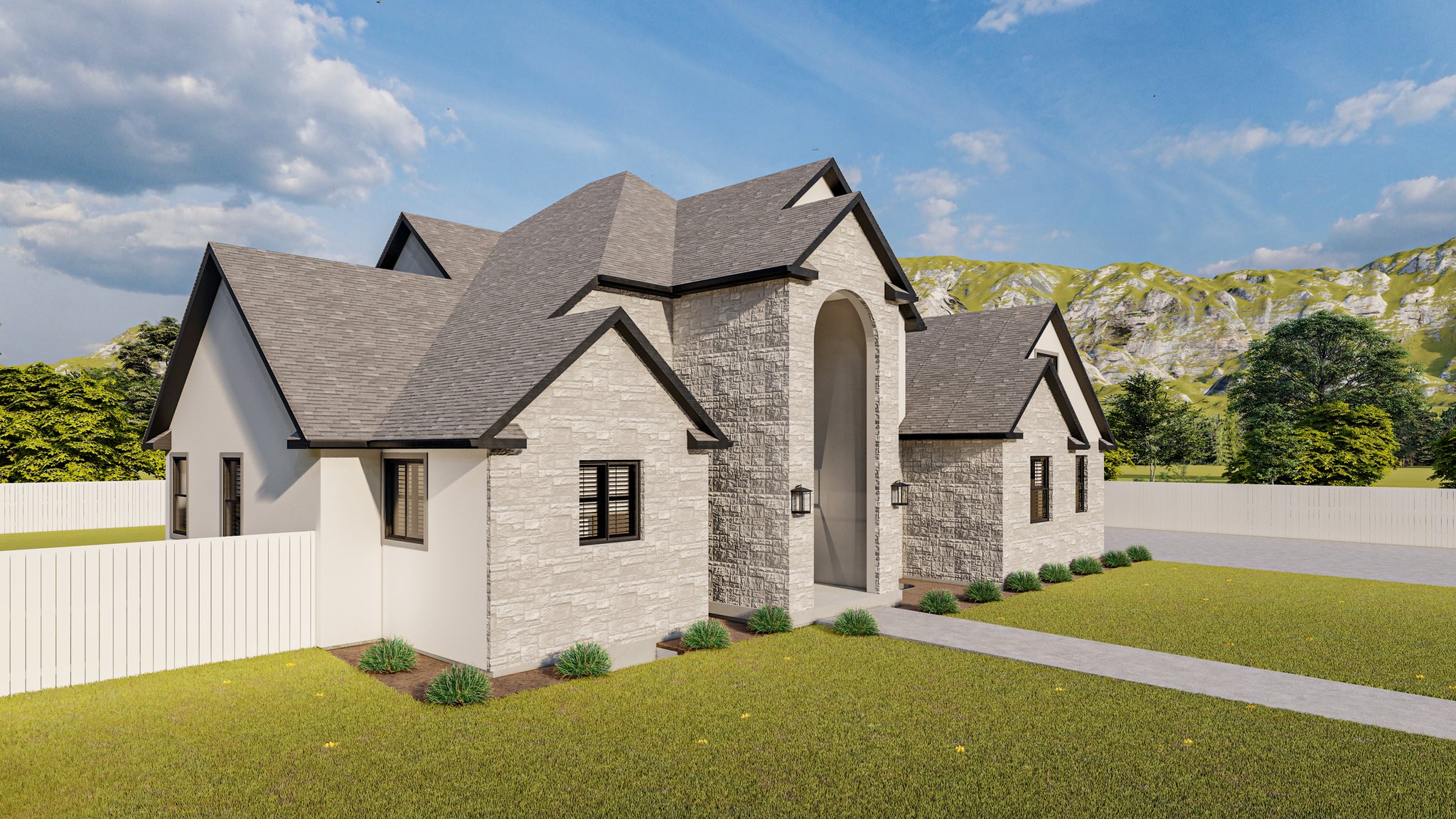

The Montara Modern Farmhouse utilizes a 70'6" wide by 43'1" deep footprint to deliver 2,125 sq ft of heated living space. This transitional design prioritizes a wide-lot orientation, featuring a 10:12 roof pitch and a total building height of 31'2" that creates a substantial profile. A 68 sq ft covered front porch serves as the primary entry point, leading directly into a two-story foyer that establishes a clear vertical axis within the home.

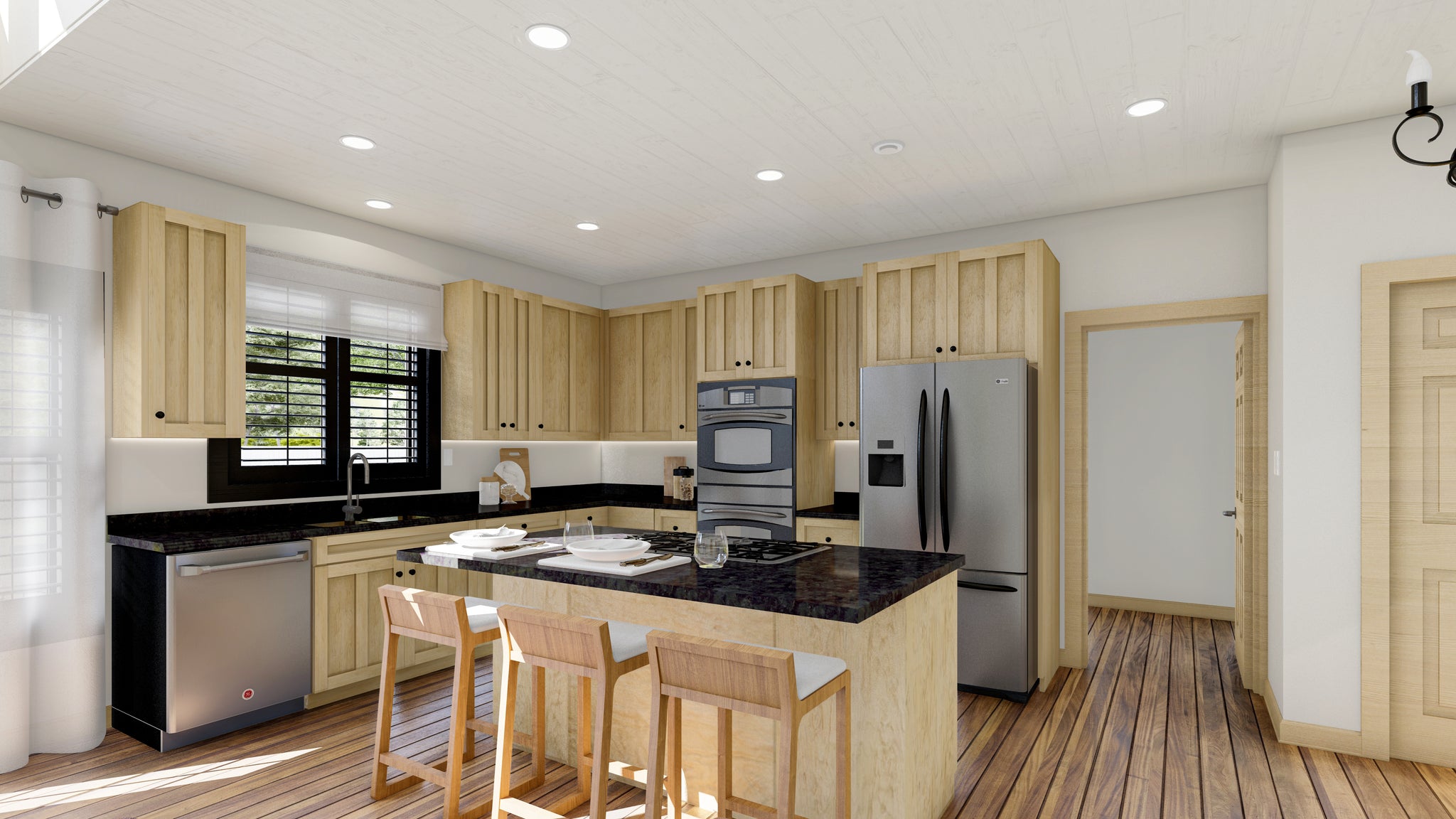

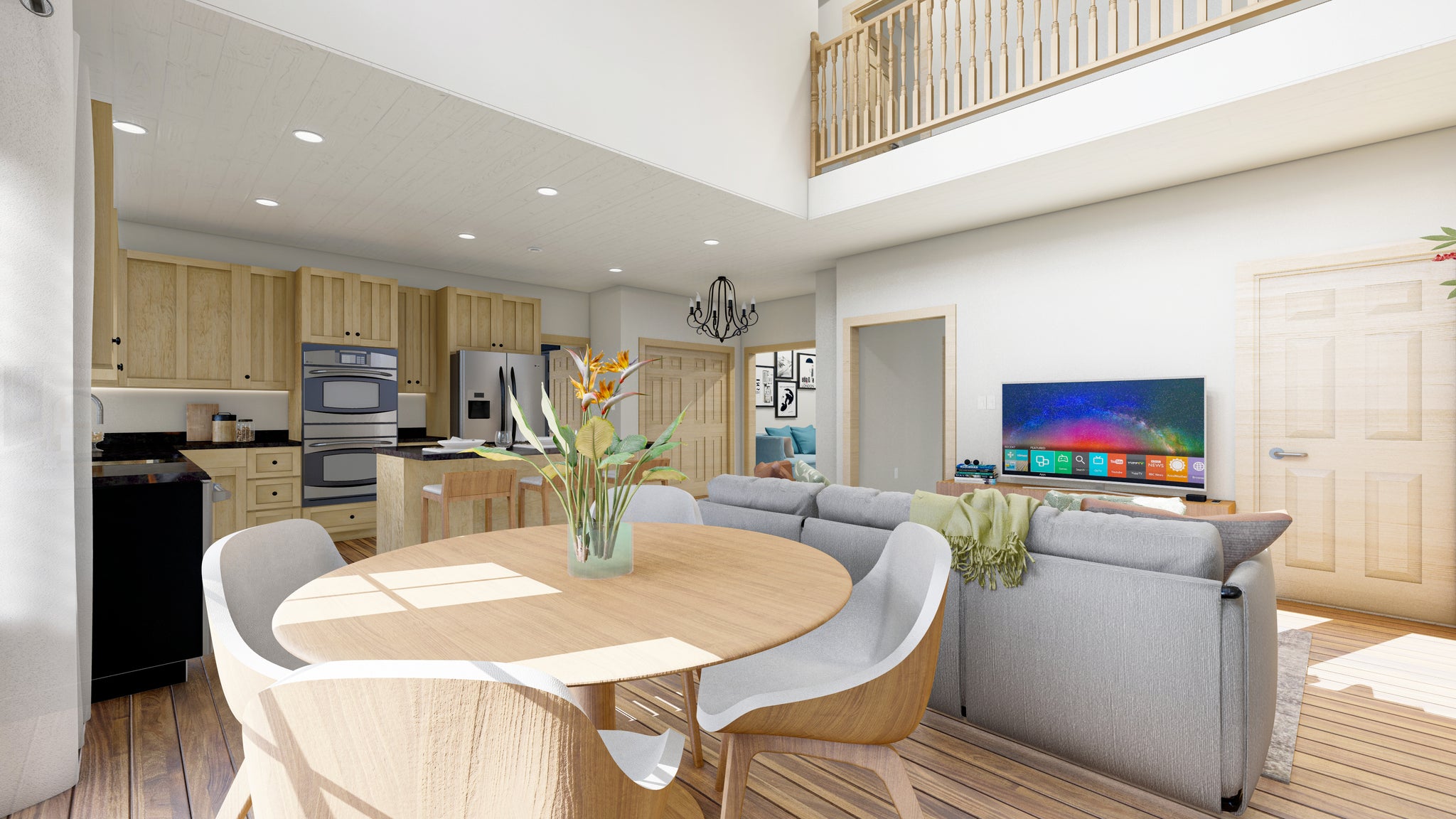

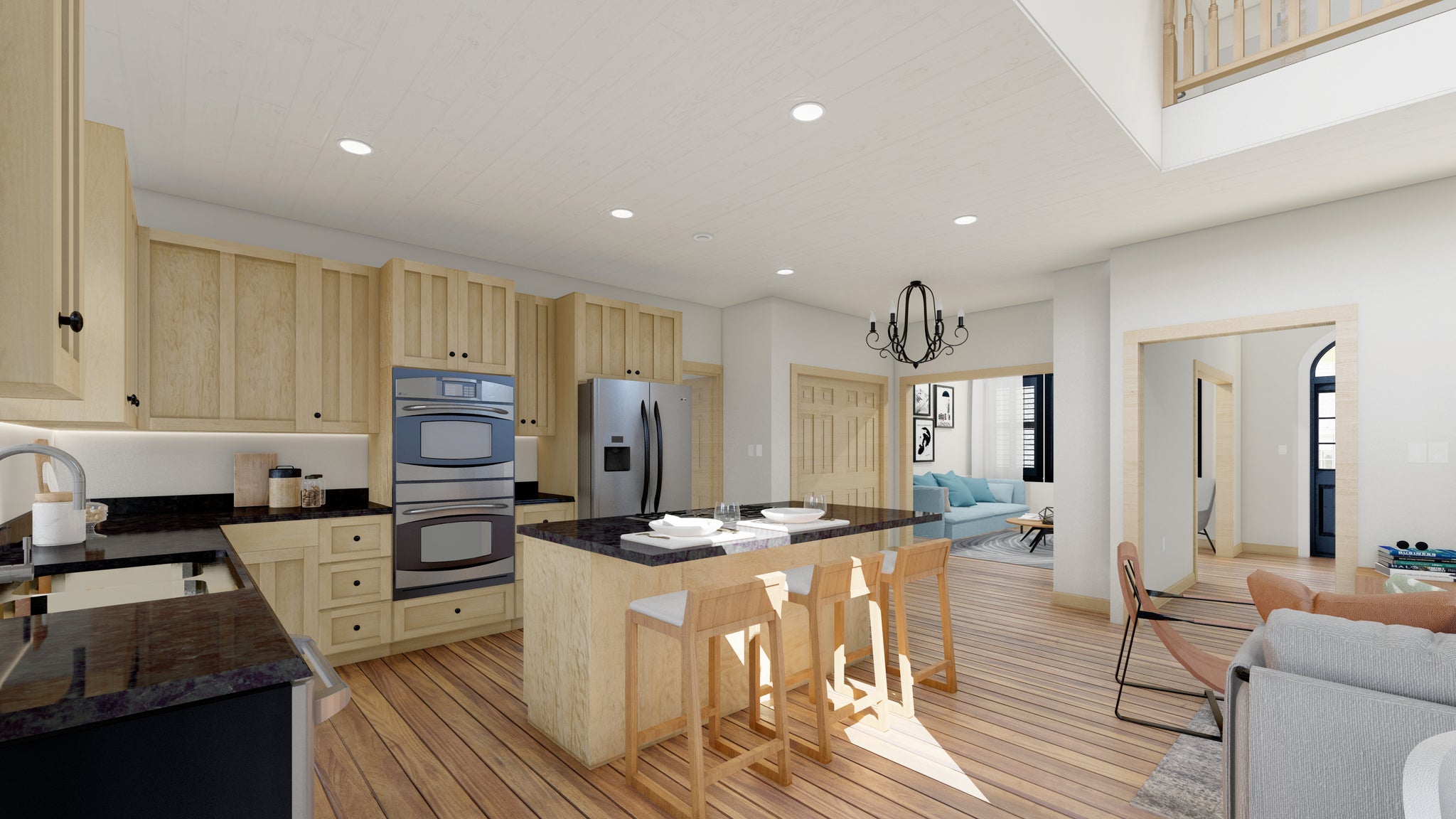

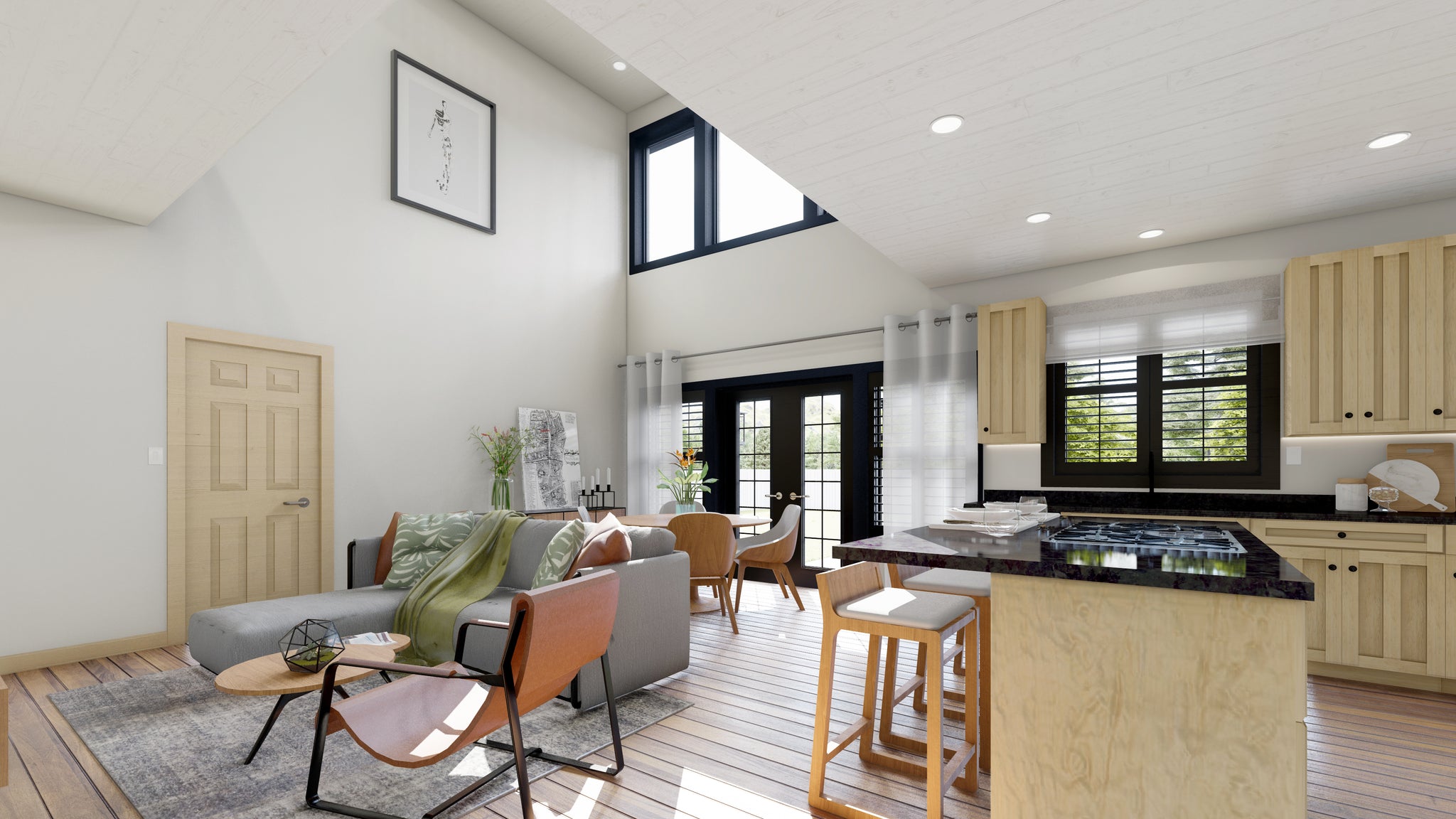

The main level encompasses 1,475 sq ft, configured around an open-concept core that includes a family room, kitchen, and breakfast area. A central kitchen island and integrated eating bar facilitate circulation between these zones. The primary suite is positioned on the first floor to provide a private wing, complete with a walk-in closet and a dedicated master bath. A first-floor laundry room connects directly to the garage, while a separate den provides a quiet area for focused work.

The upper level adds 650 sq ft of living space, containing additional bedrooms and a full bathroom. A 450 sq ft bonus room offers flexible utility for a home office, media retreat, or guest accommodation. Structural integrity is provided by 2x6 wall framing and a truss roof system, with 9-foot ceilings on the main level and 8-foot ceilings on the second floor, creating a consistent interior volume throughout the residence.

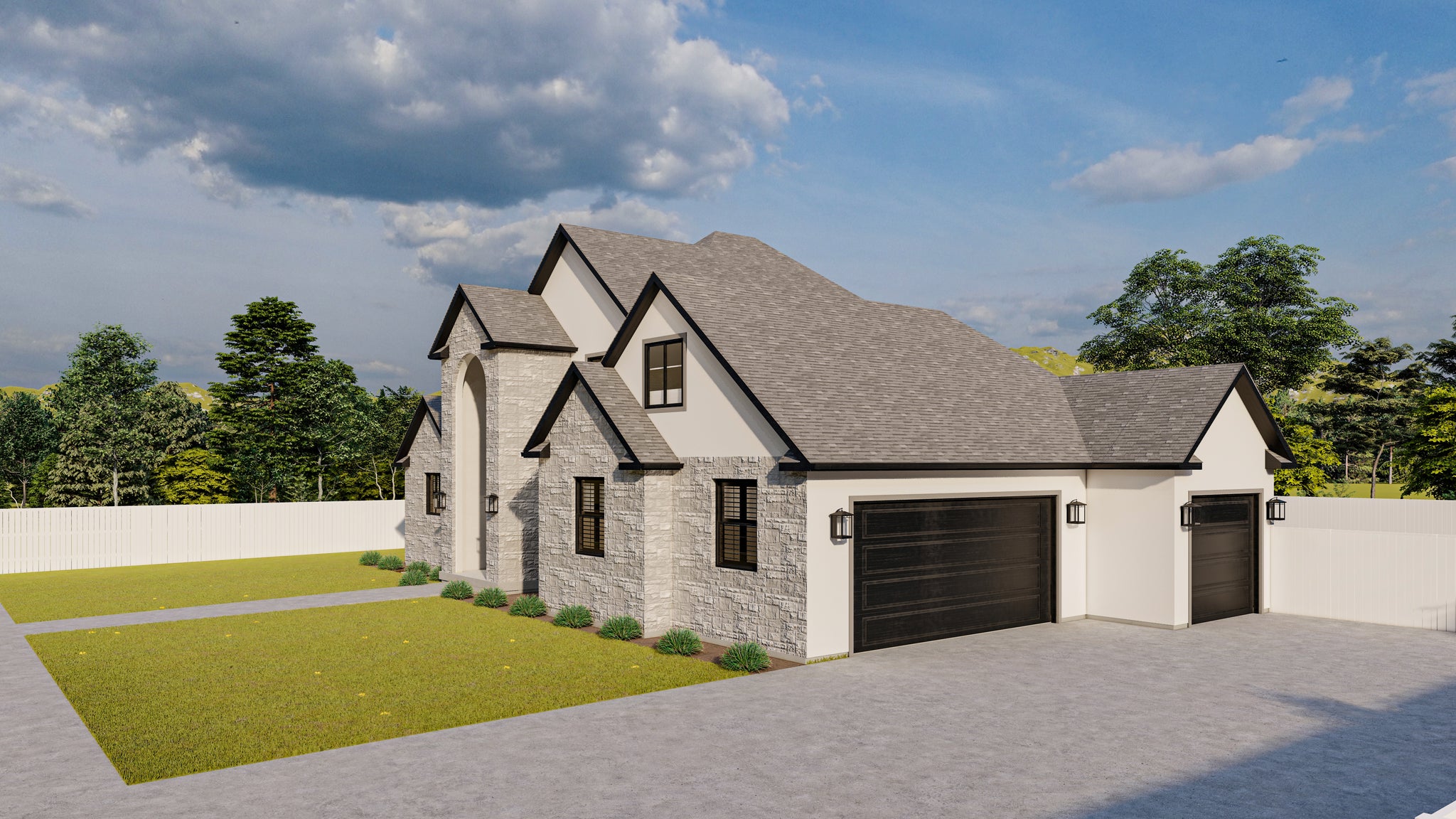

A 1,573 sq ft daylight basement provides expansive potential for recreation or storage, featuring an 8-foot ceiling height to maximize usable volume. The 922 sq ft side-load 3-car garage keeps the front elevation clear of vehicle storage, enhancing the exterior aesthetic while offering substantial utility. An additional 990 sq ft of unheated under-roof space is available for secondary storage needs.

Key Features: 3 bedrooms, 2 full bathrooms, 1 half bathroom, first-floor primary suite, daylight basement, 3-car side-load garage, bonus room, walk-in pantry, 2x6 wall framing, open-concept floor plan.

Review floor plans, CAD packages, and customization options for this home.

View Sample Plan
What's Included in the House Plan:
  • Floor Plans

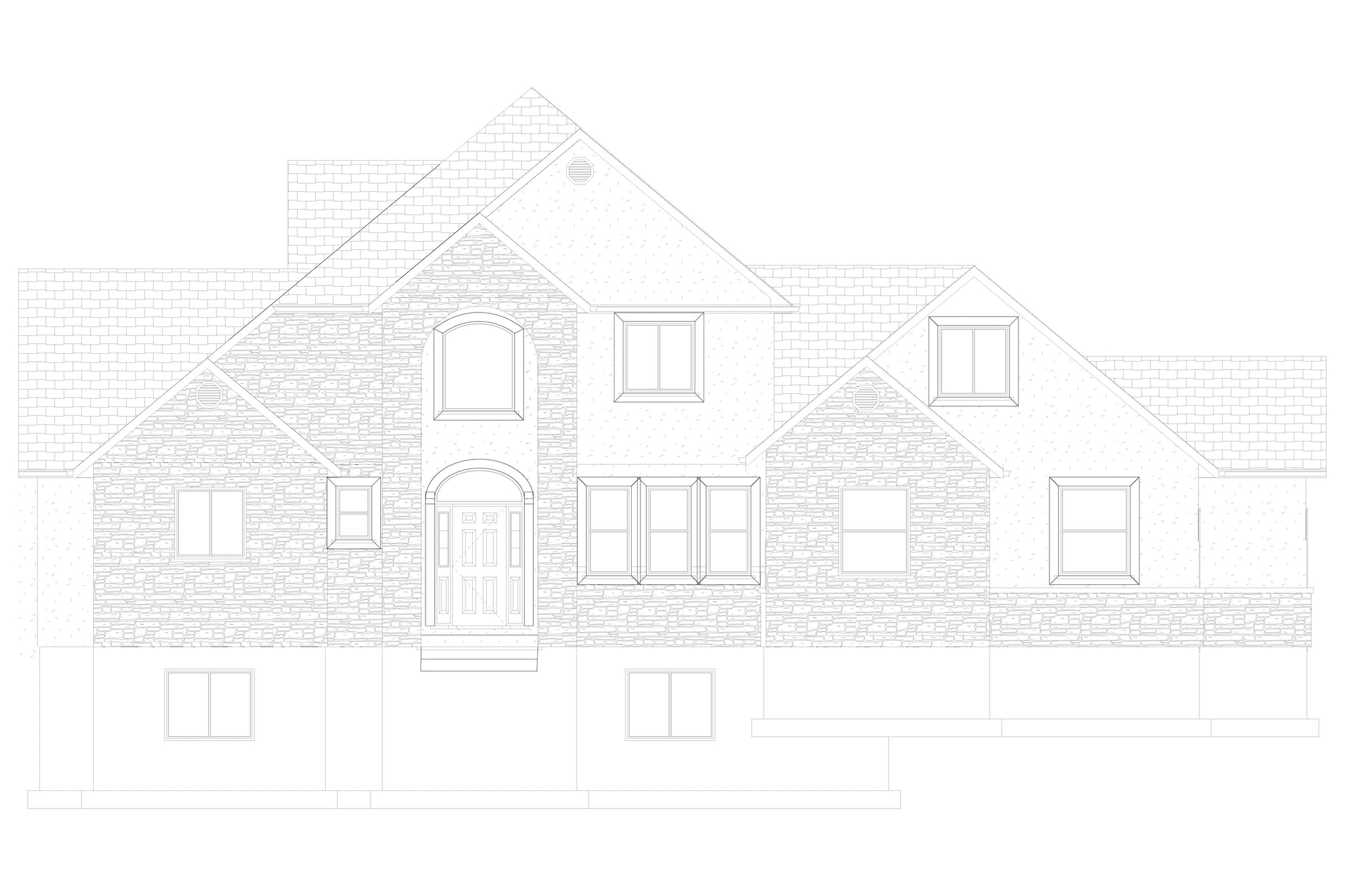

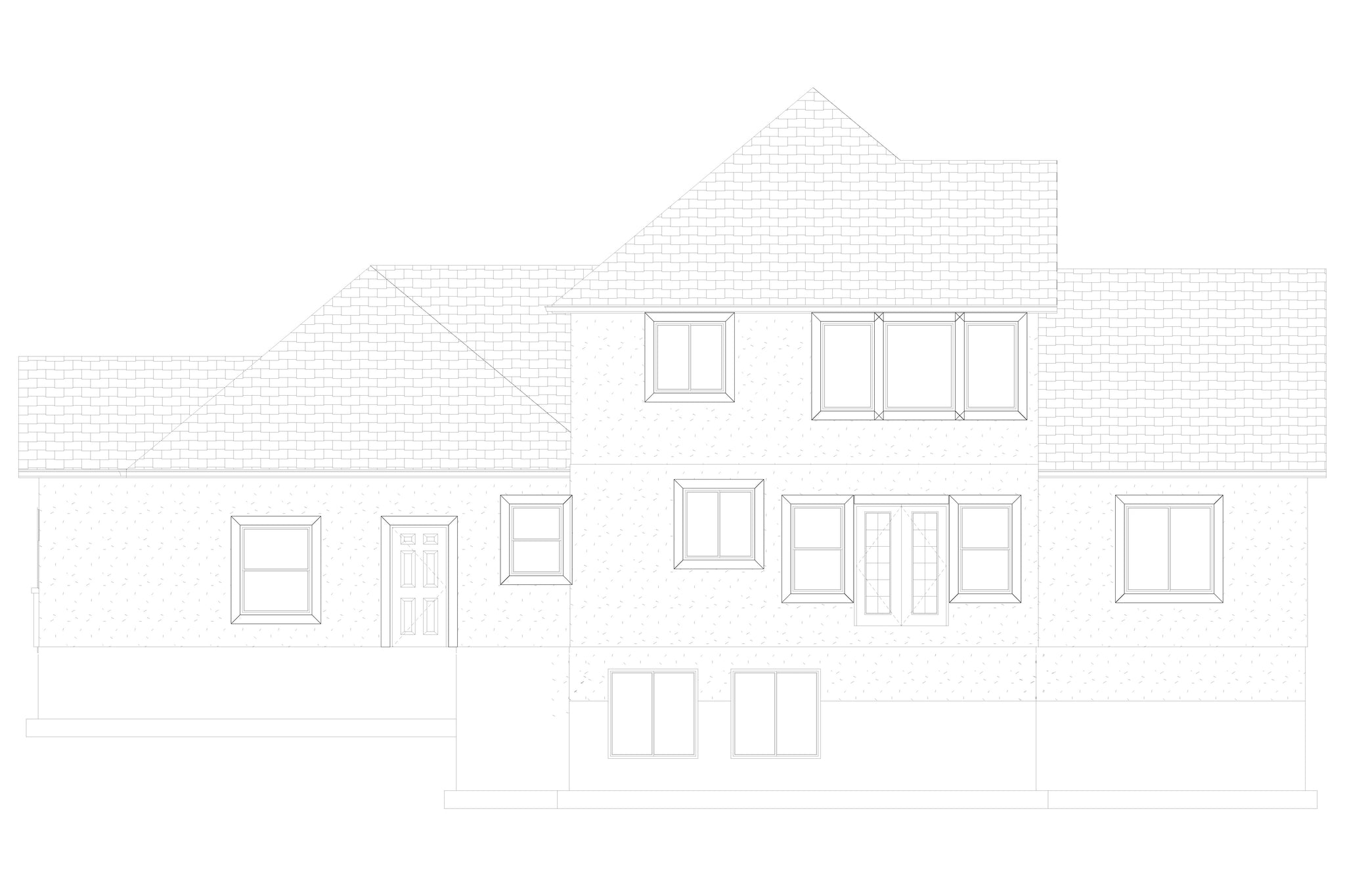

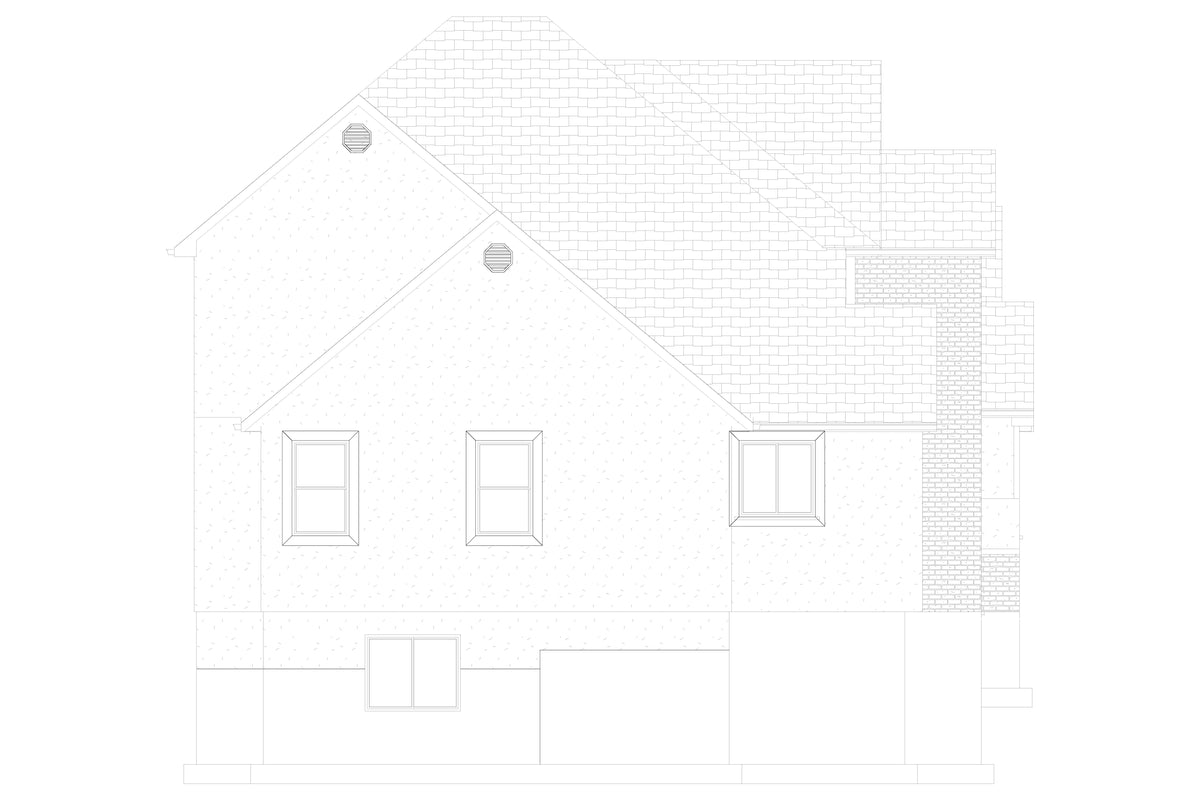

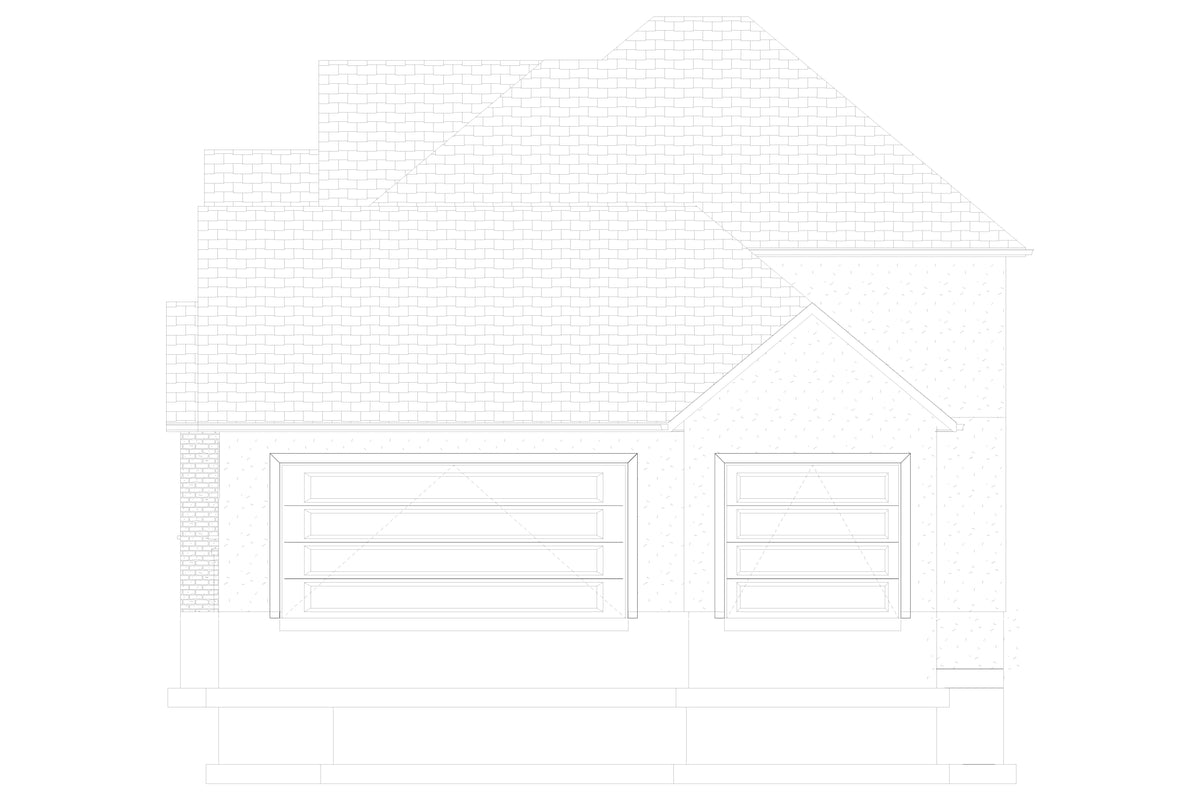

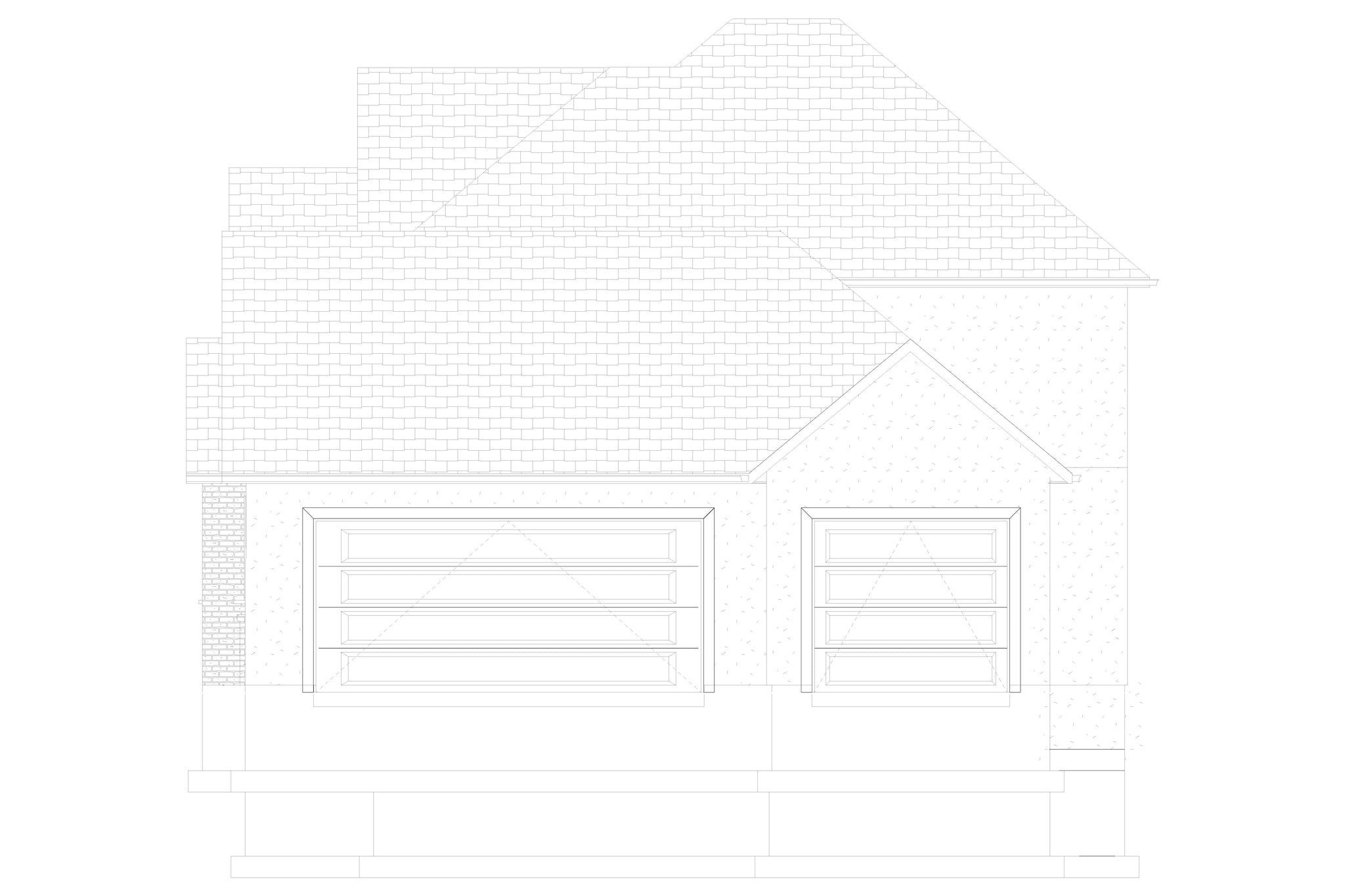

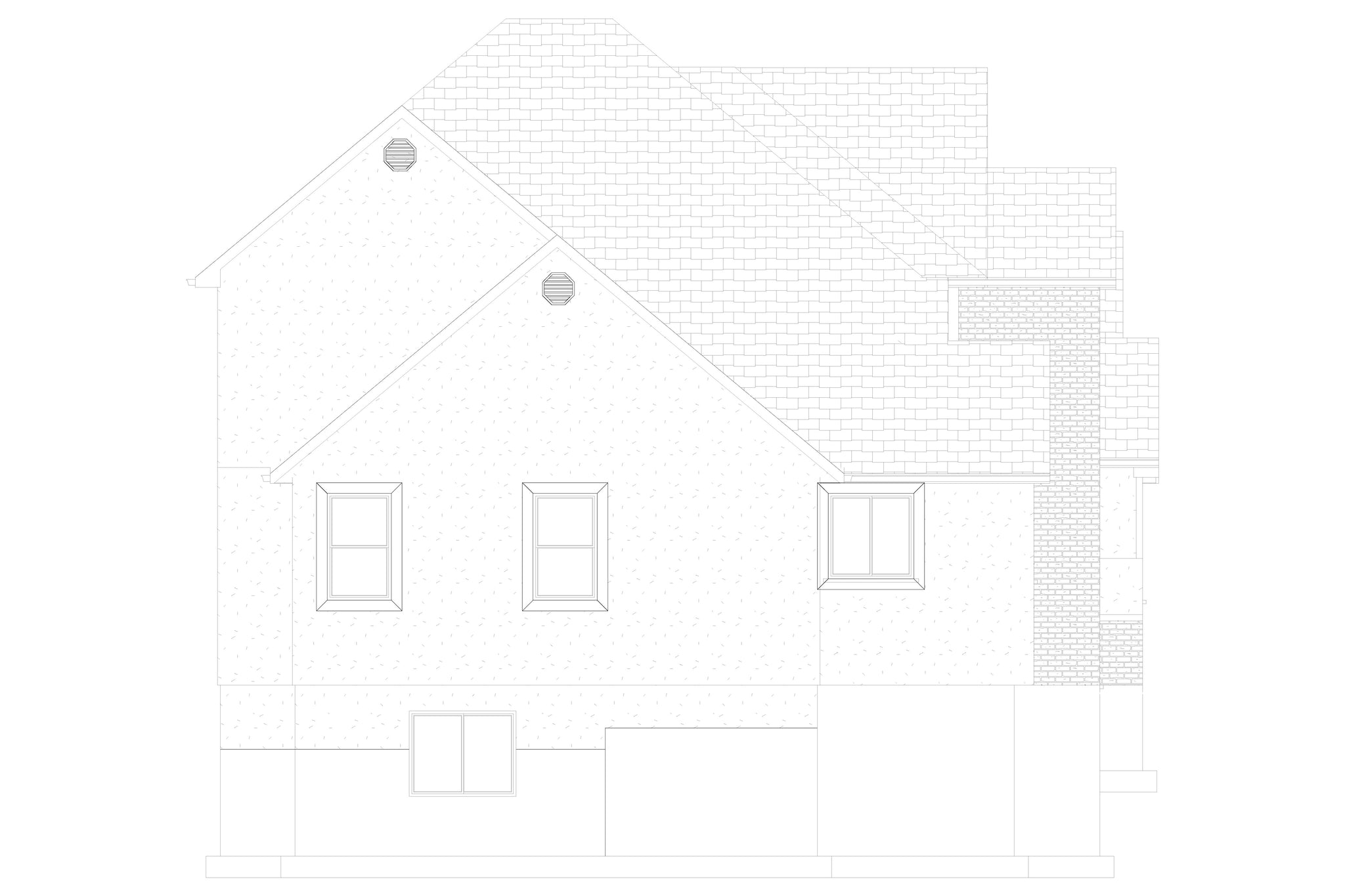

  • Elevation
  • Cross Sections
  • Roof Plan
  • Electrical
  • General Notes and details
What's Not Included:
  • Structural Engineering
  • Site Plan
  • Mechanical Drawings
  • Plumbing Drawings
  • Energy Calculations

House Plan Specifications

  • Total Living (heated area):  2125 sq ft
    All Unheated Under-Roof Areas  990 sq ft
    Total Structure With Basement  4688 sq ft
    Total Structure without Basement  3115 sq ft
    1st Floor:  1475 sq ft
    2nd Floor:  650 sq ft
    Bonus Room:  450 sq ft
    Basement:  1573 sq ft
    Front Porch:  68 sq ft
  • Garage:  922 sq ft
    Garage Bays:   3
    Garage Load:   Side
  • Bedrooms:   3
    Bathrooms:   2
    Half Bathrooms:   1
  • Foundation:   Daylight Basement
    Wall Framing:   2x6
    Roof Framing:   Truss
    Roof Pitch:  10:12
  • Width of House:  70'6''
    Depth of House:  43'1''
    Building Height:  31'2''
  • First Floor Ceiling Height:  9'
    Second Floor Ceiling Height:  8'
    Basement Ceiling Height:  8'
    Bonus Height:  8'

Key Features

  • Bonus Room
  • Breakfast Area
  • Covered Front Porch
  • Den
  • Eating Bar
  • First Floor Laundry
  • First Floor Master Suite
  • Keeping/Family Room
  • Kitchen Island
  • Laundry 1st Floor
  • Laundry Access from Garage
  • Master Bath-Double Vanity Sink
  • Open Floor Plan
  • Powder Room
  • Private Master Bath
  • Two-Story Foyer
  • Walk-in Closet
  • Wall Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AO7991-A
Transitional House Plan with Bonus Room & Daylight Basement | 2,125 Sq Ft Home
3 Bedrooms
2 Full Baths
1 Half Baths
2125 SQ FT
2 Stories
Product print image
AO7991-A Transitional House Basement Floor Plan, 3 to 5 Bedrooms, 2.5 to 3.5 Bathrooms | Tilo
AO7991-A Transitional House First Floor Plan, 3 to 5 Bedrooms, 2.5 to 3.5 Bathrooms | Tilo
AO7991-A Transitional House Second Floor Plan, 3 to 5 Bedrooms, 2.5 to 3.5 Bathrooms | Tilo
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
