AB8322-A

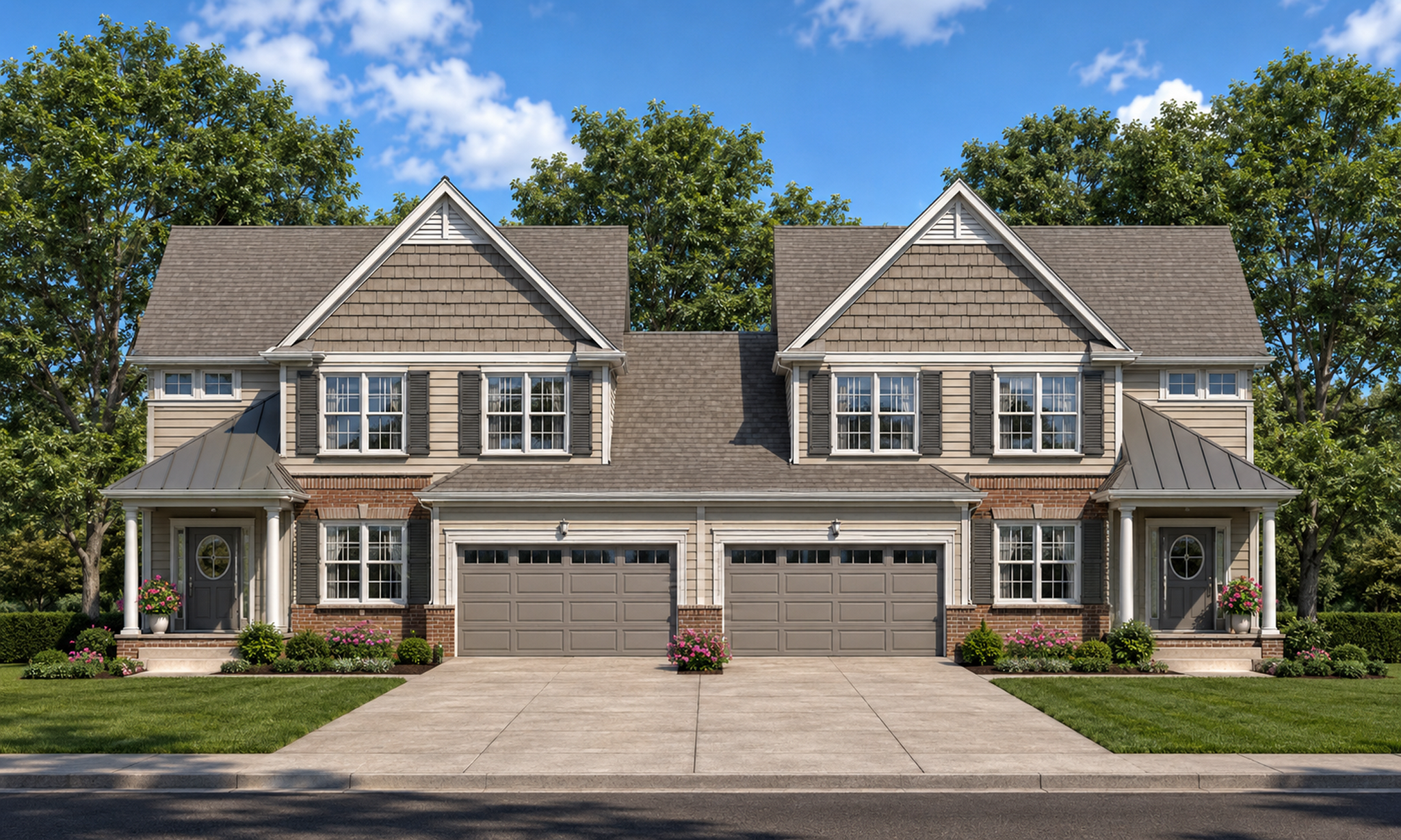

This grand traditional duplex house combines timeless architectural styling with modern functionality, offering an outstanding solution for multi-generational households, investment properties, or homeowners seeking rental income opportunities. With a total heated living area of 4,048 sq. ft. and an overall structure size of 4,930 sq. ft., the design delivers generous accommodations while maintaining the warmth and character associated with traditional residential architecture.

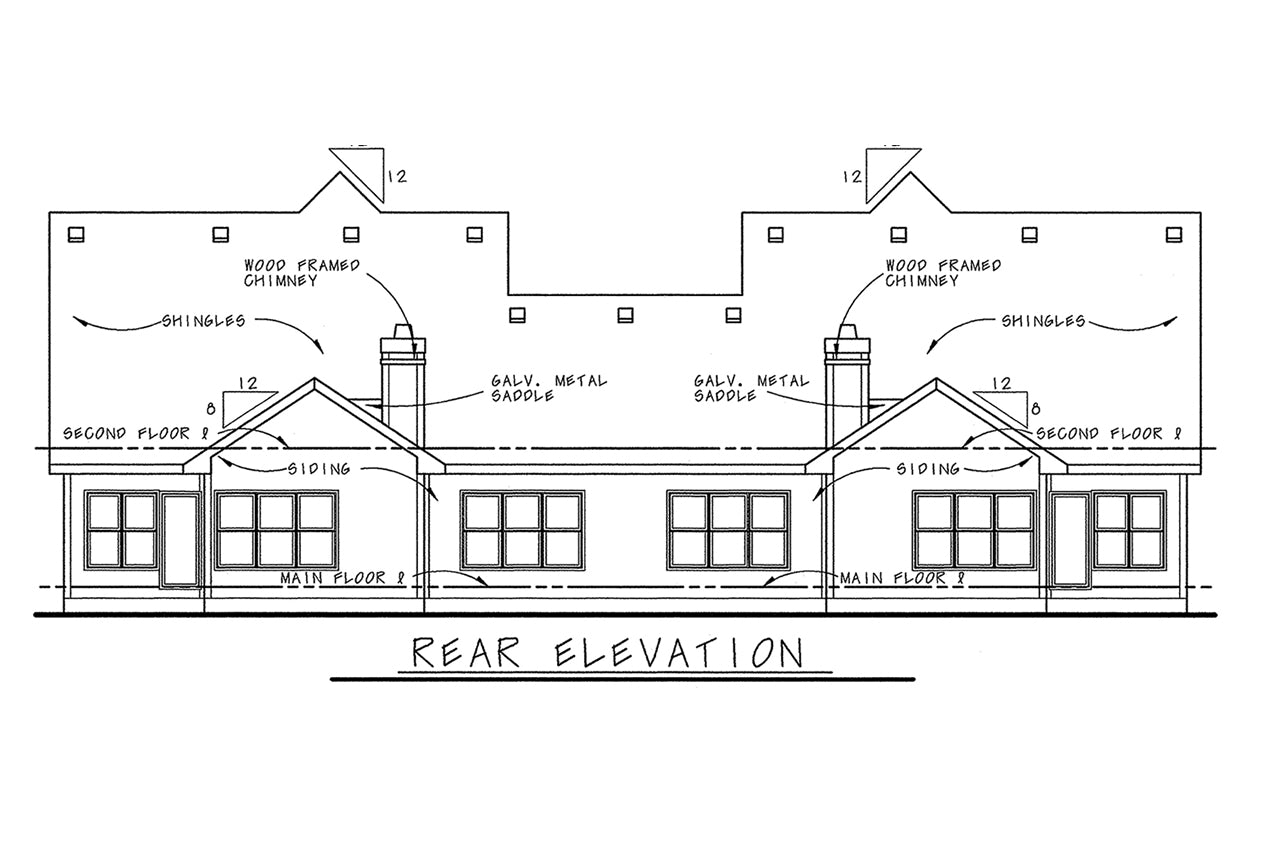

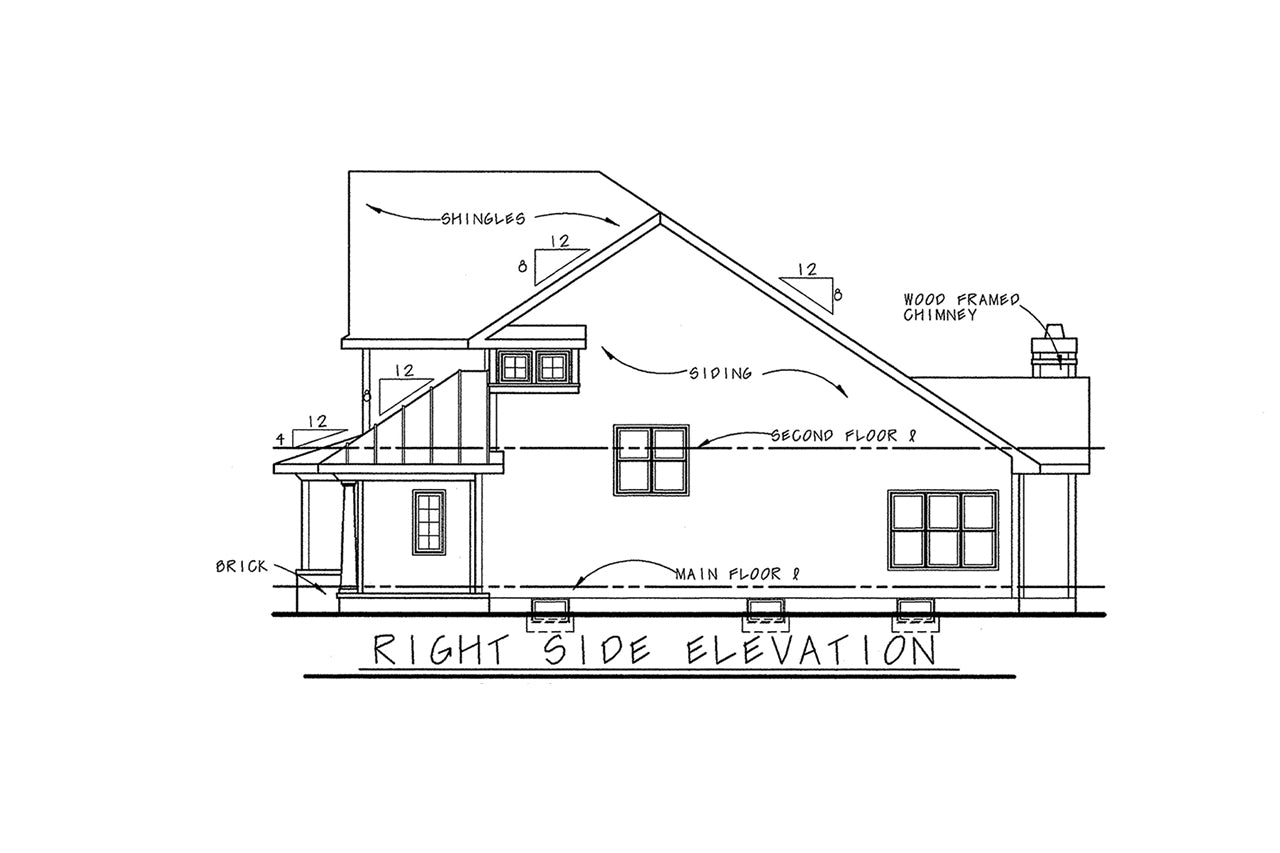

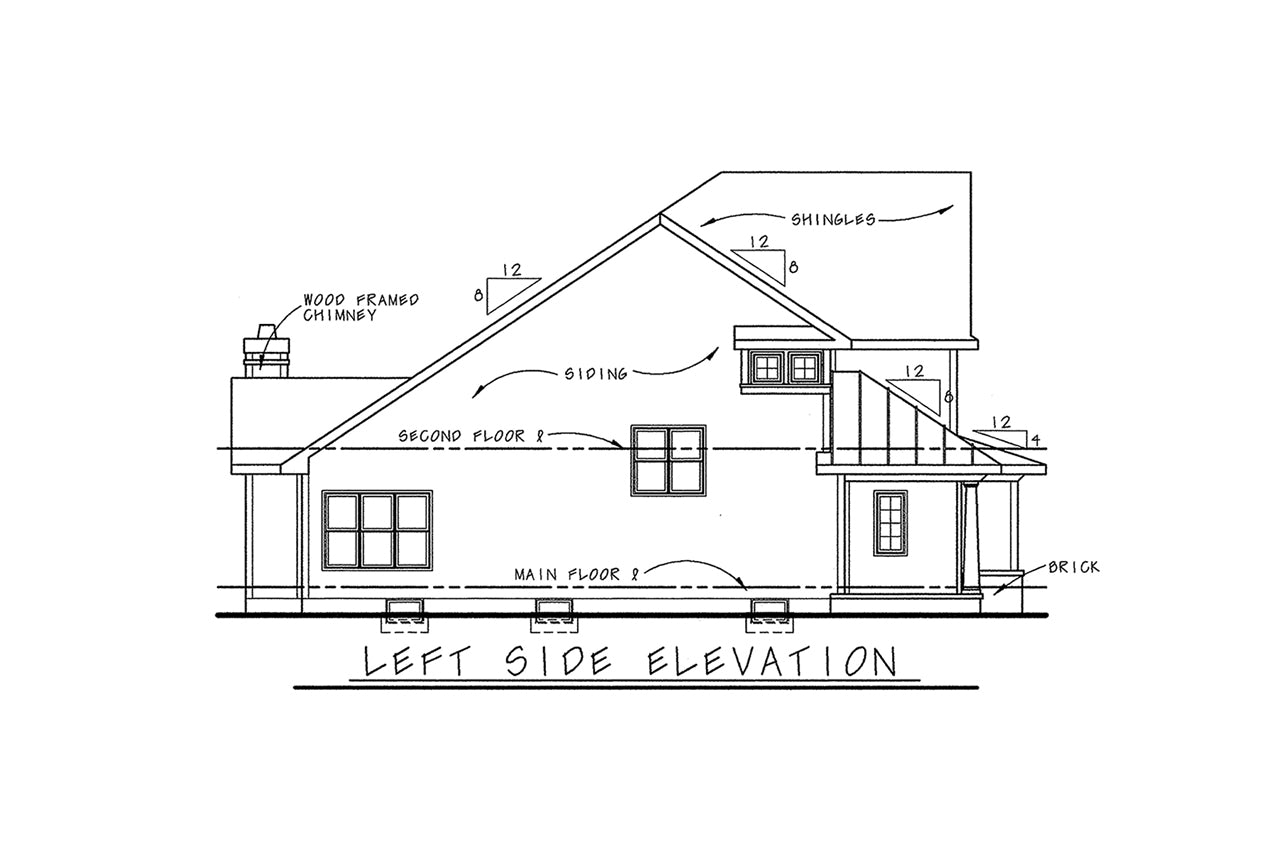

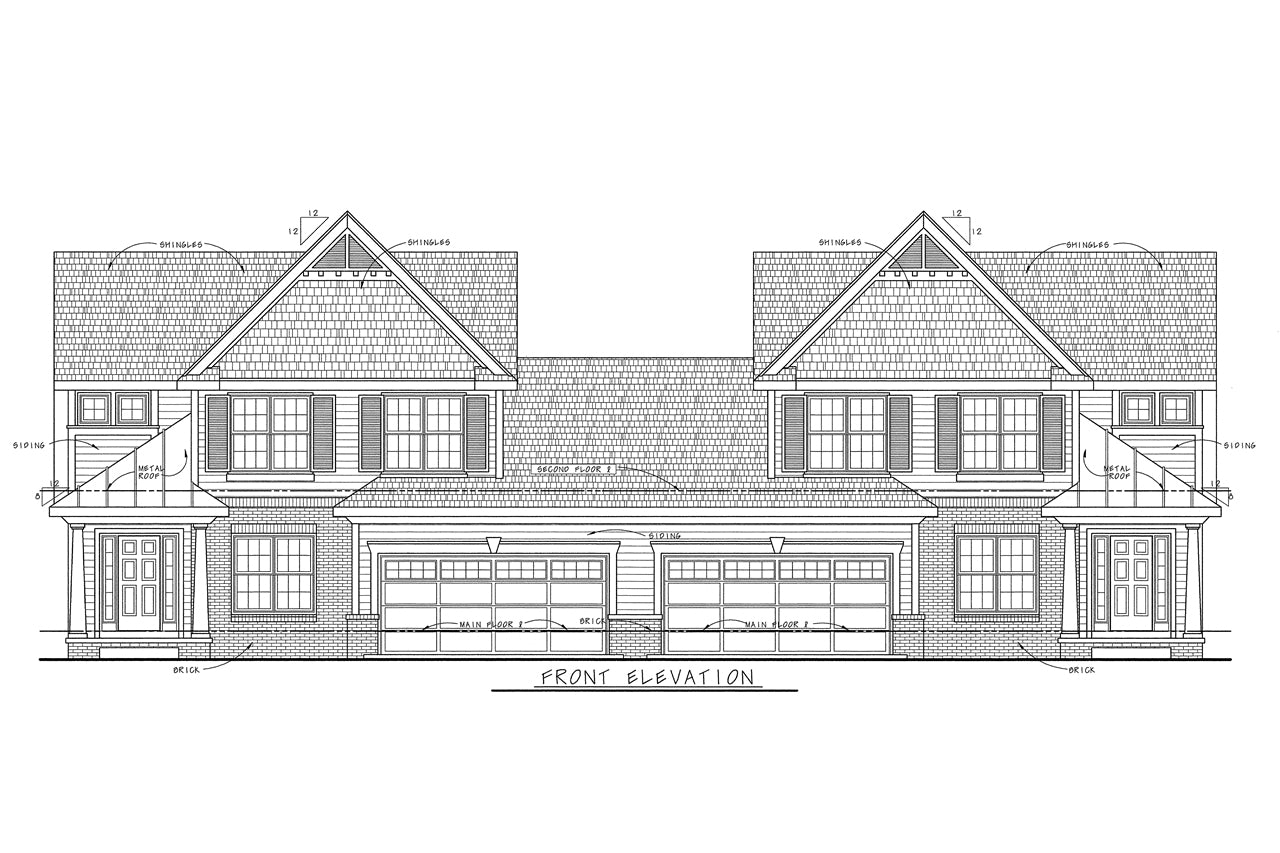

The duplex features a balanced and symmetrical layout, measuring 80 feet in width and 55 feet in depth. Its substantial footprint creates a commanding presence while preserving the welcoming appeal of a classic family home. The structure rises to 31 feet 9 inches in height and is crowned by a handsome 8:12 roof pitch, reinforcing its traditional aesthetic and providing visual distinction from every angle.
Designed as two mirror-image residences, Unit A and Unit B each provide 2,024 sq. ft. of heated living space. Every unit includes 1,497 sq. ft. on the first floor and 527 sq. ft. on the second floor, allowing for a thoughtful separation between public and private living areas. Each residence measures 40 feet wide by 55 feet deep and includes its own attached garage totaling 441 sq. ft., ensuring privacy and convenience for both households.

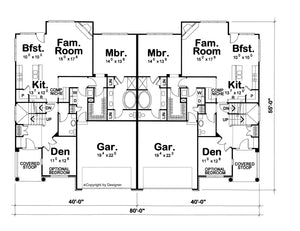

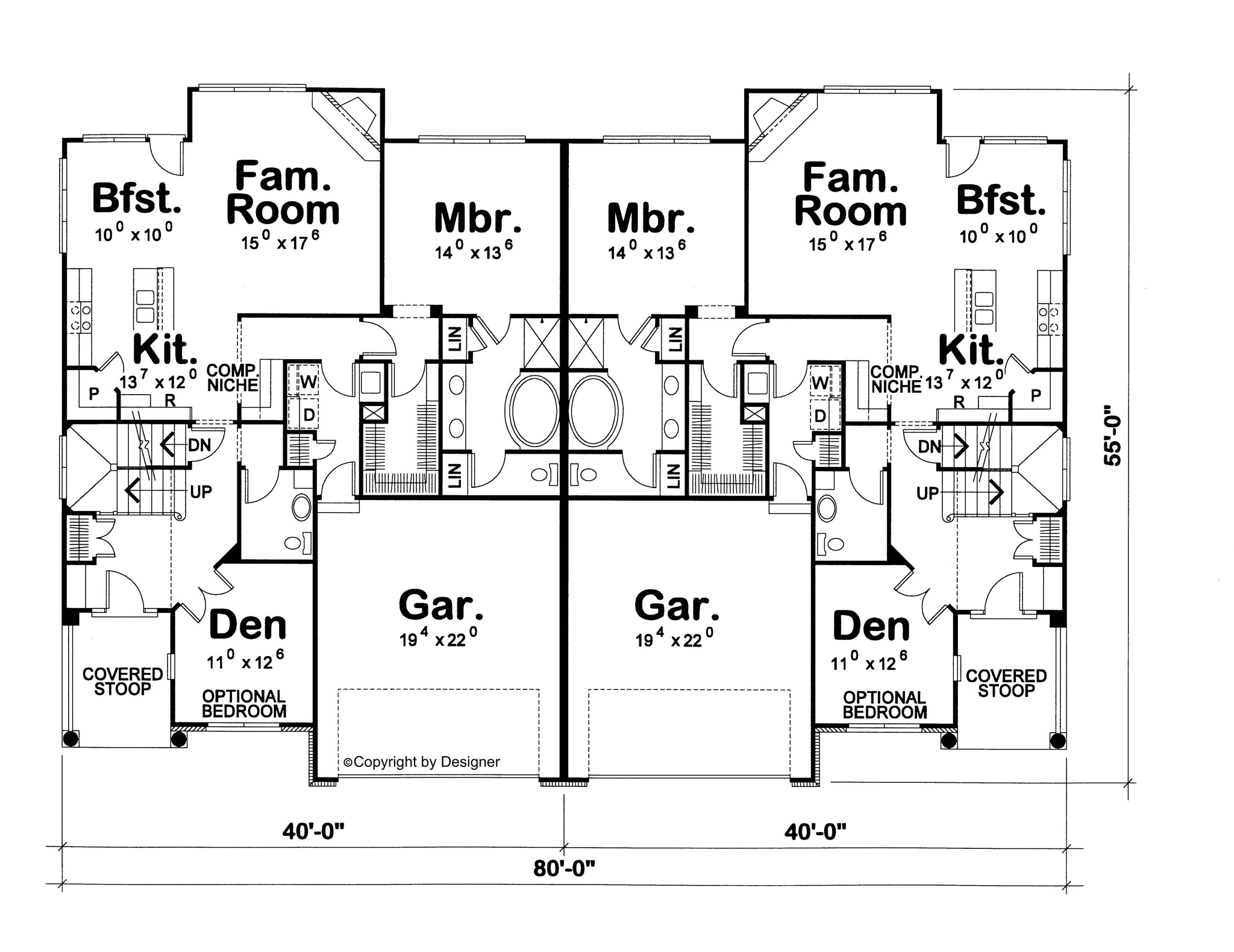

The main level of the duplex encompasses a combined 2,994 sq. ft. of living space and is organized around an open-concept design that promotes comfort and connectivity. Large gathering areas flow naturally from one room to the next, creating an ideal environment for family interaction and entertaining. At the center of each residence, the kitchen serves as a functional and social hub, complete with an eating bar and spacious walk-in pantry. The open arrangement allows seamless interaction between the kitchen, dining, and living spaces while supporting modern lifestyles.
The family room or keeping room provides a comfortable setting for relaxation and daily activities. A fireplace serves as a focal point, adding warmth and character to the living area while enhancing the home's traditional charm. Nearby, a dedicated breakfast area offers a casual dining option, while additional living spaces provide flexibility for hosting guests or accommodating changing family needs.
Each unit includes a private den that can function as a home office, study, reading room, or hobby space. This versatile feature is particularly valuable for today's remote work environments and evolving household requirements.
The duplex contains a total of 6 bedrooms, with 3 bedrooms located within each residence. The owner's suite is conveniently positioned on the first floor of each unit, providing privacy and accessibility while creating a comfortable retreat away from the secondary bedrooms. These suites feature spacious walk-in closets and private bathrooms equipped with double vanities, delivering both comfort and functionality.
Collectively, the duplex includes 4 full bathrooms and 2 half bathrooms, ensuring ample accommodations for residents and guests. Each unit contains 2 full bathrooms and 1 half bathroom, thoughtfully arranged to support efficient daily living.

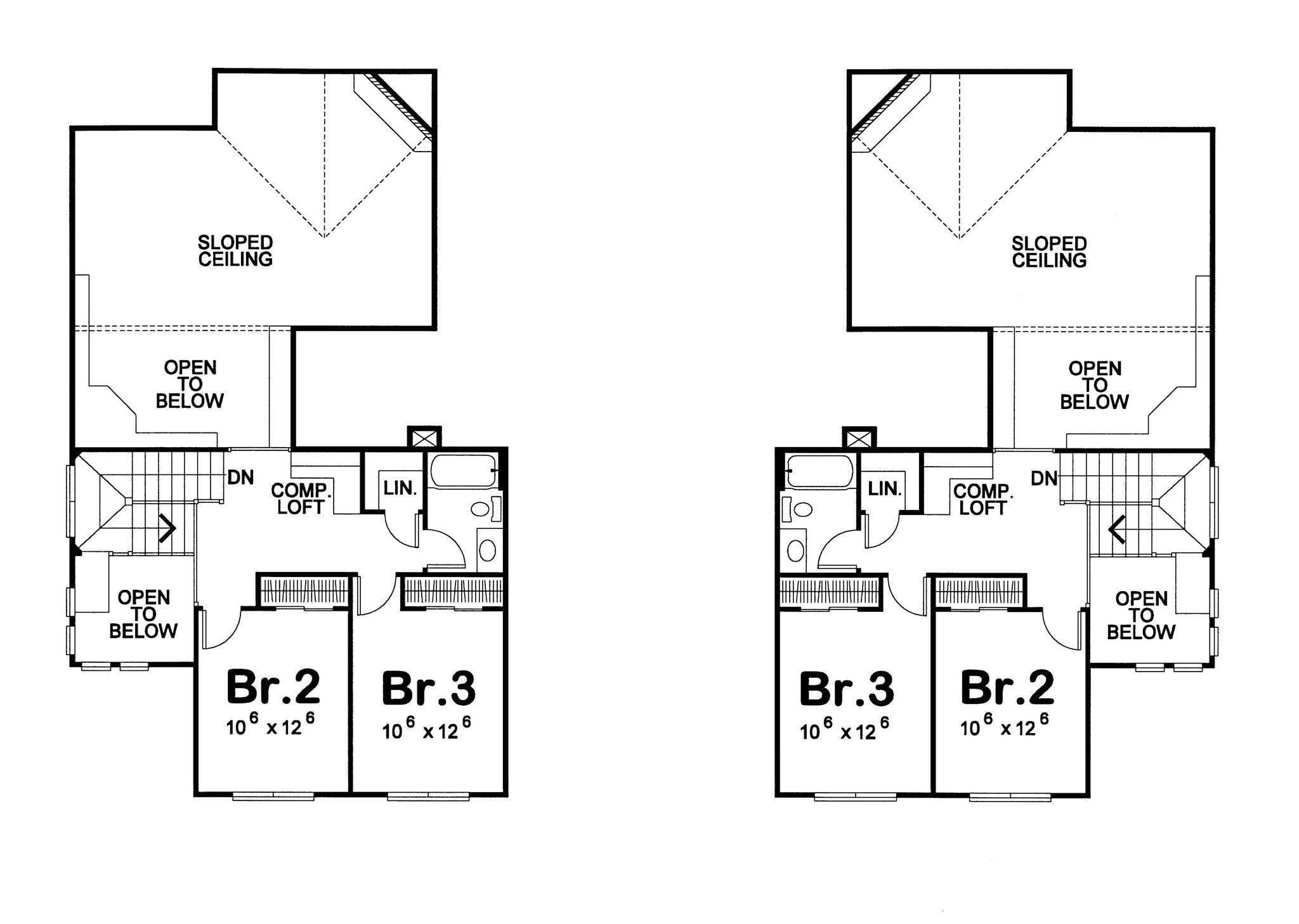

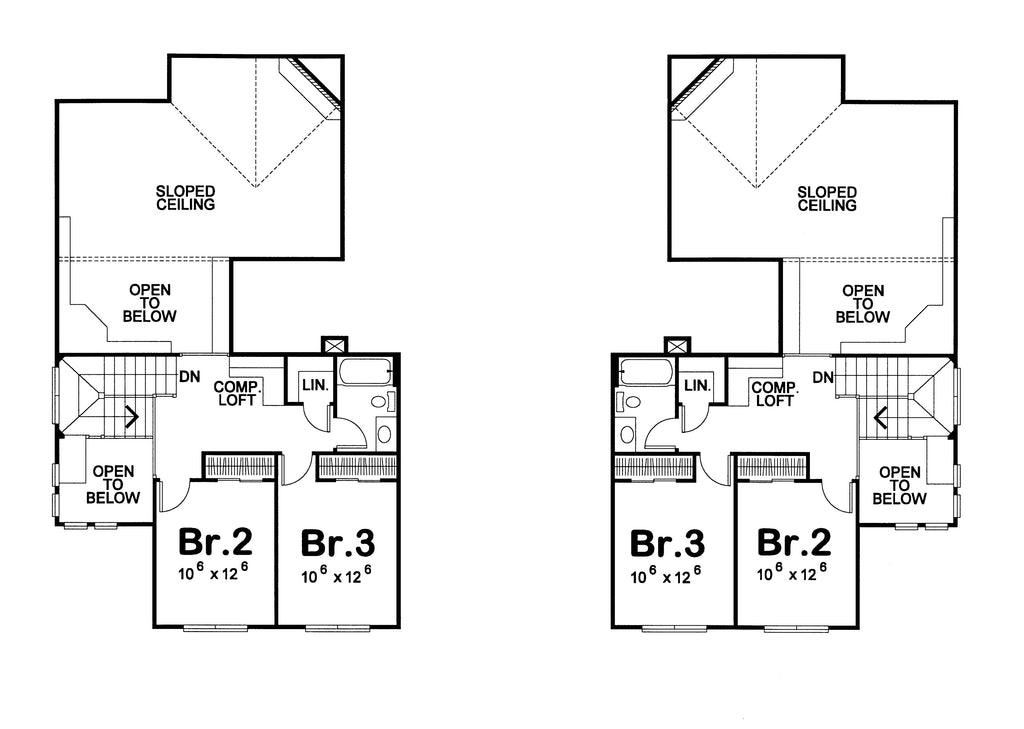

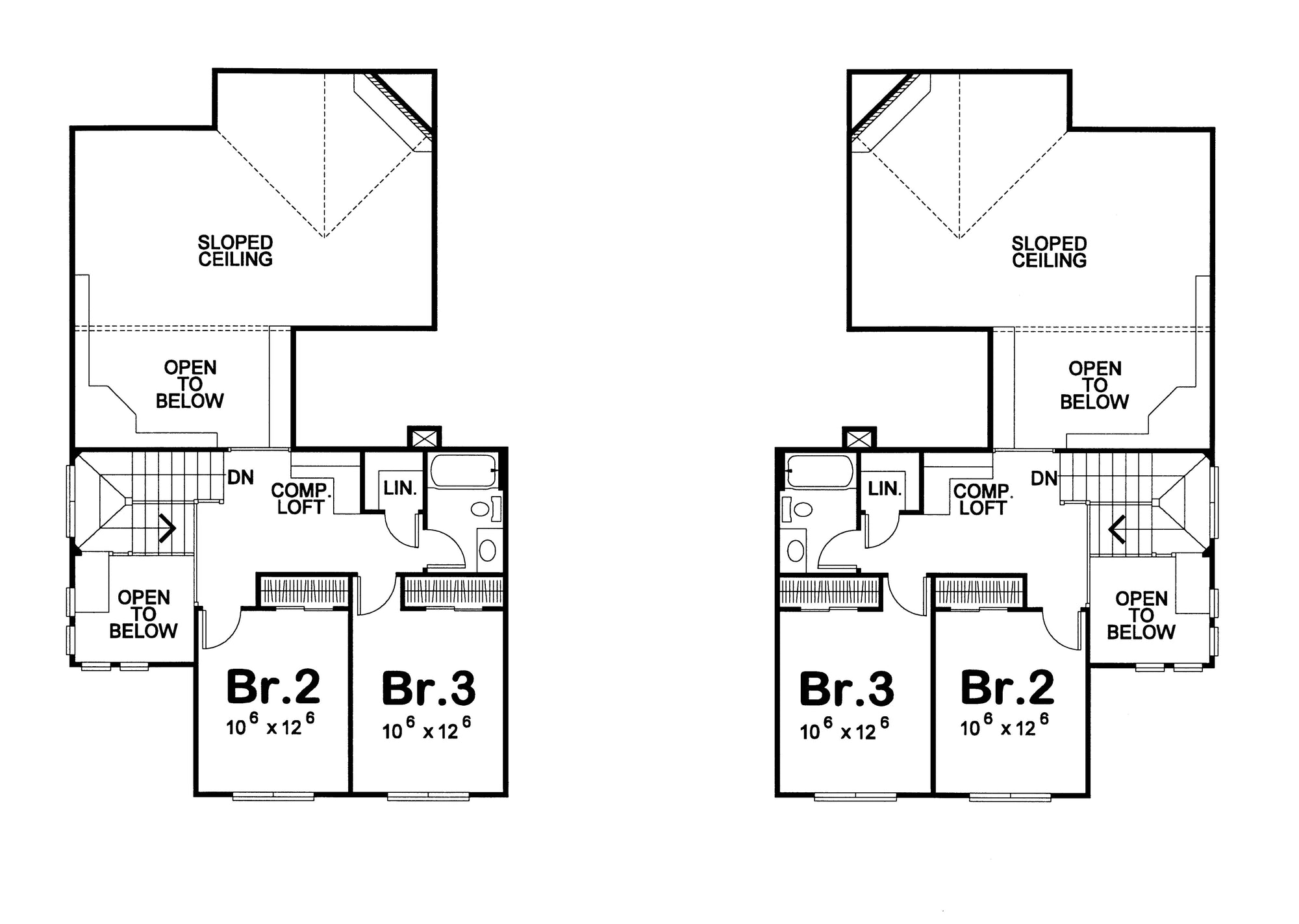

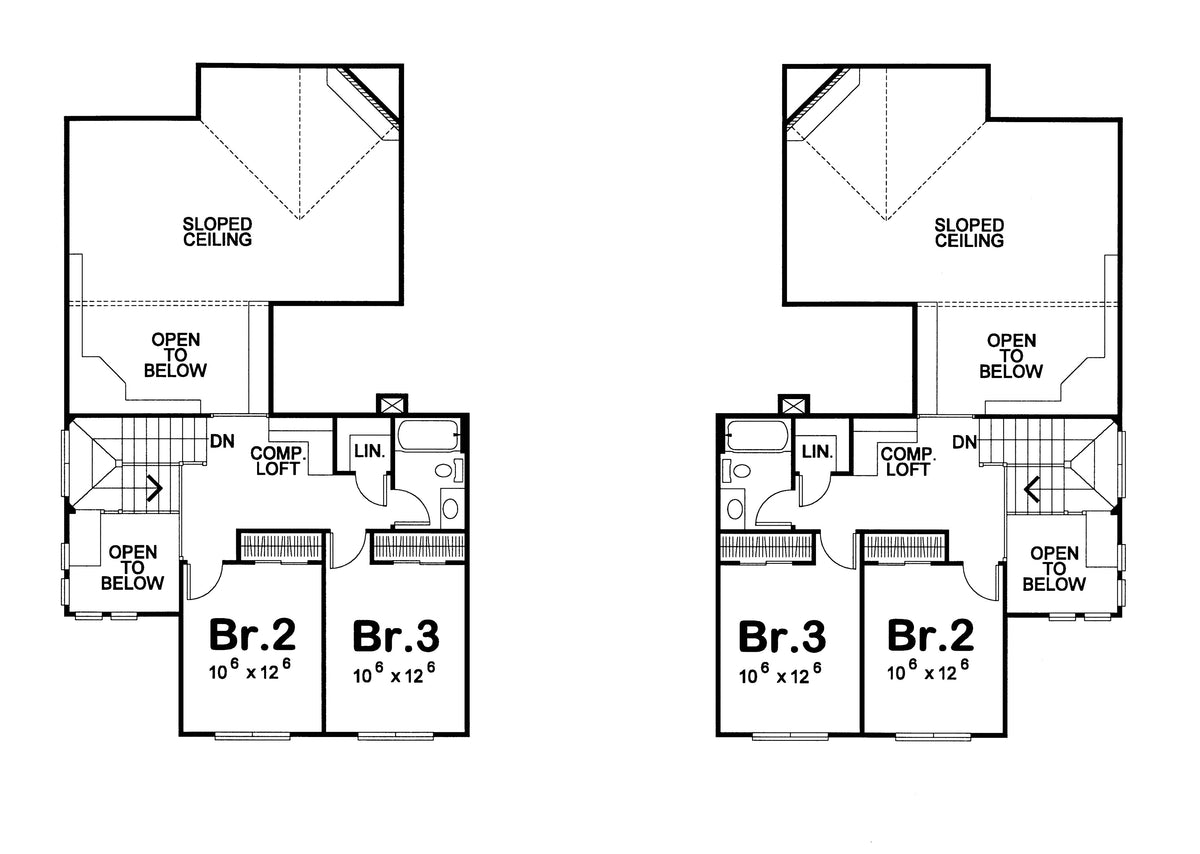

The second floor contributes 1,054 sq. ft. of living space and contains additional bedrooms and private family accommodations. With 8-foot ceilings, the upper level maintains a comfortable atmosphere while maximizing usable floor area. The first floor features 9-foot ceilings, enhancing openness and creating a spacious, inviting interior.
Additional practical features include first-floor laundry rooms in both units, allowing convenient access without requiring trips between levels. The homes also benefit from attached garages that collectively provide 882 sq. ft. of enclosed parking space for 4 vehicles.
Beneath the residence lies an unfinished basement foundation with 9-foot ceilings, offering substantial opportunities for future expansion. Homeowners may choose to add recreation rooms, home theaters, fitness areas, guest suites, workshops, or additional storage according to their needs.
Blending traditional architectural appeal with exceptional flexibility and modern amenities, this duplex offers a rare combination of comfort, functionality, and investment potential. Whether serving extended families, multiple generations, or owner-occupants seeking rental income, this impressive traditional duplex provides enduring value and a highly adaptable living solution for years to come.




PDF (Single Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
CAD + PDF (Single Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
5 or 8 Prints (Single Build)
Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.
5 Prints + PDF (Single Build)
Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
PDF (Multi Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
CAD + PDF (Multi Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.
Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.
Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.
Basement - This foundation is entirely or partially below ground and offers storage or living areas.
Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.
