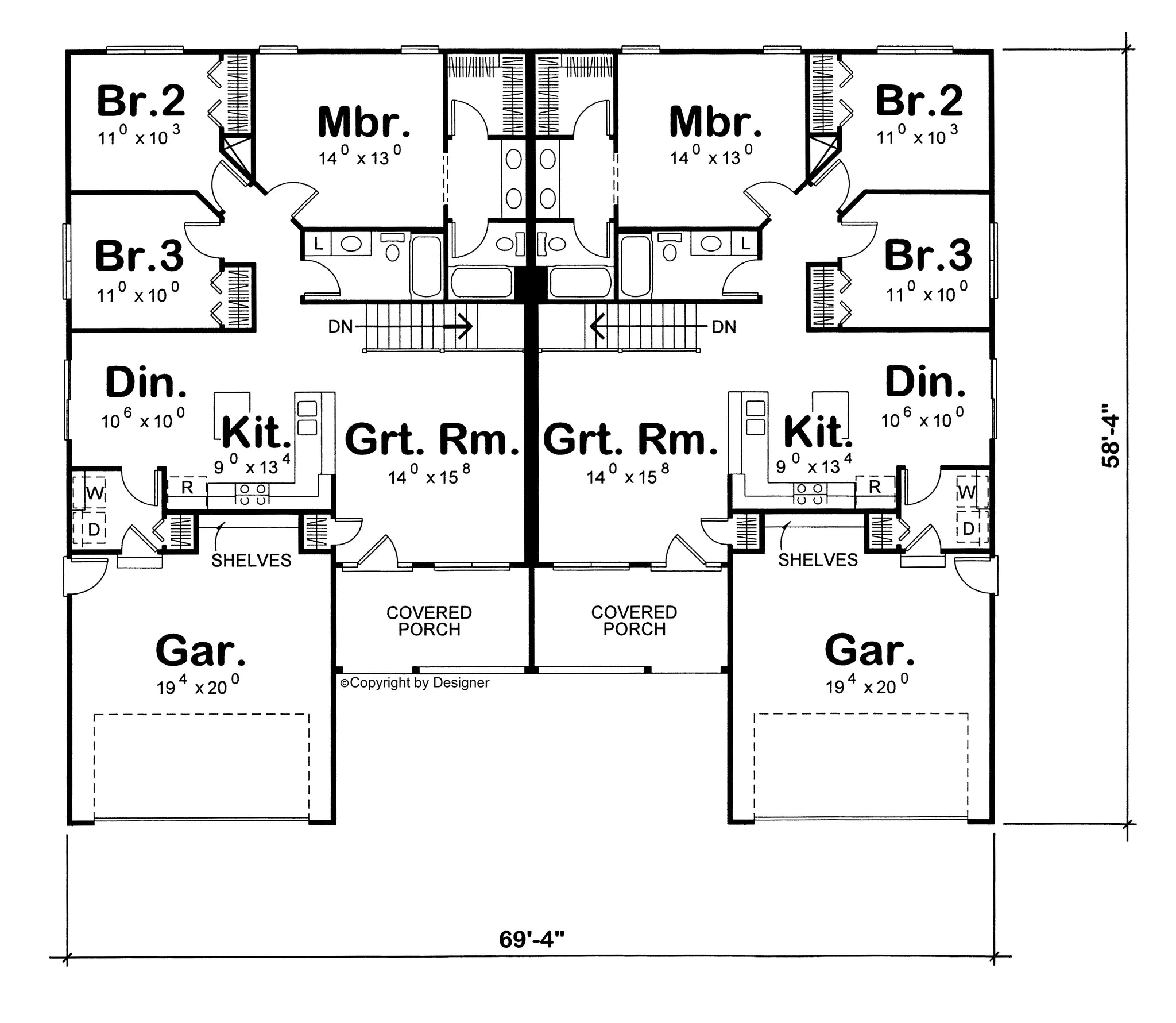

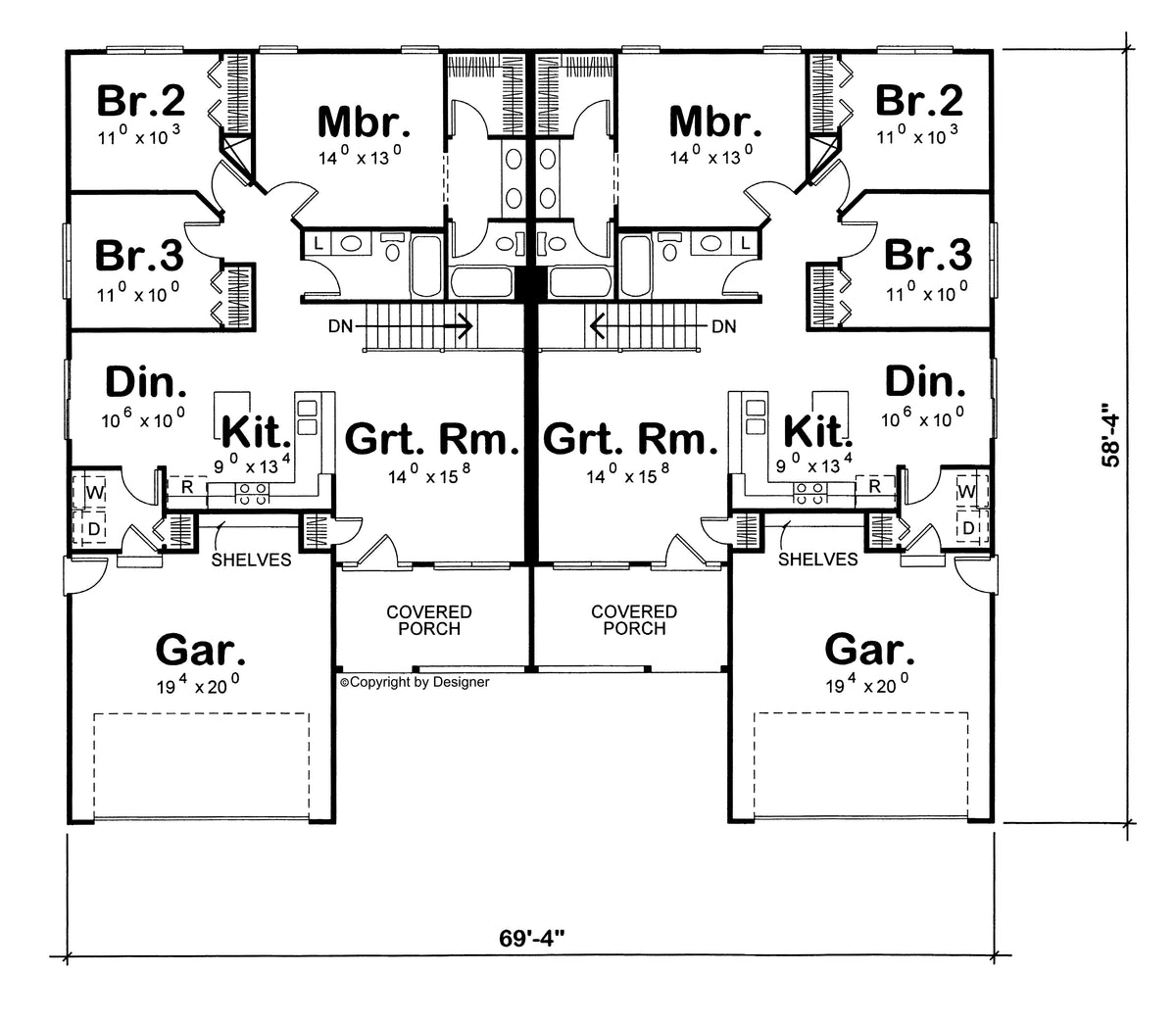

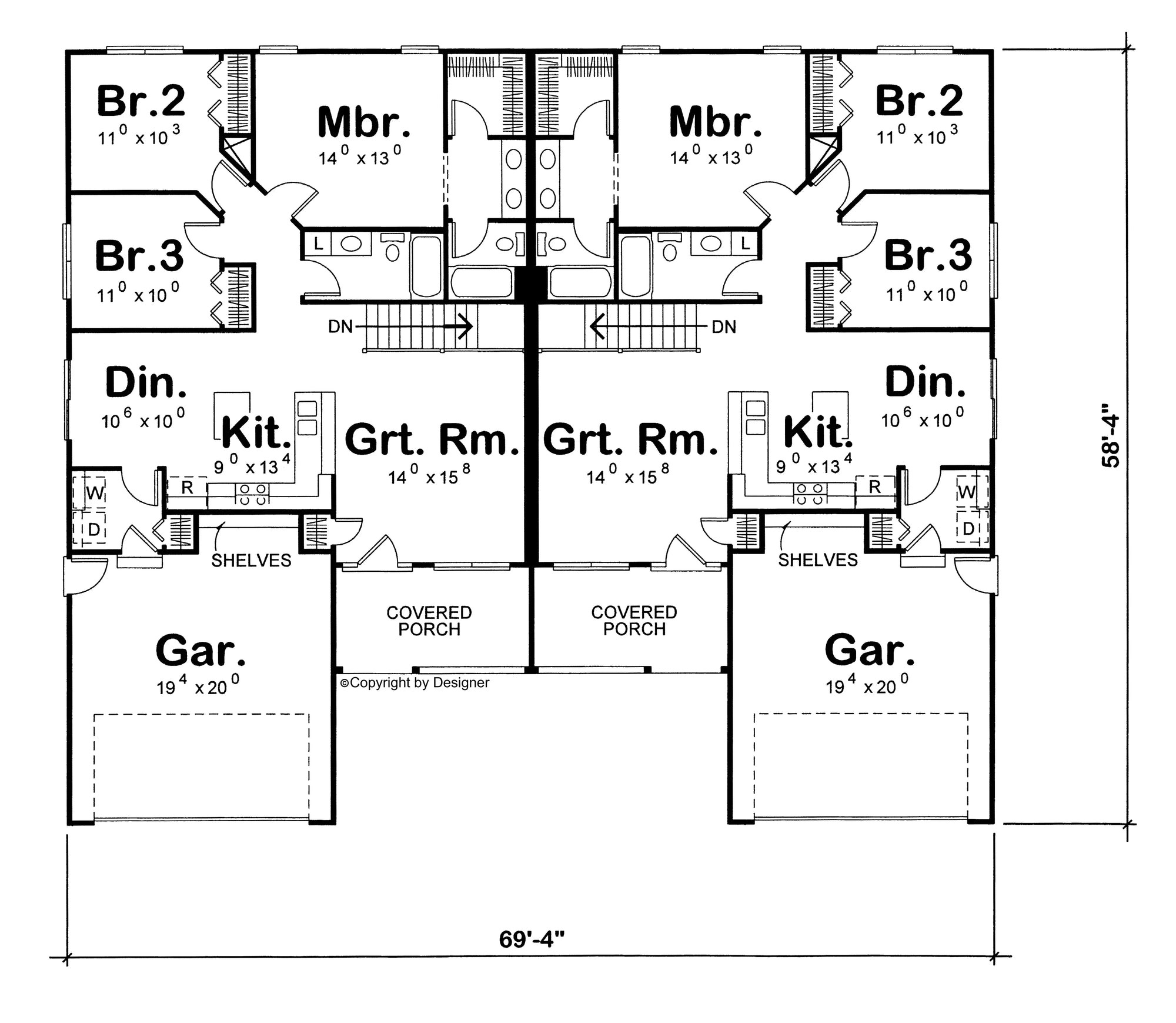

This well-designed duplex home offers a total of 2,622 square feet of heated living space, equally divided between two thoughtfully laid-out units. Each unit features three comfortable bedrooms and two full bathrooms, making this an ideal setup for multi-generational living, rental income, or shared family ownership. With a single-story layout, the home provides easy accessibility throughout, while 9-foot ceilings on the first floor enhance the sense of openness and comfort.
The open-concept floor plan in each unit seamlessly connects the great room, kitchen, and dining areas, perfect for everyday living and entertaining. Each kitchen is anchored by a generous island and includes plenty of storage space, including a pantry. The master suites are privately located with their own full baths, offering a relaxing retreat. A large covered front porch spans the front elevation, enhancing curb appeal and providing a welcoming outdoor space. Completing the design is a four-car front-load garage—two bays per unit—adding convenience and ample parking.

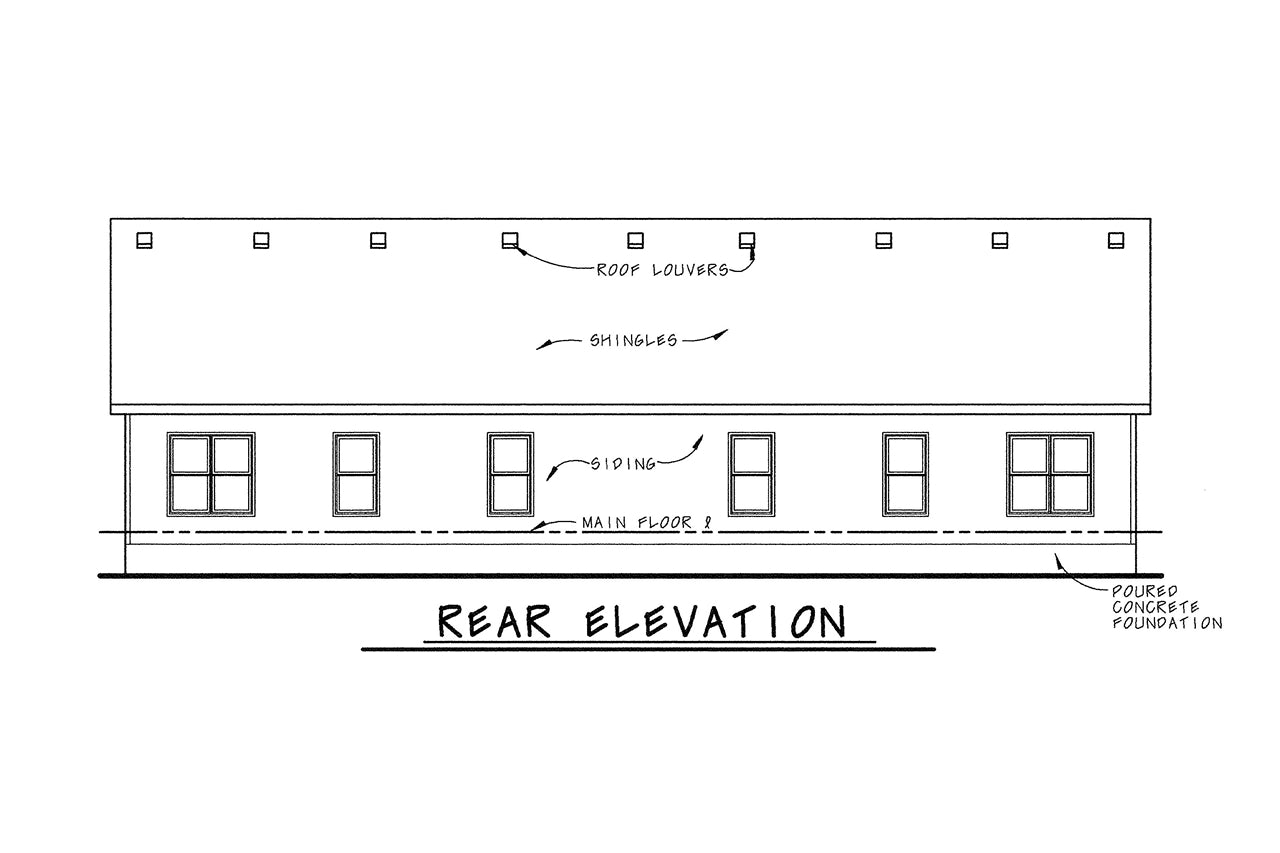

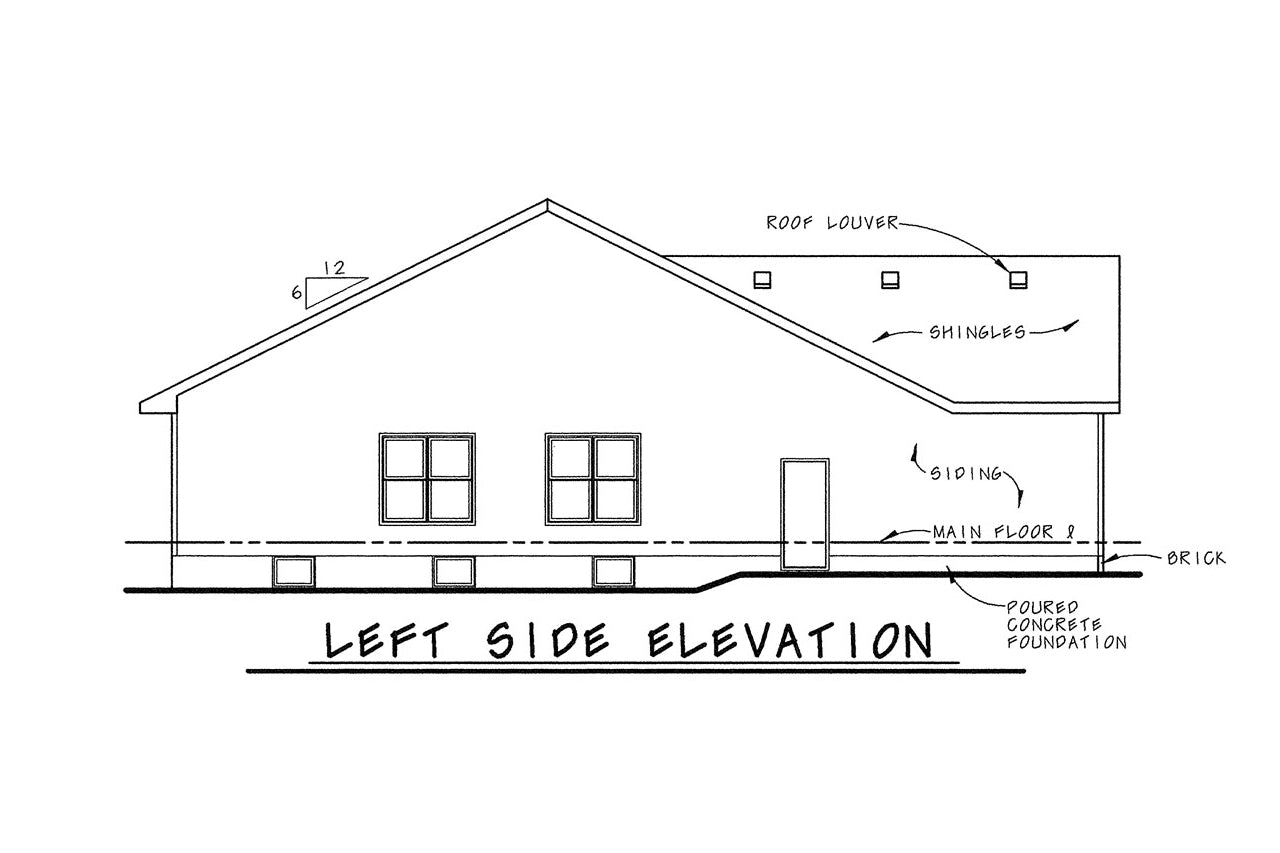

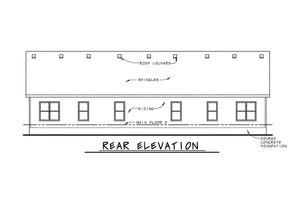

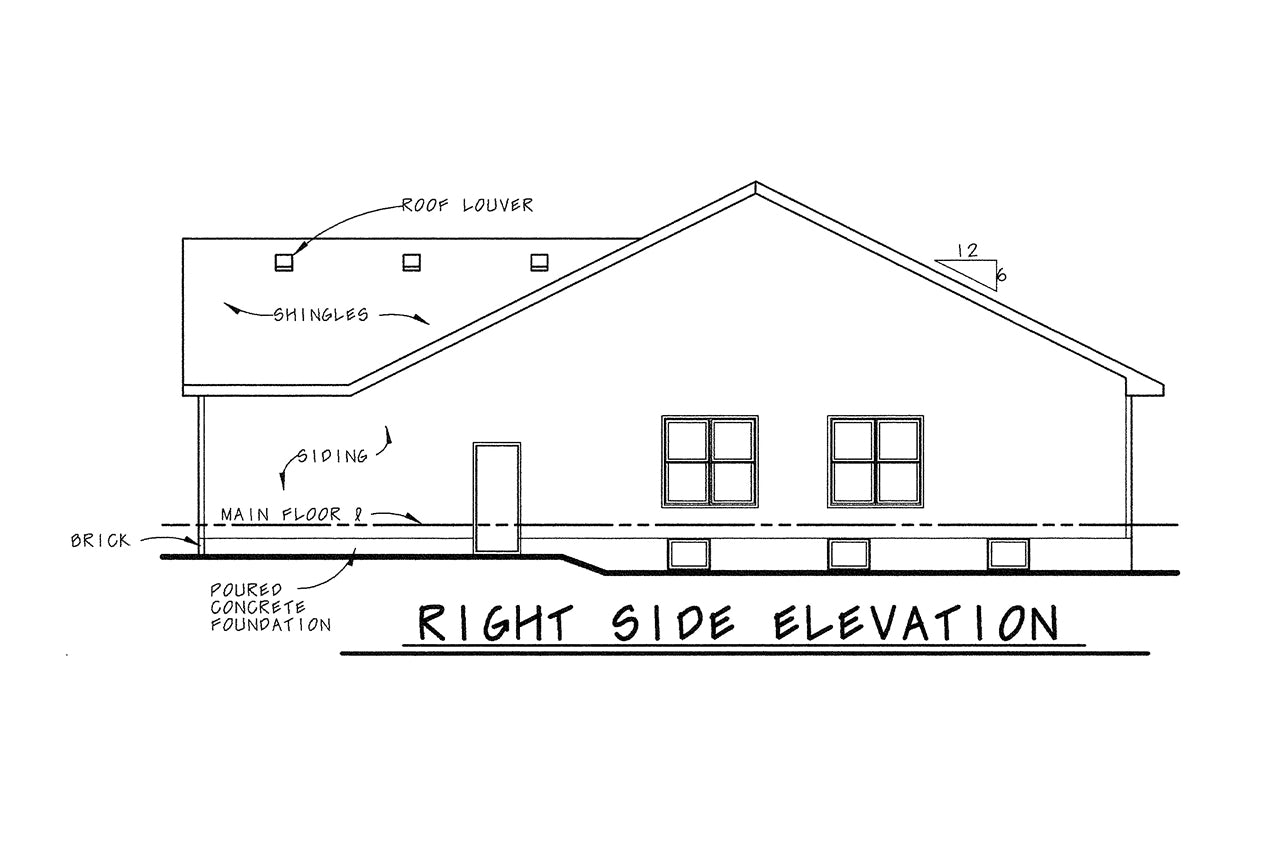

The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
