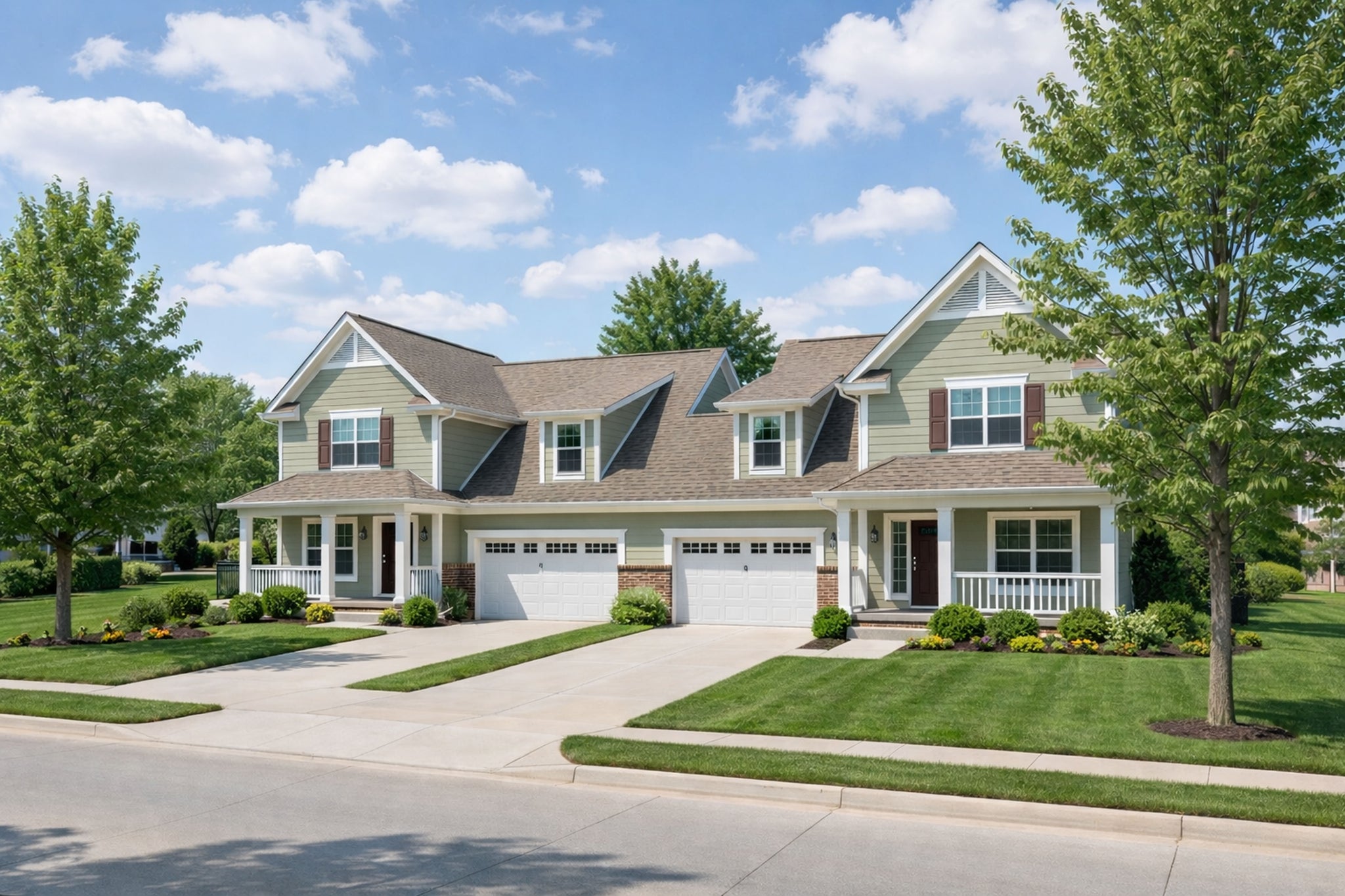

Wheeler 7618 is a traditional duplex house plan spanning 3,810 square feet of total heated living area, engineered to provide two independent units within a single 80-foot wide by 55-foot 8-inch deep footprint. Designed for multi-generational living or income-generating rental potential, the structure utilizes a 4-car front-load garage configuration that keeps the exterior elevation organized and efficient for varied lot sizes.

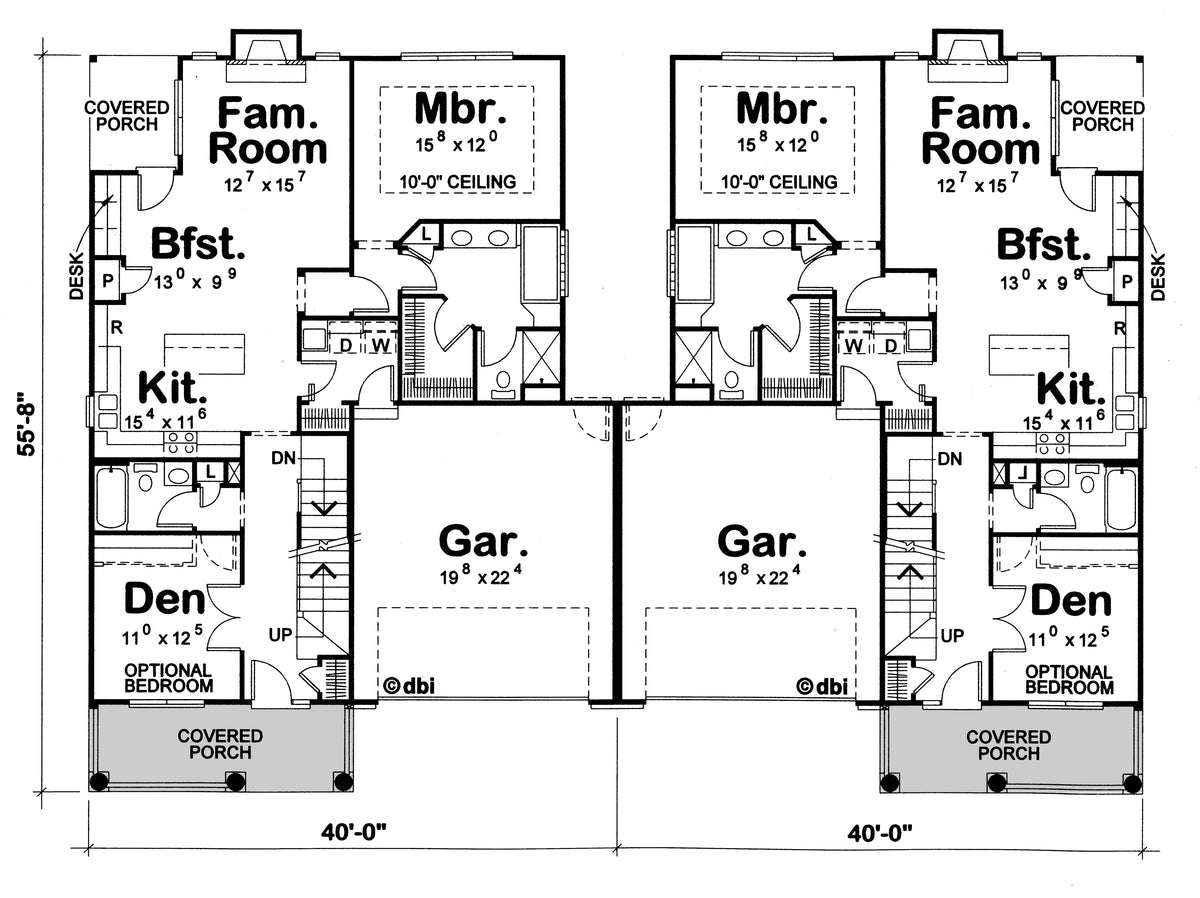

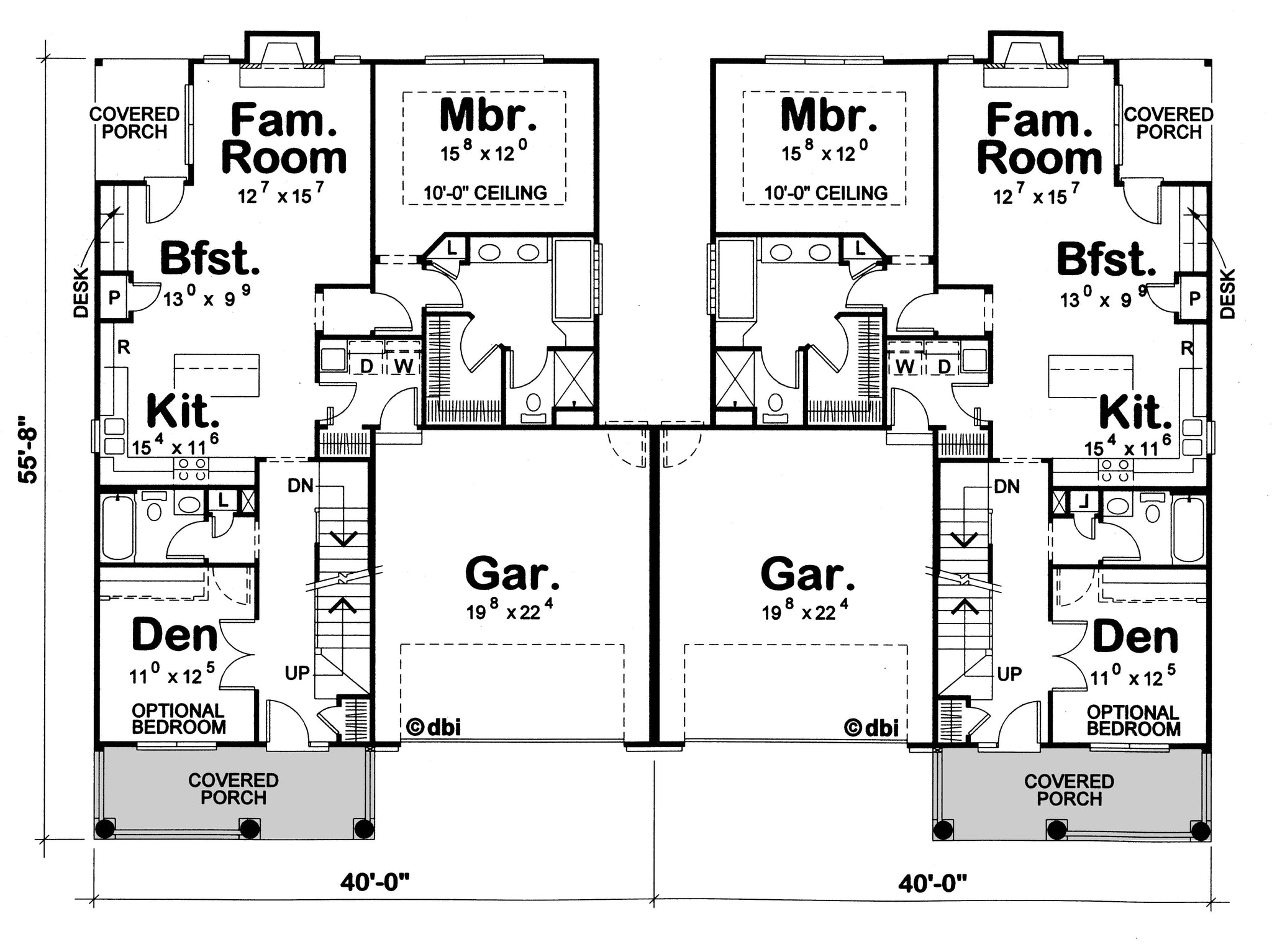

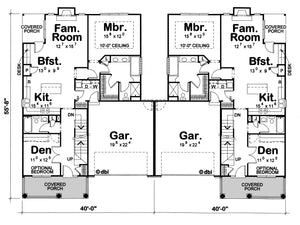

The main level of each unit encompasses 1,344 square feet, anchored by a two-story grand room that enhances the scale of the social core. A central kitchen island and integrated eating bar facilitate meal preparation and informal dining, while a dedicated keeping room provides additional space for daily activities. A primary suite is positioned on the first floor to provide accessibility, complemented by an adjacent den suitable for a home office or study.

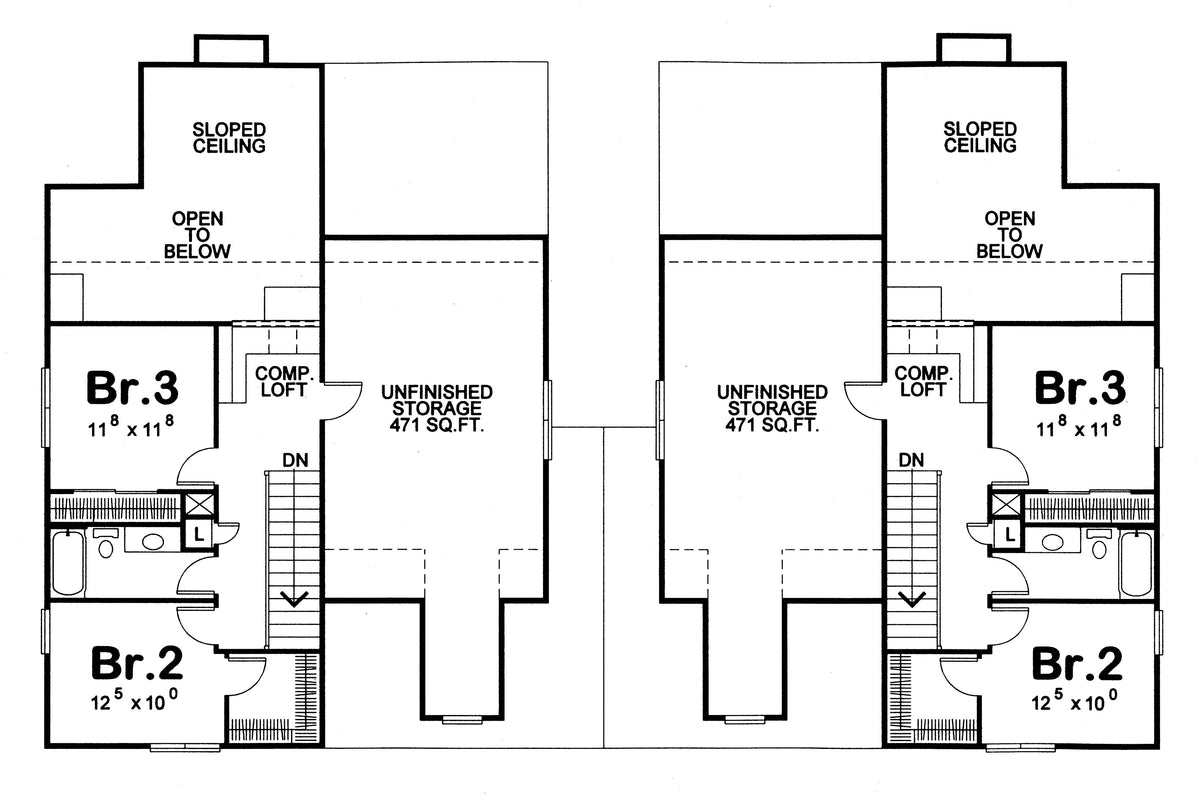

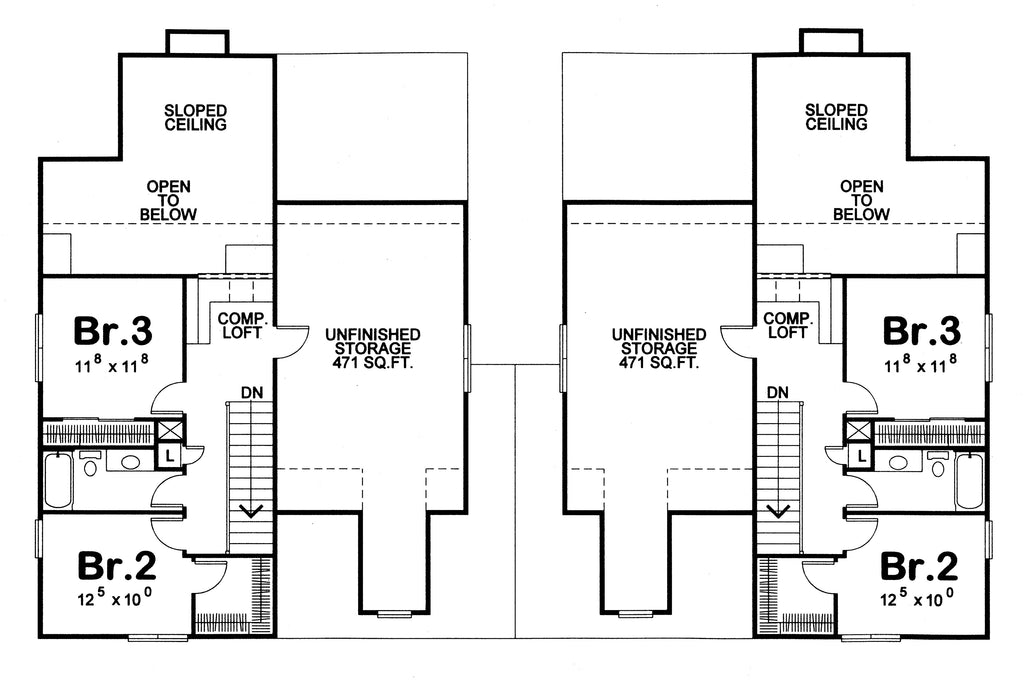

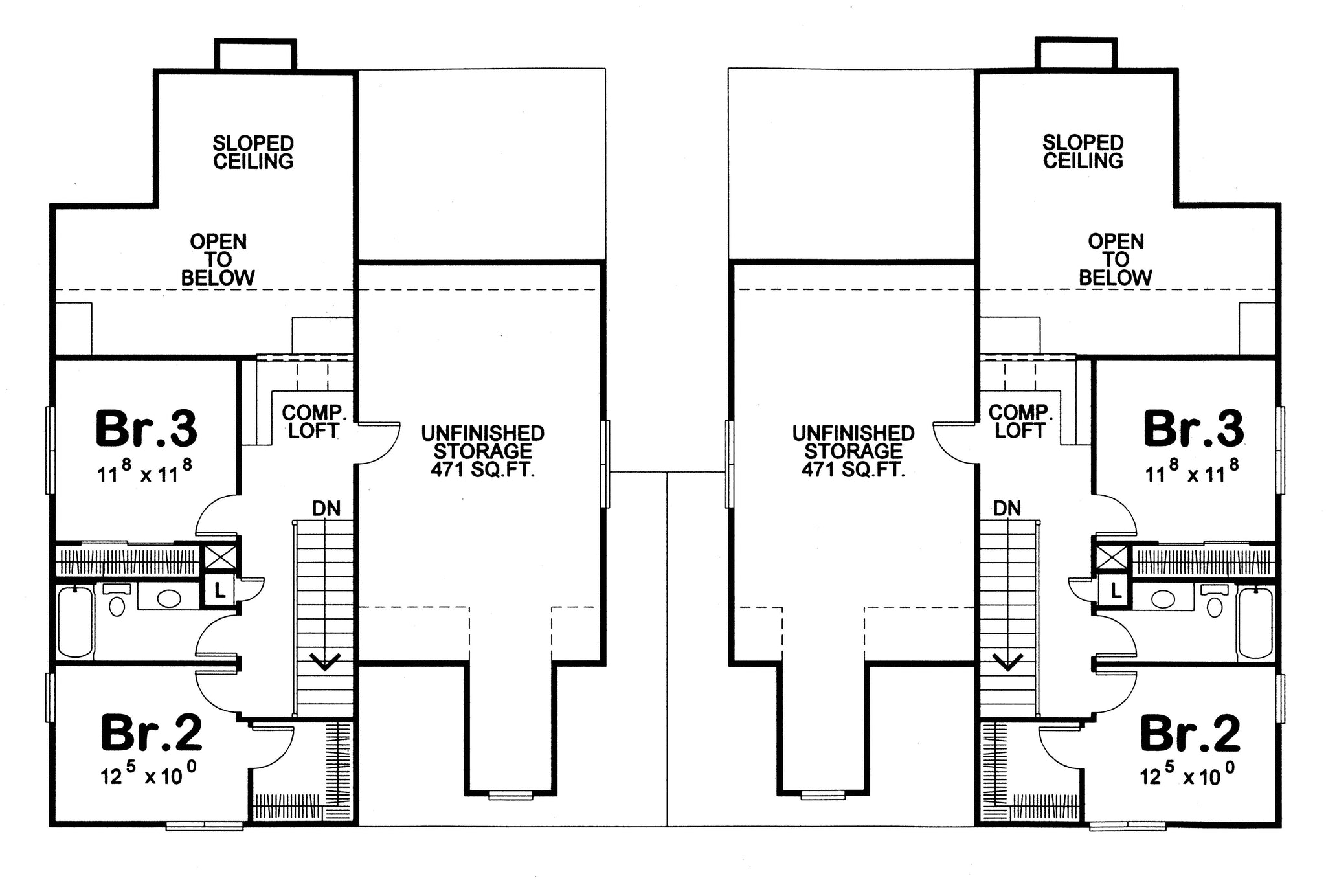

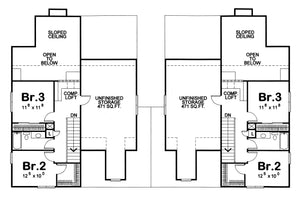

With 561 square feet of second-floor living space per unit, the upper levels house additional bedrooms and bathrooms, maintaining an 8-foot ceiling height for efficient climate control. Each unit includes a 471-square-foot bonus room located above the garage, offering a flexible zone that can be adapted into a media retreat, hobby area, or guest suite depending on the needs of the occupants.

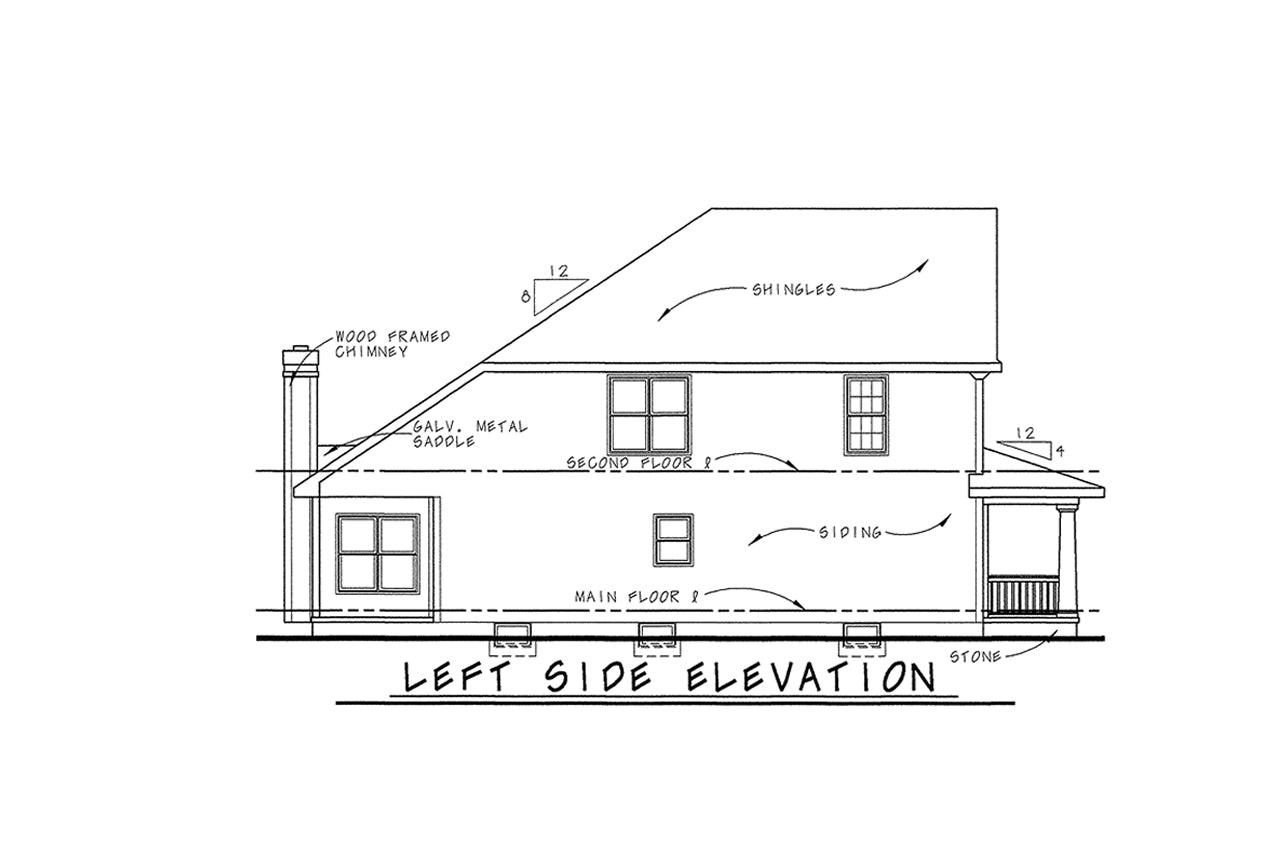

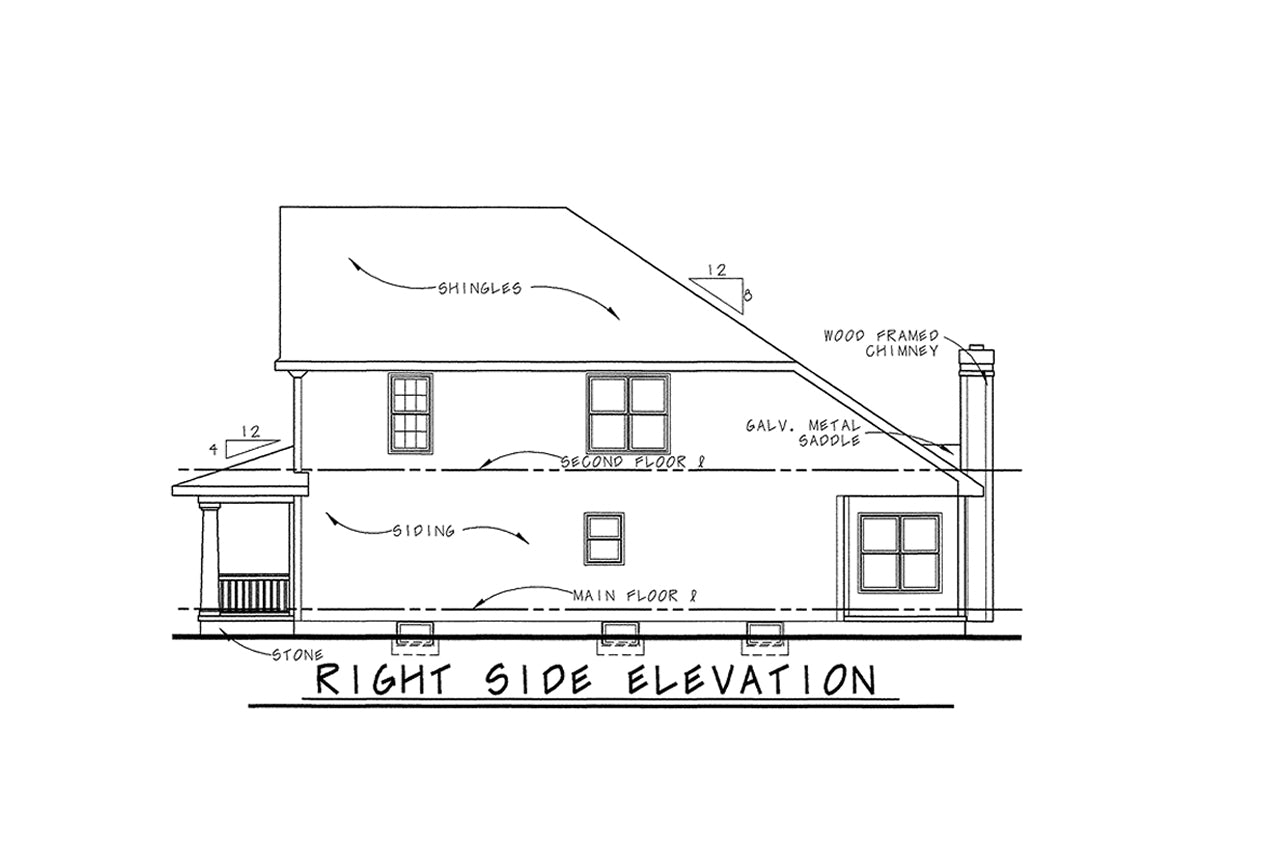

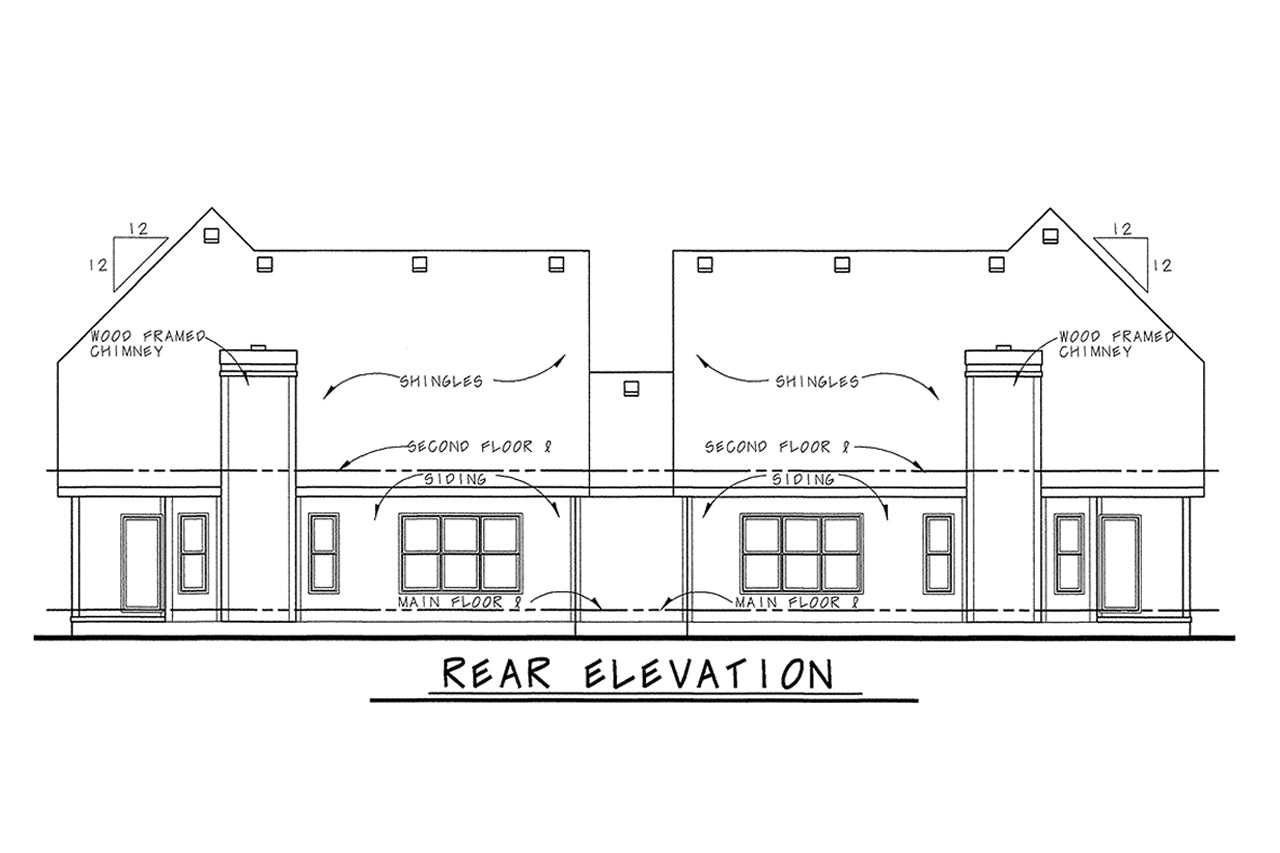

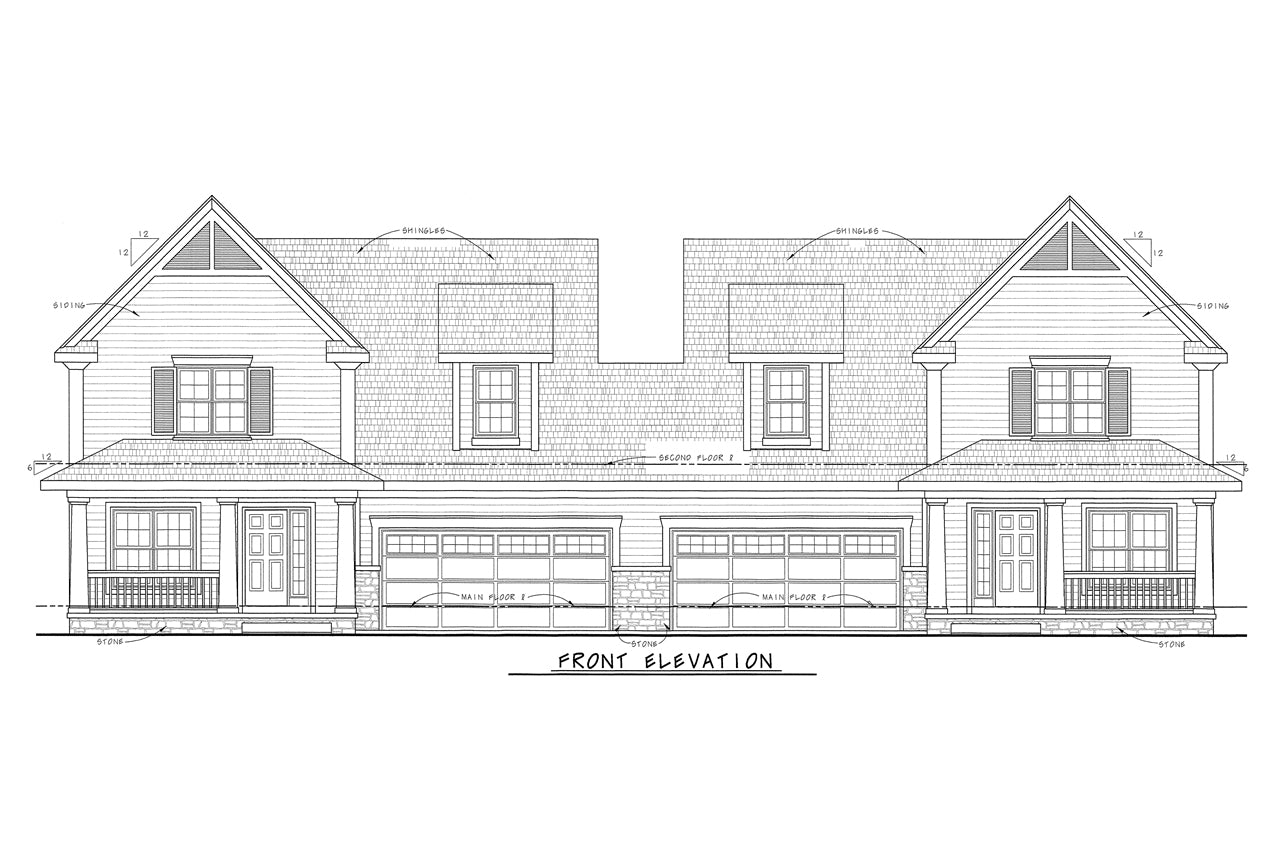

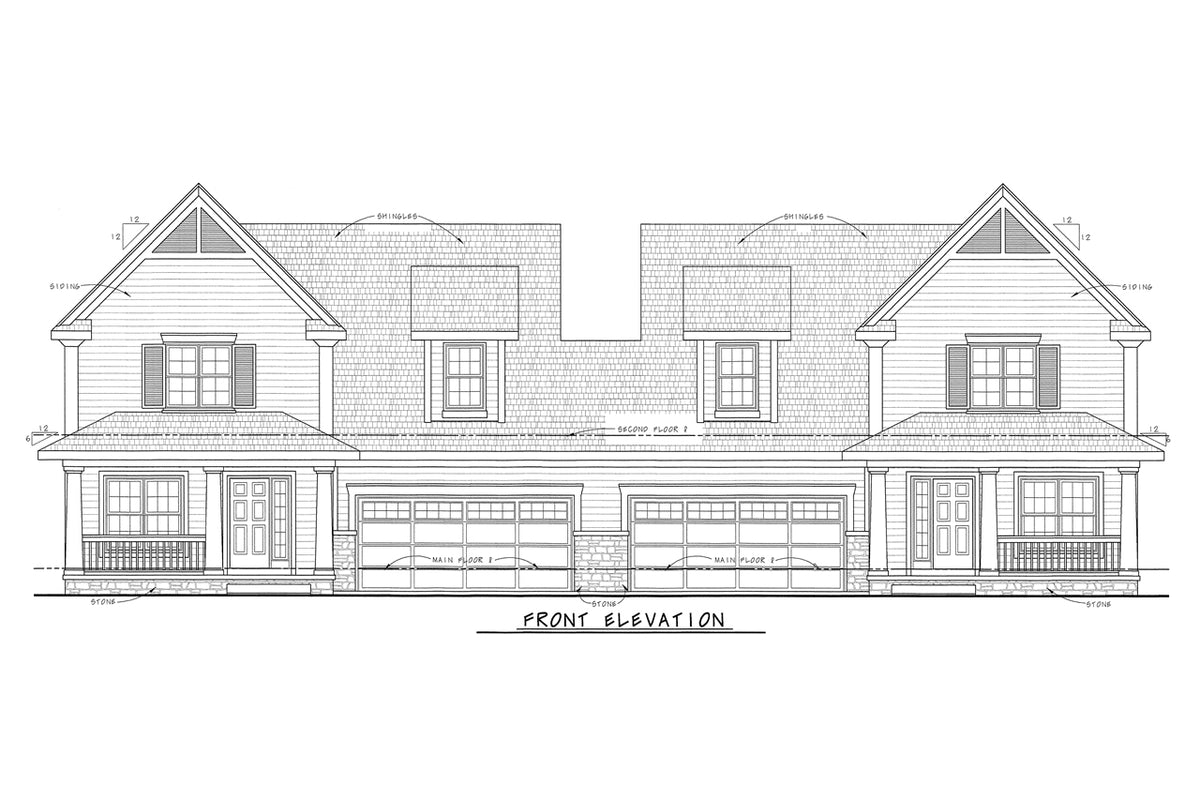

Constructed with 2x4 exterior wall framing and an 8:12 roof pitch, the home reaches a maximum height of 30 feet 8 inches. The design incorporates an unfinished basement foundation, allowing for significant future storage or expansion. The 9-foot ceilings on the first floor contribute to the overall volume of the interior, ensuring that the open-concept layout feels expansive while remaining energy-efficient.
Key Features: 6 bedrooms, 6 bathrooms, duplex layout, first-floor primary suite, 4-car garage, bonus room, 9-foot main level ceilings, 8:12 roof pitch, open-concept kitchen, home office den, unfinished basement foundation.
Review plan layouts, available CAD packages, and customization options for the Wheeler 7618 duplex house plan.
