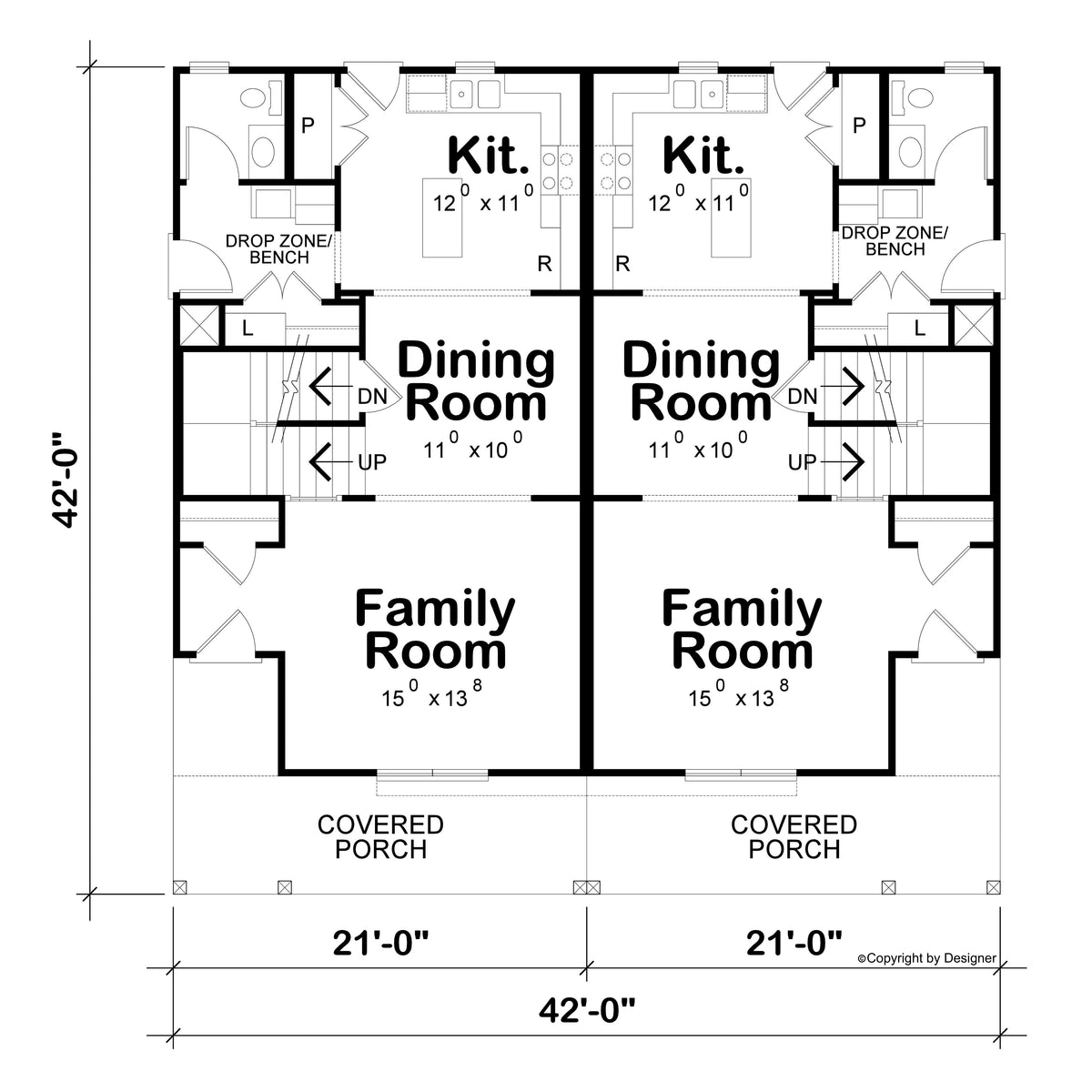

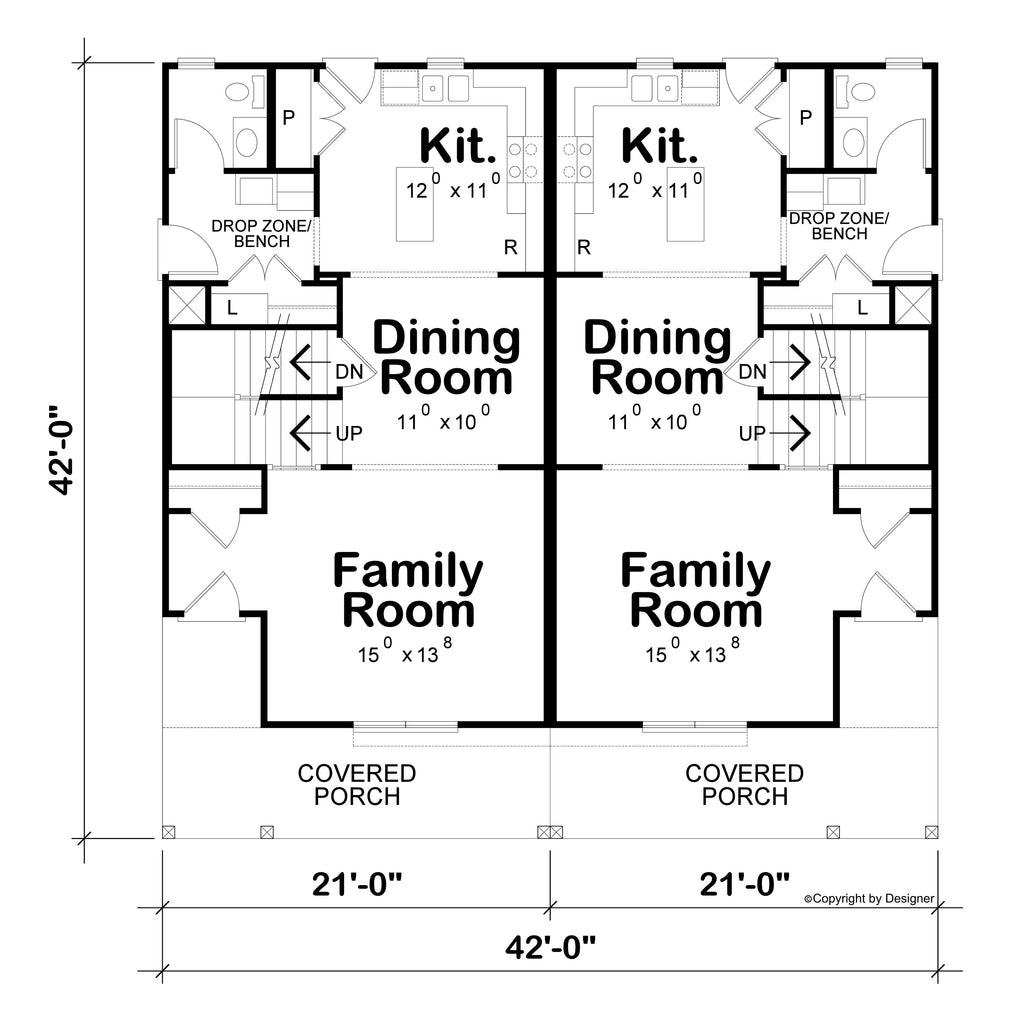

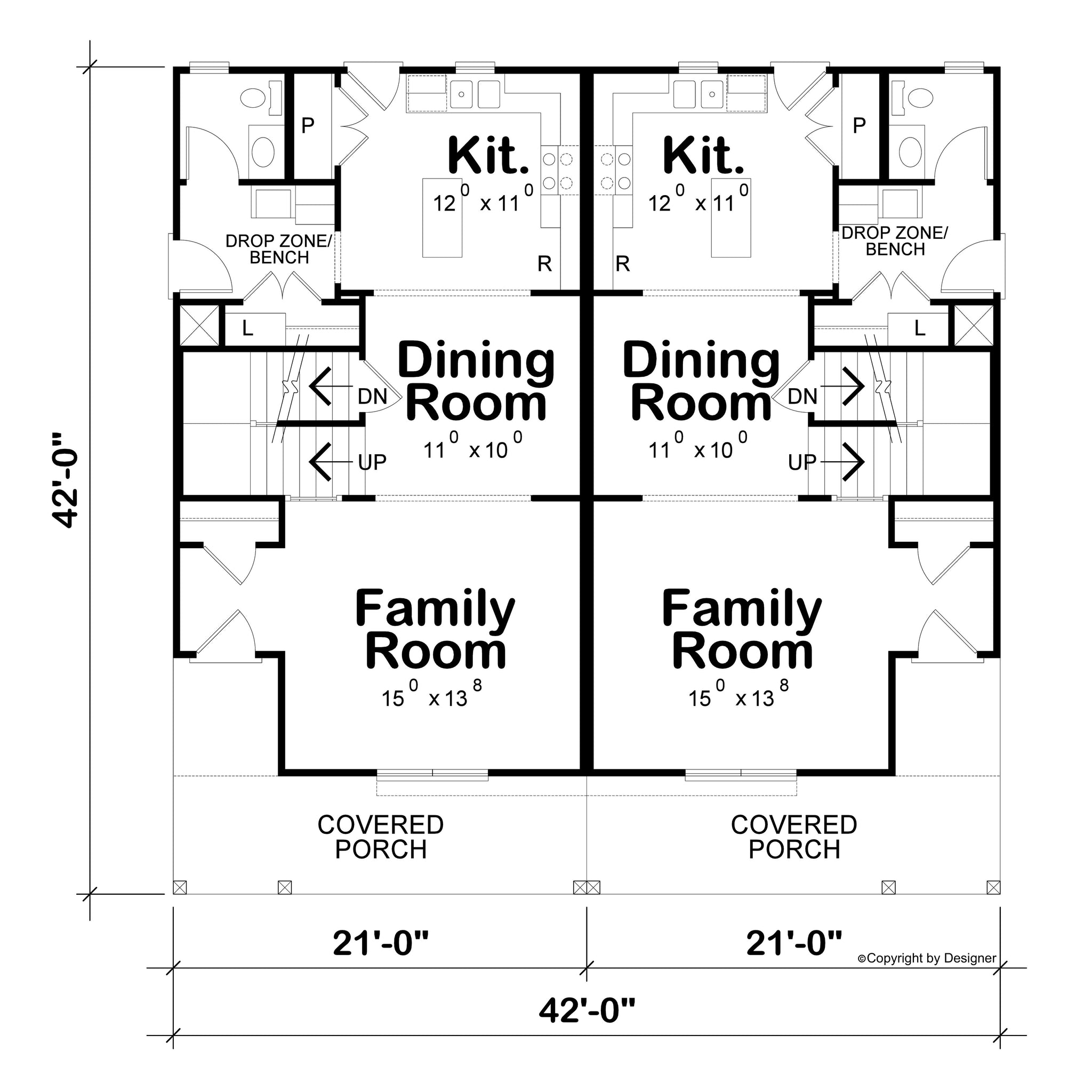

ab8294-a traditional duplex house first floor plan, 6 bedrooms, 4 bathrooms, 2 half baths | joann twin house plan

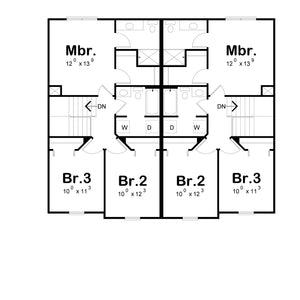

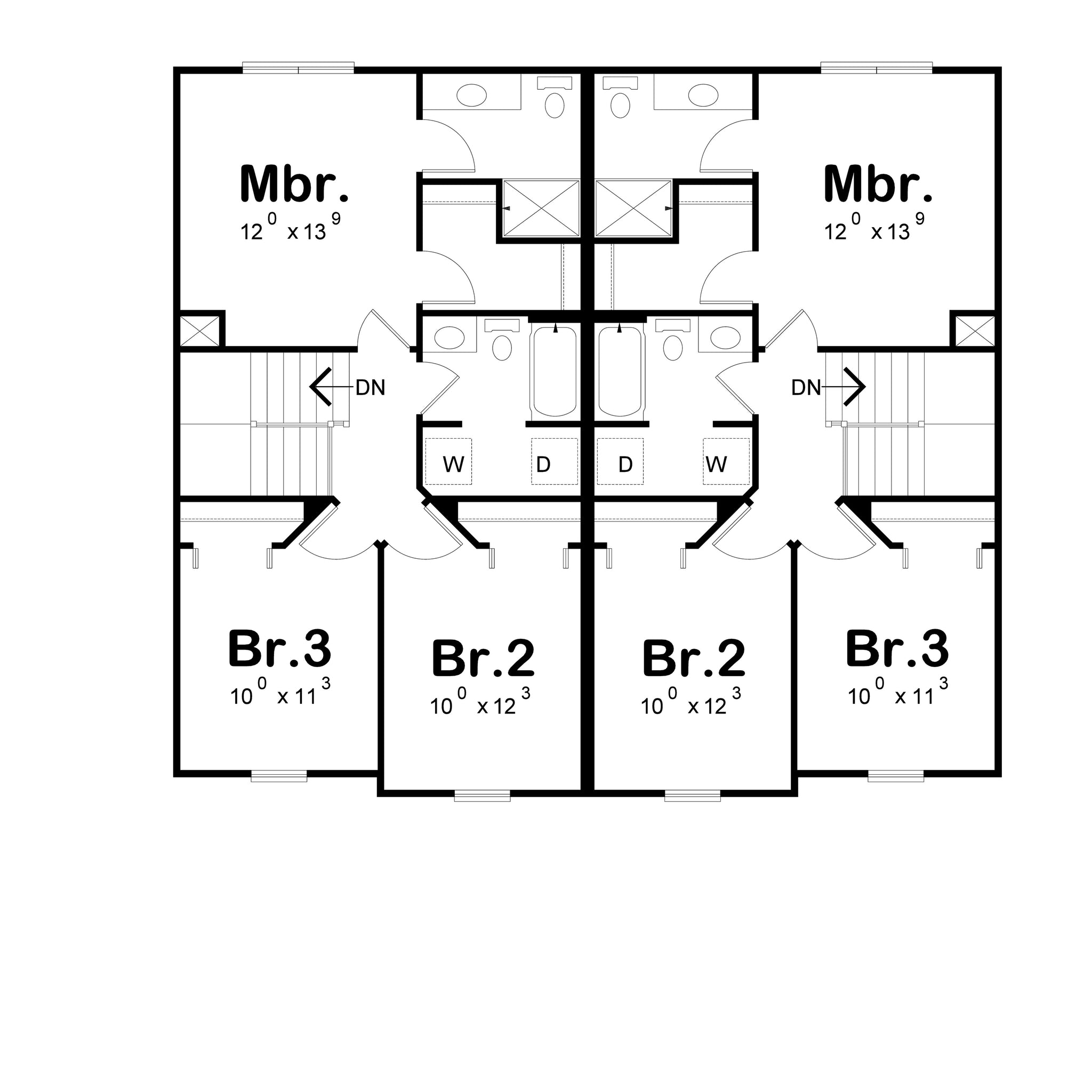

ab8294-a traditional duplex house second floor plan, 6 bedrooms, 4 bathrooms, 2 half baths | joann twin house plan

Income-Producing Traditional Duplex House Plan with 6 Bedrooms

This thoughtfully designed traditional duplex residence combines timeless architectural character with the flexibility and functionality required for modern multi-family living. Featuring two identical living units arranged within a unified structure, the design provides an attractive solution for extended families, income-producing properties, multigenerational households, or long-term investment opportunities. Its balanced proportions, efficient layouts, and comfortable living spaces create a residence that successfully blends privacy with shared architectural appeal.

Containing a total of 2,868 square feet of heated living space, the duplex is divided into Unit A and Unit B, each providing 1,434 square feet of living area. Every unit is arranged across two levels, with 724 square feet on the main floor and 710 square feet on the second floor. Beneath the living spaces, an unfinished basement offers valuable expansion potential and additional storage opportunities. Combined, the structure encompasses approximately 3,025.5 square feet under roof, including covered porch areas that enhance both curb appeal and functionality.

The architecture reflects the enduring qualities of traditional residential design through its balanced façade, inviting proportions, and practical floor plan arrangement. Constructed with durable 2x4 wall framing, the residence combines efficient building methods with lasting appeal. Nine-foot ceilings on the first floor create an open and spacious atmosphere, while eight-foot ceilings on the second floor provide comfortable bedroom accommodations. The unfinished basement includes nine-foot ceilings, creating excellent opportunities for future finishing, storage, workshop space, recreation areas, or utility functions.

A covered front porch establishes a welcoming entrance and reinforces the home's traditional character. This feature creates an attractive transition between the exterior and interior while contributing to the overall visual appeal of the duplex. Despite housing two separate residences, the structure maintains the appearance of a cohesive and thoughtfully designed home.

Each unit is organized around an open-concept main floor that promotes comfortable daily living and efficient circulation. The family or keeping room serves as the central gathering area and provides ample space for relaxation, entertainment, and family activities. Its open relationship with the kitchen and dining areas enhances the sense of spaciousness while supporting contemporary lifestyles that prioritize connectivity and interaction.

The kitchen serves as both a functional workspace and a social hub. A center island provides additional preparation space while creating opportunities for casual conversation and gathering. An adjoining eating bar offers convenient seating for informal meals and everyday dining. A nearby wall pantry contributes valuable storage space, helping maintain organization and efficiency within the kitchen environment.

Adjacent to the kitchen, the formal dining room provides a dedicated setting for family dinners, celebrations, and entertaining guests. This room introduces an element of traditional elegance while remaining conveniently connected to the home's primary living spaces.

A powder room located on the main floor enhances convenience for residents and visitors alike. Its strategic placement supports entertaining while preserving privacy within the upper-level living quarters.

The second floor of each unit is dedicated to private accommodations. The owner's suite serves as a comfortable retreat and includes a private bathroom designed to support everyday comfort and functionality. Its separation from the main living areas creates a peaceful environment while maintaining convenient access to the remainder of the home.

Two additional bedrooms provide flexibility for family members, guests, home offices, or changing household needs. A shared full bathroom serves these bedrooms efficiently, ensuring convenience for all occupants.

A particularly desirable feature of each unit is the second-floor laundry area. Located near all bedrooms, this arrangement streamlines household routines and reduces the need to carry laundry between floors, enhancing everyday convenience.

Collectively, the duplex contains six bedrooms, four full bathrooms, and two half bathrooms, providing ample accommodations for multiple households while maintaining privacy and independence within each residence. The unfinished basement further increases the property's versatility and long-term value.

Combining traditional architectural appeal with practical multi-family functionality, this duplex offers an exceptional solution for homeowners and investors alike. Its open-concept floor plans, private owner suites, unfinished basement, and efficient two-unit arrangement create a residence that balances comfort, flexibility, and enduring market appeal.

View Sample Plan
What's Included in the House Plan:
  • Cover Page – Front elevation, general notes, design criteria, abbreviations, and symbols

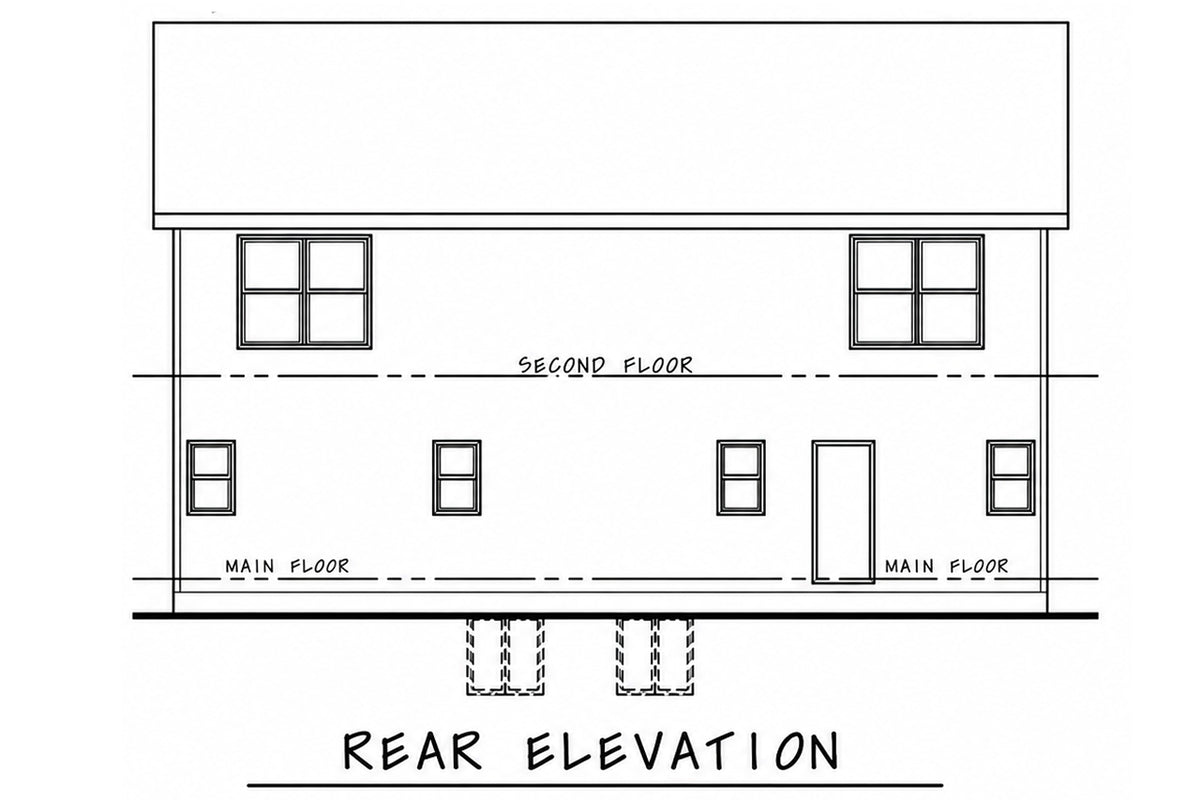

  • Elevations – Scaled front, rear, and side views, plus roof aerial
  • Foundation Plans – Engineered for slab or basement
  • Main Floor Plan – Fully dimensioned for framing, with wall thickness notes
  • Second Floor Plan – Same detail as main floor
  • Electrical & Sections – Separate page with electrical layout and typical wall/stair sections
  • Technical Support – Plan-related assistance included
