The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.
The Tilly House Plan with its Craftsman Style and Cottage accents, offers a charming Ranch with outstanding curb appeal, and can be the first or last home you will ever build.

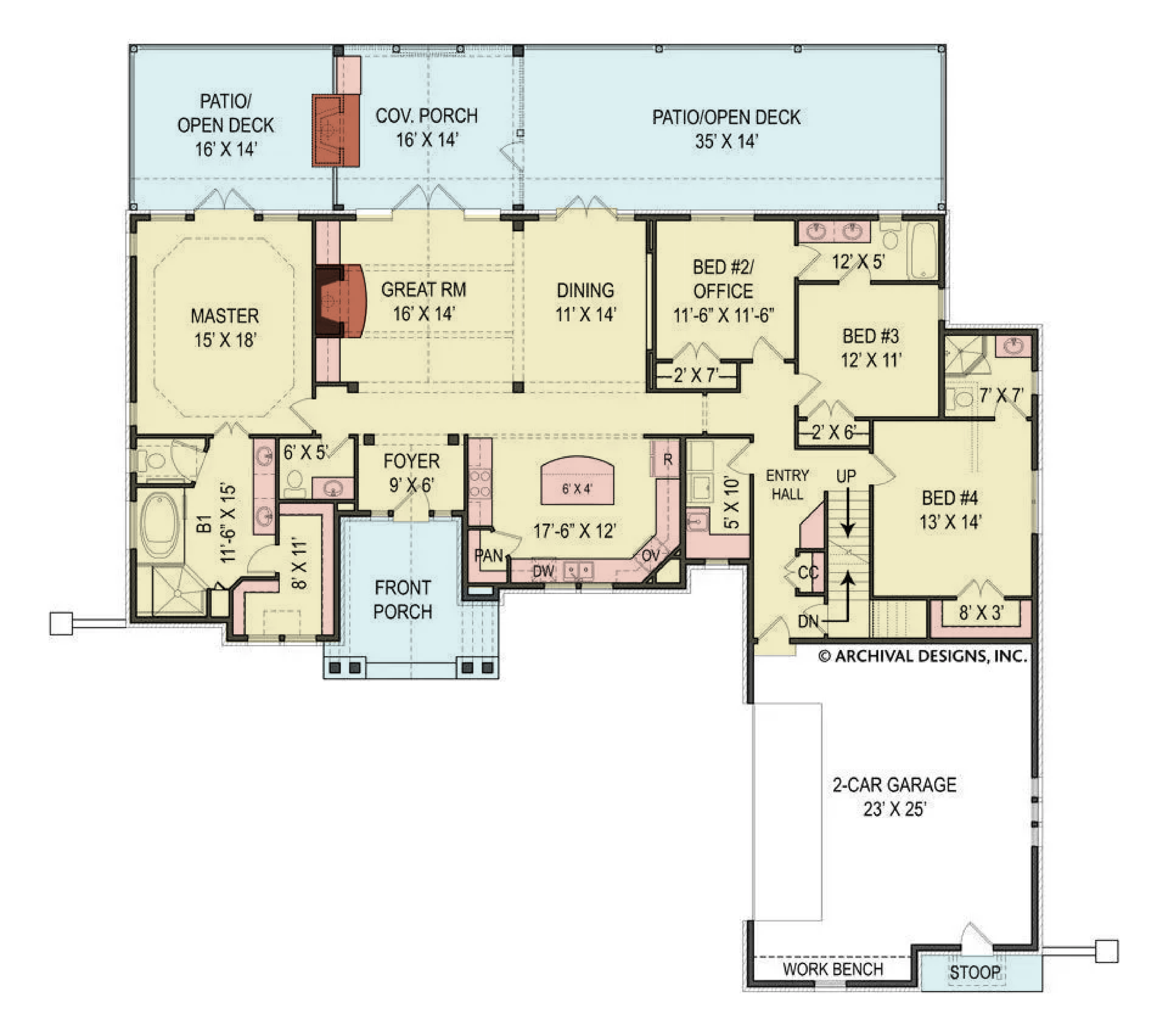

Once you enter your guests will be greeted by a full open view of vaulted wood ceilings, from the entryway with a clear view into the back of the home. Inside the beckoning Foyer, the Tilly takes on an irreplaceable turn. You will find the Gallery, which lures you right into the extensively large Kitchen. This miraculous kitchen includes a multi-faceted free standing island, Floating cabinets that come from the ceiling, and is beautifully place in the home to act as the command center for the family.

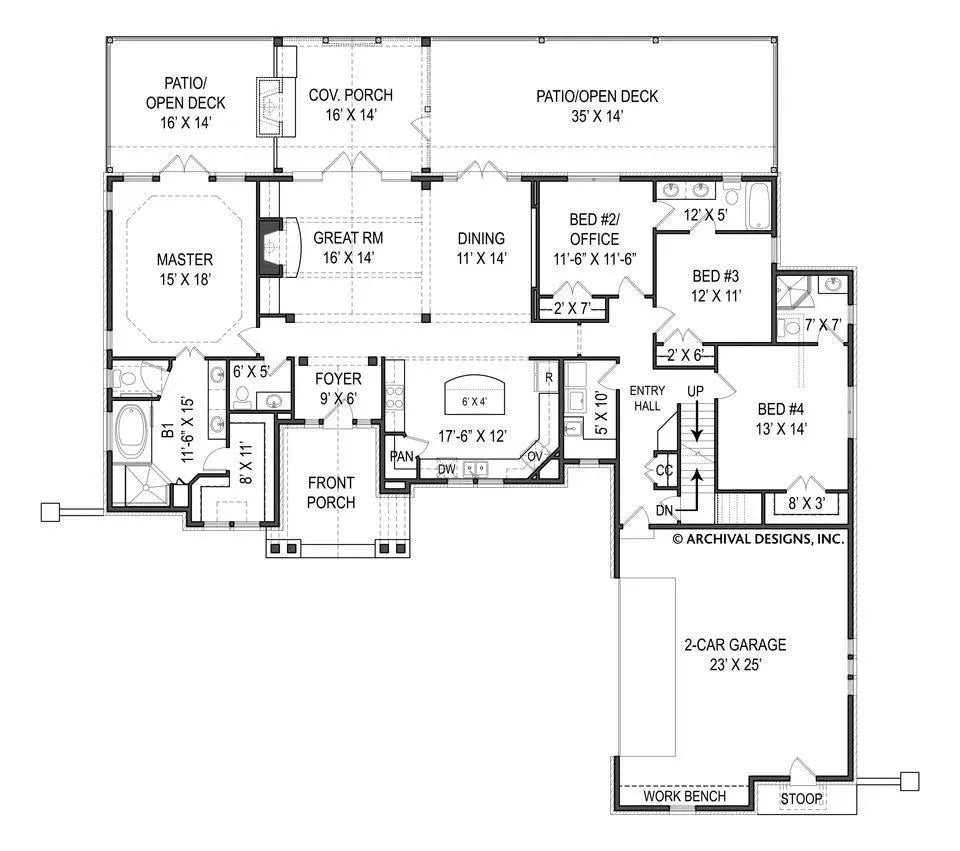

Across from the vast Kitchen, are the Great Room and the Dining area opening up to draw family and guest near. This area is especially laid out for optimum entertaining that even flows out to the grilling terrace and patio. Making our way on around the Tilly House Plan, we find an all-inclusive Utility Room next to the entry hall from the 2-car garage. This crucial accommodating area includes a Large Sink, Folding Table, Space for a stacking Washer and Dryer Unit, with a convenient entrance from Garage.
This stunning house plan leads us around to the left of the home where, positioned for discretion, the exquisite Master Bedroom comes into sight. The Master Suite has elegant trey ceilings and gives personal access to the adjacent Patio. The Master Bathroom is full of amazement with its modern over-sized shower and soaking tub. Revel in the abundance of space and storage with his and her vanities, and copious amounts of shelf space.

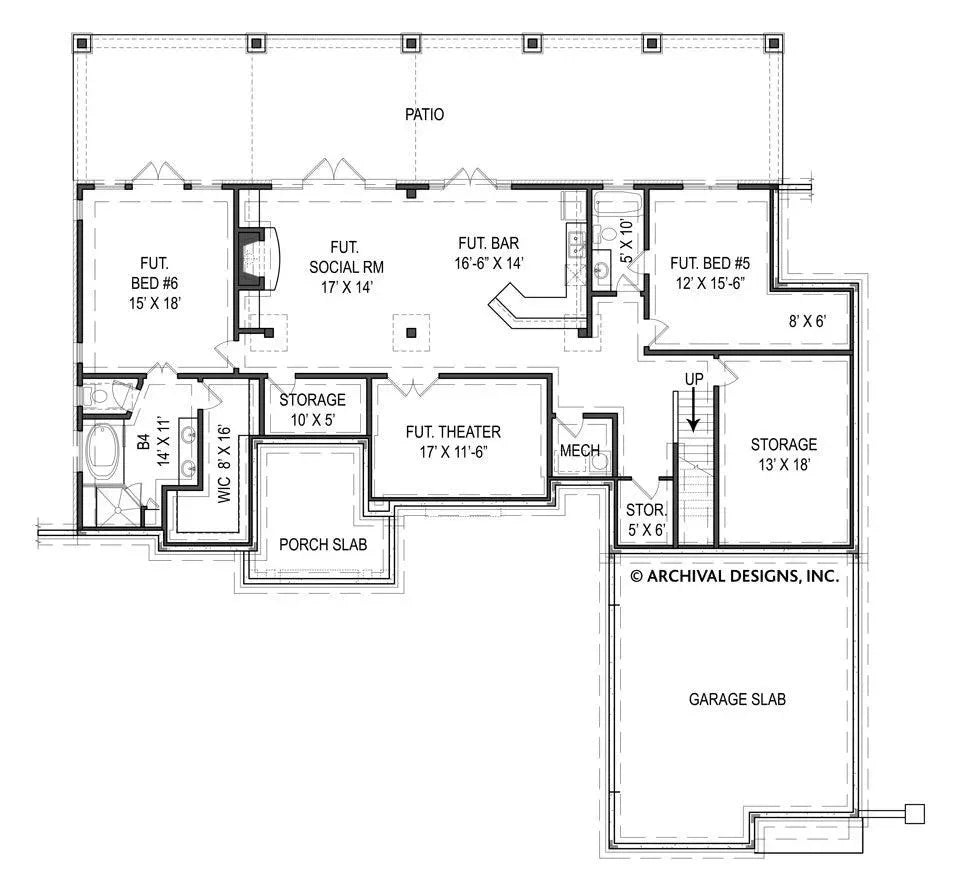

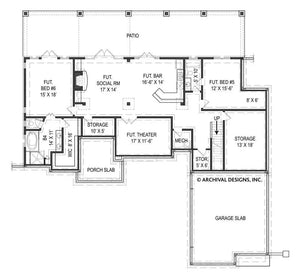

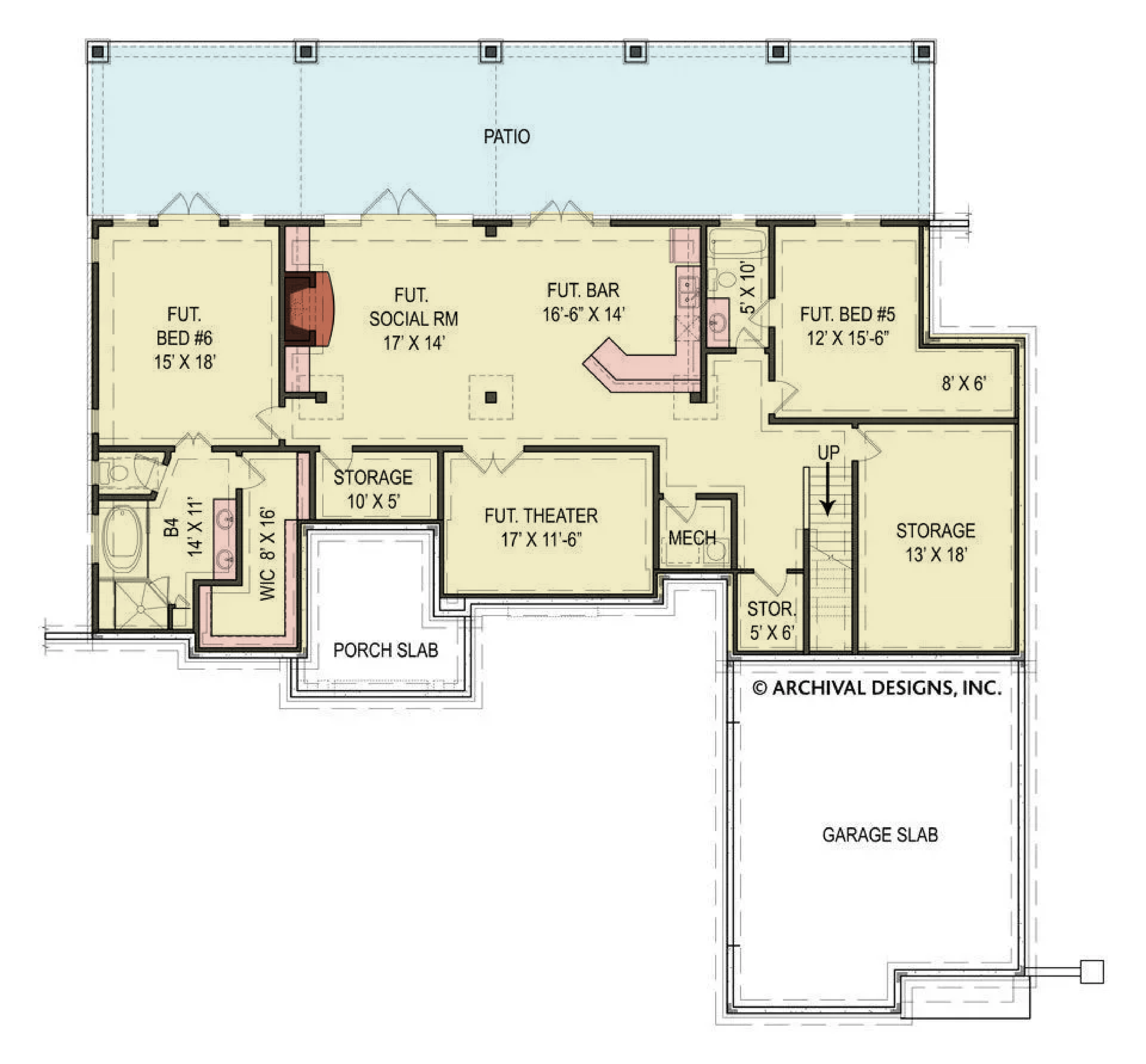

The excitement of the Tilly Ranch House continues to flow downstairs in to the basement. Specifically designed for maximum entertainment and expansion, this house plan has ample amounts of space to create anything from theaters to more bedroom suites, not to mention the plethora of storage possibilities.
The last treat in this lovely Craftsman Ranch Home is the option for a Future Bonus Room for in-laws, teenagers, or boomerang children. However, left unfinished it is also an excellent area for storage.
Whether you have a lake lot or a simple section in a suburban neighborhood, the Tilly Ranch house will fit any need and area you desire to live.
