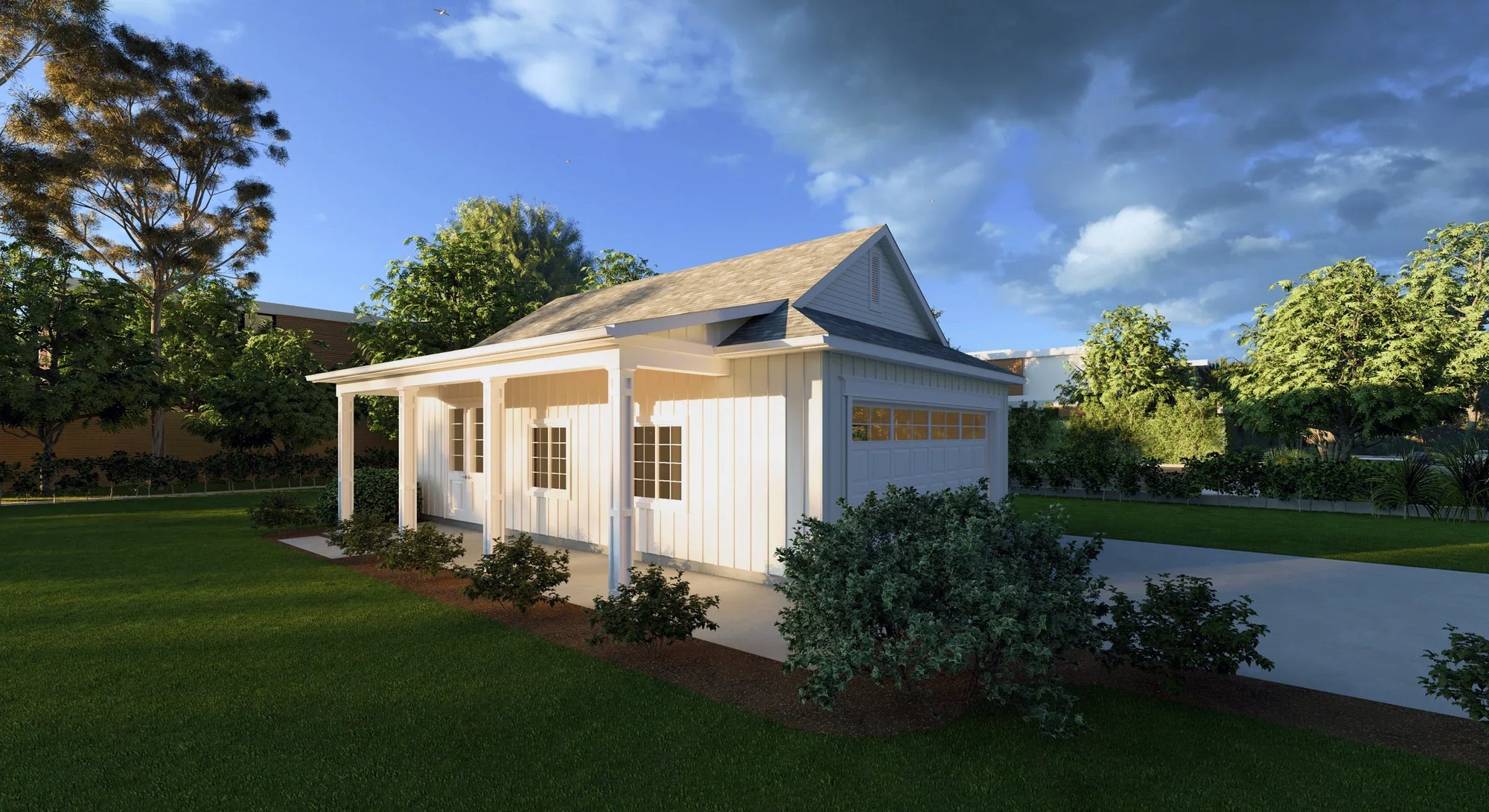

The Vault is a versatile 2-car garage plan spanning 556 square feet of vehicle storage, complemented by a dedicated 308 square foot workshop. Designed with a footprint of 38 feet in width and 29 feet in depth, this structure provides a compact yet highly efficient solution for property storage, hobbyist projects, or equipment maintenance. The exterior is defined by a 210 square foot covered front porch, which serves as a functional transition point and adds a distinct architectural profile to the site.

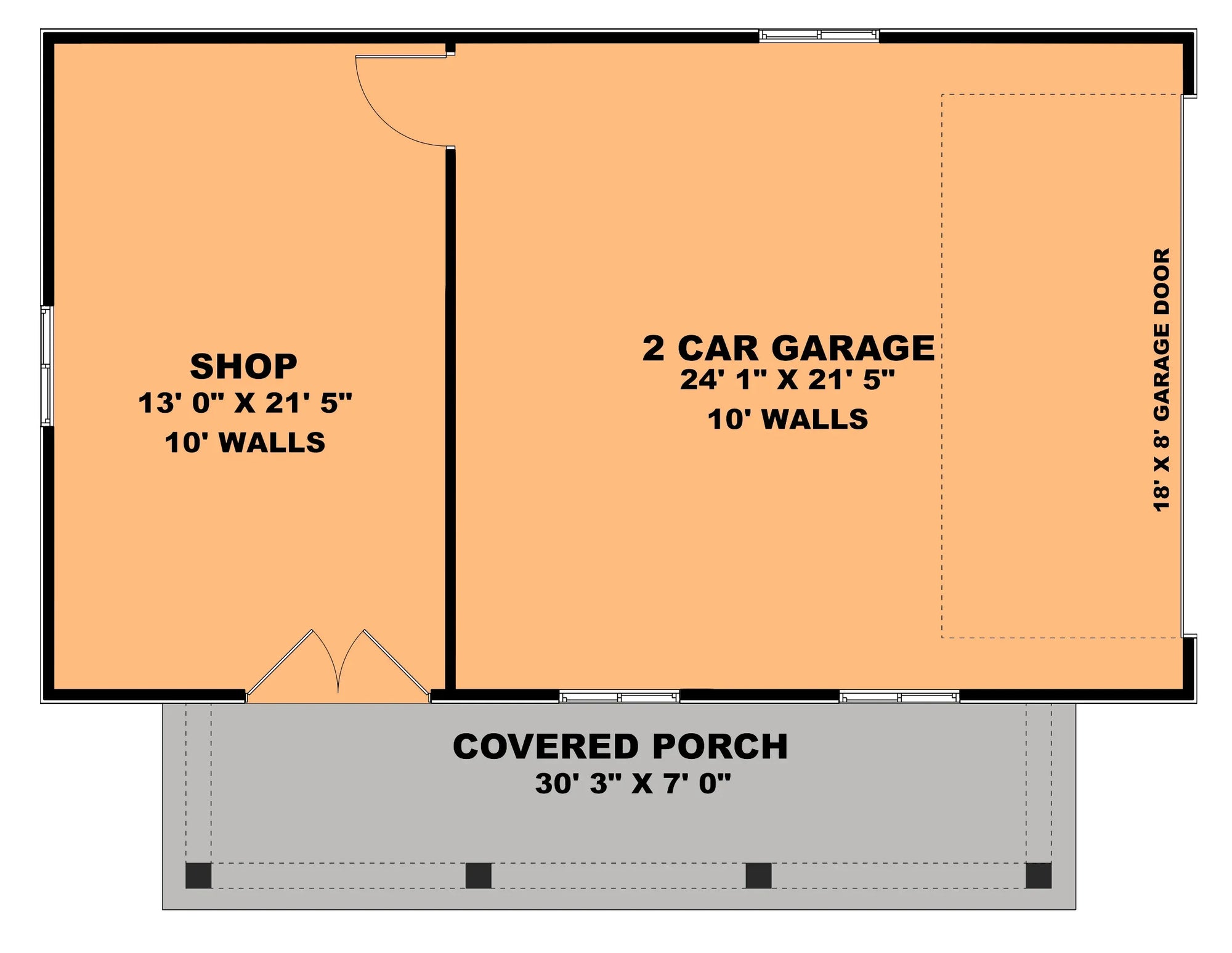

The interior layout prioritizes utility through a 10-foot ceiling height, which creates vertical volume suitable for taller vehicles or overhead storage systems. The structure offers flexible ingress and egress, featuring both side and front load access to accommodate various driveway orientations and site constraints. This adaptability ensures the building integrates into existing residential layouts without disrupting traffic flow.
Constructed on a slab foundation with 2x4 wall framing, the design emphasizes long-term durability and structural rigidity. The roof assembly utilizes a combination of 6:12 and 3:12 roof pitches, which manages water runoff efficiently while maintaining a specific aesthetic scale. With a maximum building height of 18 feet 3 inches, the structure maintains a modest vertical footprint while providing ample internal clearance for specialized tasks or vehicle storage.
This plan serves as a multi-purpose outbuilding that bridges the gap between basic vehicle housing and a professional-grade workspace. The clear separation between the garage bays and the workshop area allows for organized storage of mechanical tools and automotive equipment. By focusing on a standardized, high-clearance design, the building provides a scalable solution for homeowners requiring additional square footage for non-residential activities.
Key Features: 2-car garage, 308 sq ft workshop, 210 sq ft covered front porch, 10-foot ceiling height, side and front load access, slab foundation, 2x4 wall framing, 6:12 and 3:12 roof pitches, 18-foot 3-inch building height, multi-purpose outbuilding design.
Review plan layouts, CAD packages, and customization options for this home.
