The Eclipse occupies a compact 30-foot wide by 40-foot deep footprint, delivering 1,055 square feet of heated living area in a single-story cottage configuration. Designed for efficiency on smaller lots, the structure includes a 143-square-foot covered front porch and a matching 143-square-foot covered rear porch, maximizing the usable square footage for outdoor integration.

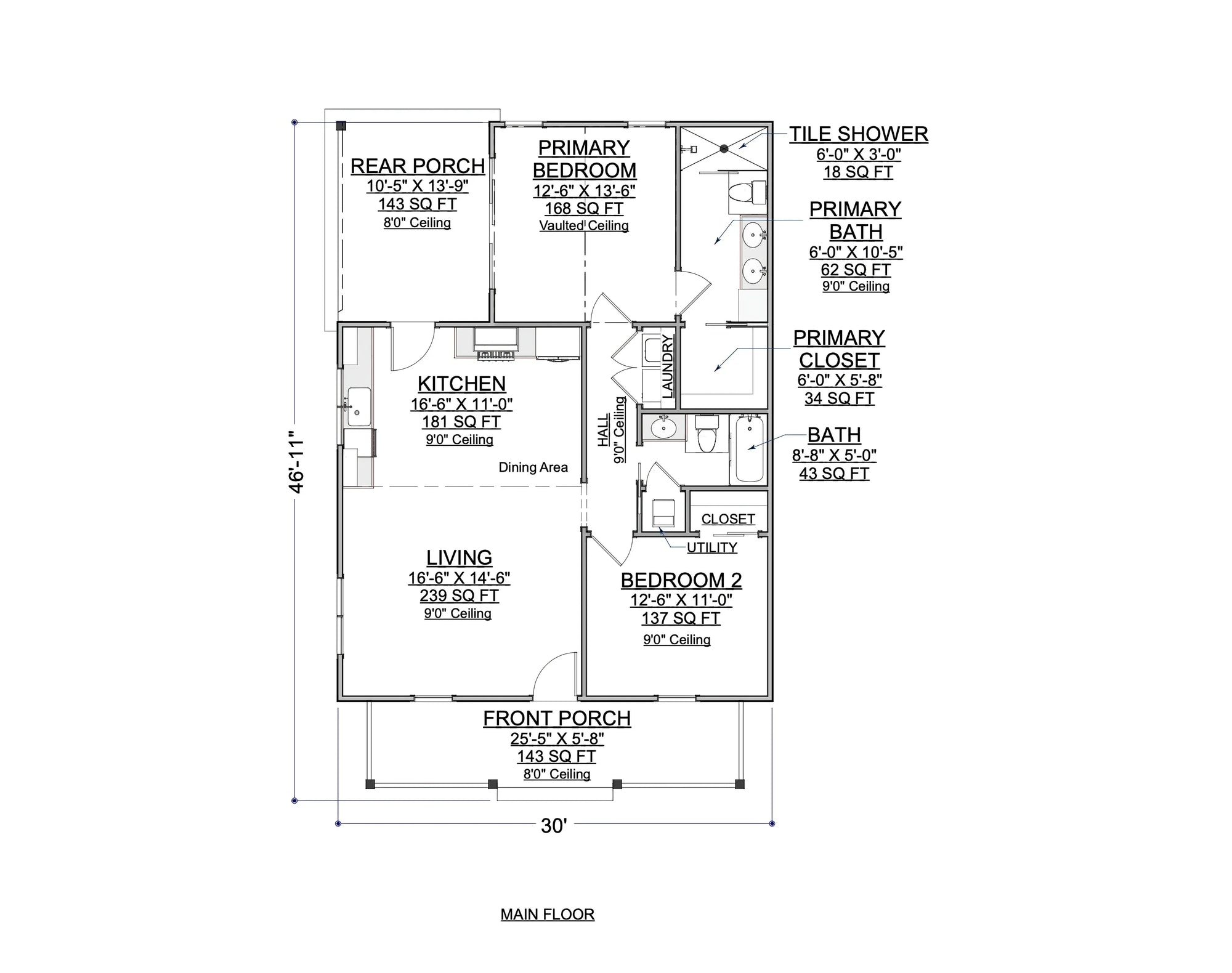

The interior layout centers on an open-concept keeping and family room that anchors the living space, ensuring direct sightlines throughout the primary core. The plan incorporates 9-foot ceilings throughout the main level, which enhances the vertical volume and natural light penetration within the limited floor area. Two full bathrooms are included to support the two-bedroom arrangement.
The primary suite is positioned for privacy and includes direct access to the laundry area through the walk-in closet, a configuration that streamlines daily chores. This one-story design eliminates vertical circulation, providing a straightforward, accessible layout suitable for various stages of life or as a secondary vacation residence.

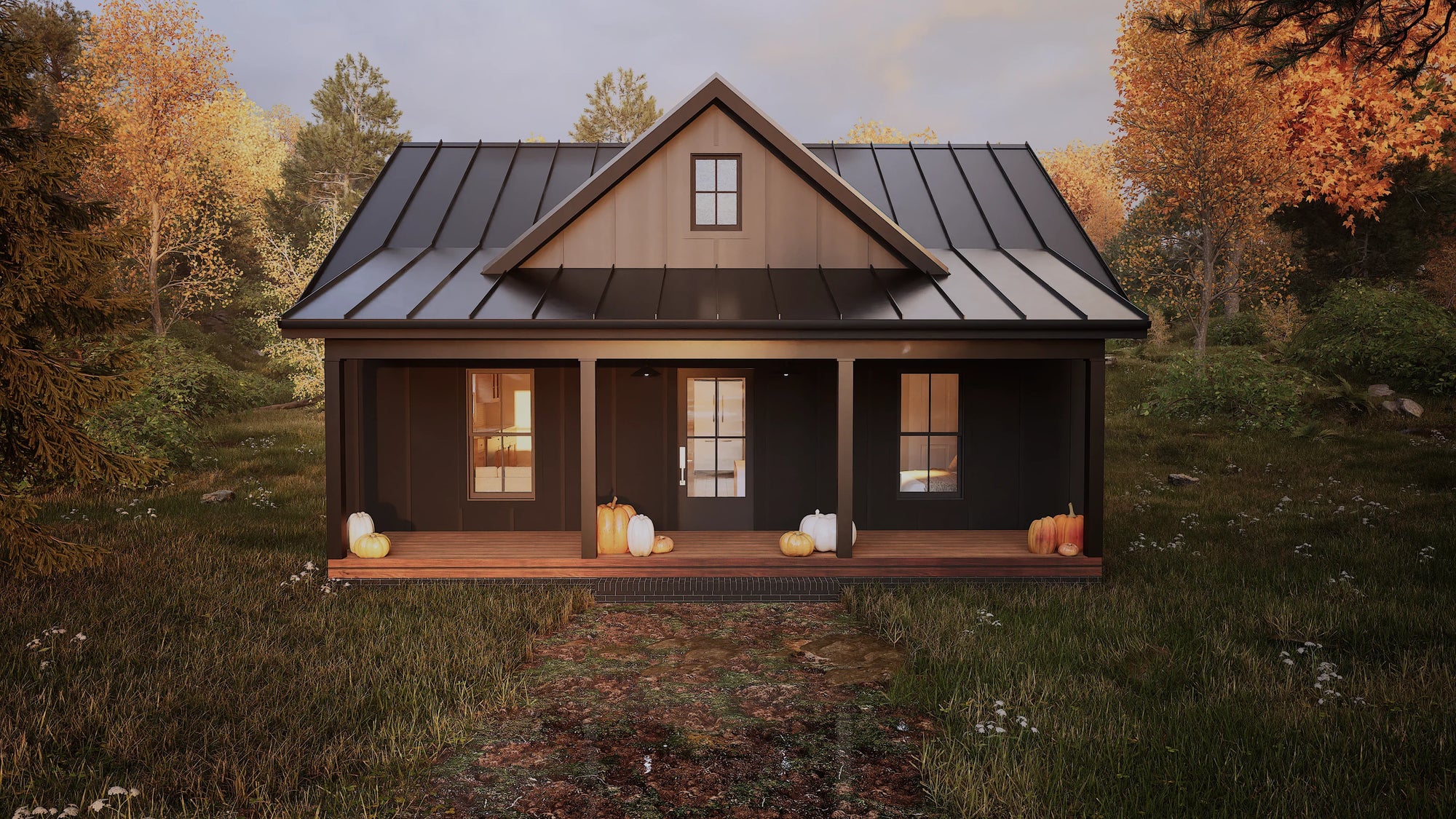

Structural specifications include a maximum building height of 18 feet 3 inches and a roof pitch that transitions between 8:12 and 10:12. This steep roof geometry contributes to the classic cottage profile while ensuring effective water shedding and structural durability. The design focuses on logical spatial hierarchy to ensure the 1,055 square foot total remains efficient and comfortable.
Key Features: 1,055 sq ft living area, 2 bedrooms, 2 full bathrooms, single-story floor plan, 9-foot ceilings, covered front and rear porches, master suite with laundry access, 8:12 and 10:12 roof pitch, 30-foot width, 40-foot depth.
Review plan layouts, available CAD packages, and customization options for this home.
