Southwestern House Plan with 4 Bedrooms, Second-Floor Master Suite, Home Office & Open-Concept Living
4.8
Plan Number:

AM8272-A

Rated 4.8
Plan Number:

AM8272-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan

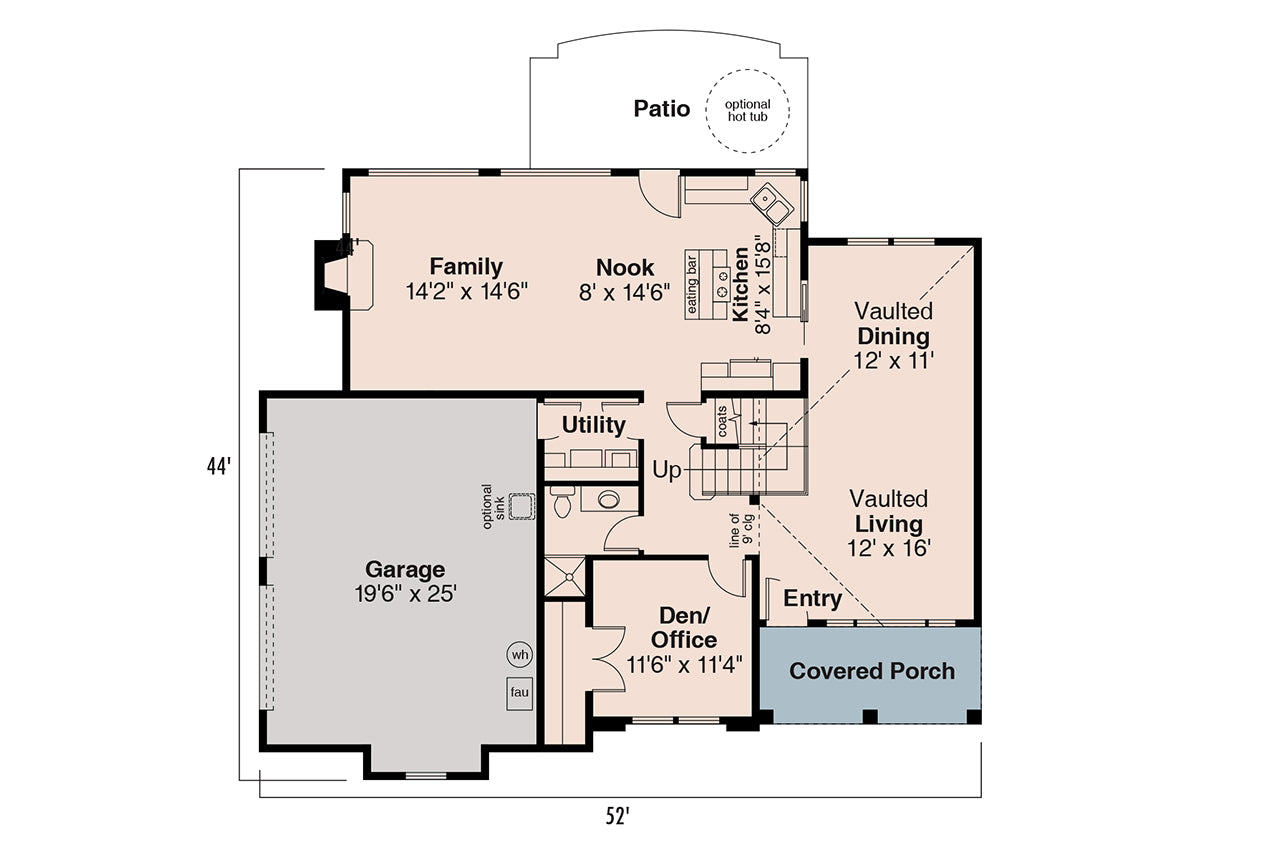

am8272-a southwestern house first floor plan, 4 bedrooms, 3 bathrooms | augusta house plan
am8272-a southwestern house second floor plan, 4 bedrooms, 3 bathrooms | augusta house plan

Southwestern House Plan with 4 Bedrooms, Second-Floor Master Suite, Home Office & Open-Concept Living

This thoughtfully designed Southwestern residence combines the distinctive character of regional desert architecture with the practical requirements of modern family living. Through its efficient floor plan, open gathering spaces, and carefully organized private accommodations, the home reflects the enduring appeal of Southwestern design while embracing contemporary expectations for comfort and functionality.

Containing 2,226 square feet of heated living space, the residence is arranged across two levels, with 1,355 square feet on the main floor and 871 square feet on the upper level. The structure encompasses approximately 2,869 total square feet under roof, including an attached garage and covered outdoor areas. Measuring 52 feet wide by 44 feet deep, the home presents a compact yet substantial footprint that is well suited to a variety of residential settings, from suburban neighborhoods to rural and desert-inspired landscapes.

The architectural composition reflects hallmark Southwestern influences through its stucco exterior, simple massing, and low-pitched 6:12 roof system. Constructed with durable 2x6 exterior wall framing and a crawl space foundation, the residence combines regional architectural character with modern construction standards. Rising to a height of 25 feet 4 inches, the home achieves a balanced profile that emphasizes both visual presence and residential comfort.

A covered front porch establishes an inviting entrance while providing a sheltered transition into the home's interior. Upon entering, visitors are welcomed into a thoughtfully organized floor plan that balances formal and informal living spaces. The arrangement promotes natural circulation while maintaining clear distinctions between public gathering areas and private retreats.

At the center of the home is a spacious great room that serves as the primary living and entertainment area. Enhanced by a fireplace, this space creates a warm and welcoming atmosphere while functioning as the social heart of the residence. The open-concept layout allows the great room to connect seamlessly with the kitchen and dining areas, encouraging interaction and providing flexibility for both everyday living and special occasions.

The kitchen is designed as both a practical workspace and a gathering place. A large center island provides additional preparation space and serves as a focal point for casual interaction. An adjoining eating bar offers informal seating, while the nearby breakfast area accommodates daily meals in a comfortable setting. The efficient arrangement allows the kitchen to remain connected to surrounding living spaces while supporting the demands of modern family life.

A formal dining room adds an element of tradition and versatility to the floor plan. Positioned conveniently near the kitchen, it provides a dedicated space for holiday celebrations, family dinners, and entertaining guests while preserving the elegance often associated with traditional residential design.

One of the home's most distinctive features is the inclusion of both a family room and a great room, creating multiple gathering spaces that accommodate a variety of activities and lifestyles. This arrangement allows family members and guests to enjoy separate areas while maintaining a cohesive overall layout.

The residence includes four bedrooms and three full bathrooms. The owner's suite is uniquely positioned on the second floor, providing a private retreat separated from the home's primary living areas. This elevated location enhances privacy while creating a comfortable sanctuary within the residence. The suite includes a spacious bedroom, a private bath with dual vanities, and ample storage, reflecting contemporary expectations for owner accommodations.

Secondary bedrooms are thoughtfully arranged to support family living. A Jack-and-Jill bathroom efficiently serves two of the bedrooms, offering convenience and privacy while maximizing the effectiveness of the floor plan. An additional bedroom and bath provide flexibility for guests, extended family members, or changing household needs.

A dedicated home office or study further enhances the home's versatility, creating a private environment for remote work, reading, study, or creative pursuits. This feature reflects the increasing importance of flexible workspaces within modern residential design.

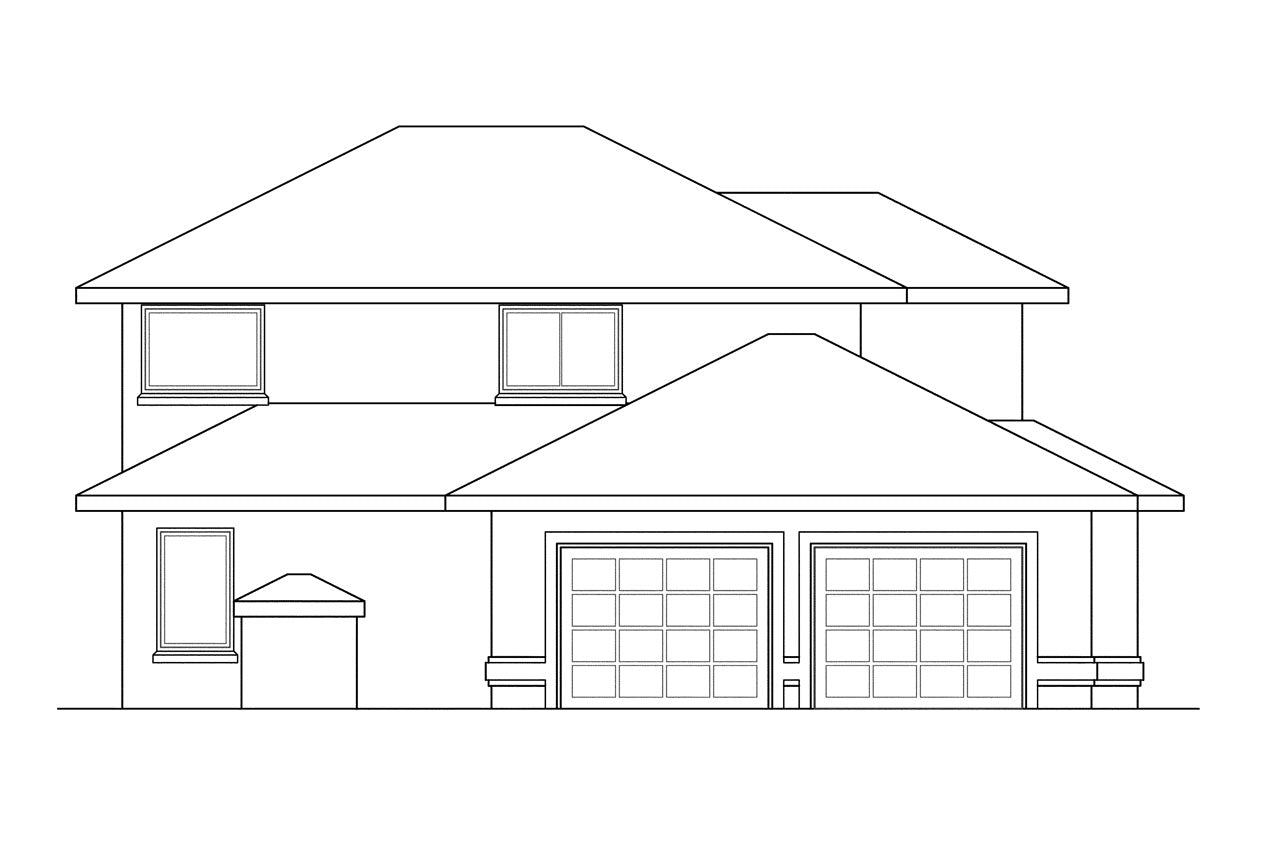

Additional practical amenities include a utility room and an attached side-entry two-car garage containing approximately 531 square feet. These elements contribute to efficient daily living while maintaining the home's architectural integrity.

Combining the warmth of Southwestern design traditions with open-concept planning and flexible family spaces, this residence offers a comfortable and enduring living environment. Its private second-floor owner's suite, dedicated study, multiple gathering areas, and distinctive architectural character create a home that successfully balances regional charm with contemporary functionality.

What's Included in the House Plan:
  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Cover Sheet / Artist's Rendering:
    An artist's illustration of the home, typically viewed from the front, along with general construction notes.
  • Elevations:
    Shows the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, and other architectural details.
  • Main Floor Plan:
    Displays the layout and dimensions of walls, doors, and windows. Includes the location of appliances, plumbing fixtures, beams, and ceiling heights.
  • Second Floor Plan (if applicable):
    Details the second floor layout with the same information as the main floor, including second-floor framing and structural details.
  • Foundation Plan:
    Shows all concrete footings, floor beams, first-floor framing, and other foundation-specific details. If applicable, includes a basement plan with full basement layout and details. Foundation types vary—please contact us to confirm the foundation type for your plan.
  • Floor Framing Plan (if applicable):
    Shows the layout and spacing of floor joists, beams, and supporting walls.
  • Roof Framing Plan:
    Displays roof outlines, truss or stick framing, beams, and roof construction details.
  • Sections & Details:
    Provides a cross-section of the home showing structural support members, insulation, materials, and foundation. Includes specific construction details (e.g., stairways, fireplaces, decks) drawn at 1/2" = 1' scale where needed.
  • Electrical Plan:
    A schematic diagram showing the placement of all lighting fixtures, switches, and electrical outlets.
What's Not Included:
  • Architectural and Engineering Stamps
  • Site Plan
  • Structural or Framing Plans
    (All engineering requirements—including structural, truss, and framing specifications—must be provided by a local engineer or truss manufacturer to comply with local building codes.)
  • Plumbing Layout
    (Only fixture locations are shown. Detailed plumbing layouts are the responsibility of licensed subcontractors.)
  • Mechanical or HVAC Drawings
    (To be provided and installed by qualified subcontractors.)
  • Grading Plan
  • Material List

House Plan Specifications

  • Total Living (heated area):  2226 sq ft
    All Unheated Under-Roof Areas  643 sq ft
    Total Structure  2869 sq ft
    1st Floor:  1355 sq ft
    2nd Floor:  871 sq ft
    Total Porch:  112 sq ft
  • Garage:  531 sq ft
    Garage Bays:   2
    Garage Load:   Side
  • Bedrooms:   4
    Bathrooms:   3
  • Foundation:   Crawl Space
    Wall Framing:   2x6
    Roof Framing:   Truss
    Roof Pitch:  6:12
    Exterior Siding:   Stucco Exterior
  • Width of House:  52'
    Depth of House:  44'
    Building Height:  25'4''
  • First Floor Ceiling Height:  9'

Key Features

  • Breakfast Area
  • Covered Front Porch
  • Eating Bar
  • Fireplace
  • Formal Dining Room
  • Great Room
  • Home Office/Study
  • Jack and Jill Bathroom
  • Keeping/Family Room
  • Kitchen Island
  • Master Bath-Double Vanity Sink
  • Open Floor Plan
  • Patio
  • Private Master Bath
  • Second Floor Master Suite
  • Utility Room
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AM8272-A
Southwestern House Plan with 4 Bedrooms, Second-Floor Master Suite, Home Office & Open-Concept Living
4 Bedrooms
3 Full Baths
2226 SQ FT
2 Stories
Product print image
AM8272-A Southwestern House First Floor Plan, 4 Bedrooms, 3 Bathrooms | Augusta House Plan
AM8272-A Southwestern House Second Floor Plan, 4 Bedrooms, 3 Bathrooms | Augusta House Plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
