Santa Clara is a luxury estate spanning 8,513 sq. ft. of heated living area, designed with a wide 91-foot frontage and a depth of 126 feet to accommodate large lots. This two-story residence features 5 bedrooms, 4 full bathrooms, and one half-bath, utilizing a 4:12 roof pitch and 2x6 exterior wall framing to reach a maximum building height of 35’1”.

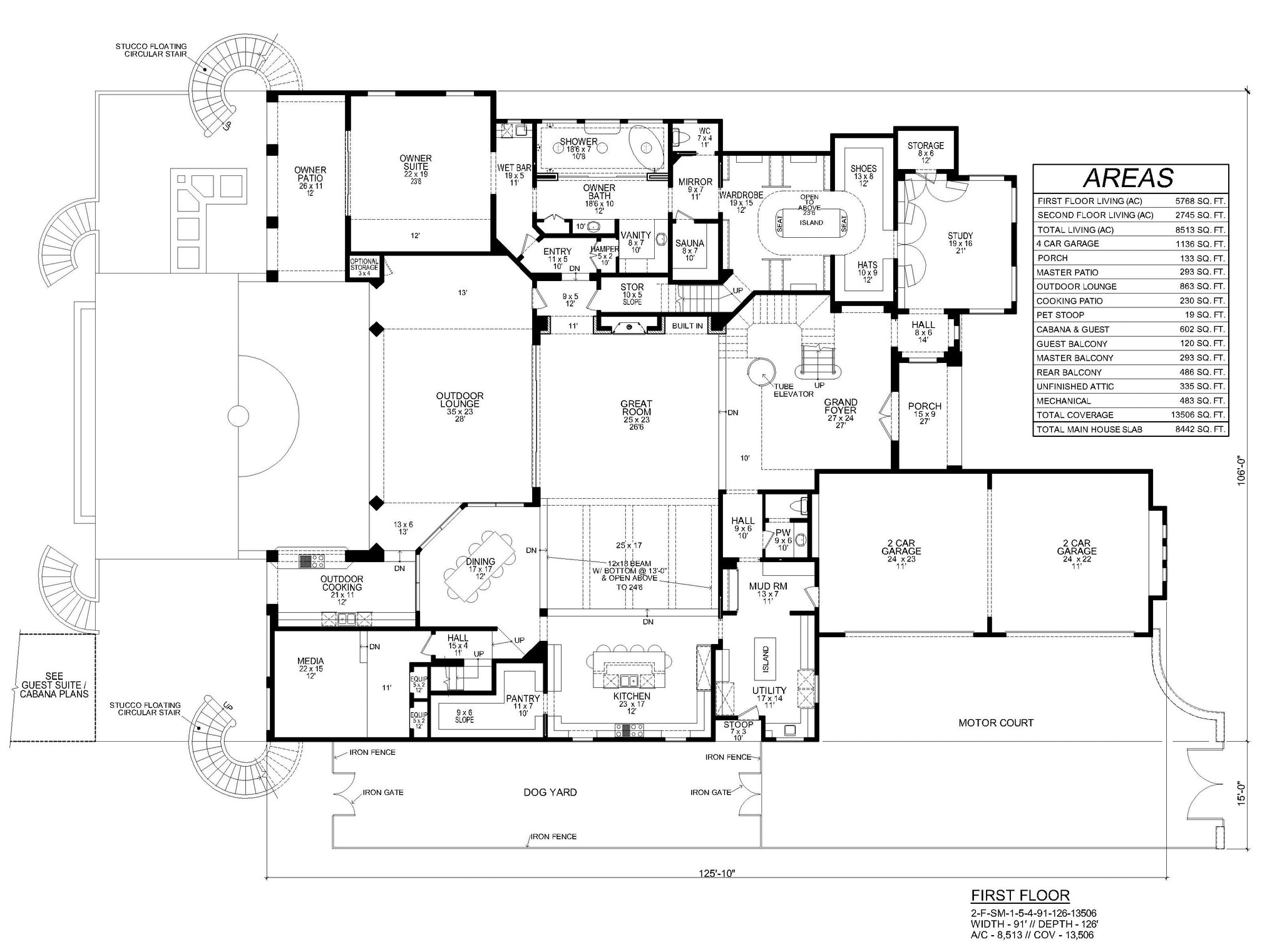

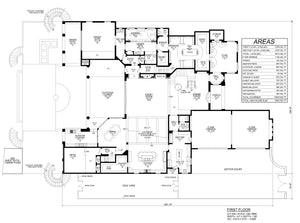

The first floor encompasses 5,768 sq. ft., anchored by a great room characterized by 12-foot ceilings that enhance the scale of the central living core. This level incorporates a primary suite, a formal dining area, and a kitchen equipped with an integrated wet bar. A dedicated home office provides a private workspace, while an elevator facilitates vertical circulation between the main level and the upper floor.

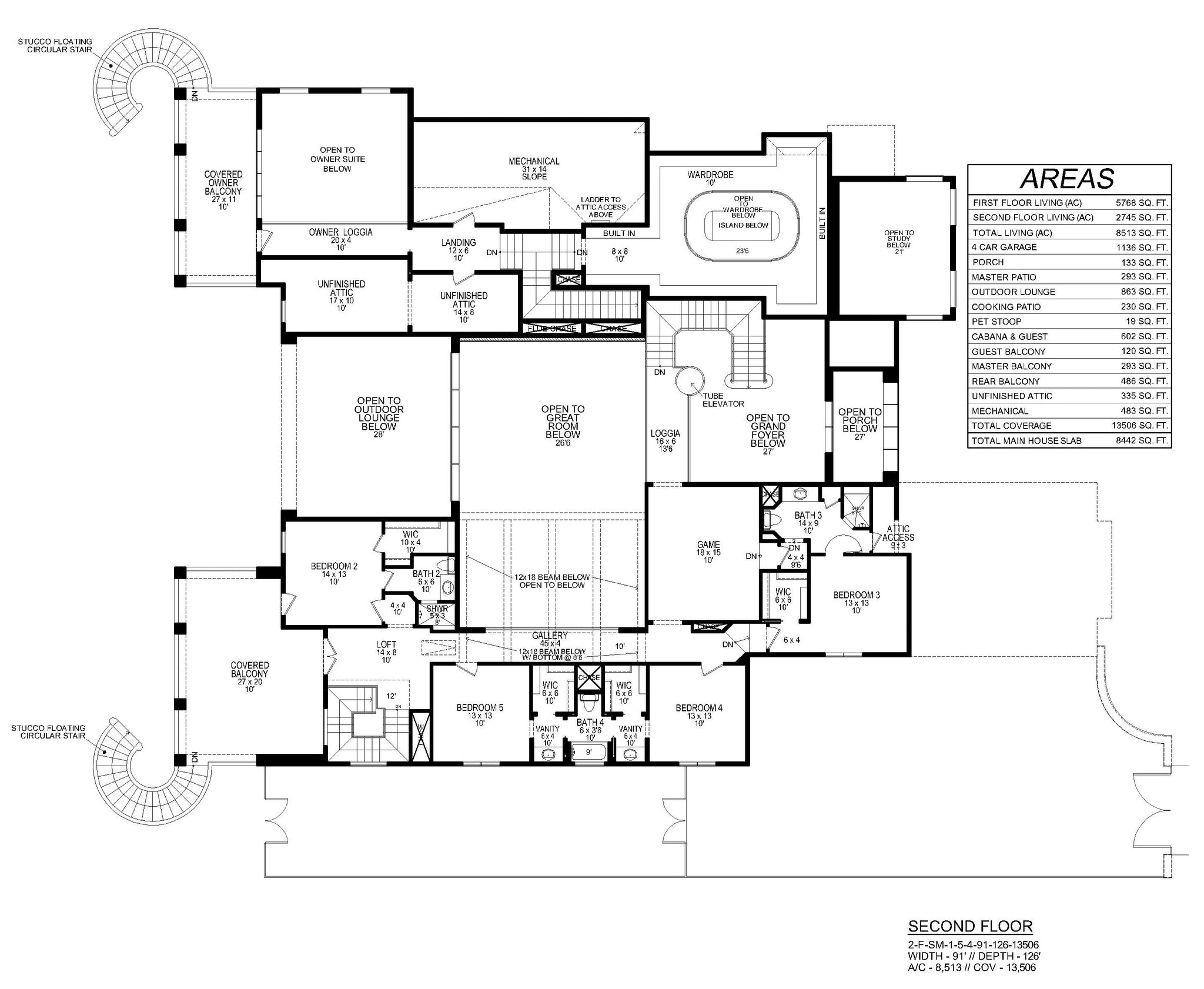

Occupying 2,745 sq. ft., the second level houses the remaining bedrooms, a game room, and a media room. This floor also includes a 602 sq. ft. bonus room, providing flexible square footage for recreational or storage needs. The second-floor ceiling heights are set at 10 feet, maintaining consistent vertical volume throughout the upper level.
Structural support is provided by 2x6 wall framing, ensuring a durable exterior envelope for this expansive floor plan. The front-load four-car garage offers 1,136 sq. ft. of vehicle and equipment storage, contributing to the overall footprint of the estate while maintaining a clear and accessible driveway transition.
Key Features: 8,513 sq. ft. total, 5 bedrooms, 4.5 bathrooms, two-story layout, elevator, first-floor primary suite, front-load 4-car garage, 12-foot main level ceilings, bonus room, media room, home office, wet bar, 4:12 roof pitch.
Explore floor plans, available formats, and modification options for this design.

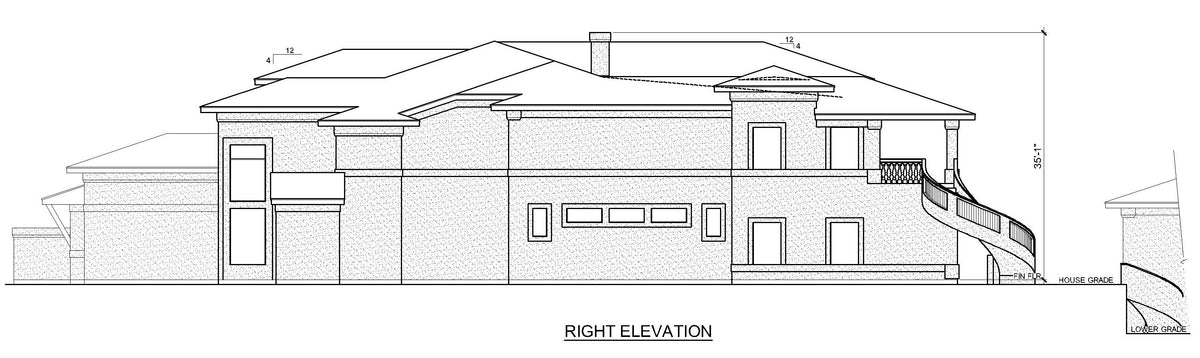

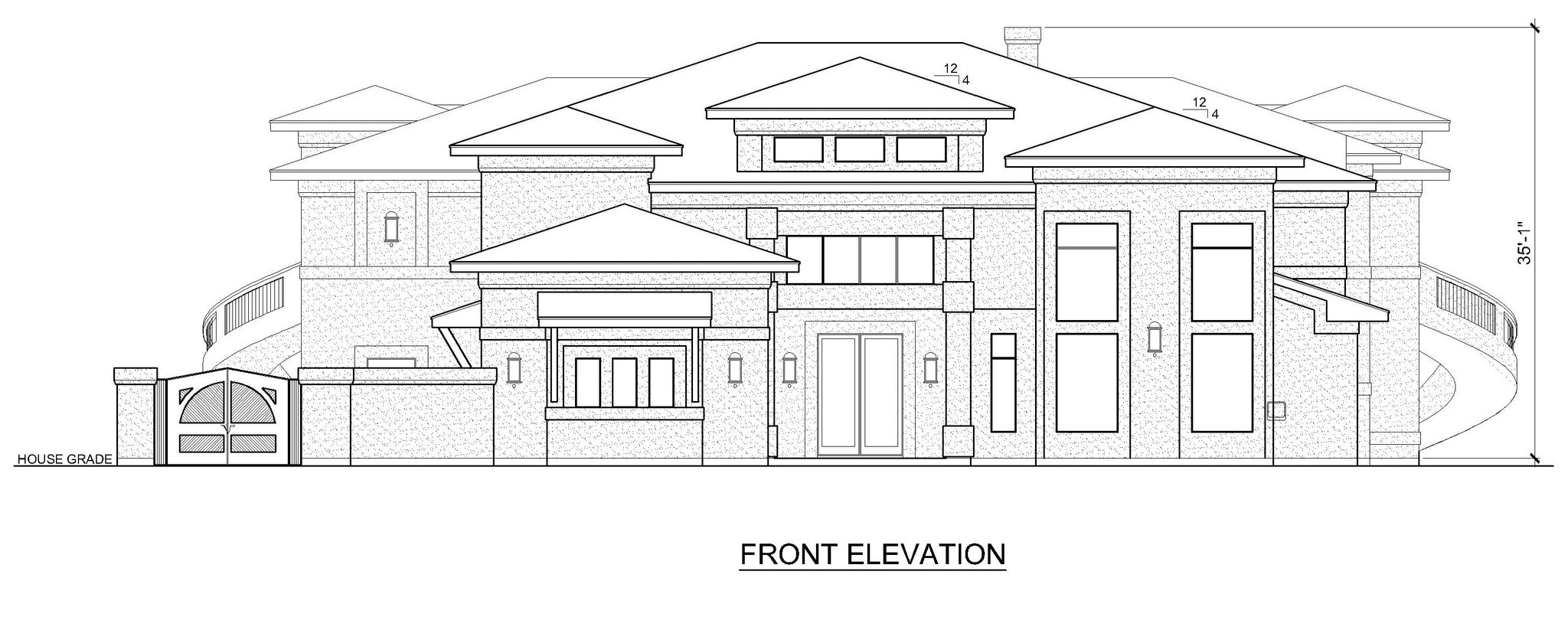

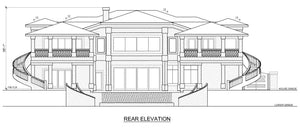

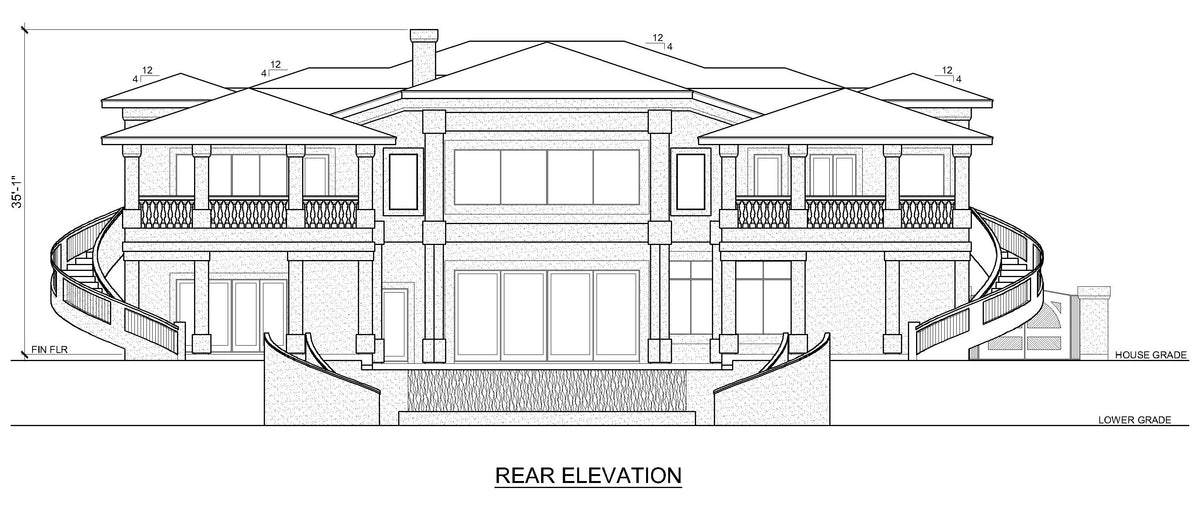

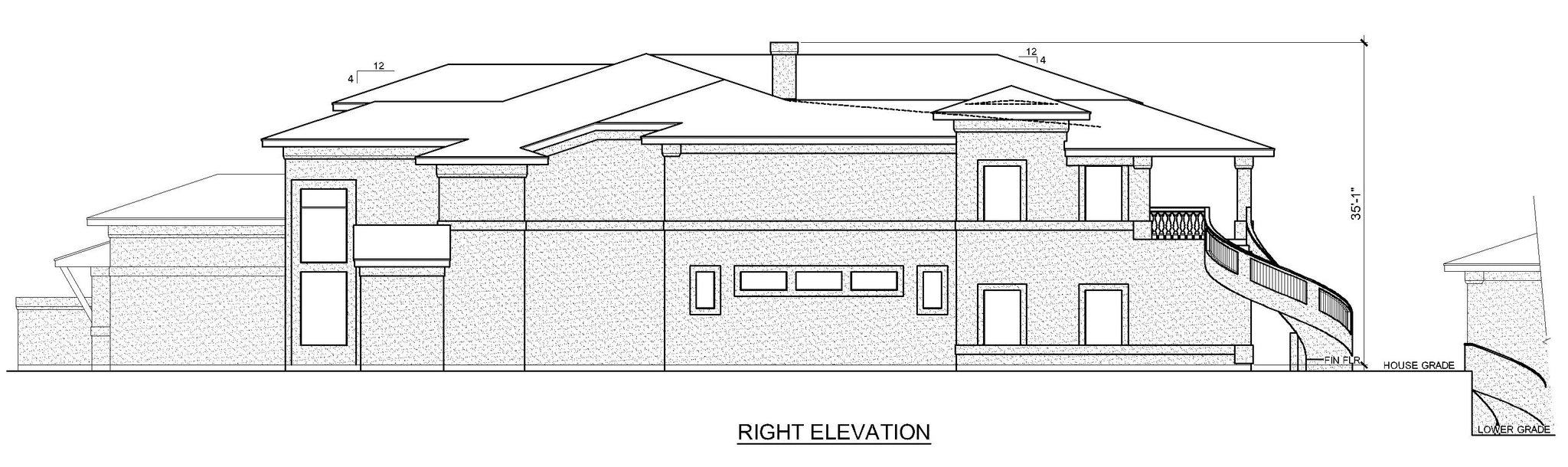

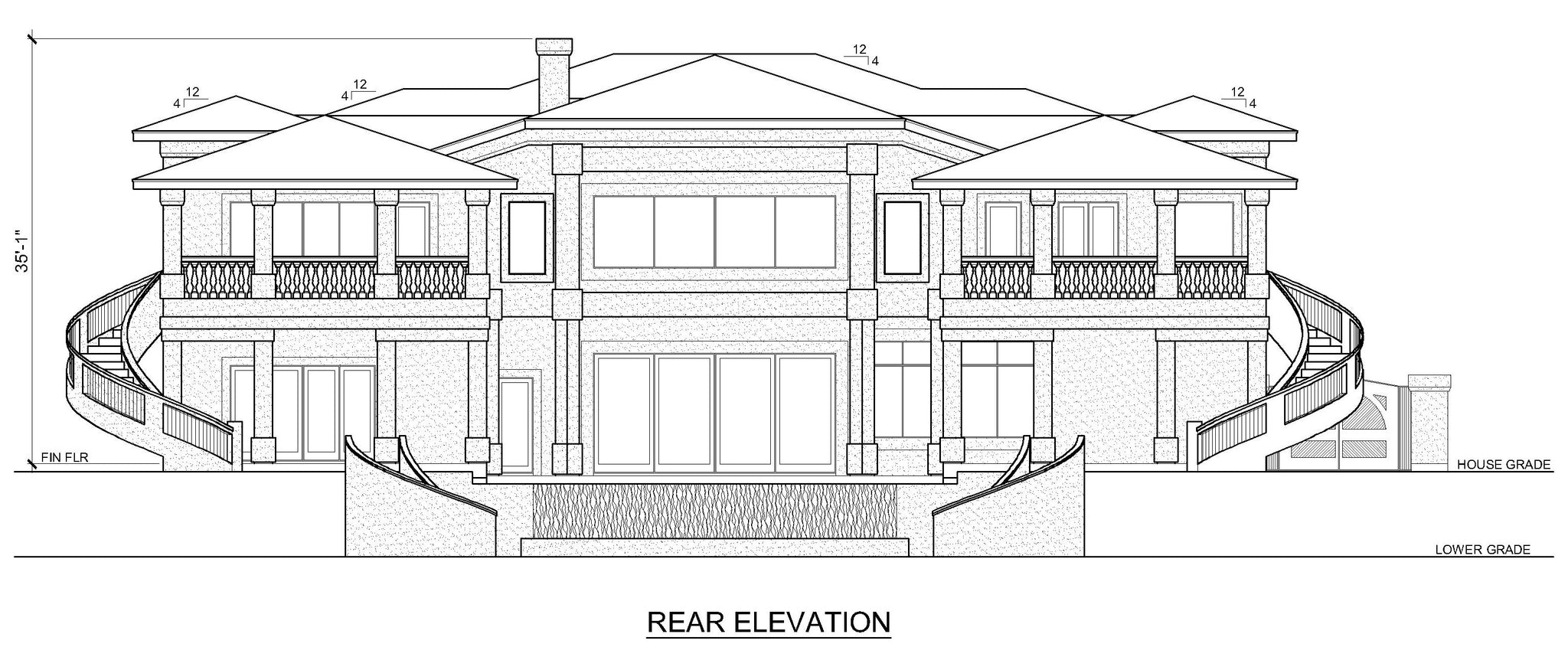

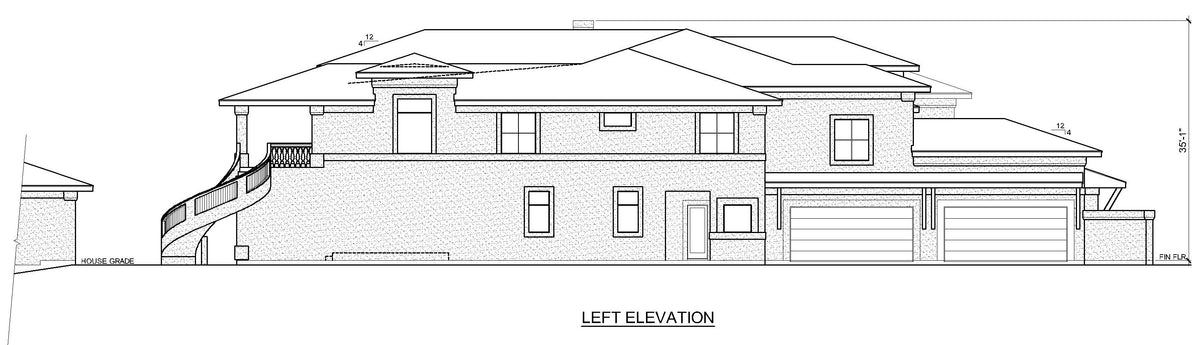

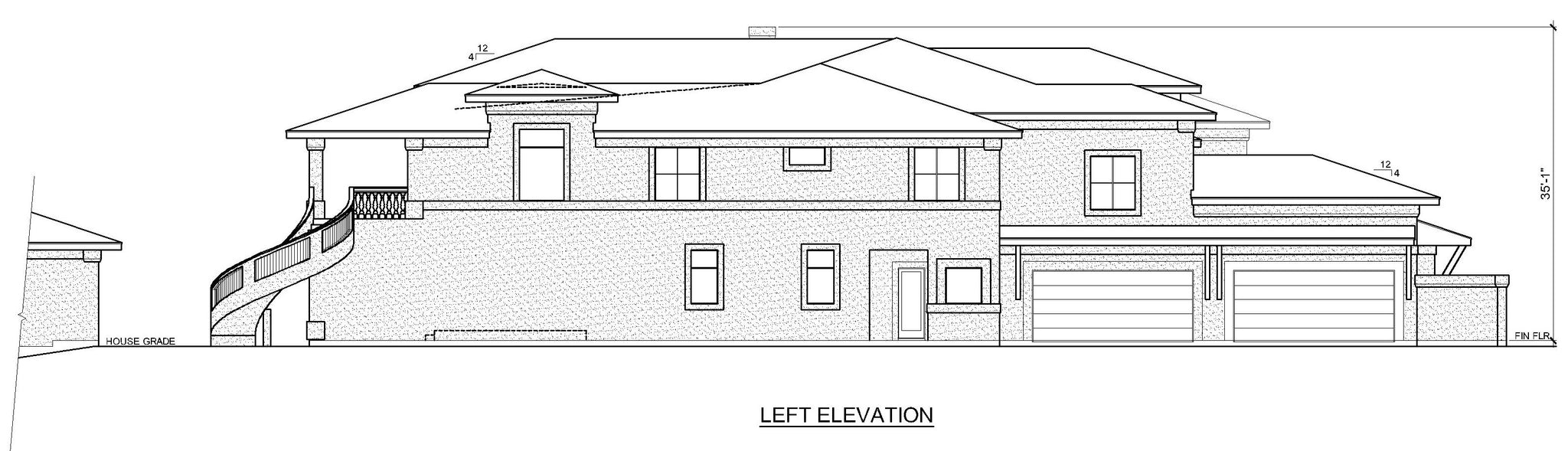

The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
