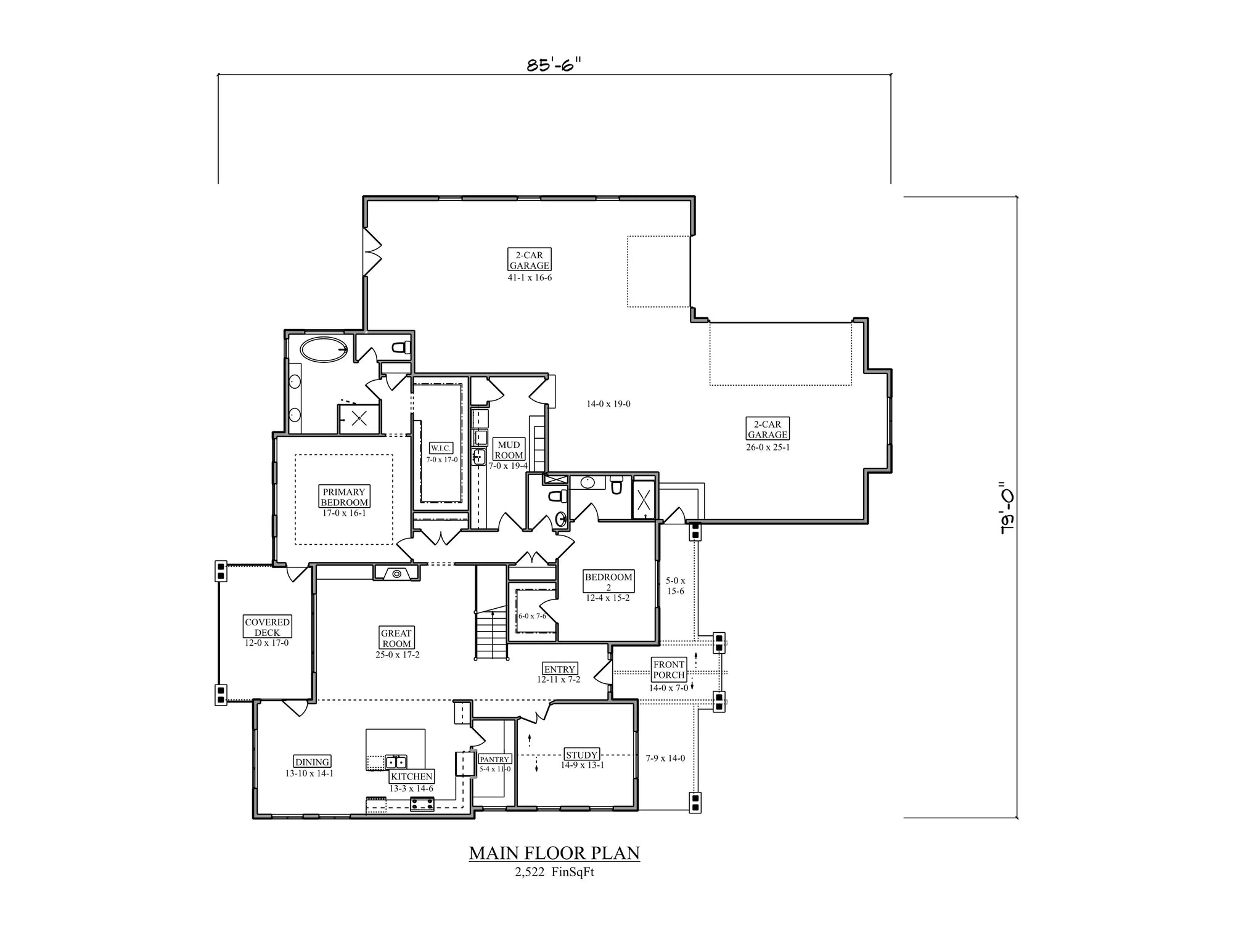

i7394-a the oakley house first floor plan 2 beds 2.5 baths

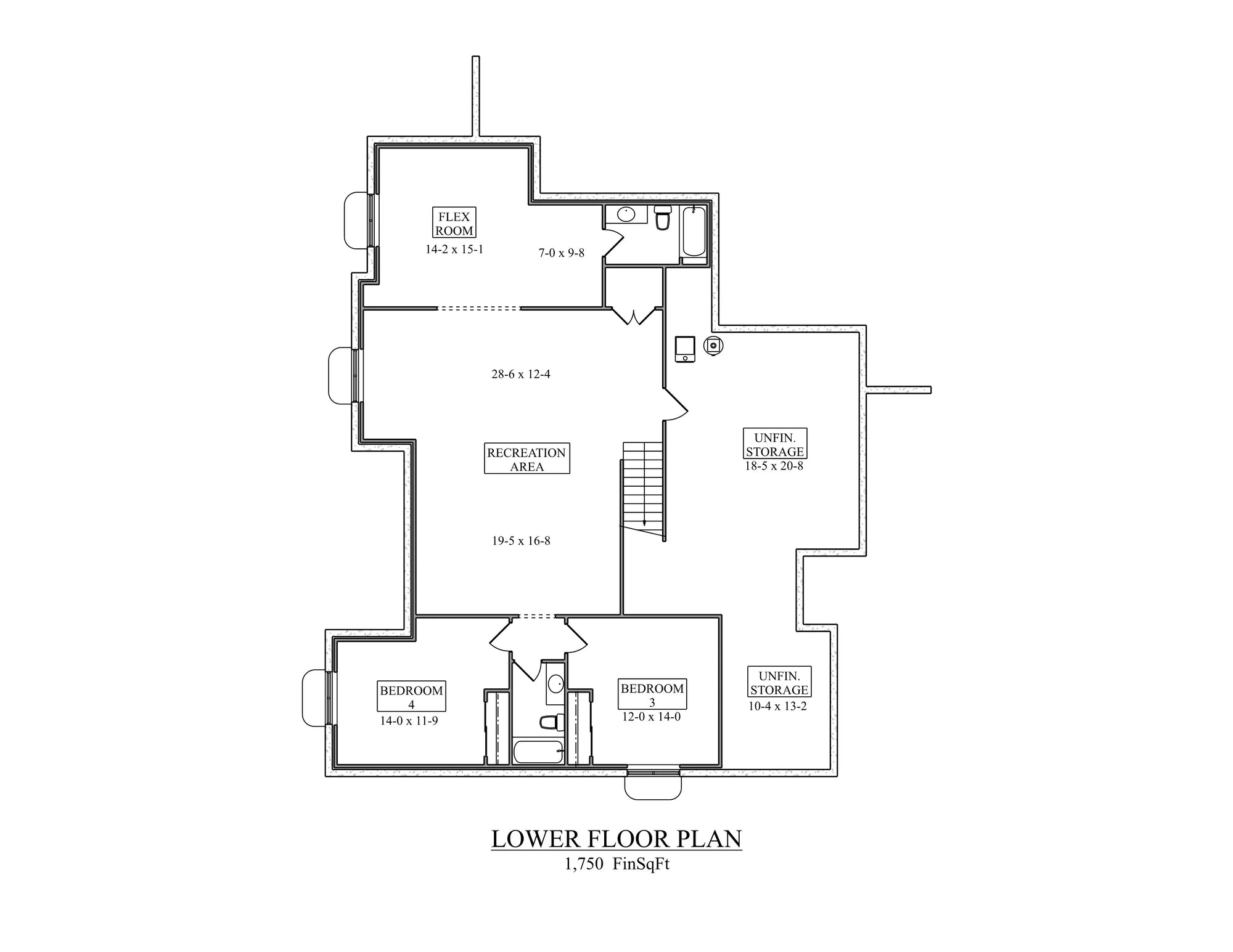

i7394-a the oakley house basement floor plan 2 beds 2.5 baths

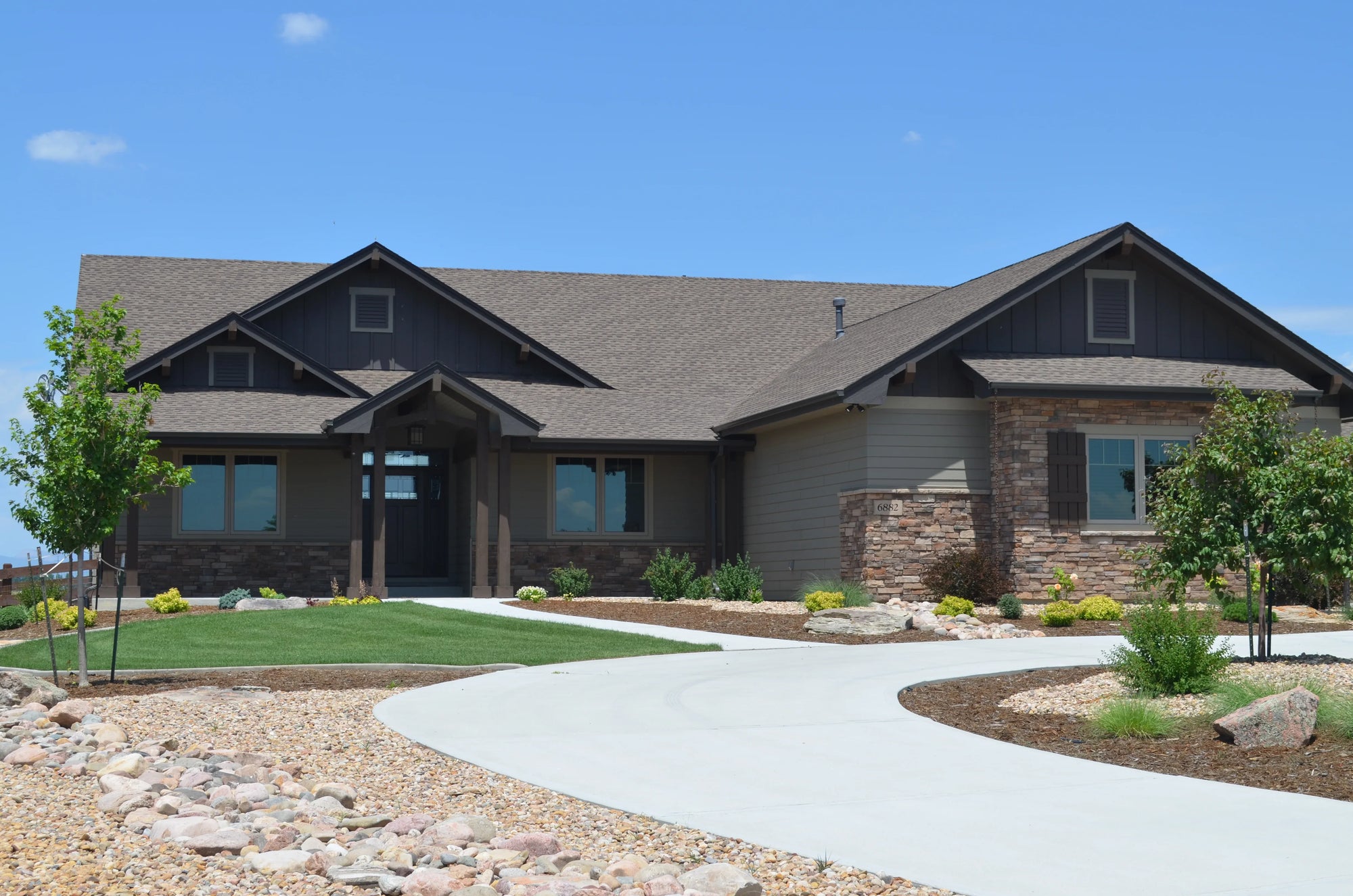

Luxury Ranch-Style House Plan with Basement, Flex Room - 2,522 Sq Ft

Spanning 2,522 square feet of heated living space, The Oakley is a ranch-style residence engineered for a 79-foot width lot. This design centers on a 9-foot ceiling height throughout the first floor, which amplifies the volume of the open-concept core. The front elevation is defined by a covered front porch, while the rear architecture incorporates a deck to extend the living area into the property exterior.

The main level floor plan prioritizes a split-bedroom layout, placing the primary suite on one side of the home to ensure privacy from the second bedroom. The primary suite includes a sitting area and a walk-in closet, complemented by a double-vanity bathroom. The central living zone features a great room with a fireplace, a kitchen equipped with a large island and eating bar, and a walk-in pantry. A dedicated flex room and a separate home office provide utility for remote work or specialized hobby spaces, while a mud room keeps traffic organized.

Beneath the main floor, the 1,750 square foot basement provides a significant footprint for storage or future expansion. With 9-foot ceilings, this level offers a clear, adaptable area that can be configured for a gym, workshop, or recreation space. The structural design utilizes an 8:12 roof pitch, contributing to a classic exterior profile while maintaining a total depth of 85 feet 6 inches.

Practicality is integrated through an oversized 1,780 square foot, 4-car garage that utilizes both side and front-load access, offering sufficient capacity for vehicles and equipment. The combination of the mud room entry and the efficient circulation between the kitchen, breakfast area, and keeping room establishes a layout focused on utility. This home provides a comprehensive solution for those requiring both single-level living and basement-level potential.

Key Features: 2 bedrooms, 2.5 bathrooms, split-bedroom layout, first-floor master suite, 4-car side-and-front-load garage, 9-foot ceilings, walk-in pantry, home office, flex room, 1,750 sq ft basement, covered front porch.

Review plan layouts, available formats, and customization options for The Oakley to begin your project.

What's Included in the House Plan:
  • Cover Page: Project details, drawing index, and abbreviations.
  • 4 Elevations: Exterior views of the building, showing all sides.
  • Floor Plans: Layout of rooms, doors, windows, and dimensions.
  • Foundation Plan (without structural specifications): Layout of the foundation, showing walls and footings.
  • Roof Plan (without structural specifications): Layout of the roof, including slopes and features.
  • Typical Wall Sections: Cross-section drawings showing wall construction details.
  • Electrical Plan: Locations of outlets, switches, light fixtures, and panels.
What's Not Included:
  • Architectural or Engineering Stamp: Handled locally if required.
  • Site Plan: Created locally when needed.
  • Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations: Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  2522 sq ft
    All Unheated Under-Roof Areas  2278 sq ft
    Total Structure With Basement  6550 sq ft
    Total Structure without Basement  4800 sq ft
    1st Floor:  2522 sq ft
    Basement:  1750 sq ft
    Total Porch:  498 sq ft
  • Garage:  1780 sq ft
    Garage Bays:   4
    Garage Load:   Side & Front
  • Bedrooms:   2
    Bathrooms:   2
    Half Bathrooms:   1
  • Foundation:   Basement
    Wall Framing:
  • Width of House:  79'
    Depth of House:  85'6''
  • First Floor Ceiling Height:  9'
    Basement Ceiling Height:  9'

Key Features

  • Breakfast Area
  • Covered Front Porch
  • Deck
  • Eating Bar
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Flex Room
  • Formal Dining Room
  • Great Room
  • Home Office/Study
  • Keeping/Family Room
  • Kitchen Island
  • Laundry 1st Floor
  • Laundry Access from Garage
  • Master Bath-Double Vanity Sink
  • Master Sitting Area
  • Mud Room
  • Open Floor Plan
  • Powder Room
  • Private Master Bath
  • Unfinished Space
  • Walk-in Closet
  • Walk-in Pantry
