Floor Plan
am8278-a ranch house floor plan, 3 bedrooms, 2 bathrooms | arvada house plan

Ranch House Plan with 3 Bedrooms, Open Floor Plan, Brick Exterior & First-Floor Master Suite

This thoughtfully designed ranch residence reflects the enduring popularity of single-level living while incorporating the spacious gathering areas and modern conveniences desired by today's homeowners. Combining classic ranch house principles with contemporary open-concept planning, the home offers a practical and inviting environment characterized by comfort, accessibility, and timeless architectural appeal.

Containing 2,025 square feet of heated living space, the residence is arranged entirely on one level, creating an efficient floor plan that eliminates the need for stairs while supporting convenient everyday living. The home encompasses approximately 2,554 square feet under roof, including an attached garage and covered entry areas. Measuring 55 feet wide by 55 feet deep, the design achieves a balanced footprint that is suitable for a wide variety of suburban, rural, and estate-sized homesites.

The exterior architecture reflects traditional ranch house influences through its horizontal emphasis, simple massing, and welcoming front façade. Constructed on a crawl space foundation with durable 2x6 exterior wall framing and a truss-framed roof system, the residence combines dependable construction methods with lasting architectural character. A classic brick exterior further reinforces the home's sense of permanence and curb appeal while contributing to long-term durability and low maintenance requirements. The 6:12 roof pitch creates visual interest while maintaining the clean, practical rooflines commonly associated with ranch-style design.

A covered front porch introduces visitors to the home and provides a welcoming transition from the outdoors to the interior. Though modest in size, this feature enhances the home's curb appeal and contributes to its inviting residential character.

Inside, the floor plan centers around an open arrangement of primary living spaces that encourage interaction while maintaining a comfortable sense of organization. The great room serves as the principal gathering area and forms the heart of the home. Anchored by a fireplace, this spacious room provides a warm and comfortable setting for family activities, entertaining, and daily relaxation. Its open relationship to adjoining spaces enhances the home's overall feeling of spaciousness.

Complementing the great room is a dedicated keeping or family room that offers additional flexibility for modern households. This secondary living area may serve as a casual retreat, media space, reading room, or gathering area, allowing family members to enjoy multiple activity zones within the home. The inclusion of both a great room and family room reflects the evolving needs of contemporary lifestyles while maintaining the relaxed atmosphere associated with ranch living.

The kitchen is thoughtfully designed as both a functional workspace and a social hub. A central island provides generous preparation space and serves as a focal point for informal interaction. The adjacent eating bar offers convenient seating for casual meals, while the nearby formal dining room accommodates larger gatherings and special occasions. A spacious walk-in pantry enhances storage capacity and supports efficient organization, ensuring the kitchen remains practical for everyday use.

The formal dining room introduces a sense of refinement and tradition to the floor plan. Conveniently positioned near the kitchen and living areas, it serves as an ideal setting for family dinners, holiday celebrations, and entertaining guests.

The private owner's suite is strategically located on the main floor, reinforcing the home's emphasis on accessible single-level living. Designed as a comfortable retreat, the suite includes a spacious bedroom, a walk-in closet, and a private bath featuring dual vanities and well-appointed fixtures. Its thoughtful placement provides privacy while maintaining convenient access to the home's central living spaces.

Two additional bedrooms and a shared bathroom provide comfortable accommodations for family members, guests, or flexible uses such as home offices or hobby rooms. The home's layout supports a variety of household arrangements while maintaining efficient circulation throughout.

Additional amenities include a dedicated utility room and a first-floor laundry area, both designed to enhance daily functionality and household efficiency. The attached front-entry two-car garage provides approximately 492 square feet of secure parking and storage space while integrating seamlessly into the home's overall design.

Outdoor living opportunities are expanded through a rear patio that creates an inviting setting for dining, relaxation, and entertaining. This outdoor space strengthens the connection between the home and its surrounding landscape while extending usable living areas beyond the interior walls.

Blending the timeless appeal of ranch architecture with modern open-concept living, this residence offers an ideal balance of comfort, practicality, and enduring style. Its brick exterior, spacious gathering areas, private owner's suite, and thoughtfully designed layout create a home well suited for families, retirees, and anyone seeking the convenience of elegant single-level living.

What's Included in the House Plan:
  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Cover Sheet / Artist's Rendering:
    An artist's illustration of the home, typically viewed from the front, along with general construction notes.
  • Elevations:

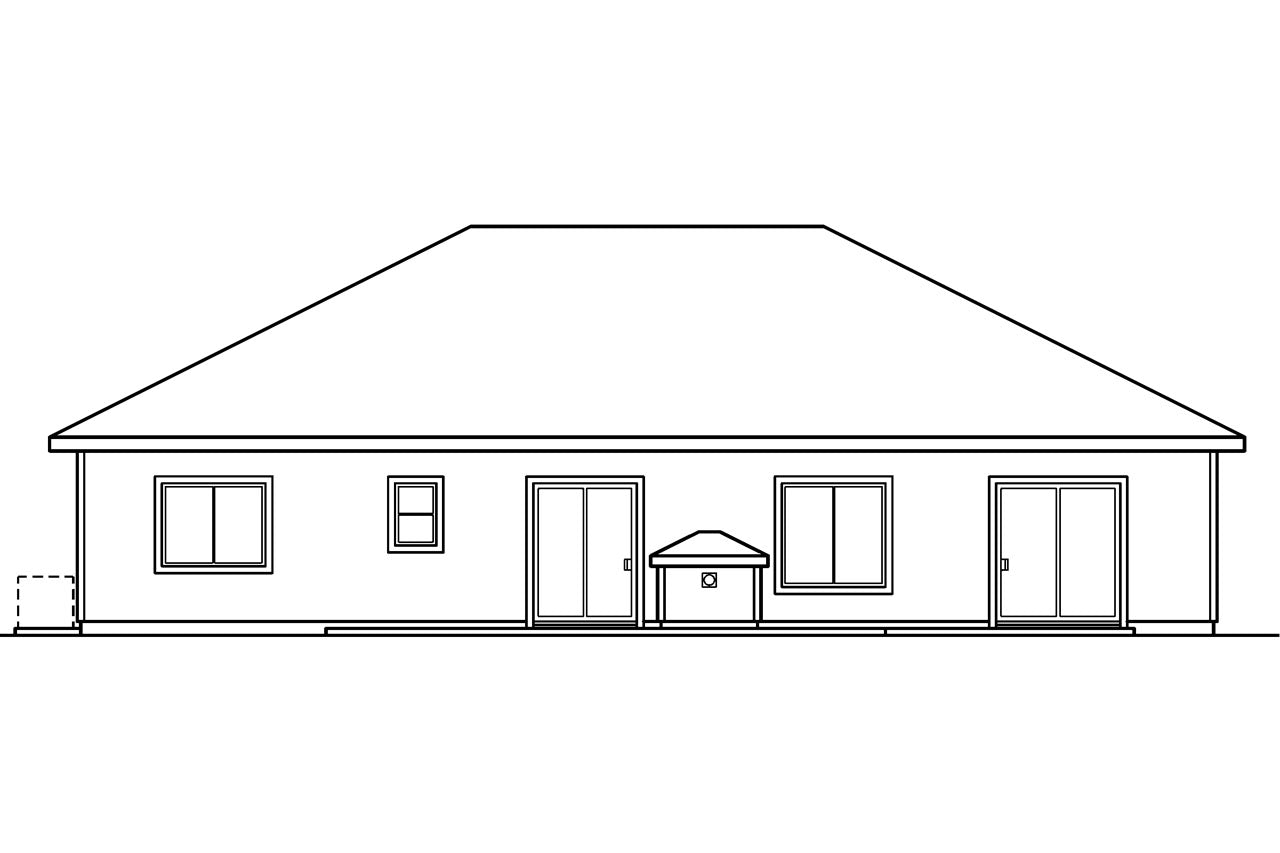

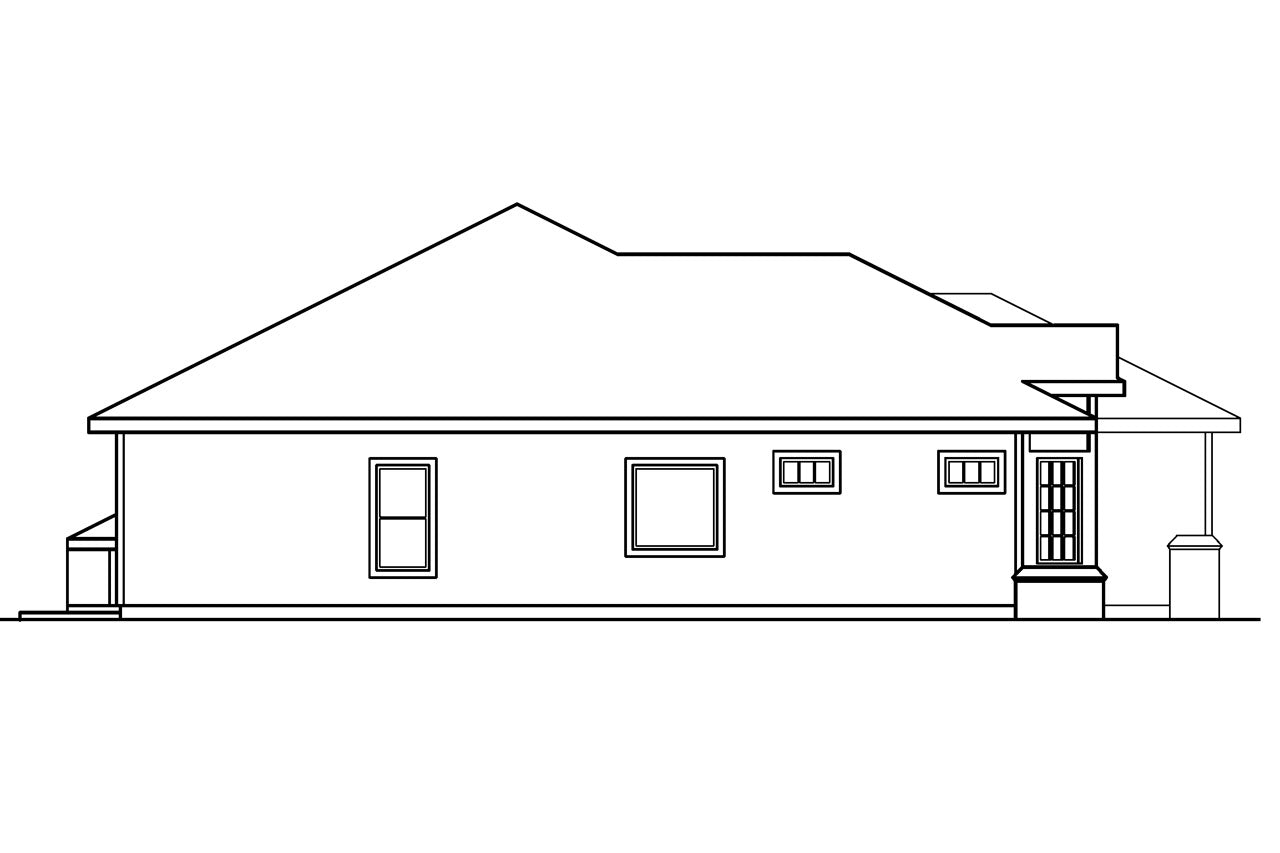

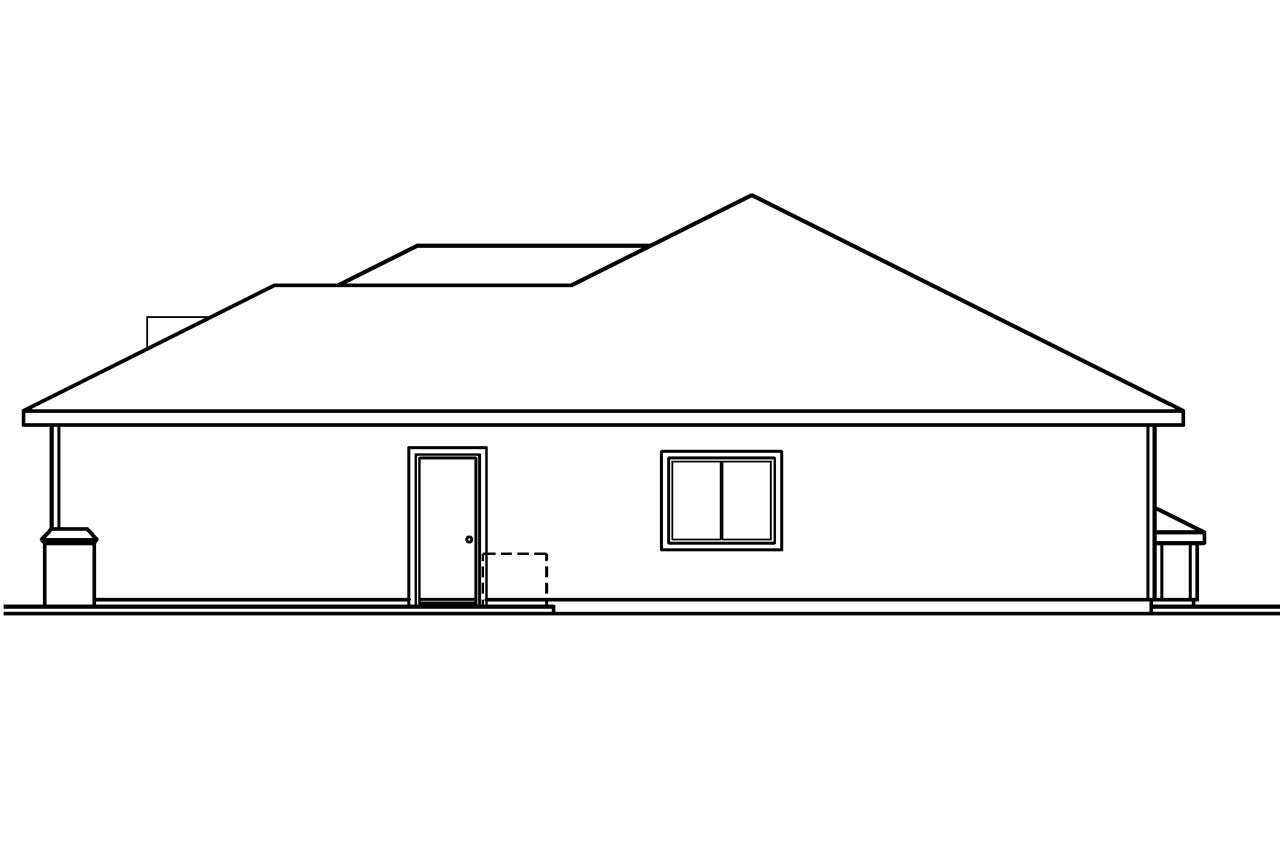

    Shows the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, and other architectural details.
  • Main Floor Plan:

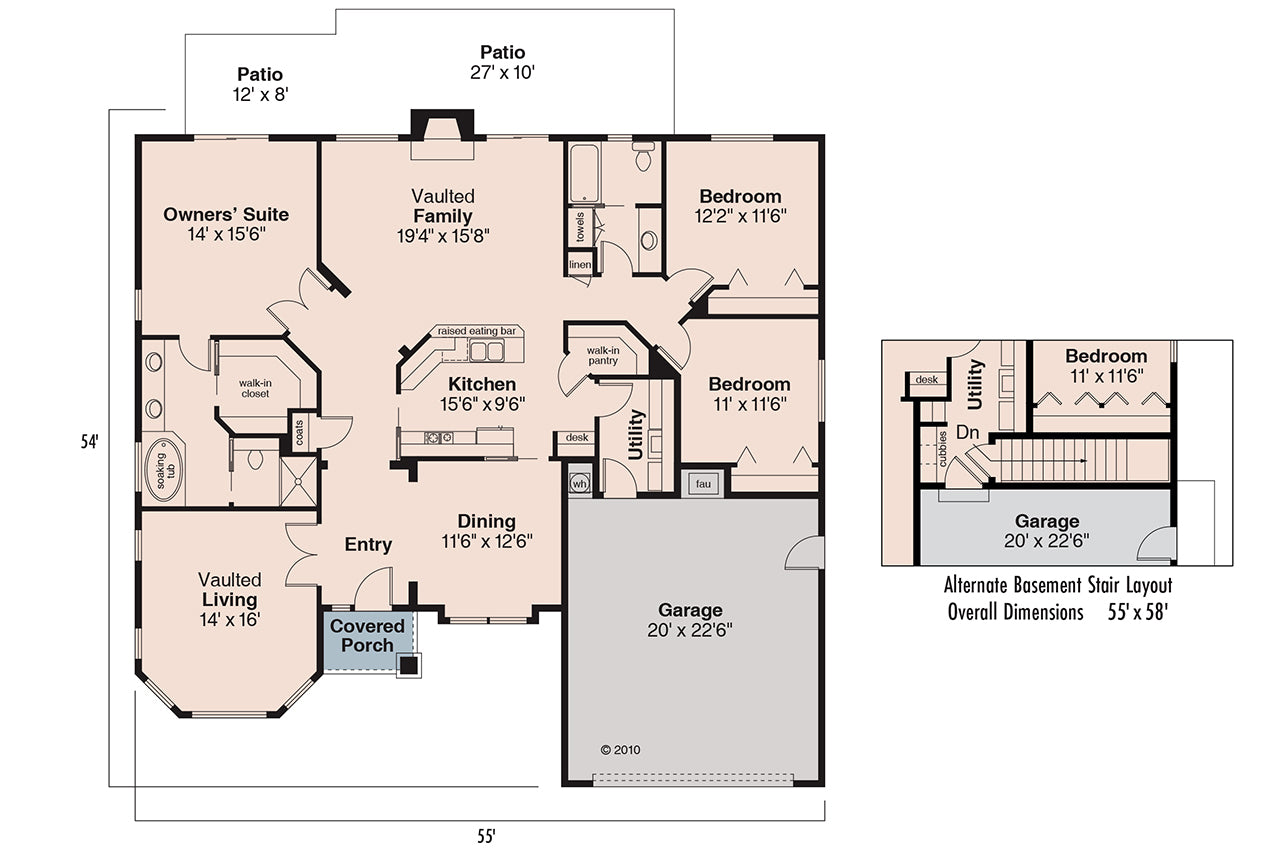

    Displays the layout and dimensions of walls, doors, and windows. Includes the location of appliances, plumbing fixtures, beams, and ceiling heights.
  • Second Floor Plan (if applicable):
    Details the second floor layout with the same information as the main floor, including second-floor framing and structural details.
  • Foundation Plan:
    Shows all concrete footings, floor beams, first-floor framing, and other foundation-specific details. If applicable, includes a basement plan with full basement layout and details. Foundation types vary—please contact us to confirm the foundation type for your plan.
  • Floor Framing Plan (if applicable):
    Shows the layout and spacing of floor joists, beams, and supporting walls.
  • Roof Framing Plan:
    Displays roof outlines, truss or stick framing, beams, and roof construction details.
  • Sections & Details:
    Provides a cross-section of the home showing structural support members, insulation, materials, and foundation. Includes specific construction details (e.g., stairways, fireplaces, decks) drawn at 1/2" = 1' scale where needed.
  • Electrical Plan:
    A schematic diagram showing the placement of all lighting fixtures, switches, and electrical outlets.
What's Not Included:
  • Architectural and Engineering Stamps
  • Site Plan
  • Structural or Framing Plans
    (All engineering requirements—including structural, truss, and framing specifications—must be provided by a local engineer or truss manufacturer to comply with local building codes.)
  • Plumbing Layout
    (Only fixture locations are shown. Detailed plumbing layouts are the responsibility of licensed subcontractors.)
  • Mechanical or HVAC Drawings
    (To be provided and installed by qualified subcontractors.)
  • Grading Plan
  • Material List

House Plan Specifications

  • Total Living (heated area):  2025 sq ft
    All Unheated Under-Roof Areas  529 sq ft
    Total Structure  2554 sq ft
    1st Floor:  2025 sq ft
    Front Porch:  37 sq ft
  • Garage:  492 sq ft
    Garage Bays:   2
    Garage Load:   Front
  • Bedrooms:   3
    Bathrooms:   2
  • Foundation:   Crawl Space
    Wall Framing:   2x6
    Roof Framing:   Truss
    Roof Pitch:  6:12
    Exterior Siding:   Brick
  • Width of House:  55'
    Depth of House:  55'
    Building Height:  19'10''
  • First Floor Ceiling Height:  9'

Key Features

  • Covered Front Porch
  • Eating Bar
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Formal Dining Room
  • Great Room
  • Keeping/Family Room
  • Kitchen Island
  • Master Bath-Double Vanity Sink
  • Open Floor Plan
  • Patio
  • Private Master Bath
  • Utility Room
  • Walk-in Closet
  • Walk-in Pantry
