The Prestonshire reinterprets the luxury mansion through a magnificent 9,792 sq ft design that prioritizes grand entertainment and sophisticated multi-level living. This four-bedroom estate features a five-car courtyard-load garage and a solid slab foundation, establishing a grand architectural presence with its striking 16:12 roof pitch. The architecture is defined by soaring 11-foot ceilings on the main level and an open-concept social core that ensures the interior gathering zones feel bright and connection with the surroundings.

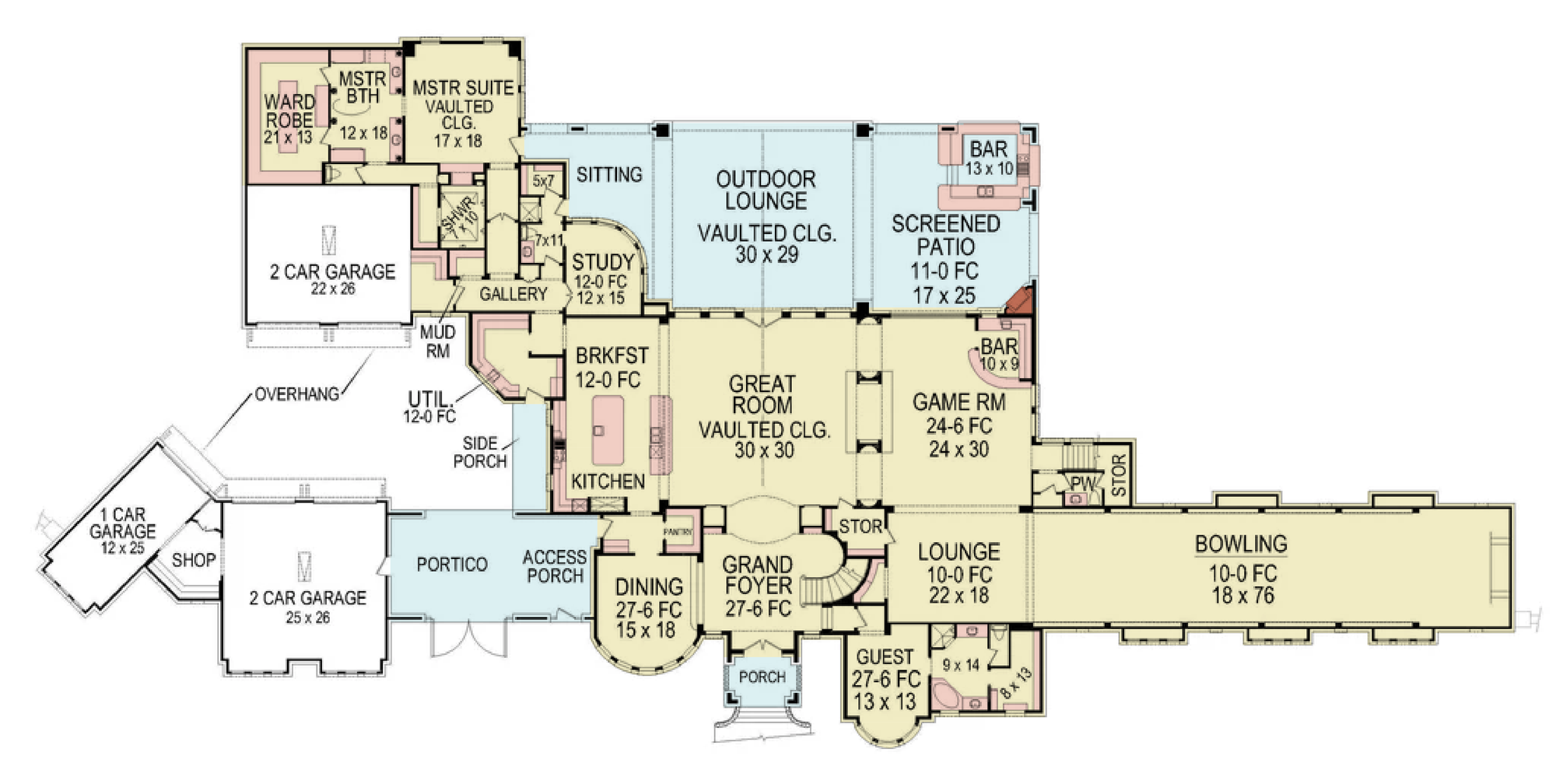

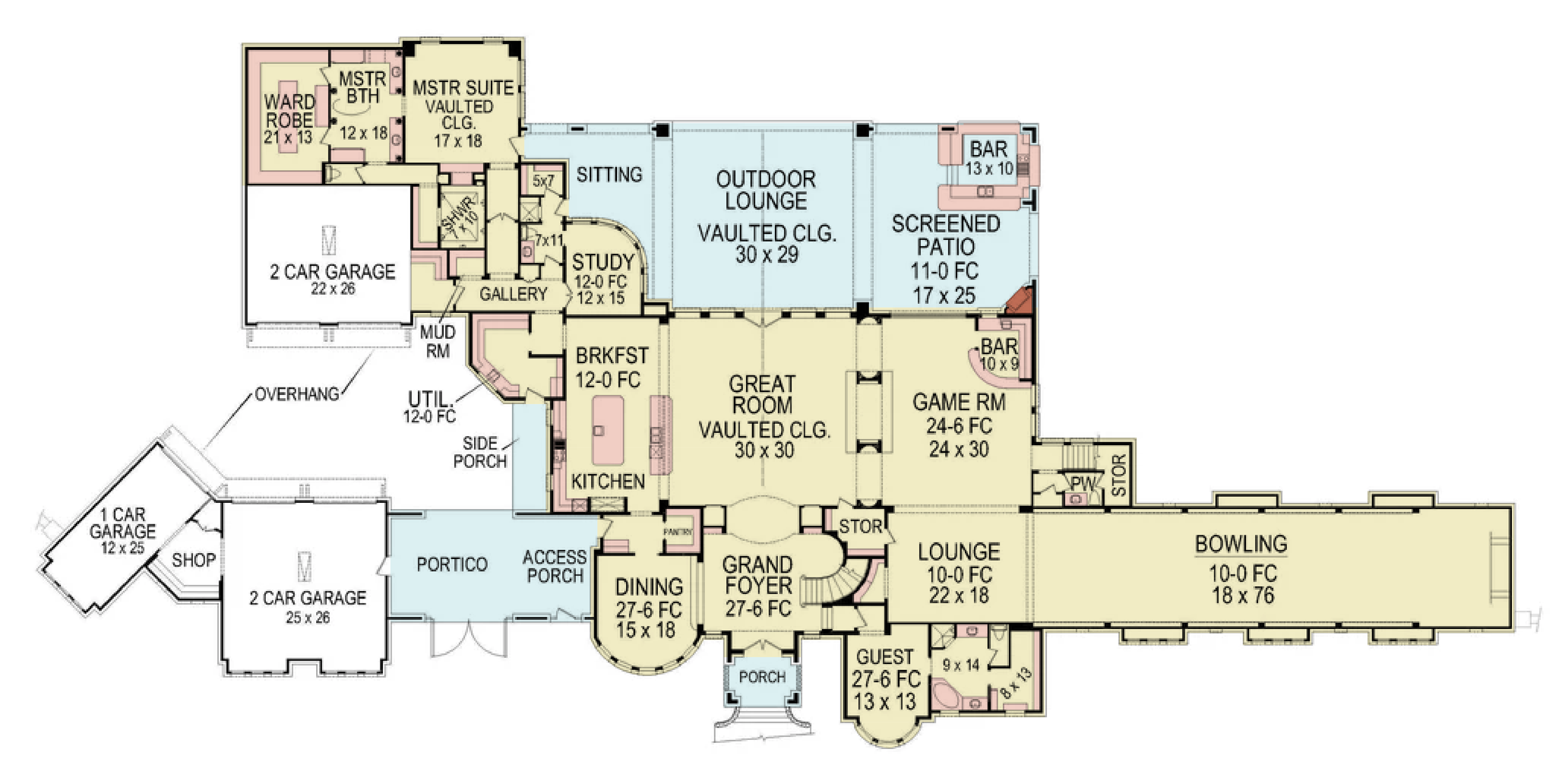

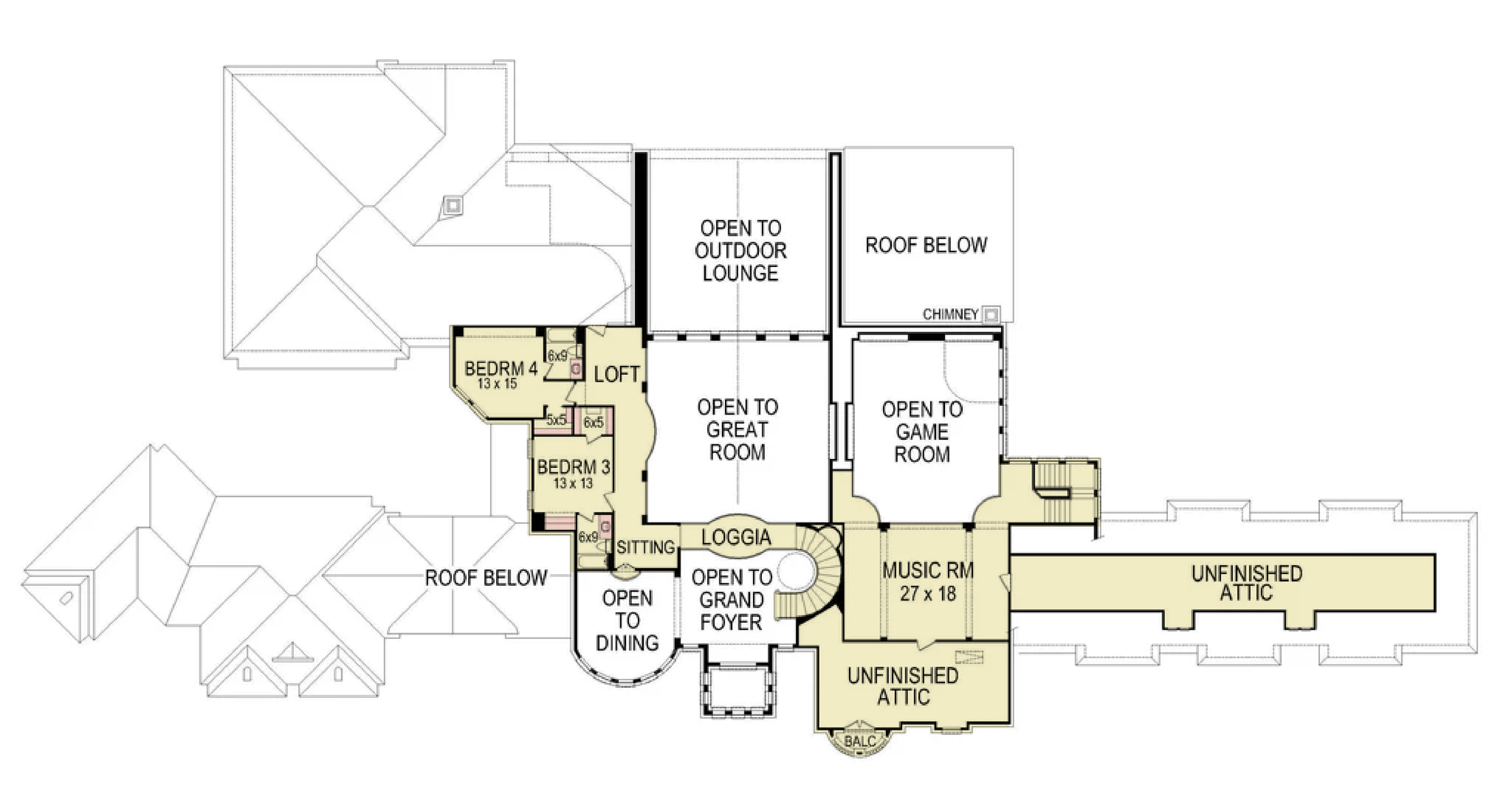

Inside, the foyer leads past formal dining and library areas into an expansive social core consisting of a bright grand room and a gourmet kitchen equipped with a massive island and a dedicated butler's pantry. The home features a private master sanctuary with high-end finishes and a lavish master bath, alongside a dedicated guest suite for sophisticated visitors. Specialized rooms like a private theatre, a dedicated media room, a game room, and a versatile upper-level loft provide unmatched spaces for modern recreation and family interaction within the thoughtsfully planned split-bedroom layout.
Outdoor relaxation is prioritized with front and rear covered porches and a specialized screened sunroom featuring a fully equipped outdoor kitchen for year-round enjoyment. With five full baths and an additional half bath, the Prestonshire delivers a living experience of unrivaled luxury and architectural prestige. View floor plans, photos, and pricing to get started today.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.
