Luxury 4,127 Sq Ft Retreat with Walkout Basement and 4-Car Garage
4.8
Plan Number:

AJ6736-A

Rated 4.8
Plan Number:

AJ6736-A

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan

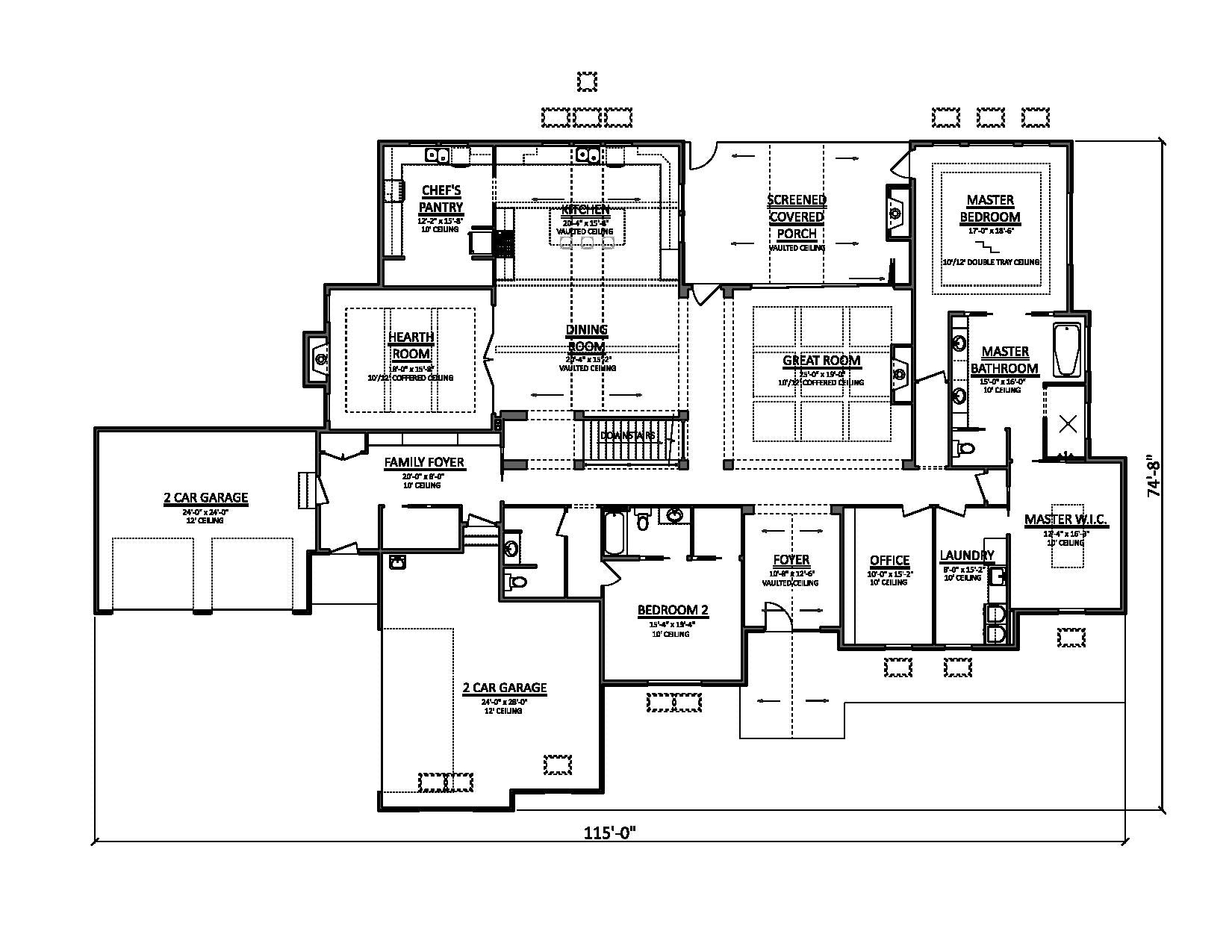

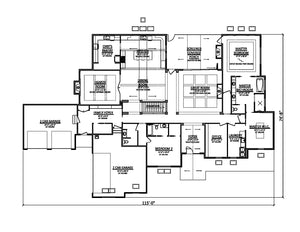

aj6736-a plan 1032 house first floor plan

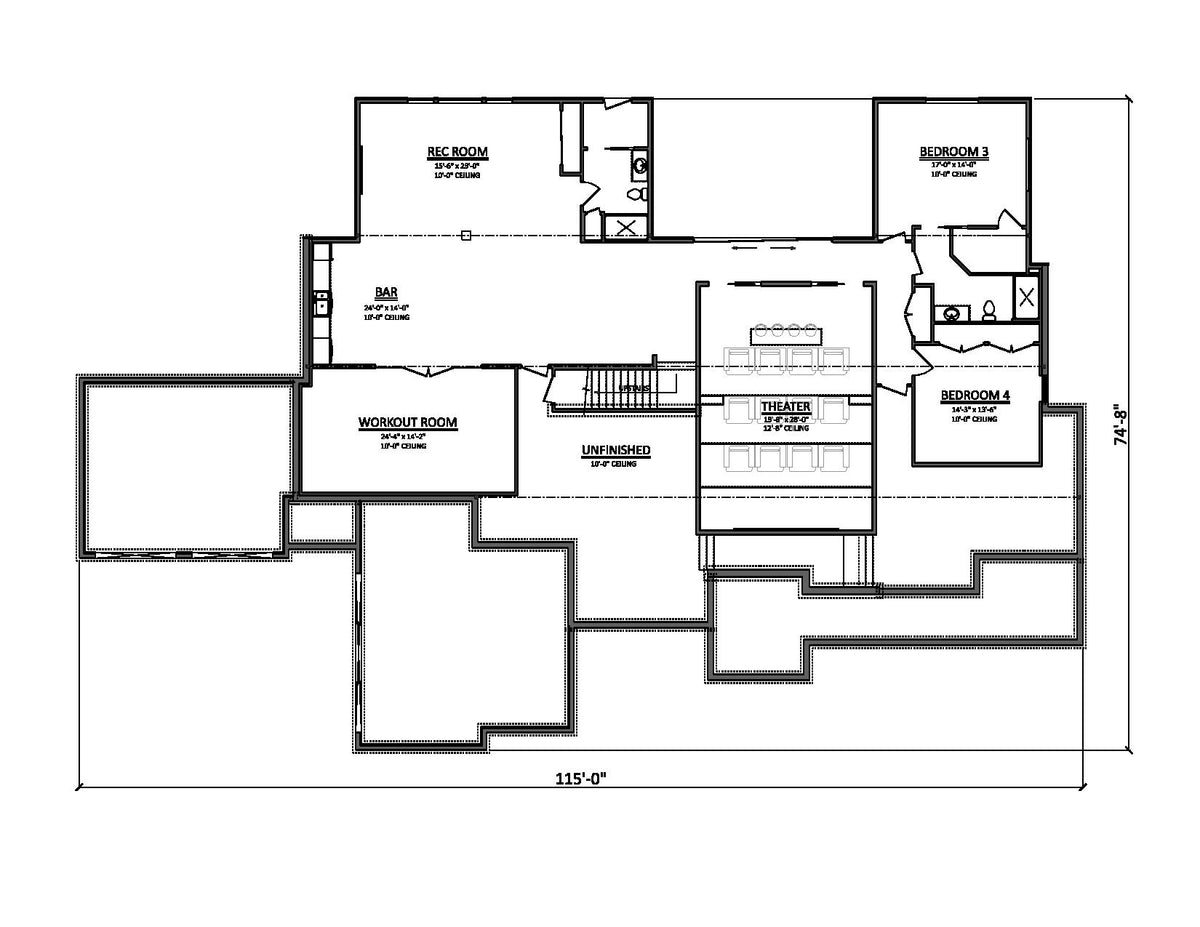

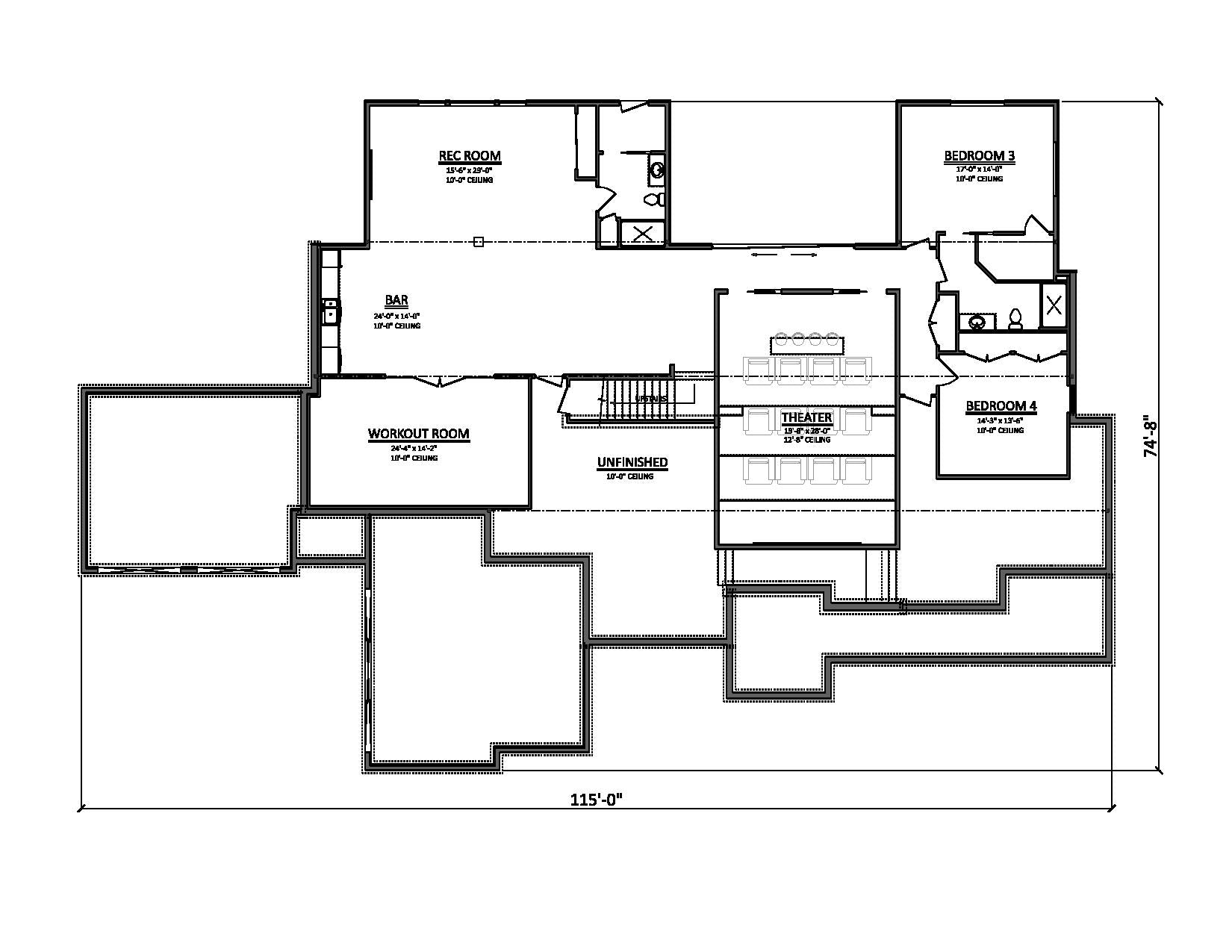

aj6736-a plan 1032 house basement floor plan

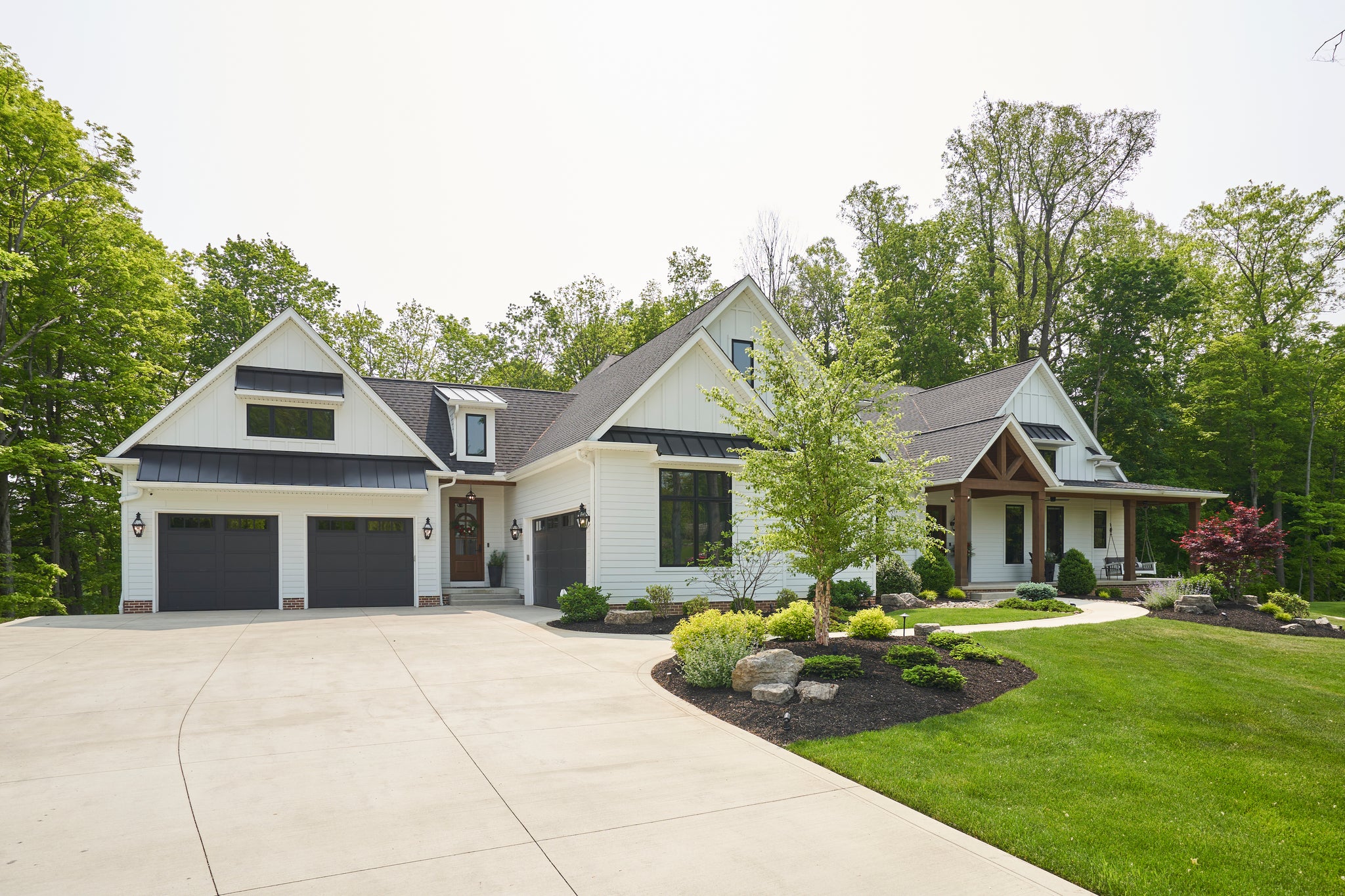

Luxury 4,127 Sq Ft Retreat with Walkout Basement and 4-Car Garage

Luxury 4,127 Sq Ft Retreat with Walkout Basement and 4-Car Garage is a sprawling ranch-style residence designed with a 115-foot width that anchors the structure on large rural or suburban lots. Featuring 4,127 square feet of heated living space on the main level and an expansive 2,969 square foot walkout basement, this home provides a massive footprint for multi-generational living. The exterior is defined by a wrap-around porch totaling 368 square feet, establishing a traditional profile supported by a complex roofline with 12:12 and 7:12 pitches.

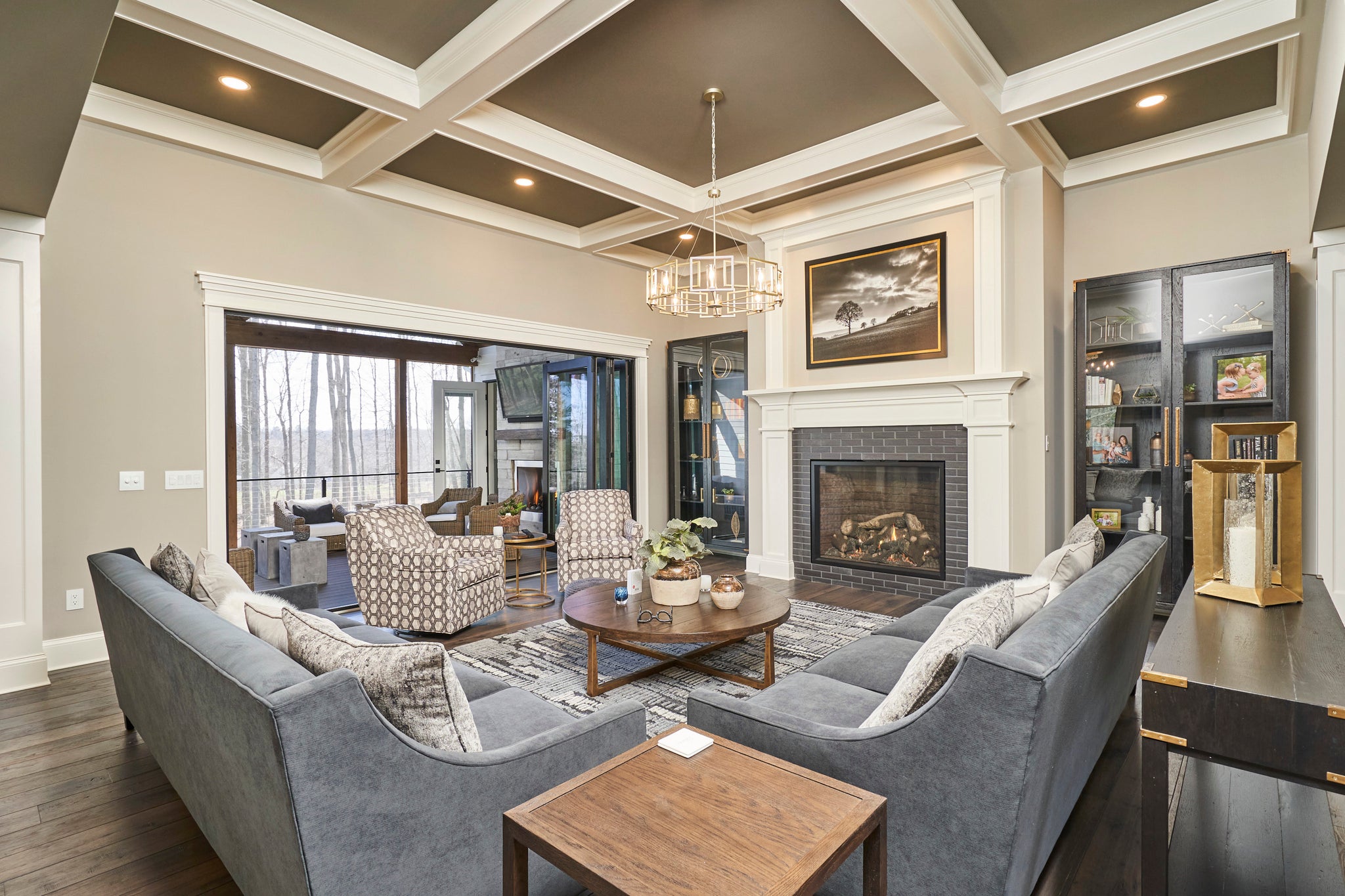

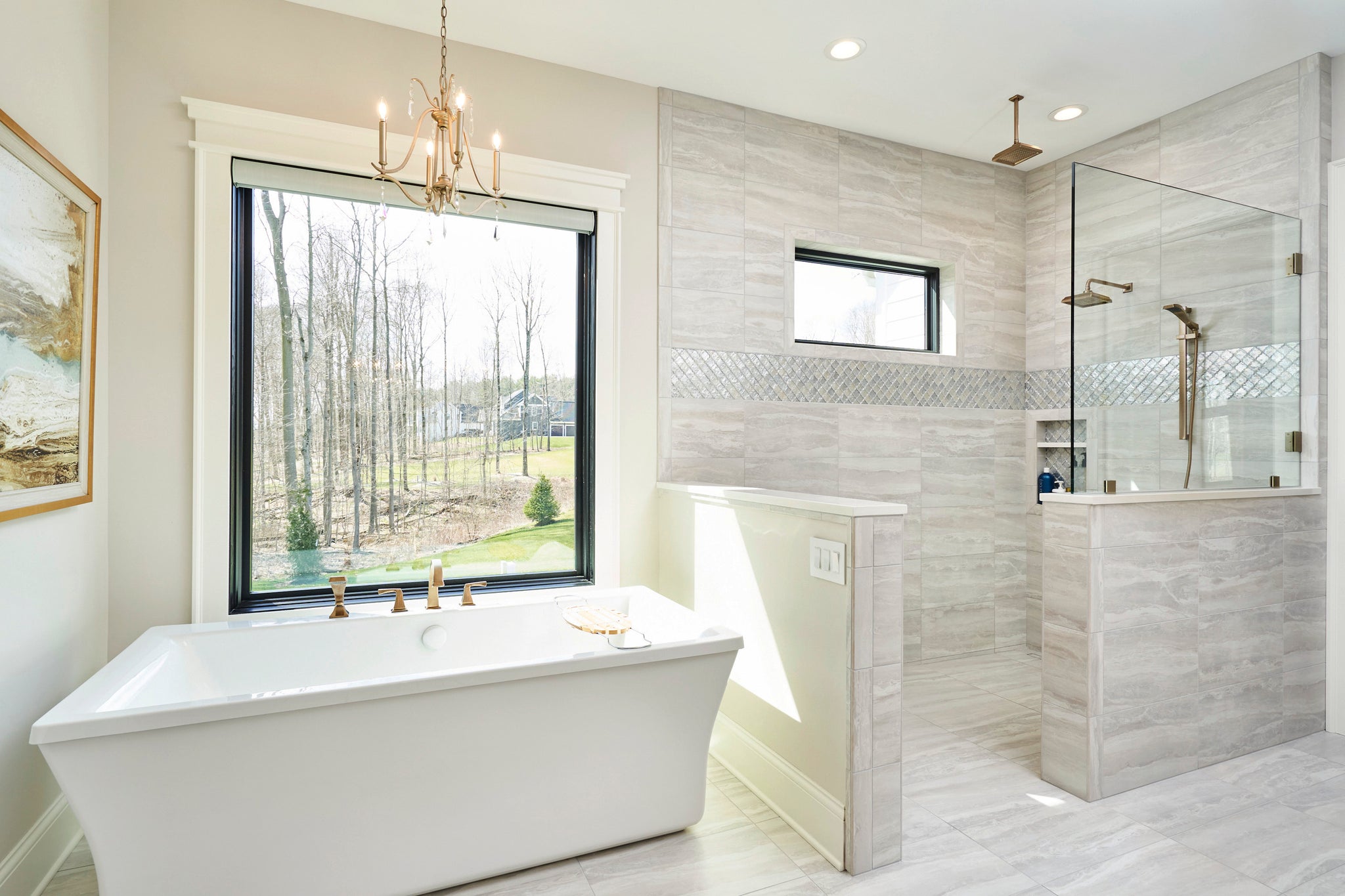

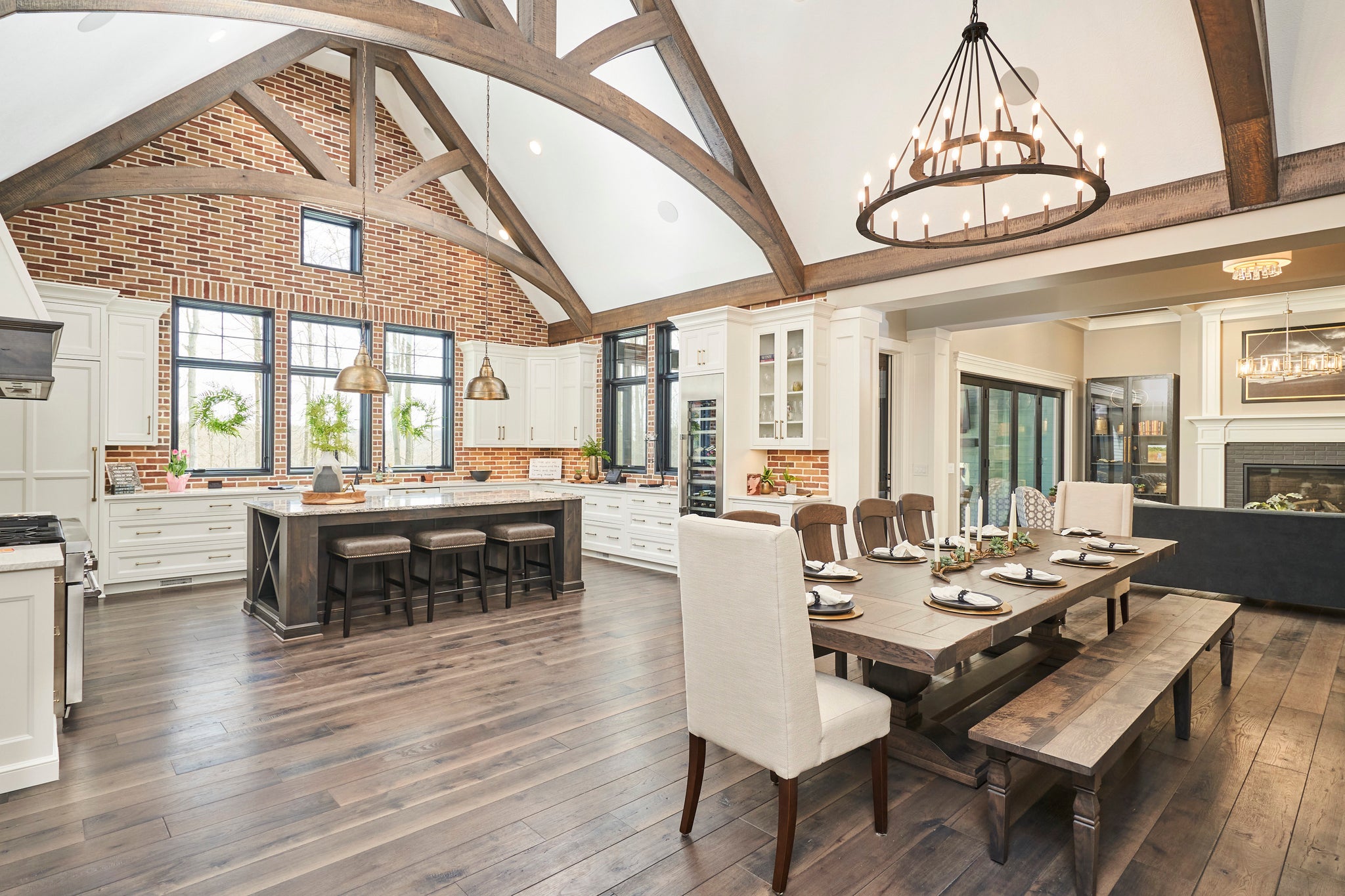

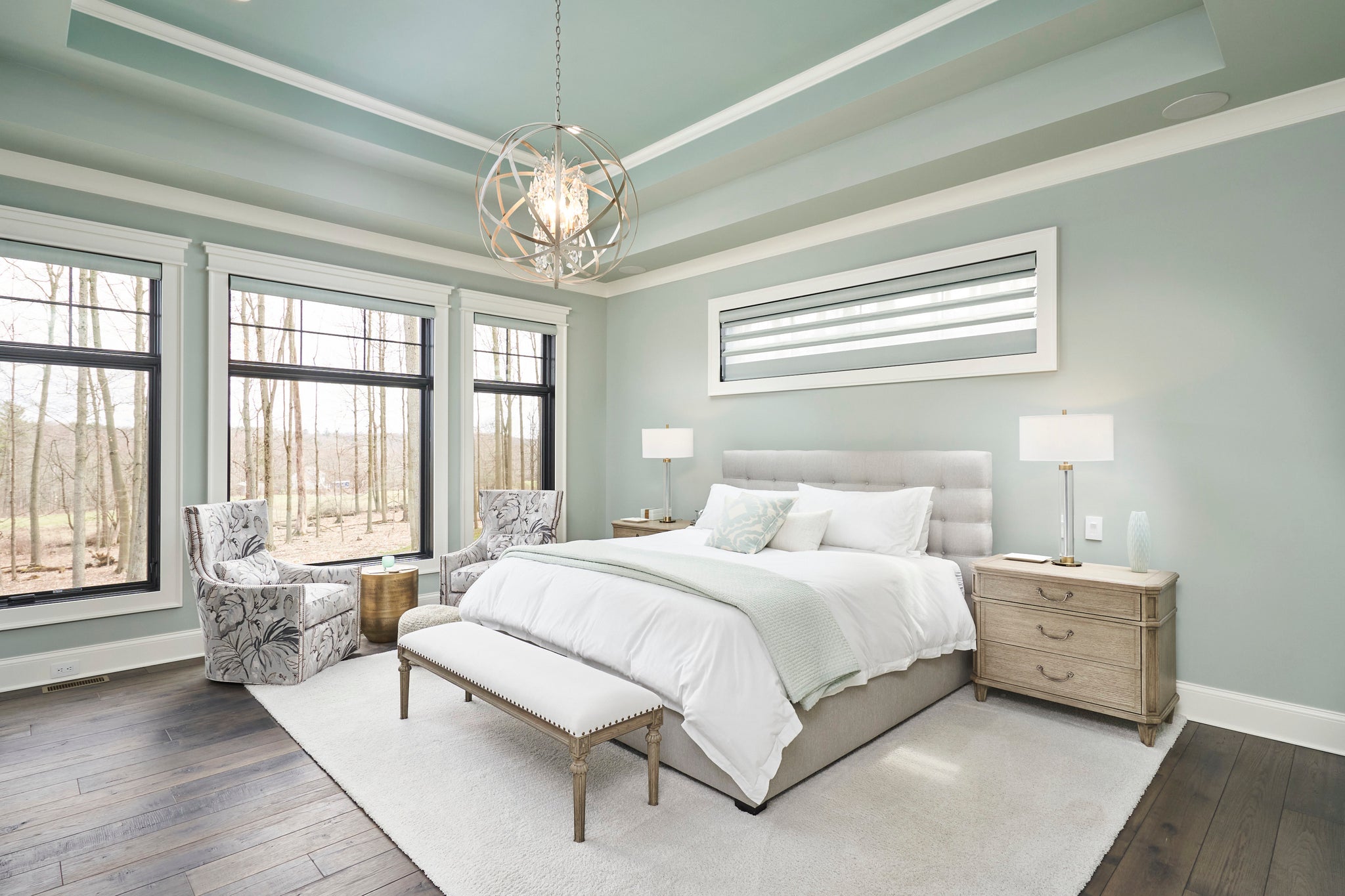

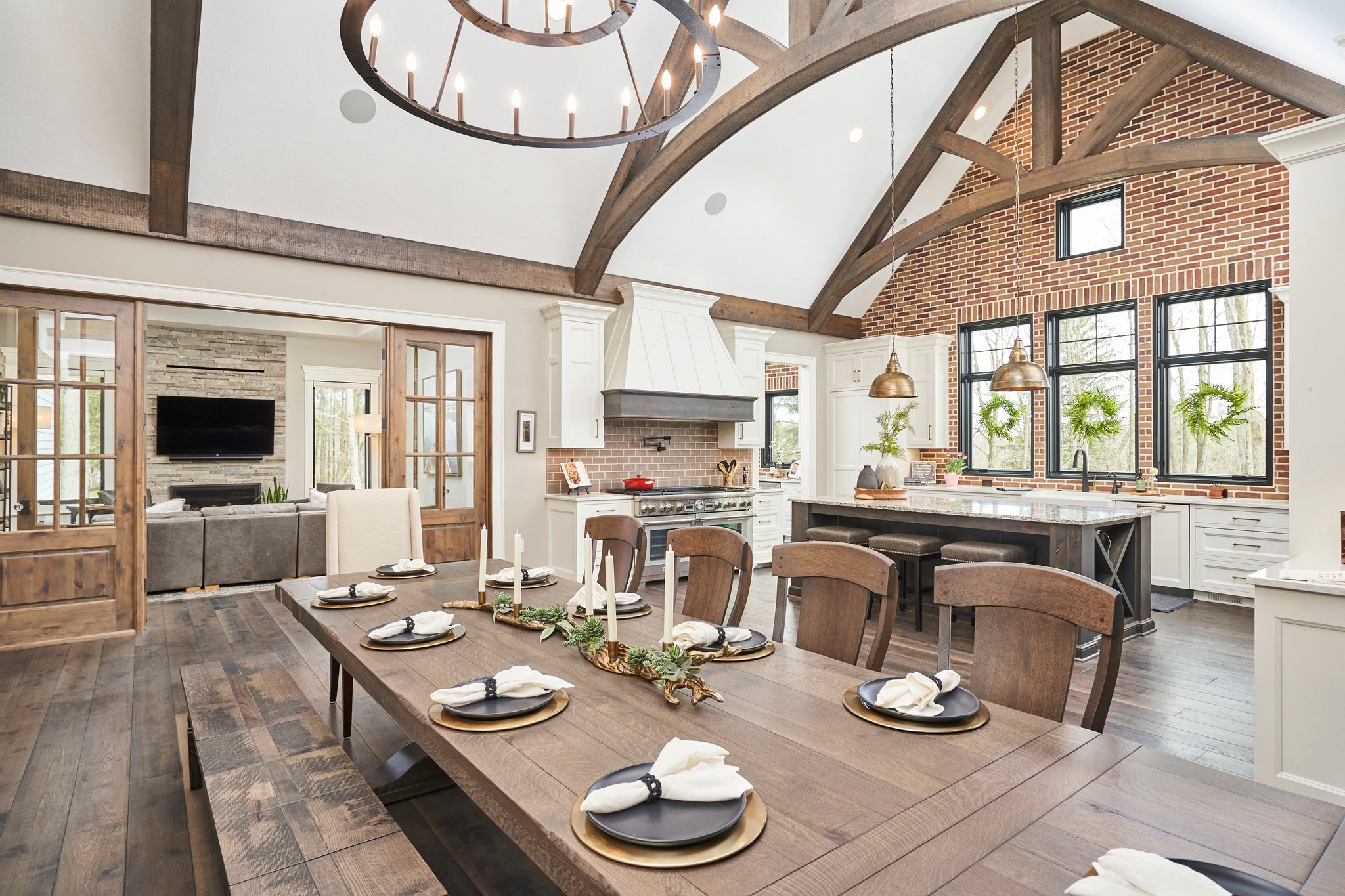

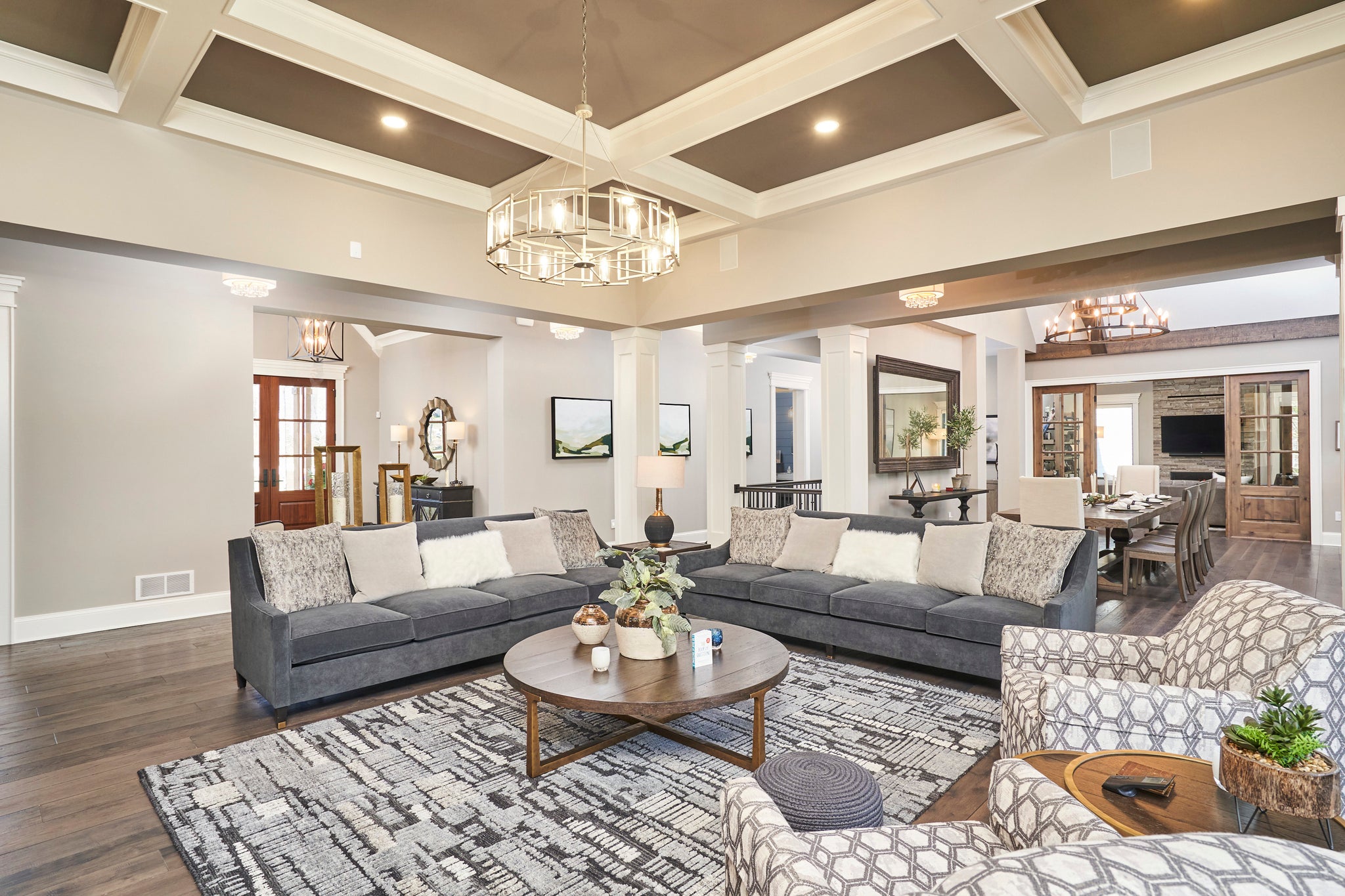

The interior architecture centers on an open-concept core, where 10-foot ceilings elevate the sense of volume throughout the great room, formal dining area, and keeping room. The primary suite is located for privacy and includes direct access to the laundry room, while a split-bedroom configuration ensures clear separation between the primary quarters and secondary bedrooms. A dedicated home office and flexible bonus room are integrated into the floor plan to accommodate various administrative or creative needs.

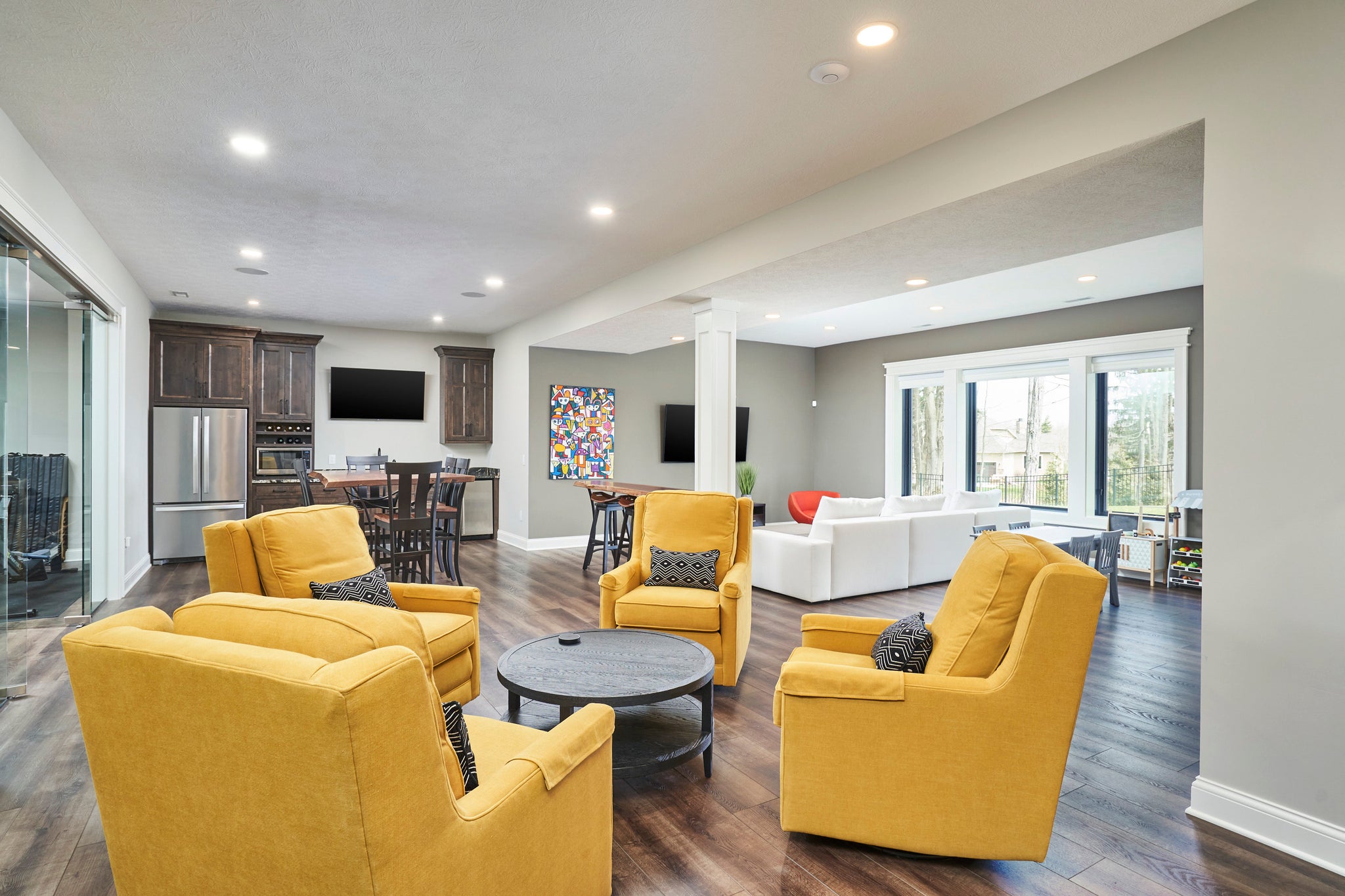

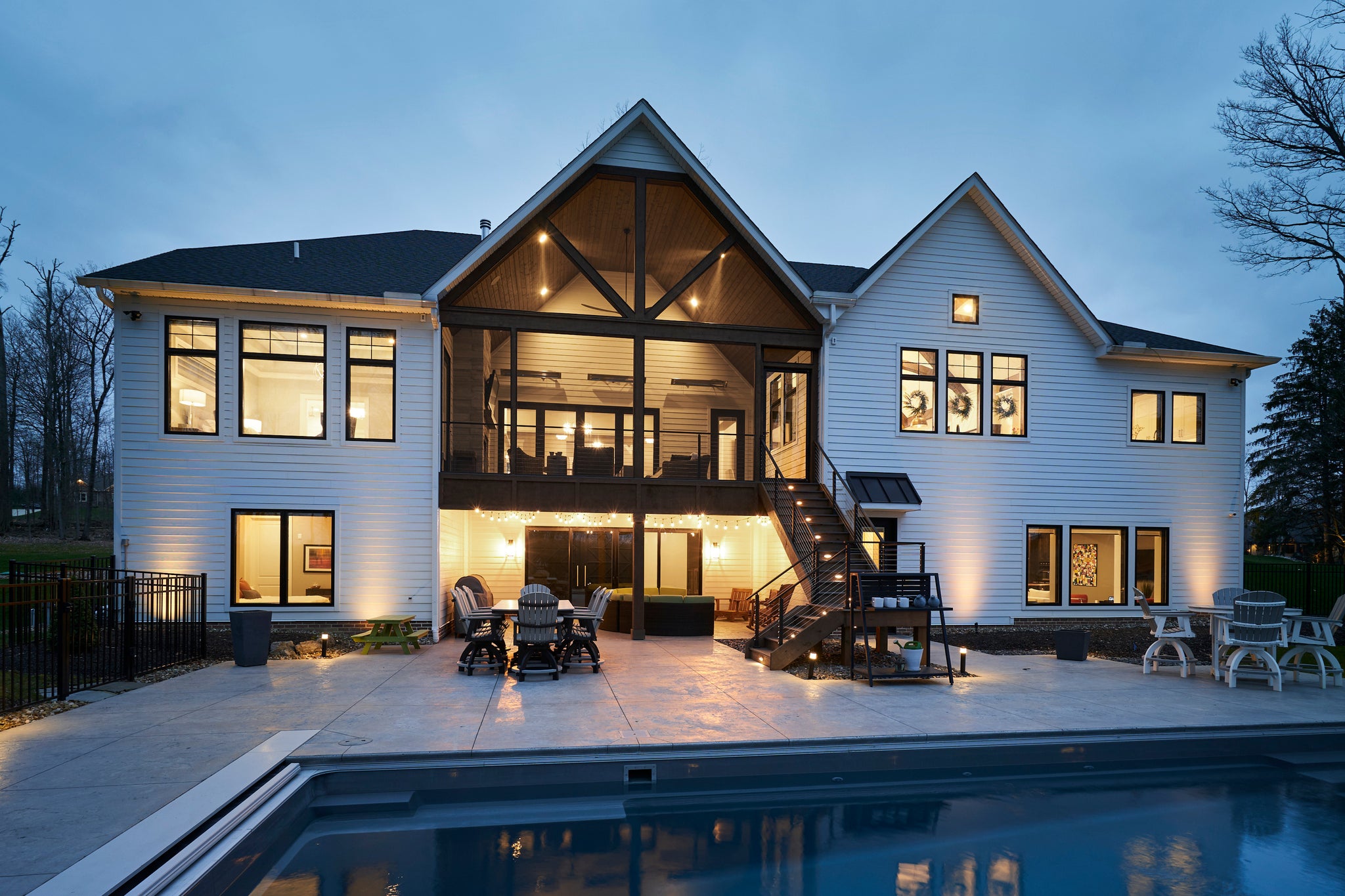

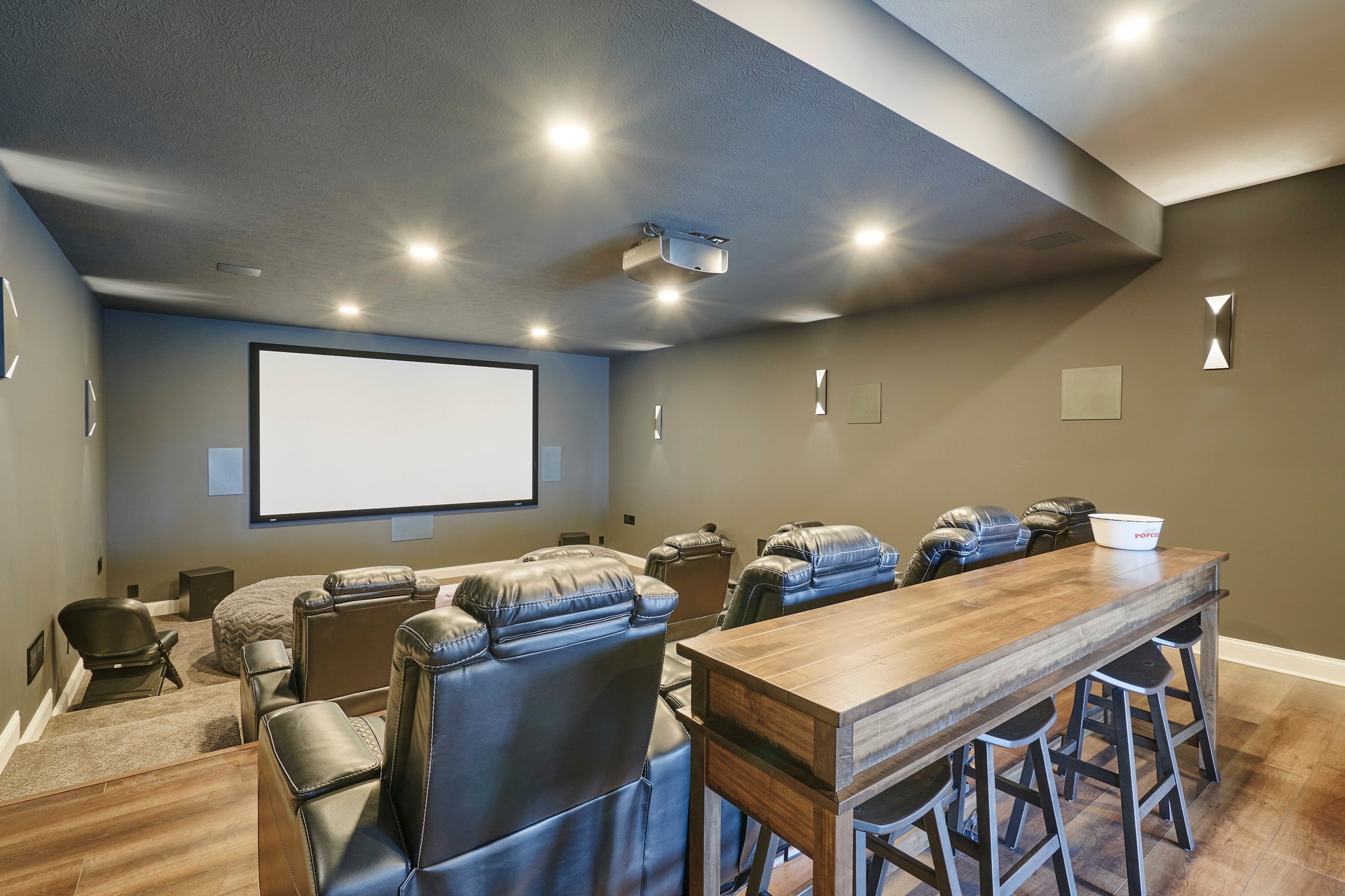

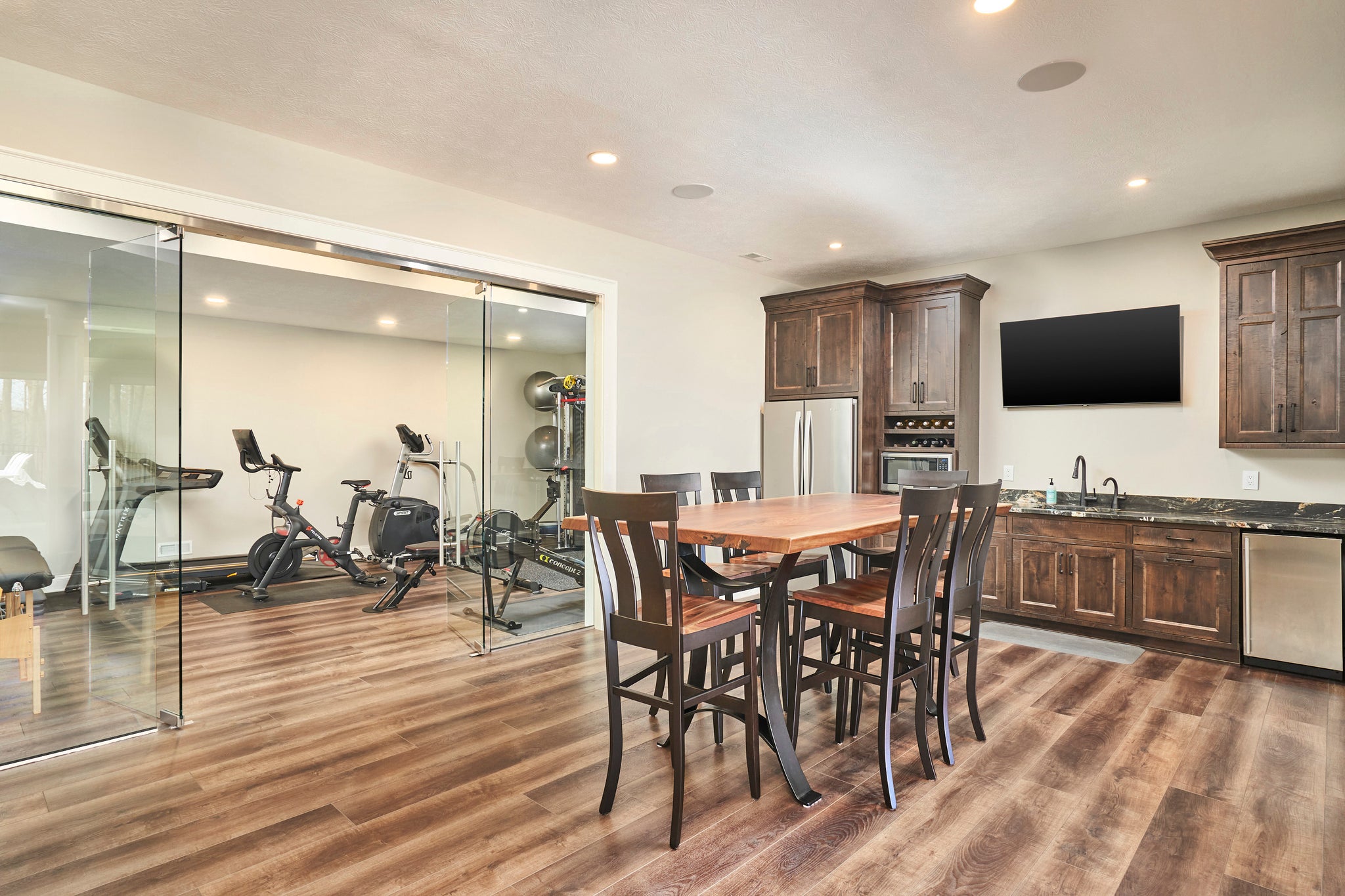

Descending to the 2,969 square foot walkout basement reveals a high-utility lower level containing a media room, game room, wet bar, workshop, and private exercise room. The 10-foot basement height mirrors the main level, maintaining consistent vertical scale across both floors. The structure is built using a 2x6 energy-efficient wall system, reaching a maximum building height of 29 feet, which contributes to the home's substantial vertical presence.

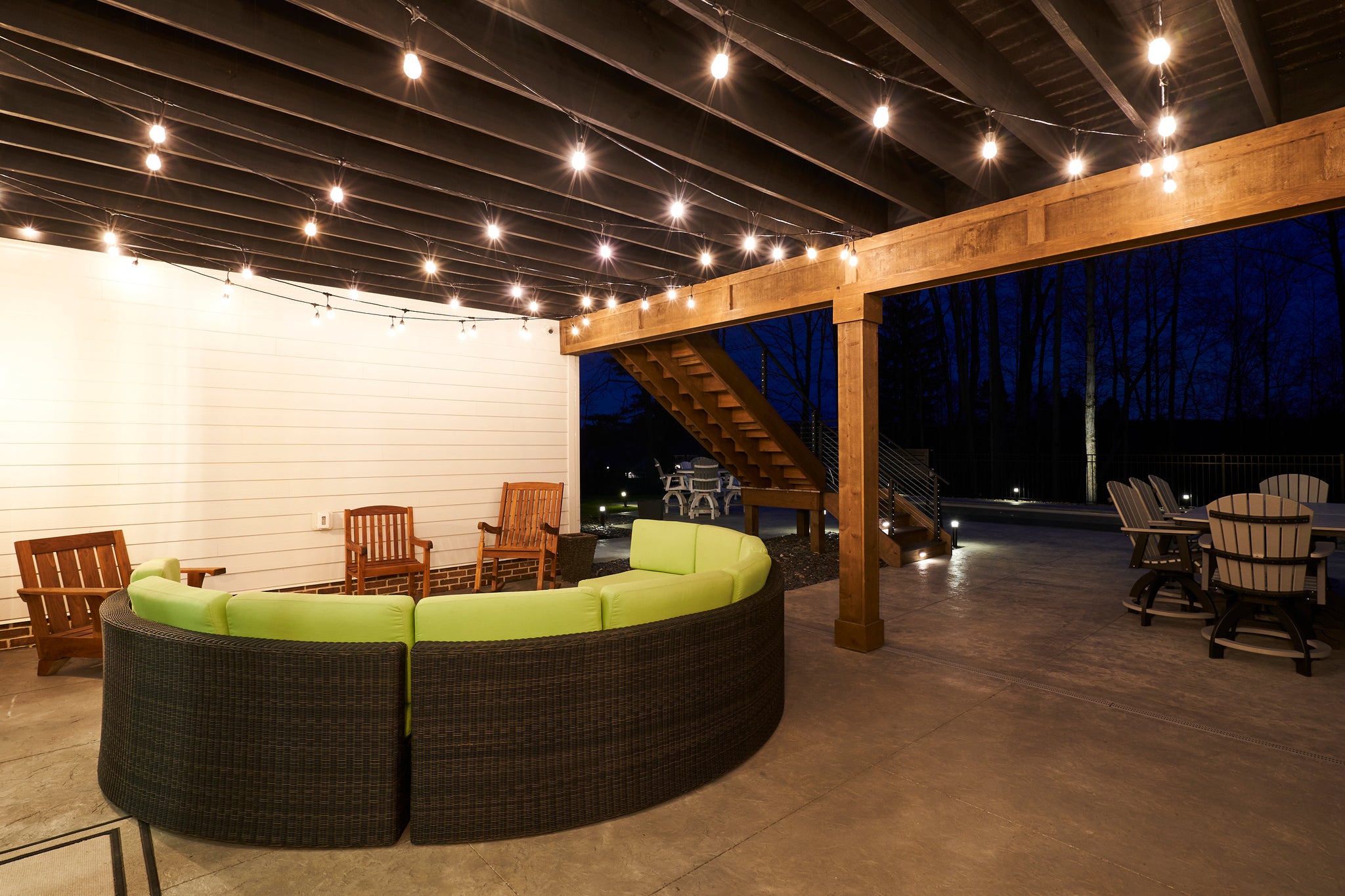

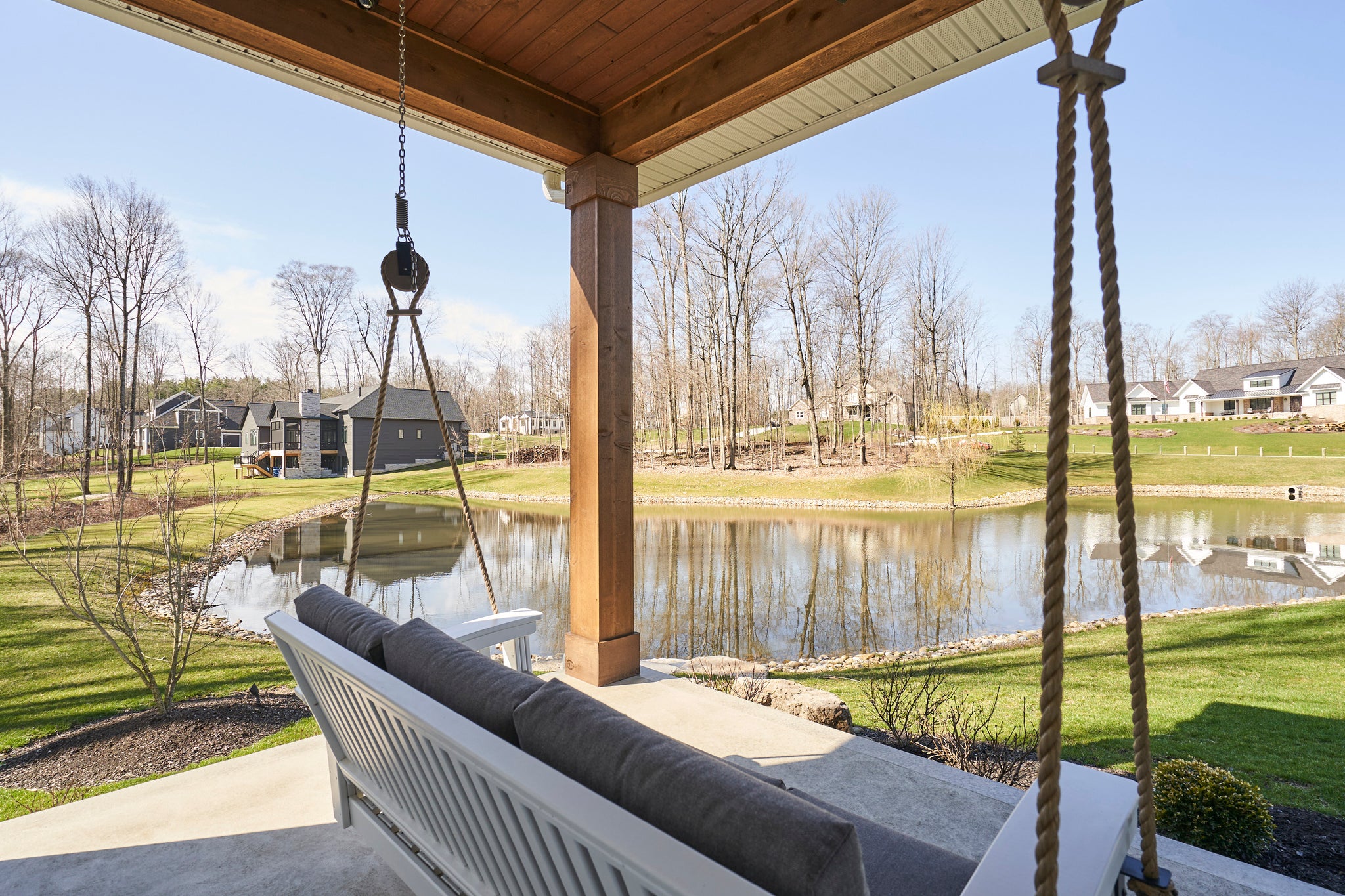

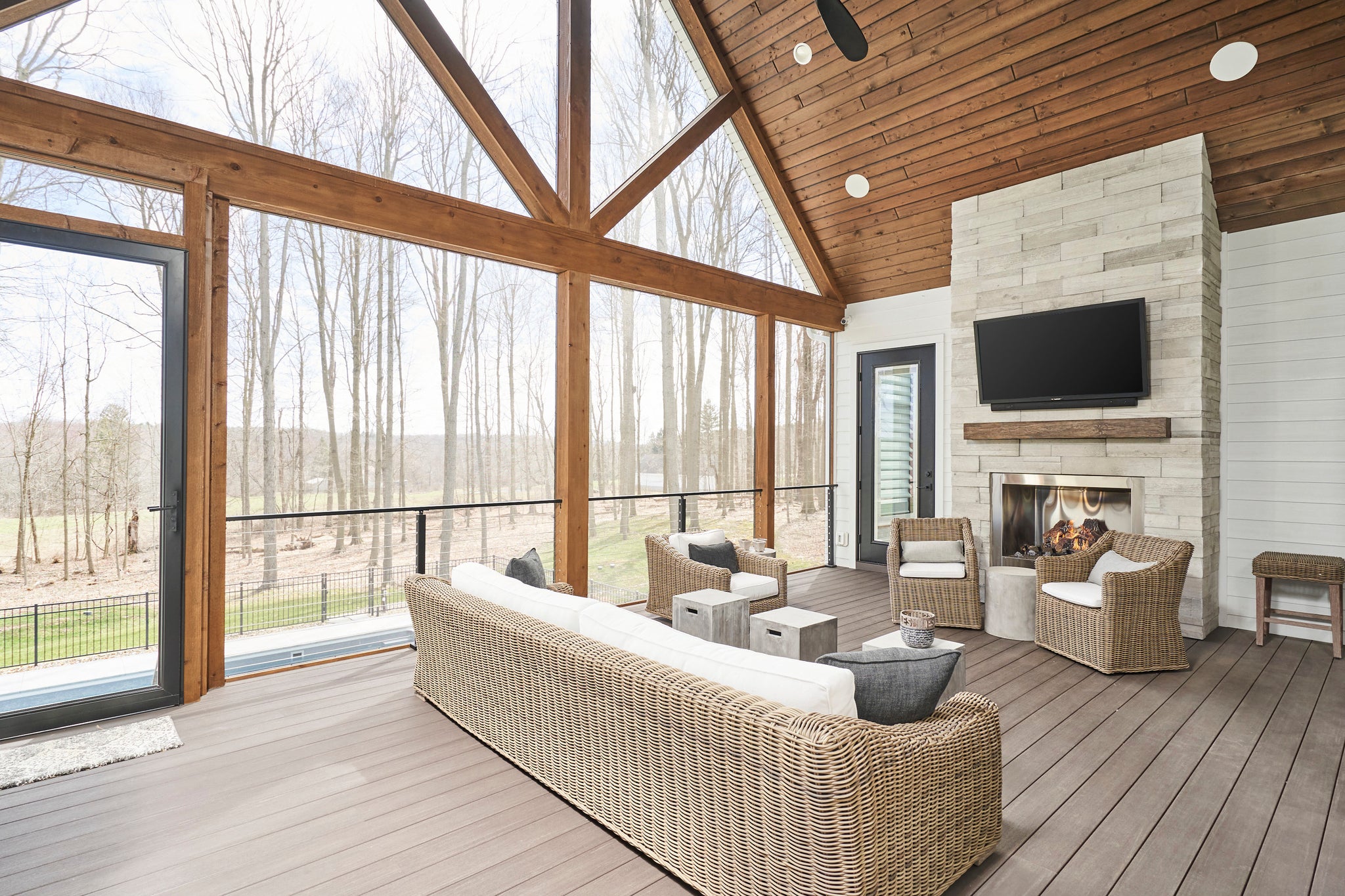

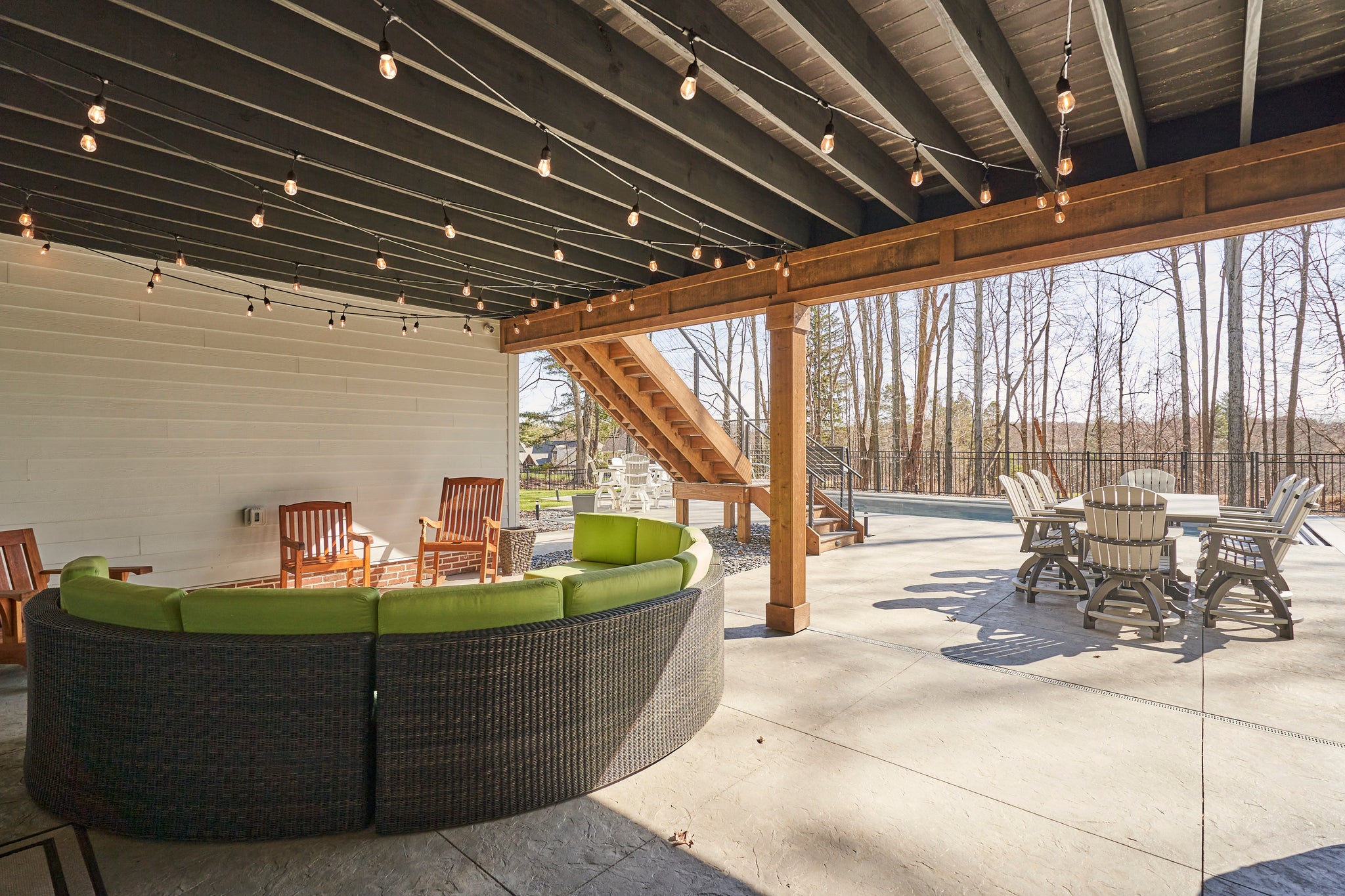

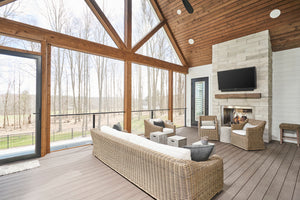

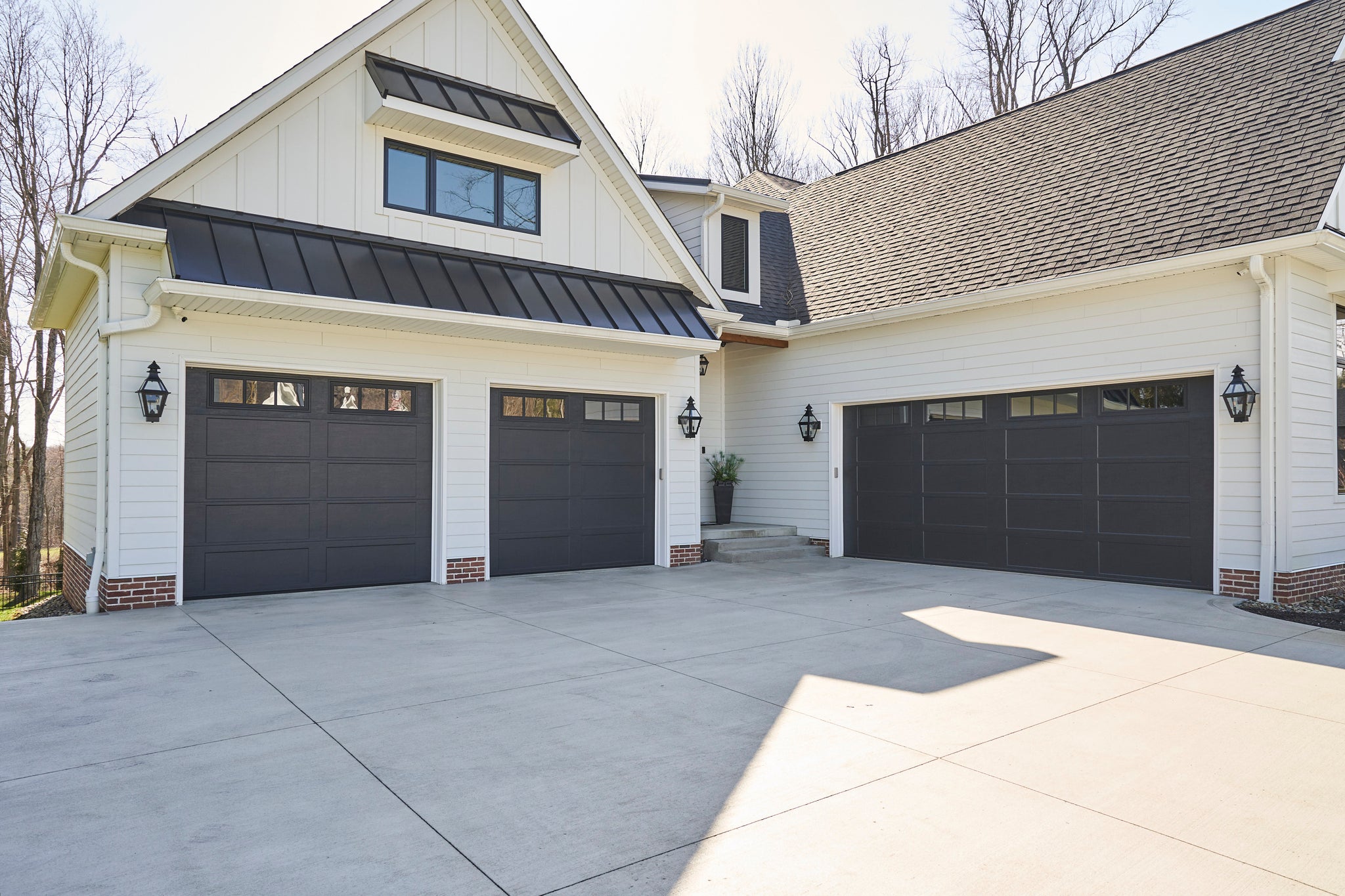

Practicality remains a priority with a 1,164 square foot 4-car garage that utilizes both side and front-load configurations to minimize driveway dominance. The exterior connection is bolstered by a 400 square foot deck and an outdoor fireplace, facilitating year-round engagement with the site. With a house depth of 74 feet 8 inches, the design effectively balances indoor utility with outdoor accessibility.

Key Features: 4,127 sq ft main level, 2,969 sq ft walkout basement, 4 bedrooms, 4 full bathrooms, 1 half bathroom, 4-car garage, 10-foot ceilings, split-bedroom layout, home office, in-law suite, wrap-around porch, outdoor fireplace, 2x6 wall framing.

Review floor plans, CAD packages, and customization options for this home.

View Sample Plan
What's Included in the House Plan:

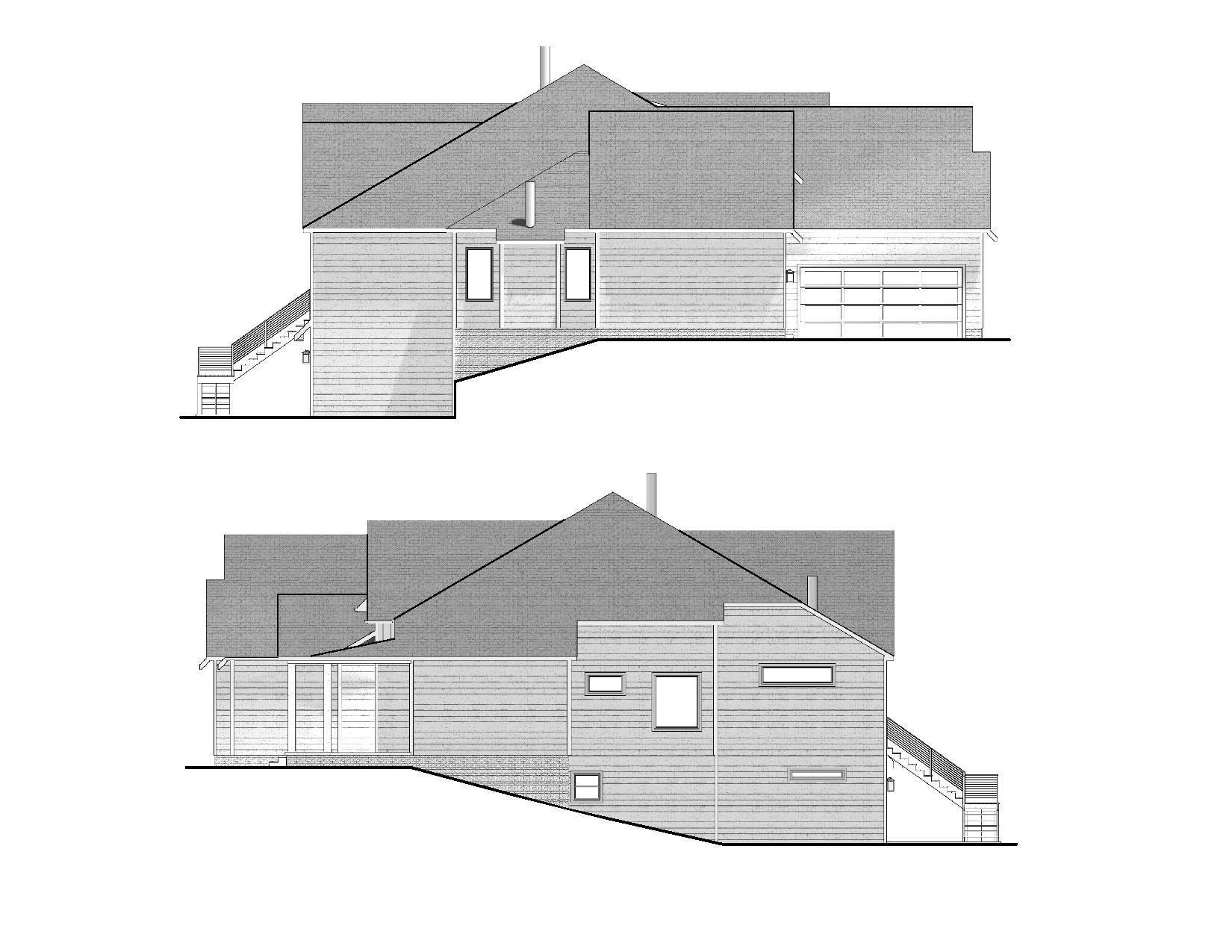

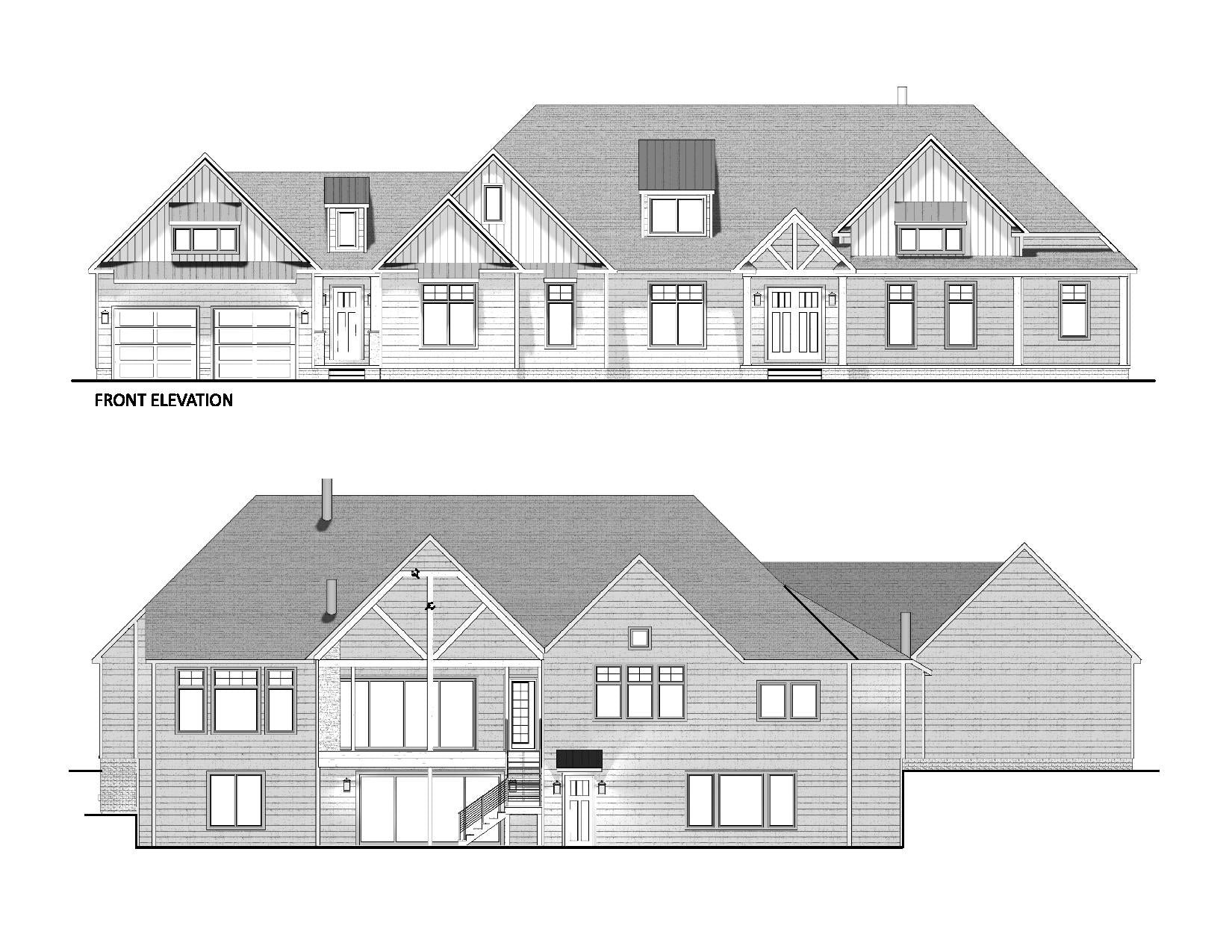

  • Elevations
  • Foundation Plan(s)
  • Floor Plans with Electrical
  • Roof Plan
  • Details Which Include Typical Wall Section, Stair Section, Wall Bracing, Egress, Truss/Roof Detail and Radon
What's Not Included:
  • Architectural or Engineering Stamp - Handled locally if required.
  • Site Plan - Handled locally when needed.
  • Mechanical Drawings - Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings - Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations - Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  4127 sq ft
    All Unheated Under-Roof Areas  1932 sq ft
    Total Structure With Basement  9028 sq ft
    Total Structure without Basement  6059 sq ft
    1st Floor:  4127 sq ft
    Basement:  2969 sq ft
    Deck:  400 sq ft
    Front Porch:  368 sq ft
  • Garage:  1164 sq ft
    Garage Bays:   4
    Garage Load:   Side & Front
  • Bedrooms:   2
    Bathrooms:   2
    Half Bathrooms:   1
  • Foundation:   Walkout Basement
    Wall Framing:   2x6
    Roof Pitch:  12:12 and 7:12
  • Width of House:  115'
    Depth of House:  74'8''
    Building Height:  29'
  • First Floor Ceiling Height:  10'
    Basement Ceiling Height:  10'

Key Features

  • Den
  • Exercise Room
  • Fireplace
  • First Floor Laundry

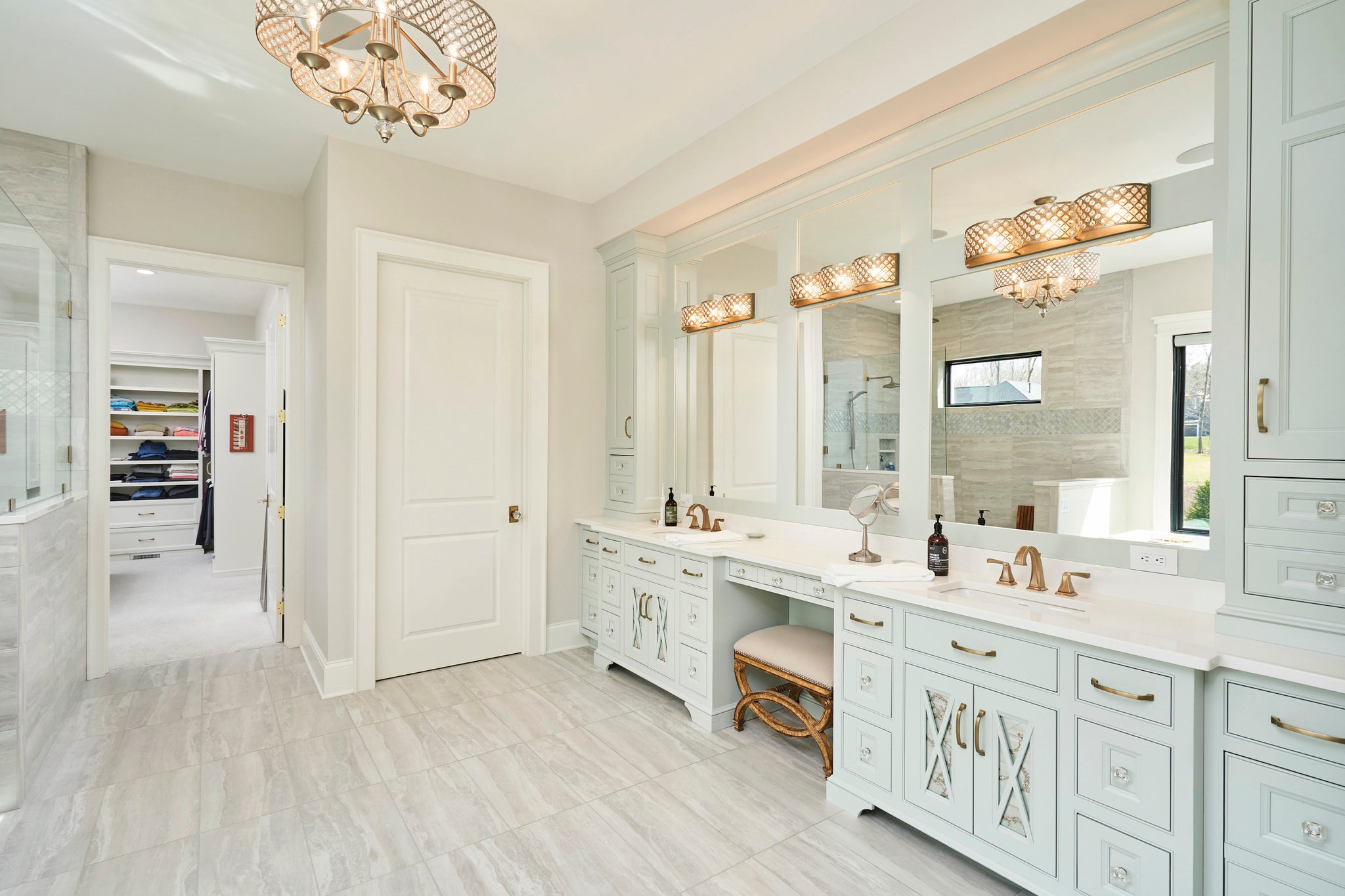

  • First Floor Master Suite
  • Flex Room
  • Formal Dining Room
  • Game Room
  • Great Room
  • Home Office/Study
  • In-law Suite
  • Keeping/Family Room

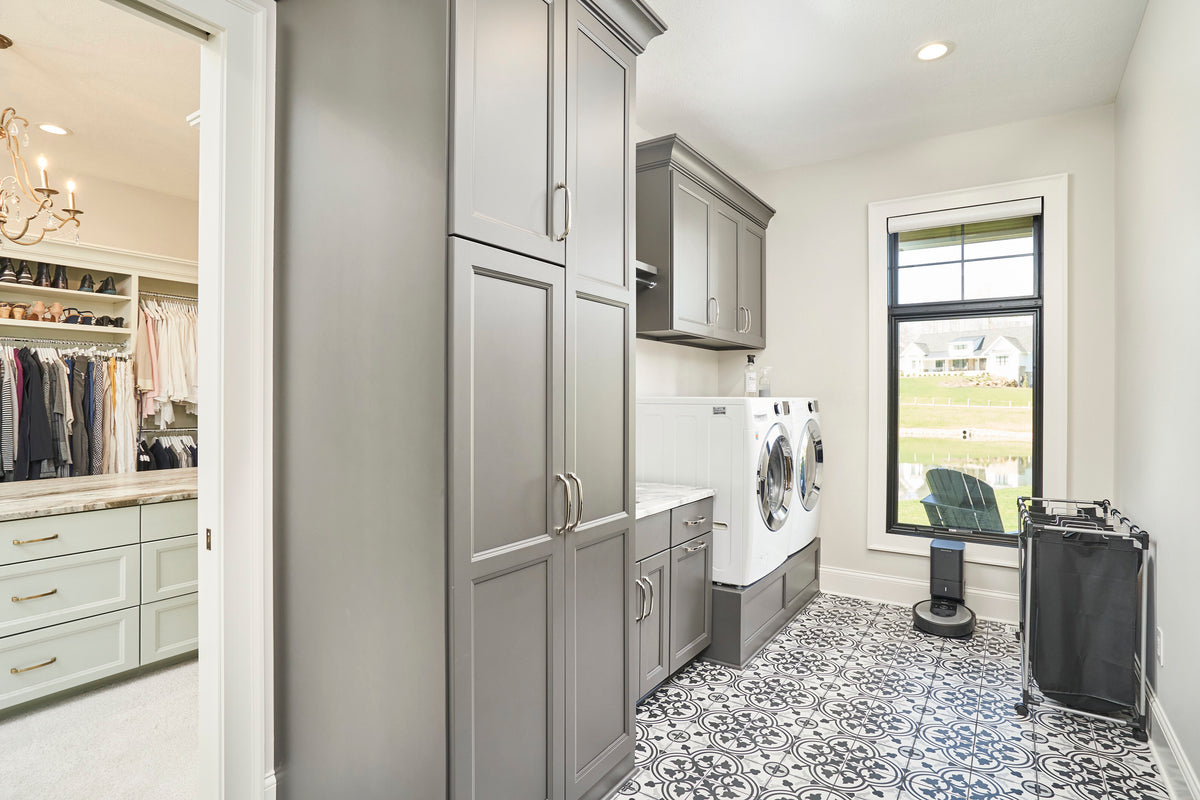

  • Laundry Access from Master
  • Media Room

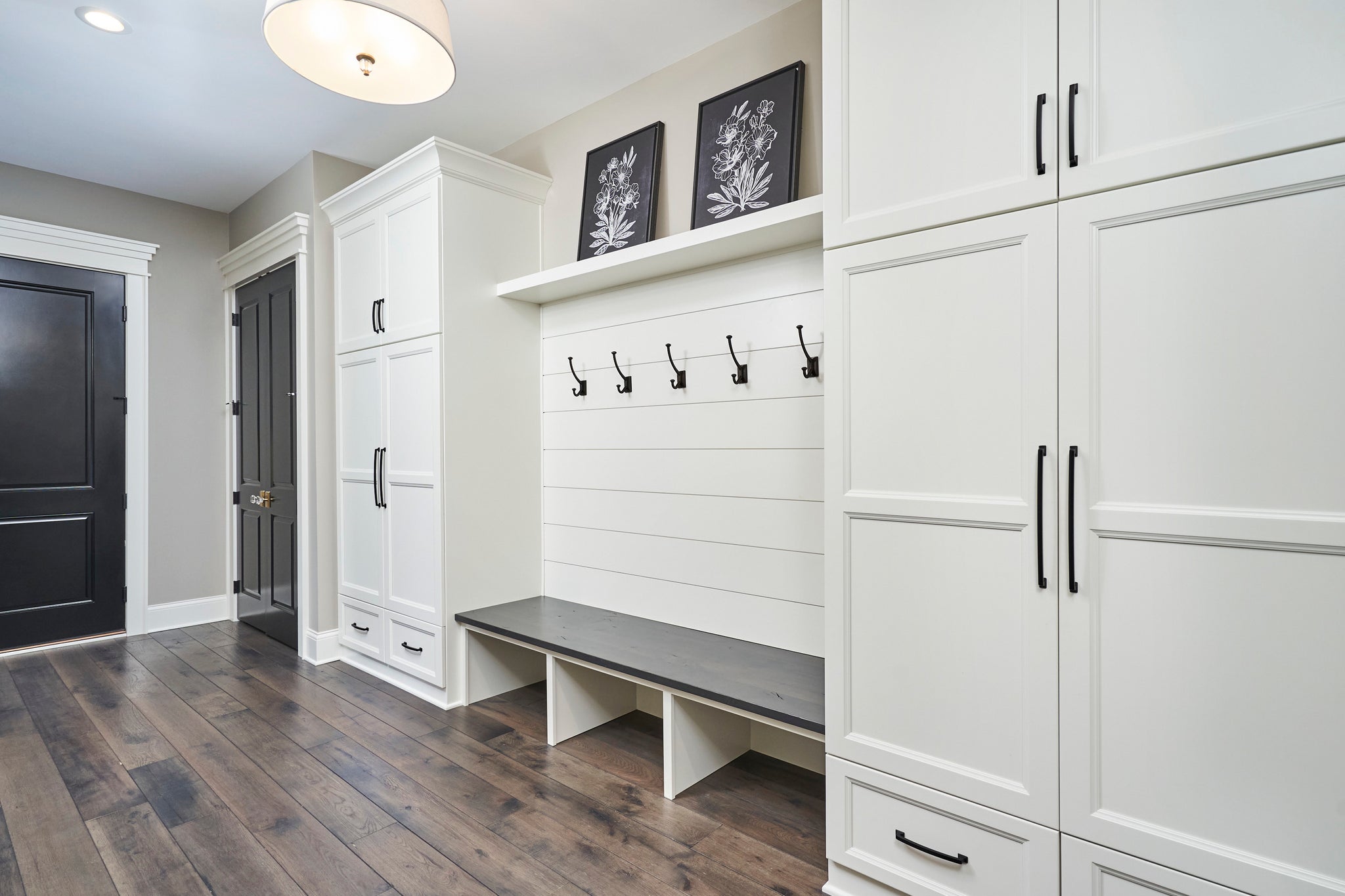

  • Mud Room
  • Outdoor Fireplace
  • Split Bedroom

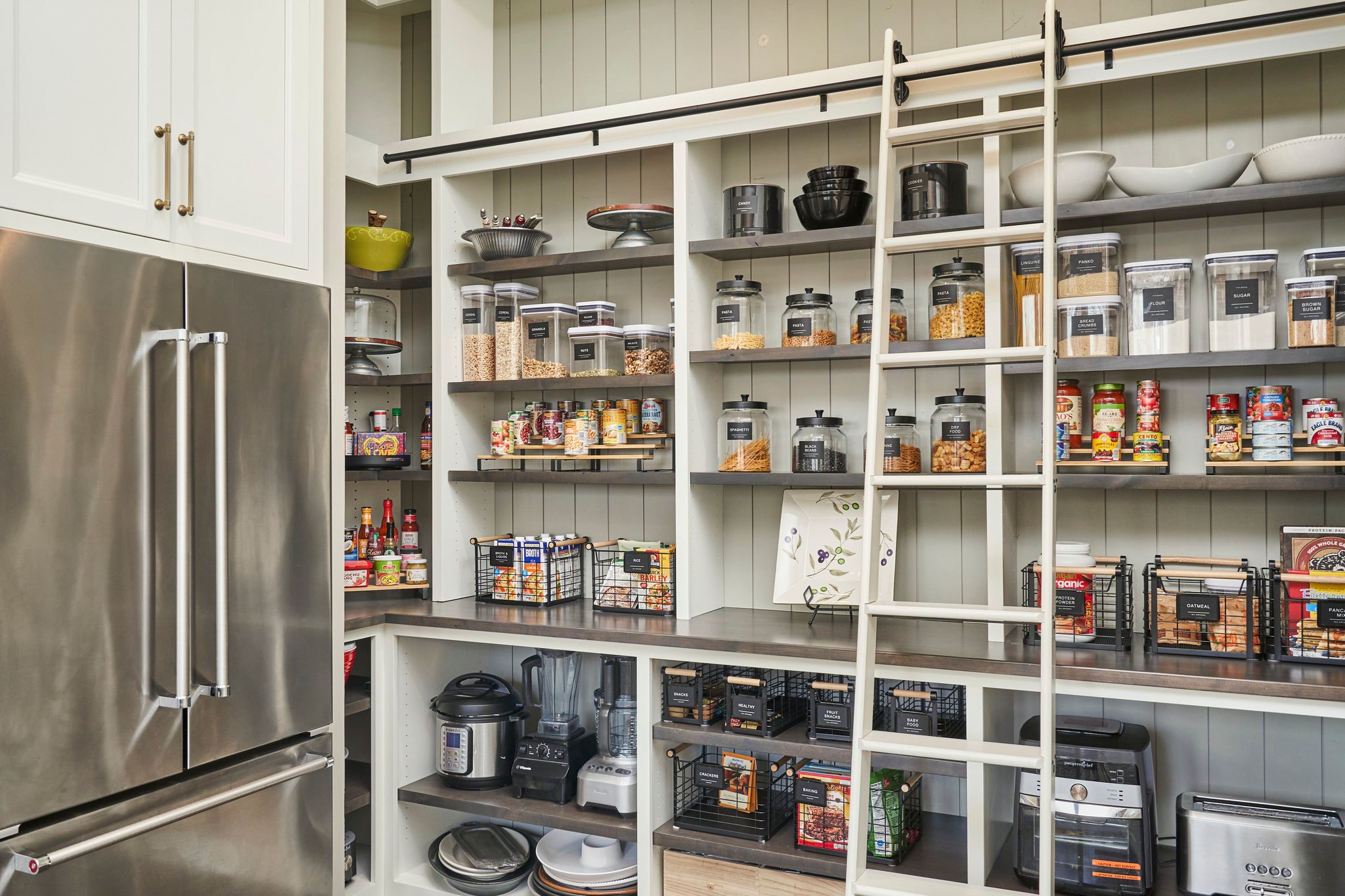

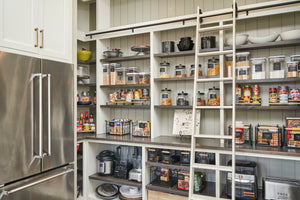

  • Walk-in Pantry
  • Wet Bar
  • Workshop
  • Wraparound Porch
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AJ6736-A
Luxury 4,127 Sq Ft Retreat with Walkout Basement and 4-Car Garage
2 Bedrooms
2 Full Baths
1 Half Baths
4127 SQ FT
1 Stories
Product print image
AJ6736-A Plan 1032 House First Floor Plan
AJ6736-A Plan 1032 House Basement Floor Plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
