G1092-A

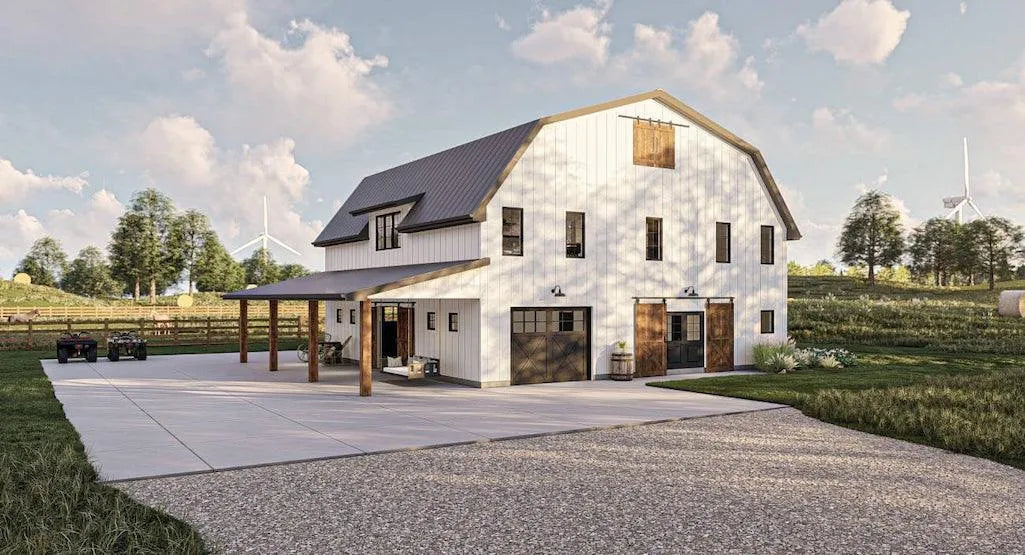

Introducing the captivating Barndominium House Plan, where rustic charm meets modern convenience. This remarkable residence seamlessly combines the classic barn aesthetic with the comfort and style of a contemporary home. The exterior boasts a distinctive barn-shaped roof that adds character and visual appeal to the structure. To enhance outdoor living, a delightful lean-to covered patio stretches invitingly from the side, providing a cozy space to relax and entertain.

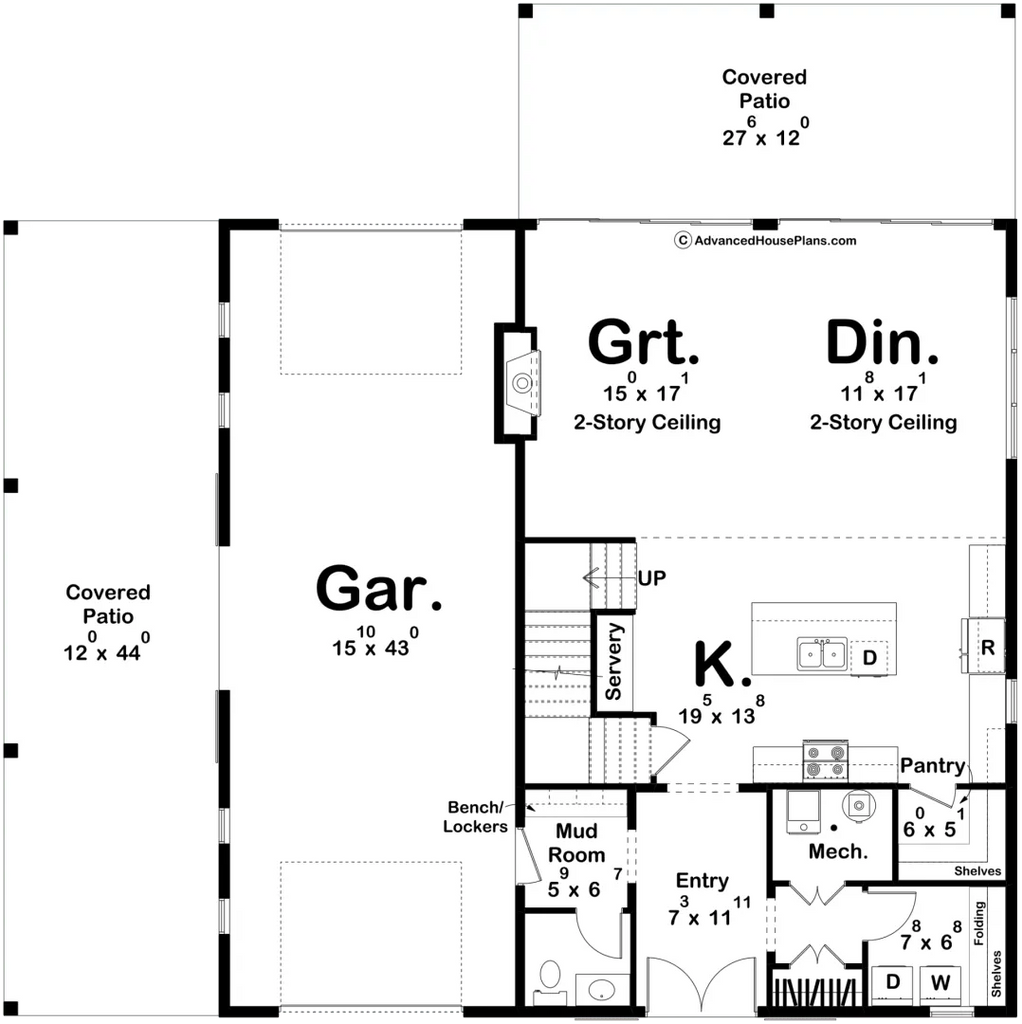

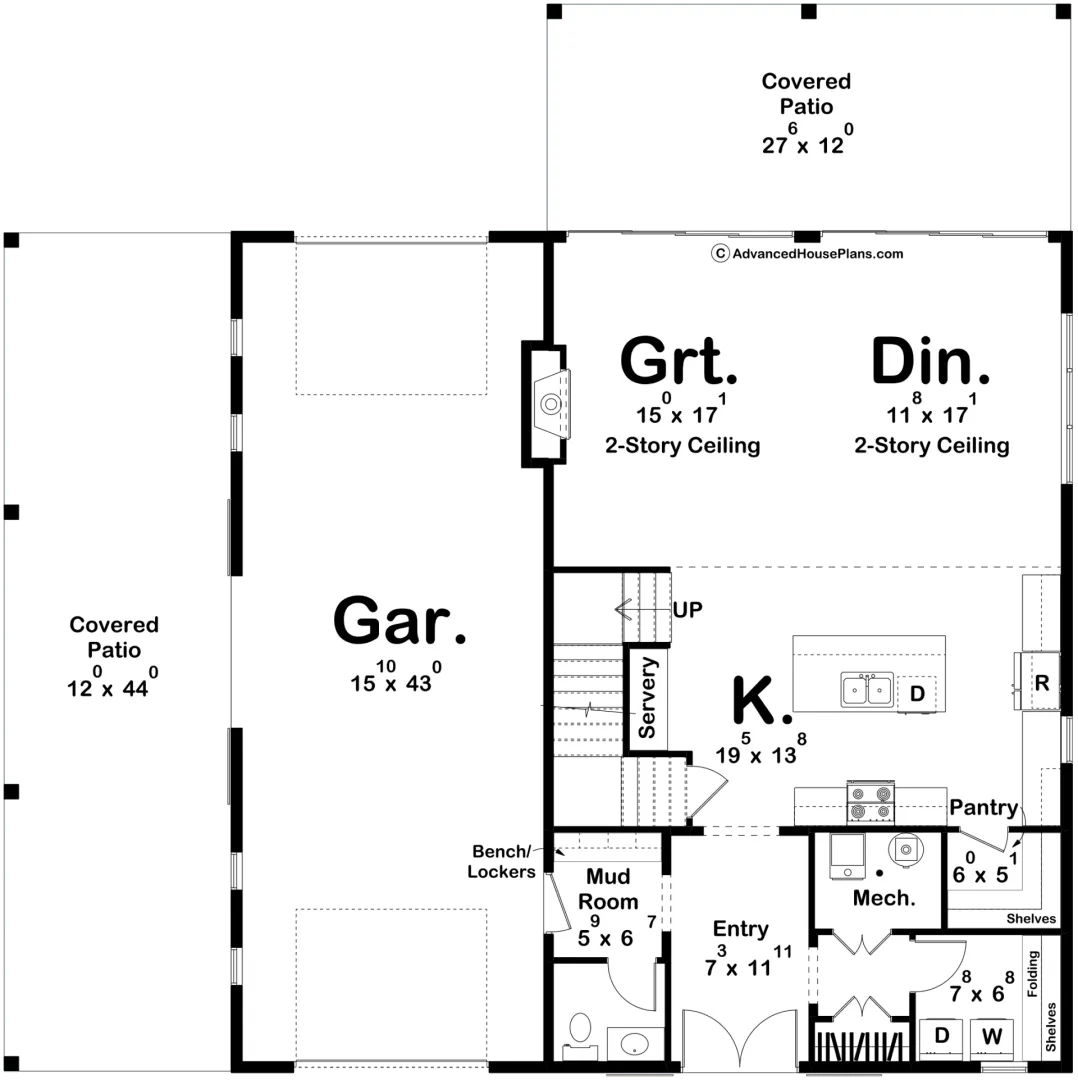

Upon entering the Barndominium, you are greeted by a thoughtfully designed mudroom, ensuring that cleanliness and organization are easily maintained. This practical feature allows you to transition seamlessly from the outdoors to the comforts of home. The mudroom offers ample storage for coats, shoes, and other everyday items, while the adjacent laundry room provides a dedicated space for washing and drying.
Stepping further into the heart of the home, you'll discover a spacious kitchen that is truly a chef's dream. With its modern appliances, abundant counter space, and a convenient walk-in pantry, this kitchen is equipped to handle all your culinary endeavors. The open concept design seamlessly connects the kitchen to the great room and dining area, creating an inviting and versatile space for family gatherings and socializing.

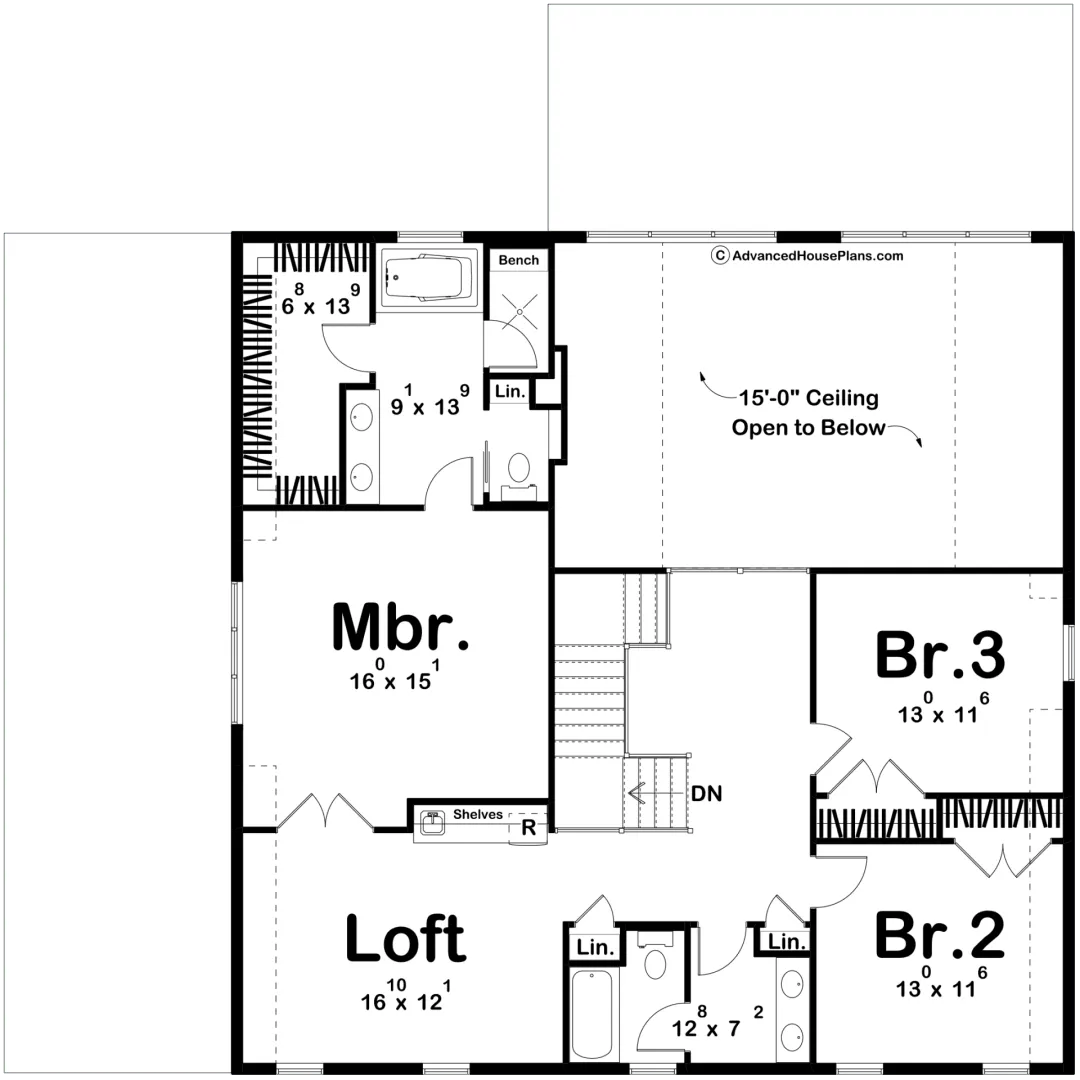

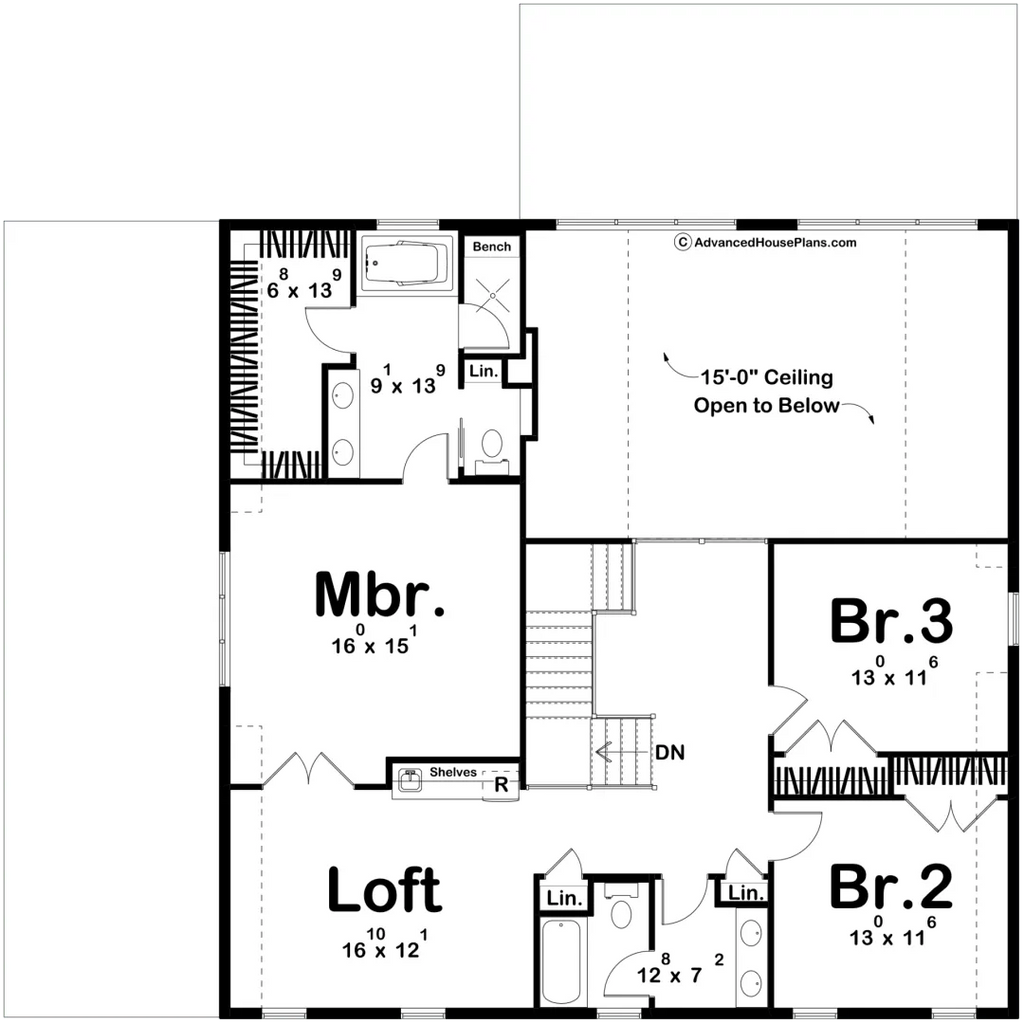

Ascend the stairs to the upper level, where a haven of rest and relaxation awaits. Three generously sized bedrooms and two well-appointed bathrooms provide ample space for family members and guests alike. The highlight of this floor is the master suite, which offers a peaceful retreat from the outside world. The suite includes a comfortable bedroom, a private bathroom, and, most notably, a spacious walk-in closet. The walk-in closet offers abundant storage space for clothing, accessories, and personal items, ensuring that everything has its designated place.
The Barndominium House Plan is an architectural marvel that seamlessly combines the rustic charm of a barn with the contemporary comforts of a modern home. From the striking barn-shaped roof to the inviting lean-to covered patio, every detail has been meticulously designed to create a harmonious and welcoming living environment. Whether you're hosting a gathering in the open great room, enjoying a quiet moment in the master suite, or simply appreciating the unique aesthetics, this Barndominium is a true testament to the perfect fusion of functionality and style.
PDF (Single Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
CAD + PDF (Single Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
5 or 8 Prints (Single Build)
Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.
5 Prints + PDF (Single Build)
Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
PDF (Multi Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
CAD + PDF (Multi Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.
Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.
Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.
Basement - This foundation is entirely or partially below ground and offers storage or living areas.
Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.
