3,753 Sq Ft Luxury Home Plan with Bonus Room & 5 Bedrooms

Normandy Manor is a traditional two-story home spanning 3,753 sq ft of heated living space, configured with a 100-foot wide footprint that accommodates large lots. This residence features 5 bedrooms and 3.5 bathrooms, anchored by a primary suite on the main level. The layout prioritizes a 2,495 sq ft first floor, which includes a private home office, a formal dining area, and a kitchen equipped with a walk-in pantry and direct access to a dedicated mudroom.

The main level is defined by a split-bedroom layout that isolates the primary suite from the rest of the floor, enhancing acoustic privacy. A central kitchen connects to the living areas, while the inclusion of a first-floor laundry room streamlines daily household logistics. The 9-foot ceiling heights across both the first and second levels contribute to consistent vertical volume throughout the interior, creating a sense of scale in every room.

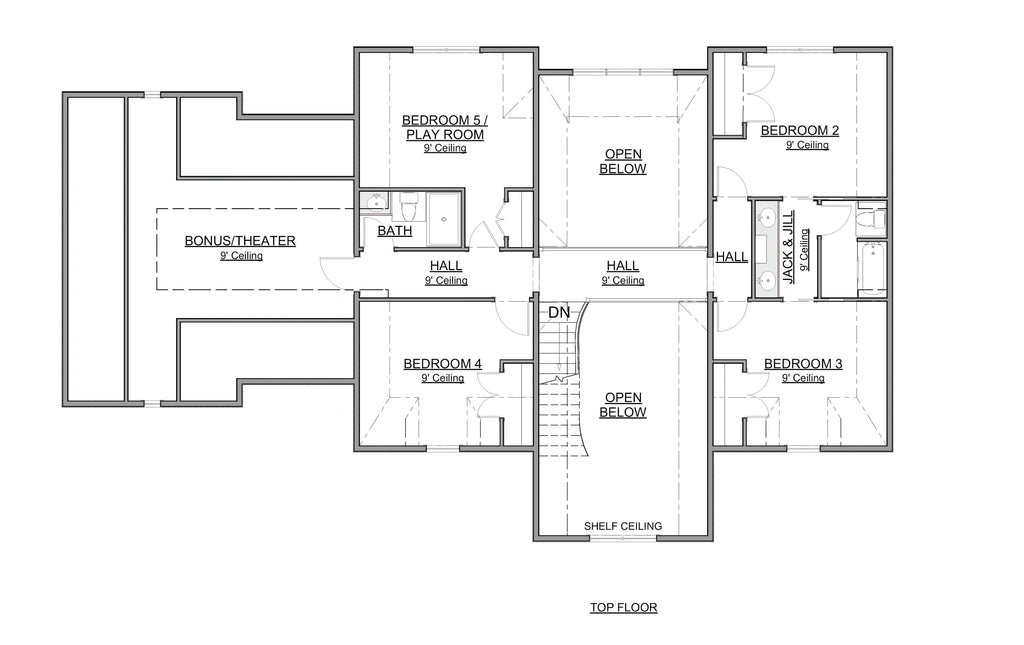

Occupying 1,258 sq ft, the second floor houses additional bedrooms, a Jack and Jill bathroom for shared utility, and a 343 sq ft bonus room. This flexible upper-level space allows for a media room, guest quarters, or a hobby area. The structure reaches a maximum building height of 32 feet 1 inch, characterized by steep 10:12 and 16:12 roof pitches that define the exterior profile.

Construction details include a 688 sq ft side-load 2-car garage that maintains the aesthetic integrity of the front elevation by shifting vehicle storage to the side. The home depth of 44 feet ensures that the building mass fits efficiently on deep lots, while the 19 sq ft porch area provides a formal entry point. The combination of structural proportions and room count supports multi-generational living or large household requirements.

Key Features: 5 bedrooms, 3.5 bathrooms, 3,753 sq ft total living area, first-floor primary suite, 343 sq ft bonus room, side-load 2-car garage, split-bedroom layout, home office, Jack and Jill bathroom, walk-in pantry, 9-foot ceilings, 10:12 and 16:12 roof pitches.

Review floor plans, CAD packages, and customization options for this home.

View Sample Plan
What's Included in the House Plan:
  • Cover Page – Includes basic project details and design notes
  • Foundation Plan – Shows layout and dimensions for slab, crawlspace, or basement foundations
  • Floor Plan(s) – Detailed layouts of all levels, including room dimensions and key features
  • Exterior Elevations – Front, rear, and side views showing exterior design elements
  • Roof Plan – Depicts roof slopes, ridges, valleys, and overall layout
  • Cut Section(s) – Vertical cross-sections showing structural and architectural details
  • Door & Window Schedule – Specifies sizes and types of doors and windows for accurate ordering
  • Lighting & Framing PlansIncluded in some plans only. Available upon request with any purchase
What's Not Included:
  • Architectural or Engineering Stamp – Provided locally if required by your municipality
  • Site Plan – Created by a local surveyor or engineer, based on your lot’s conditions
  • Mechanical Drawings – HVAC layout and equipment placement handled by subcontractors
  • Plumbing Drawings – Pipe locations and specifications managed by your plumber
  • Energy Calculations – Completed locally to meet regional building code requirements
  • Electrical Plan – Your licensed electrician will develop this based on your preferences

House Plan Specifications

  • Total Living (heated area):  3753 sq ft
    All Unheated Under-Roof Areas  707 sq ft
    Total Structure  4460 sq ft
    1st Floor:  2495 sq ft
    2nd Floor:  1258 sq ft
    Bonus Room:  343 sq ft
    Total Porch:  19 sq ft
  • Garage:  688 sq ft
    Garage Bays:   2
    Garage Load:   Side
  • Bedrooms:   5
    Bathrooms:   3
    Half Bathrooms:   1
  • Foundation:   Crawl Space
    Wall Framing:   2x4
    Roof Framing:   Stick
    Roof Pitch:  10:12 and 16:12
  • Width of House:  100'
    Depth of House:  44'
    Building Height:  32' 1''
  • First Floor Ceiling Height:  9'
    Second Floor Ceiling Height:  9'

Key Features

  • Bonus Room
  • First Floor Laundry
  • First Floor Master Suite
  • Formal Dining Room
  • Home Office/Study
  • Jack and Jill Bathroom
  • Master Sitting Area
  • Mud Room
  • Split Bedroom
  • Walk In Closets
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: AK7037-A
3,753 Sq Ft Luxury Home Plan with Bonus Room & 5 Bedrooms
5 Bedrooms
3 Full Baths
1 Half Baths
3753 SQ FT
2 Stories
Product print image

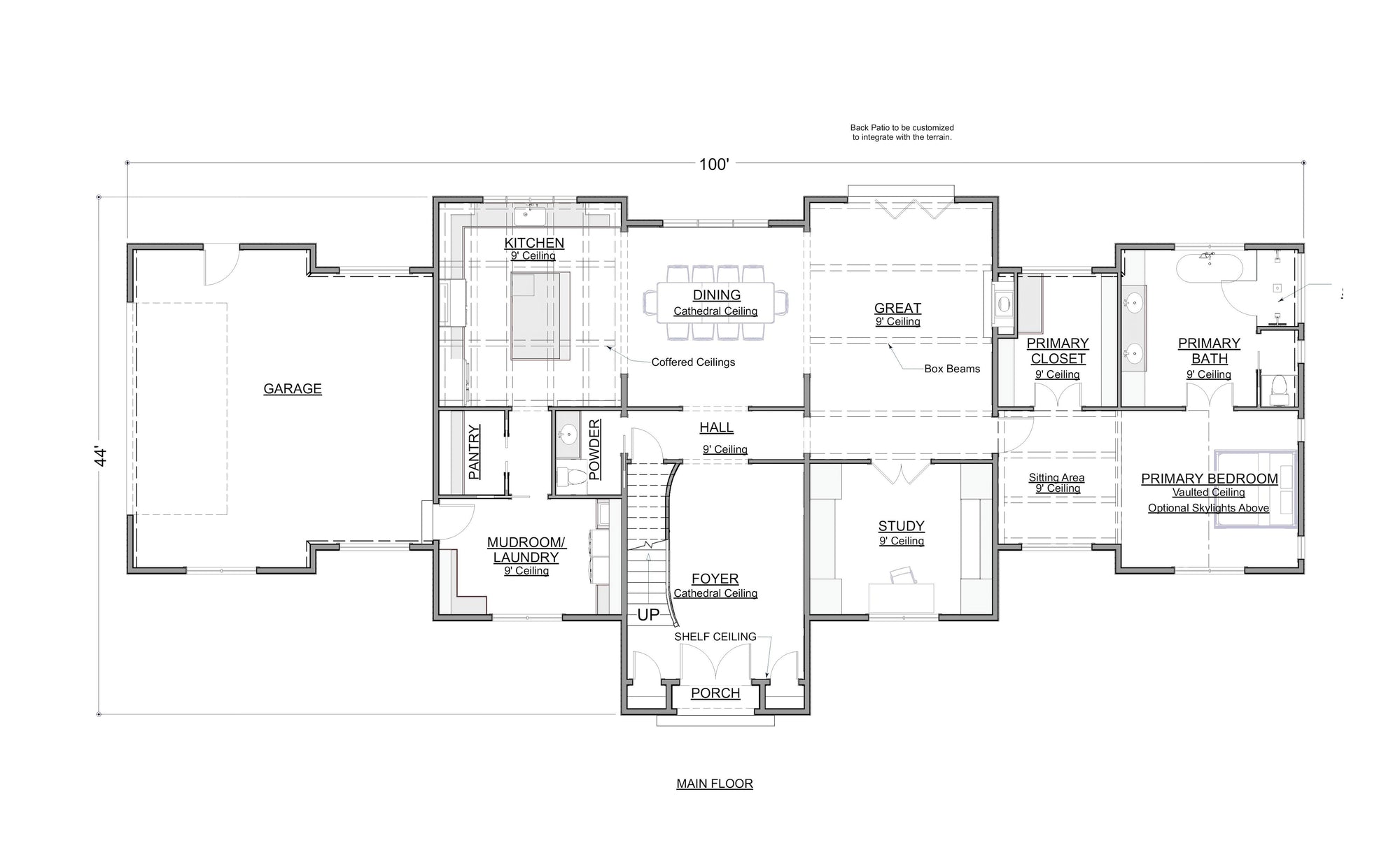

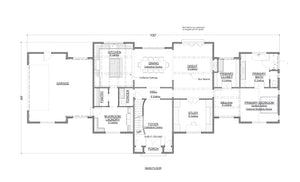

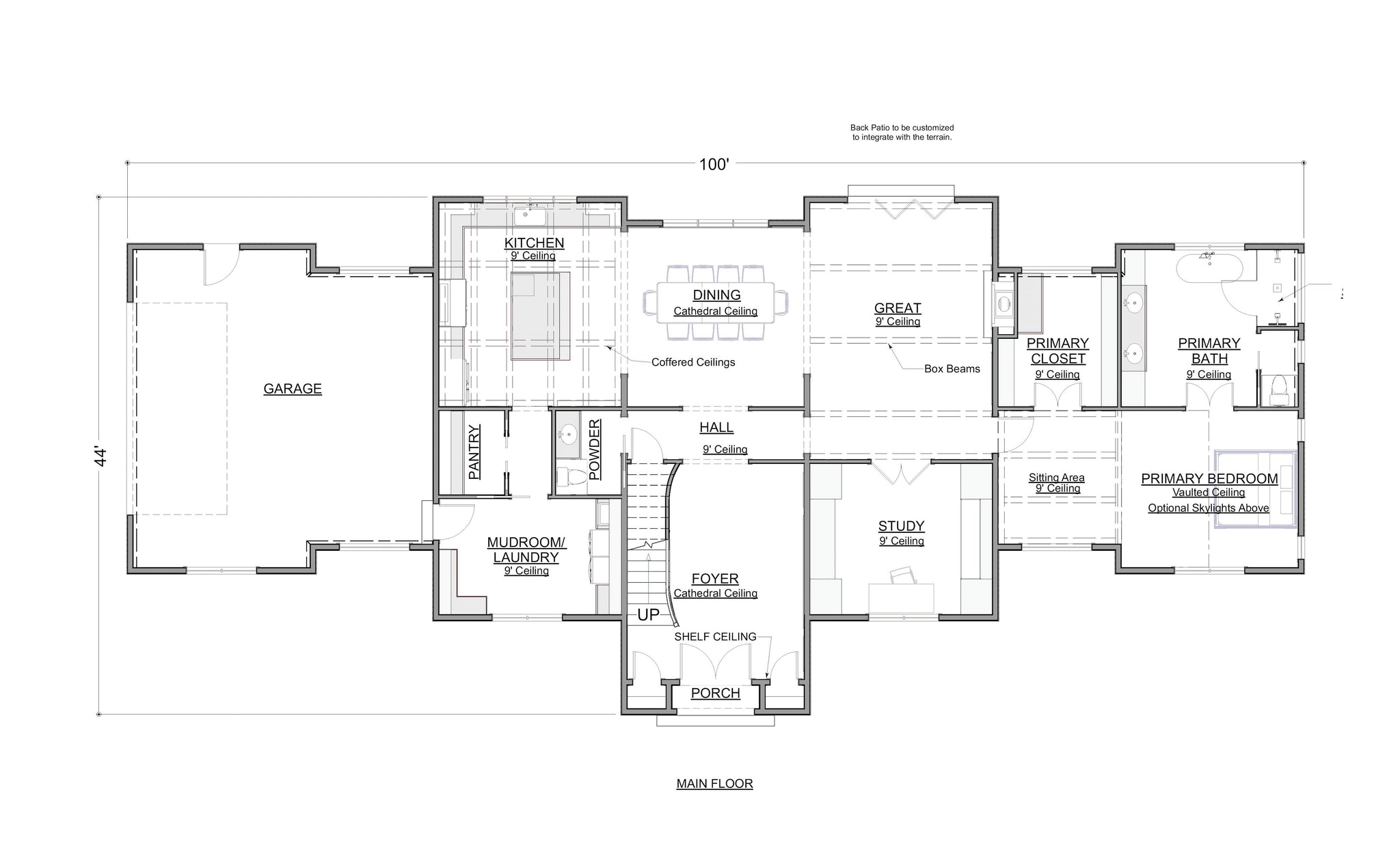

Main Level

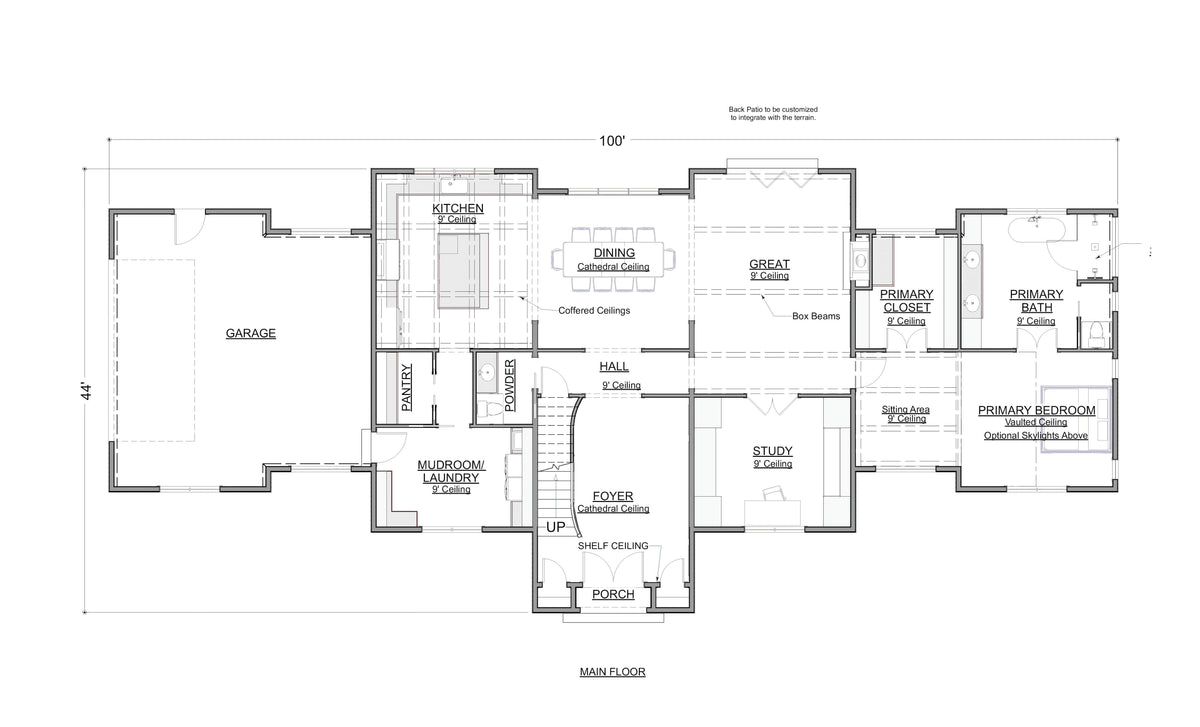

Normandy Manor Archival Designs Floor Plan

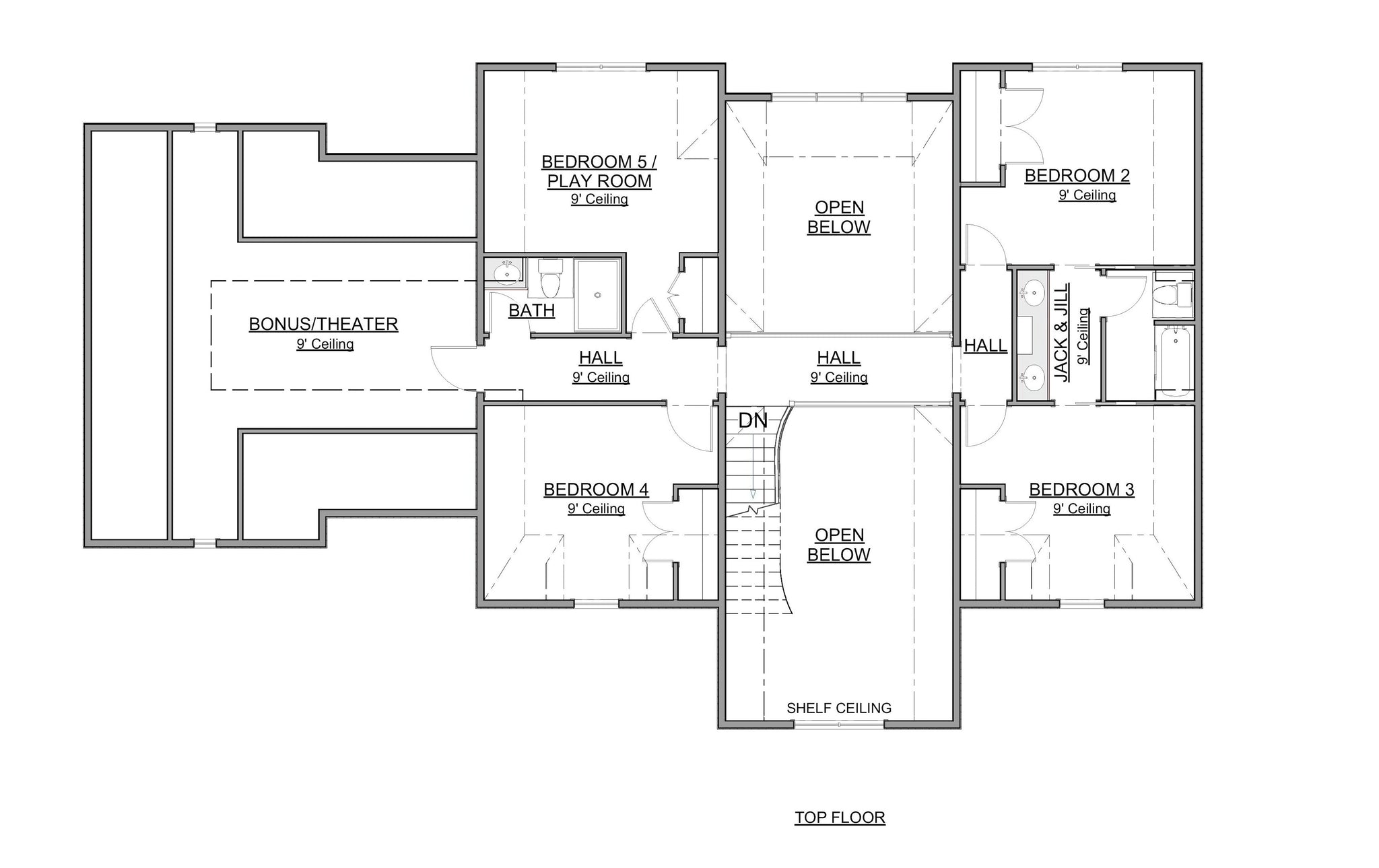

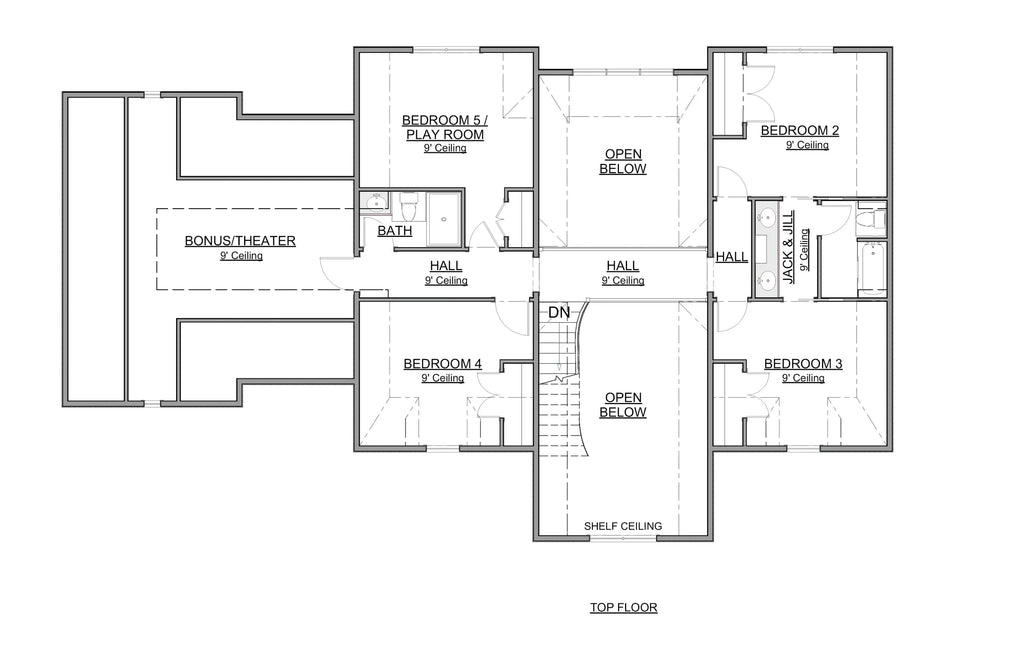

Second Floor
Normandy Manor Archival Designs Floor Plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
What Makes Us Different
Them
Cost to Build
$30+
Shipping
Free
on physical blueprints
$20+
Price Guarantee
By 10%
beat competitor
Only Price Match
Purchase
Direct
from the Architect
Middleman
