Modern Barndominium Accessory Dwelling Unit Plan | 758 Sq Ft ADU with Workshop, Porches & Media Room

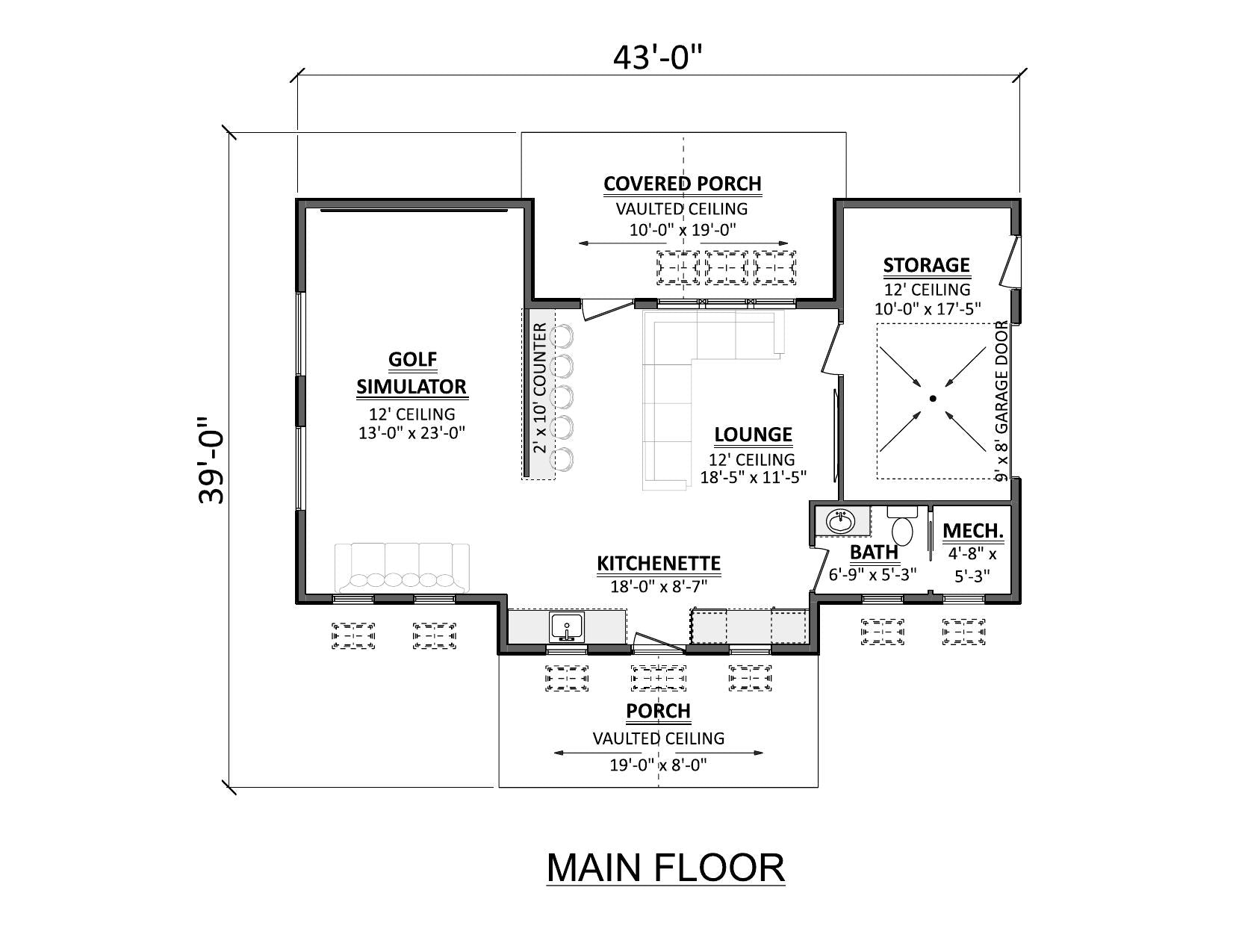

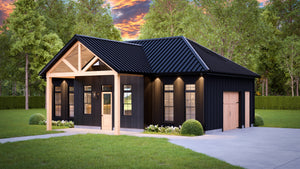

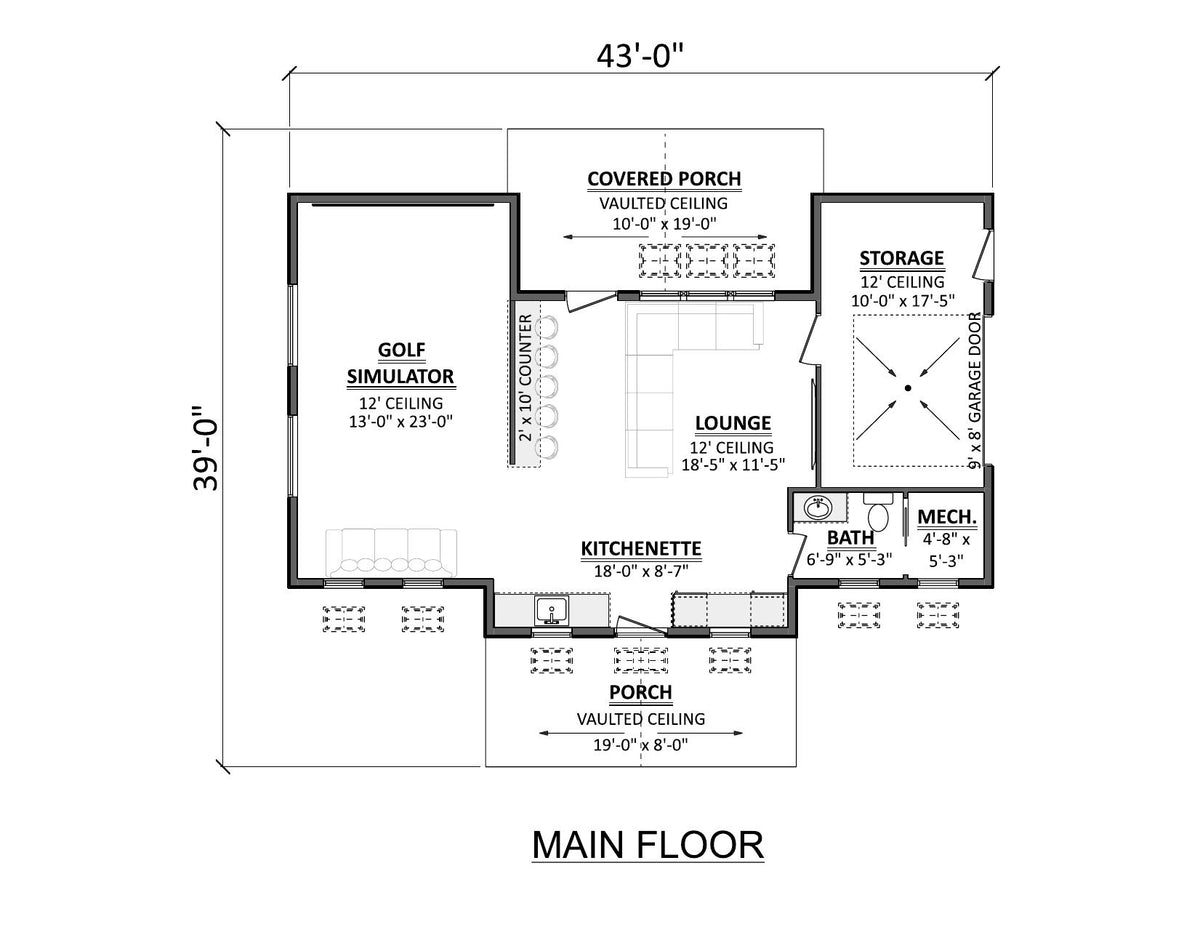

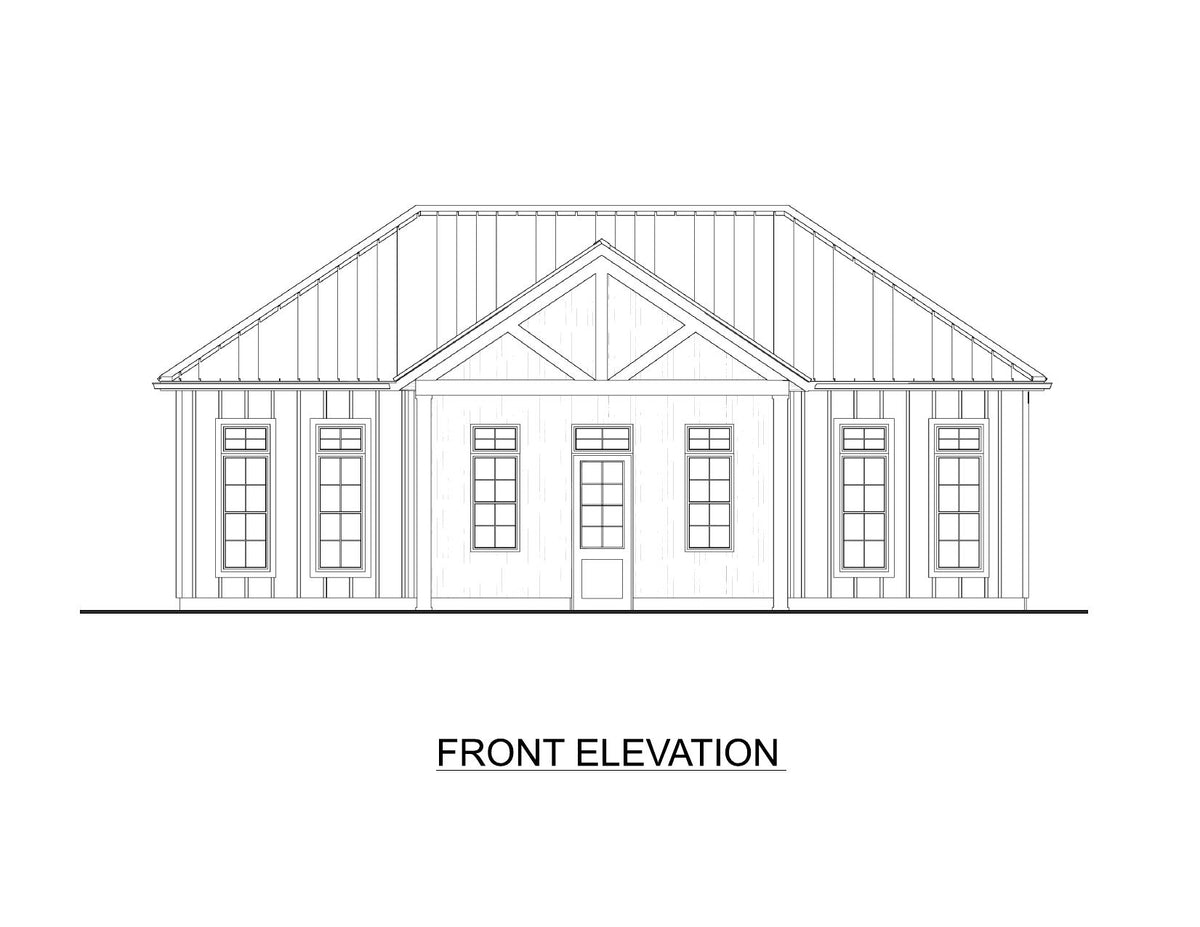

The Modern Barndominium Accessory House 1057 offers a sophisticated approach to auxiliary living, spanning 758 square feet of heated space. This structure is engineered for versatility, serving as a dedicated workshop, entertainment hub, or guest retreat. Measuring 43 feet in width and 39 feet in depth, the design is optimized for properties requiring a compact yet highly capable footprint that maintains a distinct architectural character.

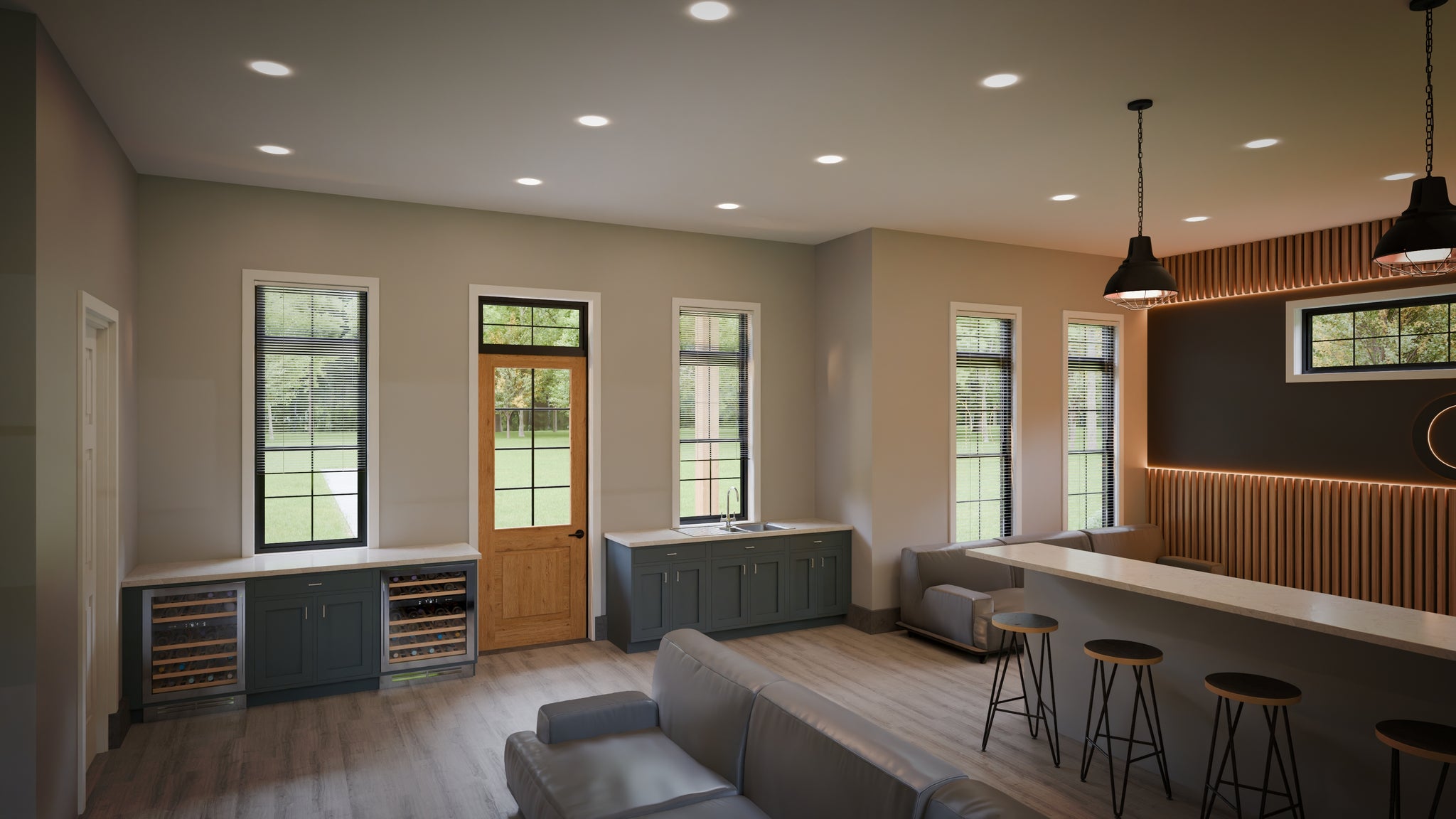

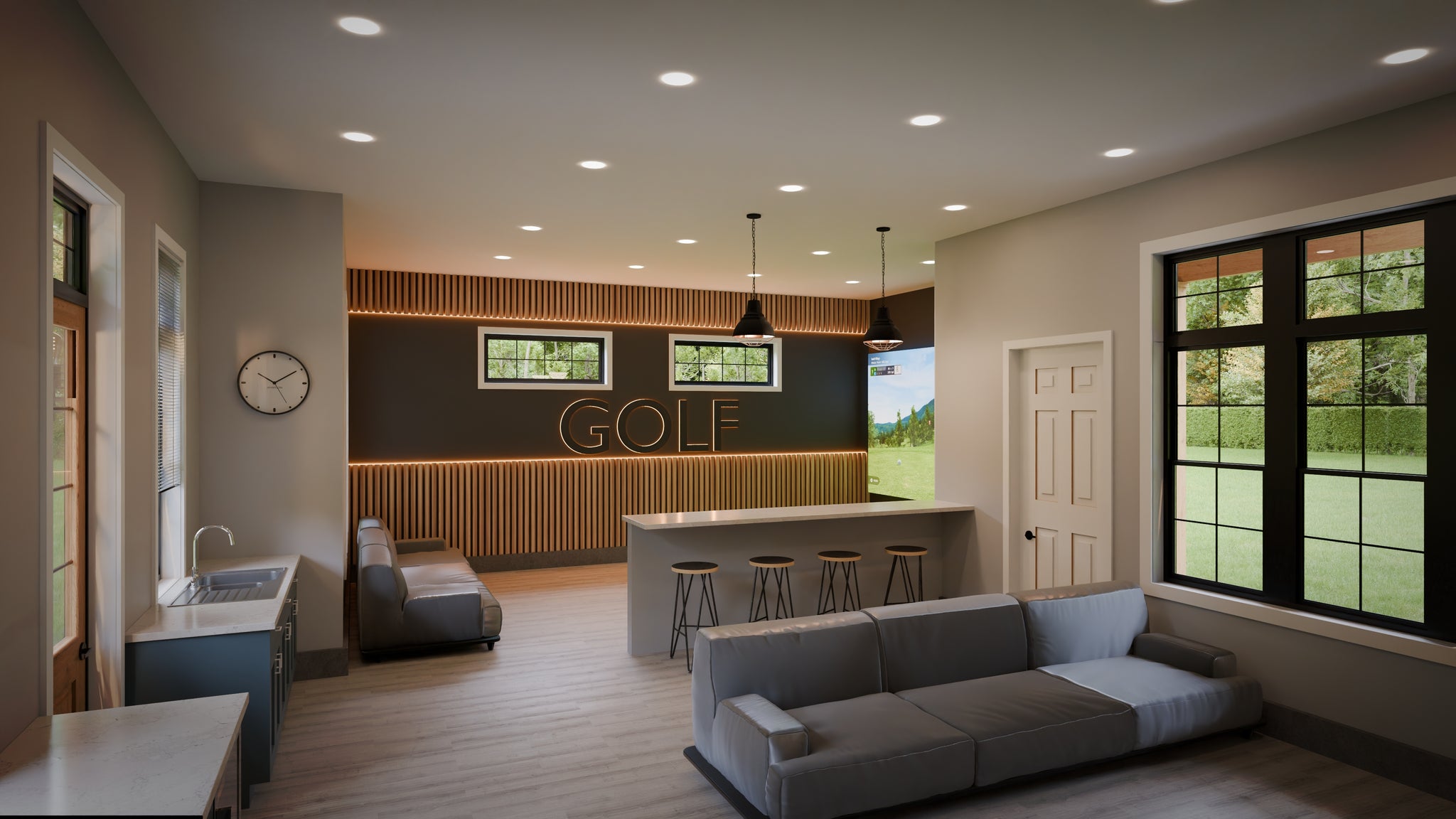

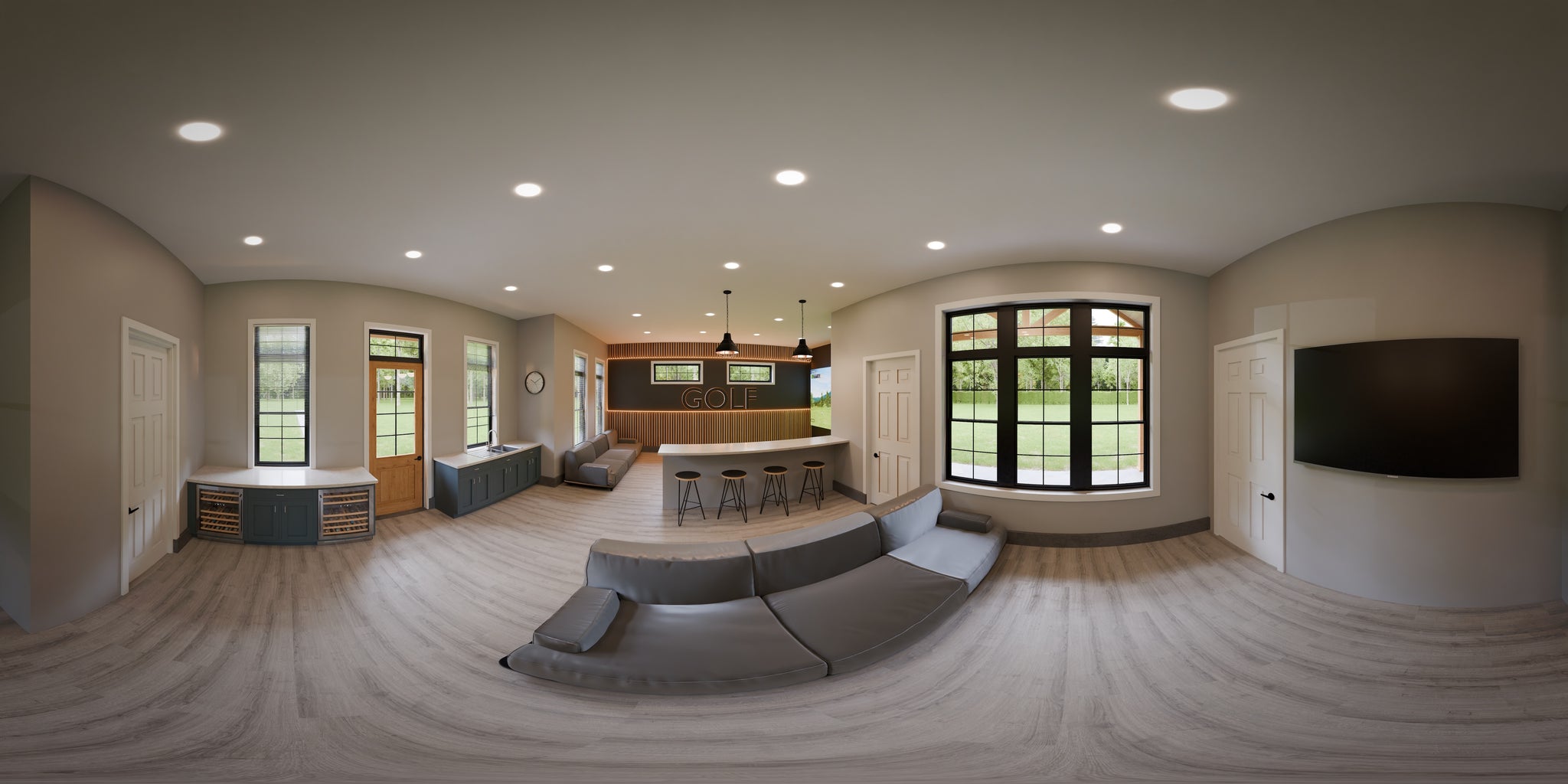

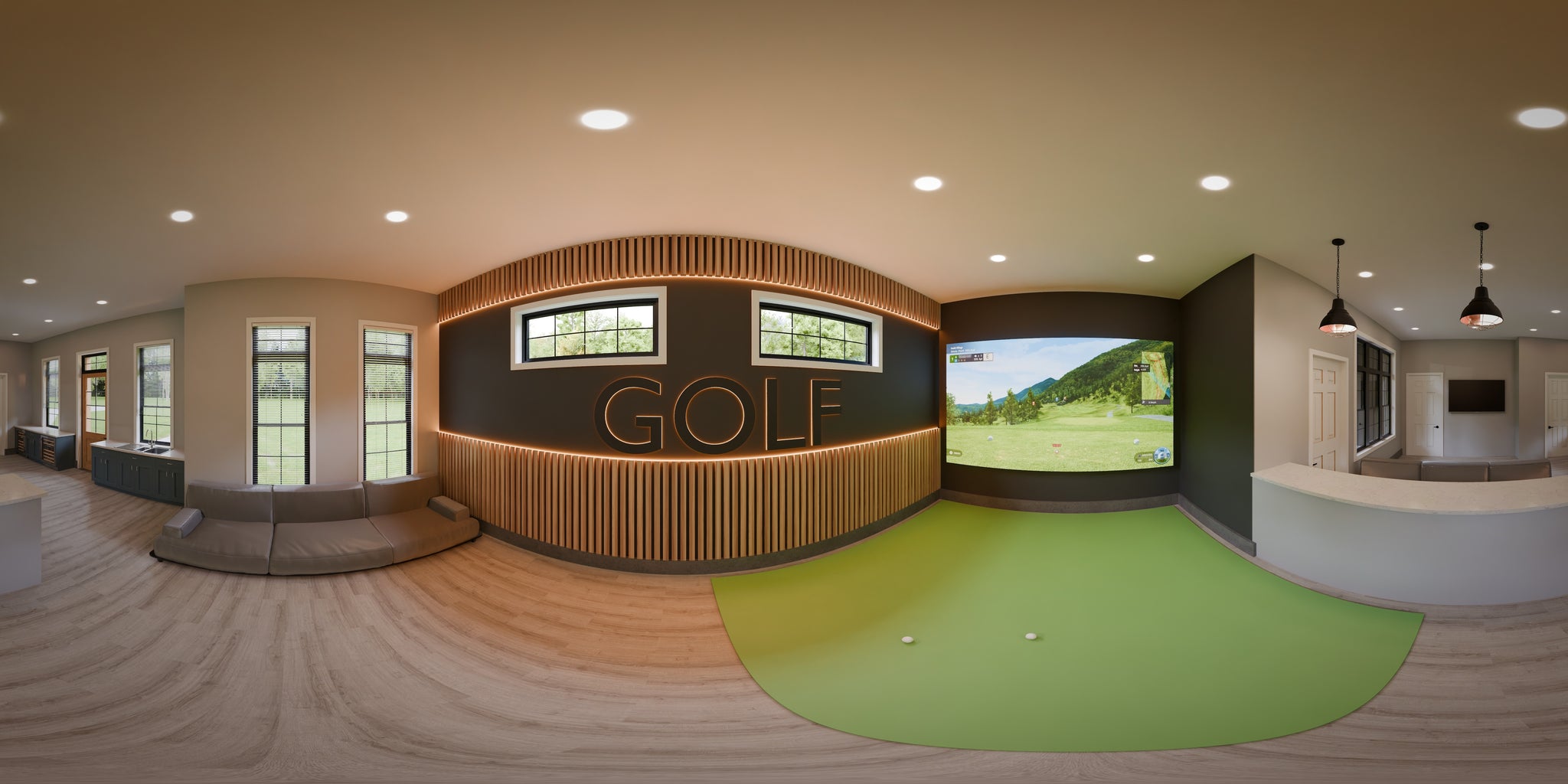

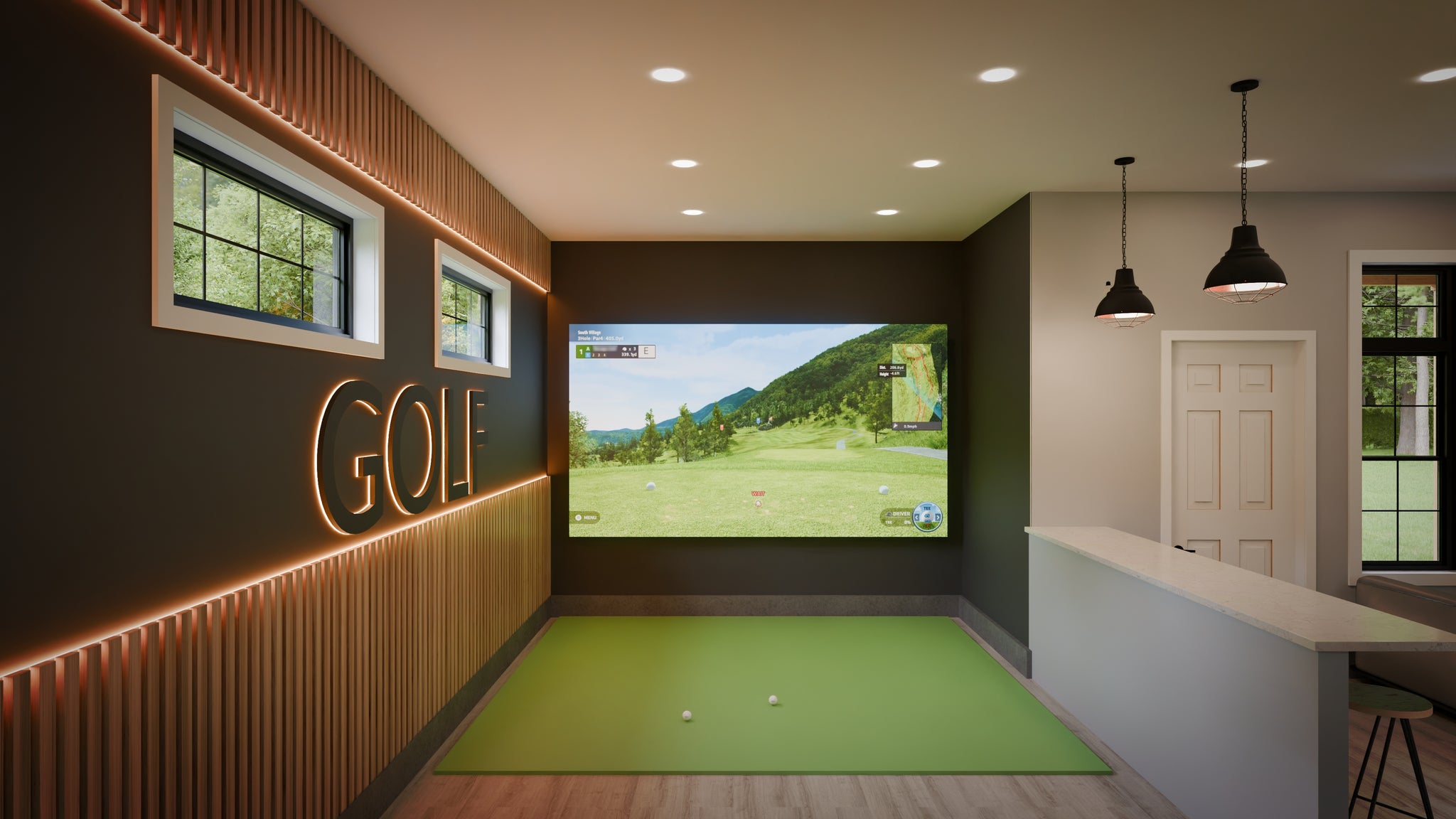

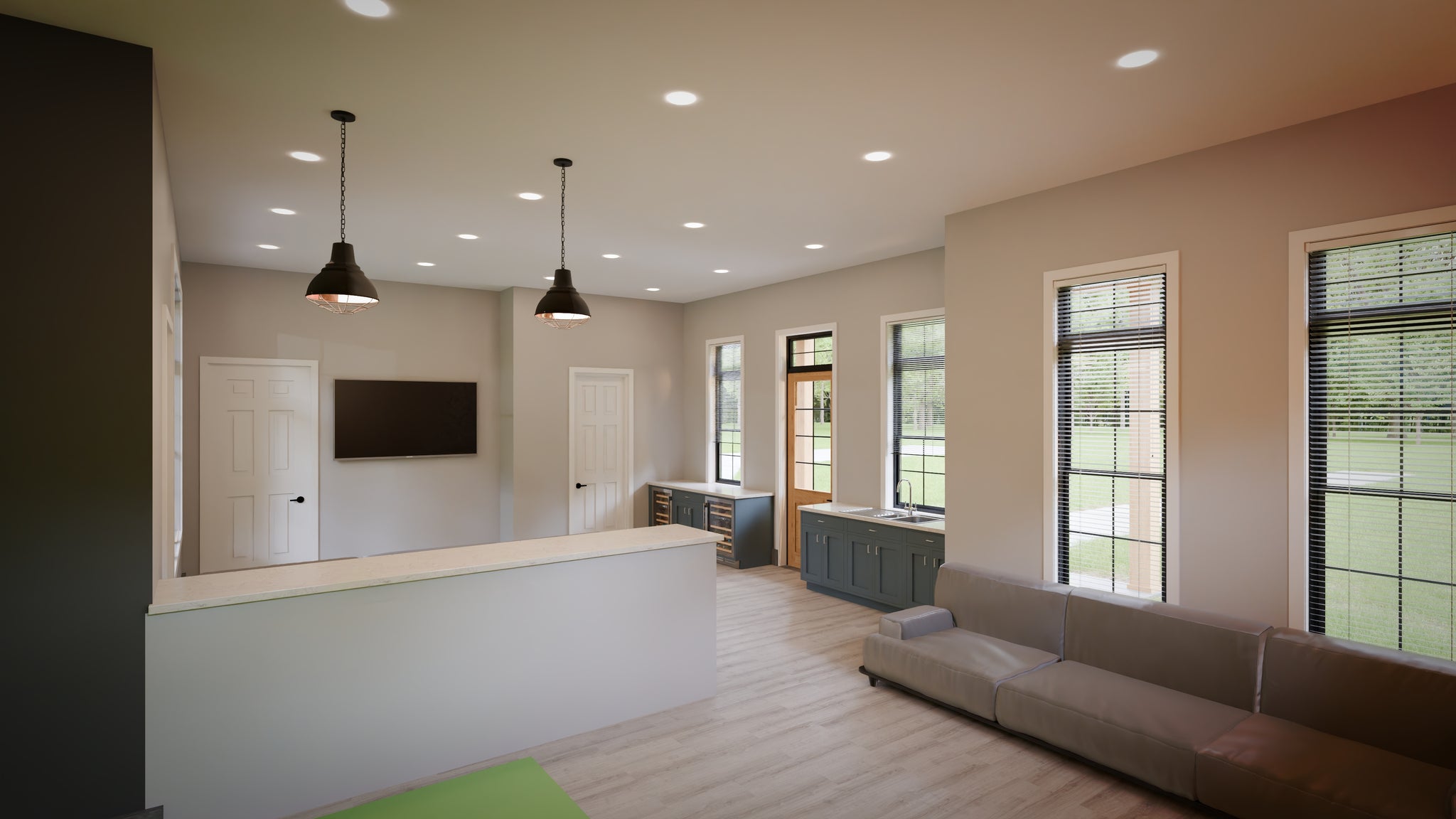

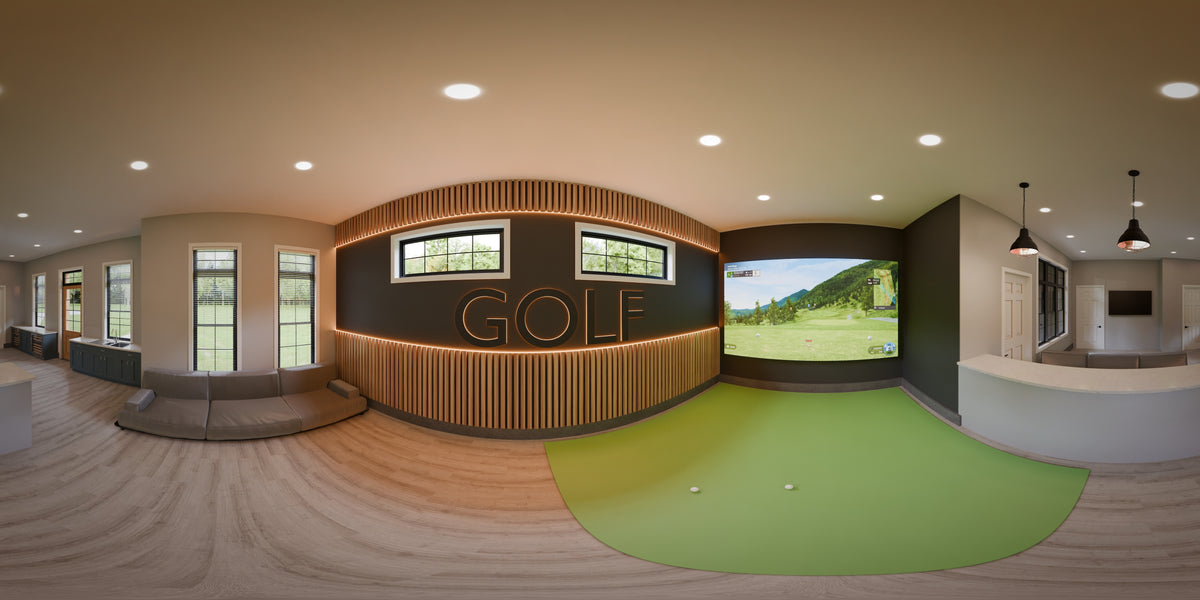

The interior layout prioritizes volume and utility, anchored by 11-foot ceilings that provide an expansive atmosphere within the living zones. The core of the floor plan is designed for multi-purpose use, featuring a dedicated media area and a wet bar that enhances the facility's entertainment capacity. A half bathroom is included to ensure the structure operates as a self-contained unit, reducing the need for constant access to the primary residence.

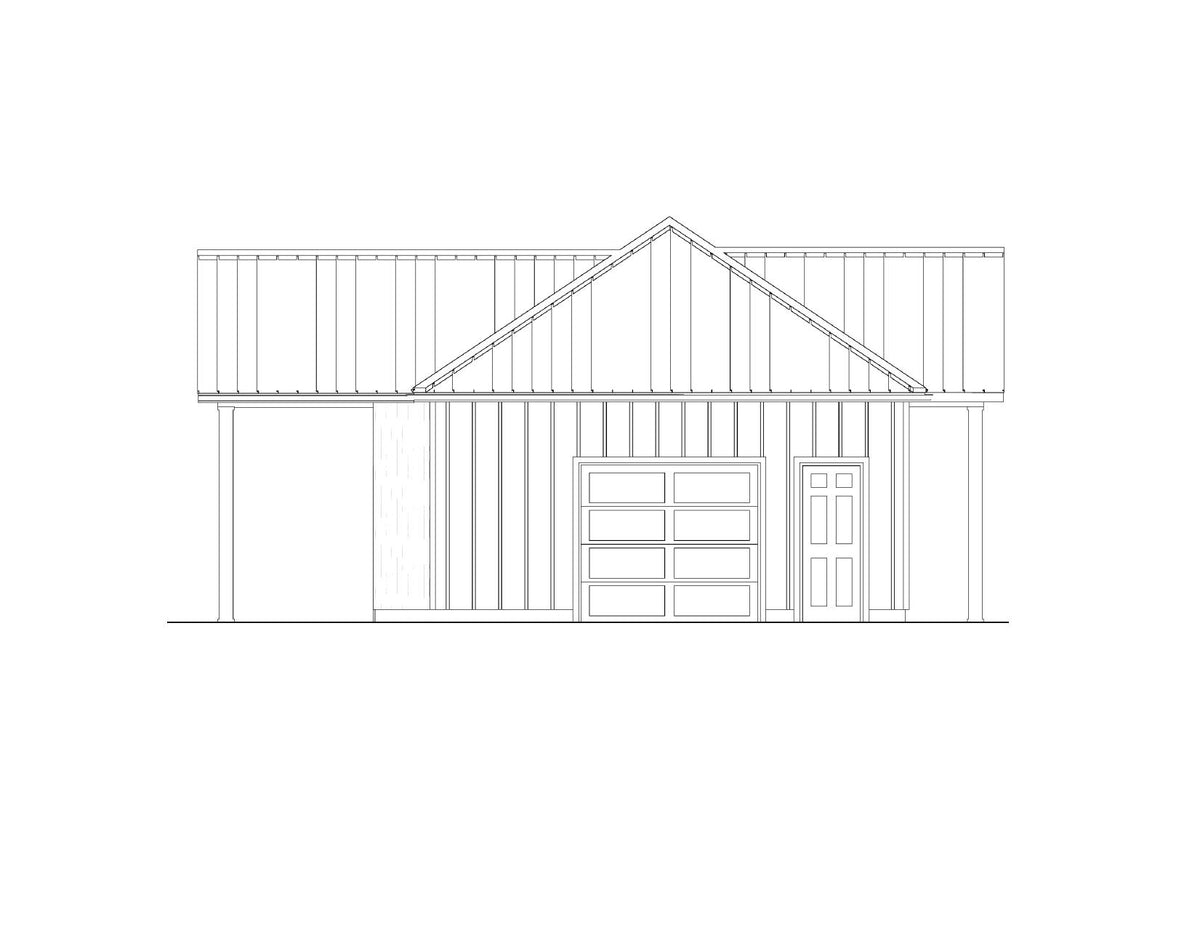

Practicality defines the structural layout, which includes a 221-square-foot workshop, ideal for hobbyists or specialized storage needs. The design utilizes a slab foundation and 2x6 exterior wall framing to ensure long-term durability. A truss-framed roof with an 8:12 pitch defines the building's vertical profile, reaching a maximum height of 20 feet 1 inch, while providing efficient water shedding and a modern aesthetic profile.

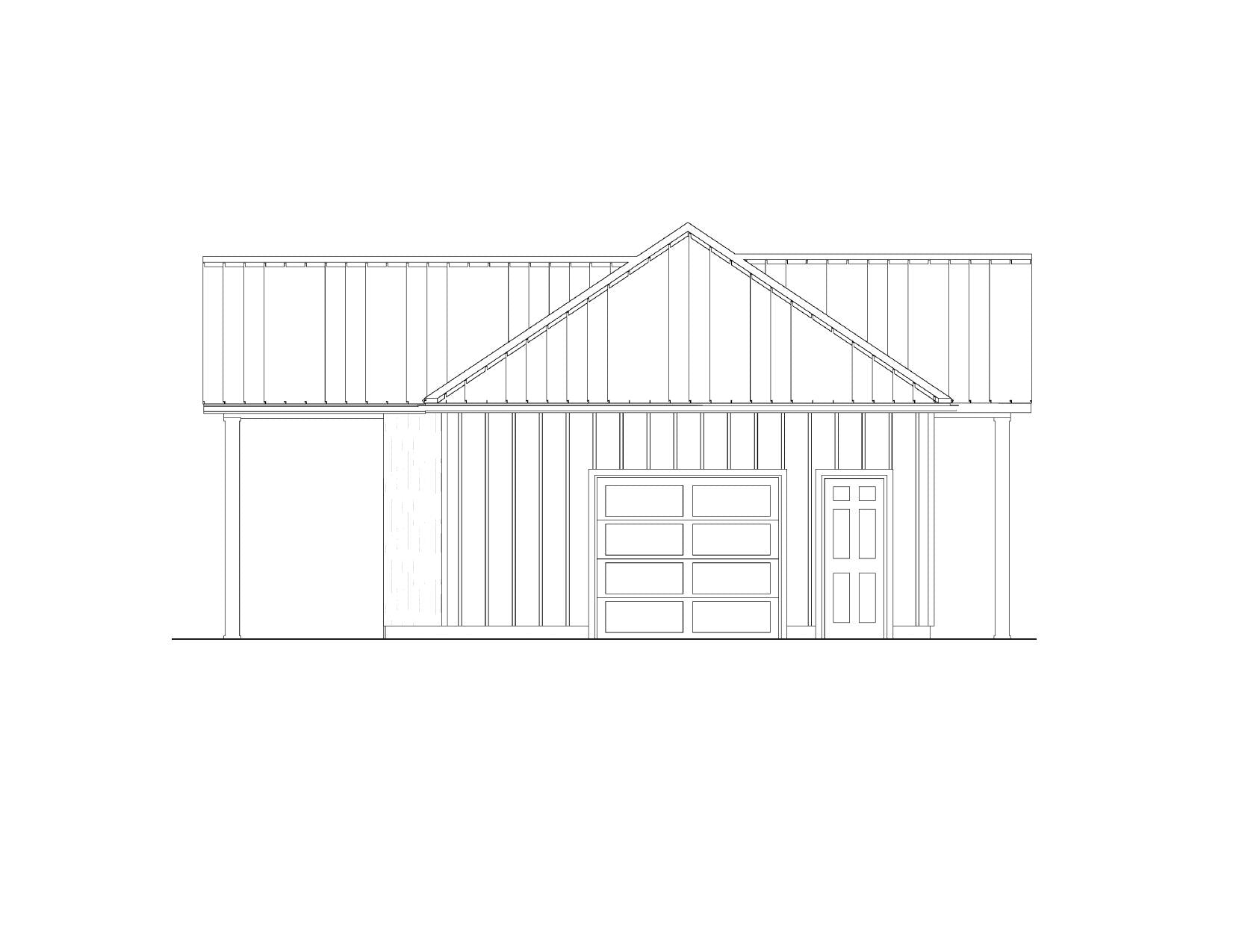

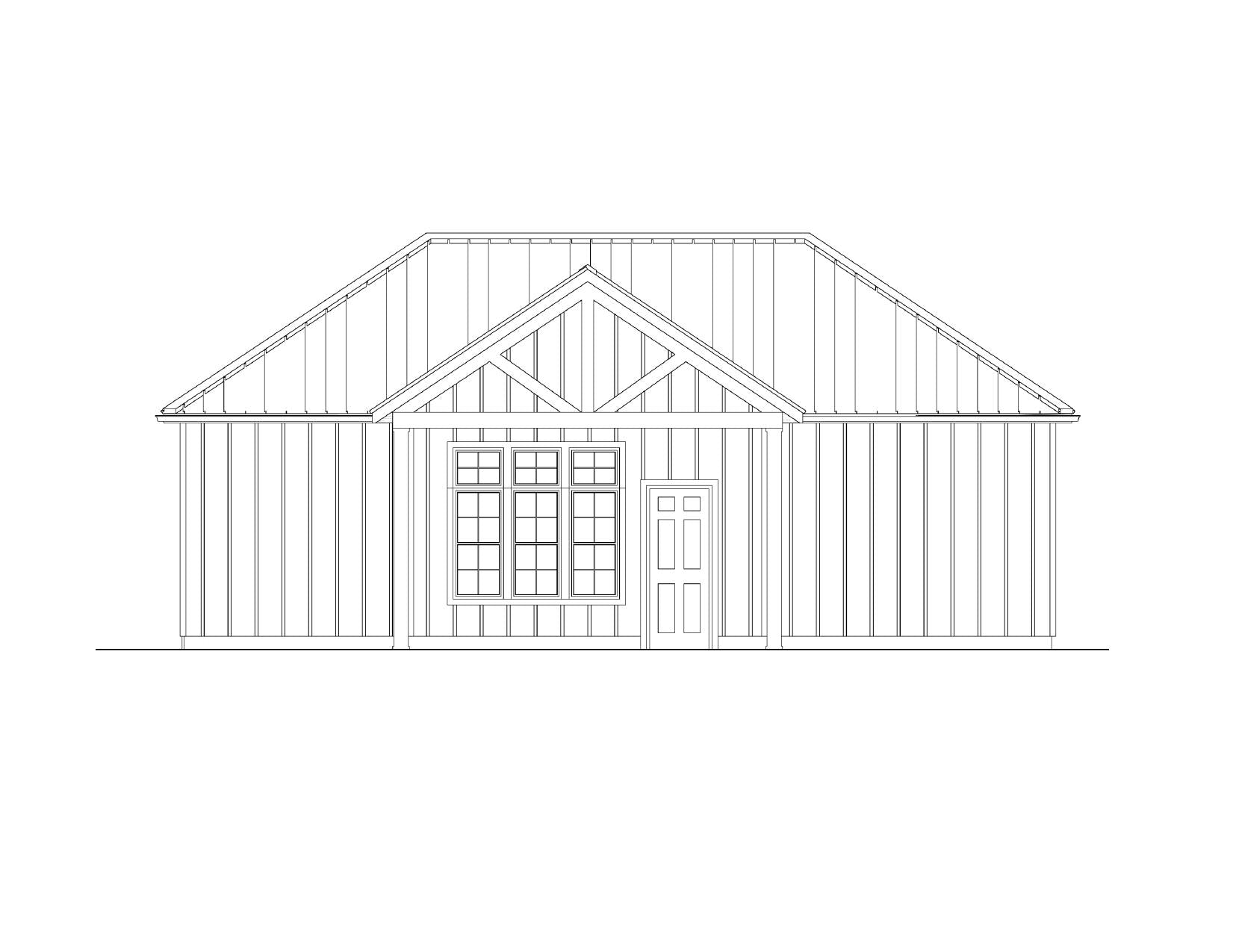

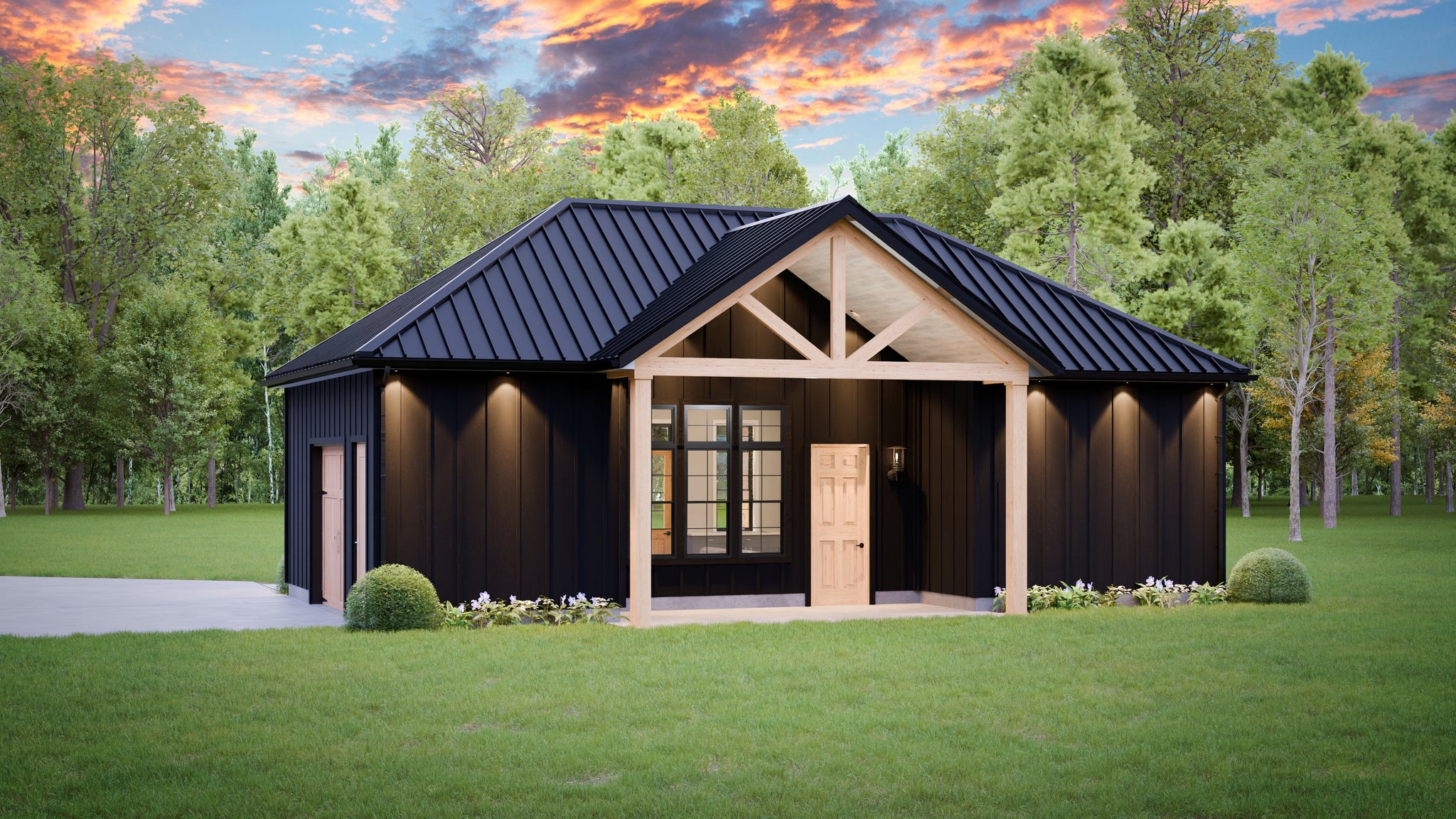

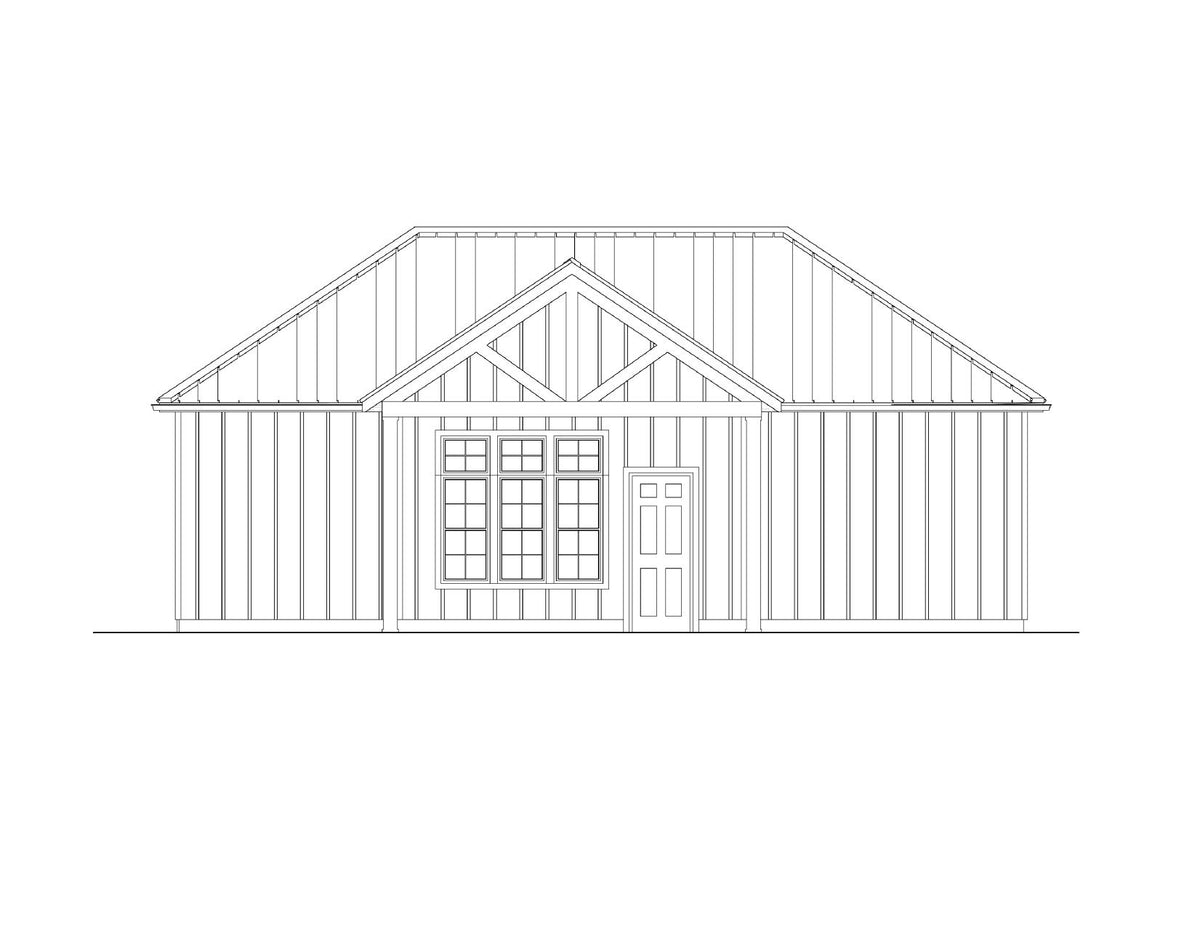

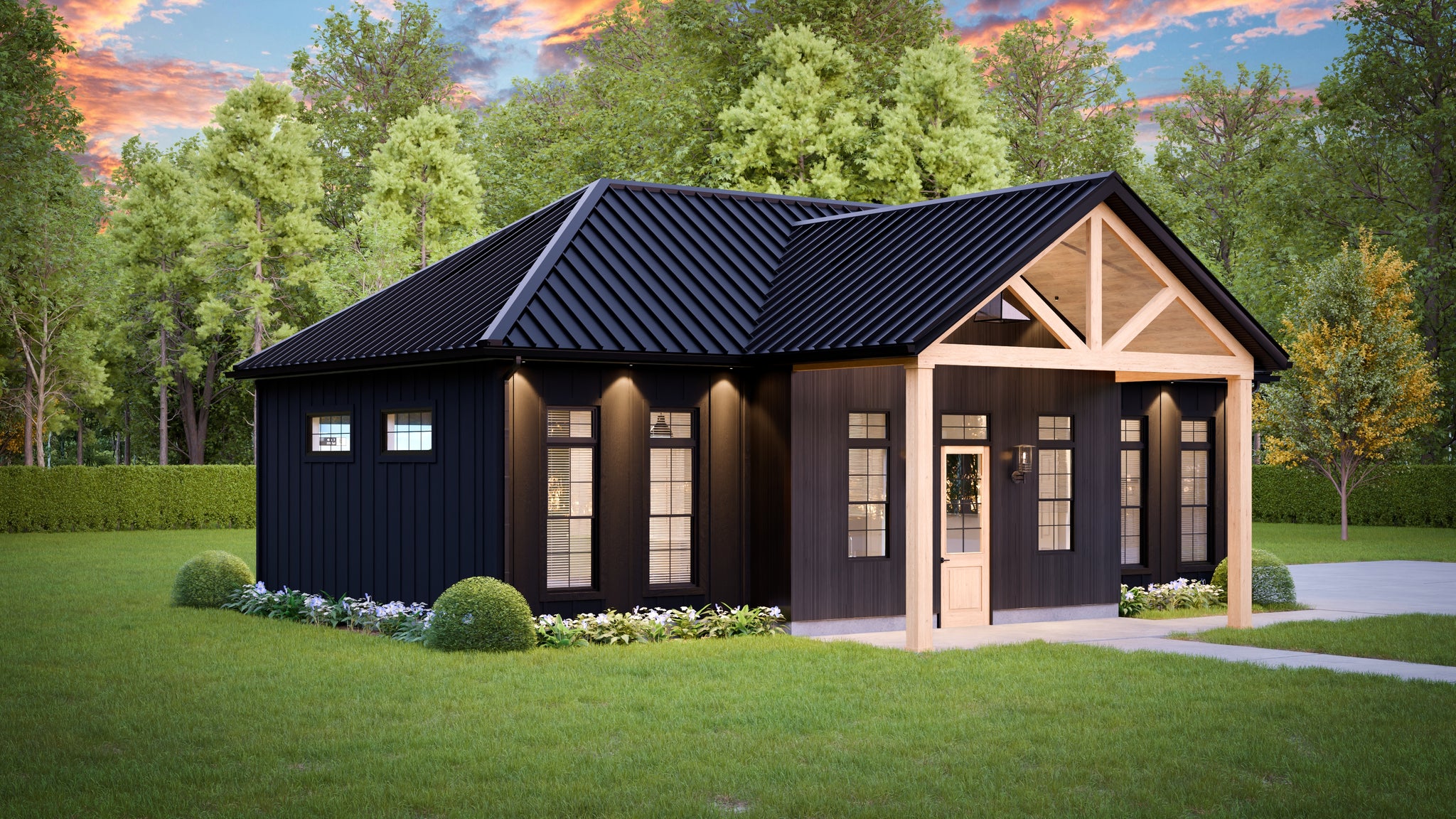

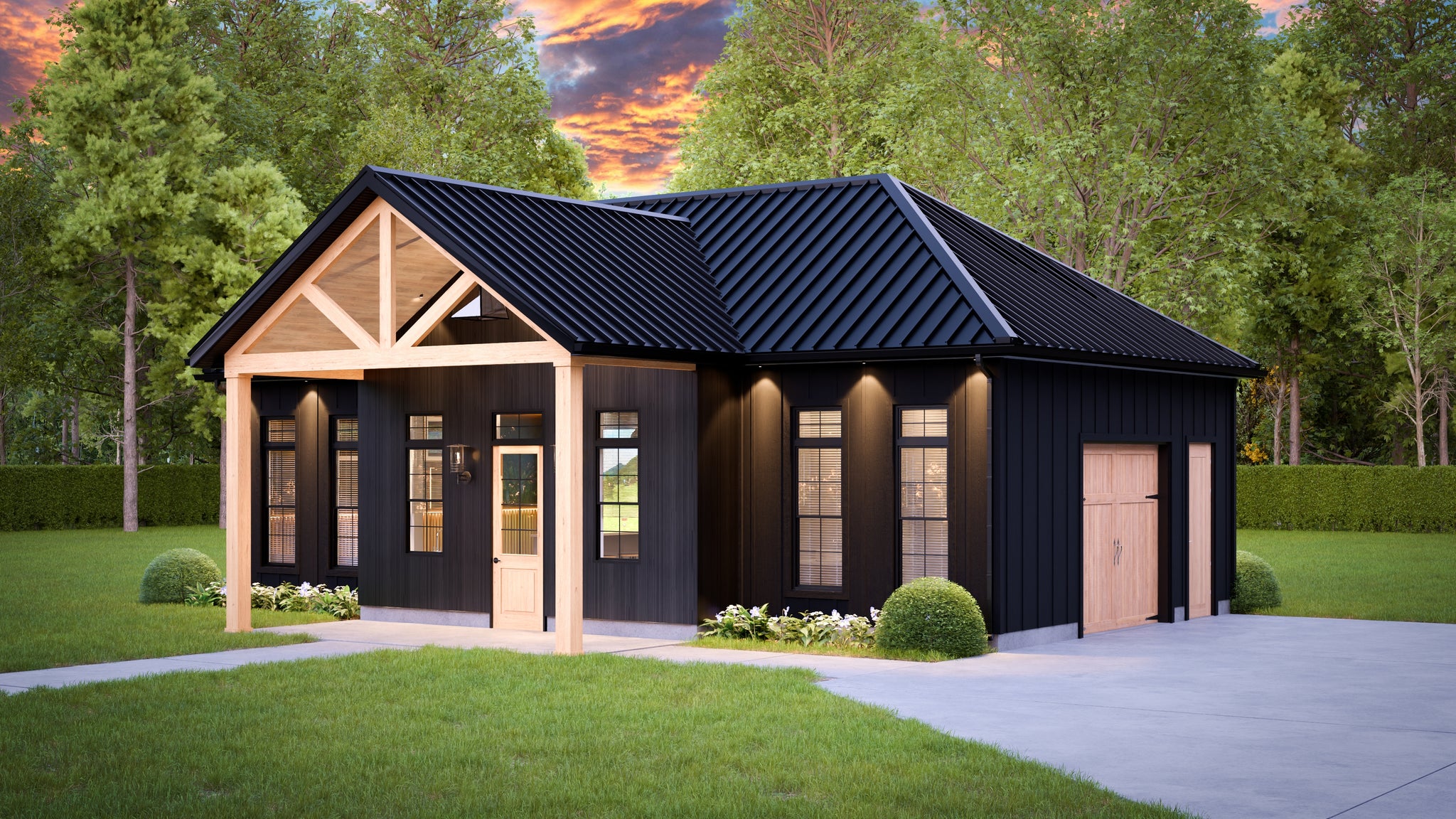

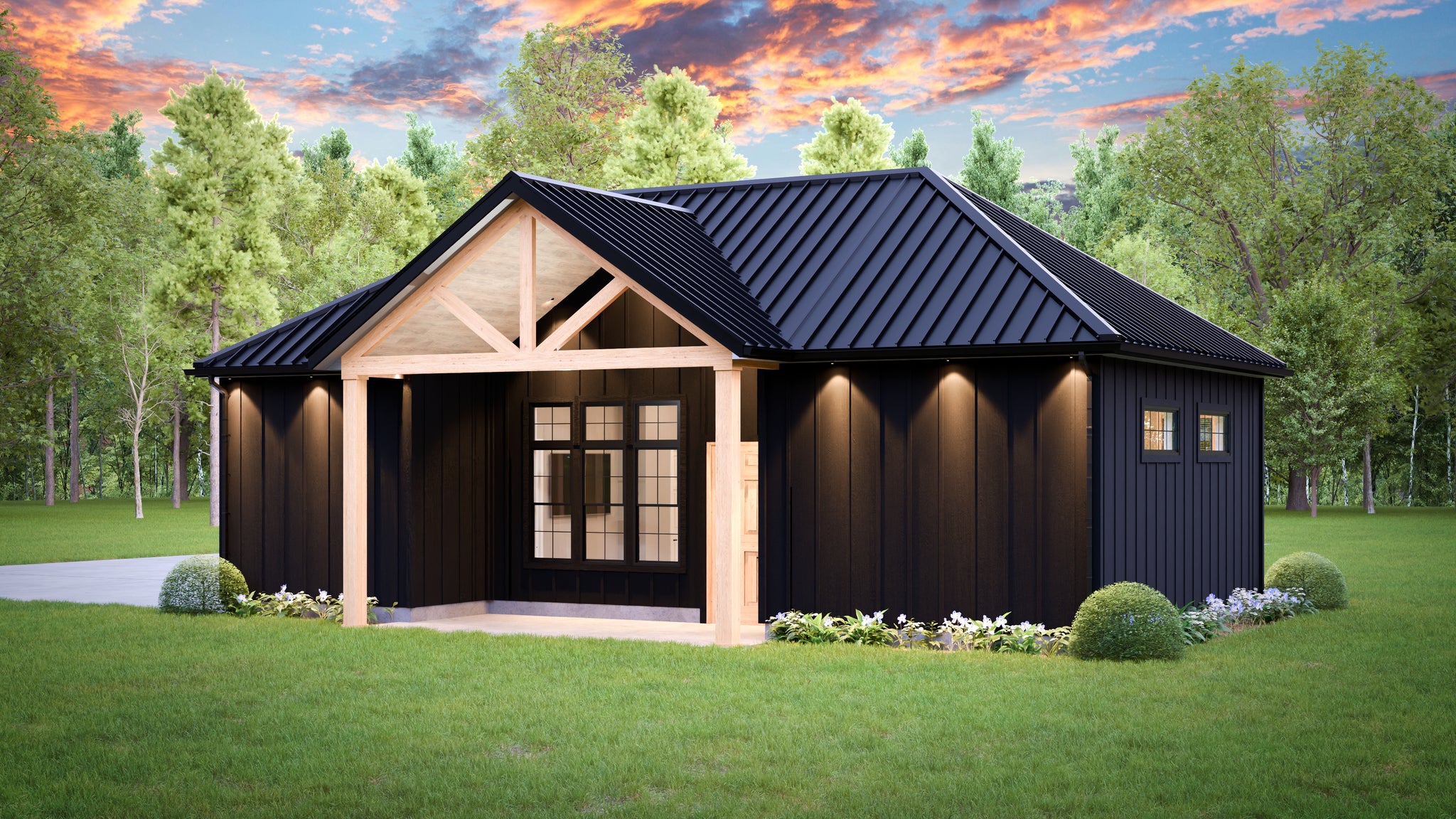

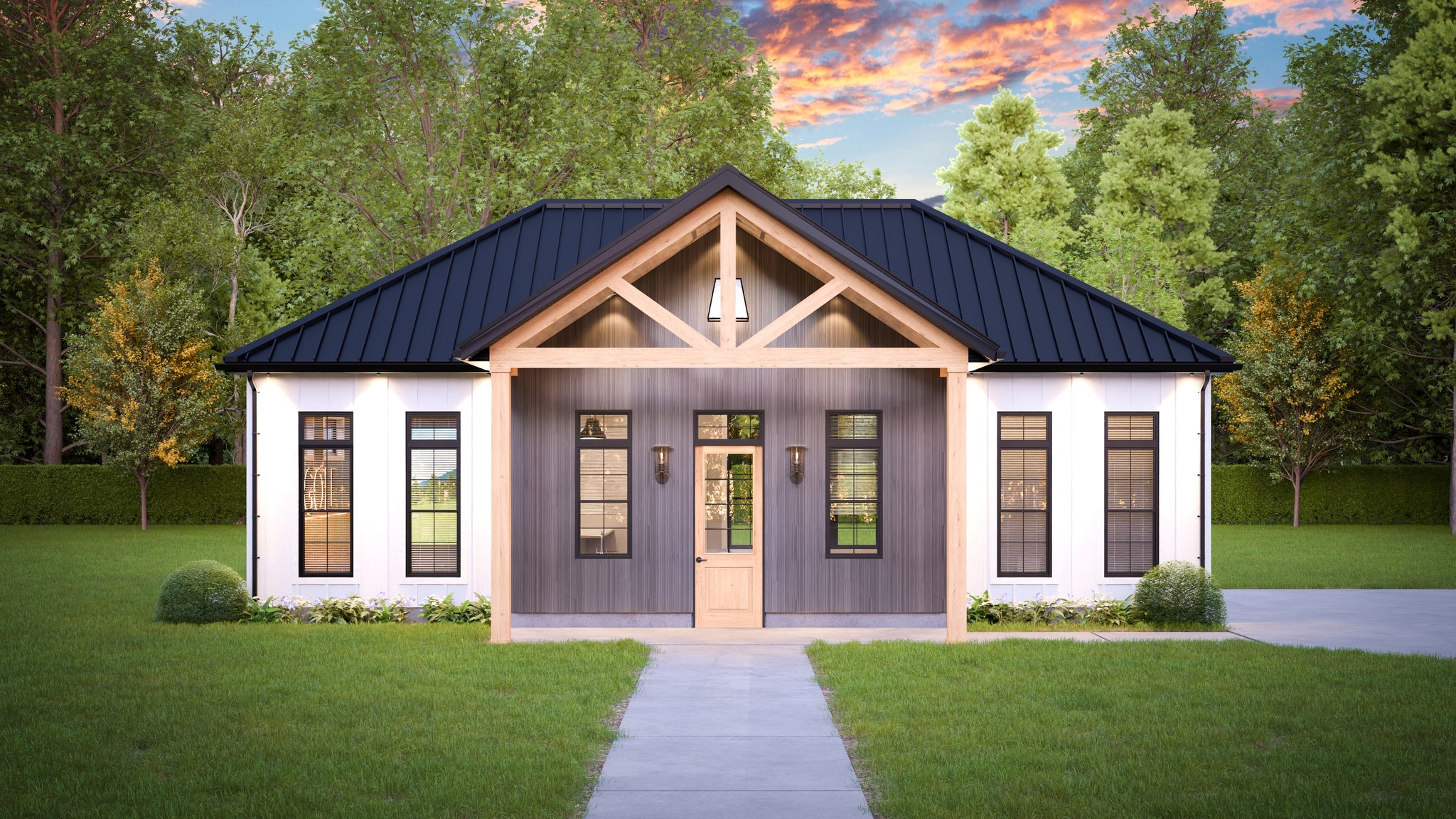

Outdoor connectivity is integrated through two distinct covered zones. The 150-square-foot front porch provides a sheltered entry point, while the 185-square-foot rear porch creates a private transition to the outdoors. A single-car, side-load garage bay (221 sq ft) is incorporated into the structure, ensuring that vehicle storage or equipment maintenance is handled without disrupting the building's front elevation.
Key Features: 758 sq ft heated living area, 1-car side-load garage, dedicated workshop, wet bar, media room, 11-foot ceilings, slab foundation, 8:12 roof pitch, covered front and rear porches, 2x6 wall construction.
