AM8270-A
This thoughtfully designed Mediterranean residence captures the relaxed elegance and enduring appeal of Mediterranean-inspired architecture while offering a practical floor plan tailored to modern family living. Defined by its open interior spaces, strong indoor-outdoor connections, and efficient single-level arrangement, the home combines architectural character with everyday functionality in a manner that reflects both traditional influences and contemporary expectations.

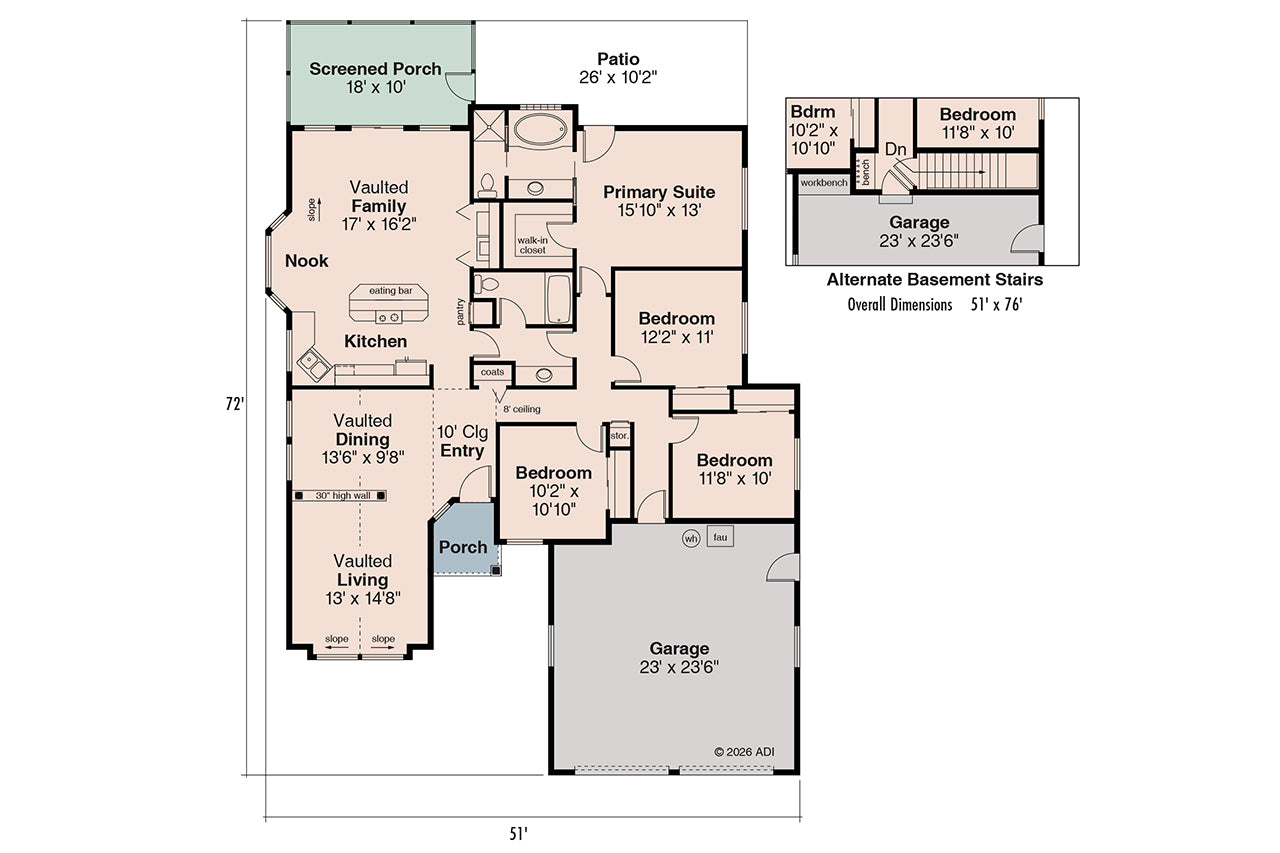

Containing 1,966 square feet of heated living space, the residence is organized entirely on one level, providing convenience, accessibility, and efficient circulation throughout. The structure encompasses approximately 2,567 total square feet under roof, including a two-car garage, screened porch, patio, and covered entry. Measuring 51 feet wide by 72 feet deep, the home presents a balanced footprint suitable for a variety of suburban, coastal, and warm-climate homesites.

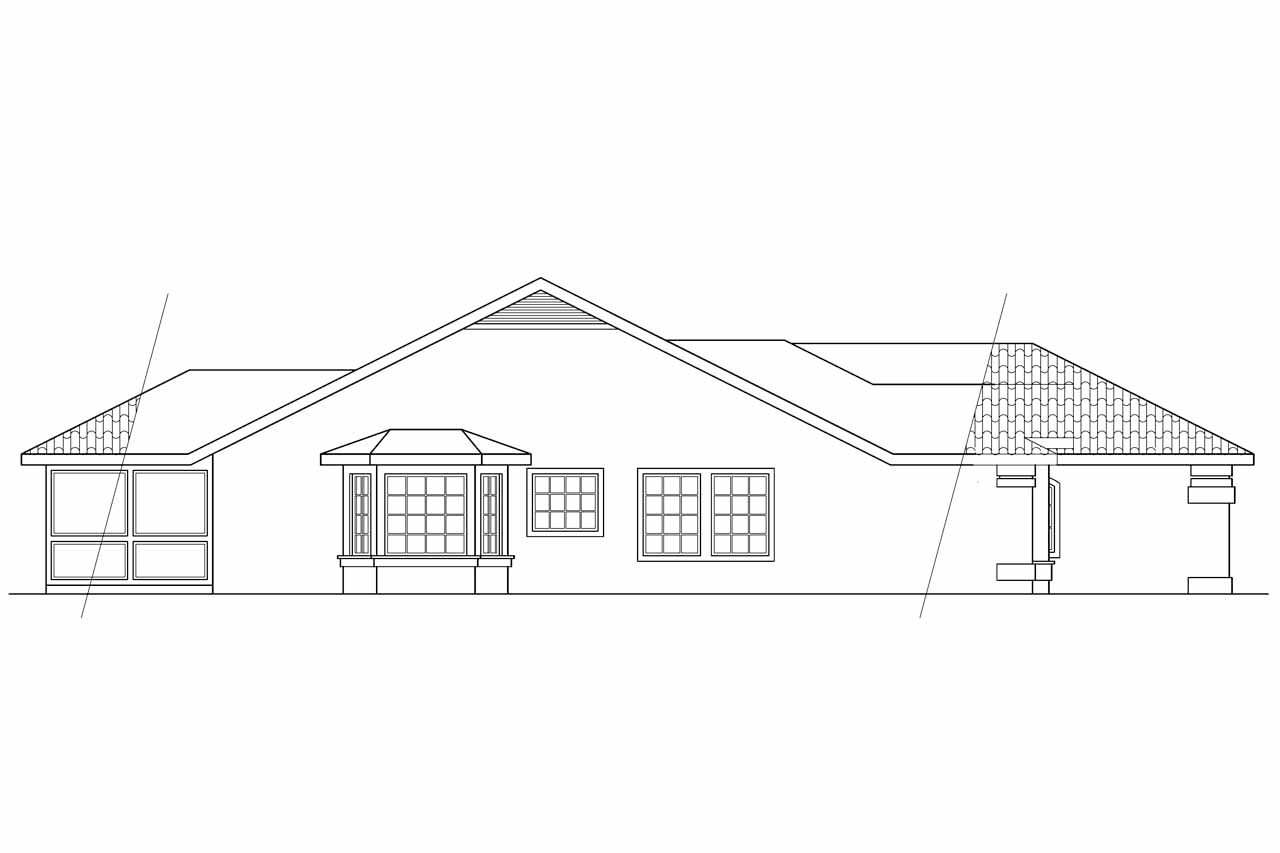

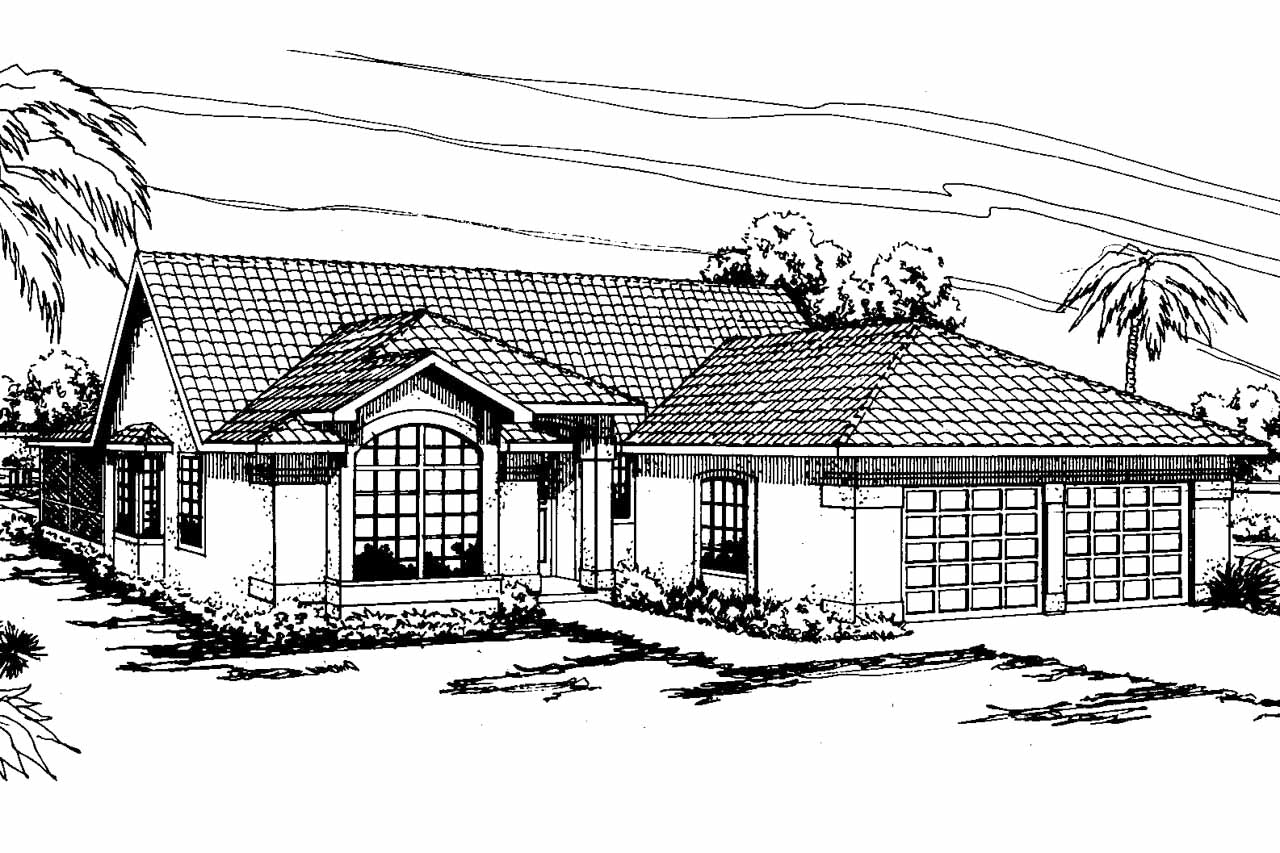

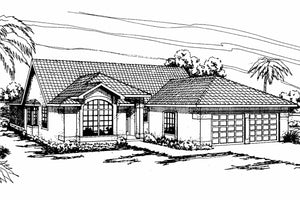

The exterior architecture draws inspiration from classic Mediterranean design traditions, featuring a low-profile roof with a 6:12 pitch, stucco exterior finishes, and a horizontal emphasis that complements the surrounding landscape. Constructed on a slab foundation with durable 2x6 exterior wall framing, the home combines long-term structural performance with the timeless visual qualities associated with Mediterranean residences. The modest building height of 19 feet 4 inches reinforces its approachable scale while maintaining architectural presence.
A covered front porch introduces visitors to the home and provides a welcoming transition between exterior and interior spaces. Upon entering, guests are greeted by an open arrangement of vaulted living areas that immediately create a sense of spaciousness and light. The combination of vaulted ceilings and carefully organized sightlines enhances the perceived scale of the home while contributing to its inviting atmosphere.
The living room and formal dining area occupy prominent positions near the front of the residence. Both spaces feature vaulted ceilings that establish architectural distinction and reinforce the open character of the design. The dining room serves as an elegant setting for family meals and special occasions, while the living room offers a comfortable environment for entertaining and relaxation.
Beyond these formal spaces, the home opens into a large family room that functions as the primary gathering area. With its vaulted ceiling and direct connection to the kitchen and outdoor living spaces, the family room creates a welcoming environment for everyday activities. This central space reflects the Mediterranean tradition of bringing people together through shared living environments that encourage conversation and connection.
The kitchen is thoughtfully designed as both a workspace and social hub. A central island provides additional preparation space, while the eating bar offers casual seating for family members and guests. A nearby breakfast nook creates a bright setting for informal meals and morning gatherings. A convenient wall pantry enhances organization and storage, ensuring efficient kitchen operation.
One of the home's most appealing features is its emphasis on indoor-outdoor living. The family room opens directly to a spacious screened porch encompassing approximately 179 square feet, creating a comfortable environment for year-round enjoyment while offering protection from insects and the elements. Beyond the screened porch, a generous patio extends outdoor entertaining opportunities and provides ample space for dining, relaxation, and recreation.
The private owner's suite is positioned for comfort and privacy. Featuring a spacious bedroom, walk-in closet, and private bath, the suite serves as a peaceful retreat within the home. The adjoining bath is designed to support daily convenience while maintaining the comfort expected in a primary suite.
Three additional bedrooms provide flexibility for family members, guests, or home office needs. These rooms share access to a secondary bathroom and are thoughtfully arranged to maintain privacy while remaining connected to the home's central living spaces.
The attached front-entry two-car garage contains approximately 564 square feet and offers convenient vehicle storage along with additional space for household equipment and seasonal items.
Combining the warmth of Mediterranean-inspired architecture with an efficient single-story layout, this residence offers a harmonious blend of style and practicality. Its vaulted living spaces, private owner's suite, screened porch, expansive patio, and open-concept gathering areas create a home designed to support comfortable family living while celebrating the relaxed lifestyle associated with Mediterranean design traditions.



PDF (Single Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
CAD + PDF (Single Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
5 or 8 Prints (Single Build)
Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.
5 Prints + PDF (Single Build)
Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
PDF (Multi Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
CAD + PDF (Multi Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.
Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.
Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.
Basement - This foundation is entirely or partially below ground and offers storage or living areas.
Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.
