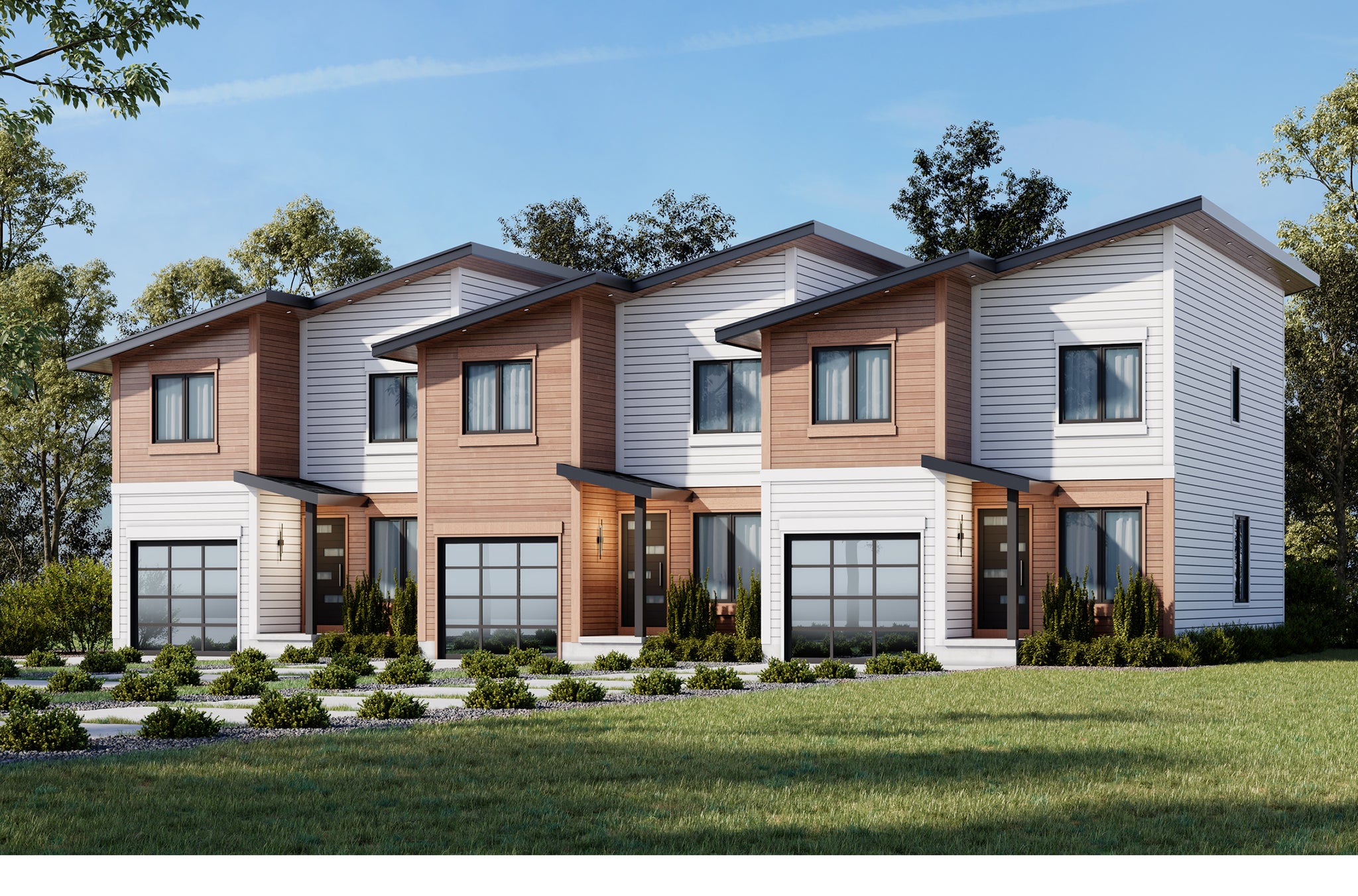

Mcadoo Springs Triplex 29453 is a modern multi-family structure totaling 3,831 square feet of heated living space. Designed with a 66-foot width and 38-foot depth, this triplex configuration maximizes lot utilization by providing three side-by-side units. Each unit offers a consistent footprint, balancing private residential needs with efficient land use, making it an ideal choice for rental investment or multi-generational living arrangements.

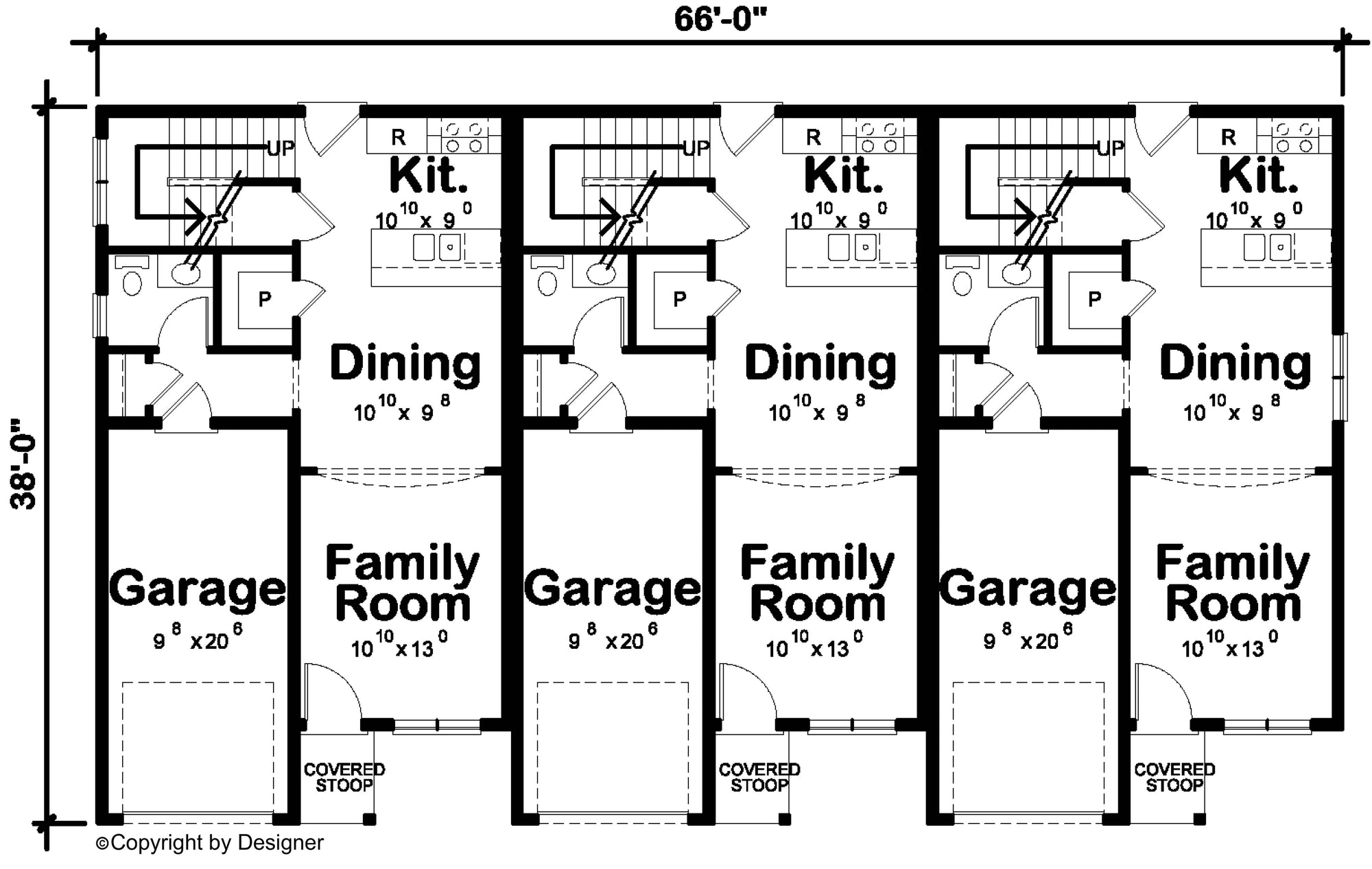

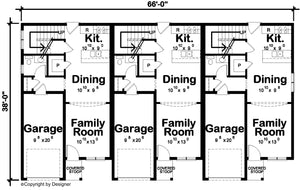

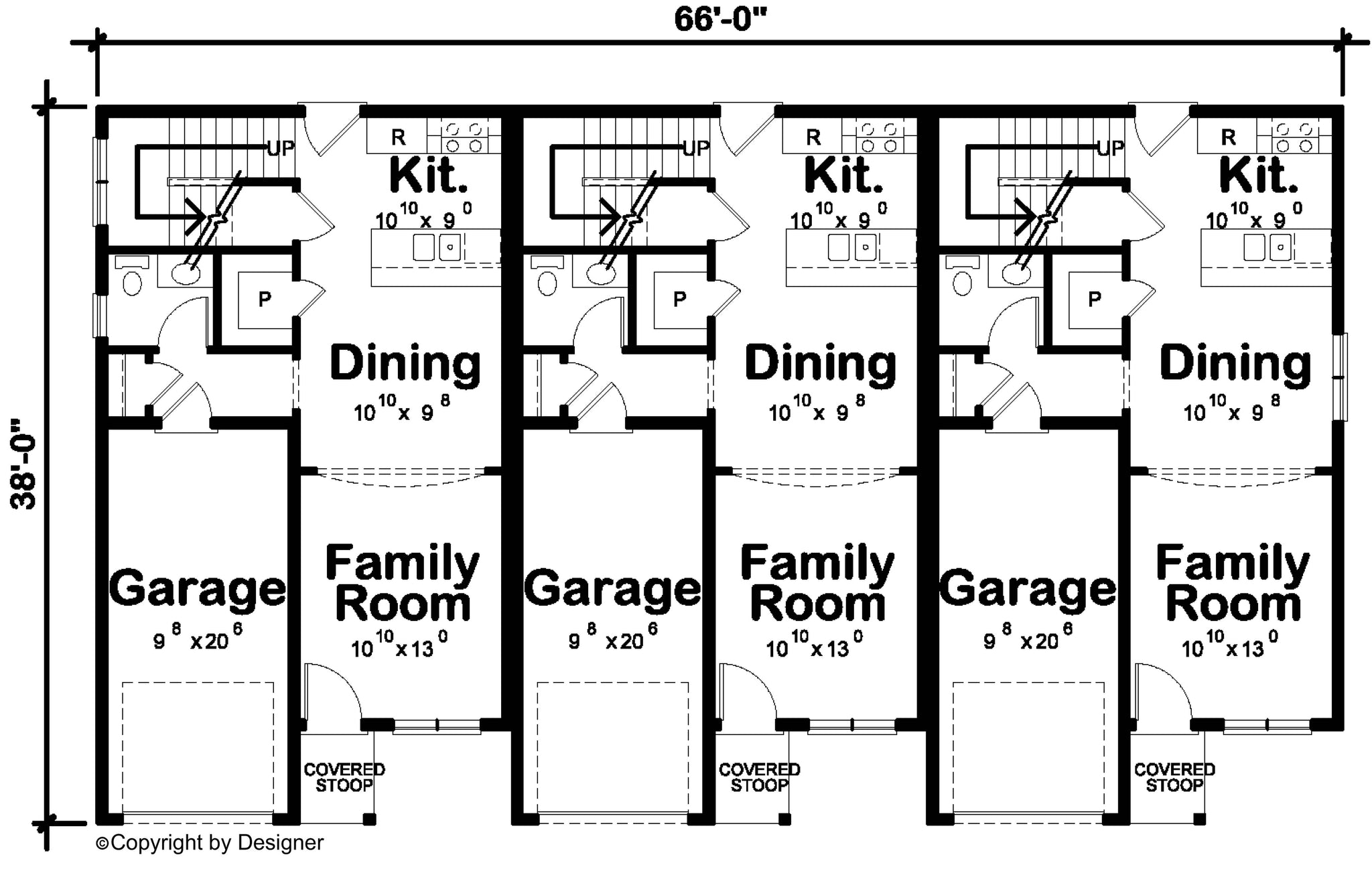

The main level of each unit spans 1,686 square feet total across the triplex, featuring an open-concept core centered on a kitchen island with an integrated snack bar and a walk-in pantry. An 8-foot-wide arched opening transitions between the kitchen and the family room, maintaining sightlines while providing spatial definition. A half bathroom is located on the first floor for guest access, and 9-foot ceilings enhance the vertical volume of the primary gathering areas.

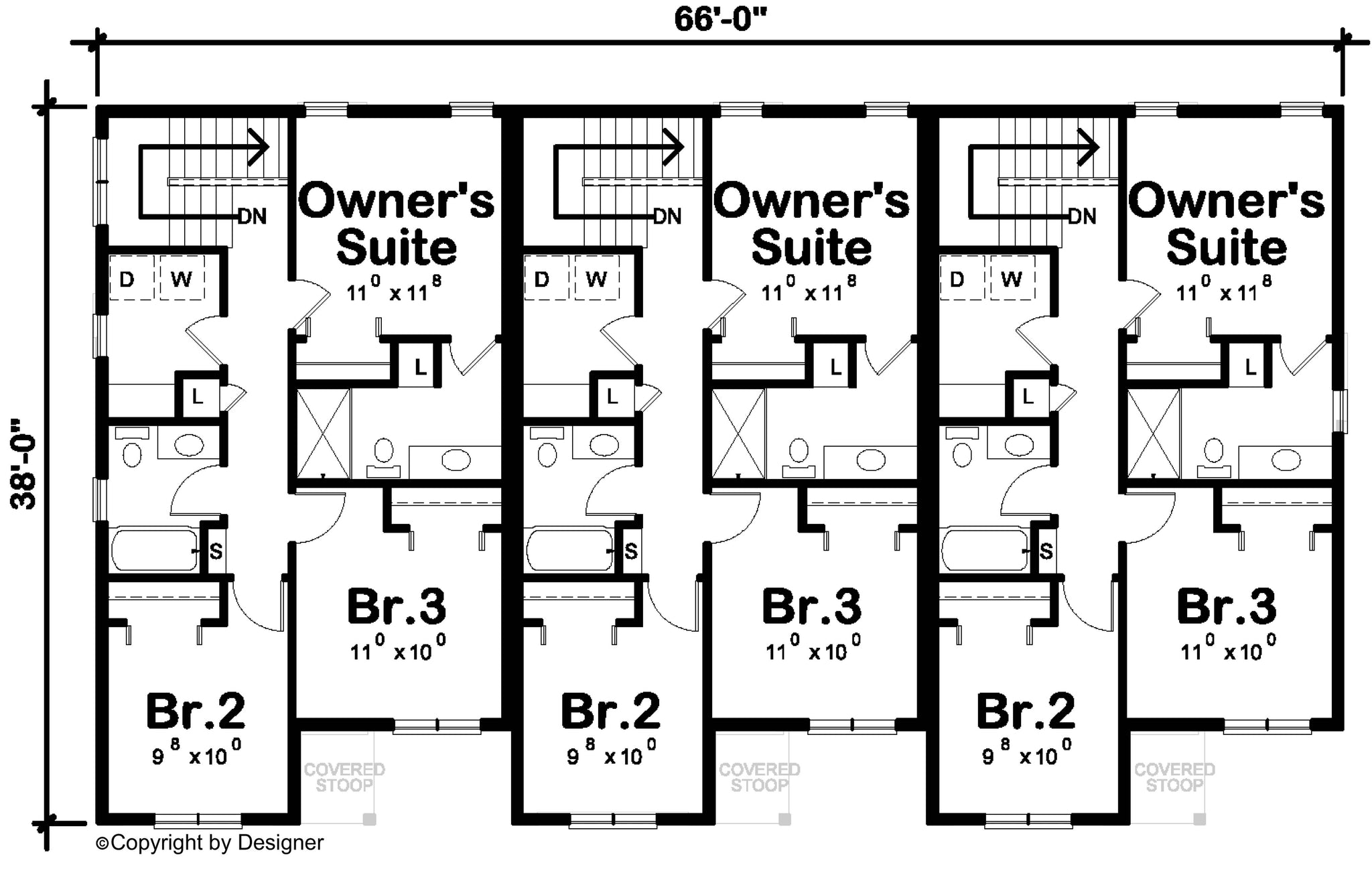

With 2,145 square feet allocated to the second floor, the layout incorporates three bedrooms and two full bathrooms per unit, including a dedicated owner’s suite equipped with a 5-foot shower. The inclusion of second-floor laundry rooms reduces traffic to the main level, while 8-foot ceiling heights maintain a comfortable scale in private quarters. The use of 32-inch interior doors throughout ensures accessibility and consistent flow within the residential units.

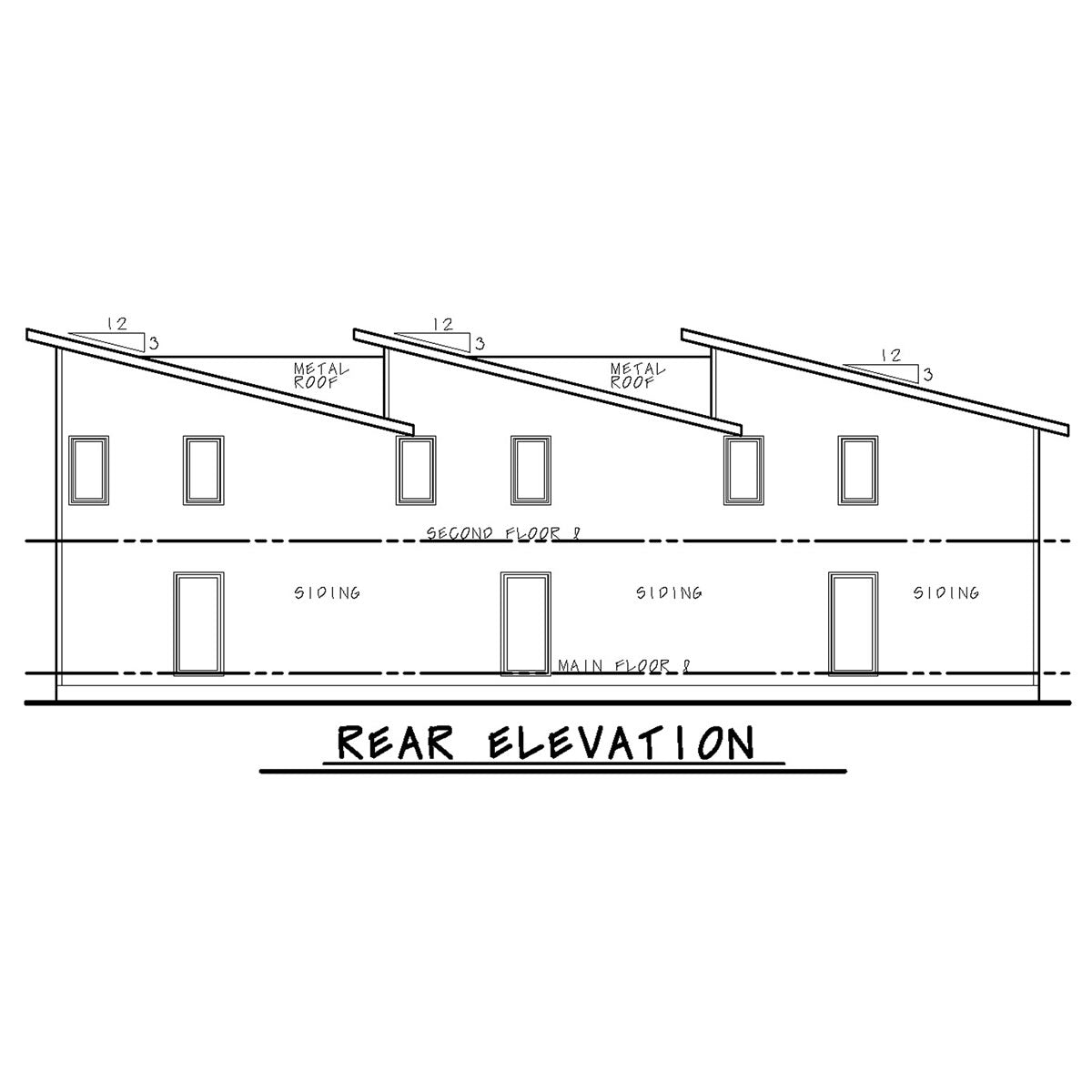

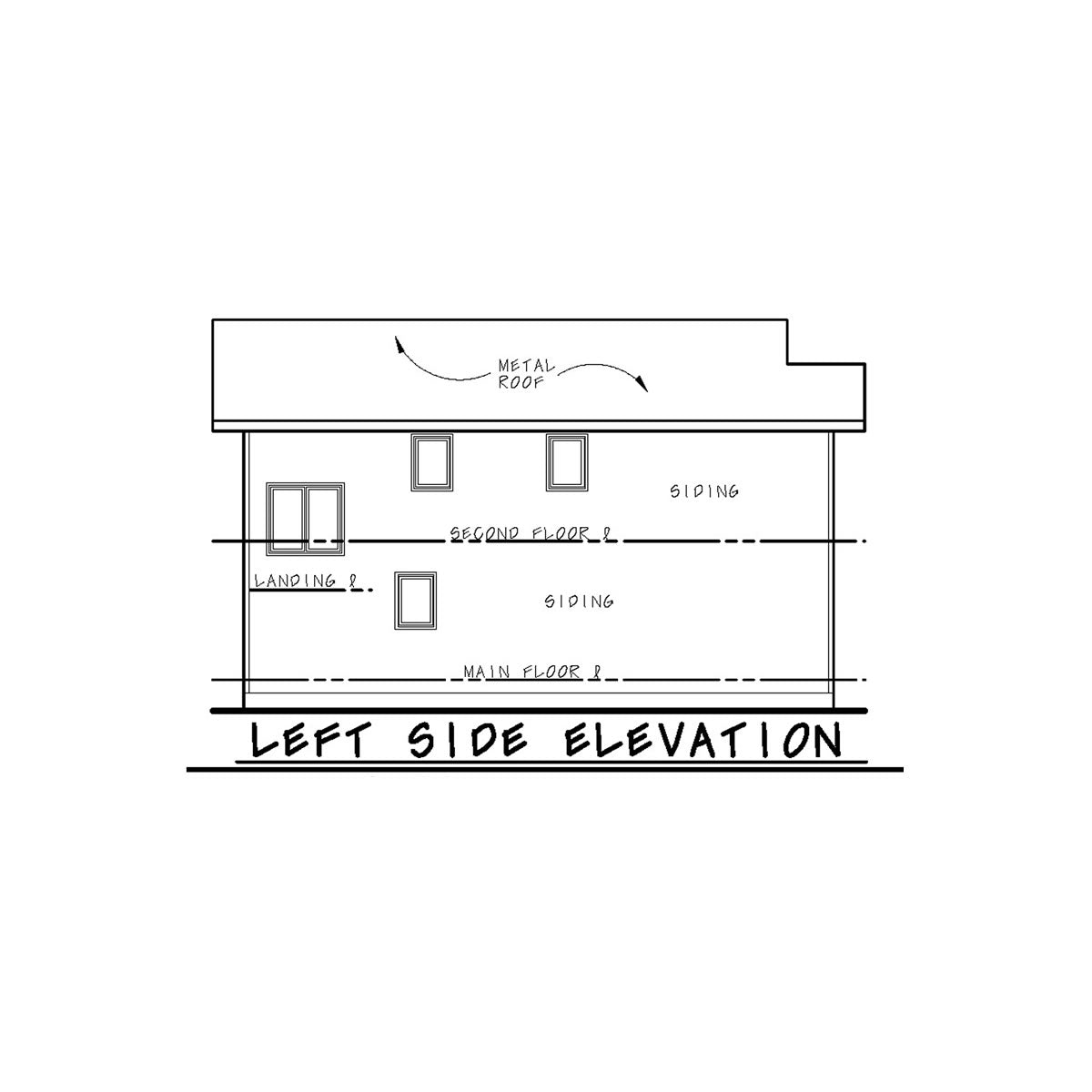

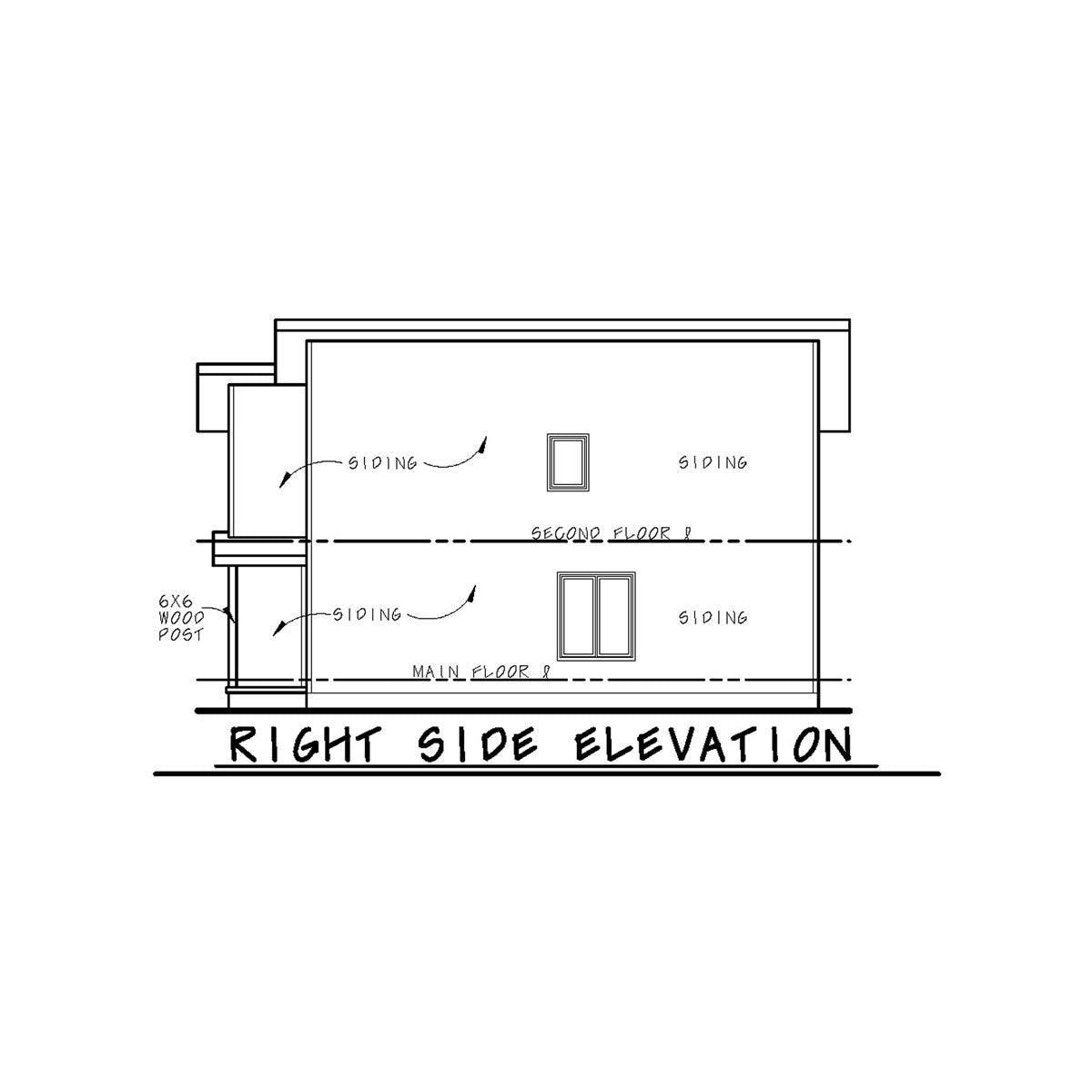

Construction details include a 3:12 roof pitch and a maximum building height of 25 feet 3 inches, providing a contemporary profile. Each unit features a one-car attached garage, contributing to a total garage footprint of 651 square feet. Optional basement foundations are available to increase storage or living capacity, allowing for site-specific customization based on local topography and foundation requirements.
Key Features: 3-unit triplex, 3,831 total sq ft, 3 bedrooms per unit, 6 full bathrooms, 3 half bathrooms, 3-car total garage, 9-foot main level ceilings, walk-in pantry, kitchen snack bar, owner’s suite with 5-foot shower, 3:12 roof pitch.
