Floor Plan

This spectacular luxury house plan blends luxury and elegance in a contemporary format on three levels; a first floor plan, a second floor plan, and a lower level floor plan. Its sleek lines, stucco facade, large windows, and two-story covered entry with front entry door ornate embellished glass windows and warming coach lights will always welcome you home. The grand entry is flanked by a formal living room and elegant dining room, both with dramatic marble fireplaces and a wall of windows. The wide sweeping staircase with ornamental wrought iron railing leads to the second floor and catches your eye as you walk into this luxury house plan. It is adjacent to the elegant traditional, lodge-inspired study through large decorative columns with floor-to-ceiling windows, built ins and a computer room.

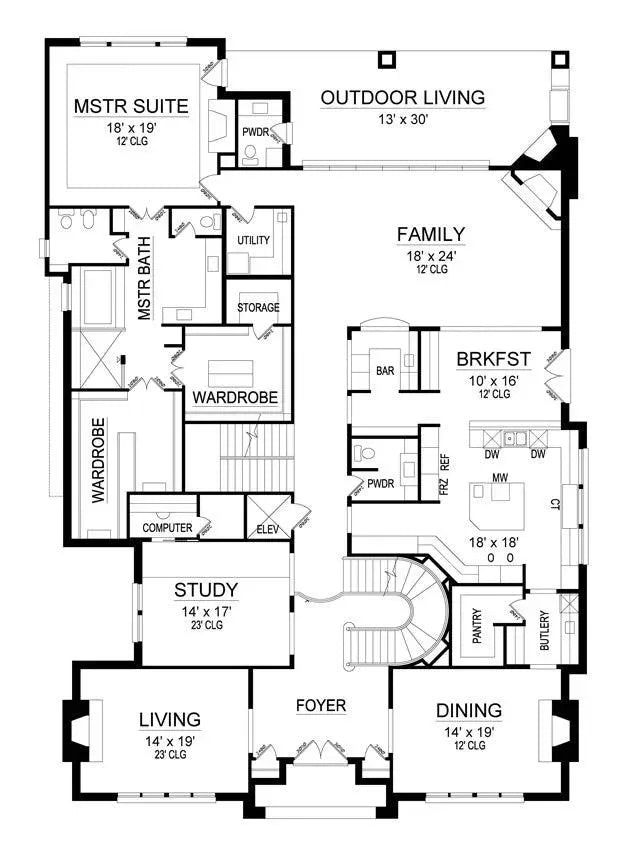

Beyond the study is an elevator for ease in going upstairs, especially wonderful for your in-laws. The master suite boasts a fireplace, trey ceiling, access to the outdoor living area, and a luxurious master bath with his and hers vanities, glass shower and marble tub, and a water closet with toilet and bidet. Two wardrobes offer built-in mirrors, seats, drawers, storage behind glass doors, shelves, and a storage room which could double as a safe room.

Outside the master suite is a powder room and utility room. Beyond the elegant dining room is a butlery and pantry, making meal prep for dinners an ease. The gourmet kitchen has a pantry, granite countertops, a free-standing center island, modern, state-of-the-art appliances, pendant lighting, and plenty of windows. The breakfast room is seamlessly separated from the kitchen by a breakfast bar, offering an open area, perfect for entertaining while doing meal prep. The family room is open into the breakfast room with a corner fireplace, built-in bar area with granite counter tops and a wet bar. A wall of windows for the light to stream through leads to the outdoor living area with a powder room. Outdoors, columns rise to the cornices and fans give a southern flair of comfort for dining al fresco.

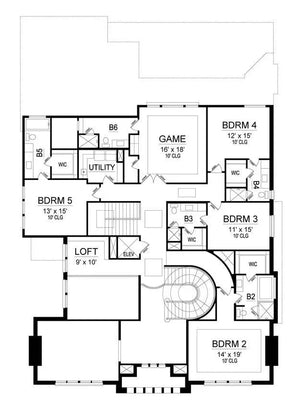

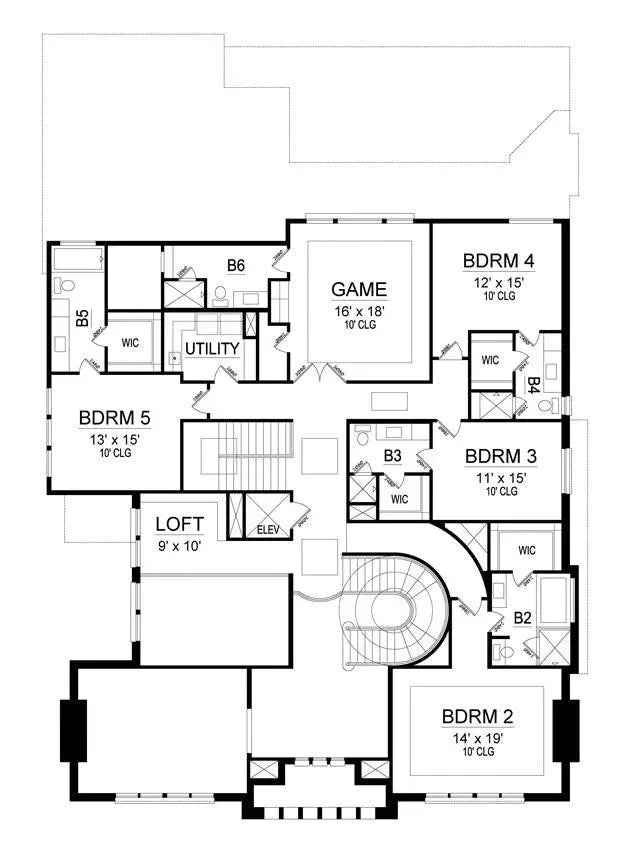

Upstairs, four bedrooms, each with a full bath and walk-in closet share space with a loft, utility room, and game room with trey ceiling and bathroom. There are three ways to get between floors; sweeping wide stairs from the grand foyer to the loft upstairs, the elevator centrally located, and the steps in the rear going between the study and master suite downstairs to the lower level, and upstairs on the second story near the game room and one of the bedrooms. The lower level features a media room, wine room and bar, a powder room, a one and three-car finished garage with work area, and an equipment storage



Key Benefits:
  • Contemporary Elegance: The Madison Avenue House Plan (F580-A) showcases a sleek and modern design perfect for urban living.
  • Spacious Living Areas: The open floor plan allows for seamless flow between rooms, ideal for entertaining.
  • Master Suite Luxury: The master suite provides a private retreat with a spa-like bathroom.
  • Outdoor Spaces: Includes covered porches and balconies that extend the living area outdoors, perfect for relaxation and entertaining.
  • Flexible Living Options: Offers a bonus room that can be customized for various uses, such as a home office or guest suite.
  • Square footage: 7918.

House Plan Specifications

  • Total Living (heated area):  7918 sq ft
    1st Floor:  3846 sq ft
    2nd Floor:  3061 sq ft
    Basement:  1011 sq ft
  • Garage:  1778 sq ft
    Garage Bays:   3
    Garage Load:   Side
  • Bedrooms:   5
    Bathrooms:   6
    Half Bathrooms:   3
  • Foundation:   Walkout Basement
    Wall Framing:   2x4
    Roof Framing:   Stick
    Roof Pitch:  16/12 and 4/12
  • Width of House:  57'
    Depth of House:  85'
    Building Height:  40'
  • First Floor Ceiling Height:  12'
    Second Floor Ceiling Height:  10'
    Basement Ceiling Height:  10'

Key Features

  • Bonus Room
  • Butler's Pantry
  • Elevator
  • Game Room
  • His & Hers Closets
  • Home Office/Study
  • Laundry 1st Floor
  • Loft
  • Loft/Balcony
  • Media Room
  • Outdoor Fireplace
  • Walk-in Pantry
  • Wet Bar
  • Wine Cellar
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: F580-A
Madison Avenue House Plan
5 Bedrooms
6 Full Baths
3 Half Baths
7918 SQ FT
2 Stories
Main Level
Second Floor
Basement
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
What Makes Us Different
Them
Cost to Build
$30+
Shipping
Free
on physical blueprints
$20+
Price Guarantee
By 10%
beat competitor
Only Price Match
Purchase
Direct
from the Architect
Middleman
