Luxurious 5-Bedroom Home with Grand Room and Media Retreat
4.8
Plan Number:

Z6375-D

Rated 4.8
Plan Number:

Z6375-D

✔ Best Price Guarantee | ✔ Free Cost to Build Calculator
Or order by phone: (888) 890-2353
Safe and Secure
SafePay icons
LOW PRICE GUARANTEE
Free Cost to Build Calculator
Floor Plan
floor plan
floor plan

Luxurious 5-Bedroom Home with Grand Room and Media Retreat

4630Jz is a two-story residence providing 4,630 square feet of total heated living area, requiring a lot width of at least 73 feet 5 inches and a depth of 102 feet 9 inches. The exterior profile is defined by a 28-foot 2-inch maximum building height and a roof slope configuration of 2:12 and 4:12 pitch, ensuring a distinct architectural presence.

The main level spans 3,091 square feet, centered around a two-story grand room that facilitates vertical volume. This floor includes a kitchen equipped with a walk-in pantry and a wet bar, alongside a dedicated home office and a flex room. The primary suite is located on the first floor to maximize accessibility, while a mudroom provides a transition area from the garage. A Jack and Jill bathroom serves the secondary living areas on this level, complemented by a half bathroom for guest use.

The second level encompasses 1,539 square feet, housing four additional bedrooms and a game room. This floor also contains a private media room intended for entertainment purposes. Both the first and second levels maintain 10-foot ceiling heights, which contribute to the distribution of light and spatial volume throughout the interior footprint.

Structural support for the home includes a 3-car courtyard garage comprising 1,158 square feet, which directs parking away from the primary front view. Outdoor living is facilitated by 419 square feet of total porch area, consisting of a 53-square-foot front porch and a 366-square-foot rear patio. This layout prioritizes a split-bedroom configuration to ensure privacy between the primary suite and the secondary bedroom wings.

Key Features: 5 bedrooms, 4 full bathrooms, 1 half bathroom, 4,630 sq ft total living area, first-floor primary suite, 3-car courtyard garage, 10-foot ceilings, home office, walk-in pantry, wet bar, media room, game room.

Review floor plans, dimensions, and available customization options for this home today.

What's Included in the House Plan:
  • Cover Sheet – Project overview and sheet index
  • Plot Plan – Requires provided survey
  • Roof Plan – Layout with pitches and notes
  • Floor Plan – Fully dimensioned layout
  • Exterior Elevations – All sides with key details
  • Typical Wall Sections – Construction and assembly details
  • Ceiling Treatment Plans – Layout of ceiling designs/features
  • Electrical Floor Plans – Outlets, switches, lighting layout
  • Interior Elevations – Cabinetry and room-specific details
What's Not Included:
  • Architectural/Engineering Stamp – If required
  • Site Plan – If required
  • Mechanical Drawings – Provided by HVAC subcontractor
  • Plumbing Drawings – Provided by plumbing subcontractor
  • Energy Calculations – If required
  • Foundation Plans – Engineered locally based on soil tests; no standard foundation plan included

House Plan Specifications

  • Total Living (heated area):  4630 sq ft
    All Unheated Under-Roof Areas  1211 sq ft
    Total Structure  5841 sq ft
    1st Floor:  3091 sq ft
    2nd Floor:  1539 sq ft
    Front Porch:  53 sq ft
    Rear Porch:  (Patio) 366 sq ft
  • Garage:  1158 sq ft
    Garage Bays:   3
    Garage Load:   Courtyard
  • Bedrooms:   5
    Bathrooms:   4
    Half Bathrooms:   1
  • Foundation:   Slab
    Wall Framing:   2x4
    Roof Framing:   Stick
    Roof Pitch:  2:12 and 4:12
  • Width of House:  73'5''
    Depth of House:  102'9''
    Building Height:  28'2''
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  10'

Key Features

  • First Floor Laundry
  • First Floor Master Suite
  • Flex Room
  • Game Room
  • Home Office/Study
  • Jack and Jill Bathroom
  • Media Room
  • Mud Room
  • Split Bedroom
  • Two-Story Grand Room
  • Walk In Closets
  • Walk-in Pantry
  • Wet Bar
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Cost to build estimate
$0.00
$40.00
100% discount for new customers this month!
Receive a personal estimate in two minutes instead of 2 days as many competitors offer. Just submit your request using the link below.
Get Your Estimate
Plan Number: Z6375-D
Luxurious 5-Bedroom Home with Grand Room and Media Retreat
5 Bedrooms
4 Full Baths
1 Half Baths
4630 SQ FT
2 Stories
Product print image
Main Level
floor plan

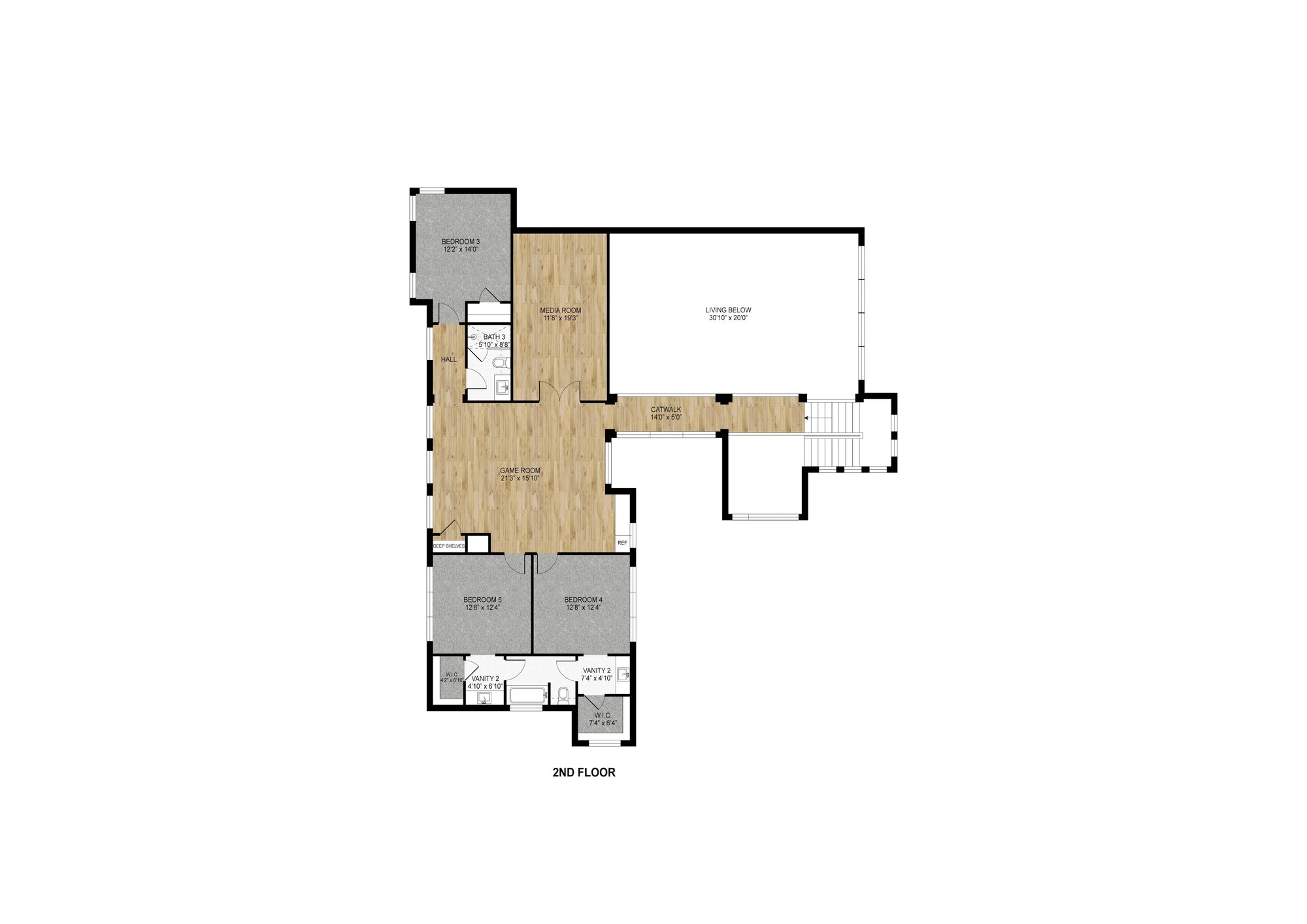

Second Floor
floor plan
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

Readable Reverse
An option to reverse the plan including texts and dimensions to make them readable.
2x4 or 2x6 Conversion
Convert the exterior framing other than the standard framing included in the plan.
Multi Build Licence (CAD required) Gives the buyer the legal right to build the house plan multiple times
