Longhorn Ranch Barndominium

Plan Number:

G1073-A

Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home

Longhorn Ranch Barndominium

Plan Number:

G1073-A

5
Bedrooms
4
Full Baths
4450
SQ FT
2
Stories
LOW PRICE GUARANTEE

House Plan Specifications

  • Total Living:  4450
    1st Floor:  2288
    2nd Floor:  2162
  • Garage:  1166
    Garage Bays:   3
    Garage Load:   Side
  • Bedrooms:   5
    Bathrooms:   4
  • Foundation:   Basement
    Wall Framing:   2x4
  • Width of House:  72'
    Depth of House:  87'-4''
    Building Height:  30'
  • First Floor Ceiling Height:  9'
    Second Floor Ceiling Height:  10'
    Basement Ceiling Height:  9'

Key Features:

  • Eating Bar
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Great Room
  • Jack and Jill Bathroom
  • Keeping/Family Room
  • Kitchen Island
  • Laundry 1st Floor
  • Laundry 2nd Floor
  • Master Bath-Double Vanity Sink
  • Mud Room
  • Open Floor Plan
  • Second Floor Laundry
  • Storage Space
  • Two-Story Foyer
  • Walk In Closets
  • Walk-in Closet
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home
Plan Number: G1073-A
Longhorn Ranch Barndominium
5 Bedrooms
4 Full Baths
4450 SQ FT
2 Stories
Main Level

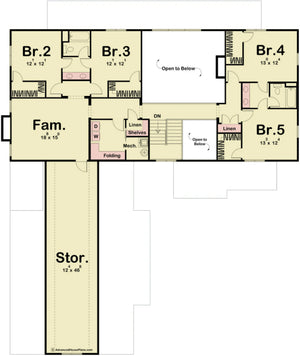

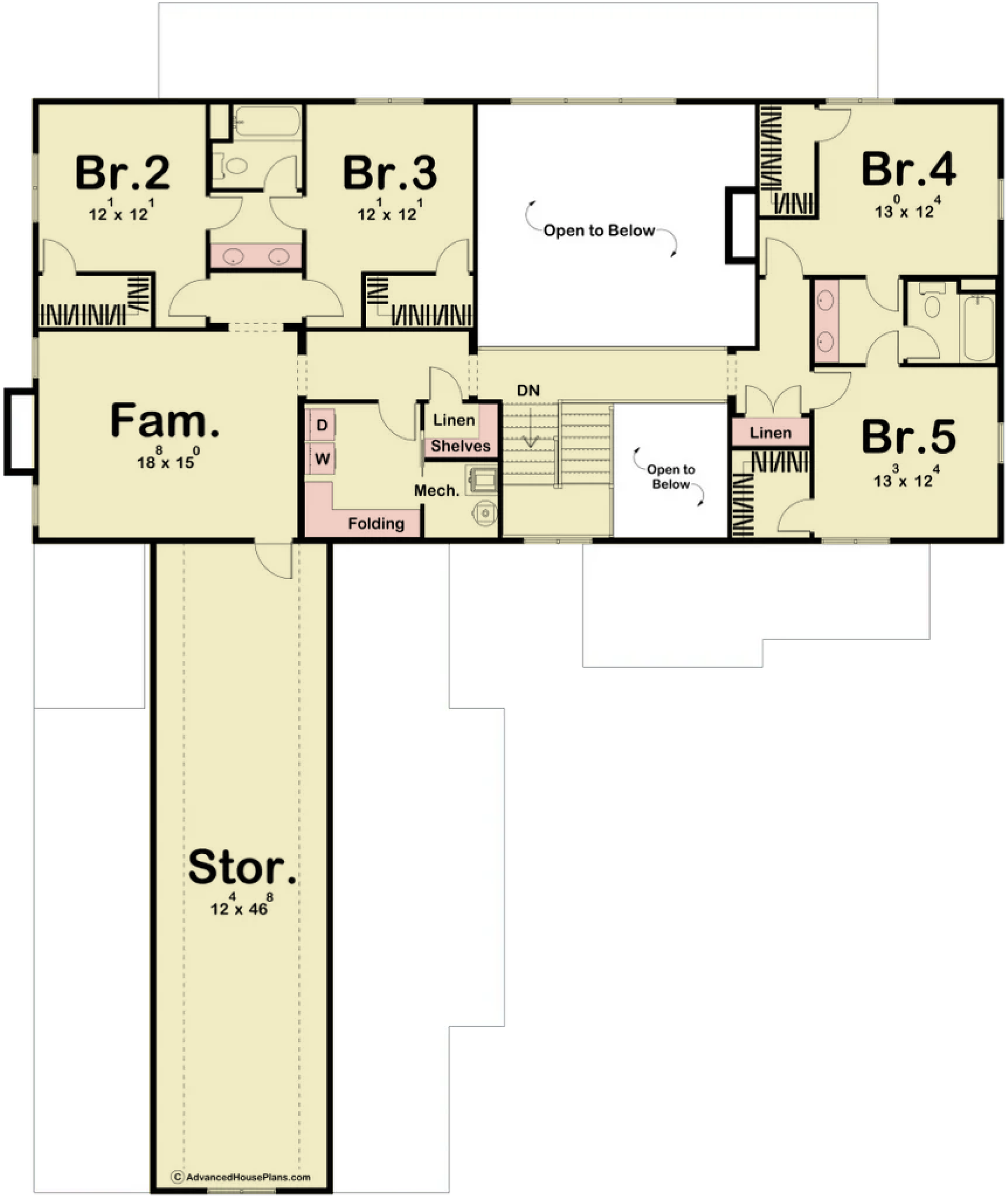

Second Floor
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

FAQ

Why choose Archival Designs?

Archival Designs brings you over 35 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.

We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.

All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.

Do your plans meet building codes in my area?
Do your plans meet building codes in my area?
What is included in the construction drawings?
What is included in the construction drawings?
Will the plans be stamped or signed by an architect or engineer?
Will the plans be stamped or signed by an architect or engineer?
Will the foundation included in the construction drawings work for my site?
Will the foundation included in the construction drawings work for my site?
Do your plans include electrical, plumbing and mechanical drawings?
Do your plans include electrical, plumbing and mechanical drawings?

The Longhorn Ranch plan is a stunning barndominium style 1.5 story house plan. The exterior features a show stopping gambrel roof and wood siding to give the home its rustic Barndominium curb appeal.

Guests will be greeted by a large front covered porch. Just inside the home, you'll find yourself in the entry way with is 2-story ceiling. As you walk further into the home, you'll notice the great room, dining room, and kitchen arranged in a lovely open layout.

The great room lies under a 2-story ceiling and is warmed by a cozy fireplace that is flanked by built-in bookshelves. The dining room leads to the rear covered patio through a large sliding patio door. A screened patio can also be accessed from the dining room.

The kitchen includes an island with a snack bar and a large walk-in pantry. A hearth room is located off the kitchen and makes for a great place to relax by the fire.

Tucked away on the right side of the home, you'll find the elegant master suite. The master bathroom includes a soaking tub, his/her vanities, a large walk-in shower, an enclosed toilet area, and a large walk-in closet.

Upstairs, you will find 4 additional bedrooms and a large family room. Each pair of bedrooms share a jack and jill bathroom. Every bedroom enjoys its own walk-in closet. A second laundry room can also be found on the second floor.

Above the homes large 3 car garage, you'll enjoy ample storage space. The garage accesses the home through a large mud room that includes a bench and lockers.
