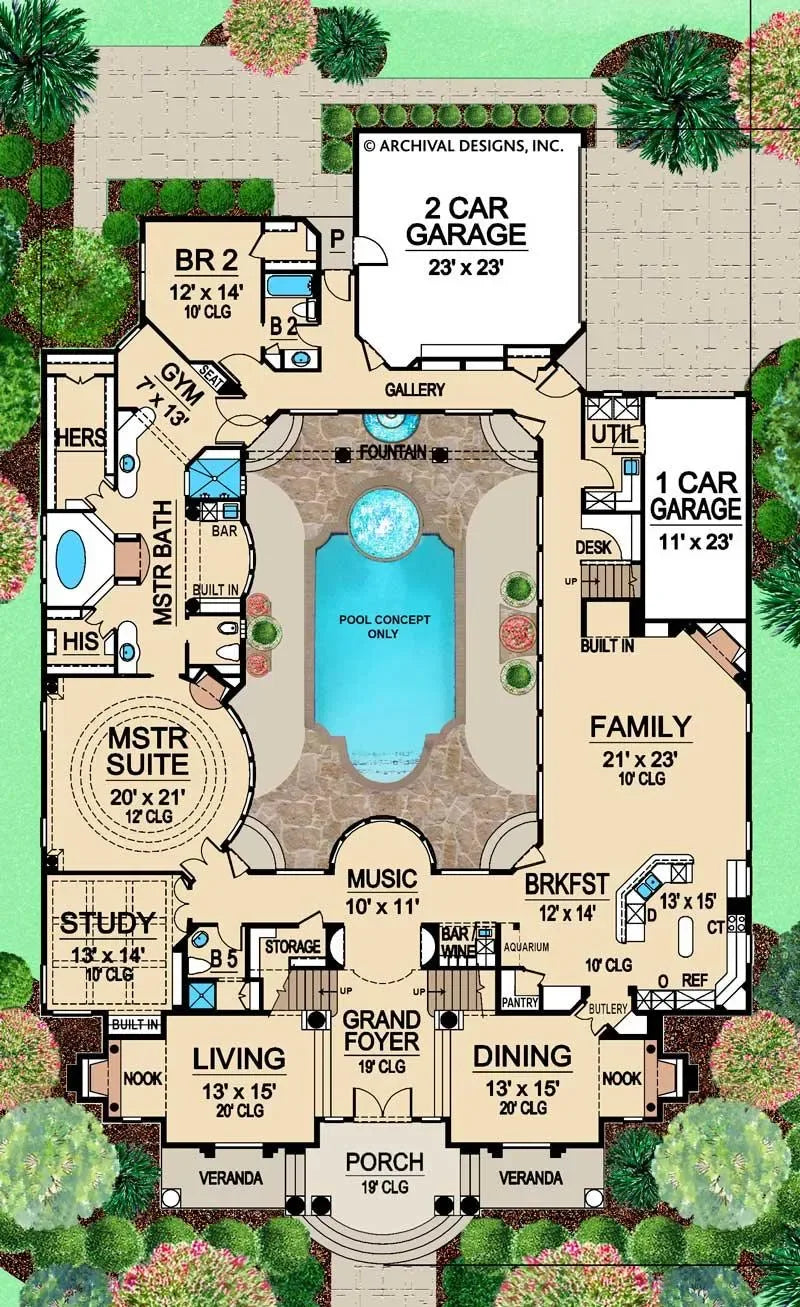

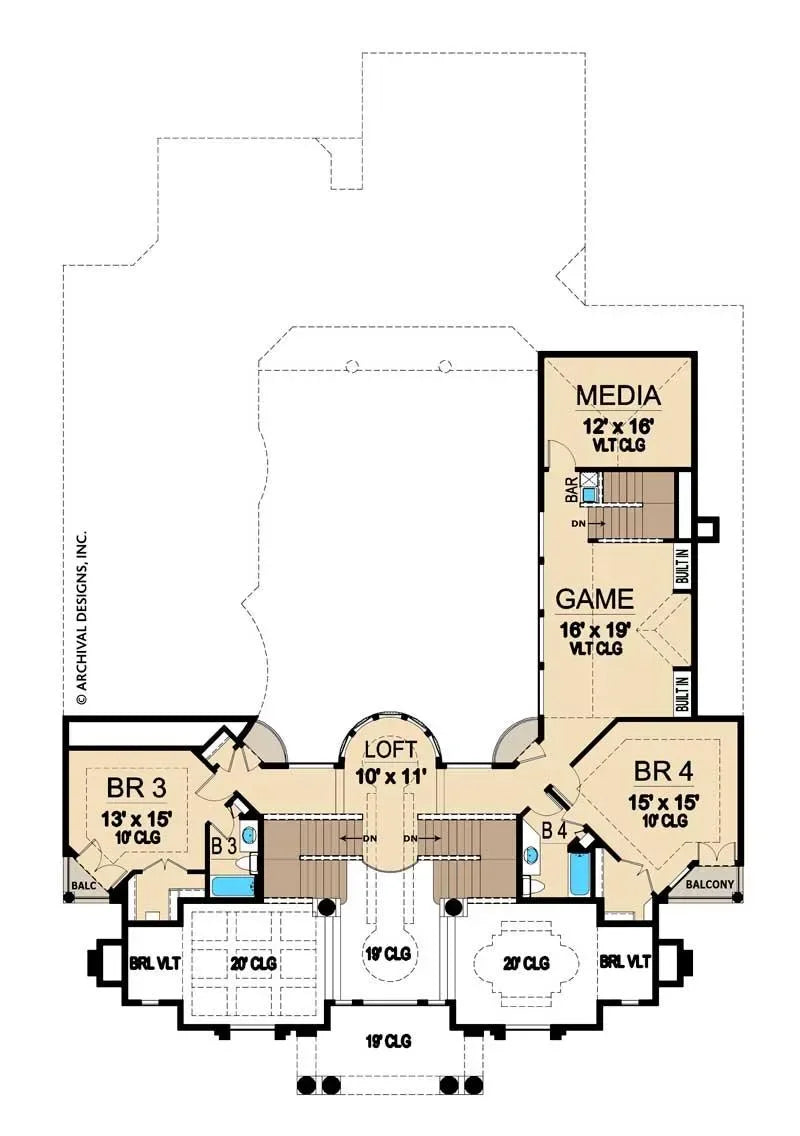

Main Level – (click floor plan to reverse) Second Floor – (click floor plan to reverse)

Lochinvar House Plan

4 Bedrooms • 5 Full Baths • Slab Foundation
$2,860.00
Maximum quantity available reached.

HOUSE PLAN SPECS

  • Total Living:  6024 sq. ft.
  • 1st Floor:  4359 sq. ft.
  • 2nd Floor:  1665 sq. ft.
  • Bedrooms:  4
  • Bathrooms:  5
  • Width of House:  73'
  • Depth of House:  113'
  • Foundation:  Slab
  • Number of Stories:  2

  • Building Height:  33'
  • Garage Bays:  3
  • Garage Load:  Rear
  • Garage:  810 sq. ft.
  • Ceiling Heights:

  • First Floor:  10'
  • Second Floor:  9'
  • Trey Height:  12'
  • Vault Height:  20'
  • Key Features:

  • Butler's Pantry
  • Covered Front Porch
  • Exercise Room
  • First Floor Master Suite
  • Great Room
  • Home Office/Study
  • Laundry 1st Floor
  • Loft/Balcony
  • Media Room
  • Vaulted/Volume Ceilings
  • Walk-in Closet
  • Walk-in Pantry

House Plan Description

This luxury Mediterranean mansion house plan has something for everyone. Enter the grand foyer with its 19' ceiling and double stairs through to the music room. Surrounded by the courtyard with its fountain, this home design leaves nothing out. Going clockwise from the music room, you will enter the study with its coffered ceiling and built ins. Next is the master suite with its circular trey ceiling leading into the master bath with his and hers walk in closets, barrel vaulted ceiling and built ins. A second bedroom with private bath and entry to the gym is in the back of this house plan. In the rear corner there are two separate garages, one is a two car and one is a one car, laundry and desk area.

A family room with corner fireplace and views into the courtyard open into the kitchen and breakfast room divided only by the free standing island. Off of the breakfast room is the dining room with its 20' ceiling and nook with fireplace where you can walk onto the private front veranda.

On the opposite side of the grand foyer is a living room with a 20' ceiling, nook and fireplace and private access to the second front veranda. The second story of this two story house plan is just beautiful. There is a media room and game room, both with vaulted ceilings. The loft has a 19' ceiling in the center looking down into the courtyard. Two bedrooms with private baths, closets and balconies complete this home design.


The Lochinvar House plan has characteristics of many Texas Style exteriors. It reflects the Mediterranean, Spanish and Tuscan Architectural Styles. The floor plan is popular because of the privacy of the center pool and courtyard. This feature allows the homeowner to feel on vacation at home. If you should have any modifications or questions answered please contact Archival Designs at 770-831-6363.
