Plan Number:
A253-A
Plan Number:
A253-A
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.

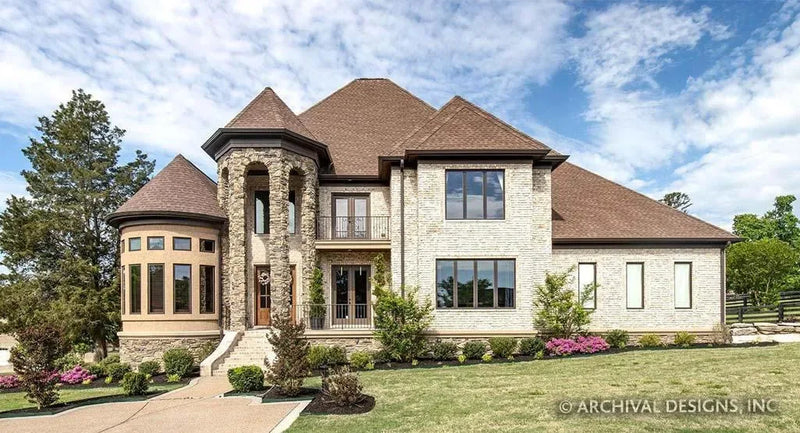

Slowly you arrive onto the property of the La Vogue Home plan. Whisking your eyes forward you notice the strength of a castle like tower adorned by its beautiful balconies. Something quickly draws you closer and you find that it is the mesh of styles that this house plan offers. You see that the exterior compliments the sweet smell of the gardens. Then you realize, you are gazing at a timeless piece of architectural design that could grow as your family feels it necessary.

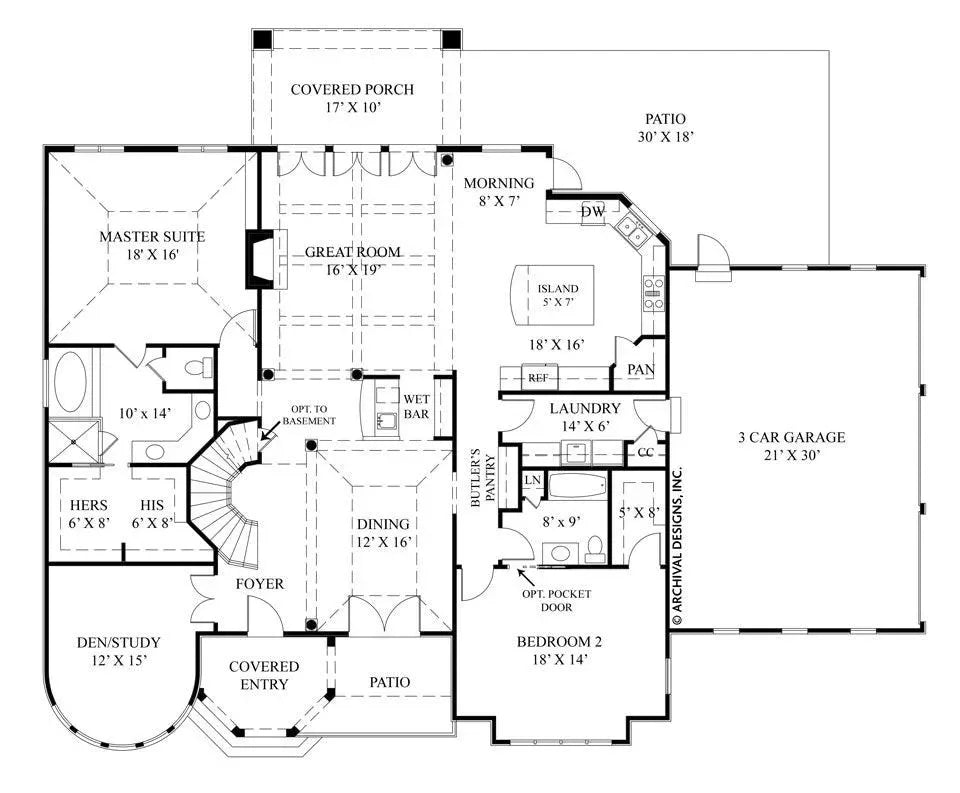

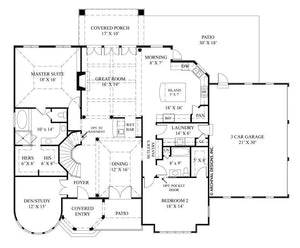

The grand entry for the La Vogue Home Plan opens into a eloquent yet charming Foyer. To the left of the Foyer is the sophisticated arched Library, warmed by a fireplace and trimmed in bookcases. This Is a Home Style all its own. To the right of the Foyer is a luxurious Dining area; in which you are greeted through double folding doors. Your glimpse around the room makes you acutely aware of the great addition of a wet bar, that is located between the Dining Area and the Grand Room.
Then as if surprises came in pairs your mind quickly takes notice of a timeless Butler's Pantry. This is an additional Home Style that is rarely seen. Your eyes wander the room, taking in an expansive access onto the welcoming front porch by giant double doors. This House Plan has been designed with pleasant outdoor activities and entertainment in mind.
The inviting Master Bedroom is located in the left-rear of this classic House Style. The position of the Master provides a unique and private area for intimate occasions. Just beyond is the ample bath, with a large enticing tub across from an elegant vanity. The attractive Master also includes generous his and her walk-in closets.
The Grand Room quickly embraces you with Grand Home Style & high vaulted ceilings, giving the entire home an open air feel. In addition, this room is quaintly warmed with a beautiful hand crafted fireplace, encased by two large windows. From the Grand Room there is passage leading to the delightful covered porch.
The La Vogue Home Plan is composed of a chef's ideal kitchen, fully equipped for hosting numerous formal events as well as fantastic family dinners. The placement of the Kitchen is calculated as to allow opportunity to interact with family in the morning seating area, as well as the oversized island. The Home Plan flows quietly, where it is coupled with an extensive Second Bedroom, with its own personalized Bathroom.

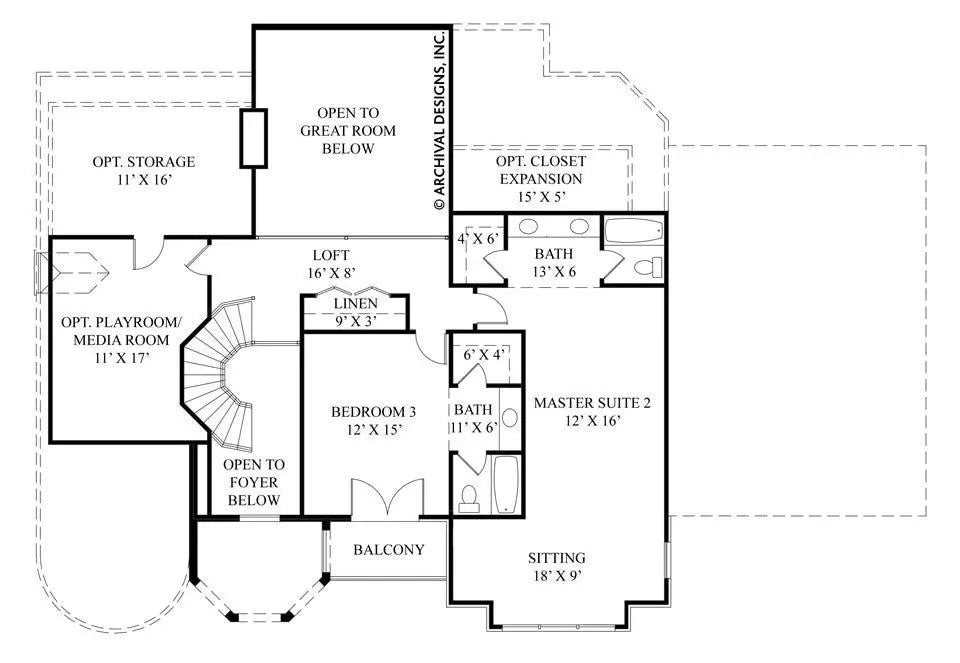

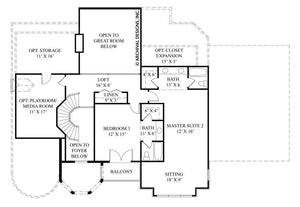

Ascending to the second floor, this Home Style presents the upstairs featuring a secondary Master Suite with a substantial Master Bath, this house plan allows for optimal closet expansion within the 2nd floor Master Bath. In addition this House Plan on the Second Floor offers a third Bedroom, with its private en-suite and walk-in closet. The La Vogue Home Style presents a full basement where it offers several jewels.
Without doubt these are rooms that you can see your family and friends putting to constant use. This Home Style Design simply awaits your personal design ideas, with the goal of simply making your guest family. With 30 Years of experience, Archival Designs, Inc. brings clients a unique portfolio of the best selling house plans on the market.
