Hennessey House Plan

Plan Number:

A224-A

4
Bedrooms
4
Full Baths
1
Half Baths
3376
SQ FT
2
Stories
LOW PRICE GUARANTEE

House Plan Specifications

  • Total Living:  3376
    1st Floor:  2333
    2nd Floor:  1043
    Bonus Room:  546
    Basement:  2026
  • Garage:  830
    Garage Bays:   3
    Garage Load:   Side
  • Bedrooms:   4
    Bathrooms:   4
    Half Bathrooms:   1
  • Foundation:   Slab
    Wall Framing:
    Exterior Siding:   Stone Exterior
  • Width of House:  67'-6''
    Depth of House:  85'-8''
    Building Height:  35'
  • First Floor Ceiling Height:  9'
    Second Floor Ceiling Height:  8'
    Basement Ceiling Height:  10'
    Trey Height:  10'
    Vault Height:  12'

Key Features:

  • Bonus Room
  • Breakfast Area
  • Fireplace
  • First Floor Master Suite
  • Formal Dining Room
  • Great Room
  • His & Hers Closets
  • Keeping/Family Room
  • Kitchen Island
  • Laundry 1st Floor
  • Stair Hall
  • Two-Story Foyer
  • Two-Story Grand Room
  • Vaulted/Volume Ceilings
  • Walk-in Closet
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home
Plan Number: A224-A
Hennessey House Plan
4 Bedrooms
4 Full Baths
1 Half Baths
3376 SQ FT
2 Stories

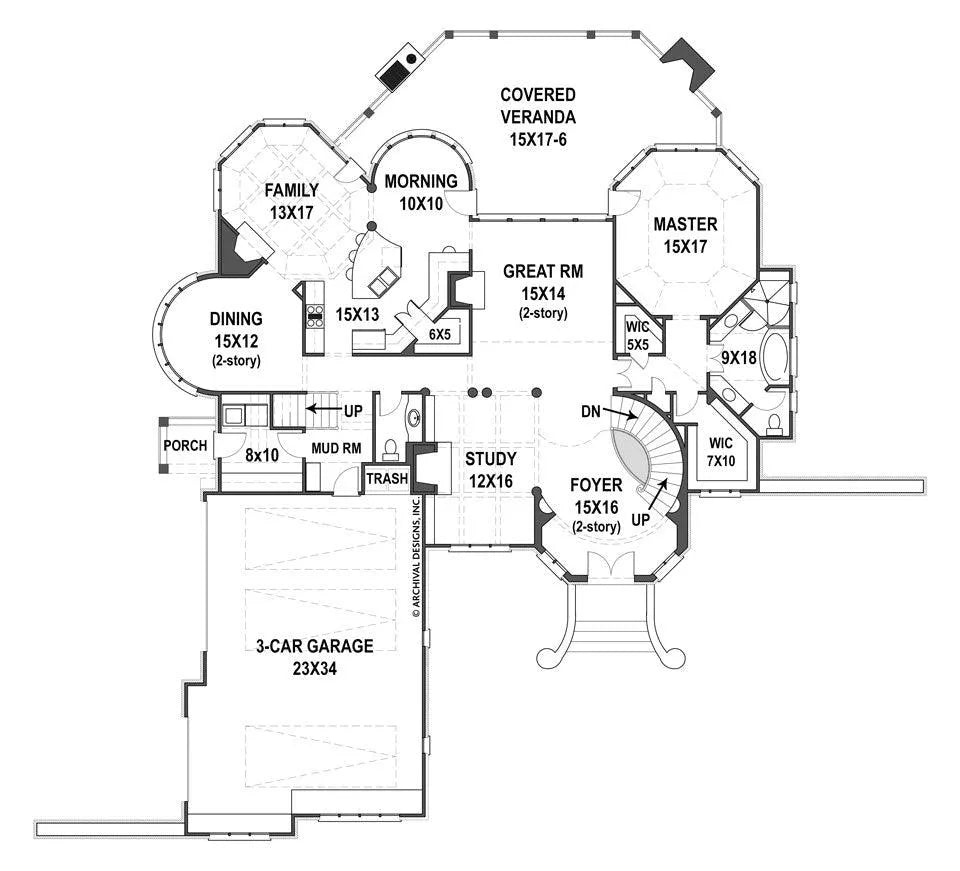

Main Level

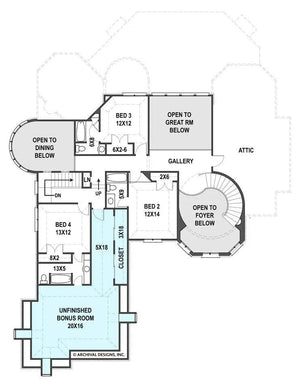

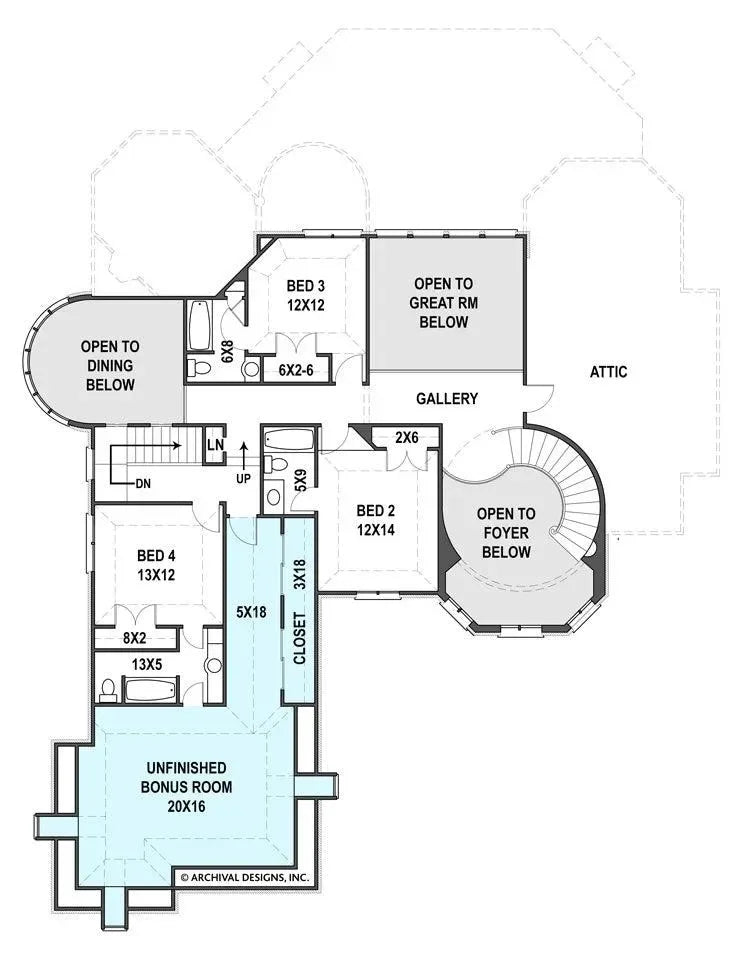

Second Floor

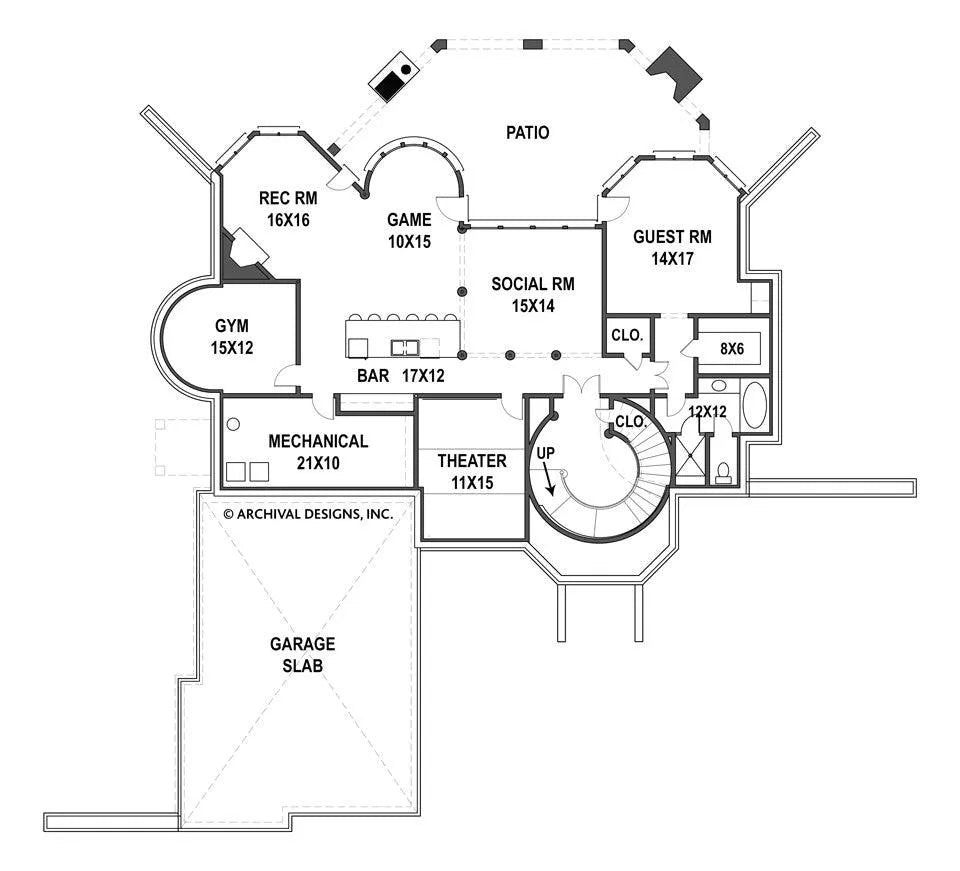

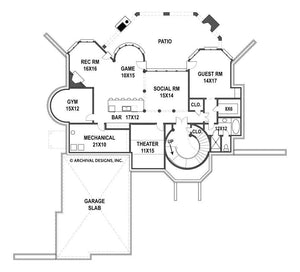

Basement
