This detached garage house plan offers a practical and versatile solution for homeowners in need of additional storage, workspace, or vehicle accommodation. With a total structure size of 1,170 sq ft, this design focuses entirely on functionality while maintaining a clean and efficient layout.
The garage features a well-proportioned footprint, measuring 40' in width and 31' in depth, with a building height of 17'4''. These dimensions provide ample space for multiple uses while remaining compact enough to fit comfortably on most properties.
Designed with convenience in mind, the garage includes 3 bays in a front-load configuration, allowing for easy access and efficient vehicle entry and exit. Whether used for parking cars, storing equipment, or housing recreational vehicles, the layout offers flexibility for a variety of needs.
The interior provides a generous 1,170 sq ft of unheated space, making it ideal for storage, workshop use, or hobby areas. The 10' garage ceiling height enhances the functionality of the space, allowing for taller vehicles, overhead storage systems, or even the installation of lifts for automotive work.
Constructed with durable 2x4 wall framing and a truss roof system, this garage ensures structural strength and long-term reliability. The 6:12 roof pitch not only adds to the building’s visual appeal but also promotes effective water drainage and durability in various weather conditions.
The slab foundation provides a stable and low-maintenance base, making this garage both cost-effective and easy to maintain over time. Its straightforward construction makes it an excellent addition to both residential and rural properties.
As a detached structure, this garage offers flexibility in placement, allowing homeowners to position it according to their lot layout and personal preferences. It can be used as a standalone building or as a complement to an existing home.
The simple yet functional design makes it suitable for a wide range of applications. It can serve as a traditional vehicle garage, a workshop for tools and equipment, or even a storage facility for outdoor gear and seasonal items. Its open layout allows for easy customization to meet specific needs.
Additionally, the spacious interior can be adapted for specialized uses, such as a hobby space, small business operations, or a personal studio. The clear-span design made possible by the truss roof framing ensures minimal interior obstructions, maximizing usable space.
Overall, this detached garage house plan delivers a reliable and efficient solution for additional storage and workspace. With its generous size, durable construction, and flexible design, it is an excellent choice for homeowners looking to expand their property’s functionality with a practical and well-designed garage structure.

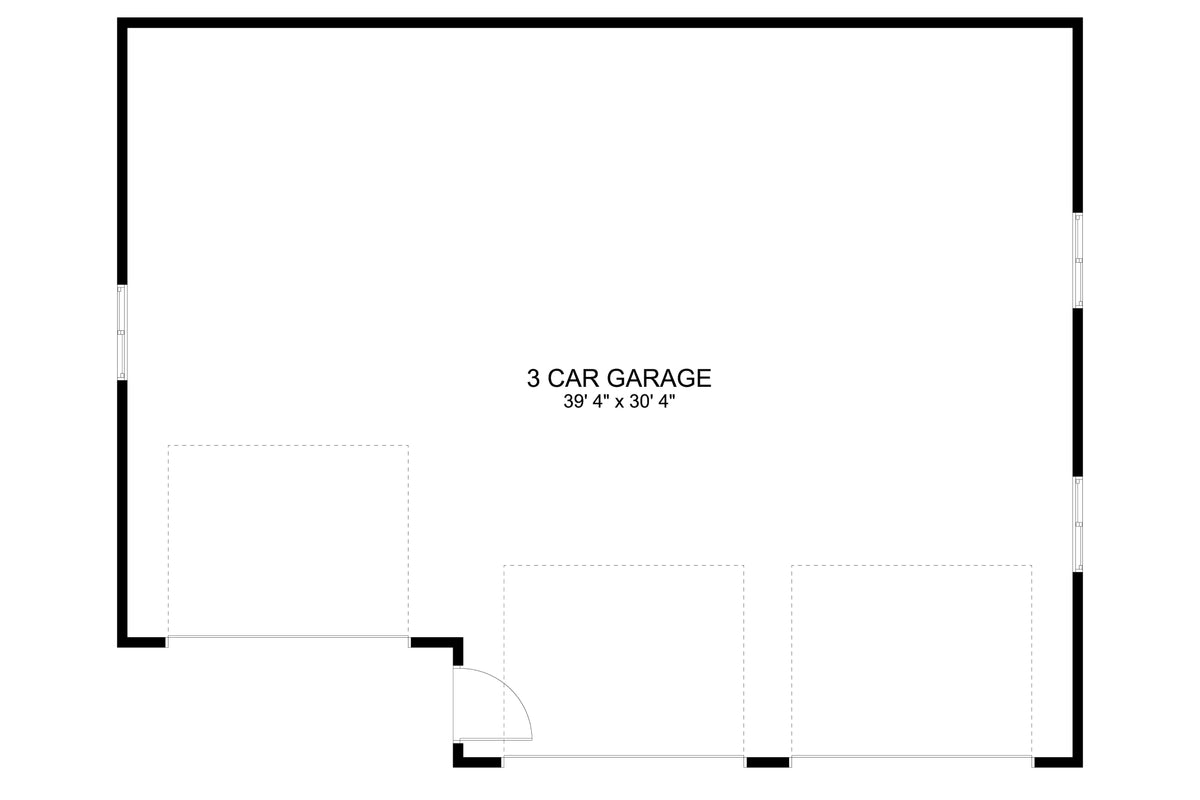

The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
