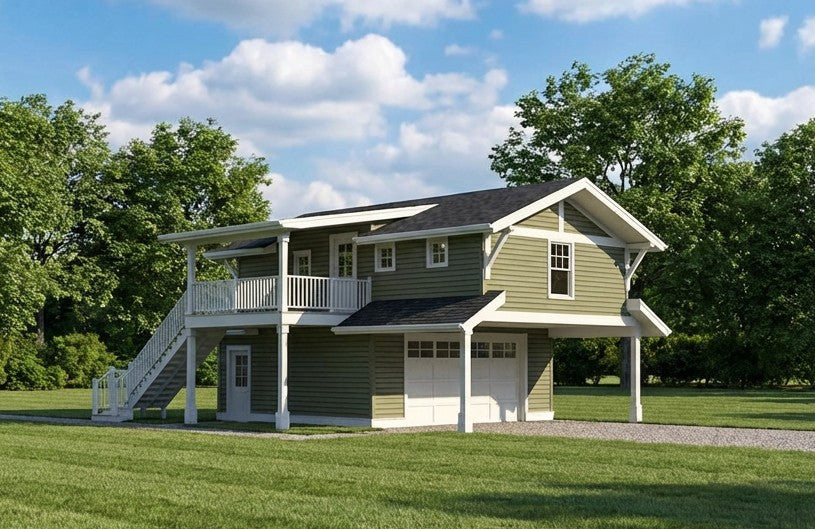

The Haverton Bridge 3670 is a versatile two-story garage apartment plan offering 660 sq ft of heated living space atop a robust 528 sq ft garage. Designed with a 30 ft width and 33 ft depth, this building occupies a compact footprint that fits easily on smaller lots or behind existing structures while maintaining a total building height of 21 ft 6 in.

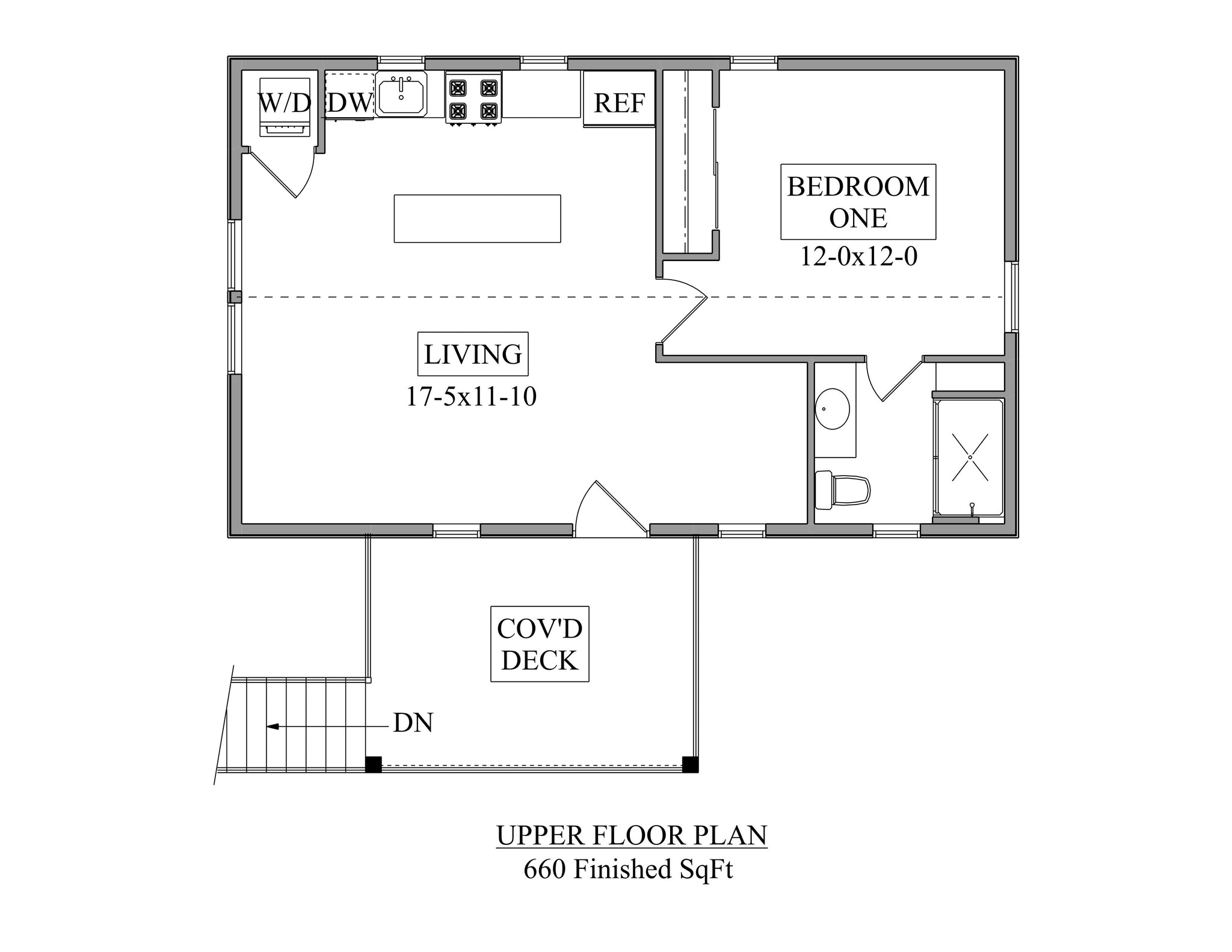

The second-floor living quarters are accessed via an efficient layout that maximizes every inch of the 660 sq ft floor plan. A central keeping room serves as the primary social core, providing direct access to the living areas. The private master suite is positioned to ensure quiet separation, featuring an attached full bathroom that creates a self-contained environment for guests or long-term tenants.
Convenience is integrated through the inclusion of a dedicated second-floor laundry area, preventing the need to traverse between levels for household chores. An attached 140 sq ft deck extends the usable living space outward, facilitating outdoor access directly from the upper level. The interior maintains a consistent 8 ft ceiling height throughout the living quarters, promoting energy efficiency and thermal control.

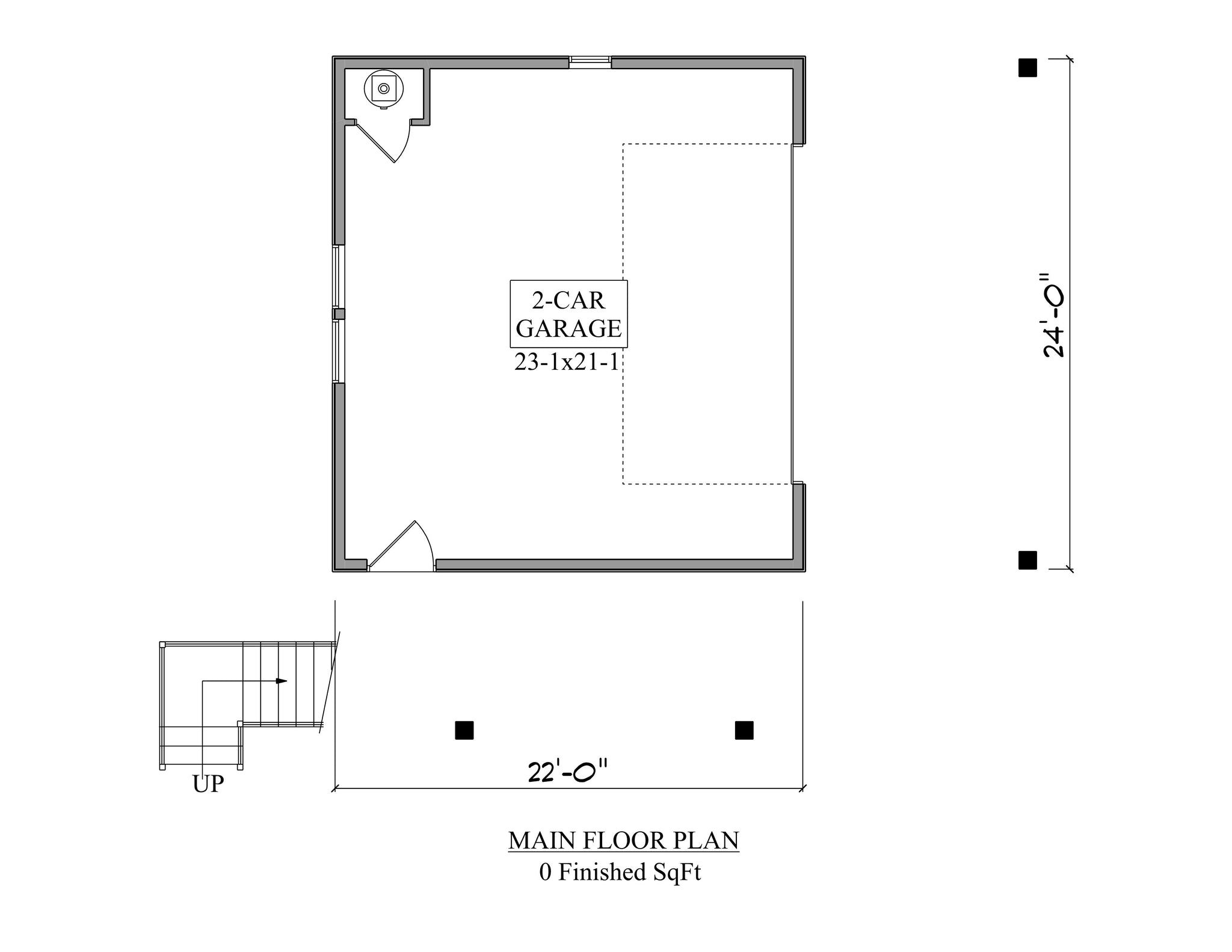

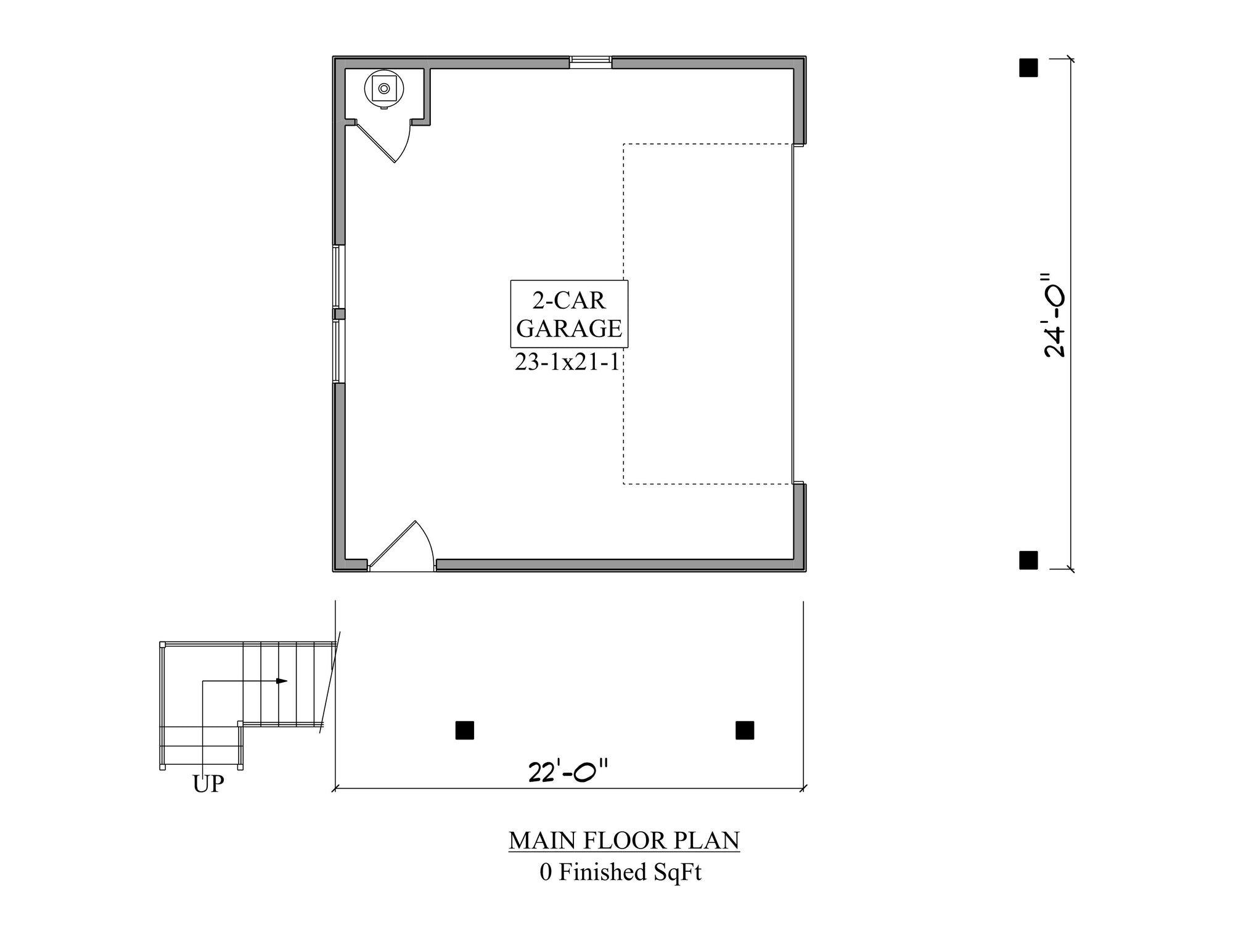

Structural integrity is provided by 2x6 wall framing and a slab foundation, ensuring a durable build suitable for diverse climates. The roof features a 5:12 pitch, contributing to a clean exterior profile. The side-load garage configuration provides space for two vehicles and includes a 9 ft ceiling height, allowing for significant vertical storage or workshop utility without impacting the building's front elevation.
Key Features: 1 bedroom, 1 bathroom, 660 sq ft living area, 2-car side-load garage, 5:12 roof pitch, 8 ft ceiling height, second-floor laundry, 140 sq ft deck, 2x6 wall framing, slab foundation, accessory dwelling unit utility.
