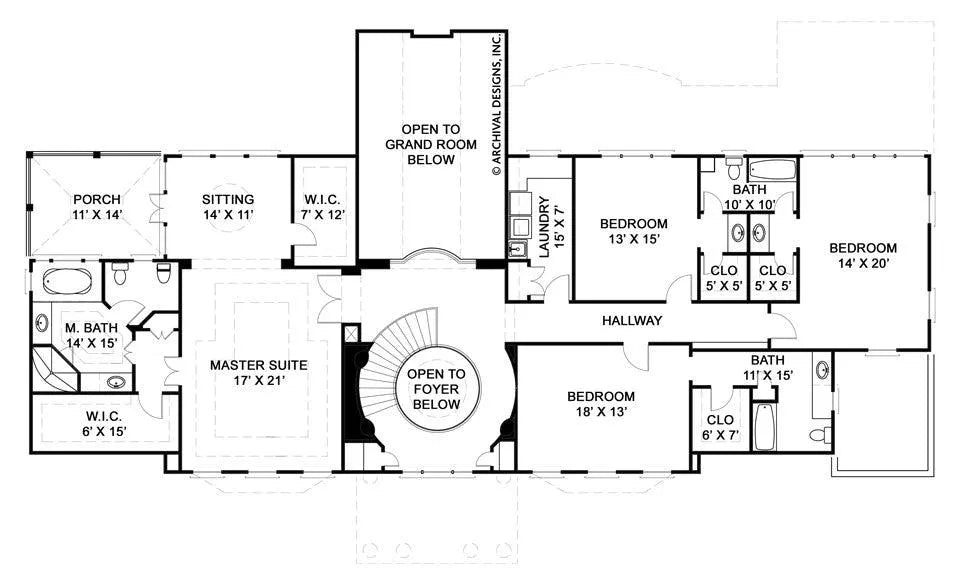

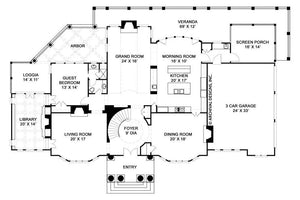

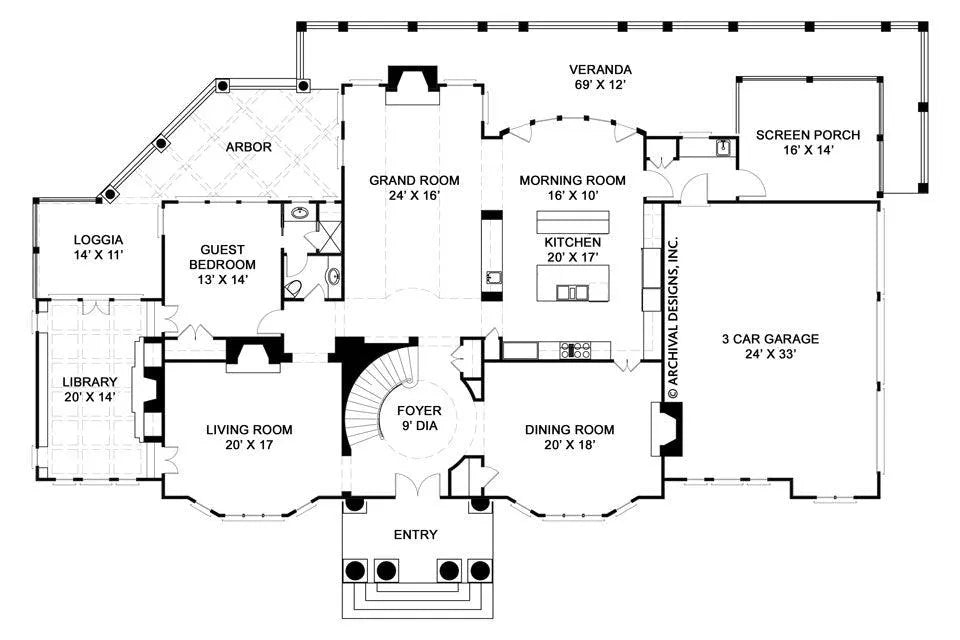

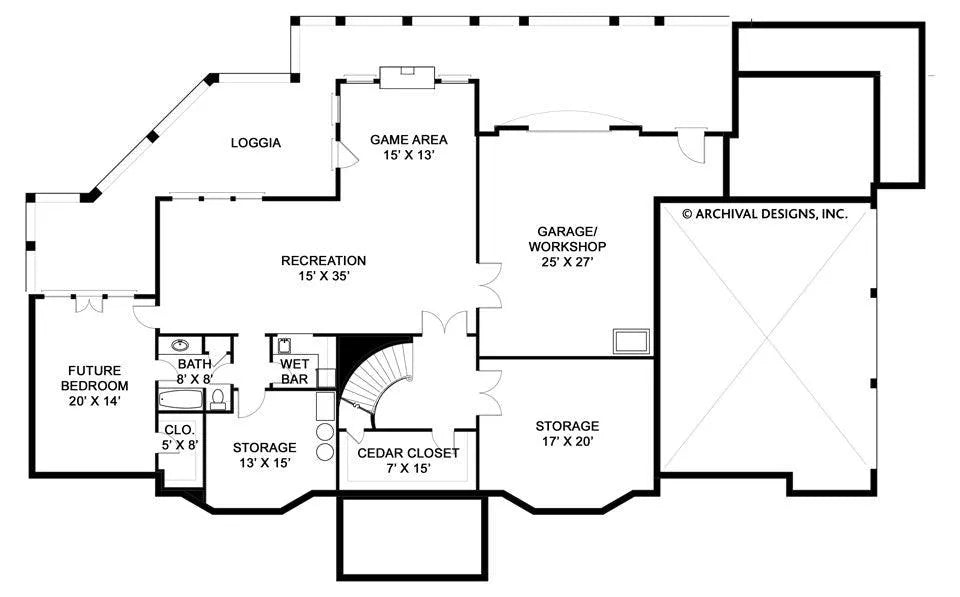

Main Level – (click floor plan to reverse) Second Floor – (click floor plan to reverse) Basement – (click floor plan to reverse)

Elms House Plan

5 Bedrooms • 4 Full Baths • Basement Foundation
$3,195.00
Maximum quantity available reached.

Modify This Plan

Click to get an estimate to Modify this plan.

Materials List

If you need a materials list for this plan, please contact us. The availablity and price depends on the plan and the plan options you may chose. For more information please visit our materials list page.

HOUSE PLAN SPECS

  • Total Living:  5120 sq. ft.
  • 1st Floor:  2621 sq. ft.
  • 2nd Floor:  2499 sq. ft.
  • Bedrooms:  5
  • Bathrooms:  4
  • Half Bathrooms:  1
  • Width of House:  94'
  • Depth of House:  51'
  • Foundation:  Basement
  • Basement:  2564 sq. ft.
  • Number of Stories:  2
  • Garage Bays:  3
  • Garage Load:  Side

    • Ceiling Heights:

  • First Floor:  9'
  • Second Floor:  8'
  • Trey Height:  10'
  • Vault Height:  12'

    • Key Features:

  • Master Suite on the 2nd Floor

House Plan Description

You've probably seen homes like this--on BBC or PBS specials. They're usually inhabited by landed gentry who've inherited the structure from generations of ancestors. But this rendition is thoroughly modern and completely yours to decorate and enjoy. And you won't find any cramped, drafty areas inside--the floor plan is spacious and flexible enough for formal dinners and raucous Superbowl parties. Note the guest suite on the first floor near the library (a loggia access enhances the beamed-ceiling library). The family room is huge, and close enough to the breakfast room and kitchen to make it practical. A screened porch is a bonus. The grand staircase separates the master suite on the second floor from secondary bedrooms. A large cedar closet, sitting area and private porch reinforce the luxury here.
