Di Medici House Plan

Plan Number:

A178-A

Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home

Di Medici House Plan

Plan Number:

A178-A

4
Bedrooms
5
Full Baths
1
Half Baths
3777
SQ FT
2
Stories
LOW PRICE GUARANTEE

House Plan Specifications

  • Total Living:  3777
    1st Floor:  2565
    2nd Floor:  1212
    Bonus Room:  355
    Basement:  1380
  • Garage:  735
    Garage Bays:   3
    Garage Load:   Side
  • Bedrooms:   4
    Bathrooms:   5
    Half Bathrooms:   1
  • Foundation:   Slab
    Wall Framing:
  • Width of House:  75'
    Depth of House:  68'
    Building Height:  39'
  • First Floor Ceiling Height:  10'
    Second Floor Ceiling Height:  9'
    Basement Ceiling Height:  9'

Key Features:

  • Bonus Room
  • Covered Front Porch
  • Deck
  • Fireplace
  • First Floor Master Suite
  • Formal Dining Room
  • Home Office/Study
  • Kitchen Island
  • Unfinished Space
  • Vaulted/Volume Ceilings
  • Walk-in Pantry
Modify this plan to make it perfect
Our hassle-free process makes it easy to modify your dream home. To receive an estimate please submit your request using the link below.
Submit a Modification Request
Free Cost TO
Build Estimate
Say goodbye to the guesswork of construction costs with our custom cost estimator. Receive a cost to build estimate in two minutes instead of 2 days as many competitors offer.... plus its Free!
INSTANT
ACCURATE
FREE
Cost to build your dream home
Plan Number: A178-A
Di Medici House Plan
4 Bedrooms
5 Full Baths
1 Half Baths
3777 SQ FT
2 Stories

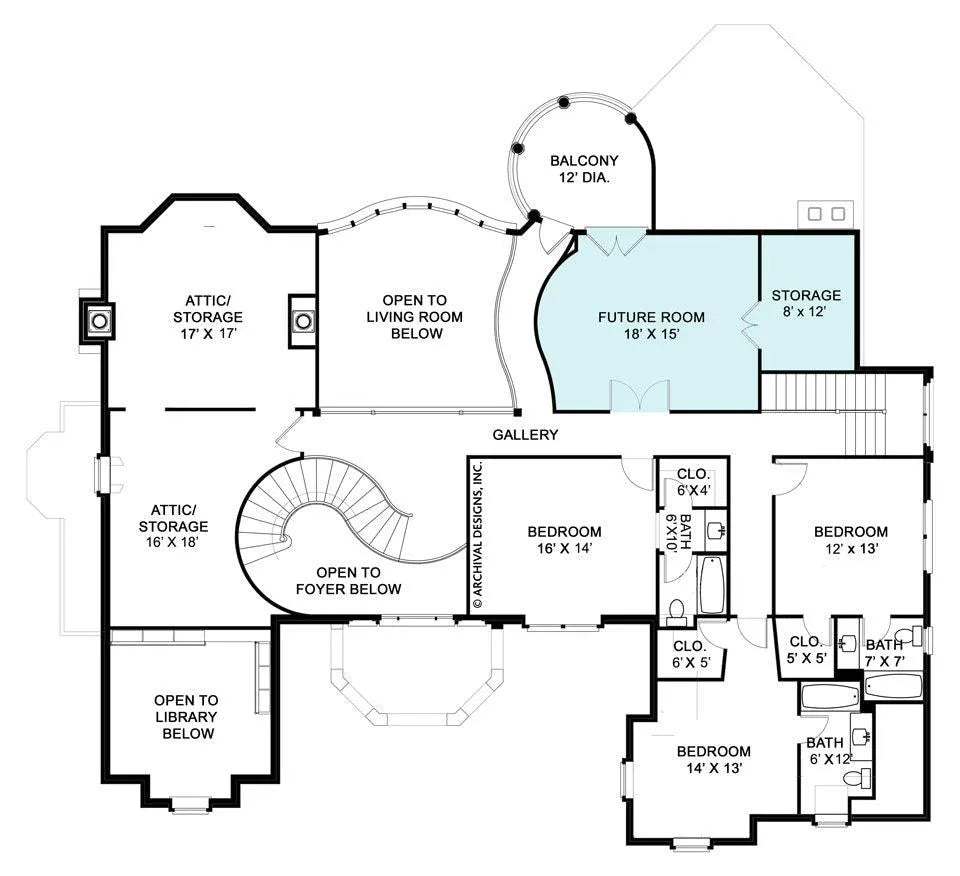

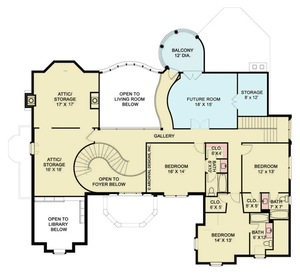

Second Floor
House Plan Formats Explained

PDF (Single Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

CAD + PDF (Single Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

5 or 8 Prints (Single Build)

Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.

5 Prints + PDF (Single Build)

Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.

PDF (Multi Build)

A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

CAD + PDF (Multi Build)

A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.

Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.

Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.

Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.

Basement - This foundation is entirely or partially below ground and offers storage or living areas.

Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.

0
+
Homes Designed
0
Homes Built
0
Years of Experience
What Makes Us Different
Cost to Build
Free
Vs
$30+
Them
Shipping
Free
on physical blueprints
$20+
Consultation
Free
with Residential design advisor
$100+
Purchase
Direct
from the Architect
Middleman
House Plans
Curated
Collection of Quality
Quantity vs Quality
Low Price Guarantee
By 10%
beat competitor
Only Price Match
Customizations
Affordable
Experienced Drafters
3rd Party Drafting
Questions about this plan?
We're here to help
To make a modification to this plan, please use our Modification Request Form.

FAQ

What is included in the construction drawings?

The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.



View Sample Plan
Why choose Archival Designs?

Archival Designs brings you over 40 years of experience in the house plan design business.  We offer the best value for your money by offering the highest quality home designs.

We offer a 10% military & first responder discount, as well as builder discounts for life!  Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.

All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.



Do your plans meet building codes in my area?

All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area.  It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.

Important Note:

  • Customers building in CA, OR, SC, WA, and NV: Our house plans do not meet Earthquake Seismic/Wind code requirements.
  • Customers building in GA, SC, FL, and NC Coastal Areas: Plans may have to be engineered to meet local Hurricane/Wind codes.
  • Customers building in AL, AZ, CO, CT, DE, FL, ID, LA, KY, MD, MA, MN, MI, NV, NH, NJ, NY, OH, PA, UT, WY, and VA: Plans may have to be engineered by a local licensed professional to meet local building codes. Please call your local building department before placing order.
  • Customers building in NV: NV law permits an owner or builder to build a house from their own plans. Contact your local building department to verify if our stock house plans will be accepted before placing order.



Will the plans be stamped or signed by an architect or engineer?

House plans do not come stamped or signed by an architect or engineer.  Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.

Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements.  The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.



Will the foundation included in the construction drawings work for my site?

Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.



Do your plans include electrical, plumbing and mechanical drawings?

Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included.  Your electrical subcontractor will typically provide these drawings.

HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site.  Local HVAC codes, climatic requirements and commonly used systems vary throughout the country.  The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.

Recently Viewed Plans

European Castle Estate, All that's Missing Is You

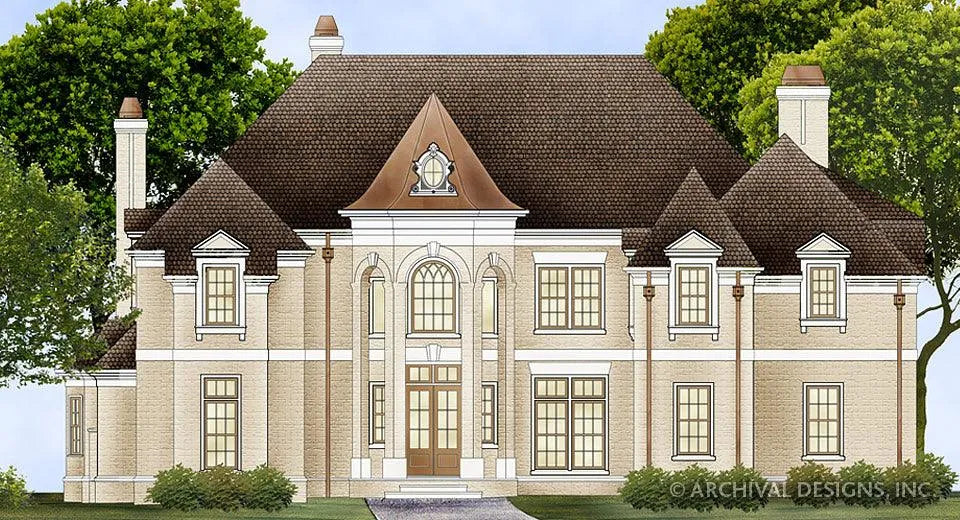

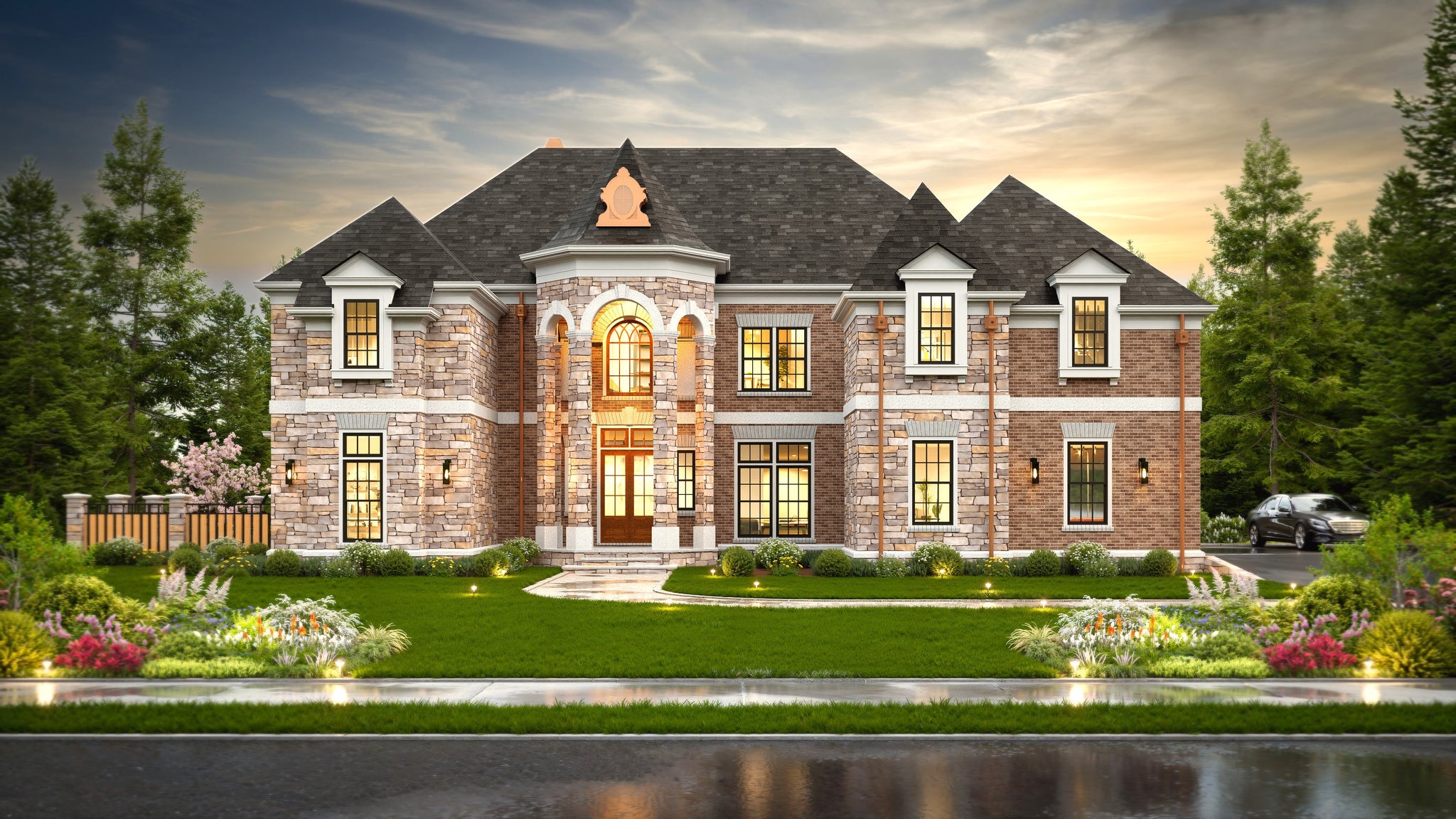

The beautifully built & designed Di Medici Castle Estate Plan welcomes all guests. Imagine the prestige of an affluent home, with large chimneys and ample windows; adorned by copper roofing on the entryway tower. The Estate offers timeless old world charm and modern amenities.

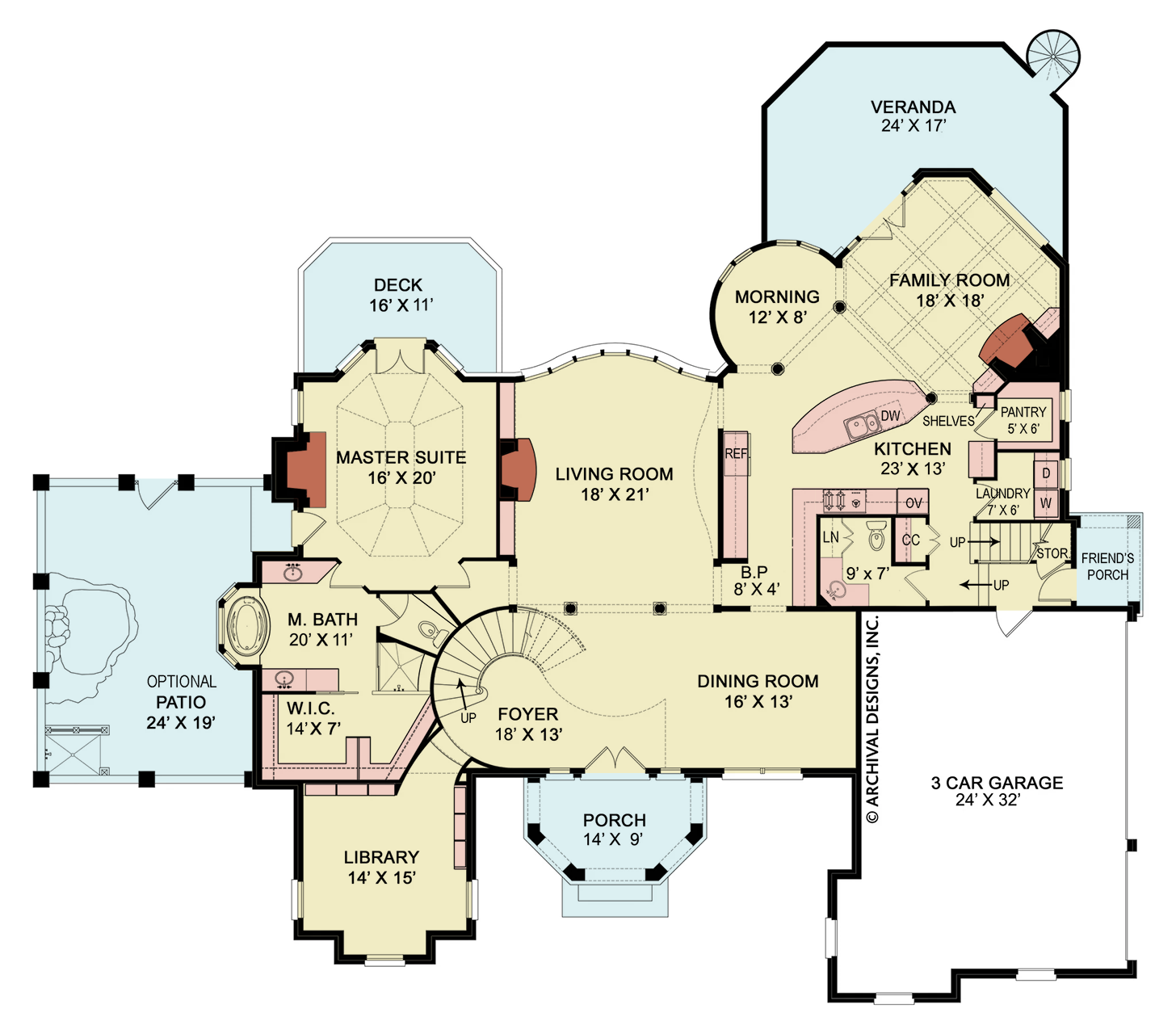

Upon entering the Di Medici Home Plan you are conscious of such an Exclusive Estate House Plan. Everyone is welcomed by a magnificent two story foyer, accompanied by an opulent floating staircase. This Exclusive Estate Castle Home Plan allows for the staircase to wind you around and out onto the Second Floor.

The splendor of the Foyer flows seamlessly into the Formal Dining Area. From the location in this European Castle Home Plan, you are visualizing a large open Living Area, in which a massive amount of splendid light flows through, due to the enormous wall of windows on the far side. This room also offers a Large roaring Fireplace for those intimate family Holidays. To the Left of the Foyer, sitting remotely behind the staircase awaits a sunken Library with excessive light and ornately rich walls.

As you move around the perimeter of the Exclusive House Plan, the Master Suite of the Di Medici comes into view. This is a true European Estate Master Suite. The Master Suite Features enormous trey ceilings as you enter the room. Lying within, there is yet another handcrafted Fireplace for your own personal enjoyment.

  • French Doors give access to the Patio, Pond and Outdoor Shower

  • Intimate soaking Tub overlooking the patio and pond

  • His & Her vanities

  • Large Walk-in Closet with Dressing Area

This Luxury European House Plan sweeps into a Gourmet kitchen & is opened by coffered ceilings. This is part of a circuit that includes the cornered Family Room, overlooking a large Veranda for entertaining. Coupled by the Family Room is the Breakfast area, which gives way to the Kitchen. As a parent or chef, who daily preps and prepares, you will find yourself at ease, while still being a participant in your families' studies or socialization, through its surrounding areas. This is certifying the family triangle and its flow.

  • Stairs for family & backdoor guests'

  • Large Island for Preparation

  • Ample Floating Cabinets

  • Access to Covered Veranda

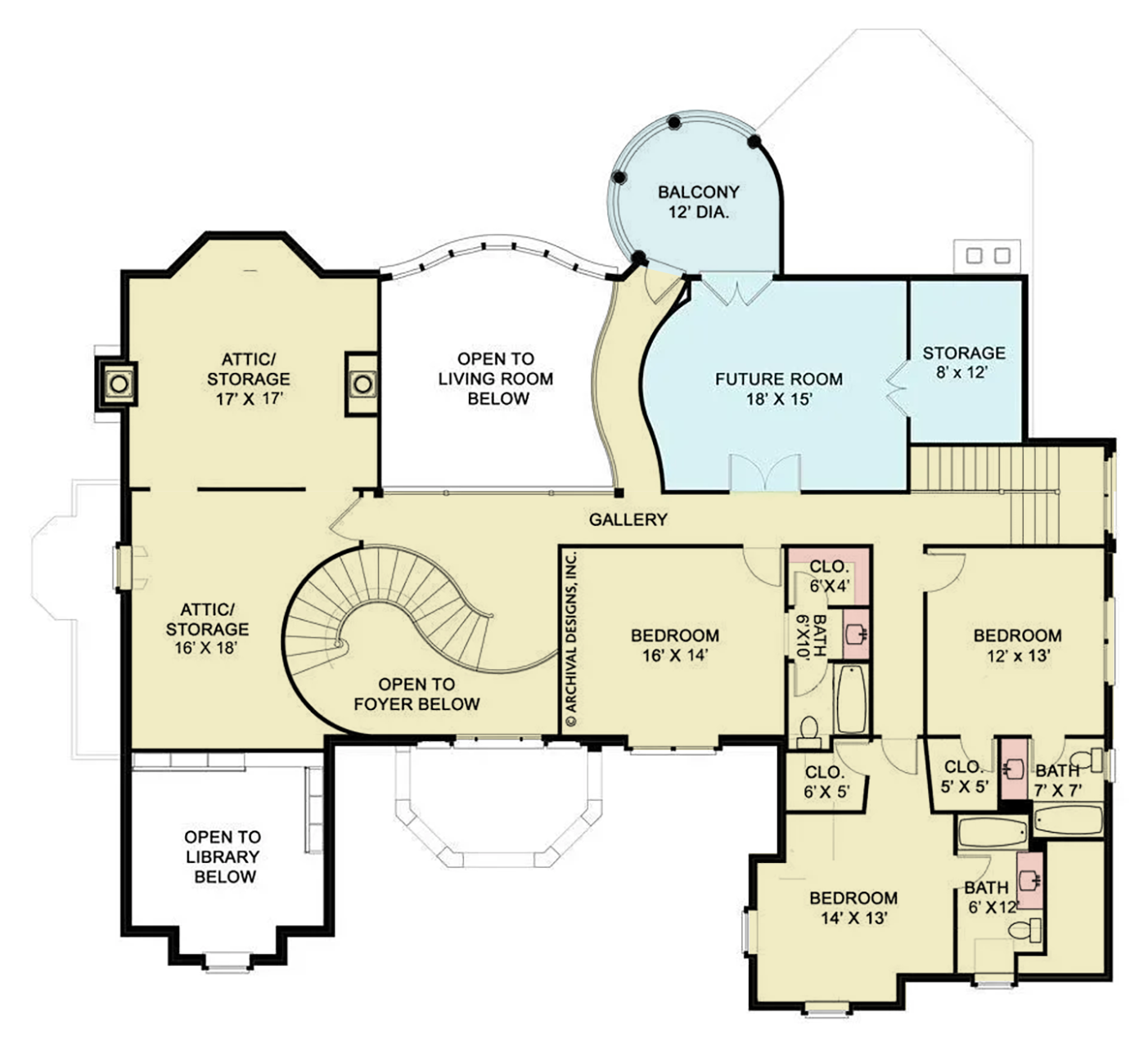

Ascending the Grand Staircase in this Luxury European Castle Home Plan, offers you a rare view of the first floor; you are given numerous opportunities to see over into the Living Room and into the Library as different activities take place below. Now notice is taken of Bedrooms two through four. The Exclusive Castle Home Plan calls for all three bedrooms to be generous in size. In addition there is a Future Room for guest or Play with Balcony access.

  • Private Baths

  • Walk In Closets

  • Ample storage

During our 30 Years in business, Archival Designs, Inc. has created dozens of award winning home plans. The Di Medici House Plan is one of our success stories.
