AG6933-A

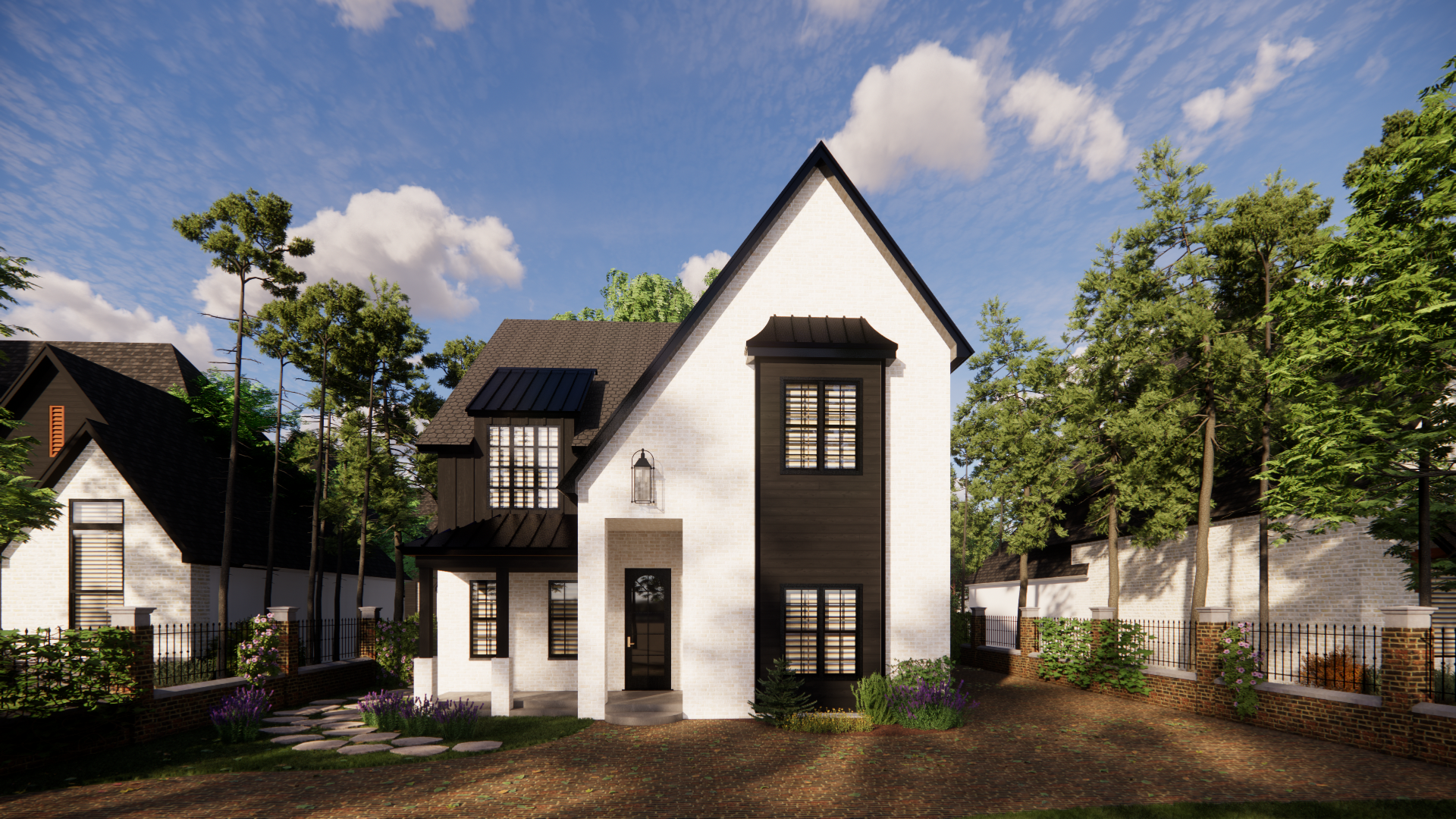

Crown Heights is a two-story residence designed with a narrow 32'10" frontage, making it an efficient choice for urban lots or deep parcels. The home encompasses 2,888 sq ft of heated living space, featuring 3 bedrooms, 2 full bathrooms, and 1 half bathroom. The architectural profile is defined by steep 16:12 and 12:12 roof pitches, contributing to a maximum building height of 32 feet.

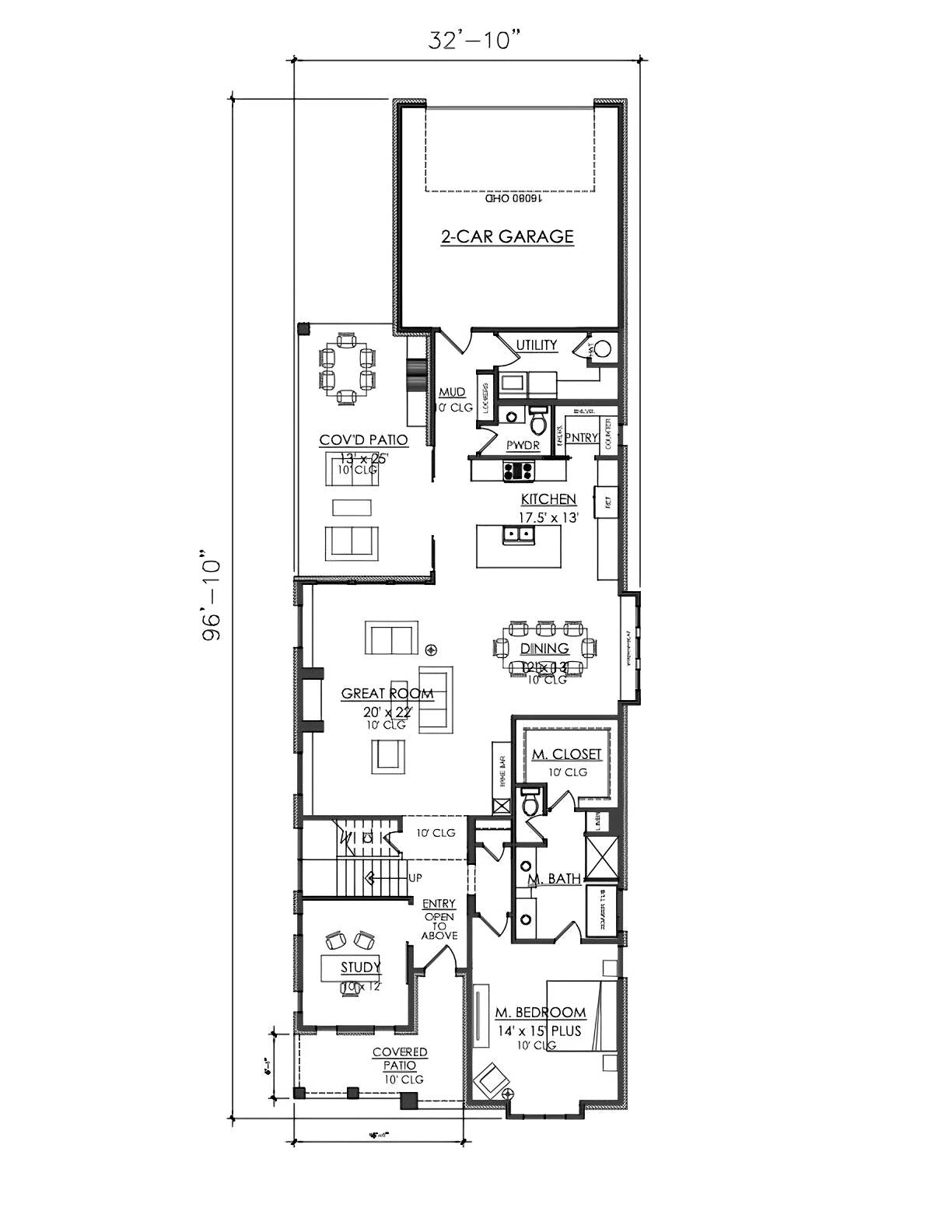

The main level occupies 1,900 sq ft and centers on an open-concept great room that maintains direct sightlines to the kitchen and dining area. The kitchen is equipped with a central island and a walk-in pantry, complemented by a wet bar for service. A primary suite is located on the first floor to provide separation from the secondary sleeping quarters. Additional main-level utility is provided by a dedicated home office and a laundry room, with access to 128 sq ft of front porch area and 305 sq ft of rear porch space.

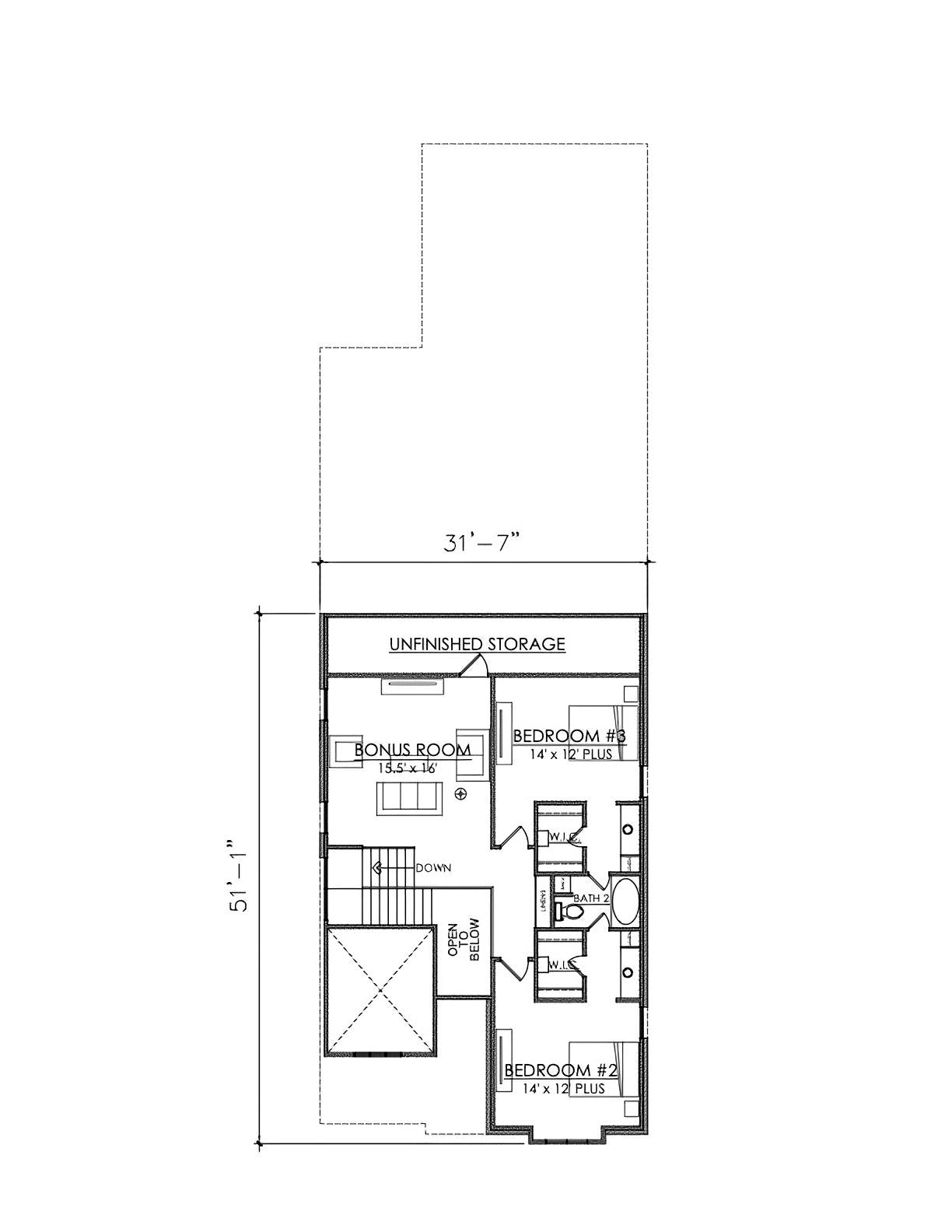

The second level provides 988 sq ft of additional area, including two bedrooms connected by a Jack and Jill bathroom. This floor also incorporates a loft area and a flexible bonus room, providing extra space for media or recreation. The 10-foot ceiling heights on the first floor and 9-foot ceilings on the second floor establish a vertical volume that enhances the interior transition between the two levels.
Structural details include a rear-load 2-car garage covering 466 sq ft, which keeps the primary façade clear of vehicular entry points. The home measures 96'5" in total depth, maximizing the footprint for both indoor and outdoor utility. The integrated outdoor kitchen and rear patio extend the usable space beyond the interior walls, supporting exterior entertaining.
Key Features: 3 bedrooms, 2.5 bathrooms, first-floor primary suite, rear-load 2-car garage, Jack and Jill bathroom, loft, bonus room, outdoor kitchen, wet bar, walk-in pantry, home office, 10-foot first-floor ceilings.
Review floor plans, CAD packages, and customization options for this home.




PDF (Single Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
CAD + PDF (Single Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
5 or 8 Prints (Single Build)
Five or eight printed sets of working drawings shipped to you. This option comes with a license to build ONE home.
5 Prints + PDF (Single Build)
Five printed sets of working drawings shipped to you, plus a digital version in PDF format. This option comes with a license to build ONE home and includes a copyright release for printing unlimited sets of plans and making modifications.
PDF (Multi Build)
A complete set of working drawings delivered in digital PDF format. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
CAD + PDF (Multi Build)
A complete set of working drawings delivered in digital DWG and PDF formats. AutoCAD files are used by design professionals to make significant modifications or engineering calculations to the plan. This option comes with a license to build an UNLIMITED number of homes and includes a copyright release for printing unlimited sets of plans and making modifications. This option may not be available for all house plans, or may require a specific format to be purchased. Please call 770-831-6363 for more information.
Choose a building foundation for your home. The foundation provides stability to a home's structure from the ground up.
Slab - This concrete foundation is reinforced with steel rods and suitable for flat ground.
Crawl Space - This foundation is raised off the ground with low walls resting on footings, providing space for wiring, plumbing, and storage.
Basement - This foundation is entirely or partially below ground and offers storage or living areas.
Walkout Basement - This foundation is typically suited for rear-sloping lots and provides storage or living areas. Walkout basements have doors that provide access to the outside.
