Spanning 1,265 square feet of heated living area, the Crandall 29374 is a single-story ranch plan engineered for a 47-foot width and 49-foot depth footprint. This design features a traditional profile defined by a 8:12 roof pitch and a maximum building height of 21 feet 3 inches, providing a consistent vertical scale across the entire structure.

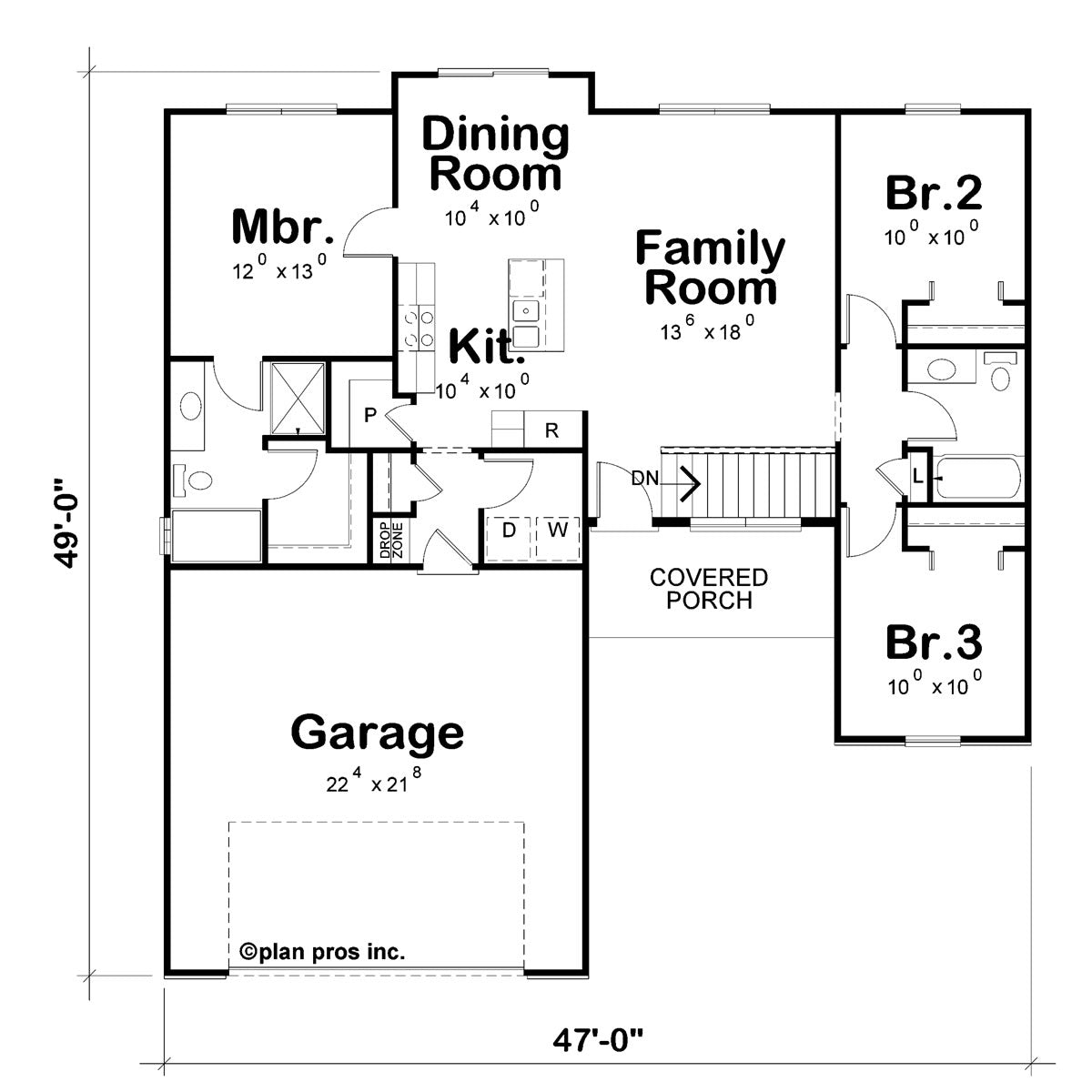

The interior layout utilizes a split-bedroom configuration to isolate the primary suite from the two secondary bedrooms, ensuring acoustic separation and privacy. At the core of the home, the family room connects directly to the formal dining area. The kitchen serves as a central hub, providing immediate access to a dedicated mudroom and a first-floor laundry zone, which consolidates high-traffic utility tasks into one area.
With 9-foot ceilings throughout the main level, the interior volume creates a sense of openness that maximizes the 1,265 square foot floor plate. The structure is built with 2x4 exterior wall framing and sits atop an unfinished basement, offering flexibility for future expansion or additional storage needs. The design prioritizes a standard foundation approach to ensure structural efficiency and long-term maintenance accessibility.
A 506 square foot front-load garage accommodates 2 vehicles and provides a direct entry point into the home. The exterior is enhanced by a covered front porch that spans the entry, contributing to the traditional aesthetic of the façade. This plan remains a primary choice for those seeking a compact, single-level footprint that does not compromise on essential living zones or garage capacity.
Key Features: 3 bedrooms, 2 bathrooms, 1,265 sq ft total living area, split-bedroom layout, 9-foot ceilings, unfinished basement foundation, 2-car front-load garage, covered front porch, mudroom, 8:12 roof pitch.
Explore floor plans, available formats, and modification options for this design.
