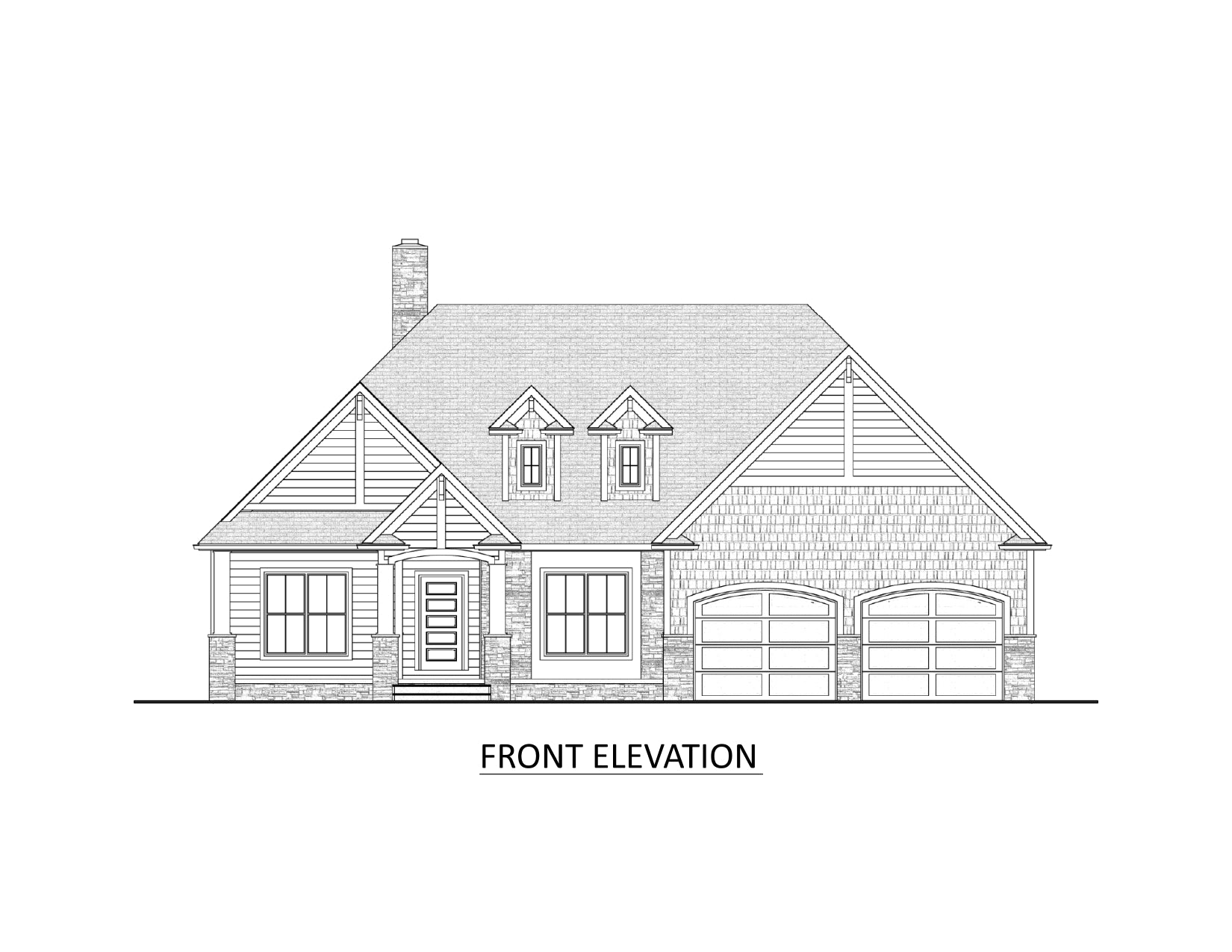

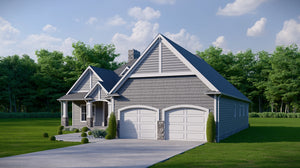

This thoughtfully designed Craftsman ranch house plan combines classic architectural charm with modern livability, making it an ideal choice for homeowners seeking comfort, functionality, and timeless style. With its balanced proportions, welcoming porches, and efficient single-level layout, this home is perfectly suited for suburban, countryside, or gently sloping lots.
The plan offers 2,232 square feet of heated living space, all located on the main floor to support convenient, everyday living. Complementing this is 1,151 square feet of unheated under-roof areas, bringing the total structure size to 3,383 square feet without the basement and an impressive 5,594 square feet with the basement included. The home measures 58 feet 6 inches wide by 68 feet deep, with a building height of 28 feet 3 inches, creating a strong yet approachable Craftsman profile. Inside, 9-foot ceilings throughout the first floor enhance openness and natural light.
A 242-square-foot covered front porch welcomes guests with classic Craftsman curb appeal, while the 262-square-foot covered rear porch extends the living space outdoors. An outdoor fireplace anchors the rear porch, making it an inviting retreat for cool evenings, entertaining, or quiet relaxation year-round.

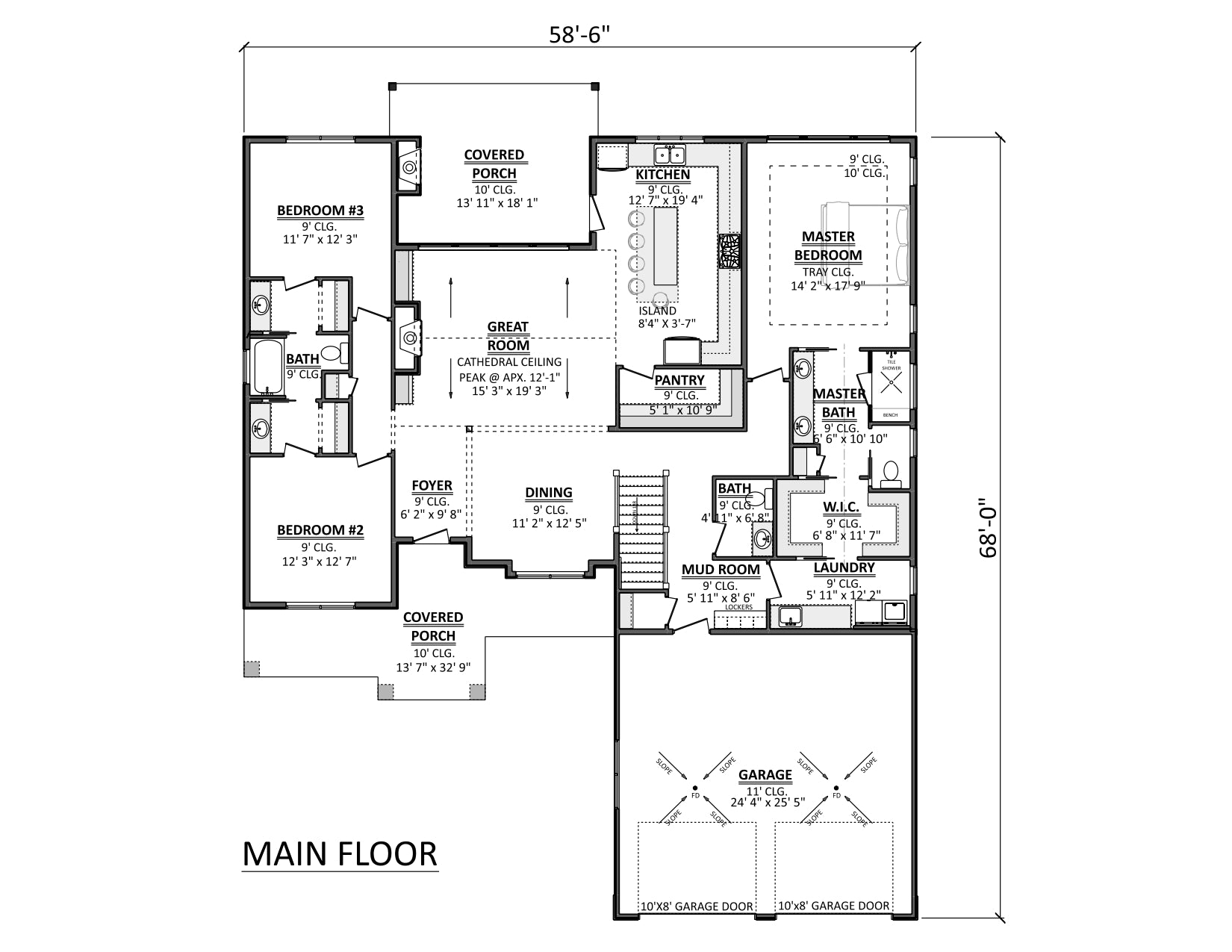

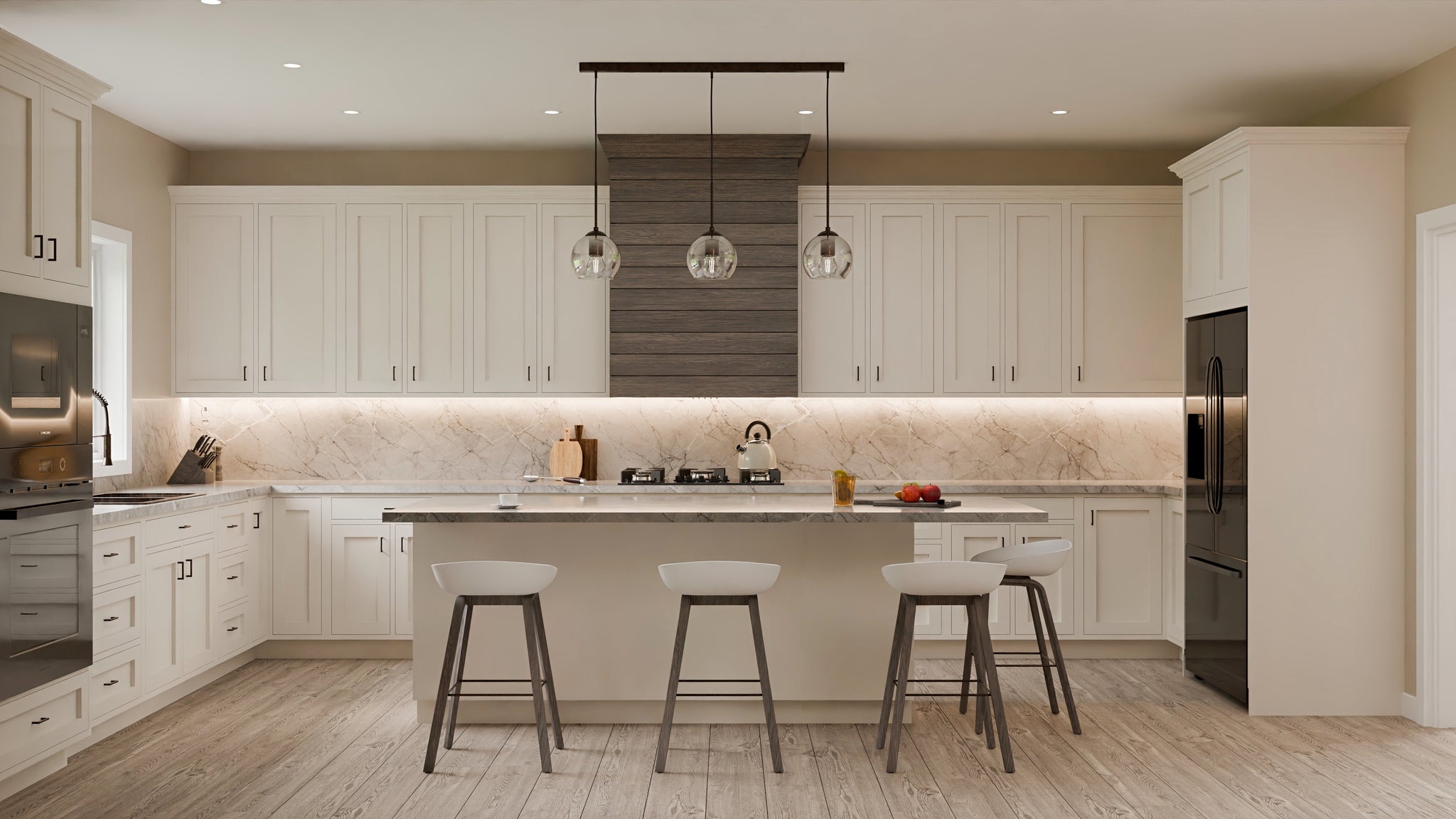

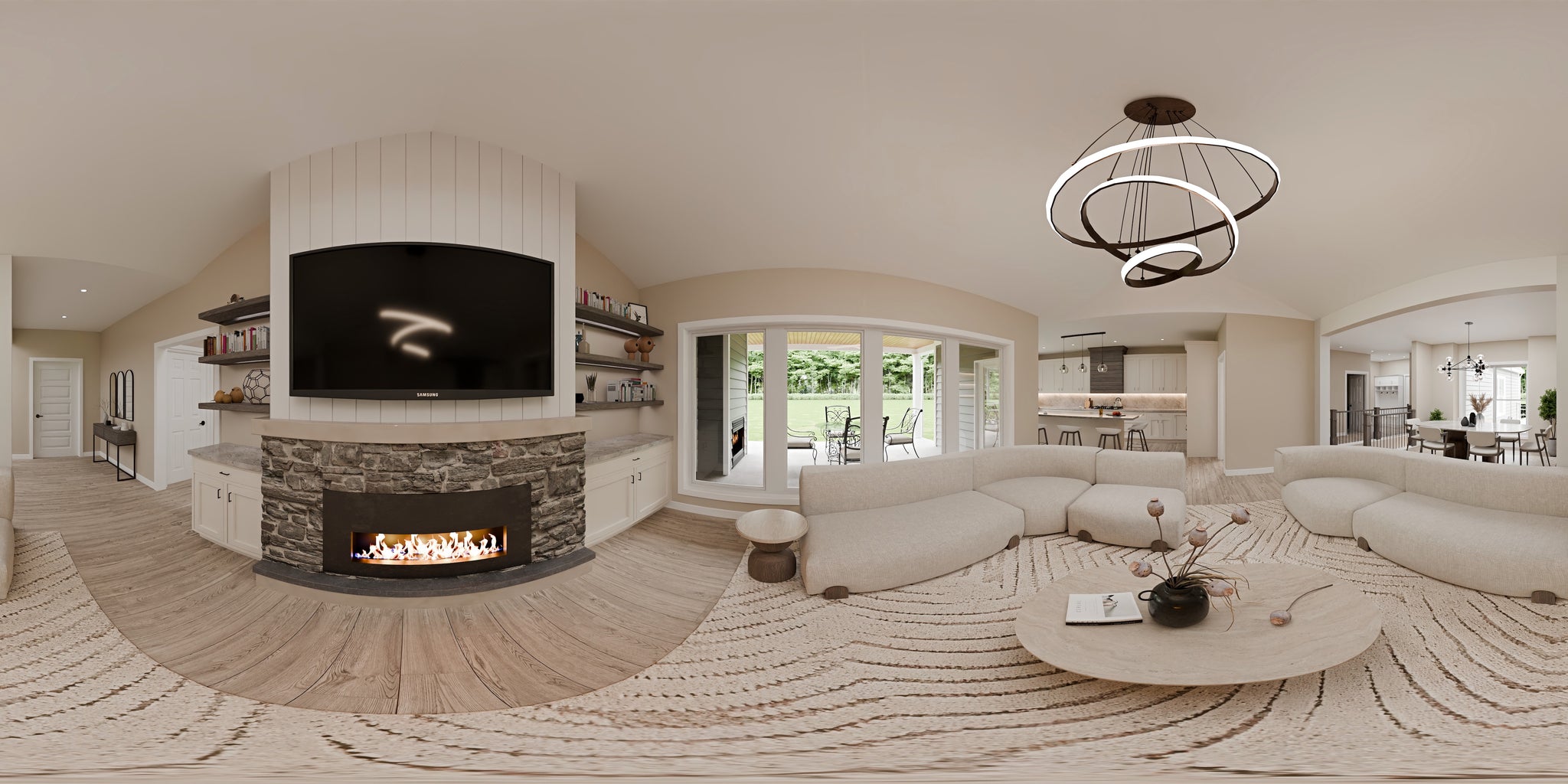

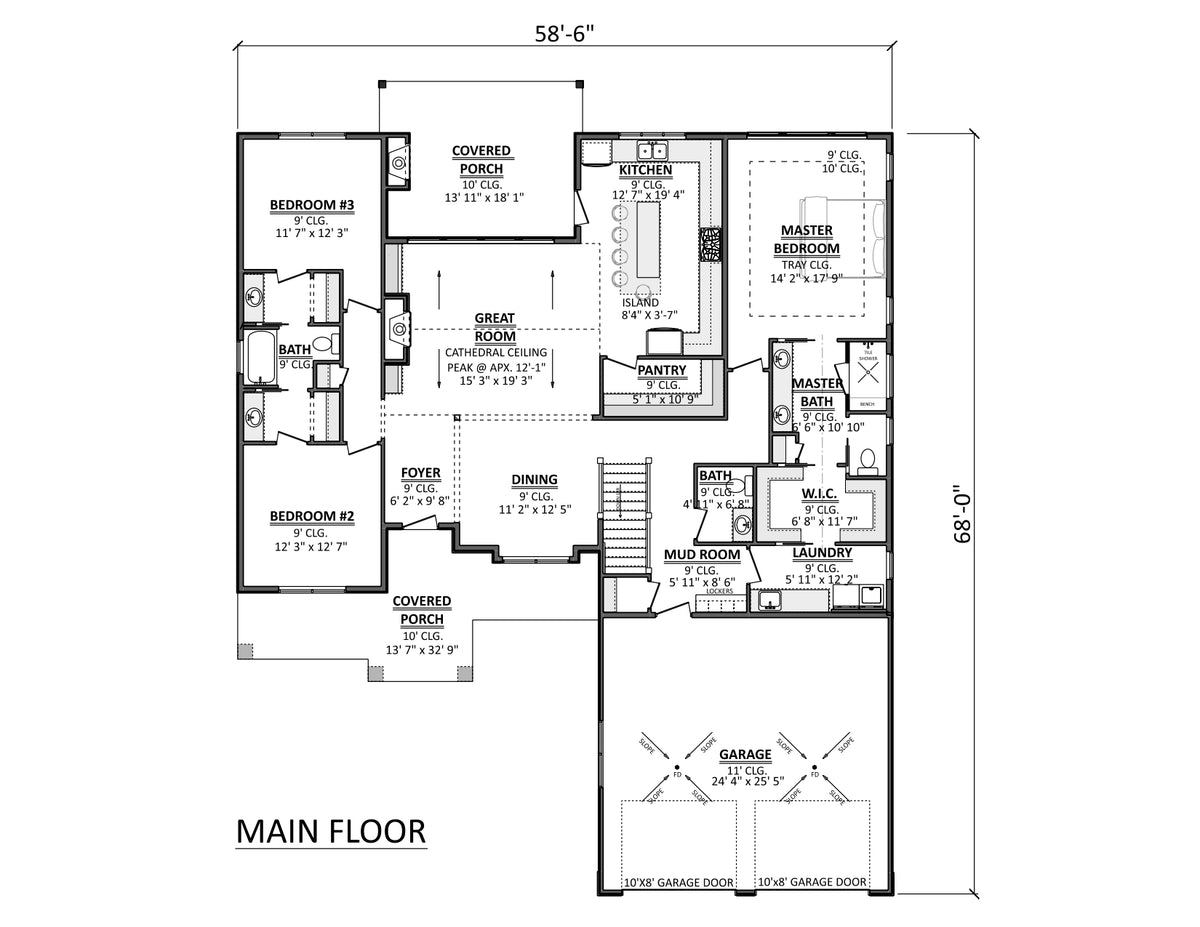

At the heart of the home is a spacious open floor plan that seamlessly connects the great room, kitchen, and dining areas. The great room features a warm interior fireplace, creating a cozy focal point while still maintaining visual openness. The kitchen is designed for both function and social interaction, featuring a large kitchen island, eating bar, and a generous walk-in pantry. A nearby formal dining room adds versatility, offering a dedicated space for holidays, family gatherings, or special occasions without interrupting the flow of daily living.

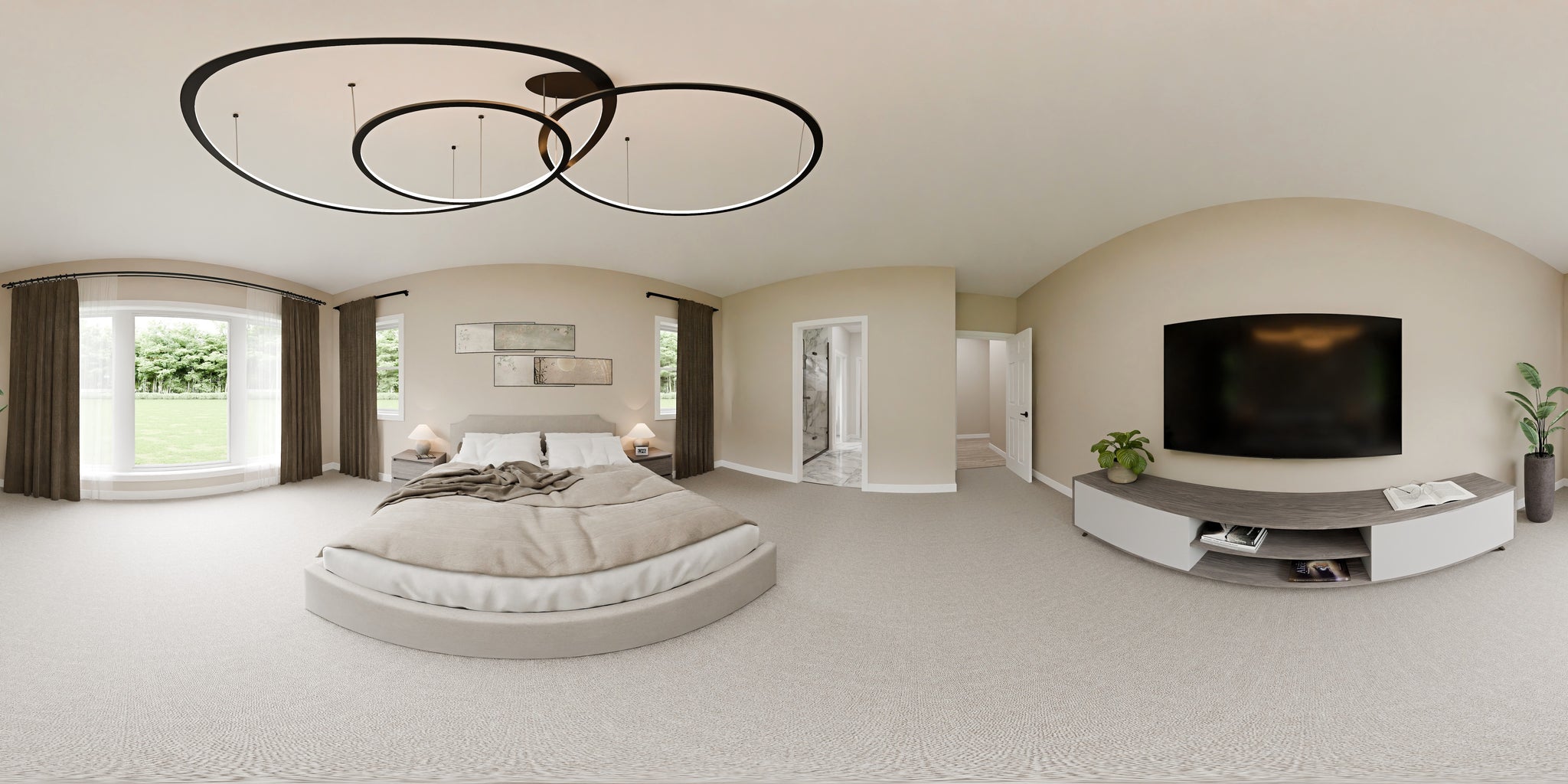

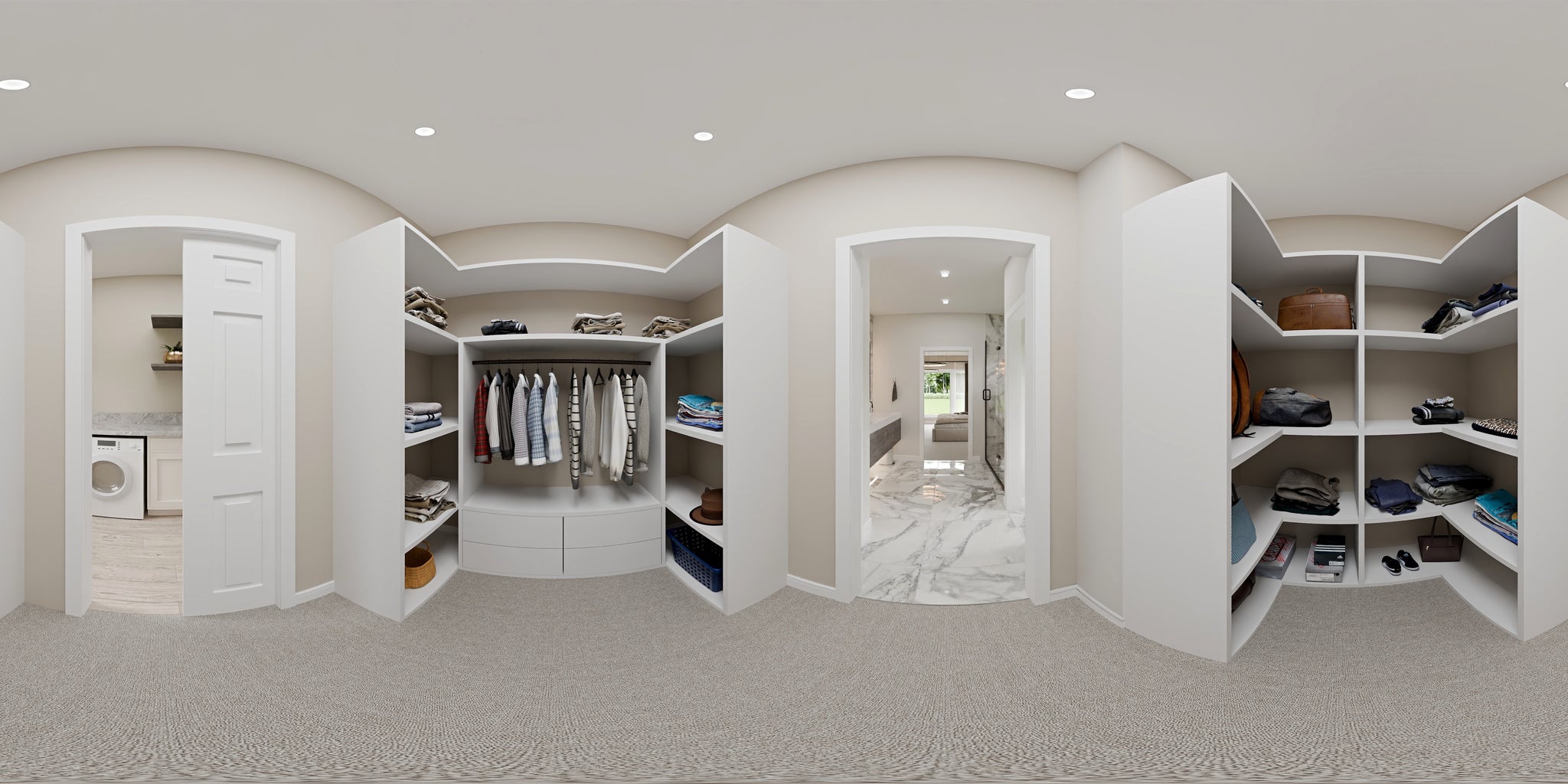

The first-floor master suite is privately positioned within a split bedroom layout, providing a quiet retreat separate from the secondary bedrooms. This suite includes a spacious walk-in closet and a private master bath with double vanity sinks, combining comfort with everyday convenience. Two additional bedrooms are thoughtfully connected by a Jack and Jill bathroom, making them ideal for children, guests, or flexible use as hobby or study spaces.

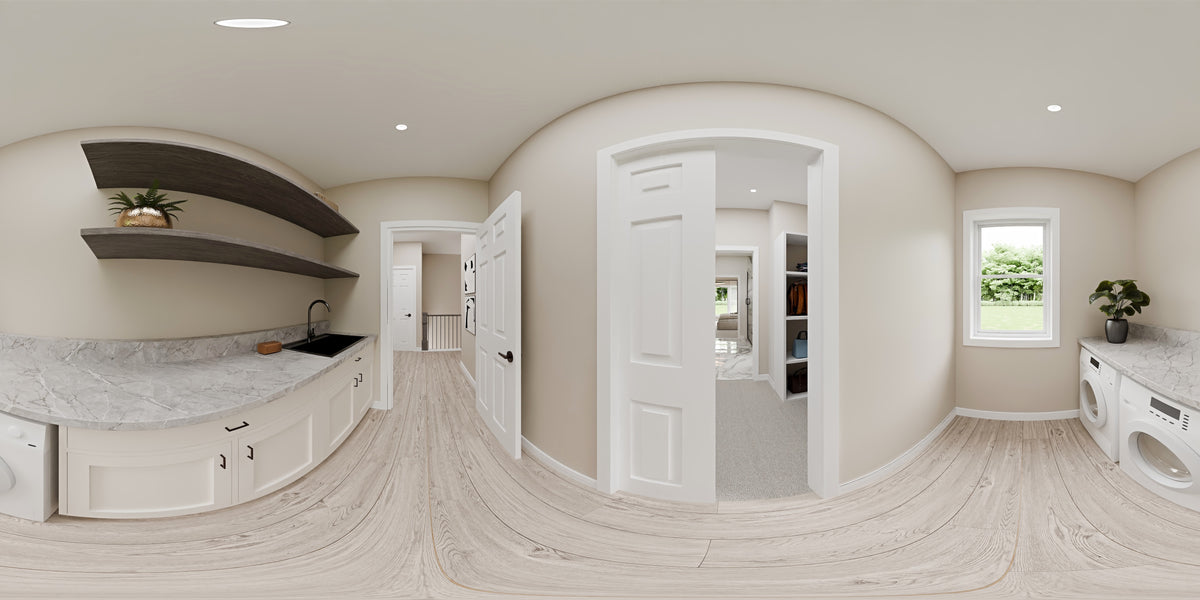

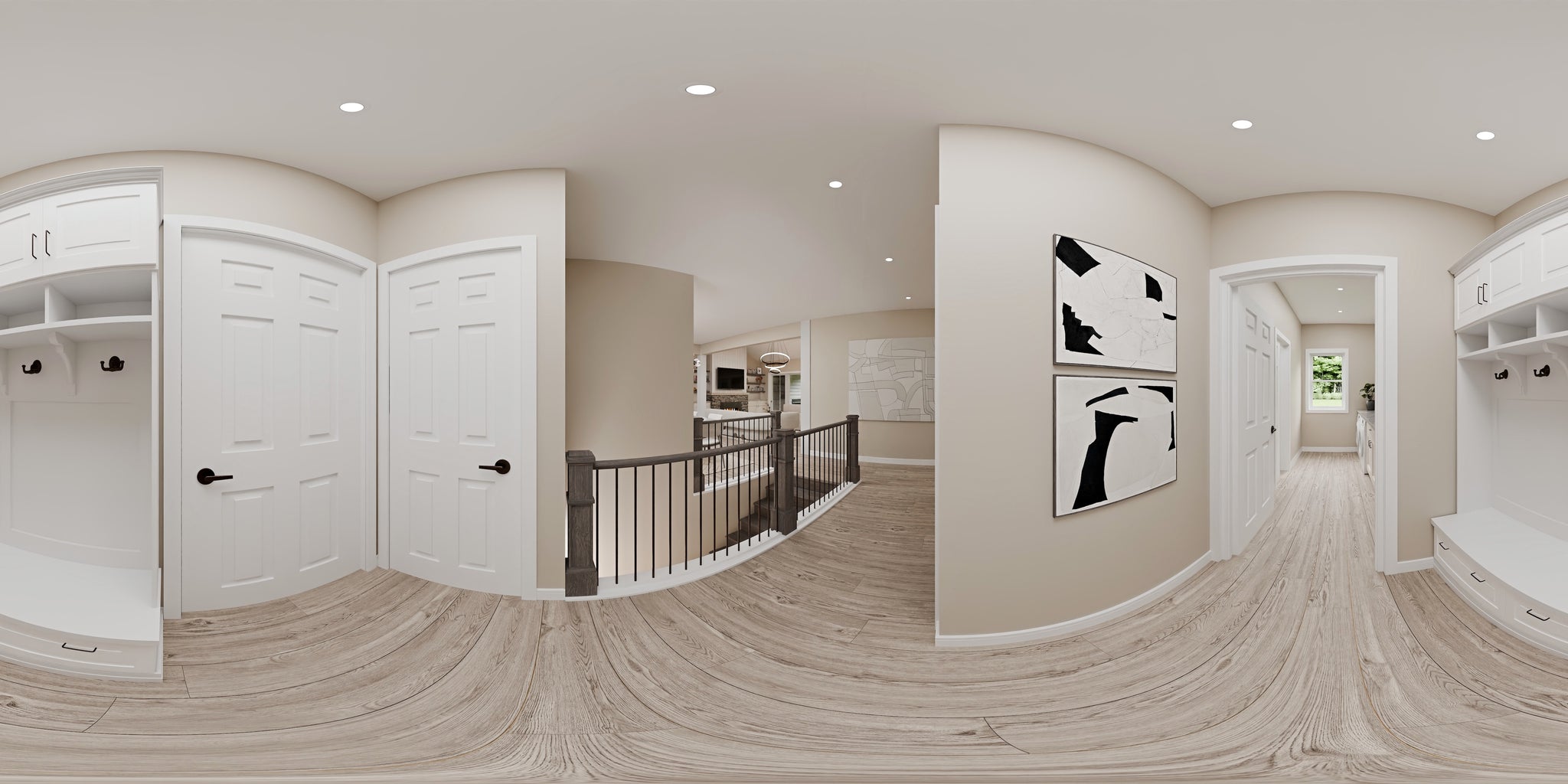

Practical living features are seamlessly integrated throughout the home. A first-floor laundry room, with direct access from the master suite, simplifies daily routines, while a well-placed mud room helps manage clutter from the garage and outdoors. A centrally located powder room ensures guest convenience without compromising privacy.

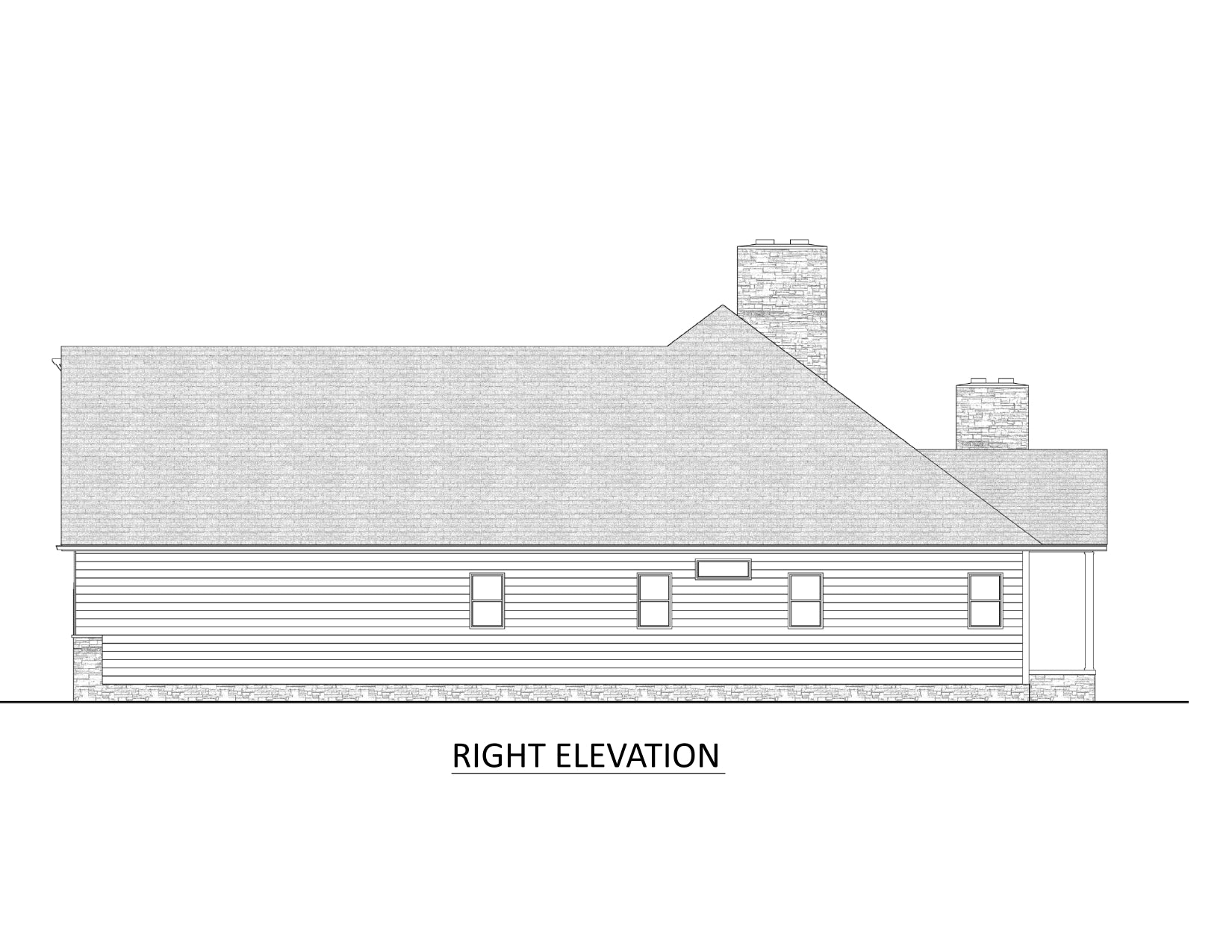

The home includes a 647-square-foot, front-load two-car garage, offering ample space for vehicles, storage, and tools. Built with 2x6 wall framing for enhanced durability and energy efficiency, the home features a truss-framed roof with steep 12:12 and 9:12 roof pitches, reinforcing its authentic Craftsman character.
The basement foundation adds exceptional flexibility, providing 2,211 square feet of unfinished space ready for future expansion. Homeowners can customize this level to include additional bedrooms, a recreation room, home gym, workshop, or storage—adapting the home as needs evolve over time.
With its inviting porches, open yet refined interior, outdoor fireplace, and expandable basement, this Craftsman ranch house plan delivers timeless appeal and long-term versatility, making it a standout choice for comfortable and stylish living.

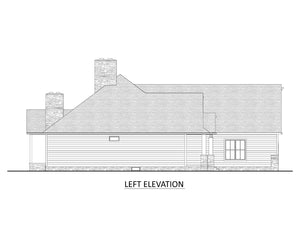

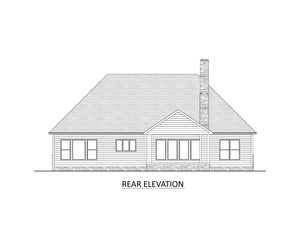

The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.
