Floor Plan

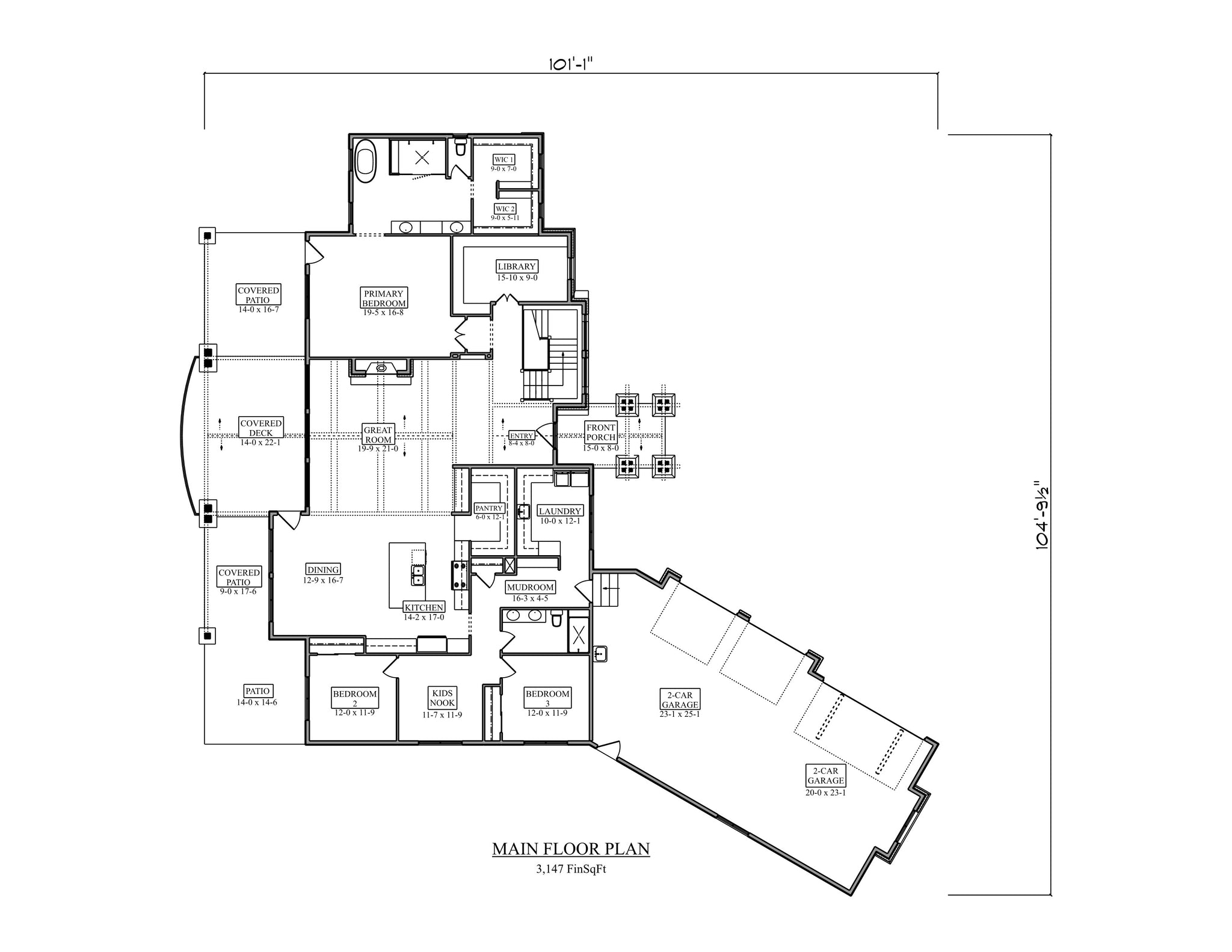

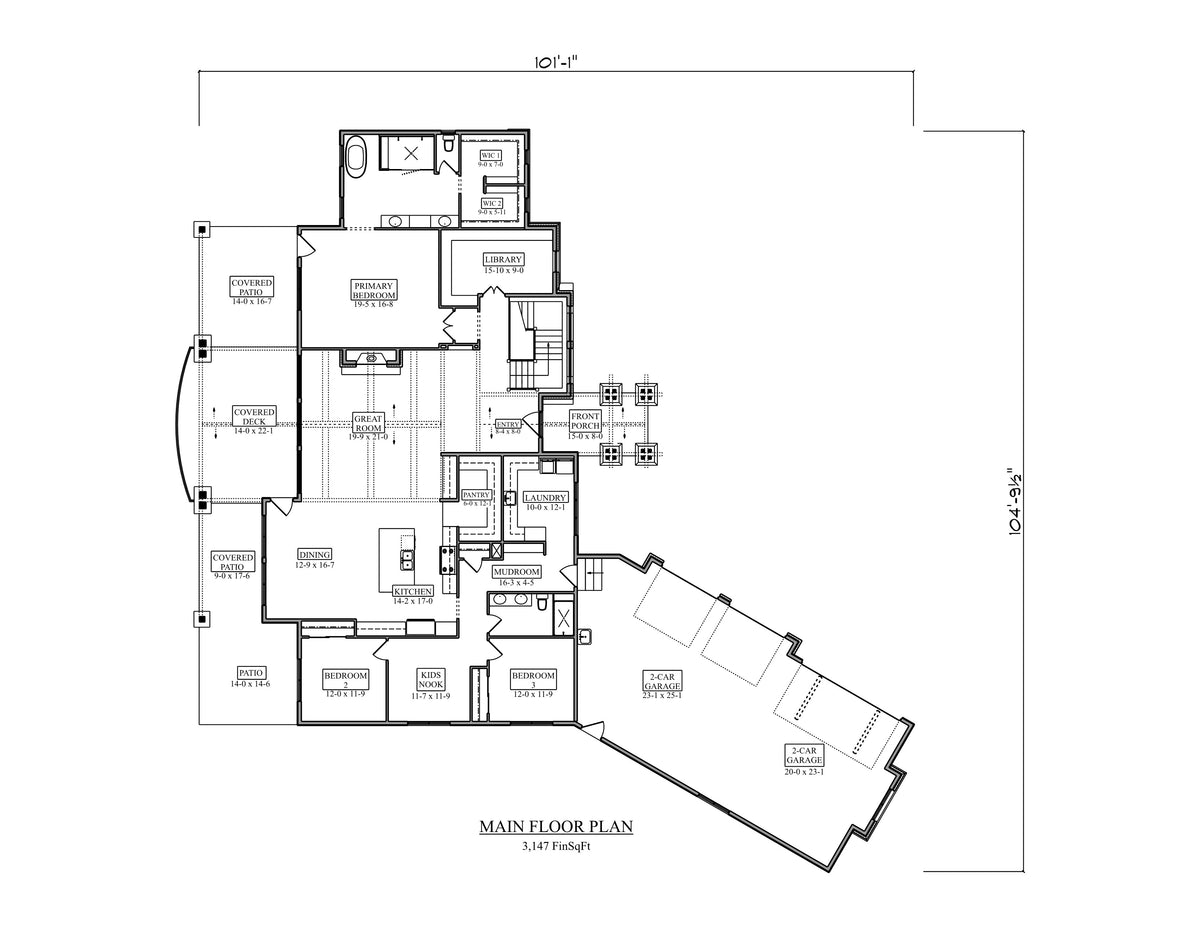

i8361-a craftsman house first floor plan, 3 bedrooms, 2 bathrooms | maple valley ii house plan

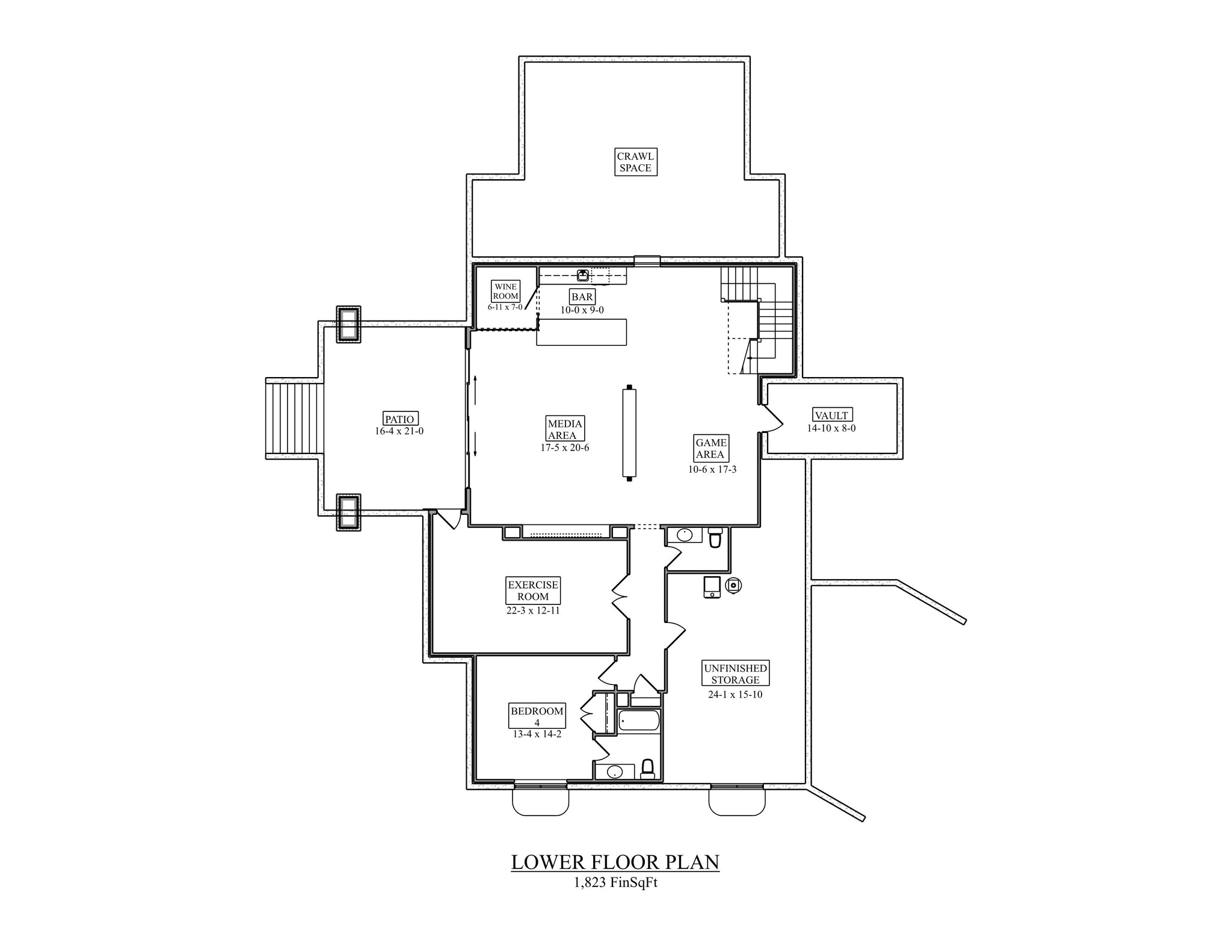

i8361-a craftsman house basement floor plan, 3 bedrooms, 2 bathrooms | maple valley ii house plan

Magnificent Craftsman House Plan with Walkout Basement and Courtyard 4-Car Garage

This magnificent Craftsman house exemplifies the enduring appeal of classic American architecture while incorporating the spaciousness and conveniences demanded by modern living. With 3,147 sq. ft. of heated living space and a total structure encompassing 5,783 sq. ft., this impressive residence offers an exceptional balance of elegance, functionality, and flexibility. Distinguished by its expansive footprint, generous outdoor living areas, and thoughtfully planned interior spaces, the home is ideally suited for homeowners seeking refined single-level living with abundant room for future expansion.

Measuring 104 feet 9 inches in width and 101 feet 1 inch in depth, the residence commands a substantial presence on a large homesite. The design is supported by durable 2x6 wall framing and a walkout basement foundation, ensuring long-term structural integrity and enhanced energy efficiency. Distinctive rooflines featuring 8:12 and 2.5:12 roof pitches create a dynamic architectural profile while preserving the timeless character associated with Craftsman design. Rising to a height of 28 feet, the home presents an impressive yet harmonious appearance.

A defining feature of the design is its extraordinary outdoor living space. The home boasts a remarkable 1,426 sq. ft. of covered porch areas, creating multiple opportunities for relaxation, entertaining, and enjoying the surrounding landscape. These expansive porches serve as natural extensions of the interior living spaces, encouraging year-round enjoyment of the outdoors. A patio further enhances the home's connection to nature, providing an ideal setting for outdoor dining, gatherings, or quiet reflection.

The entire main level encompasses 3,147 sq. ft. of carefully arranged living space beneath soaring 10-foot ceilings. The open-concept floor plan promotes effortless movement between primary gathering spaces while maintaining a sense of warmth and intimacy throughout the home.

At the heart of the residence is a spacious great room anchored by a fireplace that serves as both a visual focal point and a source of comfort. This inviting space is designed to accommodate everyday family activities as well as large-scale entertaining. The open relationship between the great room, kitchen, and dining areas fosters interaction while preserving the home's welcoming atmosphere.

The kitchen is thoughtfully designed to support both culinary creativity and social engagement. A generously sized center island provides additional workspace and serves as a natural gathering place for family and guests. Ample storage is available through a substantial walk-in pantry, ensuring efficient organization and easy access to kitchen essentials.

Adjacent to the kitchen, the formal dining room offers an elegant setting for family meals, holiday celebrations, and special occasions. Its placement within the floor plan allows for seamless entertaining while maintaining a distinct sense of formality.

The residence includes 3 bedrooms and 2 full bathrooms, arranged to maximize privacy and comfort. The first-floor owner's suite serves as a luxurious retreat, thoughtfully positioned away from secondary bedrooms. This private sanctuary features a spacious bedroom, an expansive walk-in closet, and a well-appointed private bath with dual vanities designed to support everyday convenience.

A dedicated library provides a quiet and refined environment ideal for reading, study, or remote work. This versatile room enhances the home's functionality while contributing to its timeless architectural character.

Additional practical amenities include a first-floor laundry room and a mud room, both designed to simplify daily routines and maintain household organization.

One of the home's most significant assets is its walkout basement. The lower level includes 1,823 sq. ft. of finished space, offering extensive opportunities for recreation, entertainment, guest accommodations, or multigenerational living. An additional 499 sq. ft. of unfinished basement area provides valuable storage or future expansion potential. Matching the main level, the basement features comfortable 10-foot ceilings, creating bright and inviting lower-level spaces.

Completing the design is an impressive 1,210 sq. ft. courtyard-entry garage with accommodations for 4 vehicles. The angled garage configuration enhances curb appeal while providing abundant space for automobiles, storage, workshop activities, and recreational equipment.

Combining timeless Craftsman styling with expansive living areas and exceptional versatility, this distinguished residence offers a sophisticated yet comfortable lifestyle. Its generous proportions, refined interior spaces, extensive outdoor amenities, and flexible lower level create a home designed to serve generations while maintaining enduring architectural appeal.

What's Included in the House Plan:
  • Cover Page: Project details, drawing index, and abbreviations.
  • 4 Elevations: Exterior views of the building, showing all sides.
  • Floor Plans: Layout of rooms, doors, windows, and dimensions.
  • Foundation Plan (without structural specifications): Layout of the foundation, showing walls and footings.
  • Roof Plan (without structural specifications): Layout of the roof, including slopes and features.
  • Typical Wall Sections: Cross-section drawings showing wall construction details.
  • Electrical Plan: Locations of outlets, switches, light fixtures, and panels.
What's Not Included:
  • Architectural or Engineering Stamp: Handled locally if required.
  • Site Plan: Created locally when needed.
  • Mechanical Drawings: Heating, air equipment, and ductwork to be designed by subcontractors.
  • Plumbing Drawings: Pipe sizes and locations to be determined by subcontractors.
  • Energy Calculations: Handled locally if required.

House Plan Specifications

  • Total Living (heated area):  3147 sq ft
    All Unheated Under-Roof Areas  2636 sq ft
    Total Structure  5783 sq ft
    1st Floor:  3147 sq ft
    Basement:  (Finished) 1823 (Unfinished) 499 sq ft
    Total Porch:  1426 sq ft
  • Garage:  1210 sq ft
    Garage Bays:   4
    Garage Load:   Courtyard
  • Bedrooms:   3
    Bathrooms:   2
  • Foundation:   Walkout Basement
    Wall Framing:   2x6
    Roof Pitch:  8:12 and 2.5:12
  • Width of House:  104'-9''
    Depth of House:  101'-1''
    Building Height:  28'-0''
  • First Floor Ceiling Height:  10'
    Basement Ceiling Height:  10'

Key Features

  • Angled Garage
  • Covered Front Porch
  • Fireplace
  • First Floor Laundry
  • First Floor Master Suite
  • Formal Dining Room
  • Great Room
  • Kitchen Island
  • Library
  • Master Bath-Double Vanity Sink
  • Mud Room
  • Open Floor Plan
  • Patio
  • Private Master Bath
  • Walk-in Pantry
Modify this plan to make it perfect
