Floor Plan

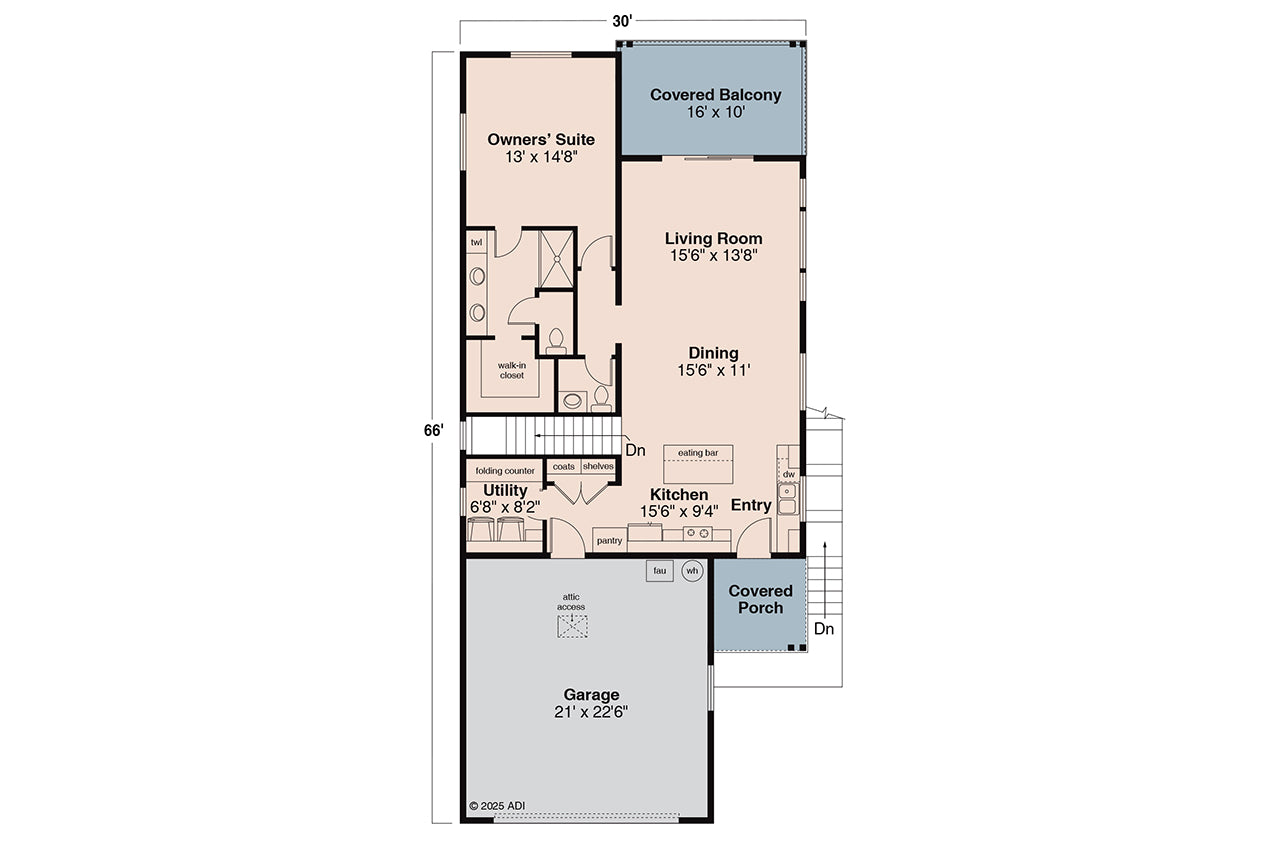

am7936-a cottage house first floor plan, 3 bedrooms, 2.5 bathrooms | 31-437 pinecrest

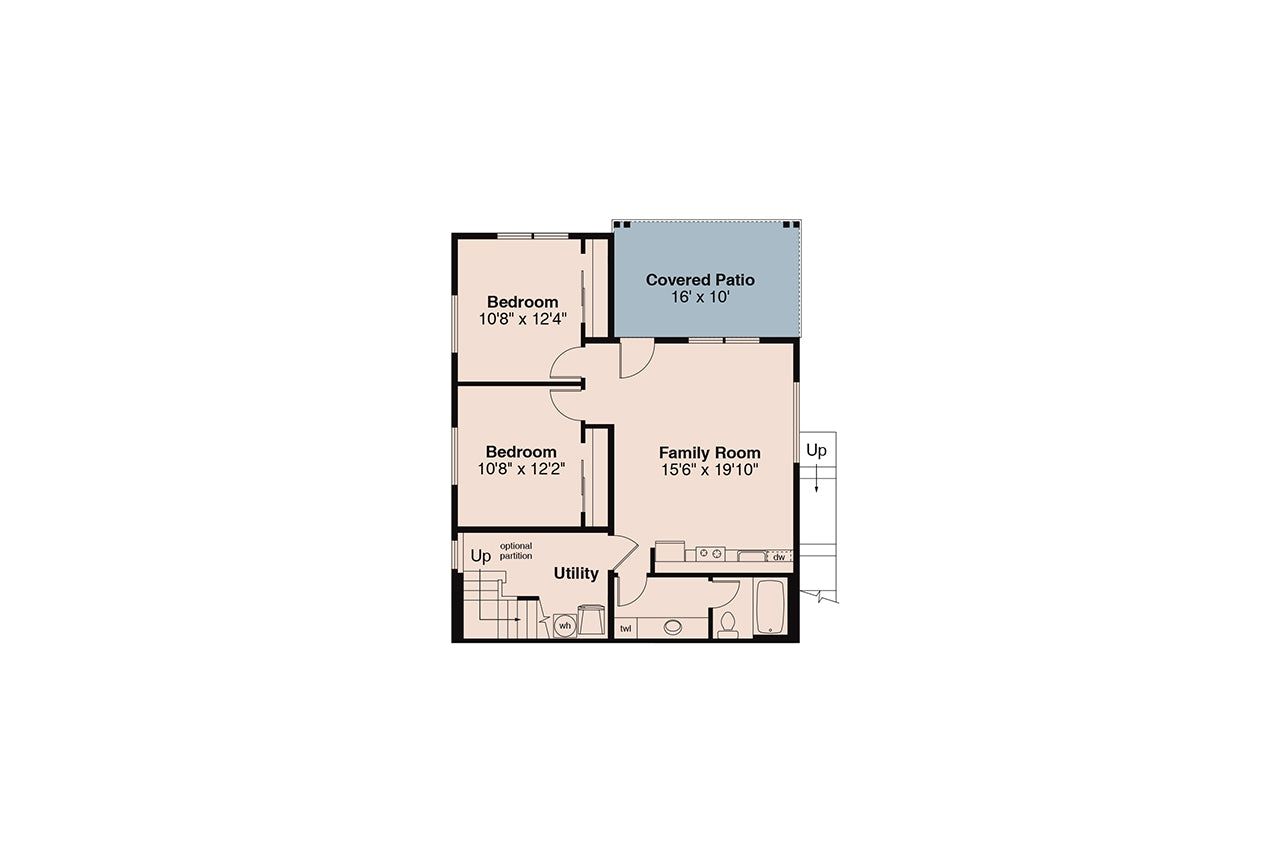

am7936-a cottage house basement floor plan, 3 bedrooms, 2.5 bathrooms | 31-437 pinecrest

3-Bedroom Cottage House Plan with Loft & Daylight Basement | 1,974 Sq Ft

The 31 437 Pinecrest is a versatile cottage-style residence spanning 1,974 square feet of heated living space. Designed with a 30-foot width and 68-foot depth, this footprint is suited for a variety of suburban or rural parcels. The exterior features a 7:12 roof pitch and a covered front porch totaling 369 square feet, establishing a classic profile that emphasizes exterior curb appeal.

The main level offers 1,129 square feet of living area defined by an open-concept core. Nine-foot ceilings throughout the primary floor enhance the sense of volume, while the kitchen serves as the central hub with an integrated island and an eating bar for casual dining. The primary suite is located on the main floor, ensuring privacy and ease of access, complemented by a walk-in closet and a dedicated bathroom with a double vanity.

A unique loft area overlooks the main living space, providing a flexible zone that can be utilized as a home office, reading nook, or secondary lounge. The home also includes an 845-square-foot daylight basement with 9-foot ceilings, which adds significant potential for future expansion, such as a recreation room or guest quarters. This structural approach allows the total square footage to extend to 2,849 square feet when the basement is considered.

Construction details for the 31 437 Pinecrest include a maximum building height of 19 feet 9 inches. The attached 2-car garage provides 506 square feet of vehicle storage with convenient front-load access. Practical amenities such as a first-floor laundry room and a guest powder room ensure the floor plan remains efficient for daily operations and long-term occupancy.

Key Features: 3 bedrooms, 2 full bathrooms, 1 half bathroom, main-level primary suite, loft area, daylight basement, 2-car front-load garage, open-concept floor plan, 7:12 roof pitch, kitchen island.

Review floor plans, CAD packages, and modification options for this home.

What's Included in the House Plan:
  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Cover Sheet / Artist's Rendering:
    An artist's illustration of the home, typically viewed from the front, along with general construction notes.

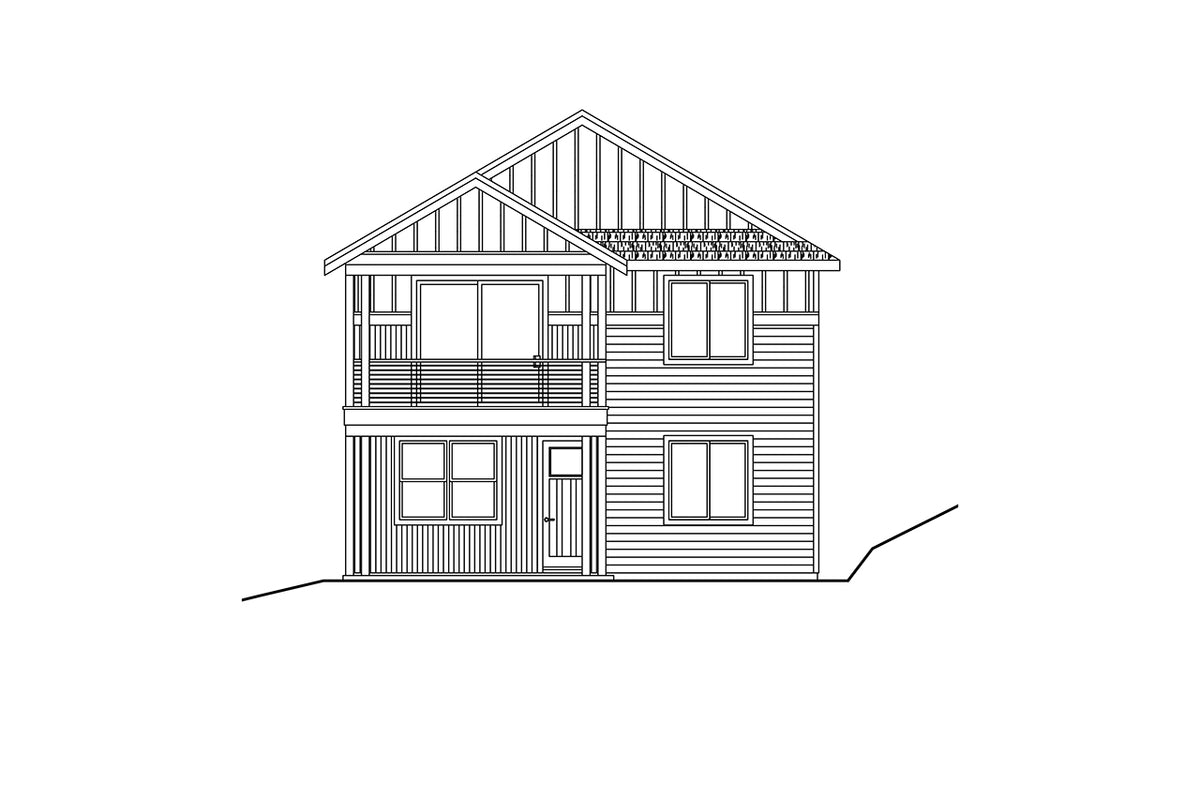

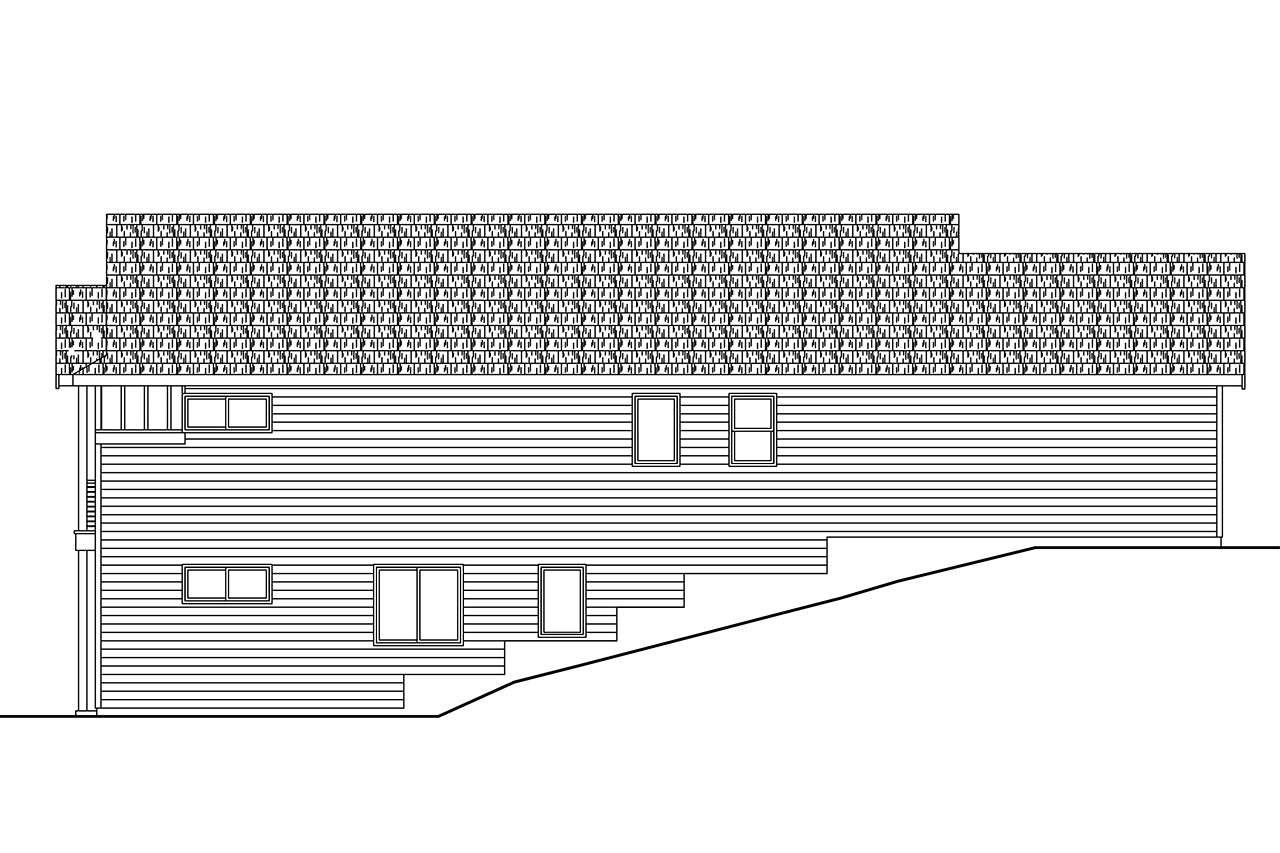

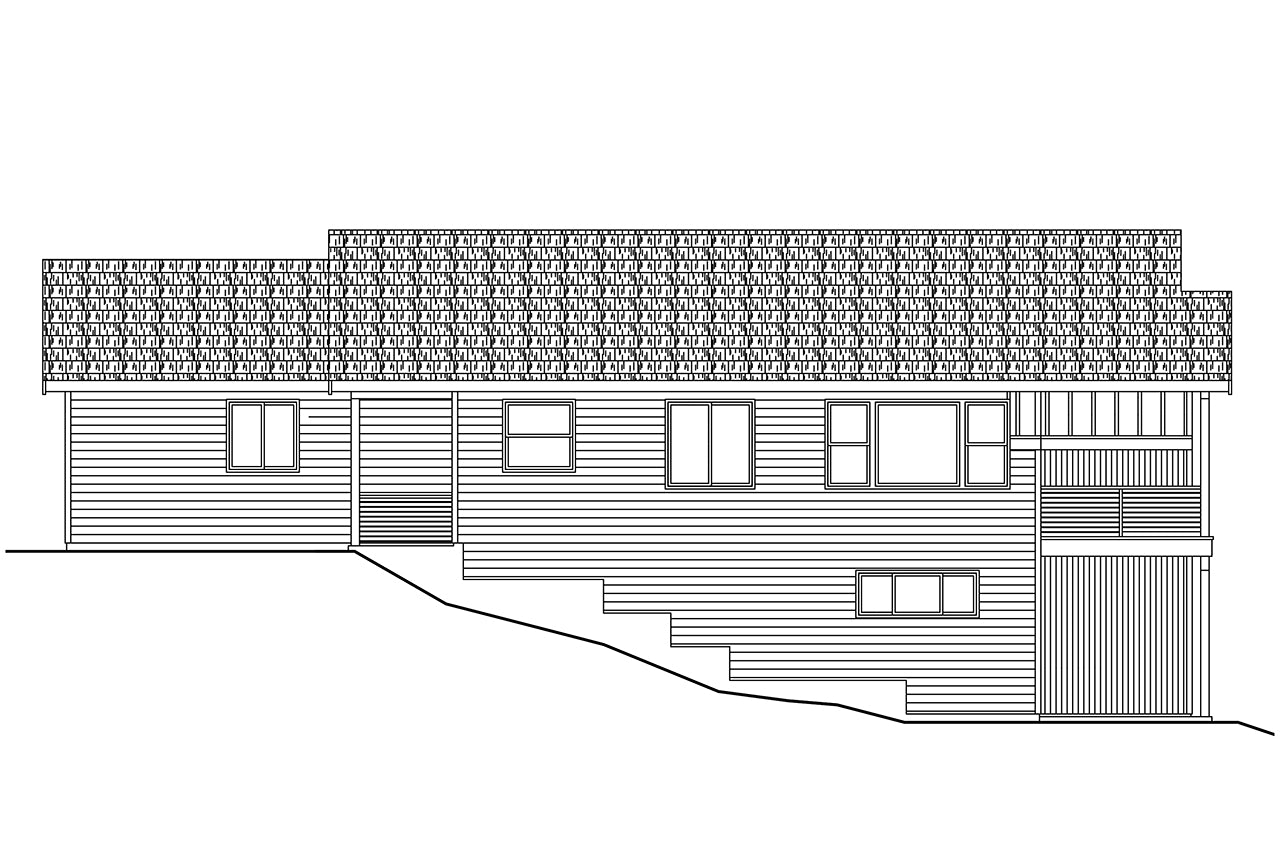

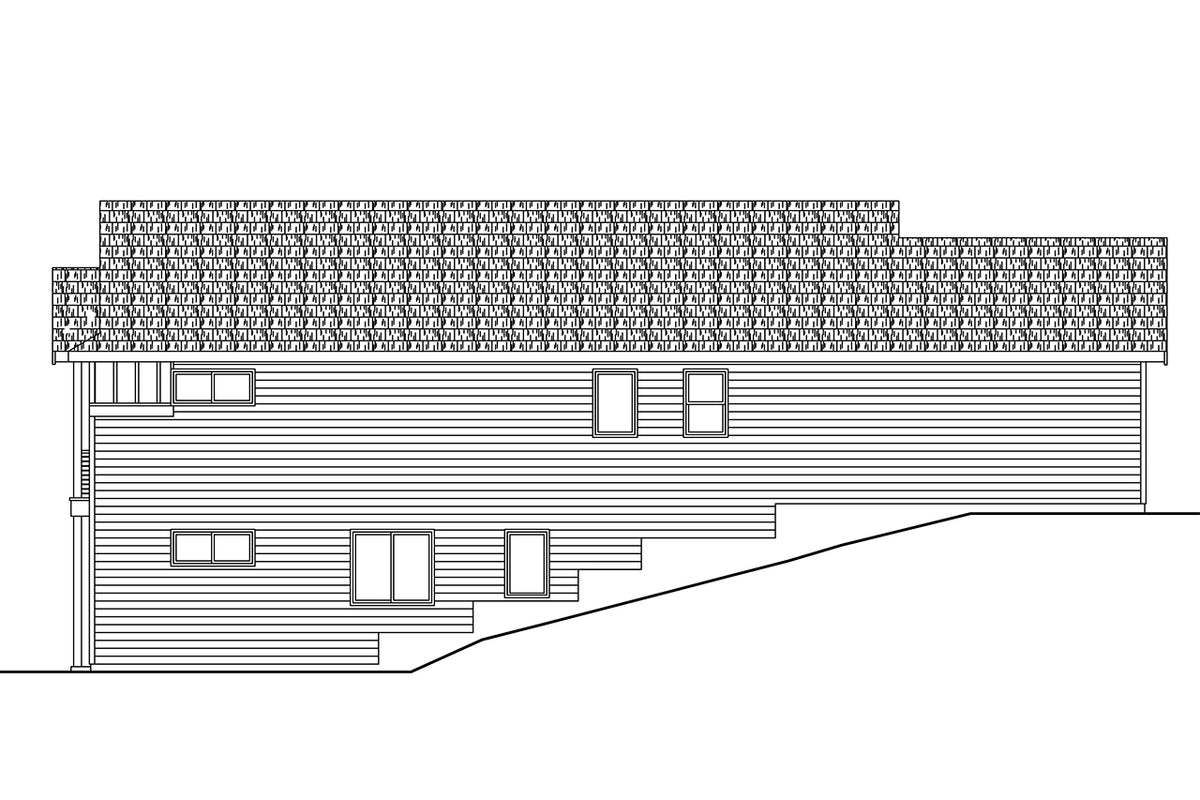

  • Elevations:
    Shows the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, and other architectural details.
  • Main Floor Plan:
    Displays the layout and dimensions of walls, doors, and windows. Includes the location of appliances, plumbing fixtures, beams, and ceiling heights.
  • Second Floor Plan (if applicable):
    Details the second floor layout with the same information as the main floor, including second-floor framing and structural details.
  • Foundation Plan:
    Shows all concrete footings, floor beams, first-floor framing, and other foundation-specific details. If applicable, includes a basement plan with full basement layout and details. Foundation types vary—please contact us to confirm the foundation type for your plan.
  • Floor Framing Plan (if applicable):
    Shows the layout and spacing of floor joists, beams, and supporting walls.
  • Roof Framing Plan:
    Displays roof outlines, truss or stick framing, beams, and roof construction details.
  • Sections & Details:
    Provides a cross-section of the home showing structural support members, insulation, materials, and foundation. Includes specific construction details (e.g., stairways, fireplaces, decks) drawn at 1/2" = 1' scale where needed.
  • Electrical Plan:
    A schematic diagram showing the placement of all lighting fixtures, switches, and electrical outlets.
What's Not Included:
  • Architectural and Engineering Stamps
  • Site Plan
  • Structural or Framing Plans
    (All engineering requirements—including structural, truss, and framing specifications—must be provided by a local engineer or truss manufacturer to comply with local building codes.)
  • Plumbing Layout
    (Only fixture locations are shown. Detailed plumbing layouts are the responsibility of licensed subcontractors.)
  • Mechanical or HVAC Drawings
    (To be provided and installed by qualified subcontractors.)
  • Grading Plan
  • Material List

House Plan Specifications

  • Total Living (heated area):  1974 sq ft
    All Unheated Under-Roof Areas  875 sq ft
    Total Structure With Basement  3694 sq ft
    Total Structure without Basement  2849 sq ft
    1st Floor:  1129 sq ft
    Basement:  845 sq ft
    Total Porch:  369 sq ft
  • Garage:  506 sq ft
    Garage Bays:   2
    Garage Load:   Front
  • Bedrooms:   3
    Bathrooms:   2
    Half Bathrooms:   1
  • Foundation:   Daylight Basement
    Wall Framing:   2x6
    Roof Framing:   Truss
    Roof Pitch:  7:12
  • Width of House:  30'
    Depth of House:  68'
    Building Height:  19'9''
  • First Floor Ceiling Height:  9'
    Basement Ceiling Height:  9'

Key Features

  • Covered Front Porch
  • Eating Bar
  • First Floor Laundry
  • First Floor Master Suite
  • Formal Dining Room
  • Keeping/Family Room
  • Kitchen Island
  • Laundry 1st Floor
  • Loft/Balcony
  • Master Bath-Double Vanity Sink
  • Open Floor Plan
  • Patio
  • Powder Room
  • Private Master Bath
  • Second Floor Laundry
  • Utility Room
  • Walk-in Closet
  • Wall Pantry
