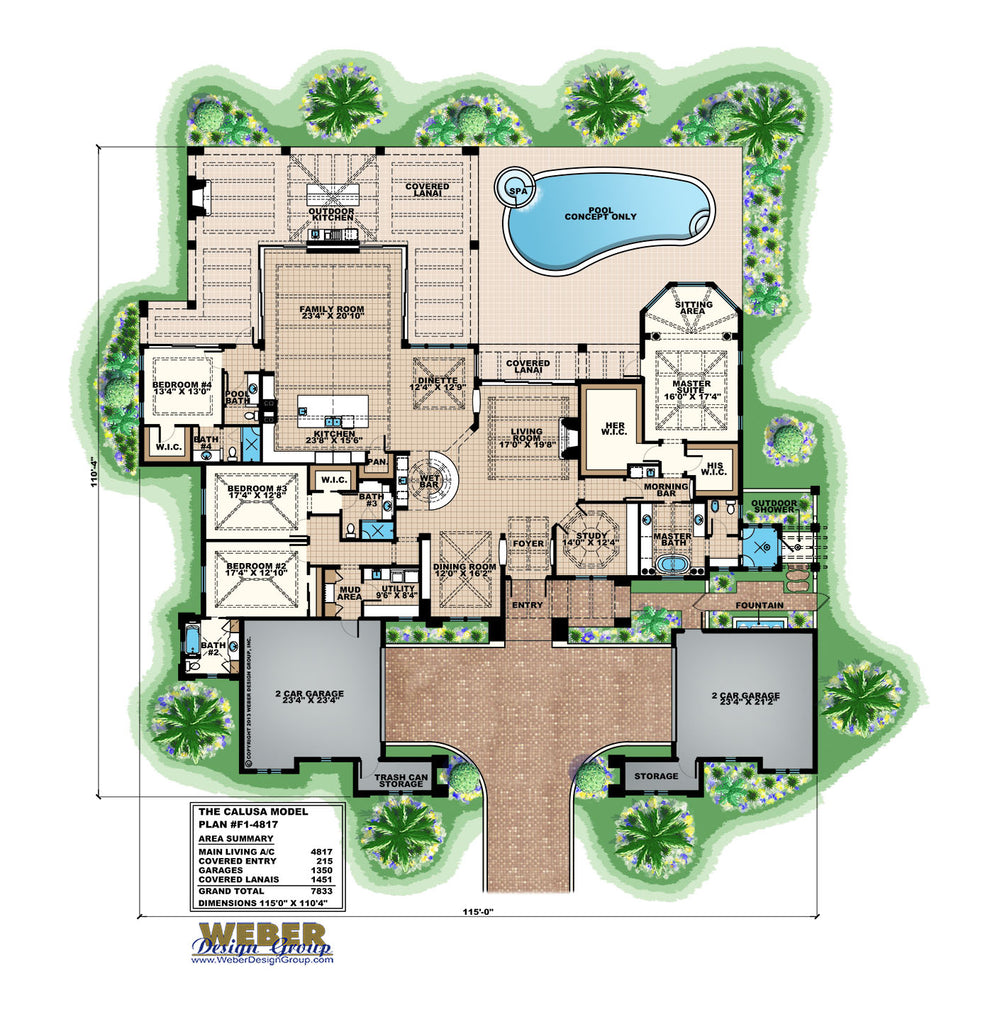

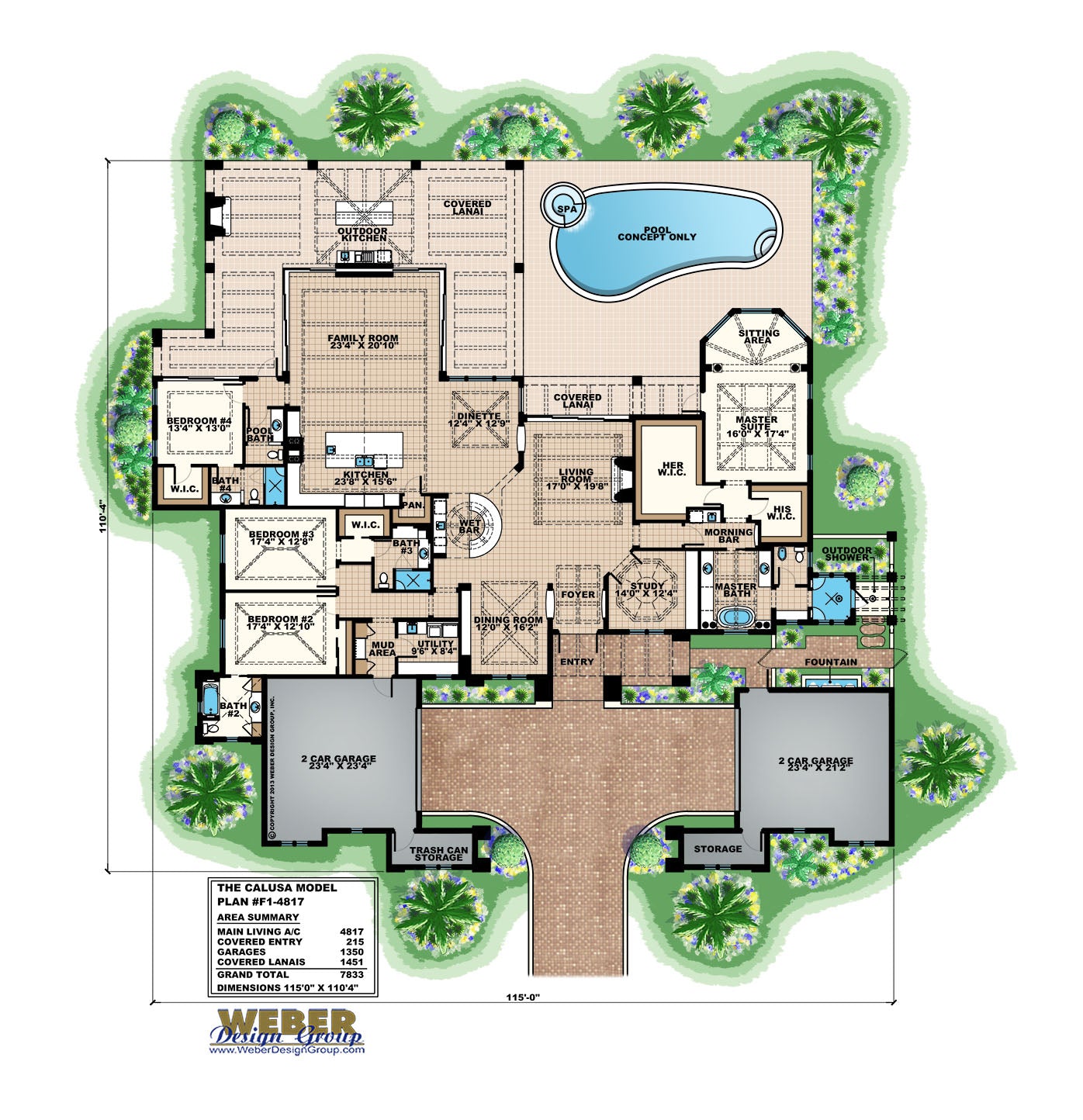

Step into this magnificent 4,817 sq. ft. home seamlessly blends luxury and functionality, offering an expansive living area ideal for families and entertaining. The first floor features an impressive open floor plan with a soaring ceiling height of 14 feet 8 inches, creating a bright and airy atmosphere. The great room, equipped with a cozy fireplace, flows effortlessly into the gourmet kitchen, which boasts an island and a butler’s pantry, perfect for culinary enthusiasts. A dedicated breakfast area and formal dining room provide versatile options for meals, while a mudroom and first-floor laundry enhance convenience.

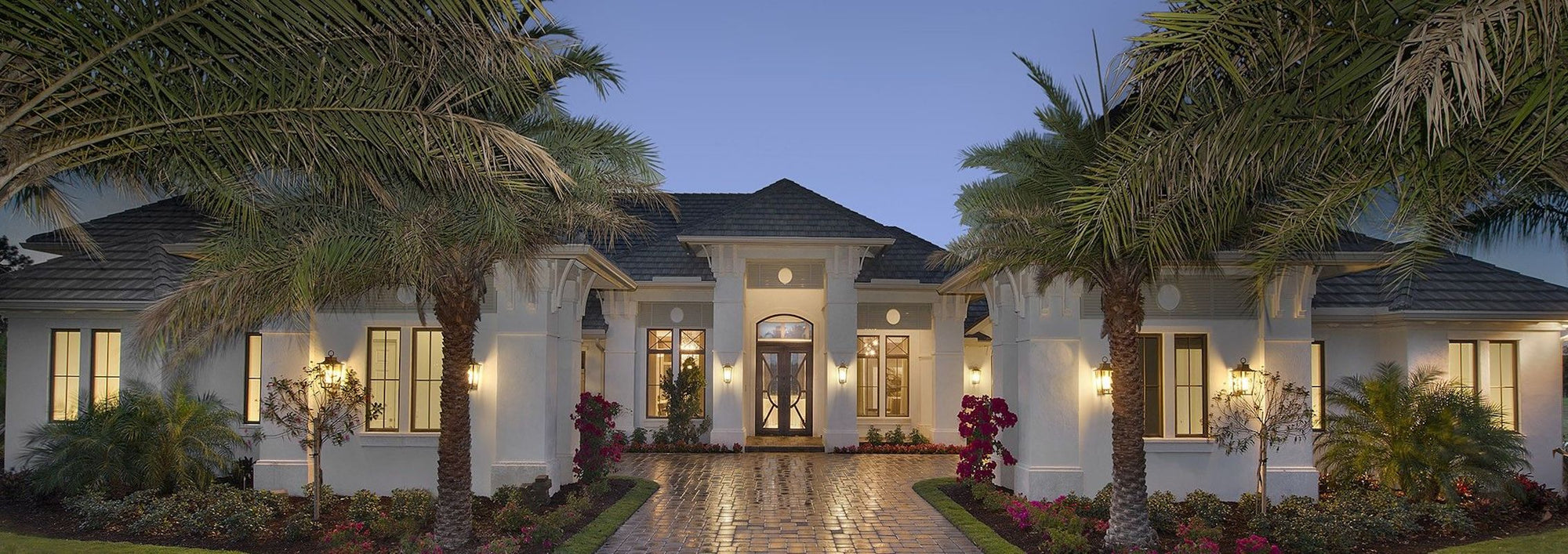

The first-floor owner's suite is a true retreat, featuring his and hers closets, a master bath with a double vanity sink, and a separate sitting area for relaxation. The split bedroom design offers privacy, with three additional bedrooms, each with ample walk-in closet space. A home office/study and a keeping/family room provide functional spaces for work and leisure. Outdoor living is maximized with a covered front porch, rear porch, and lanai, complete with an outdoor kitchen and fireplace, ideal for gatherings. The courtyard-load garage, spanning 1,350 sq. ft. with four bays, ensures ample space for vehicles and storage. Constructed on a slab foundation with durable CMU wall framing and finished with elegant stucco exterior siding, this home is both beautiful and built to last.
The construction drawings will include detailed, dimensioned floor plans, exterior elevations, roof plan, foundation plan, basic electrical layout, cross-section(s), foundation plan, and other general specifications. Some plans will include interior cabinet layouts.
View Sample Plan
Archival Designs brings you over 40 years of experience in the house plan design business. We offer the best value for your money by offering the highest quality home designs.
We offer a 10% military & first responder discount, as well as builder discounts for life! Archival Designs guarantees the lowest prices anywhere online. Learn more about our Best Price Guarantee.
All house plans sold by Archival Designs have been designed to comply with the International Residential Code (IRC) and to the local codes in the area where the designer resides or where the house was built.
All house plans are designed to meet or exceed the national building standards required by the International Residential Code (IRC). Due to differences in climate and geography throughout North America, every city, local municipality and county has unique building codes and regulations that must be followed to obtain a building permit. Prior to purchasing a set of house plans, we recommend that you meet with your local building officials in order to determine the building requirements for your area. It is the responsibility of the purchaser(s) and/or builder to ensure that the structure is constructed to meet the codes of their local area.
Important Note:
House plans do not come stamped or signed by an architect or engineer. Additionally, house plans typically will not include structural engineering notes/calculations. Please check with your local building officials to determine if a stamp is required. If required, the building department will only accept a stamp from a licensed professional in the state where the home will be built.
Depending on your city, county, and state building requirements, house plans may need to be reviewed by a local licensed architect or engineer for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Our foundation plans have been designed for universal conditions and may need to be adjusted to fit your specific site conditions. The foundation should be modified by a local structural engineer to comply with soil testing laboratory findings and local building requirements.
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.
